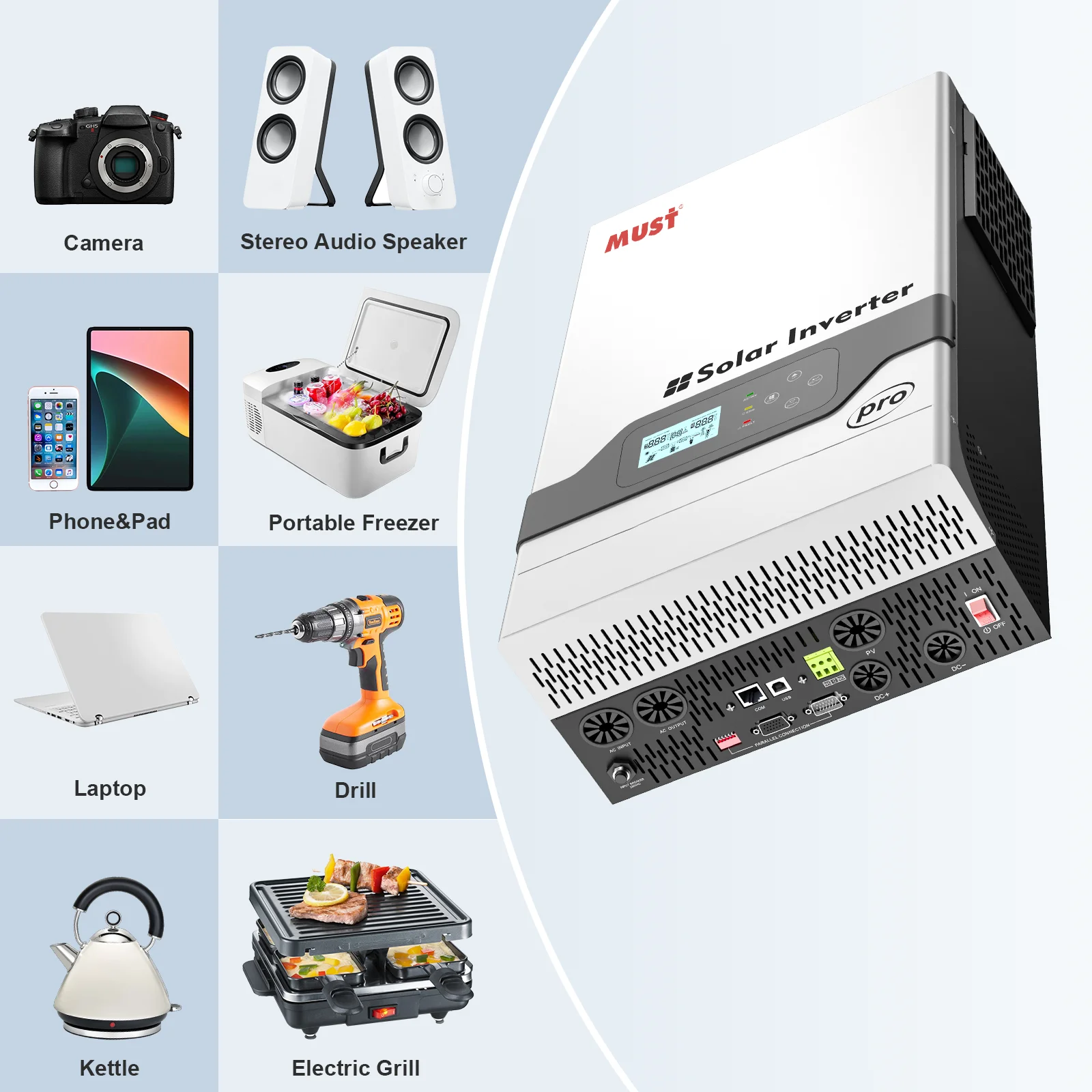

MUST hot sale pv1800pro 5.2 kw solar hybrid inverter gel battery lithium battery home inverter
- Category: >>>
- Supplier: Must Energy (guangdong) Tech Co. Ltd.
Share on (1601260487432):
Product Overview
Description

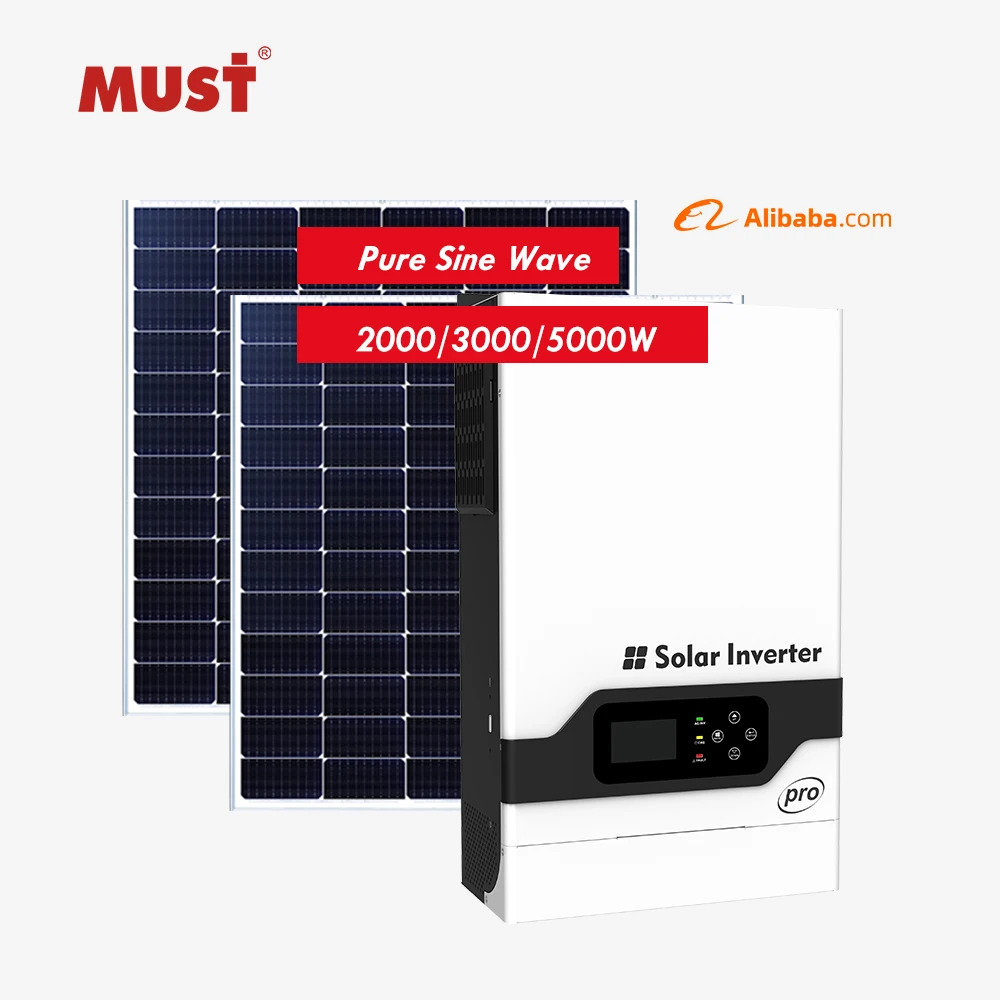

PV1800 Pro Pure Sine wave High Frequency solar Inverter (PV:450V 3000w /3500w/5200w/5500w)
Feel free to contact with Ms. Cristina:
Whatsapp: 0086 18327882014
Product Description
PV1800 PRO series (3KW, 5.2KW)

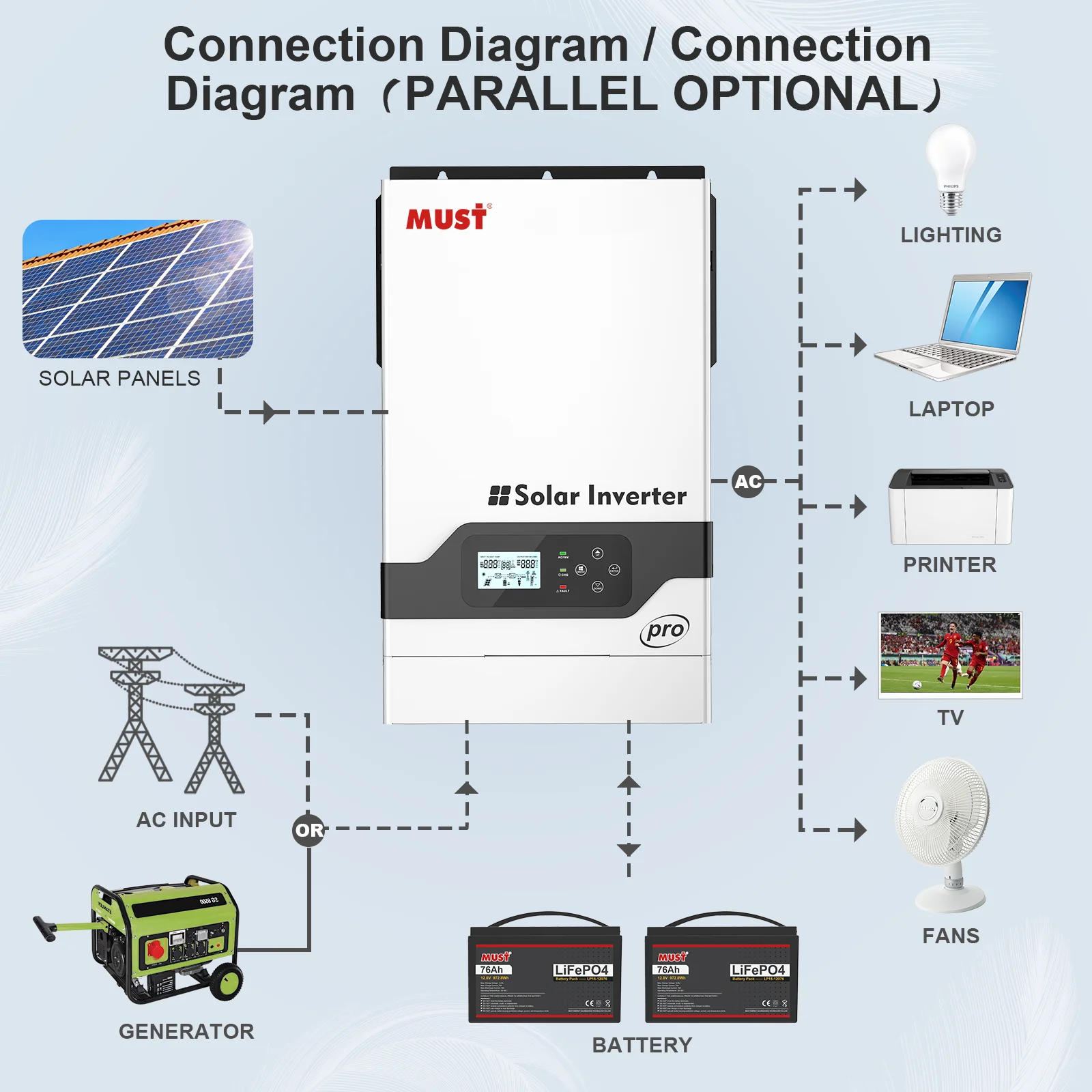

A multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and
MPPT voltageis 150~450V, which can help customers make full use of solar energy
MPPT voltageis 150~450V, which can help customers make full use of solar energy
Model | PV18-3524 PRO | PV18-5248 PRO | ||
Nominal Battery System Voltage | 24VDC | 48VDC | ||
INVERTER OUTPUT | ||||
Rated Power | 3500VA / 3500W | 5200VA / 5200W | ||
Surge Power | 7000W | 10400W | ||
Waveform | Pure sine wave | |||
AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |||
Inverter Efficiency(Peak) | 90%~93% | |||
Transfer Time | 10ms (UPS / VDE4105) 20ms (APL) | |||
AC INPUT | ||||
Voltage | 230VAC±5% | |||
Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) | |||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||
BATTERY | ||||
Normal voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27.4VDC | 54.8VDC | ||
Overcharge Protection | 30VDC | 60VDC | ||
SOLAR CHARGER & AC CHARGER | ||||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum PV current | 18A | |||
PV Array MPPT Voltage Range | 150~430 VDC | |||
Maximum Solar Charge Current | 100A | |||
Maximum AC Charge Current | 80A | |||
Maximum Charge Current | 100A | |||
MECHANICAL SPECIFICATIONS | ||||
Machine Dimensions (W*H*D)(mm) | 322*486*134 | 309*505*147 | ||
Package Dimensions (W*H*D)(mm) | 426*560*260.5 | 375*655*269 | ||
Net Weight(kg) | 10 | 14 | ||
Gross Weight(kg) | 11.5 | 16.4 | ||
OTHER | ||||
Humidity | 5% to 95% Relative humidity (Non-condensing) | |||
Operating Temperature | -10℃ ~50℃ | |||
Storage Temperature | -15℃ ~60℃ | |||
Packing & Delivery
cartons or according to clients' needs.
Pure Sine wave High Frequency solar Inverter(450V)
Package Dimensions : 393*488*251cm /10kg/3000w,
Pure Sine wave High Frequency solar Inverter(450V)
Package Dimensions : 393*488*251cm /10kg/3000w,
396*638*241cm /16kg/5200w,
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway, and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed by us.
2. Shipping: DHL, FEDEX, UPS, EMS, Airway, and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed by us.

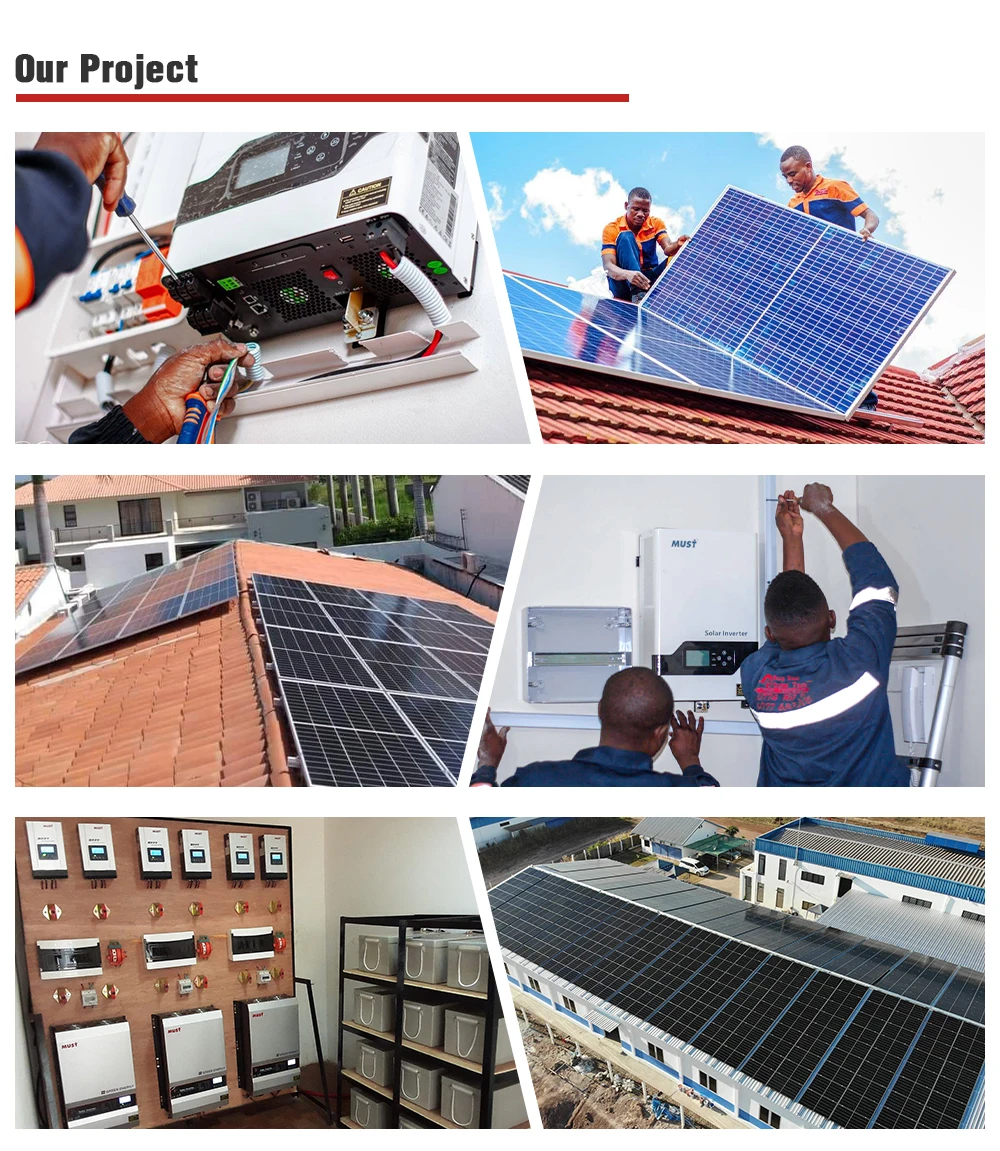

Our Project
Company Profile
Shenzhen Must Energy Technology Co., Ltd. is an innovative high technology manufacturer with ISO9001, specialized in R&D,manufacturing and marketing of photovoltaic (PV) inverters/solar inverter, Power Inverter, Solar charge controller, Solar battery,Online UPS, Line-interactive UPS, and some other related Solar products. Our innovative solutions for all photovoltaic applications and our unsurpassed service offer our customers worldwide greater independence in meeting their energy needs.

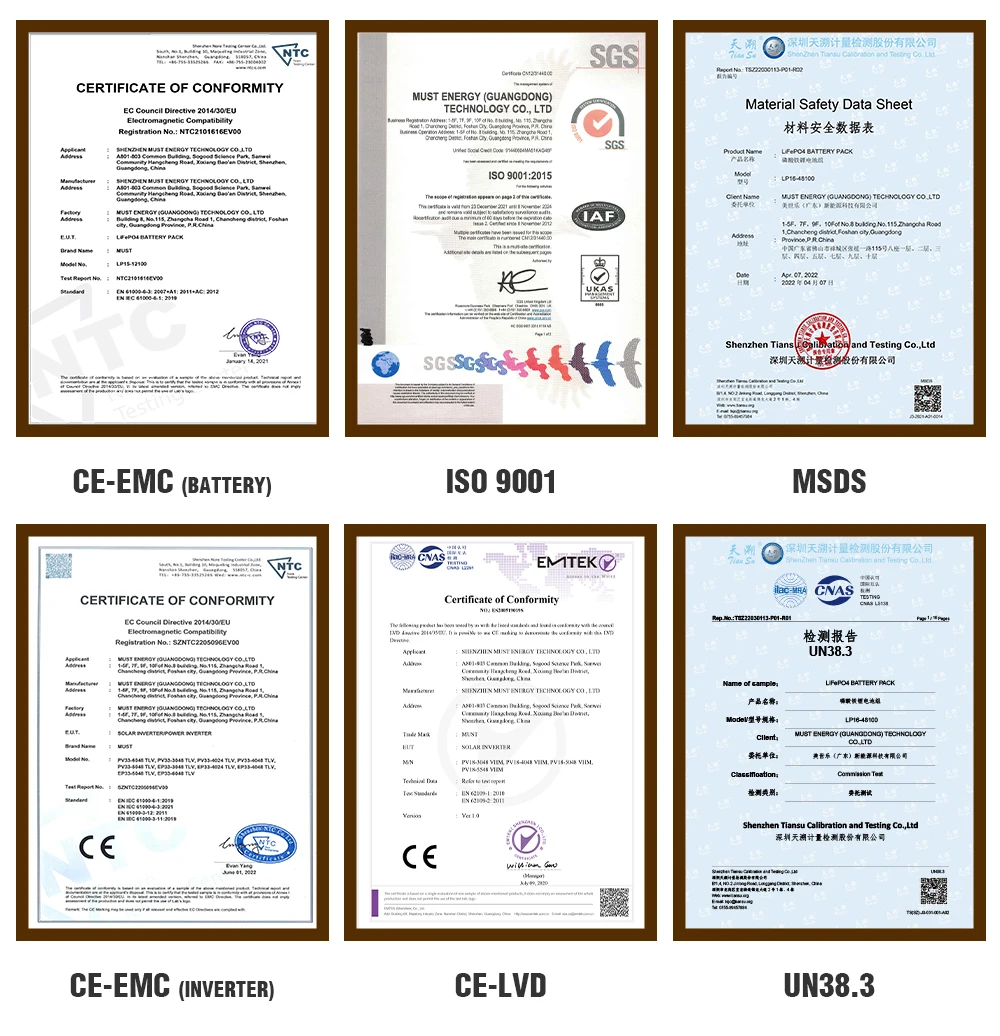

Must Energy established in 1998, with the headquarter in Hongkong. Must Energy products have kinds of certificates, such as SAA,CE, SONCAP, IEC60950 to meet different market standards. We are one of the authorized” High-Tech enterprises” by China Government.
Must Energy established in 1998, with the headquarter in Hongkong. Must Energy products have kinds of certificates, such as SAA,CE, SONCAP, IEC60950 to meet different market standards. We are one of the authorized” High-Tech enterprises” by China Government.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to South America(30.00%),Africa(30.00%),Eastern Europe(20.00%),Mid East(20.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
inverter,solar inverter,micro data certer,UPS backup power,solar controller
4. why should you buy from us not from other suppliers?
Shenzhen Must Energy Technology Co.,Ltd established in 1998, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2008,sell to South America(30.00%),Africa(30.00%),Eastern Europe(20.00%),Mid East(20.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
inverter,solar inverter,micro data certer,UPS backup power,solar controller
4. why should you buy from us not from other suppliers?
Shenzhen Must Energy Technology Co.,Ltd established in 1998, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
