13 25KW R32 Inverter Wifi Swimming Pool Water Heater Heat Pump For Outdoor And Indoor Pompe De Chaleur De Piscine
- Category: >>>
- Supplier: Guangdong Shunde O.S.B. Environmental Technology Co. Ltd.
Share on (1601260499012):
Product Overview
Description
Product Description

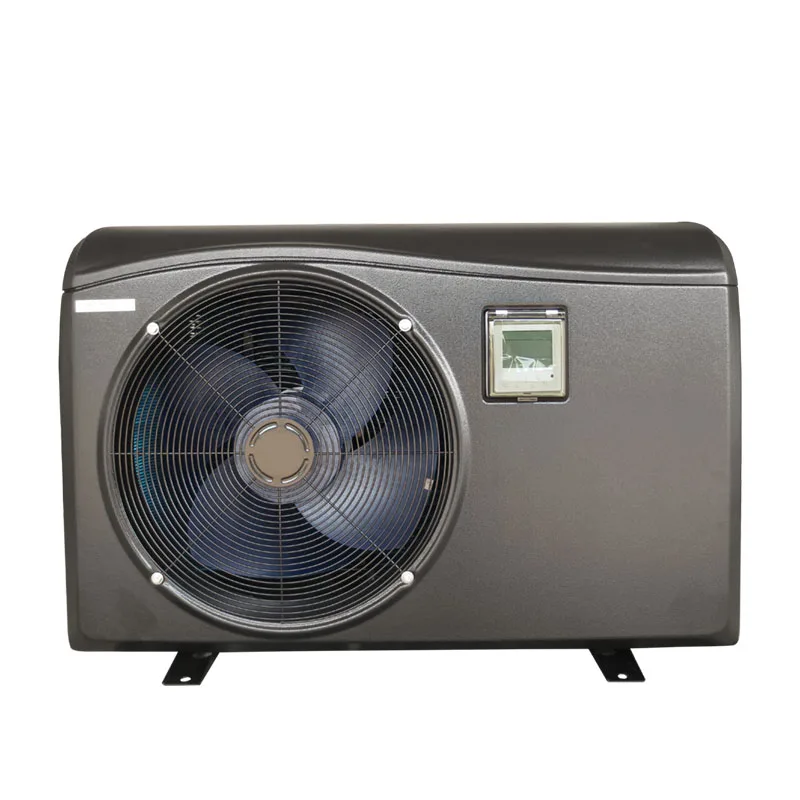

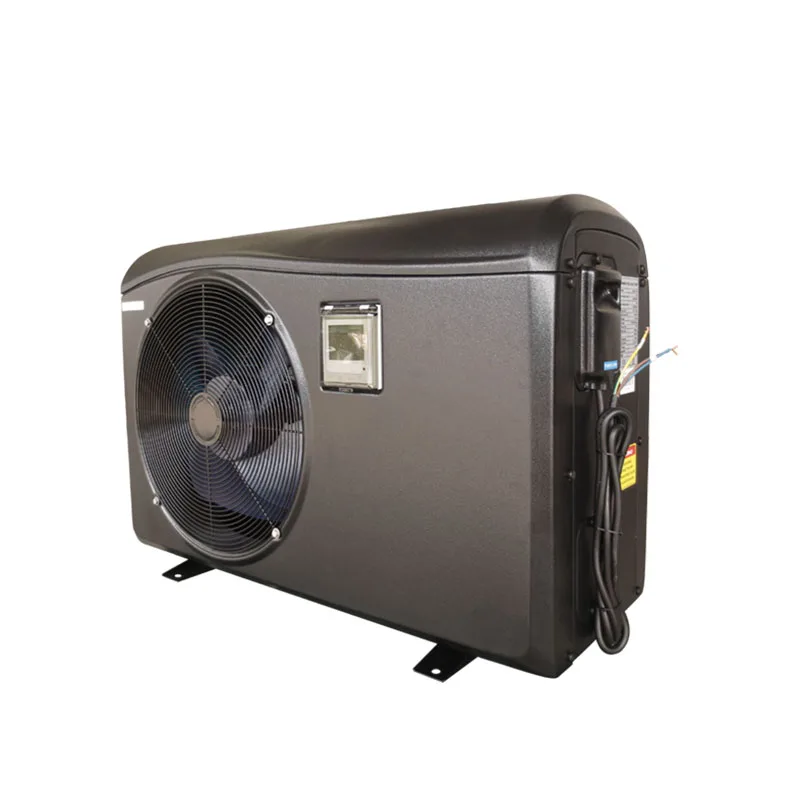

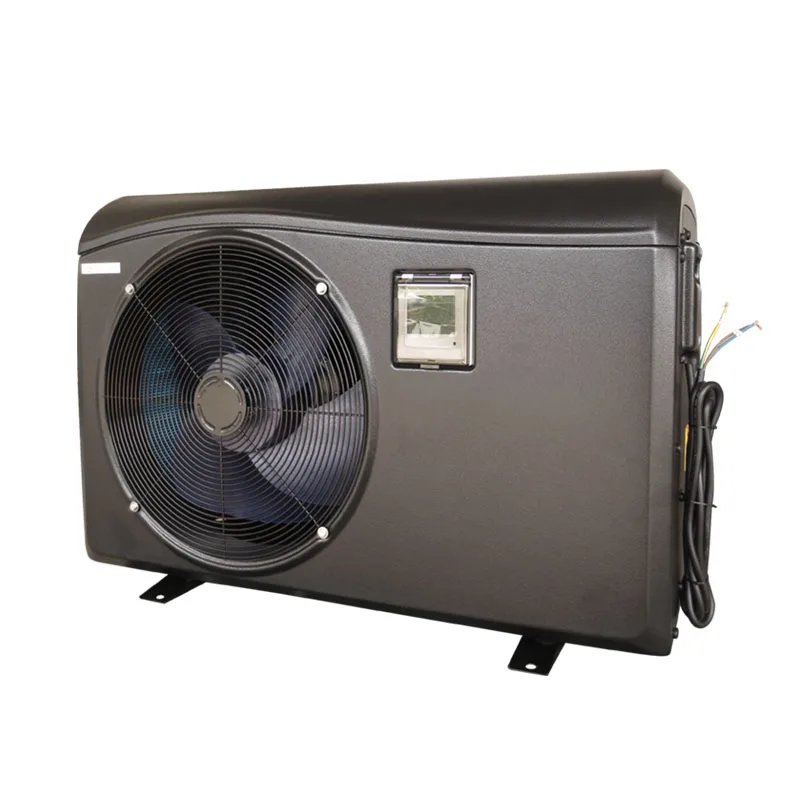

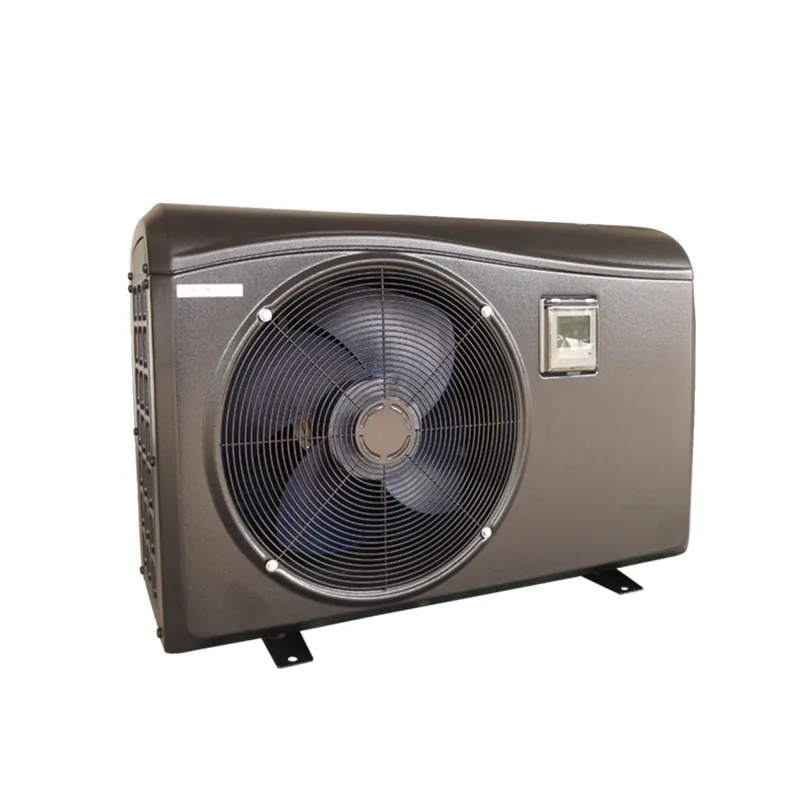

13-25KW R32 Inverter Wifi Swimming Pool Water Heater Heat Pump for outdoor and indoor
1.Trouble free of rusting for plastic casing, customized different color optional. Suitable for coastal area.
2. Use titanium heat exchanger in PVC shell. Corrosion resistance, ensure long service life.
3.Insufficient water flow protection & high/low pressure protection.
4.Auto defrosting protection, ensure reliably running at cold ambient temperature.
5.Both water heating & cooling. Suitable for spa/ pool use.
6.Adjustable temp difference of 1 to 5 °C.
7.Pallet packing for easy container loading.
8. Widely choose for heating capacity.
9. OEM design optional.
| Model | BS15-025S-f | BS15-030S-f | BS15-038S-f | BS15-045S-f | BS15-065S-f | |
| Heating capacity | KW | 9.9 | 13.3 | 16.3 | 18.9 | 21.0 |
| COP | W/W | 5.5 | 5.4 | 5.6 | 5.8 | 5.6 |
| Operating range-Air | °C | -7~+43 | ||||
| Water flow volume | m3/h | 3.6-5.4 | 4-6 | 4.5-6 | 5.3-8 | 6-9 |
| Input power heating | W | 1800 | 2460 | 2910 | 3260 | 3750 |
| Running current heating | A | 8.5 | 11.6 | 14.1 | 15 | 17.8 |
| Max current heating | A | 11.5 | 15.5 | 16.8 | 20.8 | 23.5 |
| Heat exchanger | Titanium in PVC | |||||
| Fan direction | Rotary | Scroll | ||||
| Noise level | dB(A) | Horizontal | ||||
| Water connections | mm | 50 | ||||
| Gross weight | KG | 66 | 82 | 89 | 119 | 122 |
| Power supply | V/Ph/Hz | 220~240/1/50 | ||||
Product details
Why choose DC?
Product Description
R32 MINI Swimming Pool Water Heater Heat Pump
| Model | BRS15-006S | |
| Refrigerant type | r32 | |
| Heating capacity | KW | 2.63 |
| COP | W/W | 4.4 |
| Rate input power | W | 600 |
| Running current heating | A | 2.9 |
| Operating range-Air | °C | +15~35 |
| Input power of fan | W | 58 |
| Heat exchanger | Titanium in PVC | |
| Compressor | LAMDA Rotary | |
| Fan direction | Horizontal | |
| Fan rotate speed | RPM | 2400 |
| Noise | dB(A) | 45 |
| Water connections | mm | 30 |
| Advised water flow | m³/h | 0.7~1.1 |
| Water pressure drop | Kpa | 12 |
| Net dimension | mm | 300*360*360 |
| Packing dimension | mm | 360*390*380 |
| Net weight | KG | 19 |
| Gross weight | KG | 20 |
| Power supply | V/Ph/Hz | 220~240/1/50 |
Related Products
Company Information
The heat pump products we have been manufacturing and supplying to Europe, South Africa and Asia are well accepted by the market and we have achieved more success by passing EN 14511, EN16147, EN14825 etc energy efficiency test , as well as our self developed IOT wifi control function that applicable in almost all of our air to water heat pump products.
We compete, we innovate, we welcome you to john us and be partner with us to make the best products!
