Gyopo 8.2KW Pure Sine Solar Power Inverter Hybrid Solar Inverter for Home use
- Category: >>>
- Supplier: Wuhan Guanyou New Energy Technology Co. Ltd.
Share on (1601260616227):
Product Overview
Description

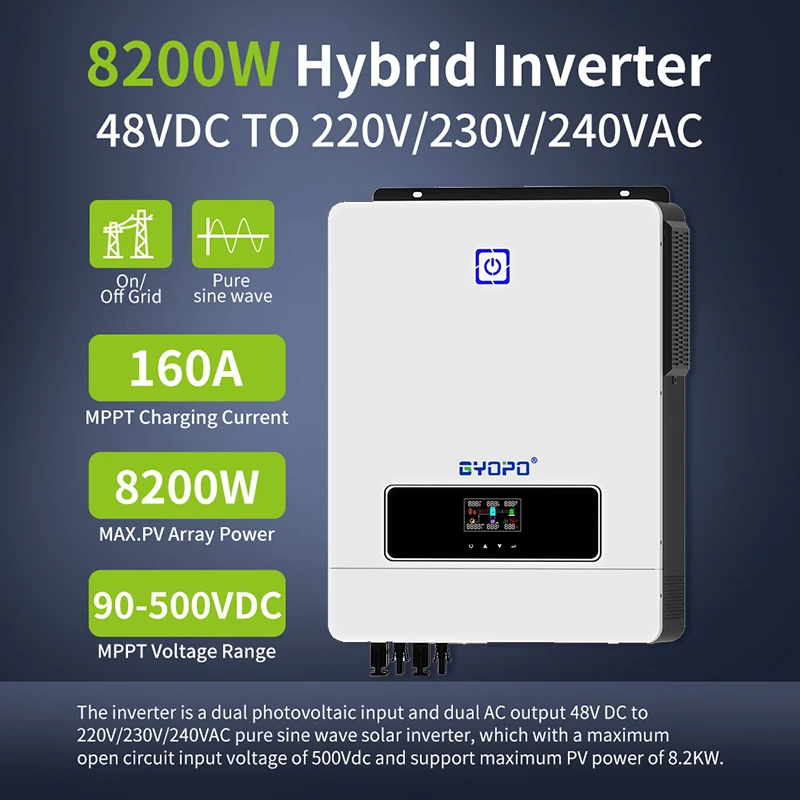

Gyopo 8.2KW 10.2KW Pure Sine Wave Solar Inverters On Off Grid Invertor 48V Hybrid Solar Inverter with Dual MPPT

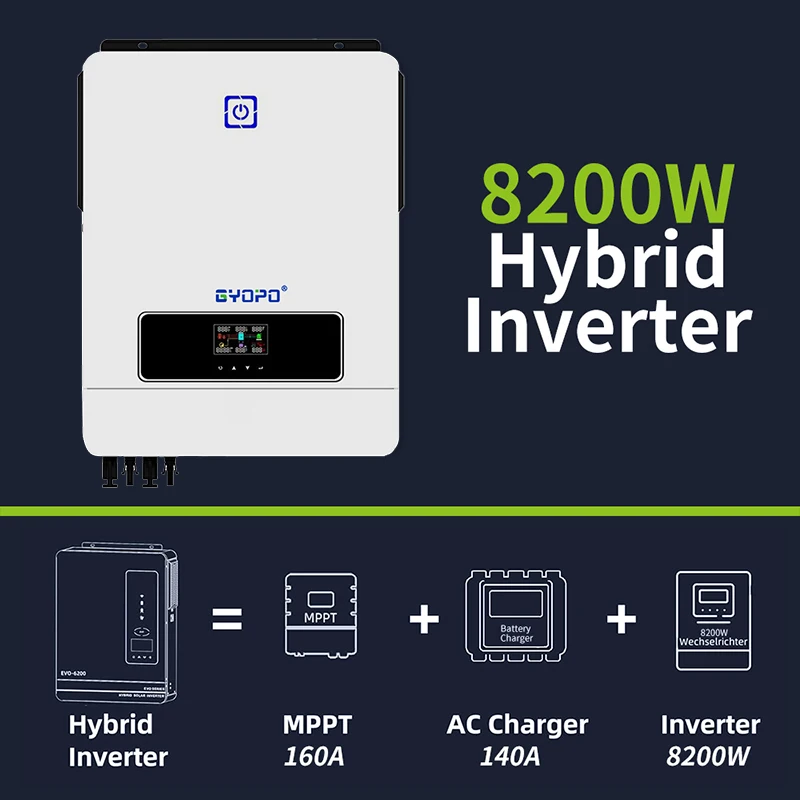

8 kW MAX Series Hybrid Inverter intelligently combines the functions of a 8 kW pure sine wave inverter, 160A MPPT solar charge controller with two independent inputs and an extremely powerful 140A smart battery charger in one single unit. This model can accept input from solar panels, mains power/ generator and a battery - either from a single or combination of input sources. In addition to its unique hybrid capability, this innovative inverter features advanced communication functions, along with a menu full of highly customizable settings.

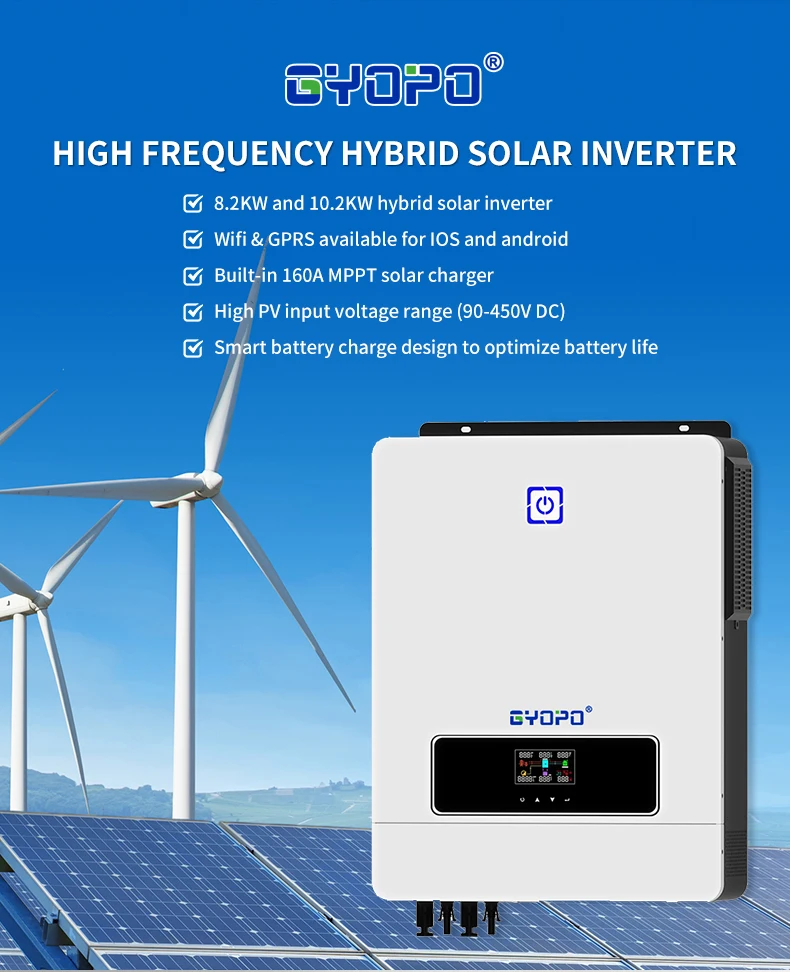

Inverter Features
1. Pure sine wave solar inverter
2. Output power factor 1.0
3. WiFi & GPRS available for IOS and Android
4. Inverter can run without battery
5. One-key restoration to factory settings
6. Built-in Lithium battery automatic activation
7. Built-in 160A dual MPPT solar charge
8. AC output voltage 220/230/240VAC
9. High PV input voltage range(90-500VDC)
10. Built-in anti-dust kit for harsh environment
11. Smart battery charge design to optimize battery life
12. Dual output dual MPPT dual PV input
2. Output power factor 1.0
3. WiFi & GPRS available for IOS and Android
4. Inverter can run without battery
5. One-key restoration to factory settings
6. Built-in Lithium battery automatic activation
7. Built-in 160A dual MPPT solar charge
8. AC output voltage 220/230/240VAC
9. High PV input voltage range(90-500VDC)
10. Built-in anti-dust kit for harsh environment
11. Smart battery charge design to optimize battery life
12. Dual output dual MPPT dual PV input
Model | OHP-MAX-8.2KW-48V | OHP-MAX-10.2KW-48V | |
Phase | 1-phase | ||
Maximum PV Input Power | 5400W+5400W | ||
Rated Ouput Power | 8200W/8200VA | 10200W/10200VA | |
Maximum Solar Charging Current | 160A | ||
GRID-TIE OPERATION | |||
PV INPUT(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
MPPT Voltage Range | 90-450VDC | ||
Maximum Input Current | 2/18A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195-253VAC | ||
Nominal Output Current | 35.6A | 44.3A | |
Power Factor | ＞0.99 | ||
Maximum Conversion Efficiency | 98% | ||
TWO LOAD OUTPUT POWER | |||
Full Load | 8200W | 10200W | |
Maximum Main Load | 8200W | 10200W | |
Maximum Second Load(battery mode) | 2733W | 3400W | |
Maximum Load Cut Off Voltage | 52VDC | ||
Maximum Load Return Voltage | 54VDC | ||
OFF GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
Frequency Range | 59-61±1Hz | ||
Maximum AC Input Current | 48.2A | 60A | |
PV INPUT(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
MPPT Voltage Range | 90-450VDC | ||
Maximum Input Current | 2/18A | ||
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure Sine Wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY & CHARGER | |||
Nominal DC Voltage | 48VDC | ||
Maximum Solar Charging Current | 160A | ||
Maximum AC Charging Current | 140A | ||
Maximum Solar+AC Charging Current | 160A | ||
HYBRID OPERATION | |||
PV INPUT(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
MPPT Voltage Range | 90-450VDC | ||
Maximum Input Current | 2/18A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195-253VAC | ||
Nominal Output Current | 35.6A | 44.3A | |
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
Maximum AC Input Current | 48.2A | 60A | |
Maximum AC Charging Current | 140A | ||
PHYSICAL | |||
Dimension,D*WH(mm) | 530*390*130 | ||
Package Dimension,D*W*H(mm) | 618*463*205 | ||
Net Weight(kgs) | 14.2 | 14.7 | |
Gross Weight(kgs) | 15.7 | 16.2 | |
Communication interface | RS232/RS485/GPRS/WIFI/LITHIUM BATTERY | ||
Humidity | 5%——95% Relative Humidity(Non-condensing) | ||
Operating Temperature | -10℃——50℃ | ||
Compliance Safety | CE | ||

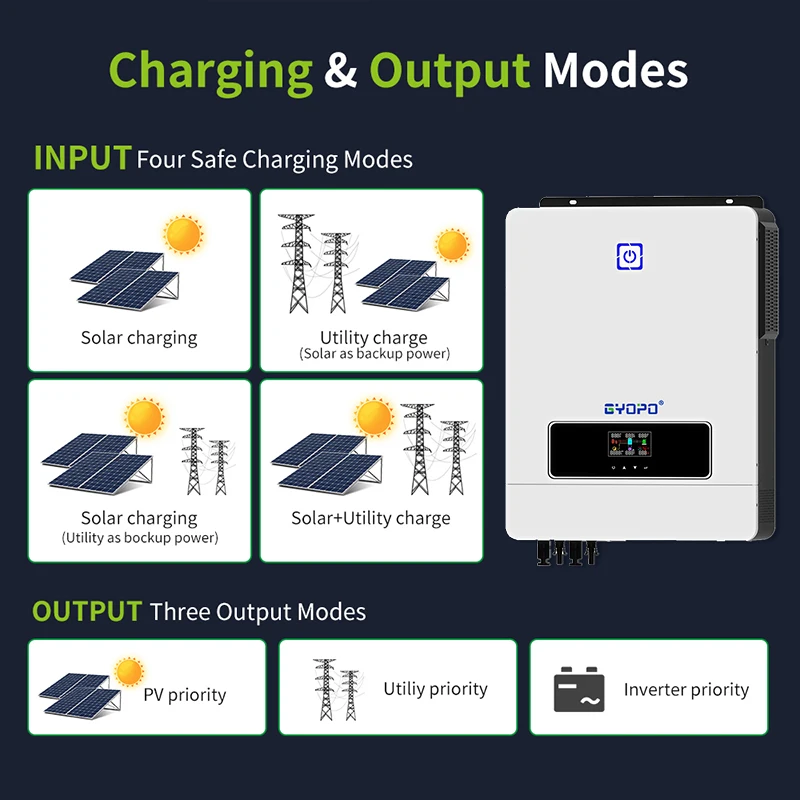

4 working modes+3 load output working modes
Battery Four Charging Mode:
CSO: Solar energy will charge battery as priority. Utility will charge battery only when solar energy is not available.
CUB: Utility will charge battery as priority. Solar energy will charge battery only when utility power is not available.
SNU (Default): Solar energy and utility will charge battery at the same time.
OSO: Solar energy will be the only charging source even if utility is available.
Three Load Working Mode:
SOL: Solar energy provides power to the loads as priority, then Battery, then Utility AC power.
UTI(Default): Utility will provide power to the loads as priority, then Solar and Battery power.
SBU: Battery power load first, then Utility.
CAUTION! Before connecting to AC input power source, please install a separate AC breaker between inverter and AC input power source.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input.
Battery Four Charging Mode:
CSO: Solar energy will charge battery as priority. Utility will charge battery only when solar energy is not available.
CUB: Utility will charge battery as priority. Solar energy will charge battery only when utility power is not available.
SNU (Default): Solar energy and utility will charge battery at the same time.
OSO: Solar energy will be the only charging source even if utility is available.
Three Load Working Mode:
SOL: Solar energy provides power to the loads as priority, then Battery, then Utility AC power.
UTI(Default): Utility will provide power to the loads as priority, then Solar and Battery power.
SBU: Battery power load first, then Utility.
CAUTION! Before connecting to AC input power source, please install a separate AC breaker between inverter and AC input power source.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input.
FAQ
1. Who are we?
We are based in Wuhan, China, started in 2012, sell to America(25.00%), Europe(25.00%), Africa (15.00%), Mid East(15.00%), Asia(10.00%), Domestic Market(10.00%). There are about 200 people in our company.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Pure sine inverter, hybrid inverter,micro-inverter, solar charge controller;
4. Why should you buy from us not from other suppliers?
12 years of experience in the power inverter industry
20 Professional engineering teams
Specialization enhances quality
Three-year warranty and lifetime technical service
Products have passed CE, RoHS, and ISO9001:2000 Quality System Certificates.
5. What services can we provide?
Accepted Delivery Terms: FOB, EXW;
Accepted Payment Currency: USD, HKD, CNY;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
Tips: There are many low-cost solar inverters assembled in small unlicensed workshops, to reduce costs and use of substandard components for assembly, there is a huge security risk! To protect personal and property safety, please do not covet low prices, be sure to choose a reliable inverter!
We are based in Wuhan, China, started in 2012, sell to America(25.00%), Europe(25.00%), Africa (15.00%), Mid East(15.00%), Asia(10.00%), Domestic Market(10.00%). There are about 200 people in our company.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Pure sine inverter, hybrid inverter,micro-inverter, solar charge controller;
4. Why should you buy from us not from other suppliers?
12 years of experience in the power inverter industry
20 Professional engineering teams
Specialization enhances quality
Three-year warranty and lifetime technical service
Products have passed CE, RoHS, and ISO9001:2000 Quality System Certificates.
5. What services can we provide?
Accepted Delivery Terms: FOB, EXW;
Accepted Payment Currency: USD, HKD, CNY;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
Tips: There are many low-cost solar inverters assembled in small unlicensed workshops, to reduce costs and use of substandard components for assembly, there is a huge security risk! To protect personal and property safety, please do not covet low prices, be sure to choose a reliable inverter!
