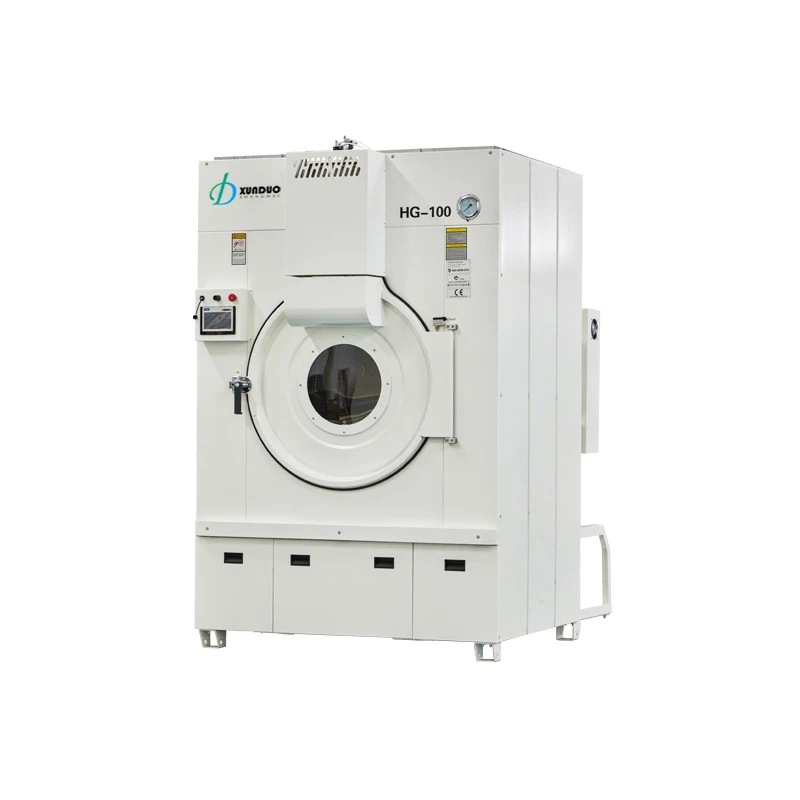

XUNDUO Industrial 50KG Gas Clothes Tumble Dryer Machine for Laundry
- Category: >>>
- Supplier: Shanghai Xunduo Imoton Industrial Co. Ltd.
Share on (1601260632885):
Product Overview
Description
Product Overview
FULLY AUTOMATIC DRYING MACHINE
1. Optimal design of cooling fan, with the best heat dissipation, wind speed.
2. Multiple air inlets and dampers optional. High efficiency heat-exchanger, long service life.
3. Drawer type Large lint collector, collect fluff easily and quickly.
4. Large door, easy loading and unloading, opens 180°, option:left or right opening optional.
5. Fully automatic computer control, temperature and time adjustable, over-temperature protection device.
6. Electric, steam or gas heating type optional
2. Multiple air inlets and dampers optional. High efficiency heat-exchanger, long service life.
3. Drawer type Large lint collector, collect fluff easily and quickly.
4. Large door, easy loading and unloading, opens 180°, option:left or right opening optional.
5. Fully automatic computer control, temperature and time adjustable, over-temperature protection device.
6. Electric, steam or gas heating type optional

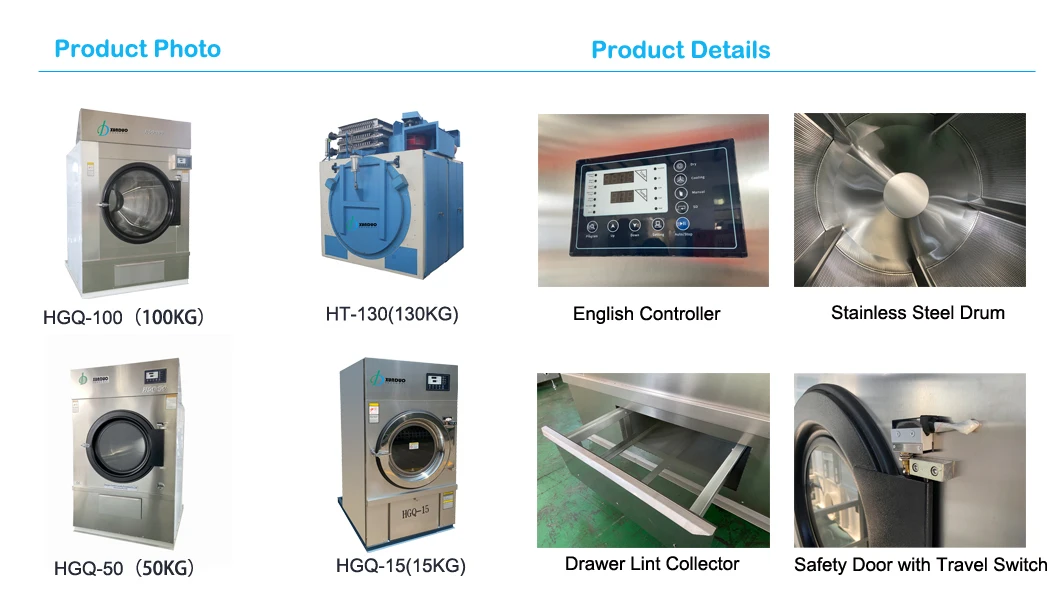

FEATURES AT A GLANCE
1.Stainless steel drum, prevent the pollution of corrosion to fabric.
2.High effeciency heat-exchanger,long service life.
3.Large plush collection network, collect fluff easily and quickly.
4.Large door, easy loading and unloading, opens 180°, option:left or right opening.
5.Optimal design of cooling fan, with the best heat dissipation, wind speed.
6.Fully automatic computer control the temperature, temperature control devices, over-temperature protection device.
7.Heating type: electricity, steam, natural gas or coal.
2.High effeciency heat-exchanger,long service life.
3.Large plush collection network, collect fluff easily and quickly.
4.Large door, easy loading and unloading, opens 180°, option:left or right opening.
5.Optimal design of cooling fan, with the best heat dissipation, wind speed.
6.Fully automatic computer control the temperature, temperature control devices, over-temperature protection device.
7.Heating type: electricity, steam, natural gas or coal.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS

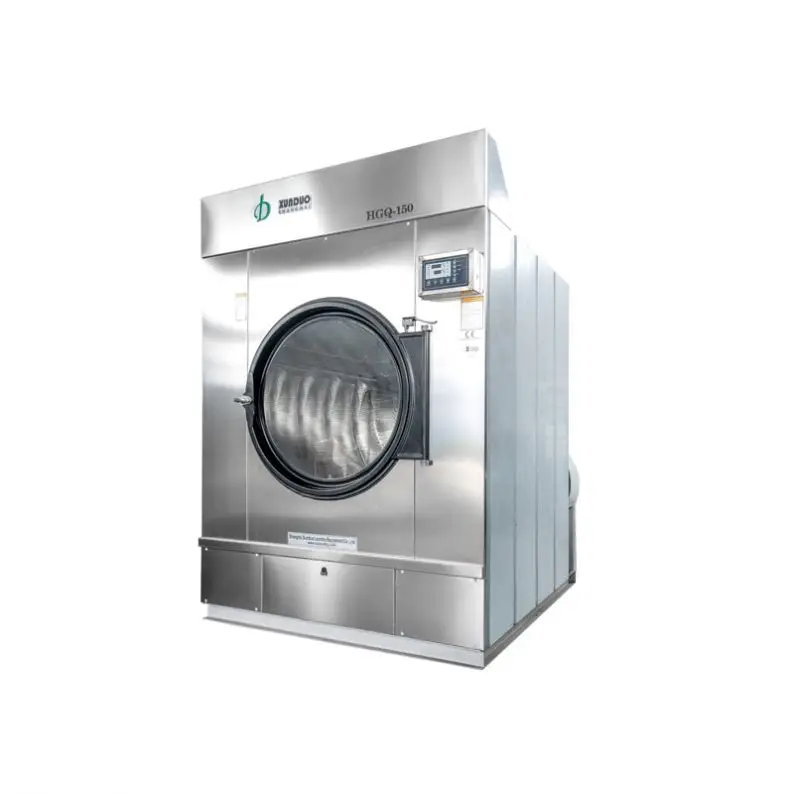

Model | HGQ-10 | HGQ-15 | HGQ-25 | HGQ-35 | HGQ-50 | HGQ-70 | HGQ-100 | HGQ-150 |
Capacity(kg) | 10 | 15 | 25 | 35 | 50 | 70 | 100 | 150 |
Rolling Container Dimension(mm) | Φ700x500 | Φ760x650 | Φ960x650 | Φ960x1000 | Φ1200x870 | Φ1280x890 | Φ1500x1100 | Φ1600x1350 |
Motor Power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 | 4 |
Fan Power(kw) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5*2 | 2.2*2 |
Heating Power(kw) | 8 | 14 | 20 | 32 | 35.2 | 44 | 50 | 51 |
Rated Voltage(V) | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 |
Steam Pressure(Mpa) | / | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Consumes of Steam(kg) | / | 40-50 | 50-60 | 60-70 | 70-80 | 80-100 | 120-150 | 190-230 |
Gas Pressure(Mpa) | / | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 |
Gas Consumption(kg/h) | / | 1.5 | 2 | 2.5 | 3.5 | 4.5 | 6 | 9.5 |
Dimension(L.W.H) (mm) | 800*1000*1300 | 840*1200*1620 | 1060*1150*1950 | 1180*1360*2050 | 1310*1460*2200 | 1410*1510*2300 | 1560*2050*2320 | 1820*2350*2560 |
N.W.(kg) | 260 | 320 | 400 | 450 | 550 | 600 | 1000 | 1300 |
Successful Project
Project in Thailand
Project in Malaysia
Project in Vietnam
