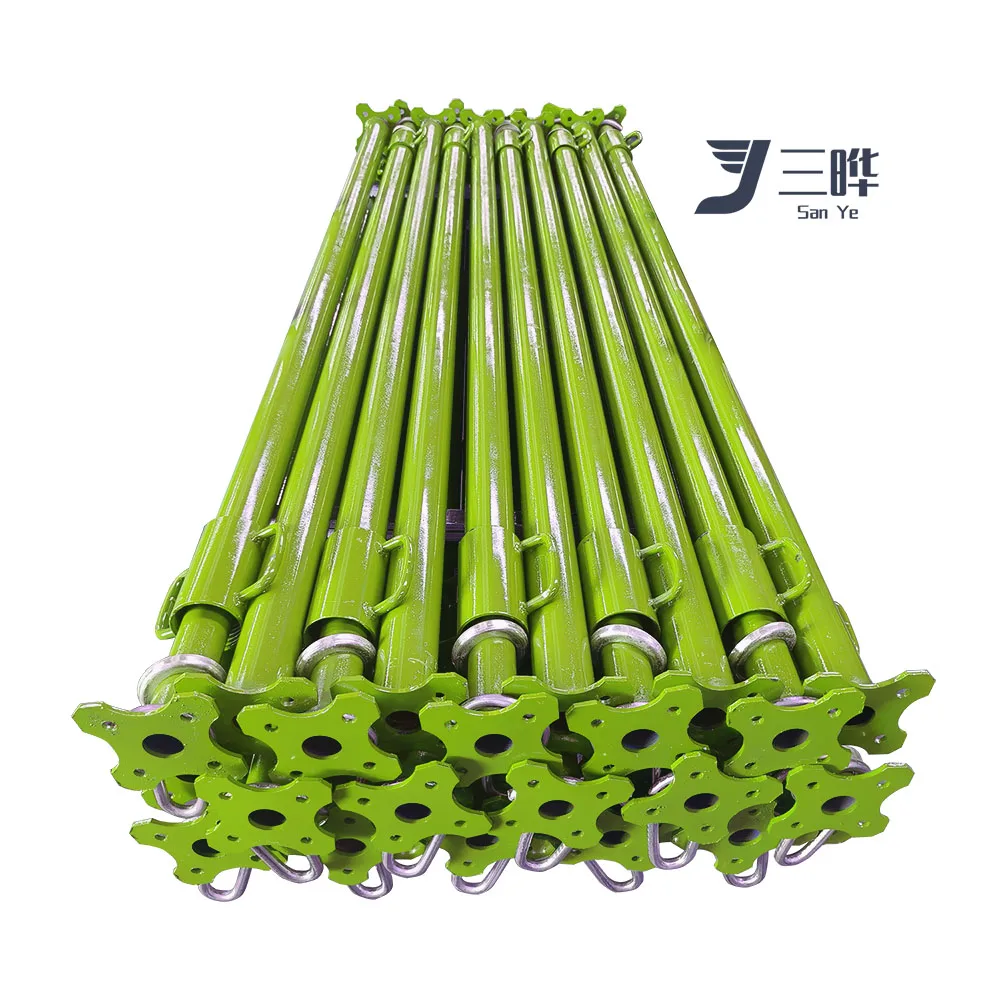

SANYE Powder Coated Shoring Jacks Acrow Adjustable Scaffolding Steel Metal Props For Construction
- Category: >>>
- Supplier: Hebei Sanye Metal Products Co. Ltd.
Share on (1601260776830):
Product Overview
Description
Construction Scaffolding & Formwork Galvanized Steel Props
Product Description

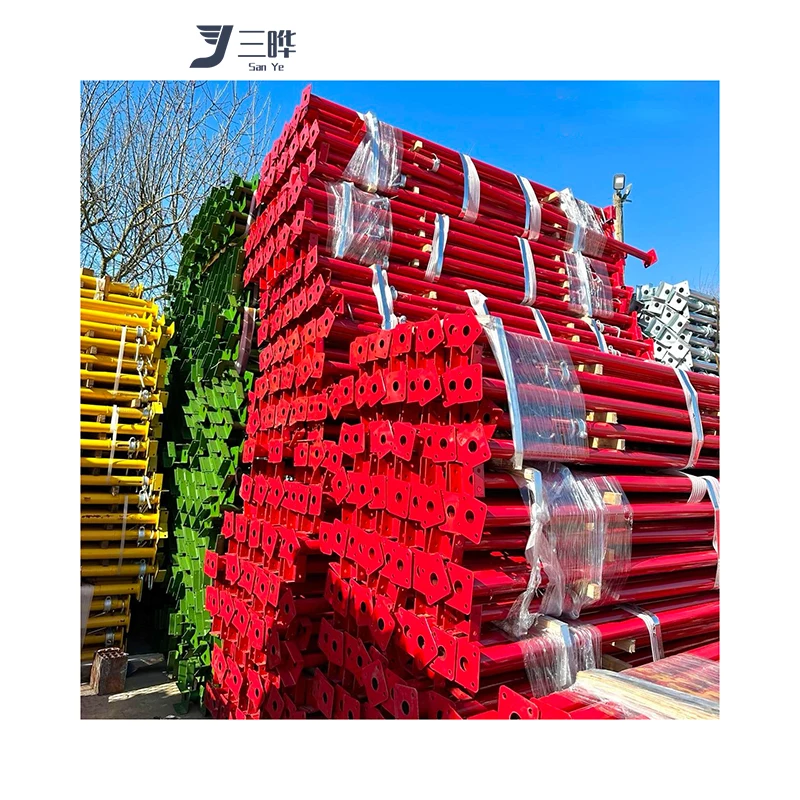

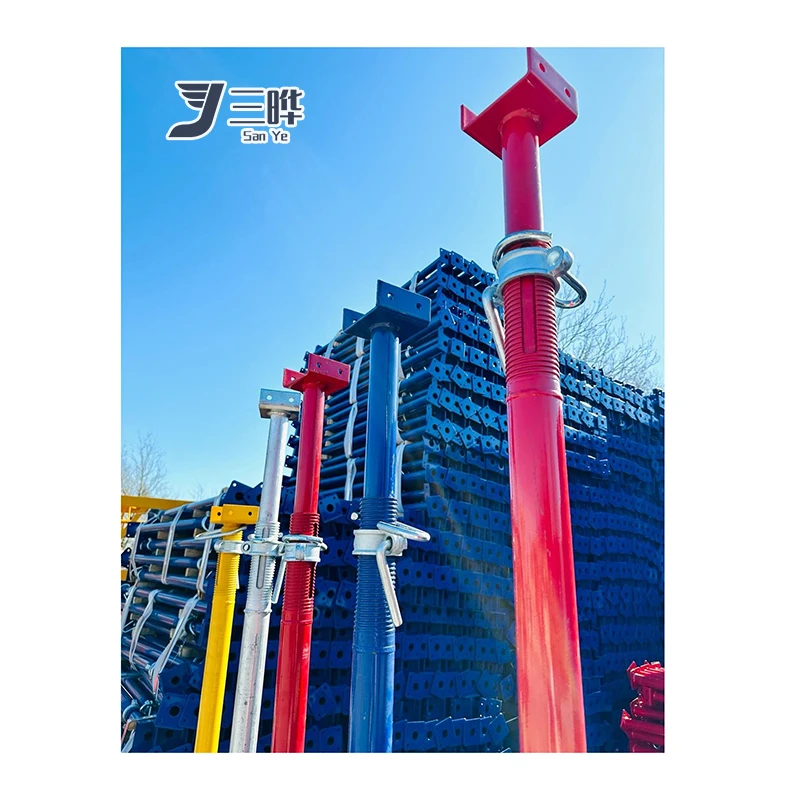

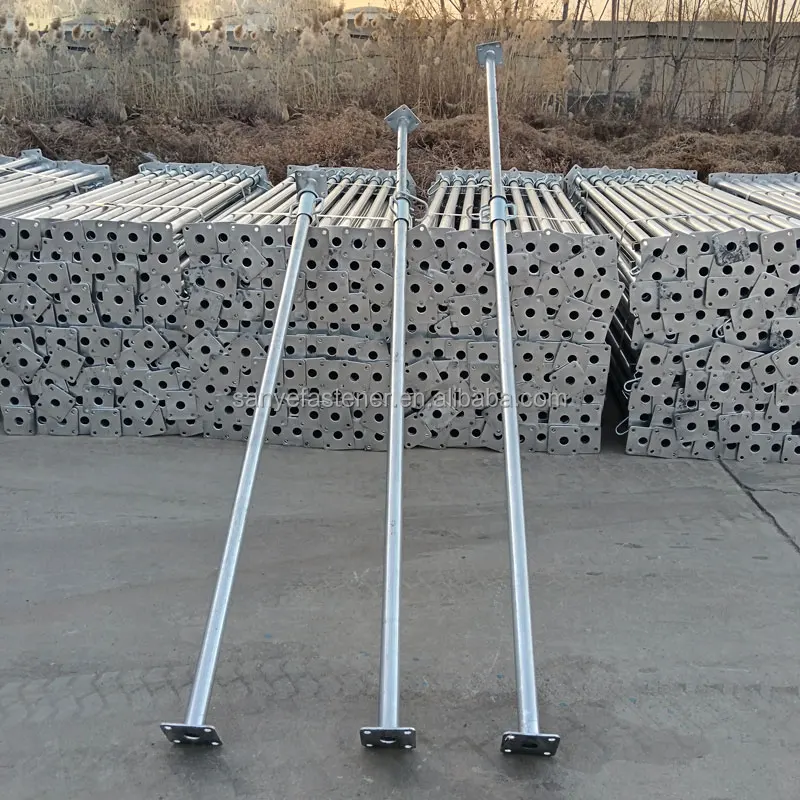

Hebei Sanye Metal Products Co., Ltd. specializes in the production of steel props, which are commonly used to support concrete formwork, erect scaffolding, and provide temporary support.

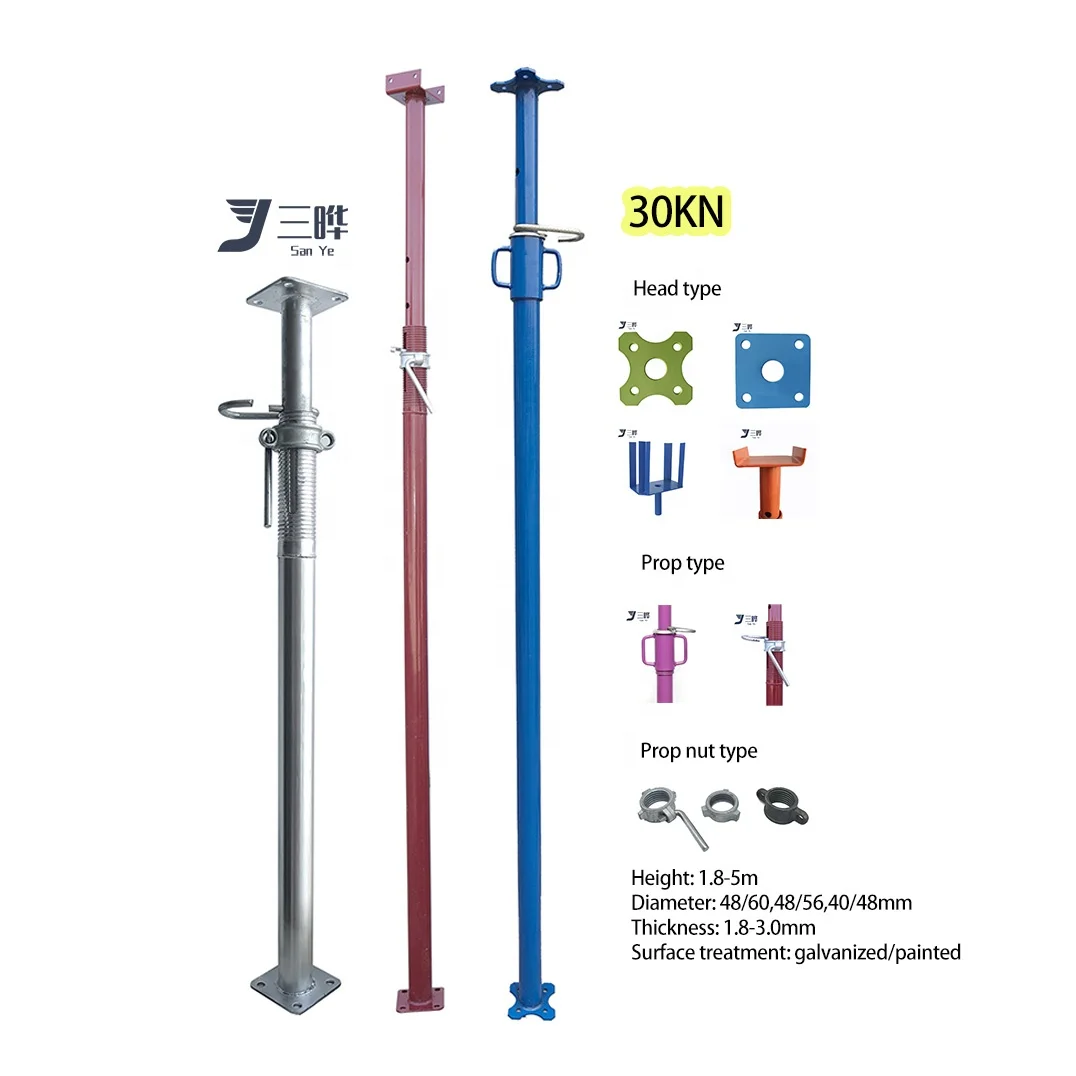

Steel prop including Middle Eastern Style, Italian Style, Spanish Style, and supporting custom heights.
Steel props are typically made of Q195， Spray or galvanized finish to enhance corrosion resistance and increase service life.
Our company will provide you with high-quality products and thoughtful service. looking forward to long-term cooperation with you!
Steel prop including Middle Eastern Style, Italian Style, Spanish Style, and supporting custom heights.
Steel props are typically made of Q195， Spray or galvanized finish to enhance corrosion resistance and increase service life.
Our company will provide you with high-quality products and thoughtful service. looking forward to long-term cooperation with you!
Middle East Type Prop | ||||||||
Adjustable Height (mm) | Inner Tube OD (mm) | Outer Tube OD (mm) | Thickness (mm) | Surface Treatment | ||||
1800-3200 | 48 | 60 | 2/3.0/3.5 | Powder Coated/ Electric galvanized/Painted/Hot dip galvanizing | ||||
2000-3500 | 48 | 60 | 2/3.0/3.5 | |||||
2200-4000 | 48 | 60 | 2/3.0/3.5 | |||||
2800-5000 | 48 | 60 | 2/3.0/3.5 | |||||
Italian Type Prop | ||||||||
Adjustable Height (mm) | Inner Tube OD (mm) | Outer Tube OD (mm) | Thickness (mm) | Surface Treatment | ||||
1600-2900 | 48 | 56 | 2/3.0/3.5 | Powder Coated/ Electric galvanized/Painted/Hot dip galvanizing | ||||
1800-3200 | 48 | 56 | 2/3.0/3.5 | |||||
2000-3600 | 48 | 56 | 2/3.0/3.5 | |||||
2200-4000 | 48 | 56 | 2/3.0/3.5 | |||||
Spanish Type Prop | ||||||||
Adjustable Height (mm) | Inner Tube OD (mm) | Outer Tube OD (mm) | Thickness (mm) | Surface Treatment | ||||
1600-2900 | 40 | 48 | 2/3.0/3.5 | Powder Coated/ Electric galvanized/Painted/Hot dip galvanizing | ||||
1800-3200 | 40 | 48 | 2/3.0/3.5 | |||||
2000-3500 | 40 | 48 | 2/3.0/3.5 | |||||
2200-4000 | 40 | 48 | 2/3.0/3.5 | |||||
Manufacture Process
Step 1，
CUTTING — Steel pipes (both external and internal) are then cut to size with a +/-1 mm tolerance. Cutting is done using automatic cutting machines: a bundle of pipes is placed on the loader which selects one pipe at a time. It is then loaded on a positioning device and cut precisely at the desired height. Lastly, the pipe is unloaded into a container for the subsequent step.
CUTTING — Steel pipes (both external and internal) are then cut to size with a +/-1 mm tolerance. Cutting is done using automatic cutting machines: a bundle of pipes is placed on the loader which selects one pipe at a time. It is then loaded on a positioning device and cut precisely at the desired height. Lastly, the pipe is unloaded into a container for the subsequent step.
Step 2,
DRILLING — Then there follows the drilling step, which is carried out depending on the type of pipe. Due to the new technologies, the drilling is quick, precise and burr-free.
DRILLING — Then there follows the drilling step, which is carried out depending on the type of pipe. Due to the new technologies, the drilling is quick, precise and burr-free.
Step 3,
WELDING — External pipes proceed to the welding step, where - suitably positioned - they are assembled with the base plate and the end is threaded . Once drilled, the internal pipes undergo the same welding process but concerning the plate only.
WELDING — External pipes proceed to the welding step, where - suitably positioned - they are assembled with the base plate and the end is threaded . Once drilled, the internal pipes undergo the same welding process but concerning the plate only.
Step 4,
COATING AND GALVANISING — Once welded, the props can be: dip coated, cold-dip galvanised (electrolytically), for a more durable protection with respect to dip coating and for better aesthetic quality, or hot dip galvanised for a basically permanent protection, suitable for all environments and withstanding external atmospheric agents.
COATING AND GALVANISING — Once welded, the props can be: dip coated, cold-dip galvanised (electrolytically), for a more durable protection with respect to dip coating and for better aesthetic quality, or hot dip galvanised for a basically permanent protection, suitable for all environments and withstanding external atmospheric agents.
Step 5,
FINISH — Depending on the product, next come the completion steps including: mounting an outer sleeve on the covered threading or a forged steel ring nut.
FINISH — Depending on the product, next come the completion steps including: mounting an outer sleeve on the covered threading or a forged steel ring nut.
Step 6,
CUSTOMISATION — Customised products are available upon request: for example with a ring nut bearing the customer’s colours, or the customisation of the prop using stickers bearing the customer’s logo.
CUSTOMISATION — Customised products are available upon request: for example with a ring nut bearing the customer’s colours, or the customisation of the prop using stickers bearing the customer’s logo.
Step 7,

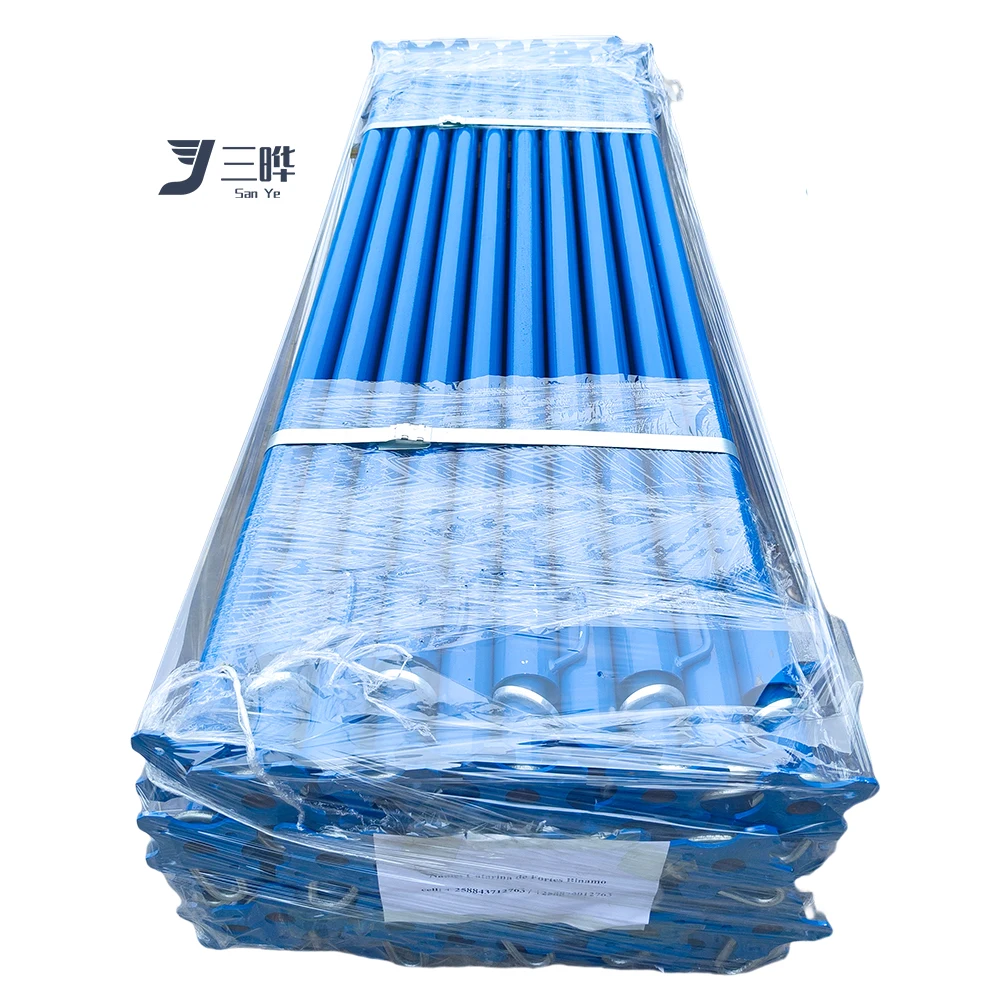

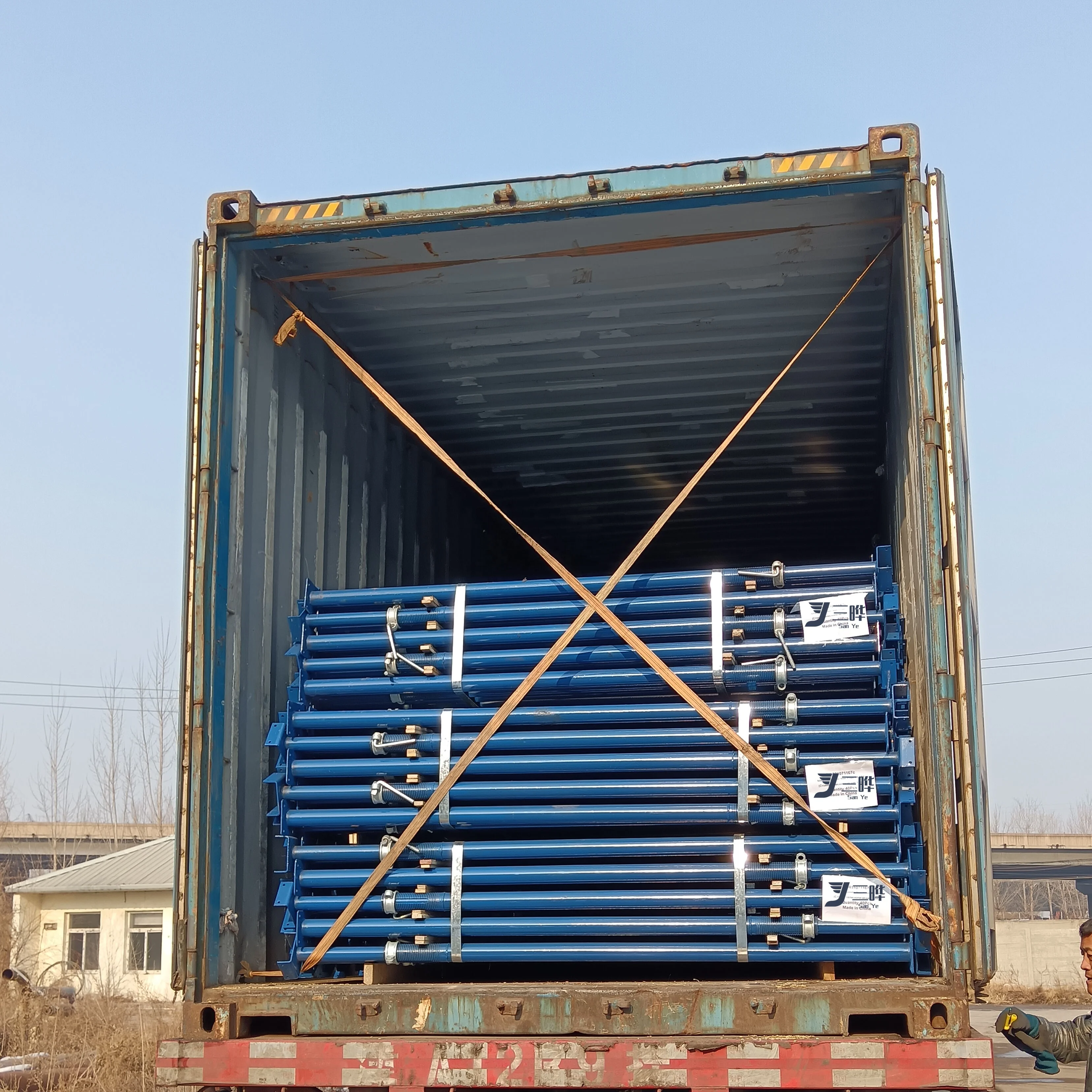

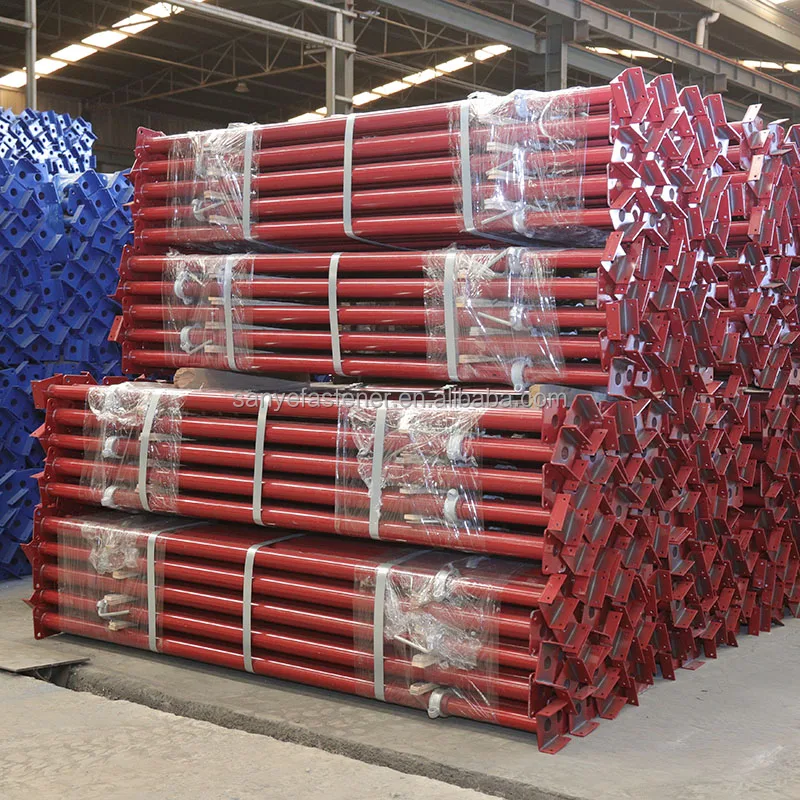

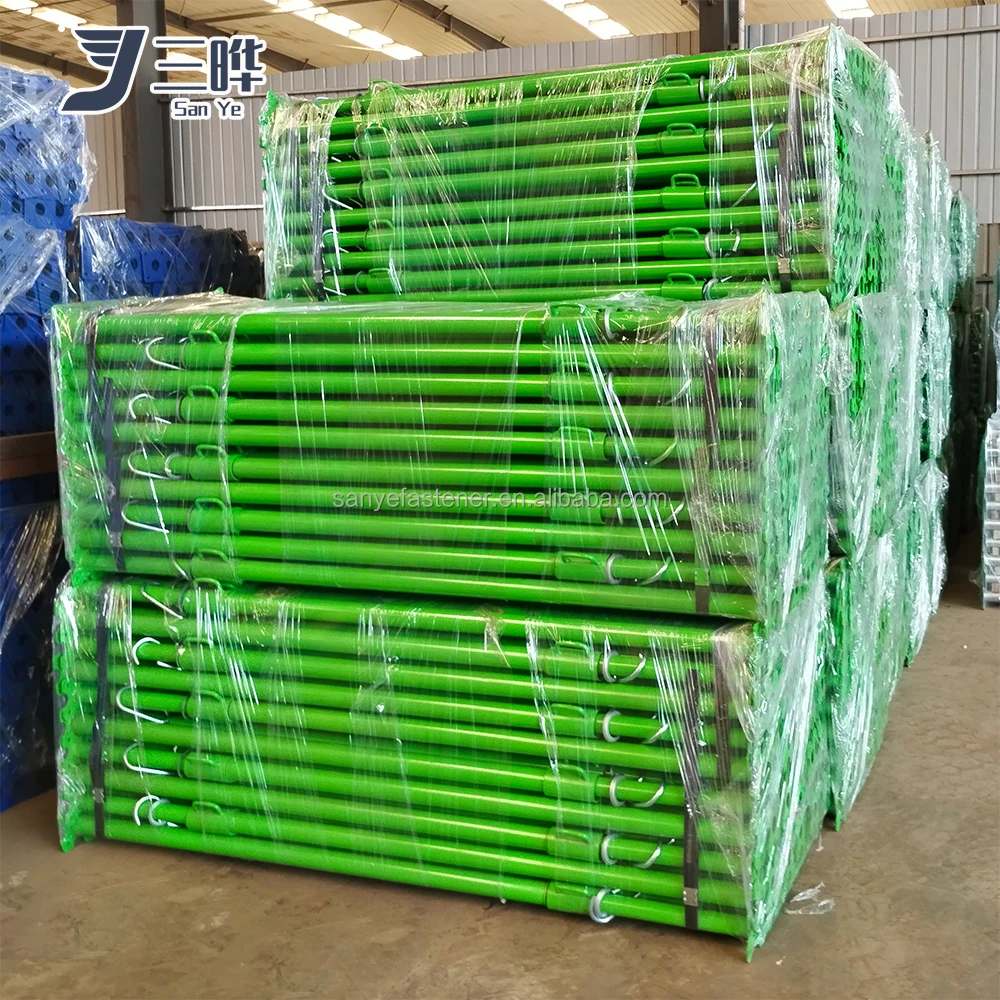

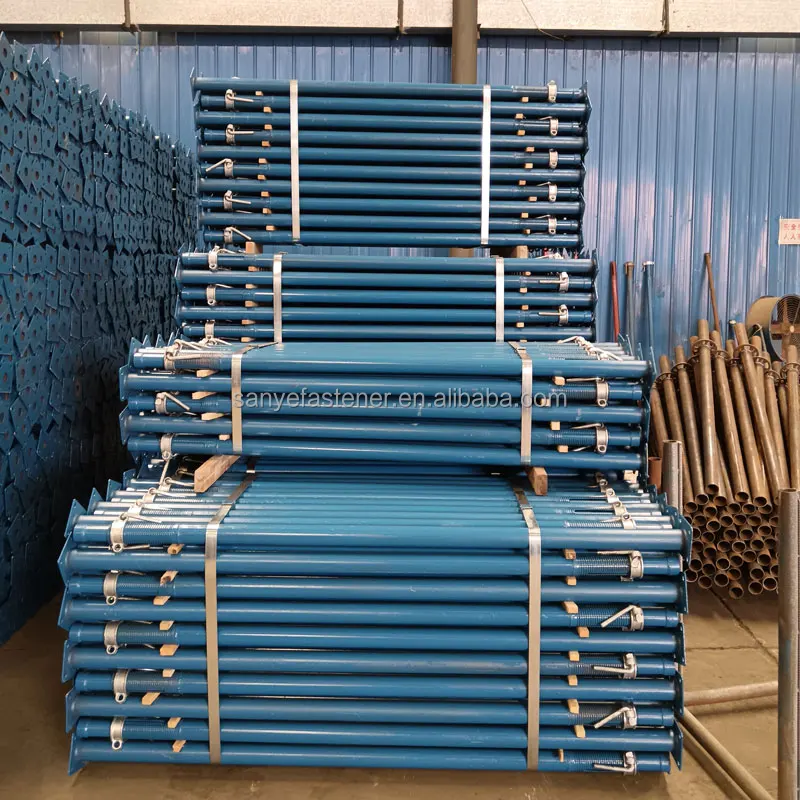

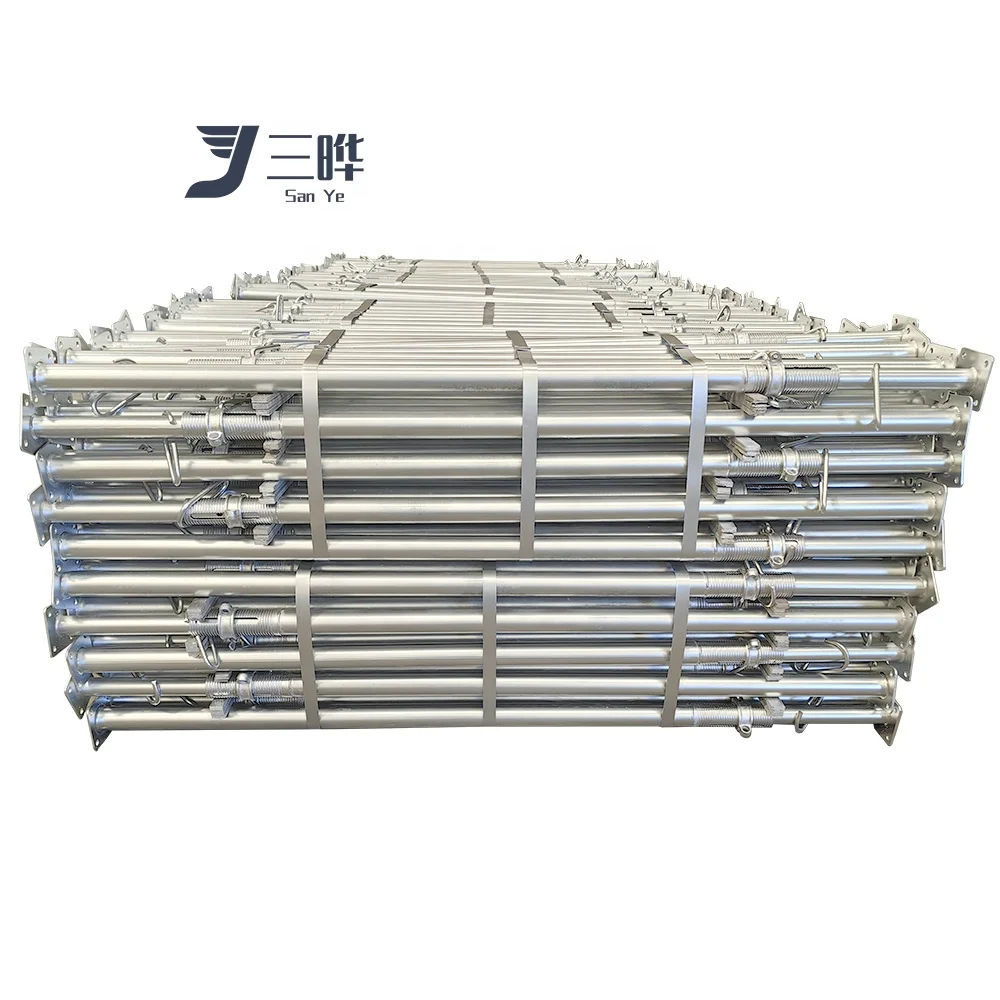

PACKAGING AND SHIPMENT — Once concluded with machining, we proceed to the packaging step. Packages usually come with 40 pieces, strapped. The material is then loaded into a truck or container and shipped.
PACKAGING AND SHIPMENT — Once concluded with machining, we proceed to the packaging step. Packages usually come with 40 pieces, strapped. The material is then loaded into a truck or container and shipped.
Recommend Products
Packing & Delivery
Ton bag, wooden pallet,wooden case,iron pallet;
Customized according to customer requirements.
Customized according to customer requirements.
Our Advantages
1. Quality: Strictly control the quality through three levels. The first level is the quality test on the production line. The
second level is the quality test during warehousing. Third level, quality test before loading.
second level is the quality test during warehousing. Third level, quality test before loading.
2. Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.
3. Veracity: Strictly follow the customer standard to ensure the tolerance range and meet the customer's requirements.
4. Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5. Longevity: Establish good long-term relationships with customers.

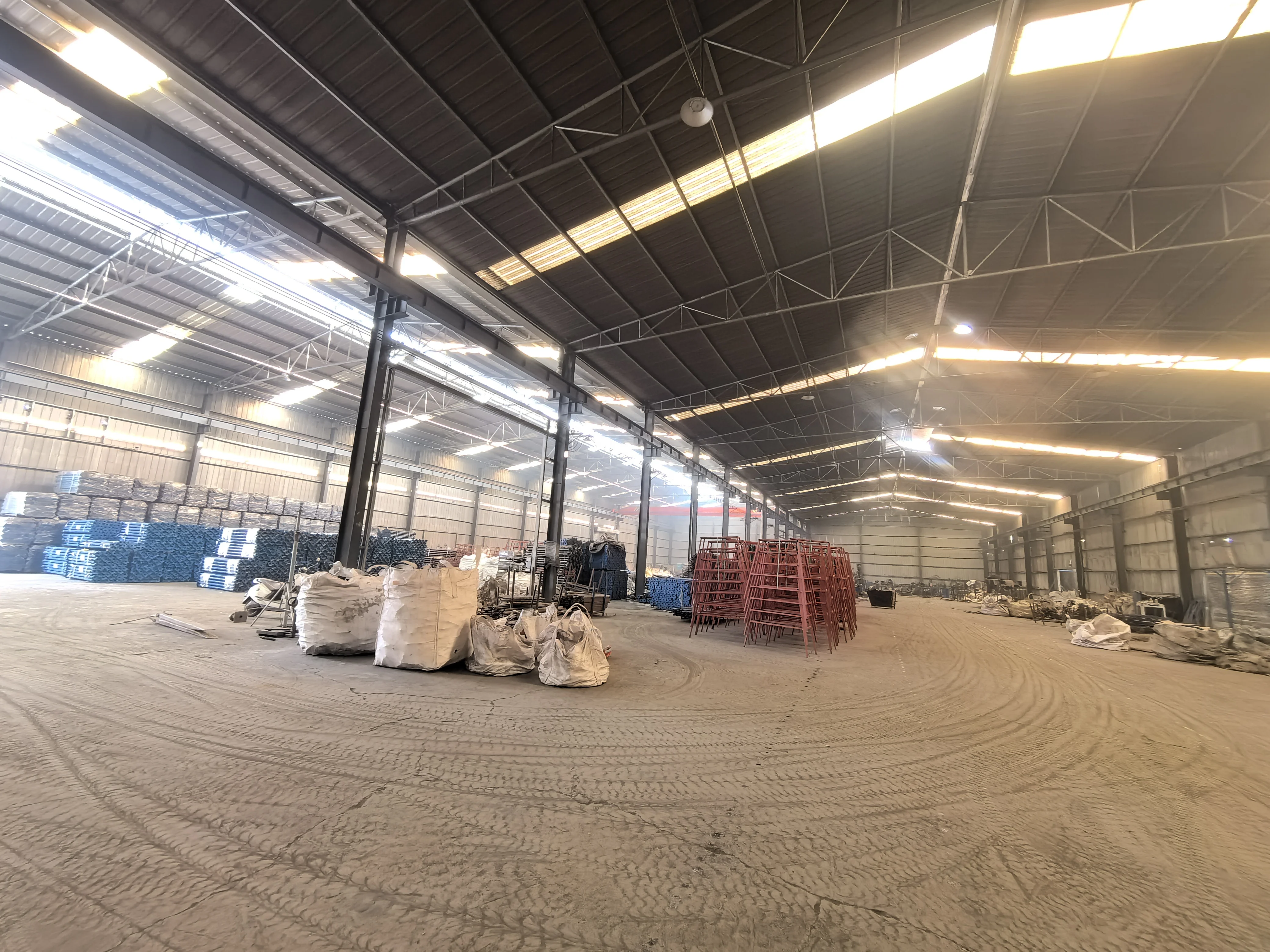

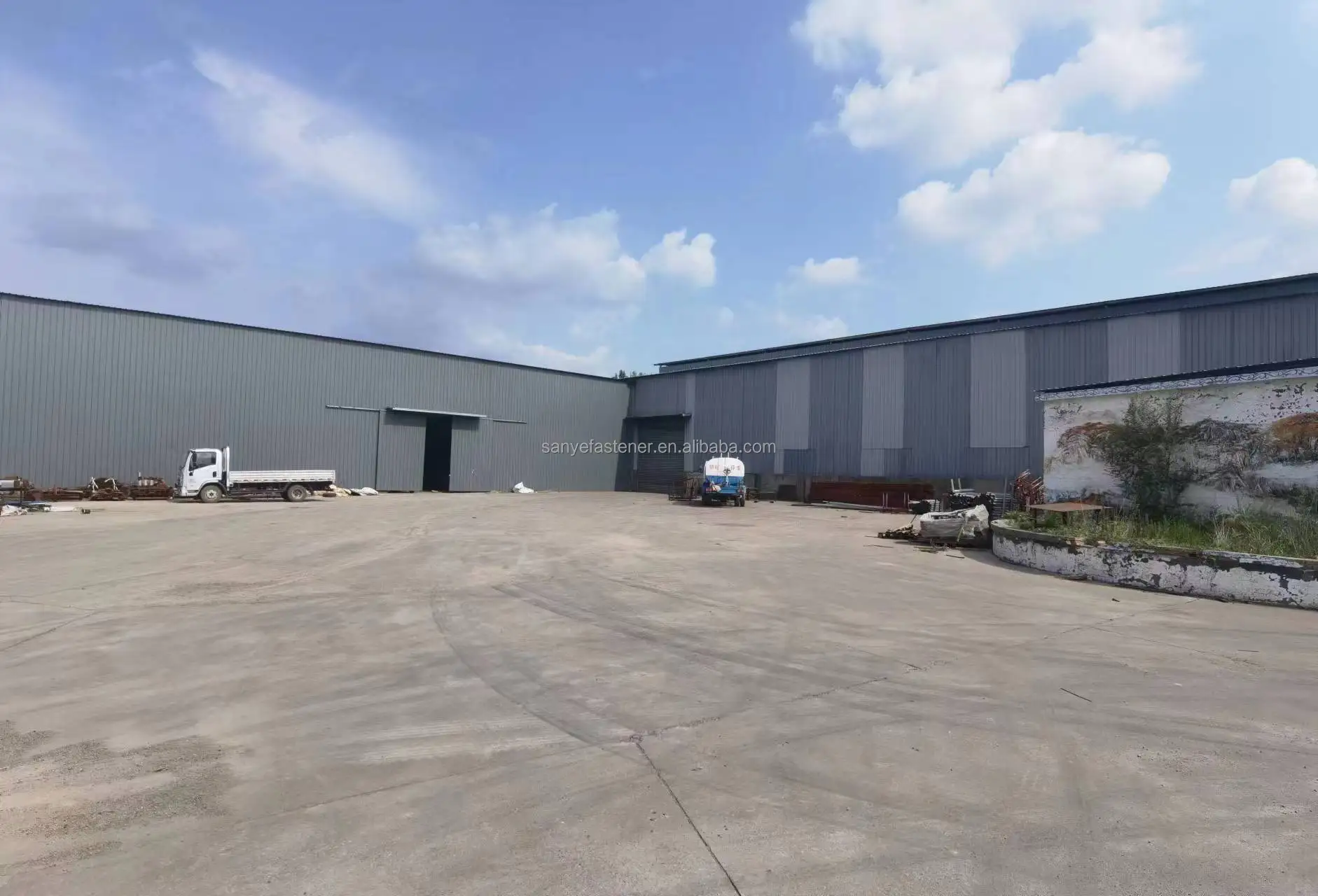

Company Profile
Hebei SanYe Metal Products Company Co., Ltd

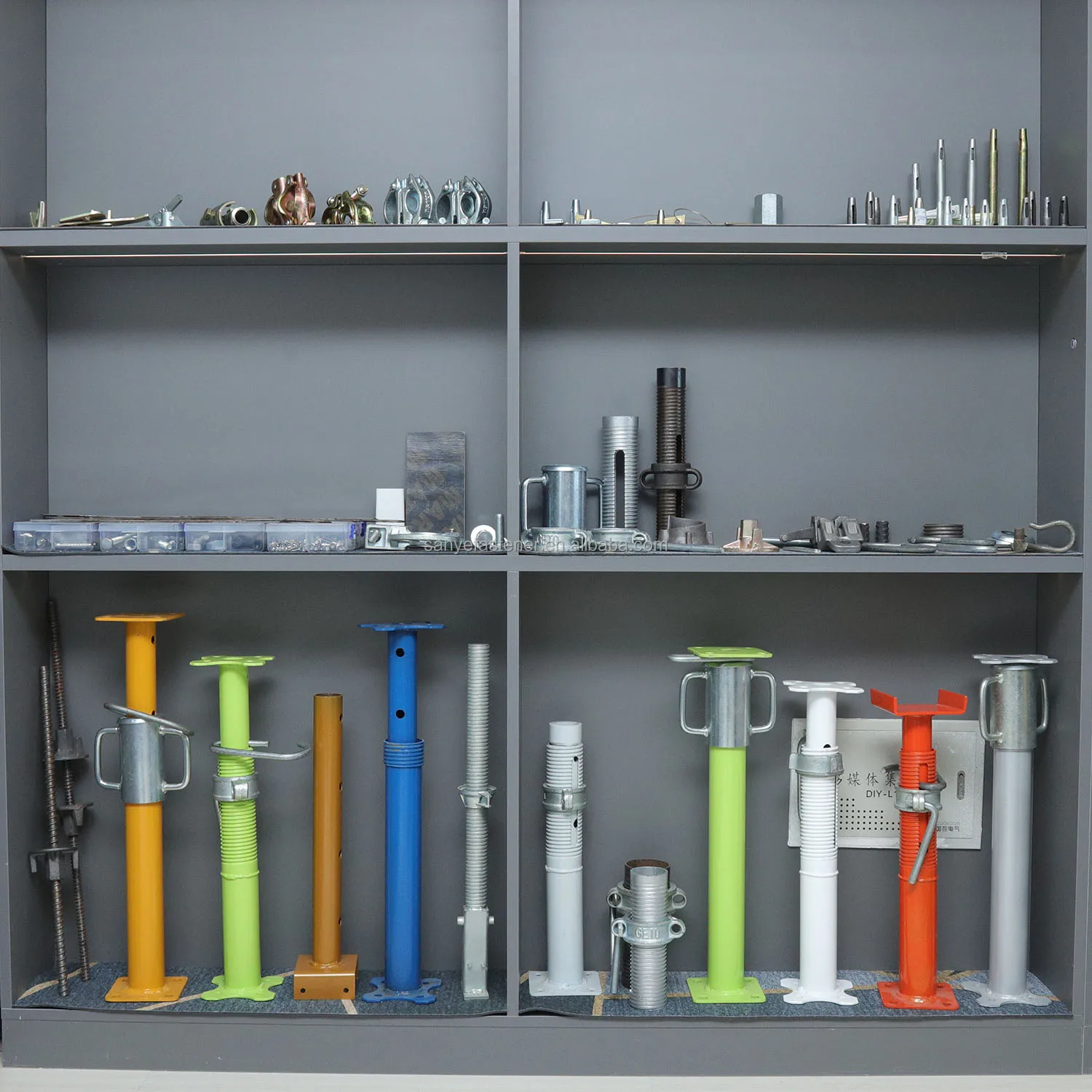

* Main product: steel prop and accessories, scaffolding system, wedge pin. and other building materials products
* 30 production lines, 50 production equipment
* 50 technicians
* 100 salesmen
* 5 quality inspectors
* Sample free
* 24 hours online reply
* Support customization
* We welcome your inquiries.
* Main product: steel prop and accessories, scaffolding system, wedge pin. and other building materials products
* 30 production lines, 50 production equipment
* 50 technicians
* 100 salesmen
* 5 quality inspectors
* Sample free
* 24 hours online reply
* Support customization
* We welcome your inquiries.
FAQ
1. What is the delivery time？
The usual delivery time is about 25 days, The delivery time for custom products is about 35 days.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Steel Prop, Pin And Wedge,Scaffolding, Thread Rod, Tie rod and nut, Base jack, and so on.
4. Why should you buy from us not from other suppliers?
Enterprise Advantage
1.Formwork accessories and scaffolding accessories manufacturer.
2.Supply customized products for your client.
3.We can help our clients to choice products,one-stop shoring to reduce client's purchase cost and time cost.
4.Strict Quality Contrl.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR, CIF,EXW, FCA, CPT, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, RU, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card,PayPal, Western Union, Cash, Escrow;
The usual delivery time is about 25 days, The delivery time for custom products is about 35 days.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Steel Prop, Pin And Wedge,Scaffolding, Thread Rod, Tie rod and nut, Base jack, and so on.
4. Why should you buy from us not from other suppliers?
Enterprise Advantage
1.Formwork accessories and scaffolding accessories manufacturer.
2.Supply customized products for your client.
3.We can help our clients to choice products,one-stop shoring to reduce client's purchase cost and time cost.
4.Strict Quality Contrl.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR, CIF,EXW, FCA, CPT, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, RU, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card,PayPal, Western Union, Cash, Escrow;
