Professional Dust Extractor Vacuum Cleaner for Dust Carbon Steel Dust Collector
- Category: >>>
- Supplier: Wuxi York Intelligent Technology Co. Ltd.
Share on (1601260806552):
Product Overview
Description
Introduction
Professional Dust Extractor Vacuum Cleaner for Dust Carbon Steel Dust Collector
The YORK filter cartridge type dust collector is a new and efficient dry dust removal equipment, which is suitable for purifying fine and dry non fiber dust. The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air will come out from the upper part of cleaner.
Features:
High Filtration Efficiency:Filter cartridges typically provide superior filtration efficiency, often capturing 99.9% of dust
particles, even those as small as 0.3 microns
particles, even those as small as 0.3 microns
Compact Design:The pleated filter cartridges have a high surface area in a compact design. This allows the dust collector to have a smaller footprint.
Energy Efficiency:Because of the large filter surface area,filter cartridge dust collectors can operate with lower airflow resistance
Easy Maintenance:Filter cartridges are relatively easy to replace, and many systems are designed for quick, tool-free replacement.This reduces downtime and maintenance costs.
Longer Filter Life:The pleated design and efficient cleaning systems (such as pulse jet cleaning) help extend the life of the
filter cartridges.
Noise Reduction:Many filter cartridge dust collectors are designed to operate quietly, which contributes to a more comfortable working environment.
Energy Efficiency:Because of the large filter surface area,filter cartridge dust collectors can operate with lower airflow resistance
Easy Maintenance:Filter cartridges are relatively easy to replace, and many systems are designed for quick, tool-free replacement.This reduces downtime and maintenance costs.
Longer Filter Life:The pleated design and efficient cleaning systems (such as pulse jet cleaning) help extend the life of the
filter cartridges.
Noise Reduction:Many filter cartridge dust collectors are designed to operate quietly, which contributes to a more comfortable working environment.

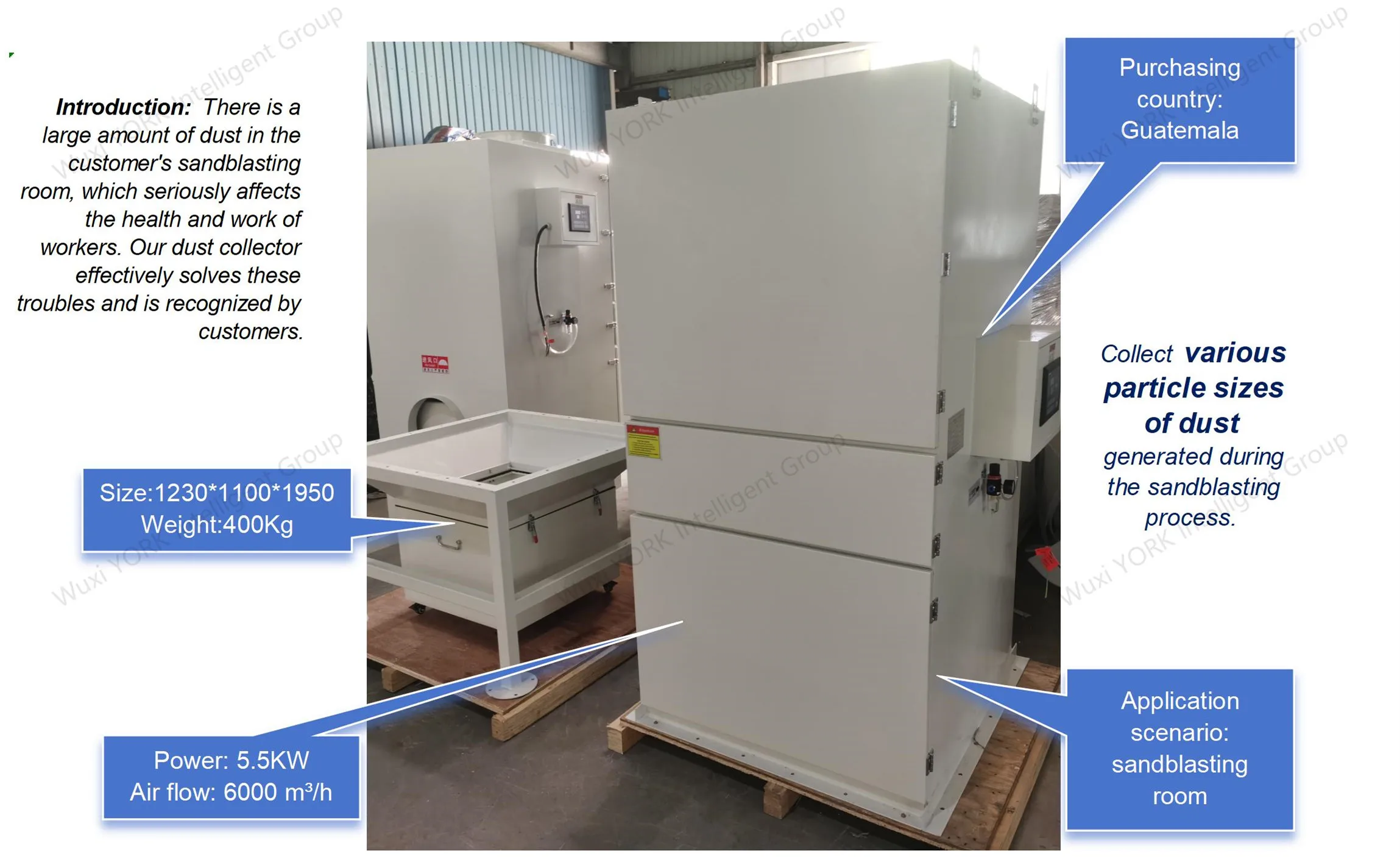

Project cases
Selection Parameters
Model | Air flow m³/h | Power kw | Filter Qty. pc | Filter material | Air inlet mm | Air outlet mm | Pressure (pa) | Size mm |
YKM-800 | 800 | 0.75 | 1 | PTFE/coated film | Φ100 | 100*300 | 1210 | 500*500*1450 |
YKM-1600 | 1600 | 1.5 | 1 | PTFE/coated film | Φ150 | 150*350 | 1360 | 550*550*1450 |
YKM-2200 | 2200 | 2.2 | 2 | PTFE/coated film | Φ200 | 200*400 | 1470 | 650*650*1700 |
YKM-2700 | 2700 | 3 | 4 | PTFE/coated film | Φ250 | 300*300 | 1578 | 800*800*2000 |
YKM-4000 | 4000 | 4 | 4 | PTFE/coated film | Φ250 | 300*300 | 1650 | 800*800*2000 |
YKM-6000 | 6000 | 5.5 | 4 | PTFE/coated film | Φ300 | 350*350 | 2014 | 950*950*2100 |
YKM-8000 | 8000 | 7.5 | 6 | PTFE/coated film | Φ400 | 400*400 | 2554 | 1000*1200*2100 |
YKM-10000 | 10000 | 11 | 9 | PTFE/coated film | Φ500 | 400*400 | 3100 | 1200*1200*2300 |
YKM-15000 | 15000 | 15 | 9 | PTFE/coated film | Φ500 | 400*400 | 3200 | 1200*1200*2300 |

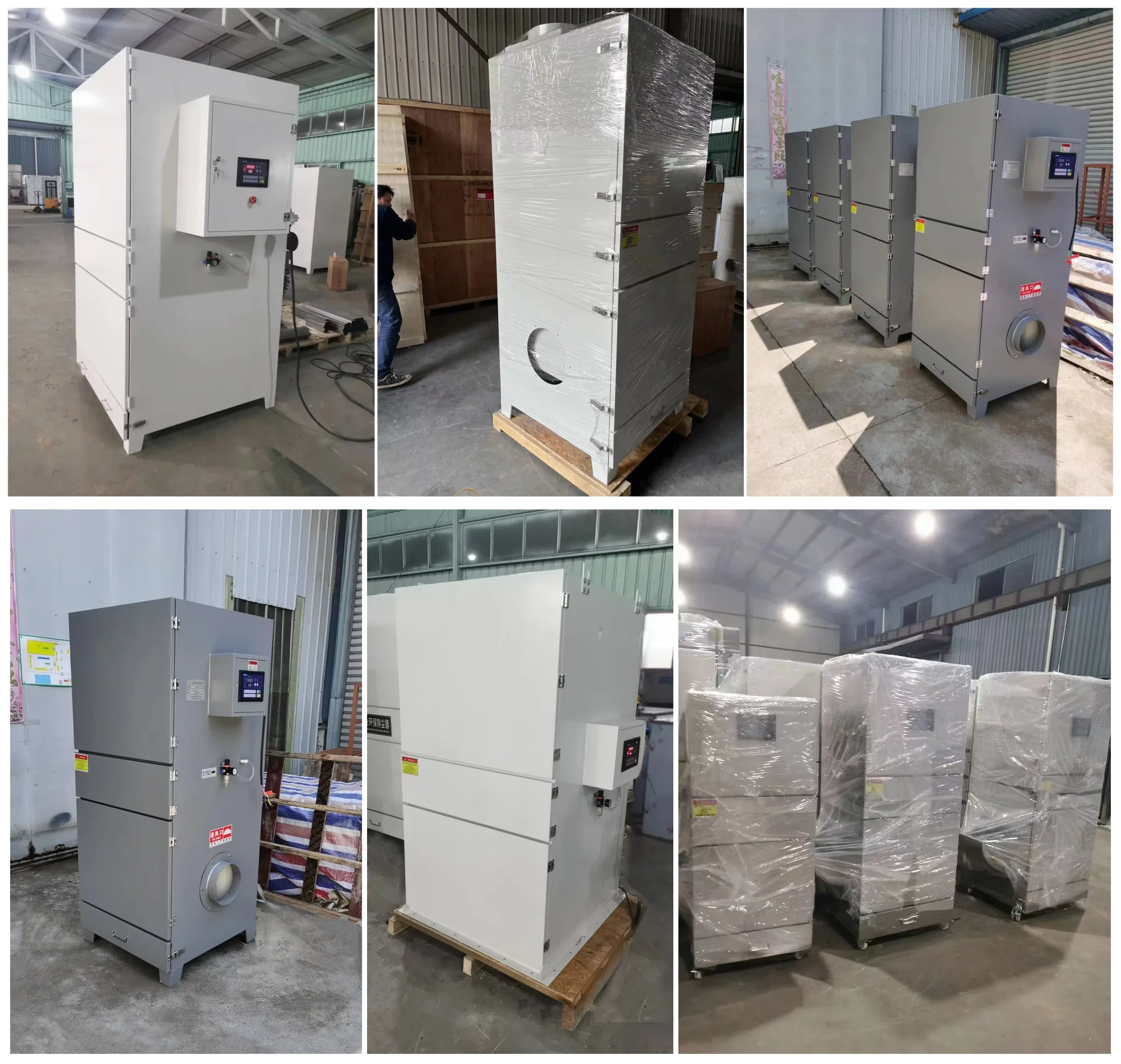

Product display
Suction fan：
Optimized Airflow Management: The fan in a filter cartridge dust collector is designed to maintain consistent and optimized airflow, ensuring that dust-laden air is efficiently drawn into the system and through the filter cartridgesEnergy Efficiency: High-quality fans used in these systems are designed for energy efficiency. They are capable of delivering the required airflow with minimal power consumption
Durability and Reliability: Fans in filter cartridge dust collectors are typically built to withstand harsh industrial environments
Control instruments:
Pressure Differential Gauges (Manometers)：Purpose: Measures the pressure difference across the filter media, indicating the level of dust buildup and the filter's efficiency.
Pulse Controller：Purpose: Controls the cleaning cycle of the filters by sending signals to the solenoid valves for pulse-jet cleaning.
Control Panels：Purpose: Centralized control of all monitoring and operational functions of the dust collector.
Pulse Controller：Purpose: Controls the cleaning cycle of the filters by sending signals to the solenoid valves for pulse-jet cleaning.
Control Panels：Purpose: Centralized control of all monitoring and operational functions of the dust collector.
Filter cartridge：
High Filtration Efficiency:Filter cartridges can achieve high levels of filtration, removing fine particles, contaminants, and impurities with great accuracy.
Ease of Installation and Replacement:Cartridges are typically easy to install and replace, requiring minimal tools and technical expertise.
Versatility: Suitable for use in diverse industries, including water treatment, food and beverage, pharmaceuticals, petrochemicals, and more.
Ease of Installation and Replacement:Cartridges are typically easy to install and replace, requiring minimal tools and technical expertise.
Versatility: Suitable for use in diverse industries, including water treatment, food and beverage, pharmaceuticals, petrochemicals, and more.
Air source processing unit:
Enhanced Gas Purity: Effectively removes impurities such as moisture, hydrocarbons, particulates, and other contaminants, ensuring that the gas meets required purity standards.
Pressure and Flow Regulation:Maintains a stable and consistent gas flow rate and pressure, crucial for processes that require precise control.
Increased Equipment Longevity:By providing clean, regulated gas, the unit minimizes the risk of damage to downstream equipment.
Pressure and Flow Regulation:Maintains a stable and consistent gas flow rate and pressure, crucial for processes that require precise control.
Increased Equipment Longevity:By providing clean, regulated gas, the unit minimizes the risk of damage to downstream equipment.
Air receive：
Compressed Air Reservoir: The gas storage tank acts as a reservoir for compressed air, which is used to clean the
filter cartridges. During the pulse-jet cleaning process,
Pressure Stabilization: The gas storage tank helps to stabilize the air pressure within the system. It ensures that a consistent and sufficient amount of compressed air is available for the pulse-jet cleaning process, even if the demand fluctuates.
Pulse-jet Cleaning: The stored compressed air is released through pulse valves, creating a sudden burst of air that shakes the filter cartridges, knocking off accumulated dust.
filter cartridges. During the pulse-jet cleaning process,
Pressure Stabilization: The gas storage tank helps to stabilize the air pressure within the system. It ensures that a consistent and sufficient amount of compressed air is available for the pulse-jet cleaning process, even if the demand fluctuates.
Pulse-jet Cleaning: The stored compressed air is released through pulse valves, creating a sudden burst of air that shakes the filter cartridges, knocking off accumulated dust.
Pulse valve:
Pulse Cleaning: The primary function of the pulse valve is to initiate a pulse of compressed air that is directed
through the filter cartridges.
Preventing Clogging: By periodically cleaning the filter cartridges, the pulse valve helps prevent clogging and ensures that the airflow through the dust collector remains consistent.
Automatic or Timed Activation: Pulse valves are typically controlled by a timer or differential pressure controller that activates them at regular intervals or when a specific pressure differential is detected across the filters.
through the filter cartridges.
Preventing Clogging: By periodically cleaning the filter cartridges, the pulse valve helps prevent clogging and ensures that the airflow through the dust collector remains consistent.
Automatic or Timed Activation: Pulse valves are typically controlled by a timer or differential pressure controller that activates them at regular intervals or when a specific pressure differential is detected across the filters.
Inhalation arm：
Flexible Joints: The suction arm typically consists of multiple joints or segments that allow it to be adjusted and
positioned easily.
360-Degree Rotation: Many suction arms can rotate fully, enabling precise positioning at any angle.
Durable Construction: Suction arms are usually made of robust materials like steel, aluminum, or high-grade plastics to withstand harsh working environments.
Variable Diameter: The diameter of the suction arm typically ranges from 2 to 8 inches or more, depending on the volume of dust or fumes being collected.
positioned easily.
360-Degree Rotation: Many suction arms can rotate fully, enabling precise positioning at any angle.
Durable Construction: Suction arms are usually made of robust materials like steel, aluminum, or high-grade plastics to withstand harsh working environments.
Variable Diameter: The diameter of the suction arm typically ranges from 2 to 8 inches or more, depending on the volume of dust or fumes being collected.
Wooden crate packaging:
Robust Protection: Wooden boxes are highly durable and provide excellent protection for heavy or fragile
items during shipping and handling.
Load-Bearing Capacity: They can bear significant weight, making them ideal for transporting large, heavy, or bulky items.
Shock Absorption: Wood provides a natural cushioning effect, helping to absorb shocks and vibrations during transit.
Traditional Look: Wooden packaging offers a classic, natural aesthetic that can enhance the perceived value of the product.
items during shipping and handling.
Load-Bearing Capacity: They can bear significant weight, making them ideal for transporting large, heavy, or bulky items.
Shock Absorption: Wood provides a natural cushioning effect, helping to absorb shocks and vibrations during transit.
Traditional Look: Wooden packaging offers a classic, natural aesthetic that can enhance the perceived value of the product.
Customer Feedback
Recommend Products
CE Certificate

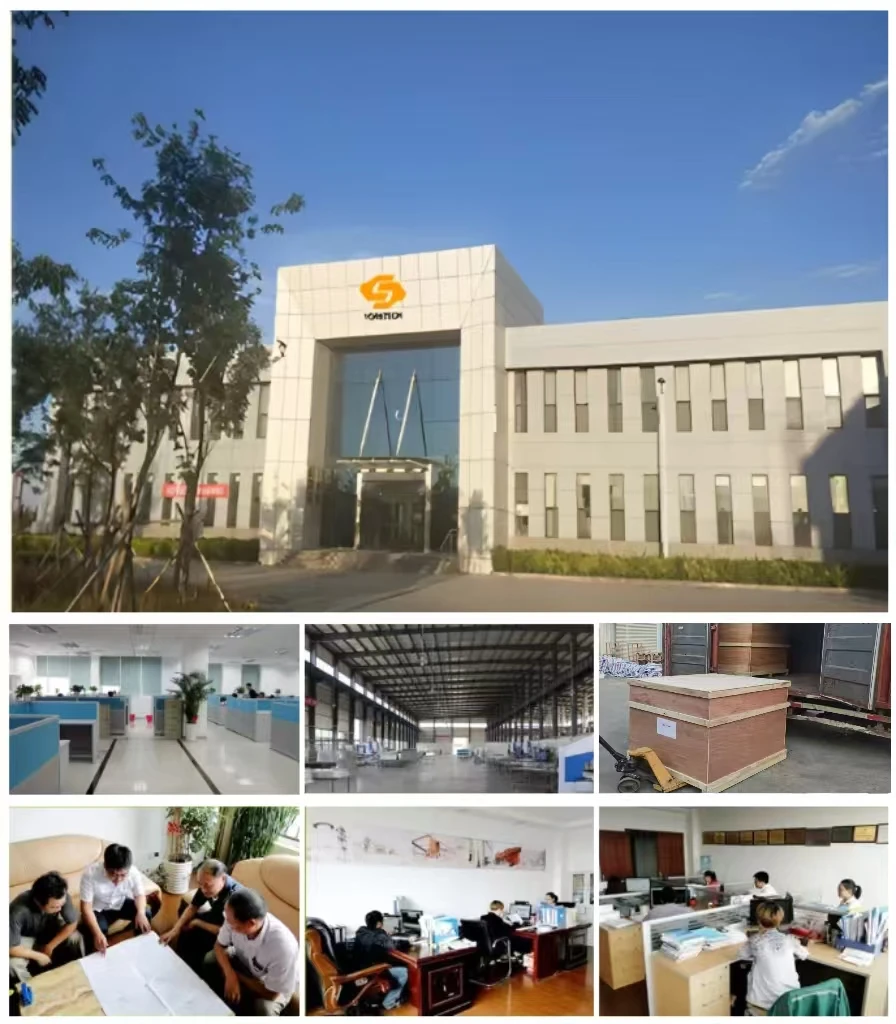

Company Profile
Established in 2008, located in Wuxi New- district Industrial Park, in Wuxi City,Jiangsu province. Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,market developing and service. YORK Environmental Protection Machinery, specialize in design, R&D and manufacture all kinds of duct cleaning machine, dust collector and fume extractor etc.
At present, our company products have been all over the country's major provinces and cities, we have exported
to more than 60 countries and regions.Our products have been widely recognized and highly praised by customers.
Strength: YORK accepts OEM and ODM, satisfy customer’s personalized requirements.
One-stop: YORK provides a wide range of products to satisfy customers with one-stop purchase.
Service: YORK offers lifelong after-sales service for every product.
Quality: Every product gets passed strict quality inspection, the final passed yield is over 99.9%.
At present, our company products have been all over the country's major provinces and cities, we have exported
to more than 60 countries and regions.Our products have been widely recognized and highly praised by customers.
Strength: YORK accepts OEM and ODM, satisfy customer’s personalized requirements.
One-stop: YORK provides a wide range of products to satisfy customers with one-stop purchase.
Service: YORK offers lifelong after-sales service for every product.
Quality: Every product gets passed strict quality inspection, the final passed yield is over 99.9%.
