1.Model:AS653136
2.Voltage:3.7v
3:Capacity:800mAh
4.Weight:16g
5.Dimention: 6.5*31*36mm
Parameter Table:
Item | Rating | Note | ||
3.1 Capacity | Typical | 800mAh | Discharge:0.2CmA cut off Voltage:3.0V for cell | |
Minimum | 750mAh | |||
3.2 Nominal Voltage | Average 3.7V | Discharge:0.2CmA cut off Voltage:3.0V for cell | ||
3.3 AC Impedance Resistance | ≤30mΩ |
| ||
3.4 Discharge Cut-off Voltage | 3.00V |
| ||
3.5 Charge Current | 325mA | Standard Charge | ||
3.6 Charge Voltage | 4.2V |
| ||
3.7 Max. Charge Voltage | 4.23V |
| ||
3.8 Charge Time | Approx 2.5h | Charge: 1.0CmA | ||
3.9 Max. Charge Current | 750mA | 1.0CmA | ||
3.10 Max. Discharge Current | 750mA |
| ||
3.11 Weight | Approx 16g |
| ||
3.12 Operating Temperature | Charge | 0~+45°C |
| |
Discharge | -20~+60°C |
| ||
3.13 Storage Temperature | less than 1 month | -20~+45°C | Recommended storage temperature: 20°C,at the shipment state | |
less than 3 months | -20~+35°C | |||

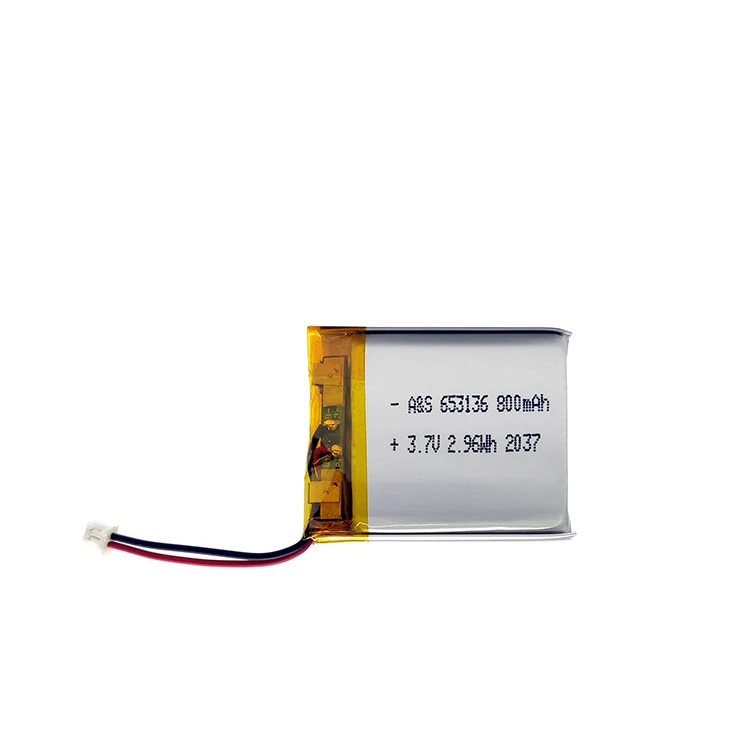

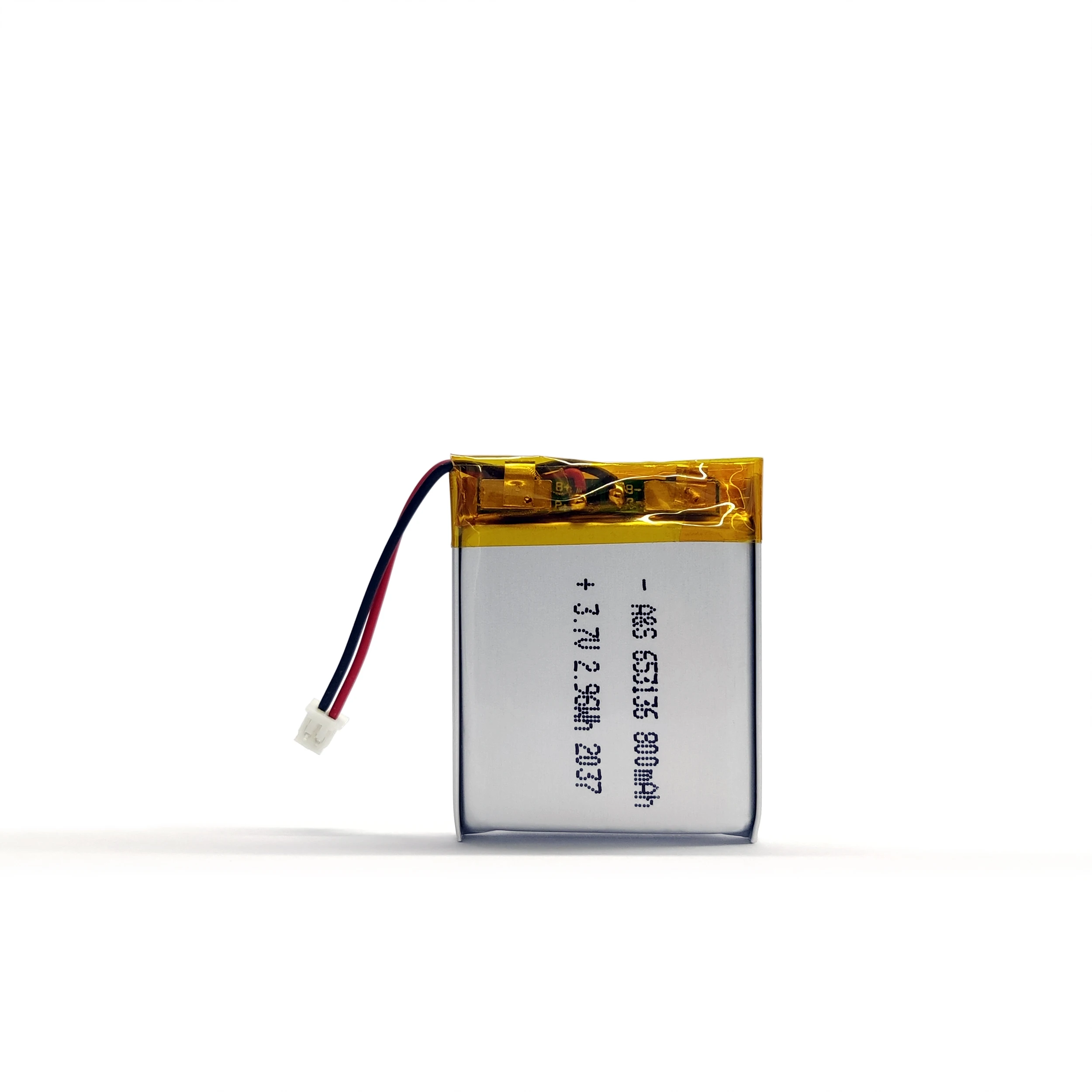

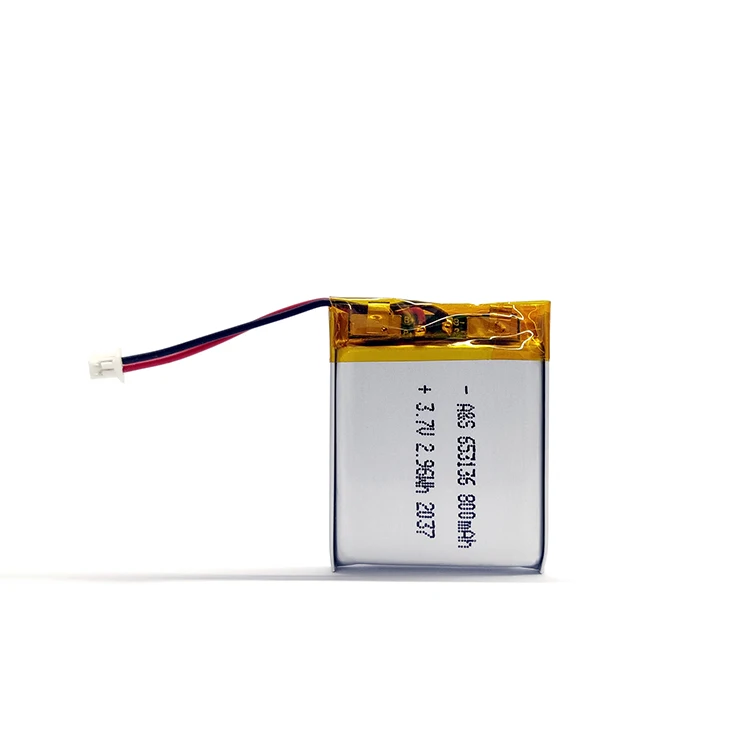

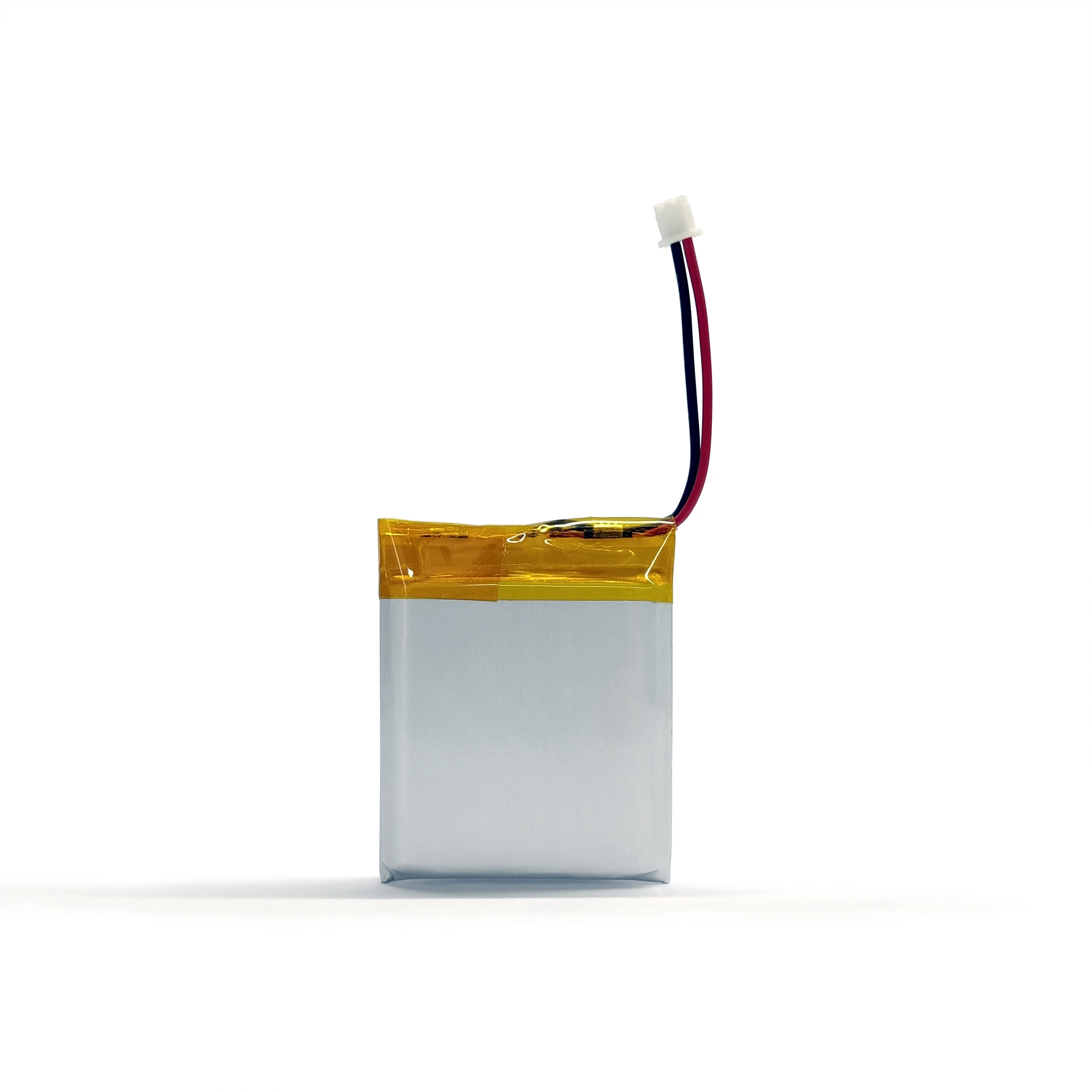

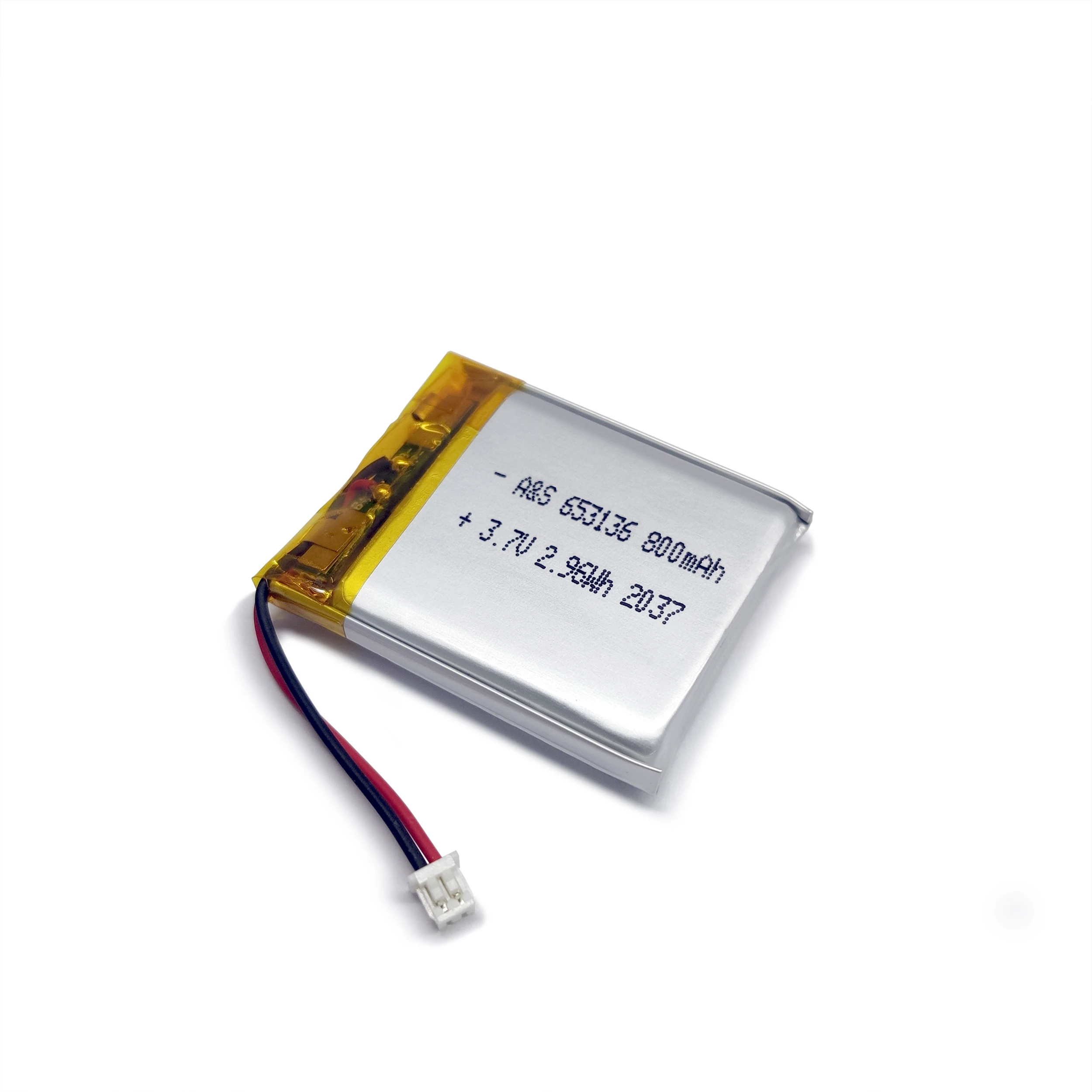

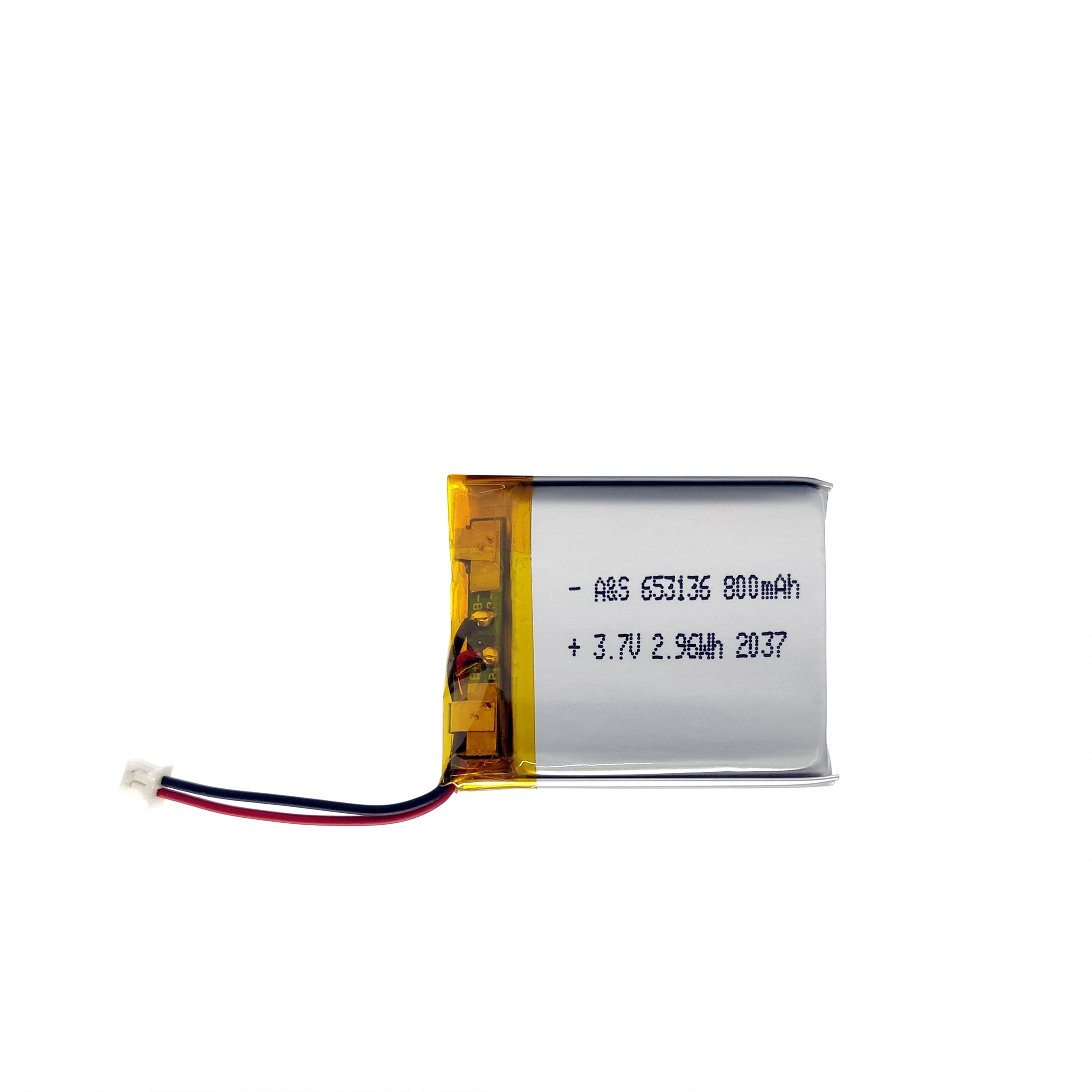

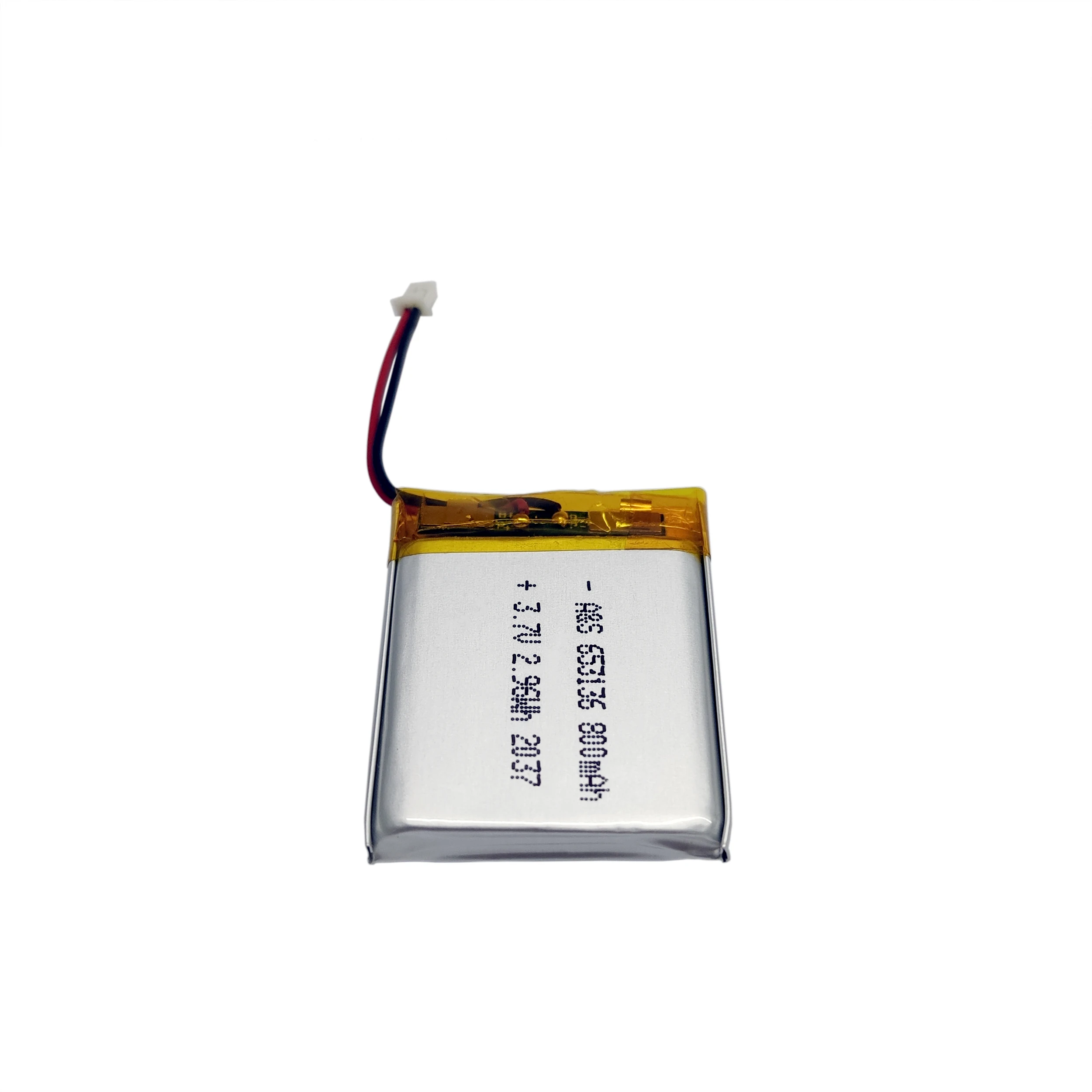

Product Pictures:





A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.
