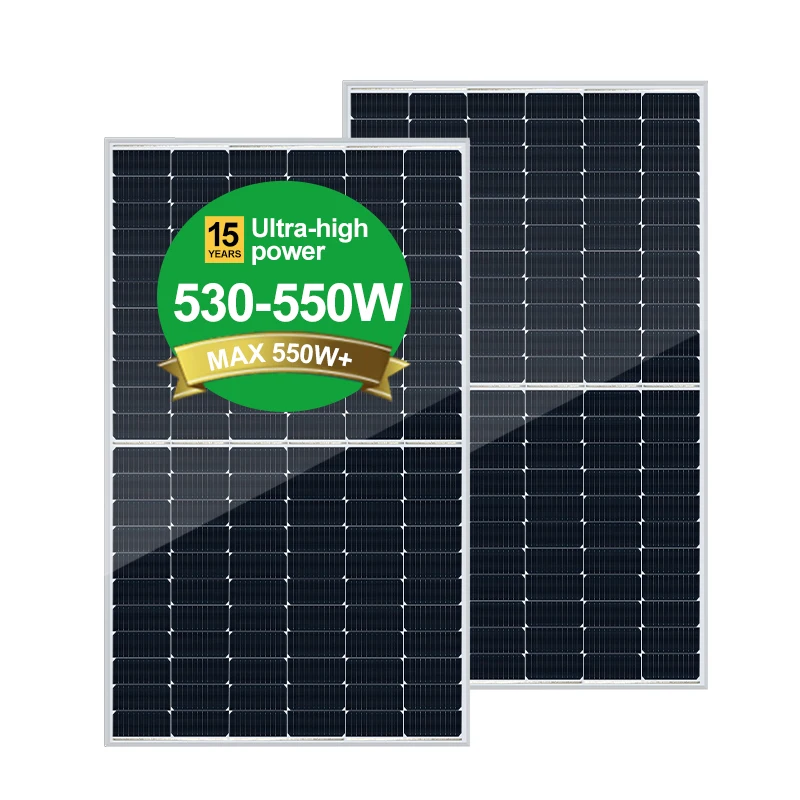

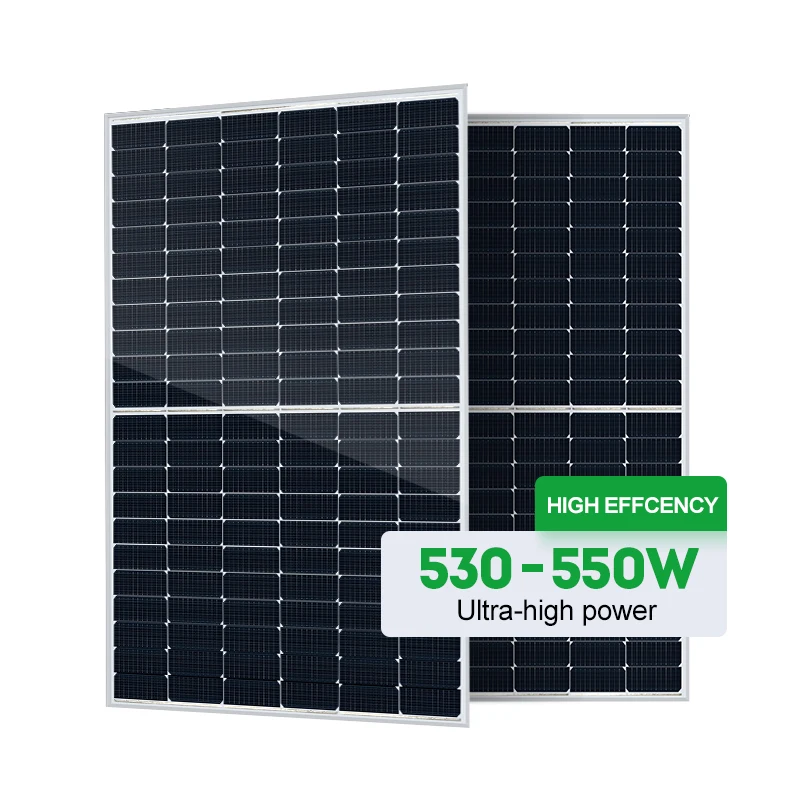

Highest Efficiency 530W 540W Solar Panel Newest Technology 550W Solar Panel Price Best 550W Solar Panel For Homes
- Category: >>>
- Supplier: Shandong Xiyuan Solar Energy Co. Ltd.
Share on (1601260887248):
Product Overview
Description
Product Description
530-5500W solar panel specifications | ||||||||||
Pmax(W) | 530 | 535 | 540 | 545 | 550 | |||||
Vmp(V) | 41.05 | 41.25 | 41.45 | 41.65 | 41.85 | |||||
Imp(A) | 13.28 | 13.33 | 13.39 | 13.45 | 13.51 | |||||
Voc(V) | 49.71 | 49.91 | 50.11 | 50.31 | 50.55 | |||||
Isc(A) | 13.88 | 13.92 | 13.96 | 14 | 14.04 | |||||
Module efficiency(%) | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | |||||
Output tolerance(W) | 0 ~ +5 | |||||||||

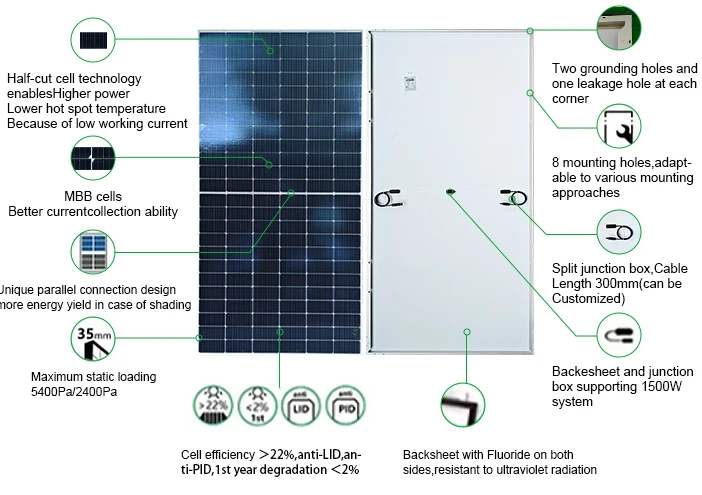

Numbers of cells | 144 cells (6*24) | |||||||||
Module size (mm) | 2278*1134*30mm | |||||||||
Module weight (kg) | 27.8KG | |||||||||
Glass | High transparency solar glass 3.2mm | |||||||||
Backsheet | White | |||||||||
Frame | Sliver, anodized aluminium alloy | |||||||||
J-box | IP68 rated | |||||||||
Cable | 4m㎡, 300mm | |||||||||
Number of diodes | 3 | |||||||||
Wind /snow load | 2400Pa/5400Pa | |||||||||
Module per box | 36 Pieces | |||||||||
Module per 40' container | 720 Pieces | |||||||||
Green engergy.

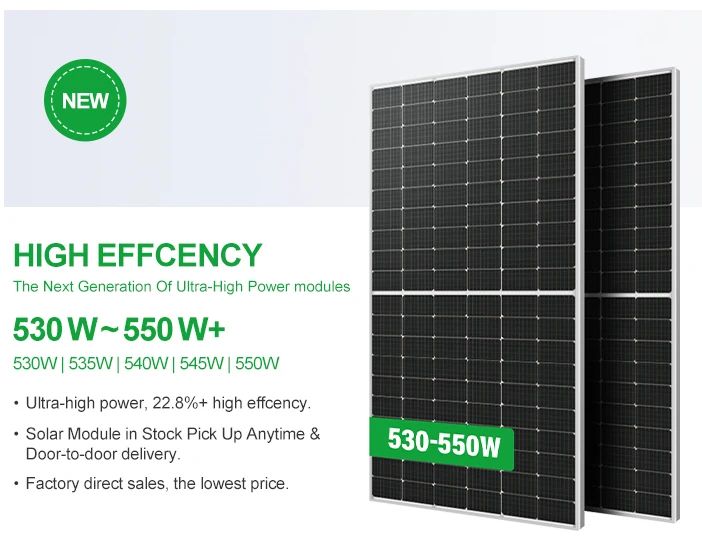

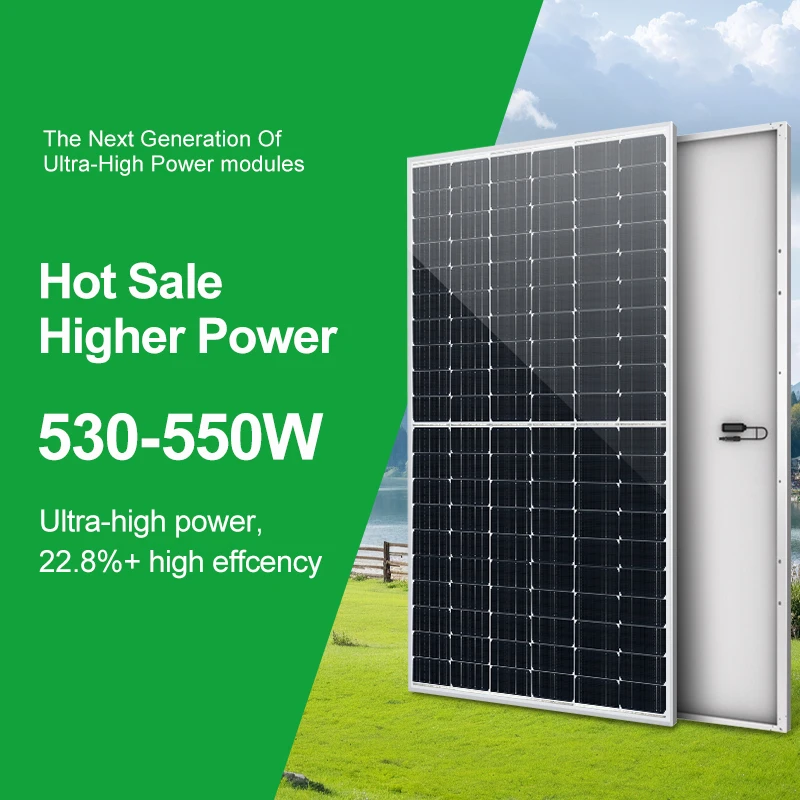

High efficiency - 22.8% photoelectric conversion rate can quickly obtain electric energy and store it in lithium battery
Environmental protection - Will not cause any pollution to the environment
Energy saving - Reduce losses in the national grid
Standardized production - Brand new components and standardized production to ensure product with good quality.

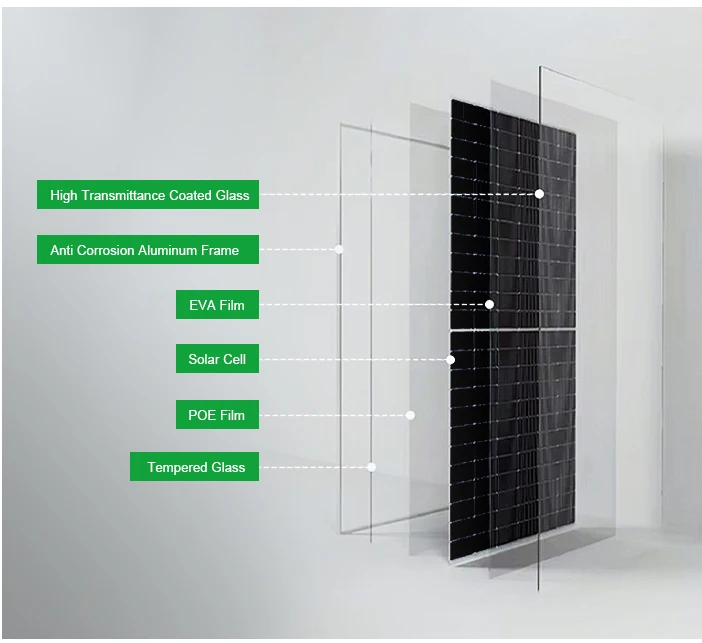

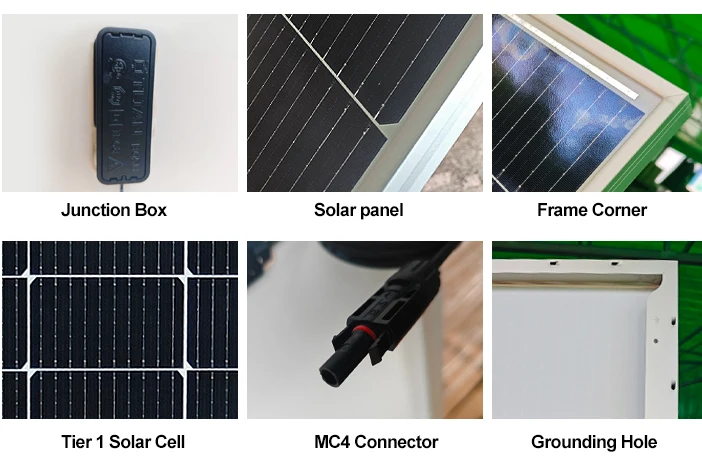

Our advantage - We use Class A cells, High transmittance tempered glasses and backsheet，Higher transmittance, higher photoelectric conversion rate
Why Choose Us

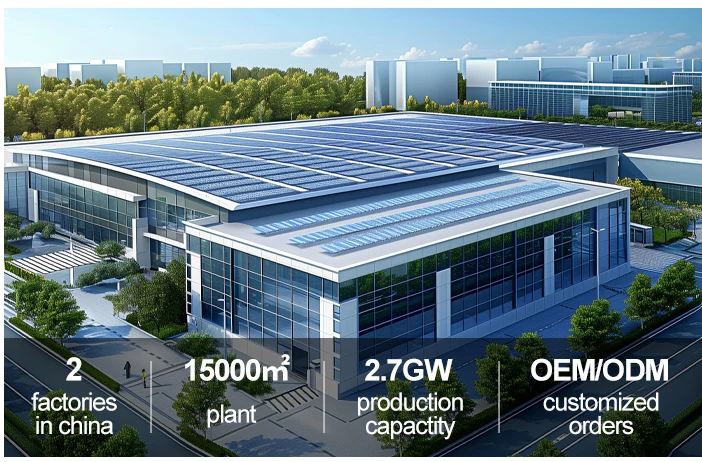

Company Introduction

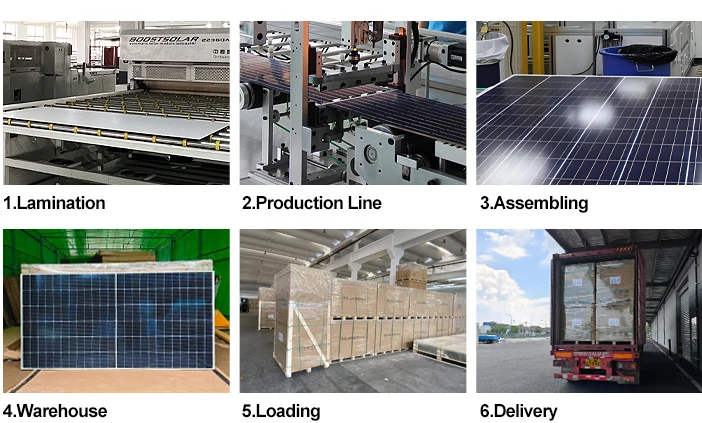

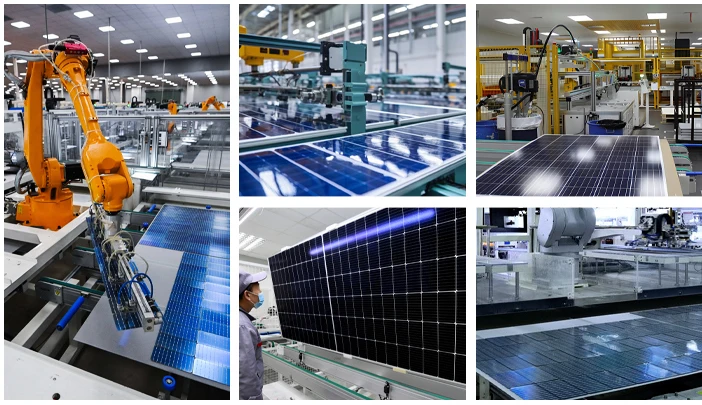

Shandong Xiyuan Solar Energy Co., Ltd. Is a focus on photovoltaic power generation integrated application, the main solar photovoltaic panels, solar power supply system, solar off-grid power generation system product design, research and development, production and sales of high-tech enterprises. For forest fire prevention, hydrology and water conservancy, meteorological monitoring, road monitoring, outdoor security and other equipment to provide power supply and can provide professional photovoltaic technical support (according to the project to provide design drawings, 3D animation, design solutions, remote technical support, etc.) has 15 years of professional experience for 15,000 enterprises to provide project services, the use of fully automated advanced production equipment, precision testing instruments. We use fully automatic advanced production equipment and precise testing instruments to manufacture high quality and reliable products. The company's independent research and development of a number of series of products has obtained the CE certification of the European Union, at the same time, the company has a maritime identification certificate, strict requirements for product quality, focus on technical training, attach importance to after-sales service in Europe, the United States, Southeast Asia, has a wealth of experience in the project!
Packing&Shipping
Good packaging can prevent the system components from being affected by physical shock, vibration, moisture, corrosion and other unfavourable factors, so as to ensure the performance and life of the system after installation. The size of the packing box should be designed according to the actual size and weight of the product, and fixing devices and cushioning materials should be set up inside the package to ensure that the components remain fixed during transport and reduce the damage caused by shaking.
Container | 40HQ | 40HQ |
Panel size | 2278*1134*35mm | 2278*1134*30mm |
Pcs/Pallet | 31 | 36 |
Pallets/Container | 20 | 20 |
Pcs/Container | 620 | 720 |

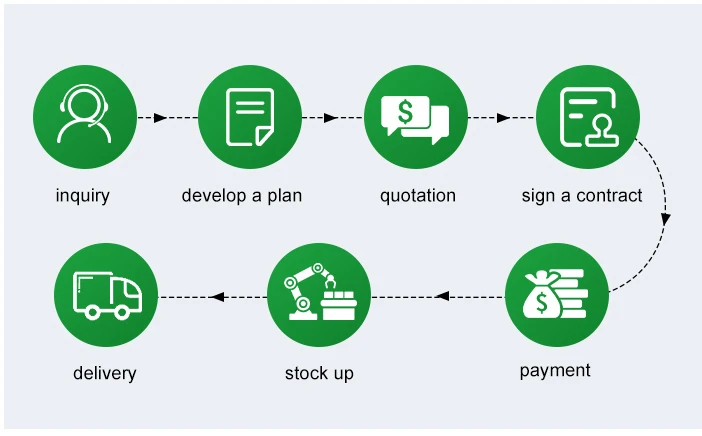

Procurement process
