3 pin Dc Adaptor Smps Switch Power Supply 24v 2.5a Ac Adapter smps 24v 2.5a
- Category: >>>
- Supplier: STARWELL TECHNOLOGY CO. LIMITED
Share on (1601261013607):
Product Overview
Description
3-pin Dc Adaptor Smps Switch Power Supply 24v 2.5a Ac Adapter smps 24v 2.5a
1.Products details

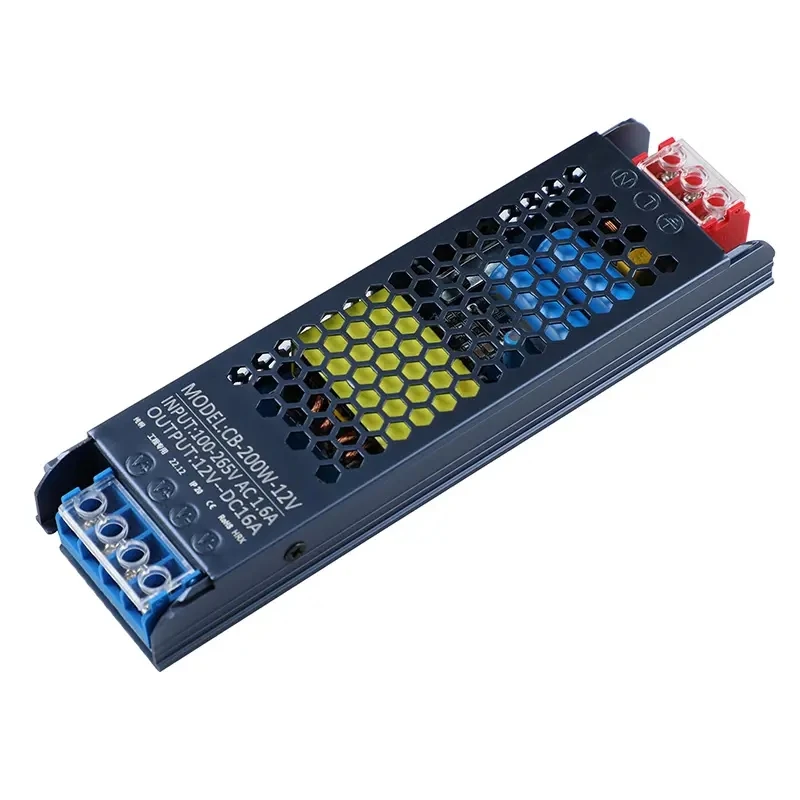

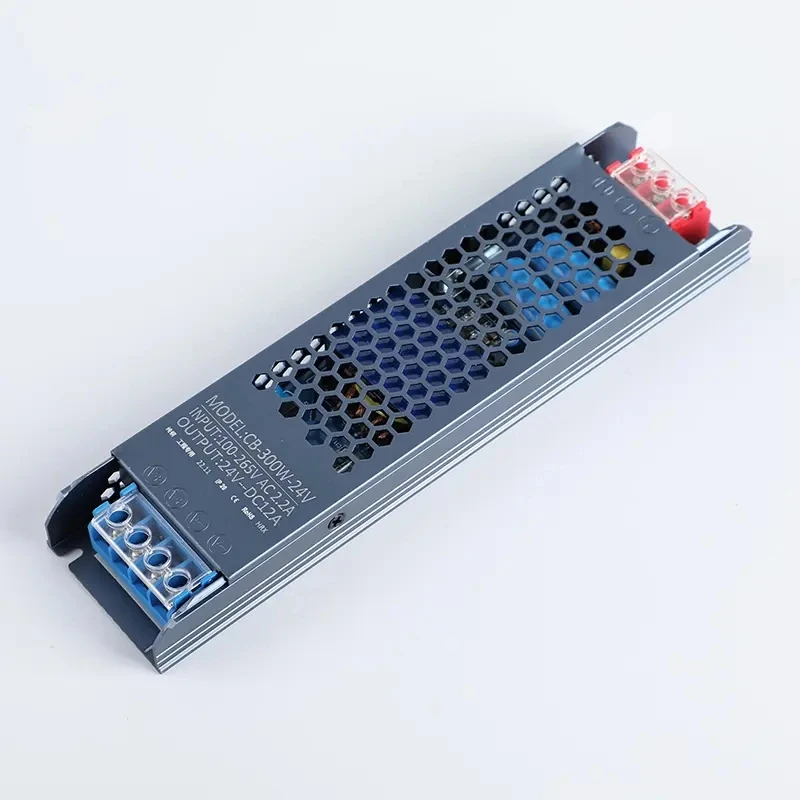

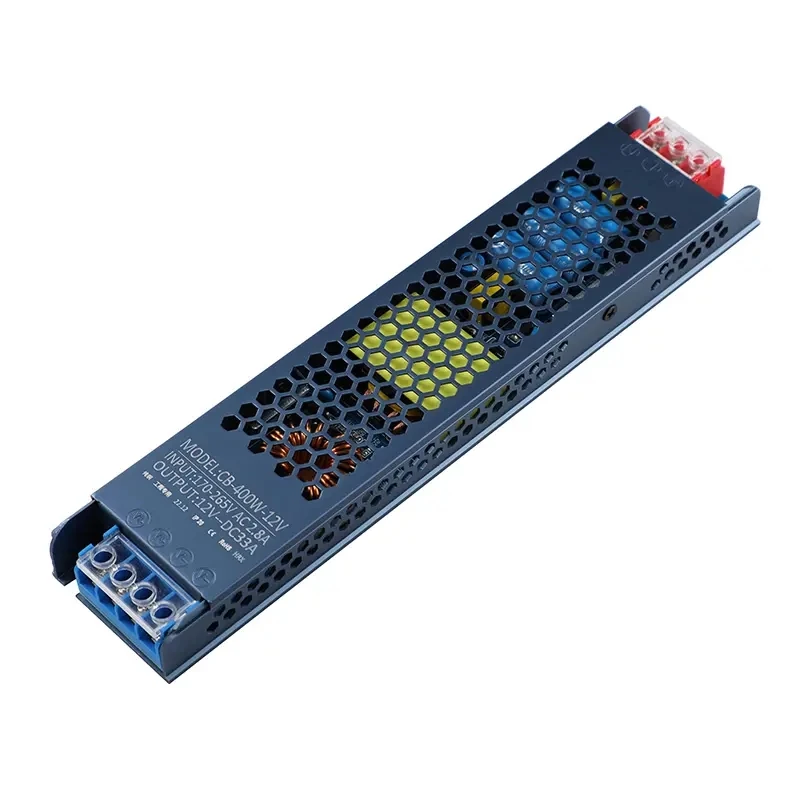

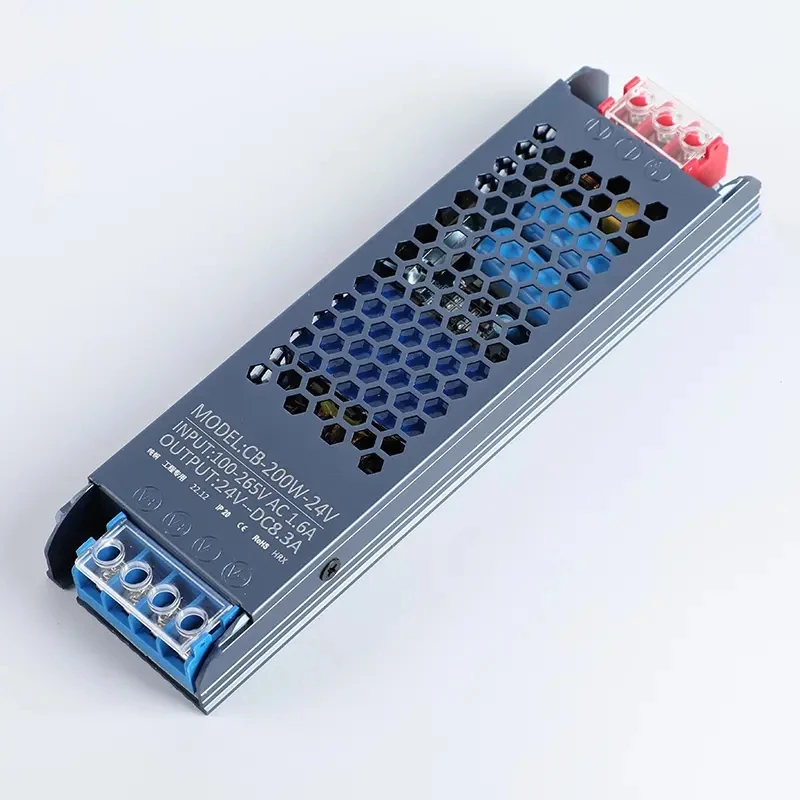

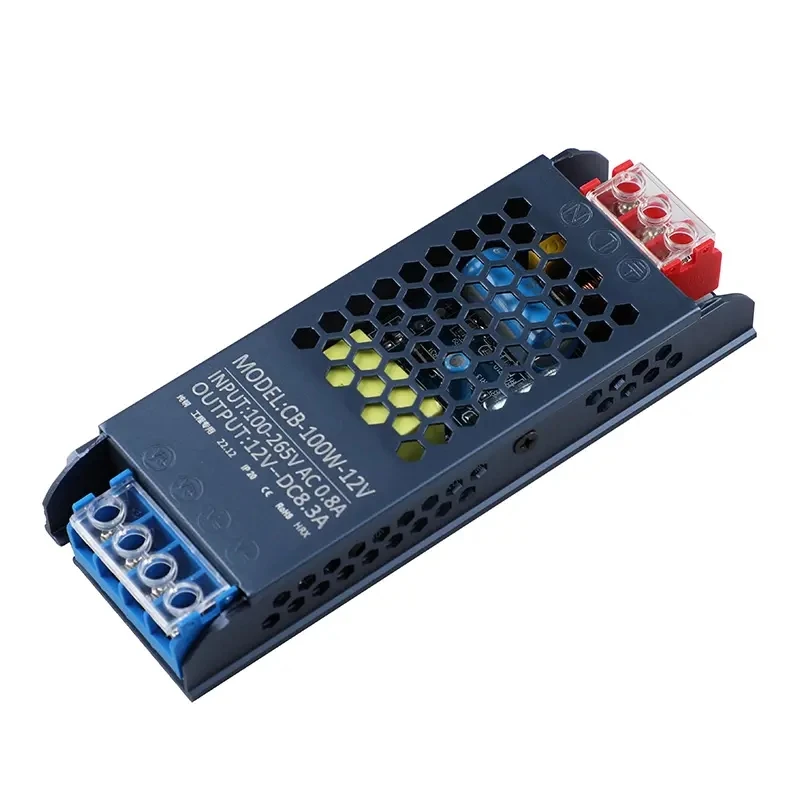

SOMPOM 12V/24V LED Power Supply
DC Output | DC Voltage: 12V/24V |
DC Power :60-400W | |
Ripple & Noise: 80MV | |
DC Adjustable Range: ±10% Rated Voltage | |
Voltage Tolerance: ±2.0% | |
Line Regulation: ±0.5% | |
Load Regulation: ±1% | |
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
AC Input | AC Voltage Range: 220VAC |
Frequency Range: 47-63Hz | |
Efficiency:>85% | |
AC Current:0.4A/220V | |
AC Inrush Current: 40A/230V | |
Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
Working Humidity:20 ~ 90% RH, non-condensing | |
Storage Temp.: -10~ +60C° | |
Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standards: CE,RoHS,FCC,ISO9001 |
More related product ,please feel free to contact with us!

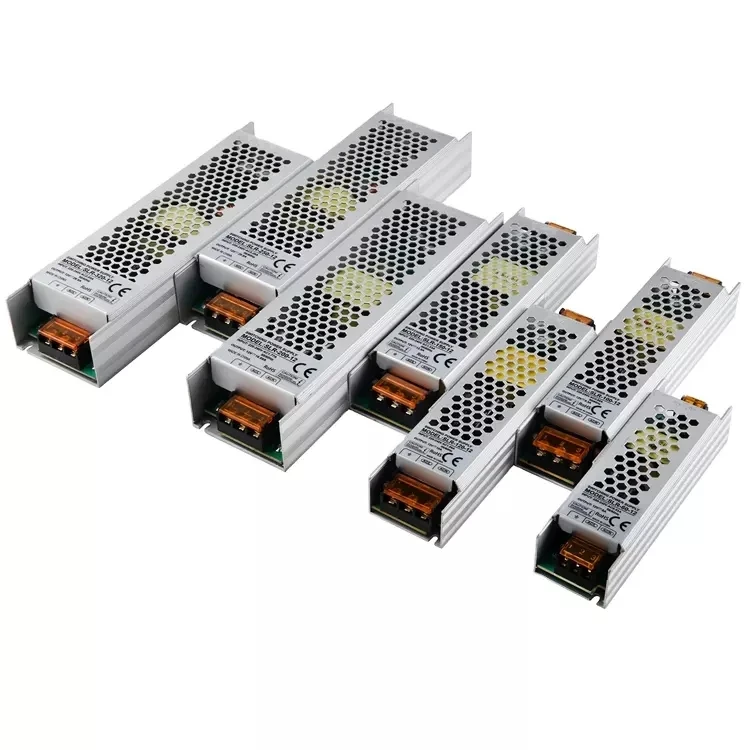

POE Model List
Product model | Input Volt | Output Volt | Current | Efficiency | Rated power | Product Size |
KDK-12V-60W | AC 200-240V | 12V | 5A | ≥88% | 60W | 145*50*30 |
KDK-24V-60W | AC 200-240V | 24V | 2.5A | ≥89% | 60W | 145*50*30 |
KDK-12V-100W | AC 200-240V | 12V | 8.5A | ≥88% | 100W | 162*50*30 |
KDK-24V-100W | AC 200-240V | 24V | 4.2A | ≥89% | 100W | 162*50*30 |
KDK-48V-100W | AC 200-240V | 48V | 2.1A | ≥90% | 100W | 162*60*30 |
KDK-12V-150W | AC 200-240V | 12V | 12.5A | ≥88% | 150W | 168*60*30 |
KDK-24V-150W | AC 200-240V | 24V | 6.25A | ≥89% | 150W | 168*60*30 |
KDK-12V-200W | AC 200-240V | 12V | 16.7A | ≥88% | 200W | 188*60*30 |
KDK-24V-200W | AC 200-240V | 24V | 8.3A | ≥89% | 200W | 188*60*30 |
KDK-48V-200W | AC 200-240V | 48V | 4.2A | ≥90% | 200W | 188*60*30 |
KDK-12V-300W | AC 200-240V | 12V | 25A | ≥88% | 300W | 201*60*30 |
KDK-24V-300W | AC 200-240V | 24V | 12.5A | ≥89% | 300W | 201*60*30 |
KDK-48V-300W | AC 200-240V | 48V | 6.25 | ≥90% | 300W | 201*60*30 |
KDK-12V-400W | AC 200-240V | 12V | 33.3A | ≥88% | 400W | 225*60*30 |
KDK-24V-400W | AC 200-240V | 24V | 16.7A | ≥89% | 400W | 225*60*30 |
KDK-48V-400W | AC 200-240V | 48V | 8.3A | ≥90% | 400W | 225*60*30 |
2.Hot products
3.Our company
FAQ
Q1. Can I have a sample order for power supply, charger and led driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. ship by sea usually takes 25-35 days to arrive.
Q5. How to proceed an order for power supply?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on inverter product? with logo printing, what's the MOQ for mass?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. the MOQ for logo OEM is 500pcs.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
