Tobee Effluent Handling
$12,600

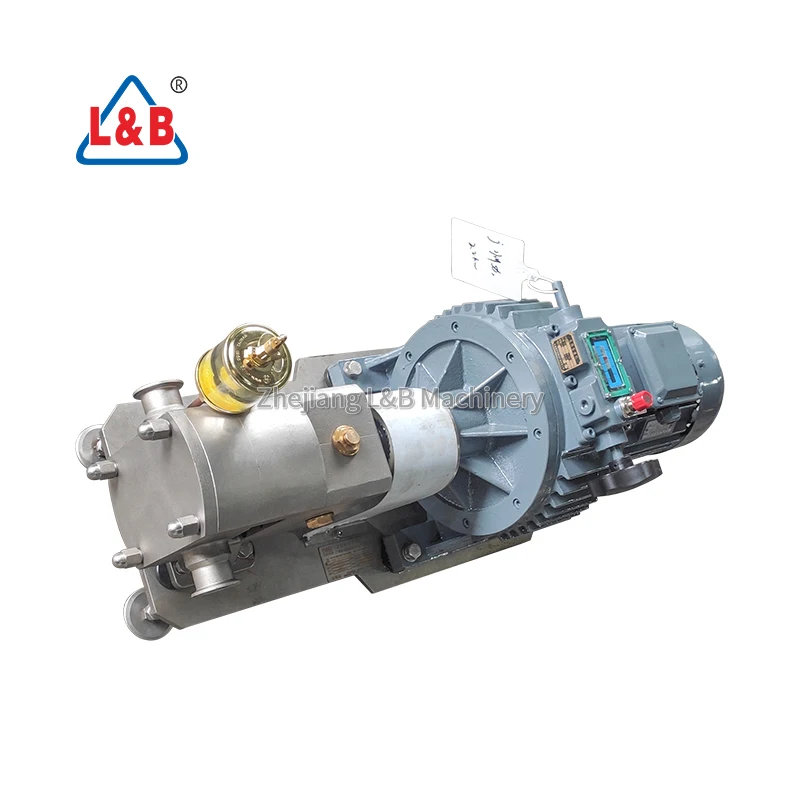

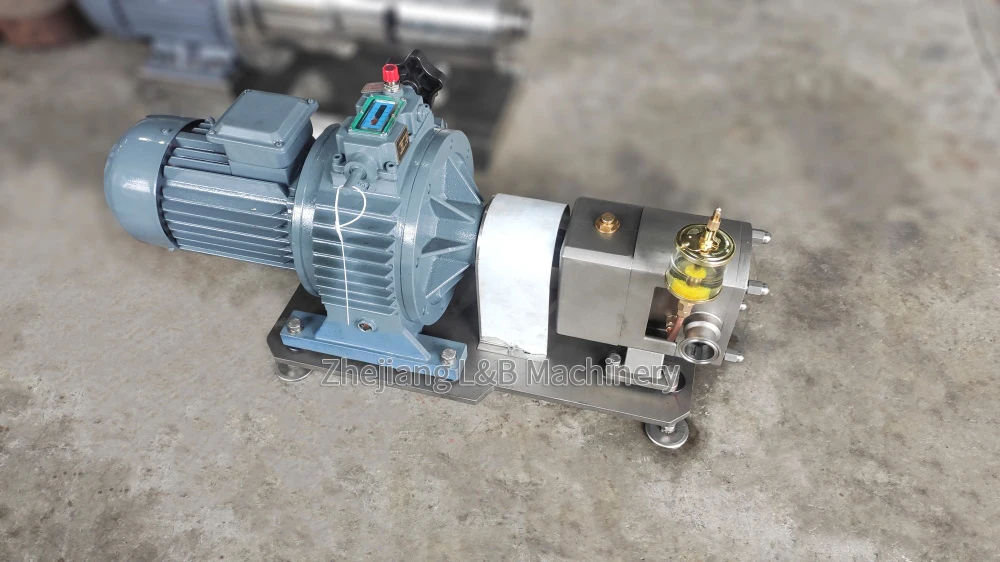

food grade stainless steel sanitary lobe beer pump rotary lobe pump sanitary for cheese chocolate sauce
- Category: >>>
- Supplier: Zhejiang L&b Machinery Co. Ltd.
Share on (1601261020601):
Product Overview
Description
product details

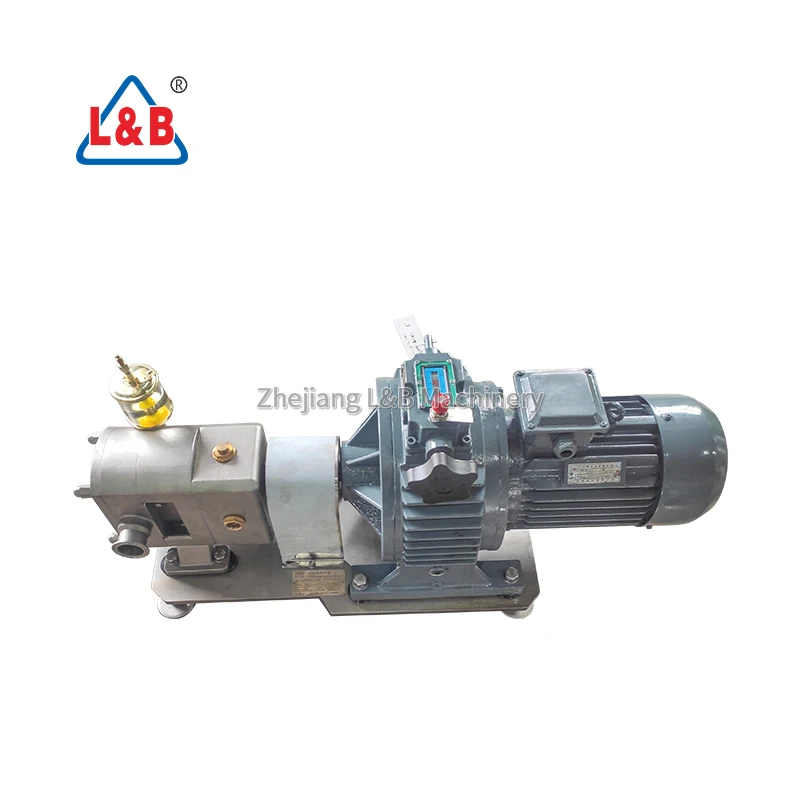

Factory price Food Grade Cam Rotor Lobe Pump for chocolate paste
Operation Principle:1.AII the parts that wi I have contact with the media (material) a re made of stainless steel(SUS304, AISL316, 316L)and are in accordance with hygienic standards.
2.lt is suitable for transporting medium(mate rial)with high viscosity, conoentration, or any grains.
3.Suitable temperature, -30"c to +120"c.
4.High pressure, long distance and high resistance quantitative transmission adopted.
5.Low turning speed, usually between 200rpm to 600rpm, the media transmitted
by it will keep the original quality and no physical of reaction will take place.
6.Never contact so there will be no wearing for long time use, stable ope ration and low noise.
7.Easy to set up and dismantle, easy to scour and keep clean and hygienic.
Product Name: | Factory price Food Grade Cam Rotor Lobe Pump for chocolate paste |
Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics. |

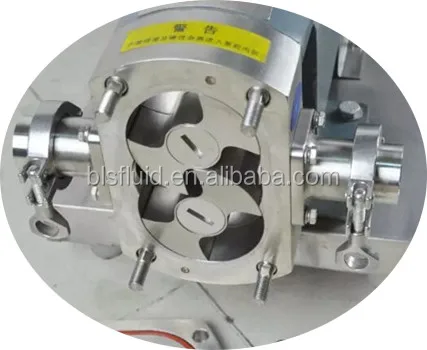

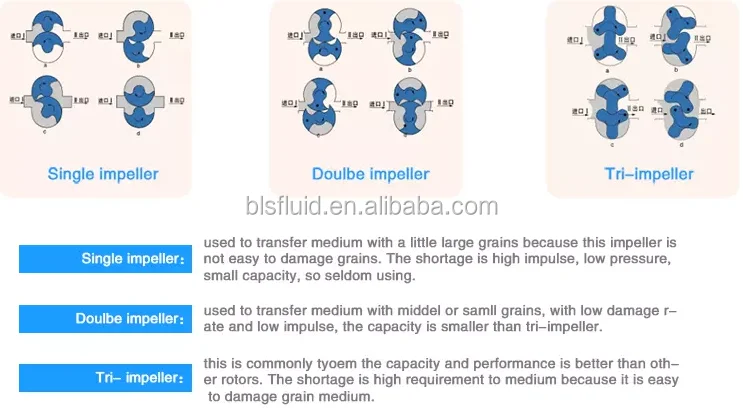

Construction: | Horizontal bls series, diffirent rotor shapes(single rotro,tri-lobe rotors and butterfly type rotors) |
Material: | SS304/SS316 |
Seal Material: | EPDM |
Max. Flow: | 43000Liter/h |
Max.pressure: | 10bar |
Speed | 200-500 rmp |
Rotor Type: | 2-leaves, 3-leaves, butterfly, signal butterfly |
Mechanical seal: | SIC/SiC/EPDM(Standard) |
Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …22KW |
Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
Voltage: | 220V, 380V(110-480v) |
Motor: | ABB, Siemens,Our Domestic Brand,50hz/ 60hz |
Surface treatment: | Inner polished and Sandblast outside |
connection: | Clamp, Thread, weld, Flange |
Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
Operated: | Electic |
Application scope: | Dairy, food, beverage, cosmetic, etc |
Packaging Details: | Plywood case |
Delivery details: | Usually within15-20 days after receiving T/T down payment |
Usage:
the lobe pump is used to transfer the liquid from one vessel to another vessel
the lobe pump is used to transfer the liquid from one vessel to another vessel
Technical Paramenters
Model | Liter Per 100Round | Suggest Speed(rpm) | Flow(L/H) | Power(KW) |
BLS-3 | 3L | 200-500 | 300-800 | 0.55 |
BLS-6 | 6L | 200-500 | 650-1600 | 0.75 |
BLS-8 | 8L | 200-500 | 850-2160 | 1.5 |
BLS-12 | 12L | 200-500 | 1300-3200 | 2.2 |
BLS-20 | 20L | 200-500 | 2100-5400 | 3 |
BLS-30 | 30L | 200-400 | 3200-6400 | 4 |
BLS-36 | 36L | 200-400 | 3800-7600 | 4 |
BLS-52 | 52L | 200-400 | 5600-11000 | 5.5 |
BLS-66 | 66L | 200-400 | 7100-14000 | 7.5 |
BLS-100 | 100L | 200-400 | 11000-22000 | 11 |
BLS-135 | 135L | 200-400 | 15000-30000 | 15 |
BLS-160 | 160L | 200-400 | 17000-34000 | 18.5 |
BLS-200 | 200L | 200-400 | 21600-43000 | 22 |
Details Images

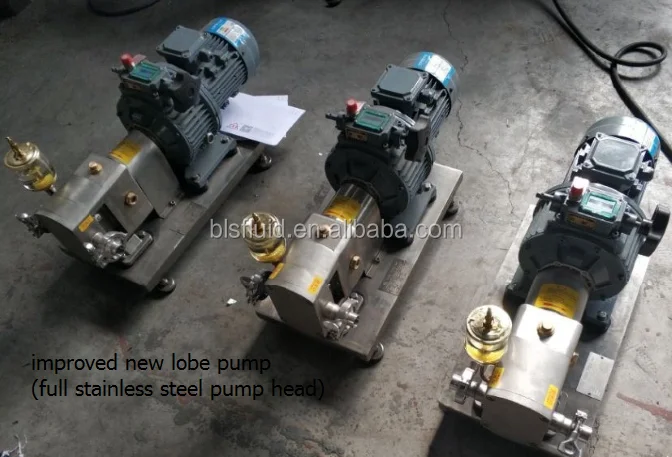

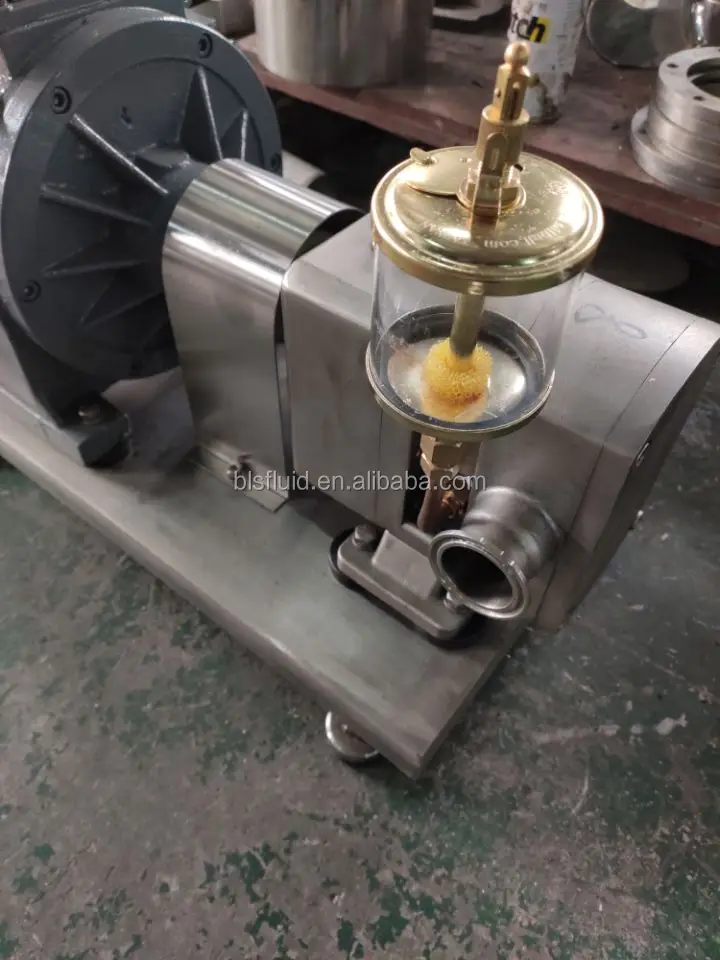

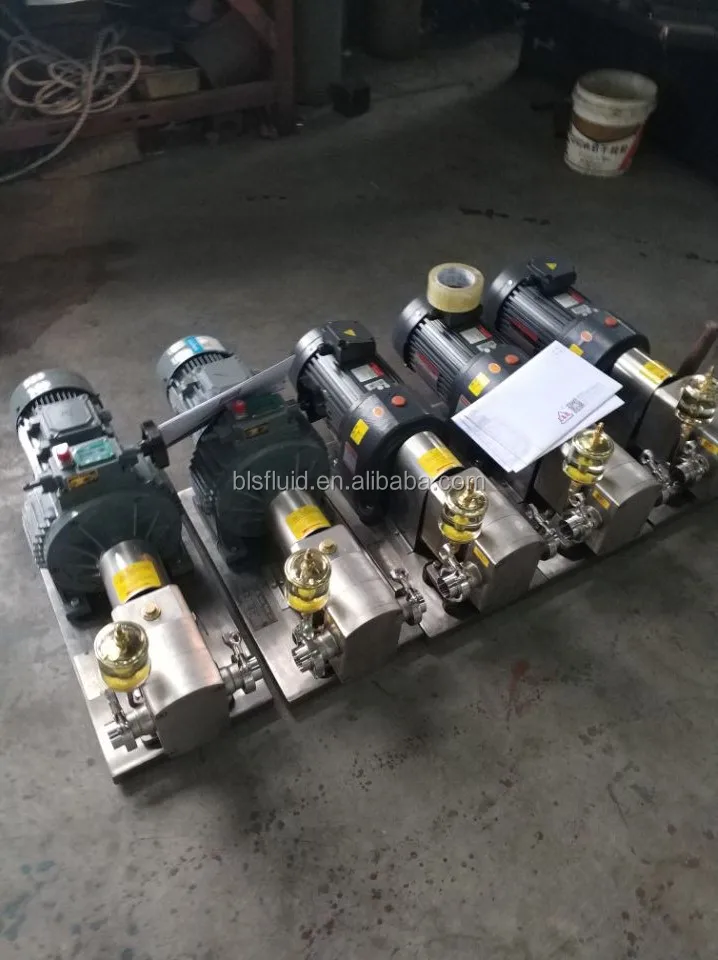

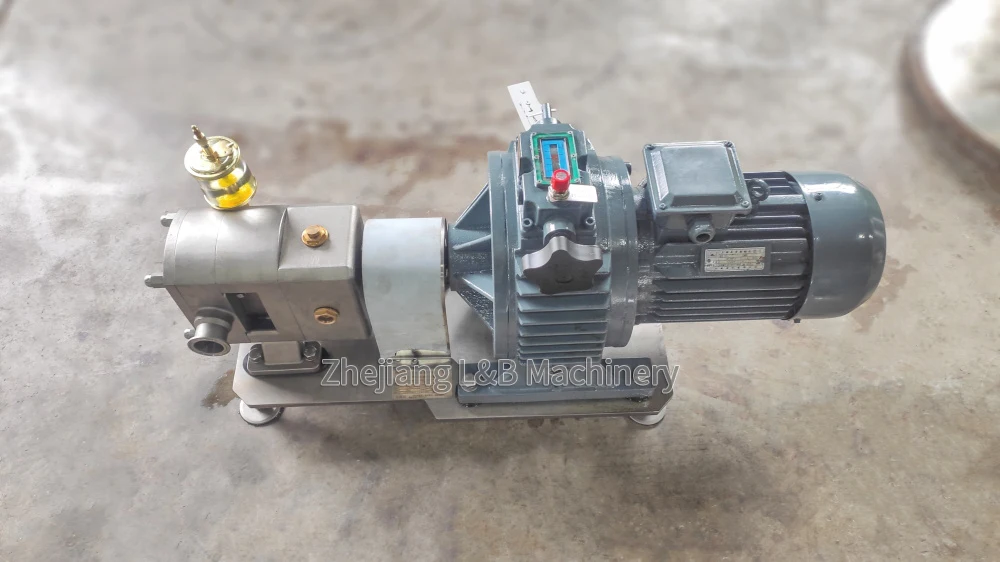

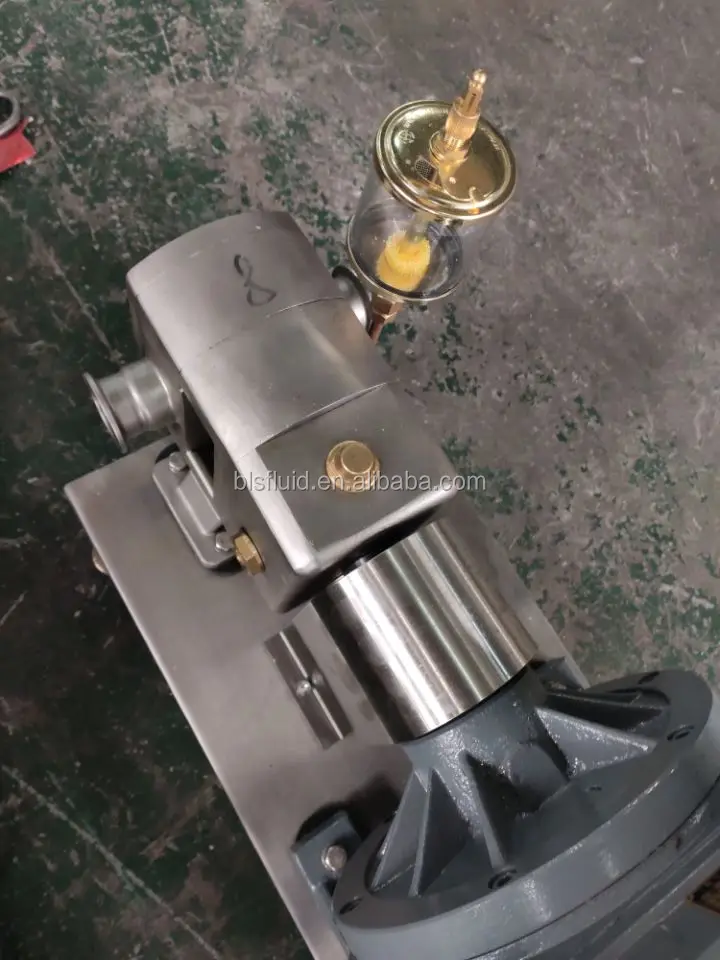

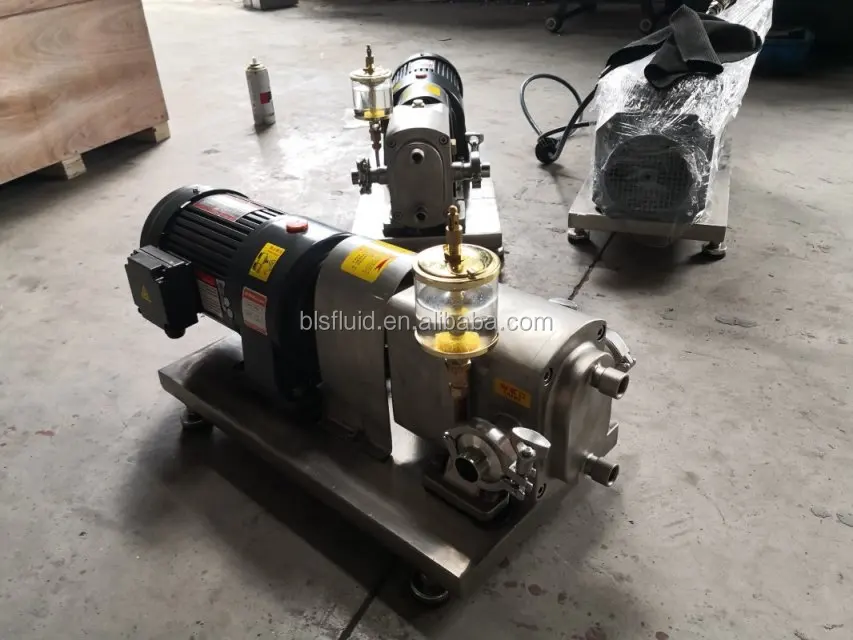

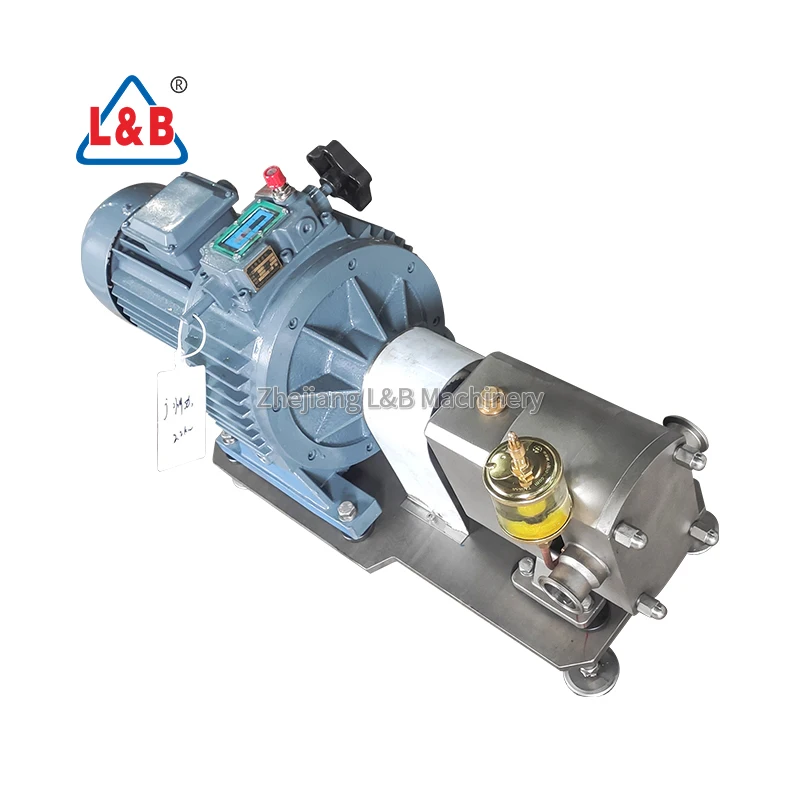

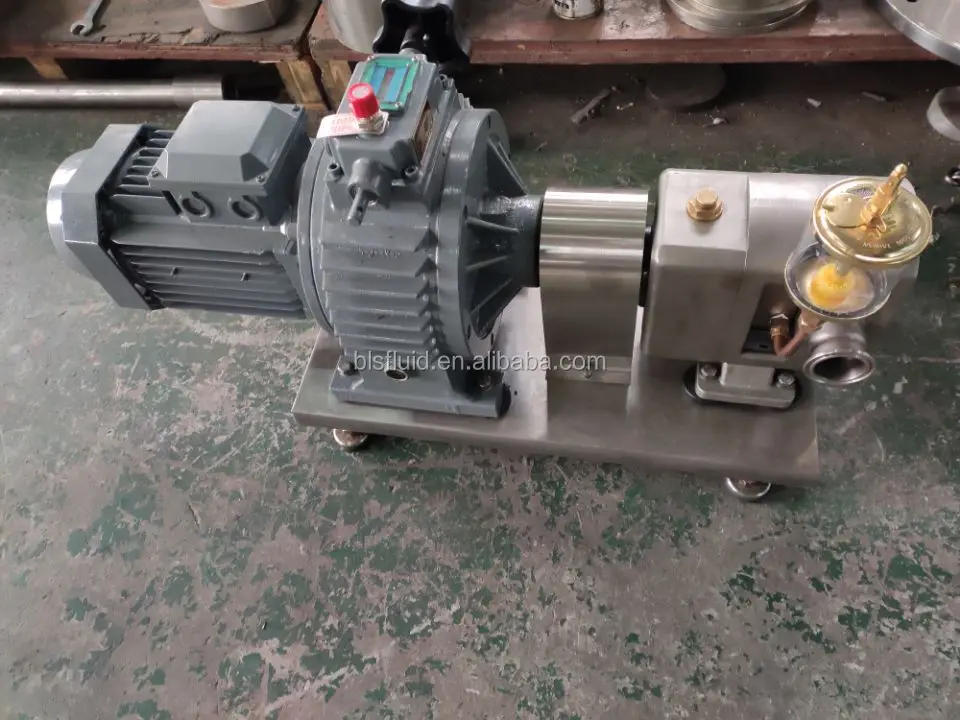

the pump can be installed with different motors according to different needs:
the pump had with warmjacket
with control cabinet
with trolley

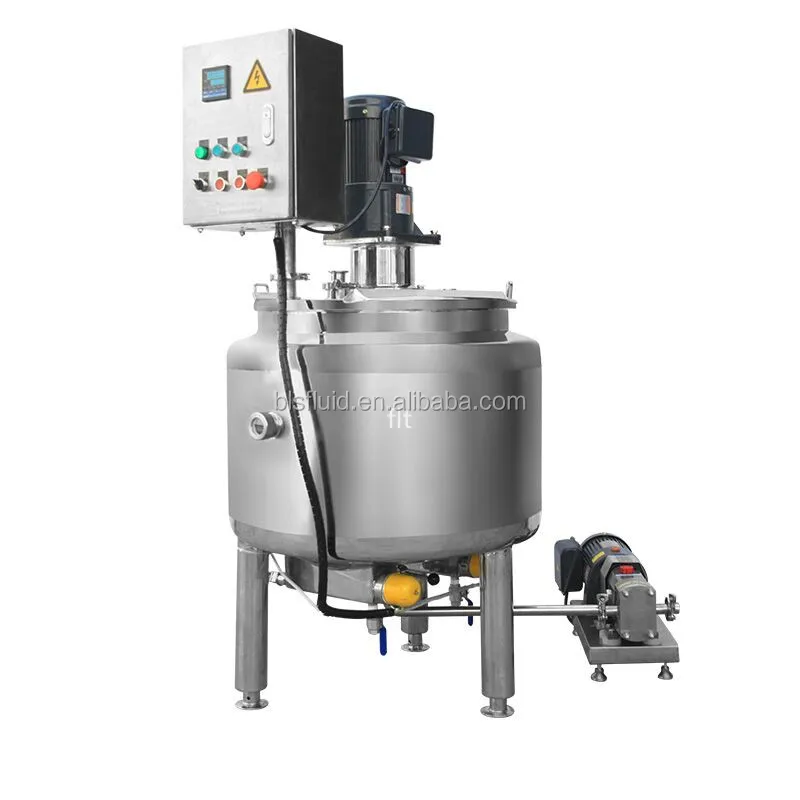

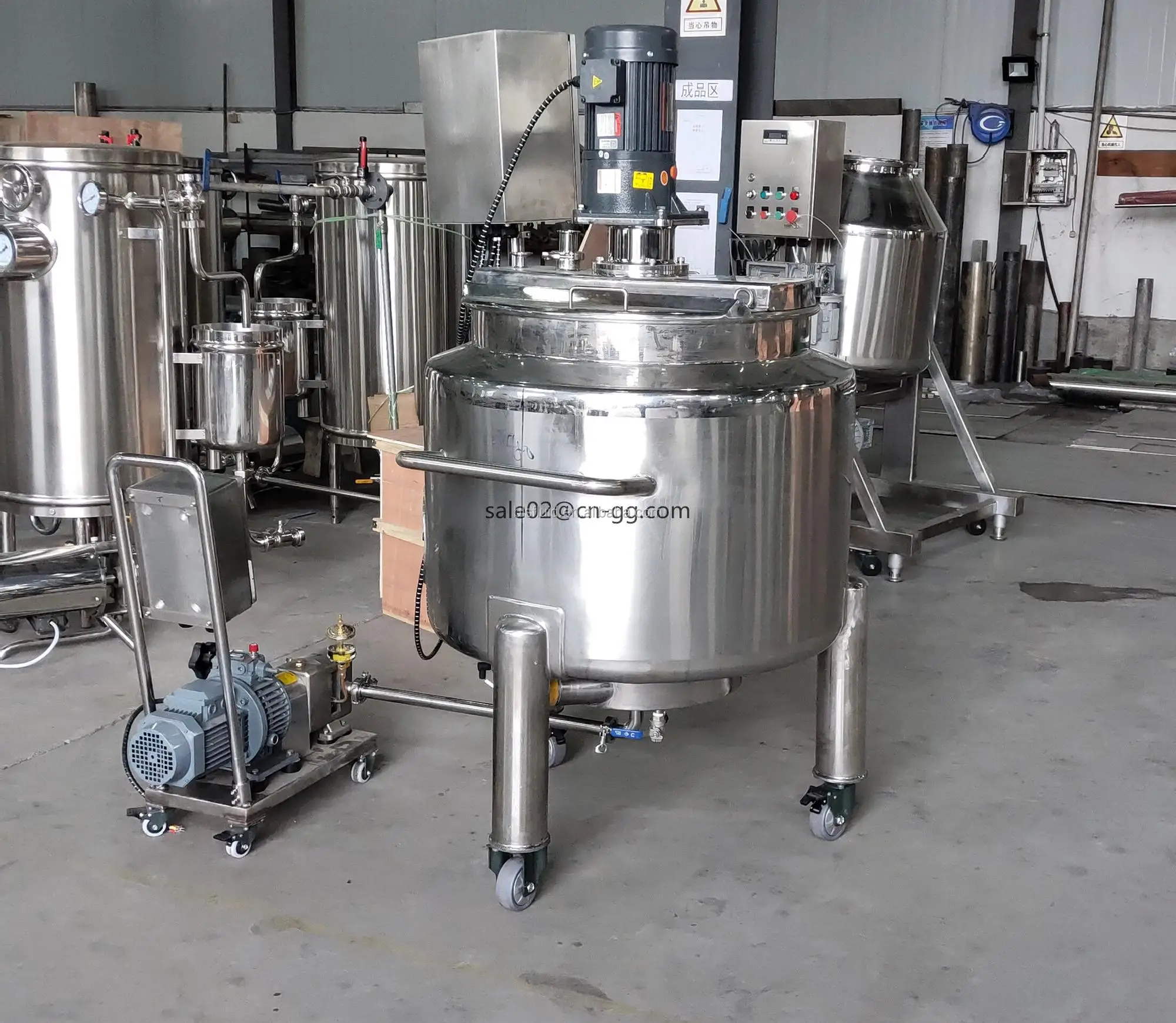

the pump can be connected with mixing tank to transfer the finished liquid to other vessl
related product
the lobe pump cam be connected to the tank for transfer the liquid,if you are interested in the combination,you can click the picture to know more.
Company Profile
Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.Our main products including colloid mills,Stainless Steel Tank, high shear mixer, beer fermenterand Sanitary pumps etc.
BLS products could applied in food, beverage, cosmetics industries etc
We now exports our goods to United States, Australia, Newzealand and Japan etc.
Meanwhile we also accept customized stainless steel parts and components for all industries.
BLS products could applied in food, beverage, cosmetics industries etc
We now exports our goods to United States, Australia, Newzealand and Japan etc.
Certifications
Product packaging
FAQ
1. Q: How do I pay for my purchase order?
A: T/T, L/C
2. Q: What's the MOQ?
A: Our MOQ is 1 unit.
3. Q:What's the delivery time?
A: It will take about 15-35days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Of course, you products can be customed for example color, logo, design, mark, etc.
5. Q: Do you have quality control?
A: Yes, we attach great importance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
A: T/T, L/C
2. Q: What's the MOQ?
A: Our MOQ is 1 unit.
3. Q:What's the delivery time?
A: It will take about 15-35days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Of course, you products can be customed for example color, logo, design, mark, etc.
5. Q: Do you have quality control?
A: Yes, we attach great importance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
