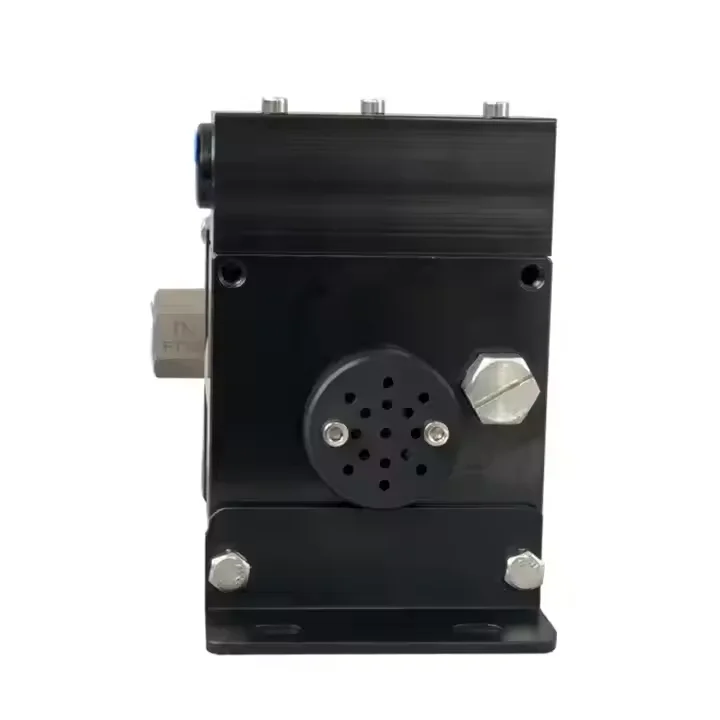

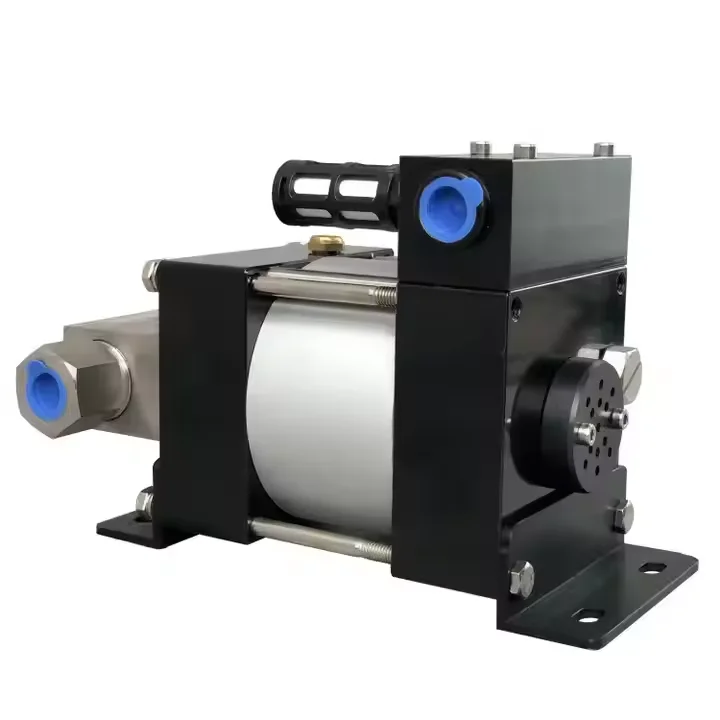

High Pressure Pneumatic Liquid Pump Air Driven Liquid Booster

WYM series miniature gas-liquid booster pump is a single-drive single-acting liquid booster pump with compressed air, which is characterized by small volume, small flow, low energy consumption and high output pressure.

Features

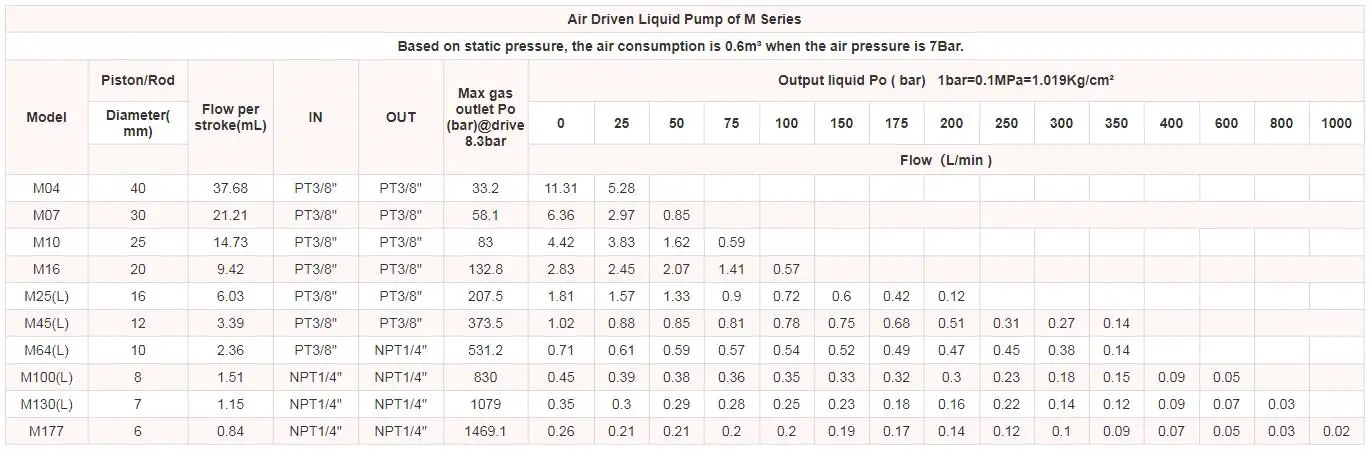

1.Output pressure can reach up to 1469.1bar;
2.Number of parts and seals is small, the maintenance is simple, and the maintenance cost is reduced;
3.Easy to carry, and the net weight is only 3.5kg, which is very suitable for field and marine operations;
4.Suitable for most liquids such as hydraulic oil, pure water, distilled water, negative ion water, chemical solvents, soft chemicals and liquid carbon dioxide;
5.A variety of gases can be used as driving sources, such as compressed air, vaporized liquid nitrogen, hot air and most other gases. This provides a set of independent external power units;

Main features
1.Driving pressure is 1bar-8.3bar (14.5-120.35psi), and the WYM series is a single driving piston (Φ80mm);
2.High pressure part is made of stainless steel, and the pneumatic part is made of aluminum alloy;

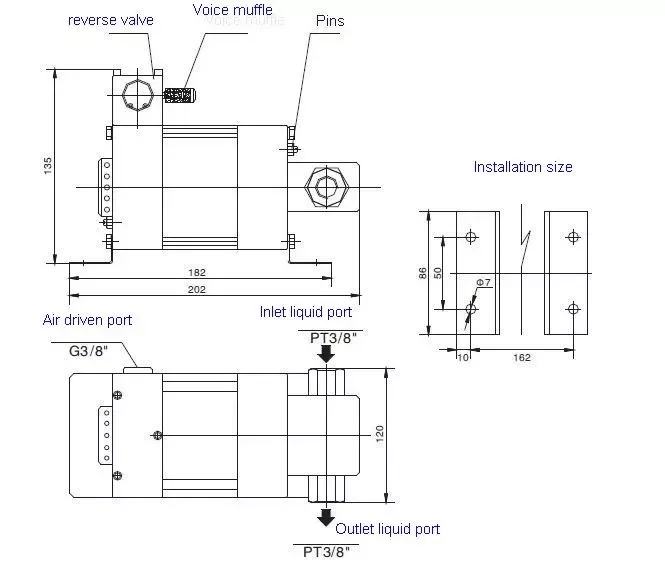

3.WYM series standard products are straight-through type (liquid inlet and outlet is 180°), order code such as: WYM64 (series code + boost ratio);
4.WYM series can be customized right-angle connection (the liquid inlet and outlet are 90°, and only the side is the medium inlet; order code such as: WYM64L (series code + boost ratio + direction code);

Description of special products

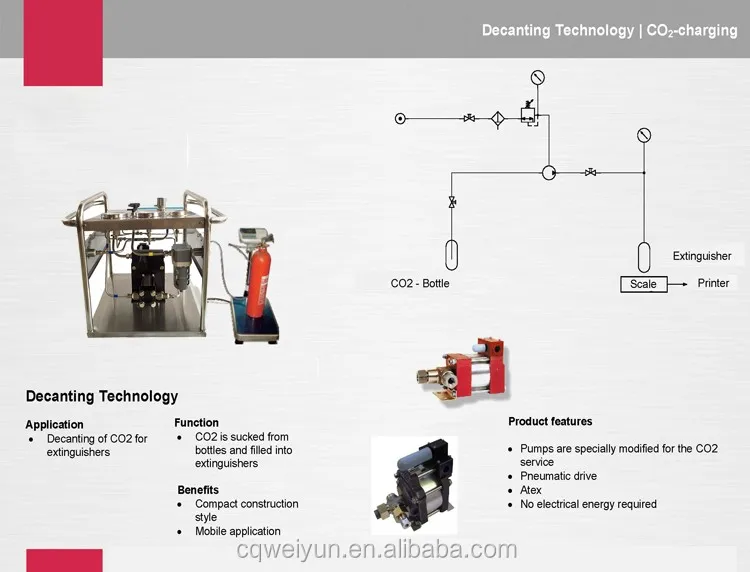

WYM series can be used for liquid carbon dioxide, order code such as: WYM25-CO2 (series code + boost ratio + boost medium)

Application scenarios
1.WYM series gas-liquid booster pump is suitable for occasions where pressure maintenance, supplementary pressure and low frequency dynamic movement are required.
2.Small-volume hydraulic test and blast test——including but not limited to pressure components such as valves, pressure vessels, pressure switches, hoses, and blowout preventer;
3.Calibration of pressure gauges and sensors;
4.Power source of the hydraulic fixture;
5.Power source and control source of wellhead equipment;
6.Various mobile and portable equipment power sources.
