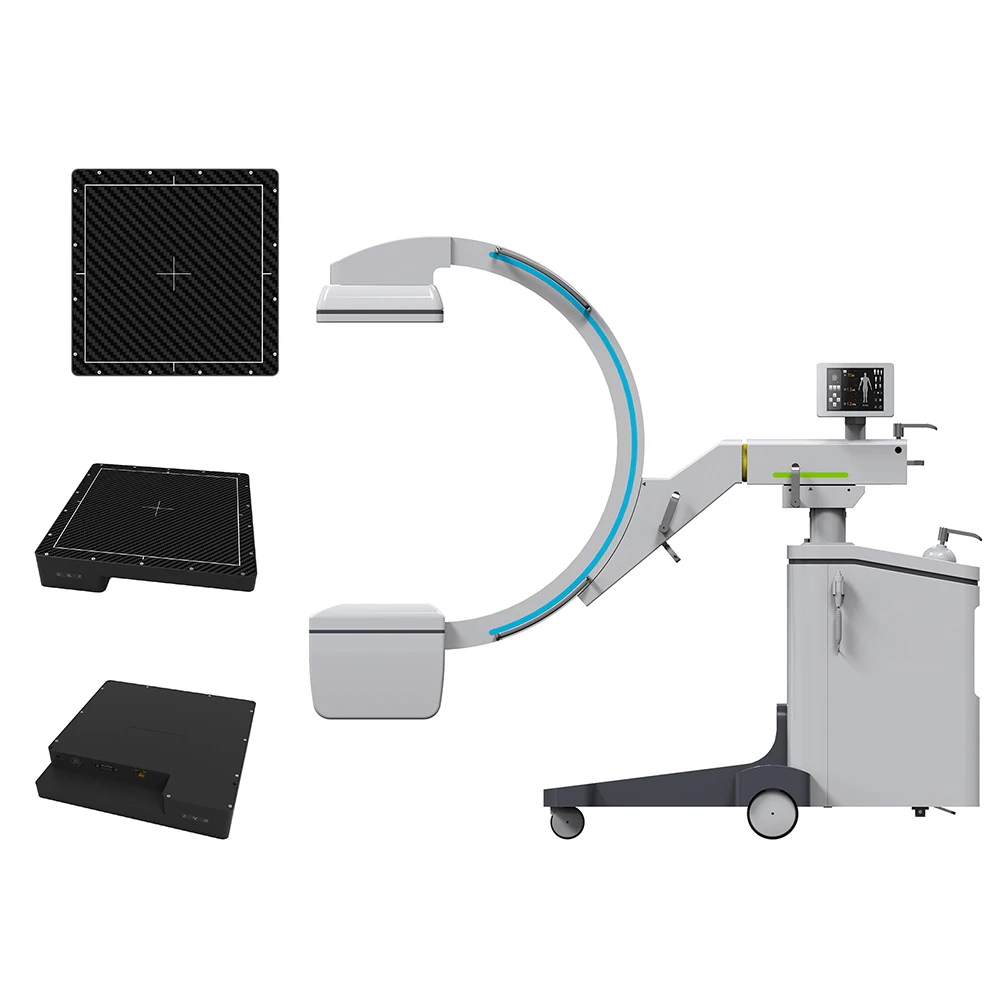

MSLFP39 Digital Fixed Type X Ray Detector for C arm Fluoroscopy Machine
- Category: >>>
- Supplier: Medsinglong Co Ltd
Share on (1601261091126):
Product Overview
Description
Product Description
MSLFP39 Fixed Type X Ray Detector
●Pixel Pitch: 200 um
●Pixel Matrix: 1024 X 1024
●ADC: 16-bit
●Gain Stage: Multi-Gain
●Scintillator: CSI / GOS
●Water Proof: IPX0
●Interface: Gigabit Ethernet, High voltage generator, Power
●Calibration: Software, Firmware
●Radiation Hardness:≥10000Gy
●Pixel Matrix: 1024 X 1024
●ADC: 16-bit
●Gain Stage: Multi-Gain
●Scintillator: CSI / GOS
●Water Proof: IPX0
●Interface: Gigabit Ethernet, High voltage generator, Power
●Calibration: Software, Firmware
●Radiation Hardness:≥10000Gy
Key features for amorphous silicon technology.
◆Large dose dynamic range
◆Long life time
Product Parameter
Pixel Pitch | 140um | ||
AD Conversion | 16 bits | ||
Gain Stage | Multi- Gain | ||
Water Proof | IPXO | ||
Interface | Gigabit Ethernet/High voltage generator Power | ||
Calibration | Software, Firmware | ||
Radiation Hardness | >=10000Gy | ||
Communication Interface | Gigabit Ethernet | ||
Sensor Protection Material | Carbon Fiber | ||
Housing Material | Aluminum Alloy | ||
Dimension | 470x470x30mm | ||
Net weight | 5kgs |

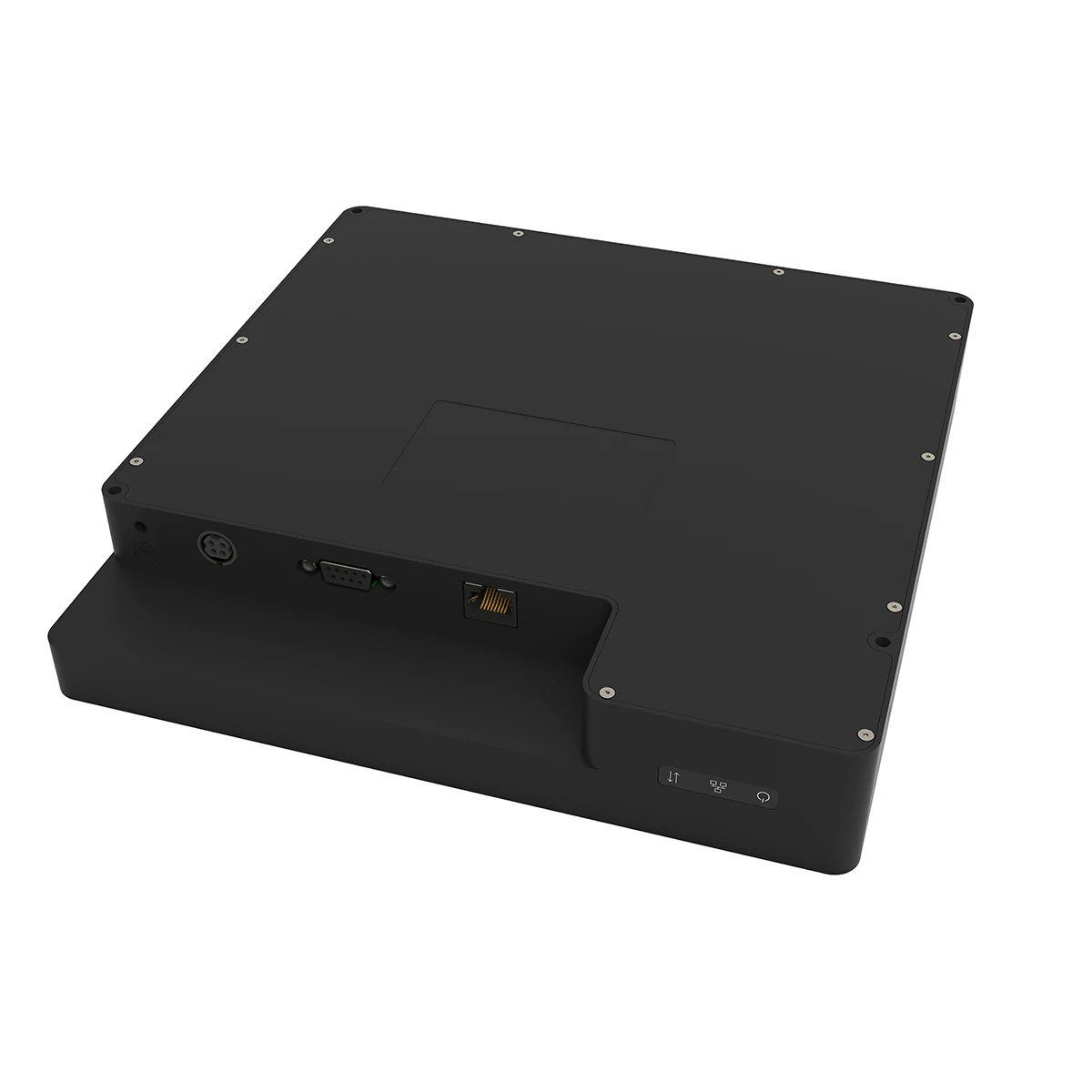

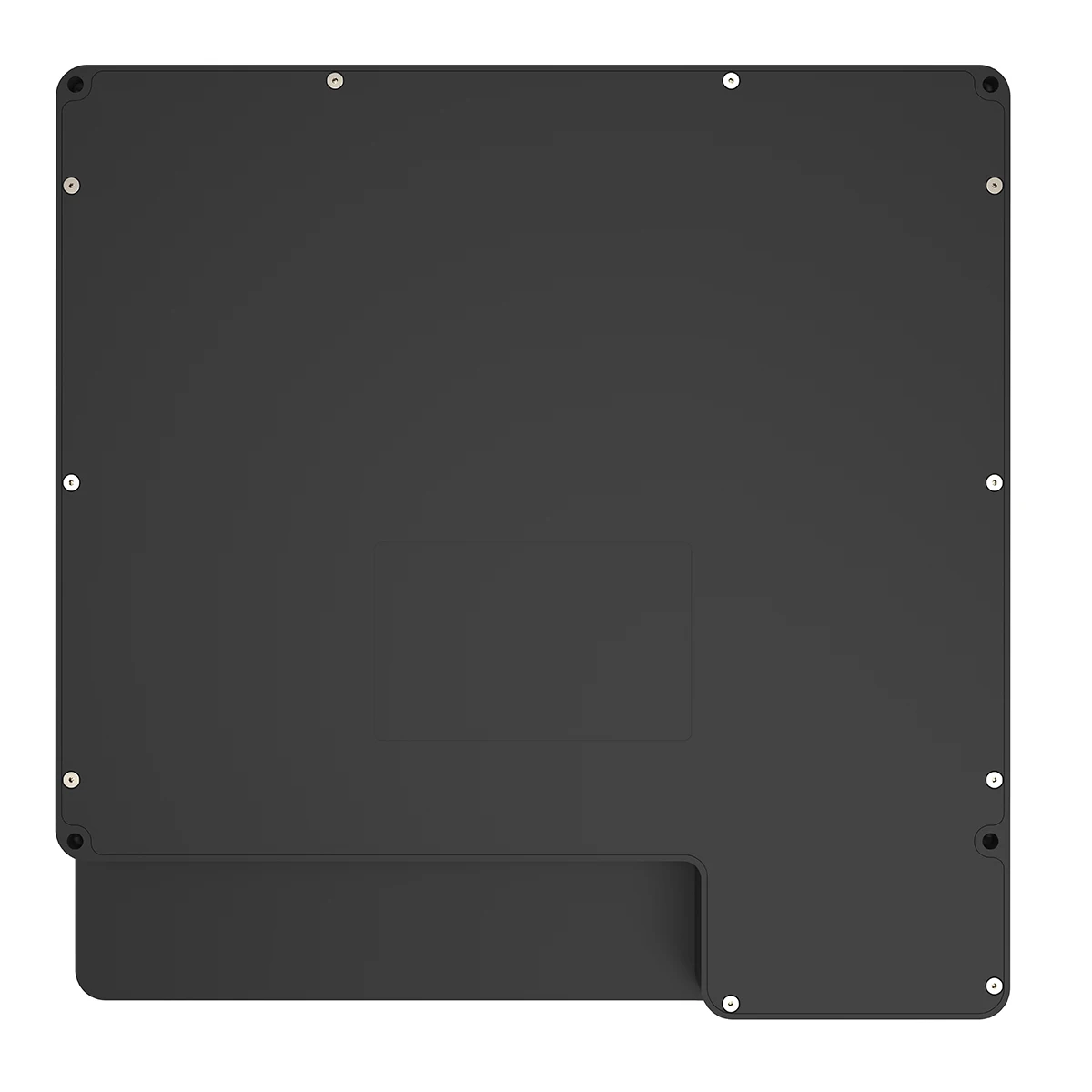

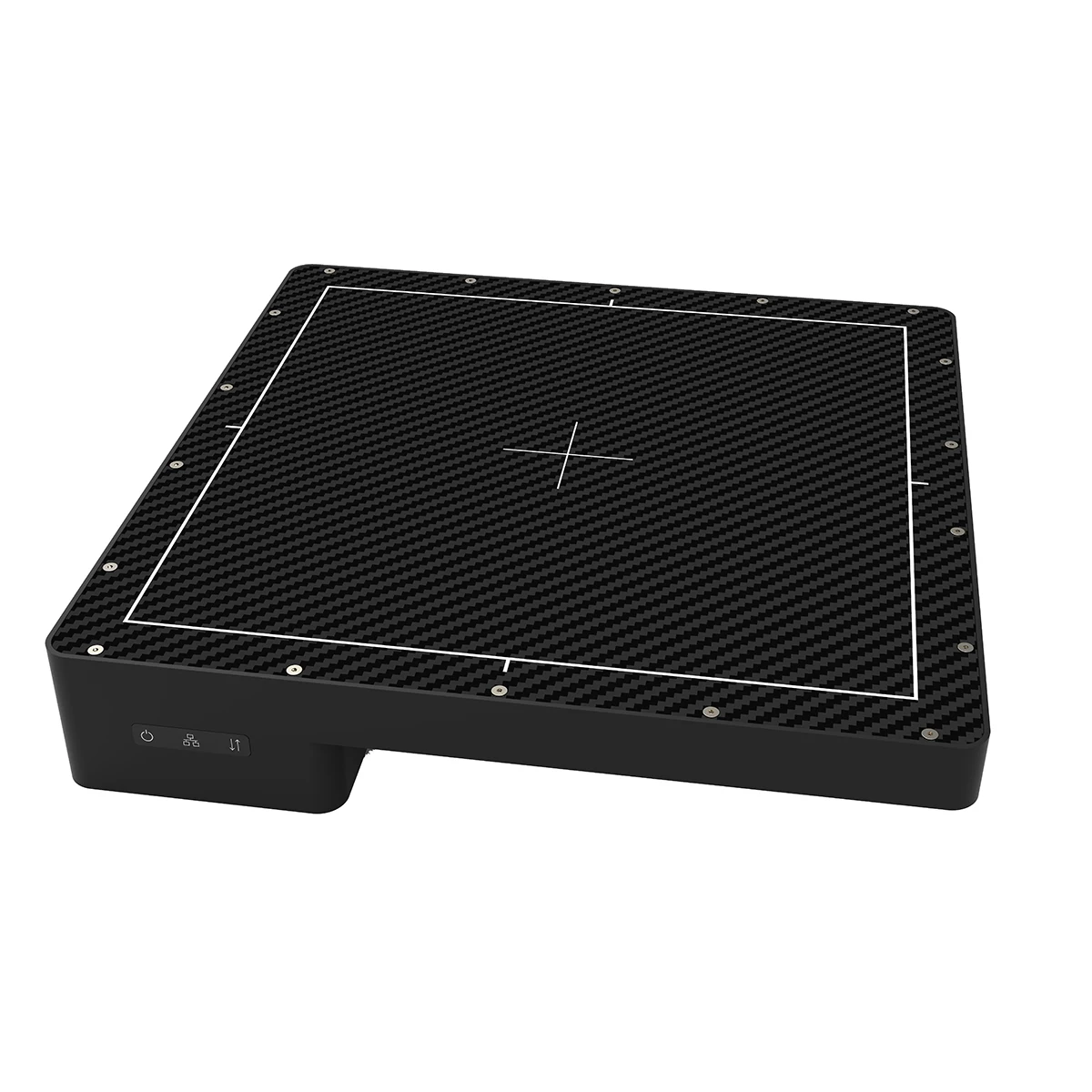

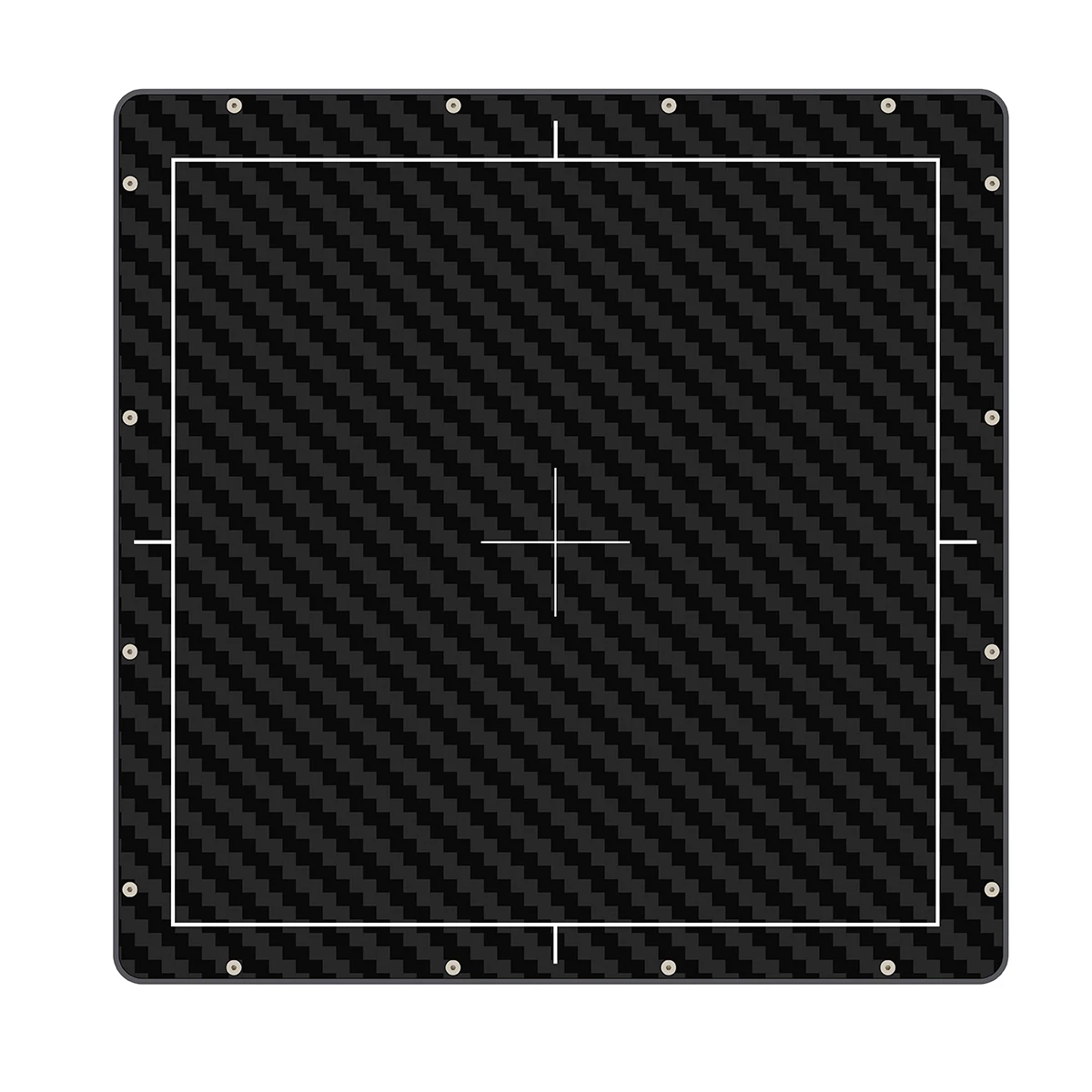

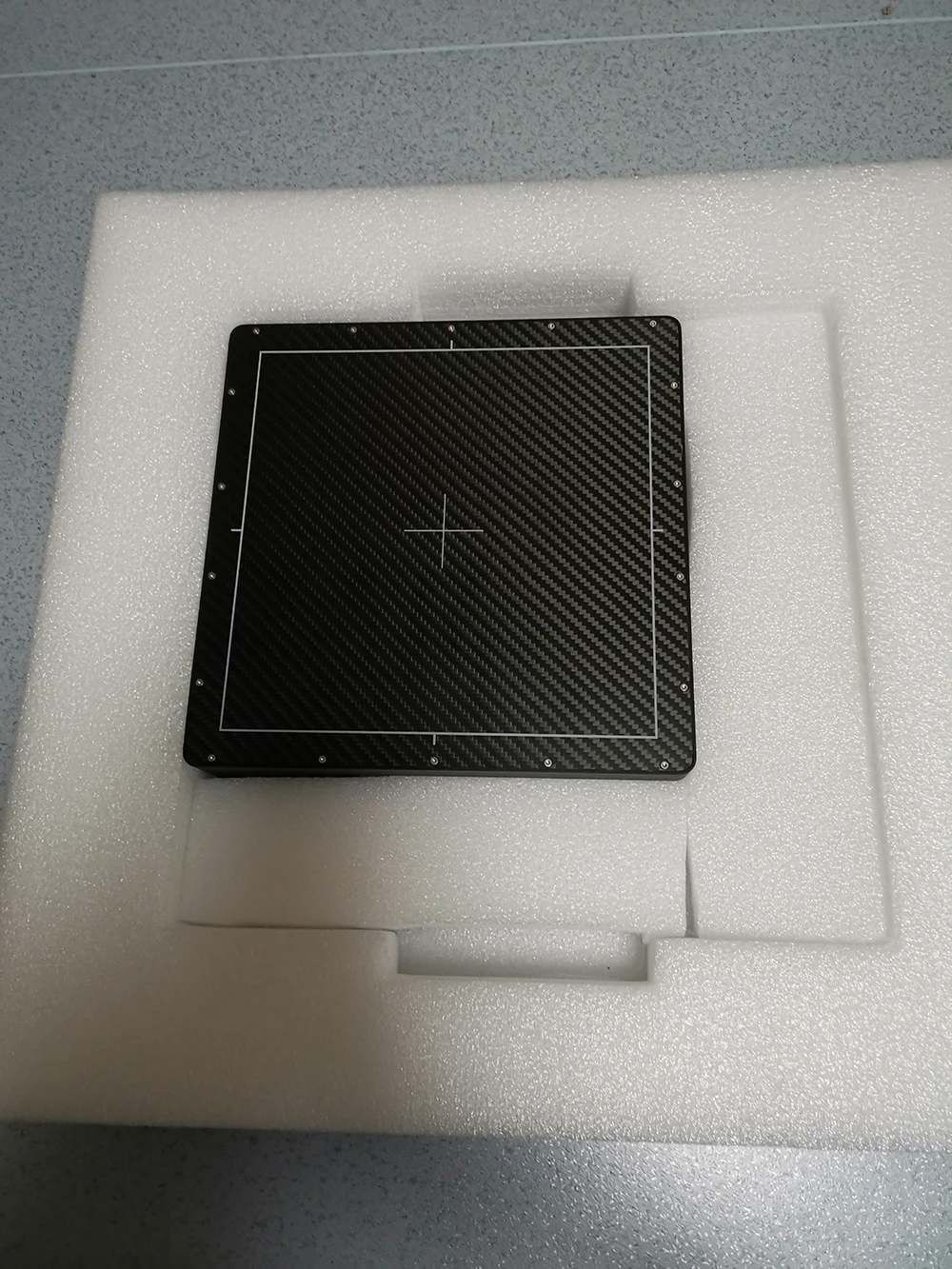

Image Detail
Related Products
Our Company
Cetificate
Our Service

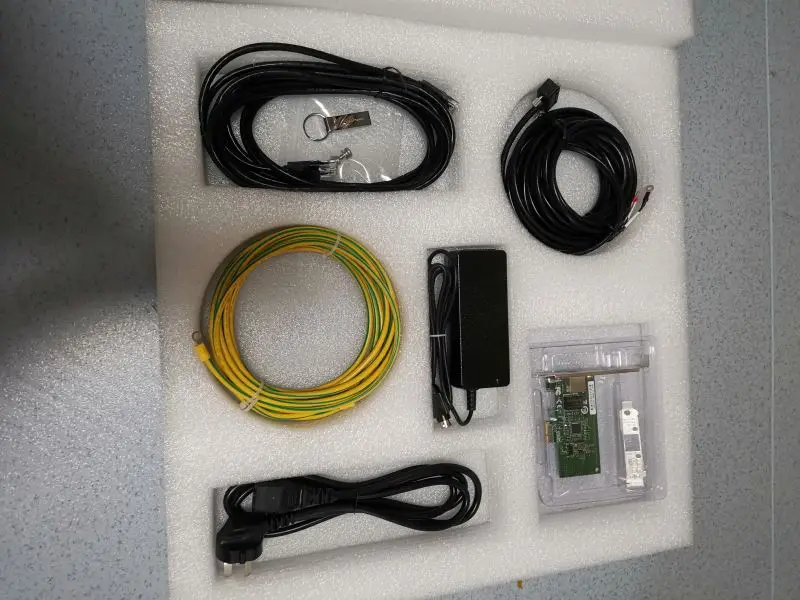

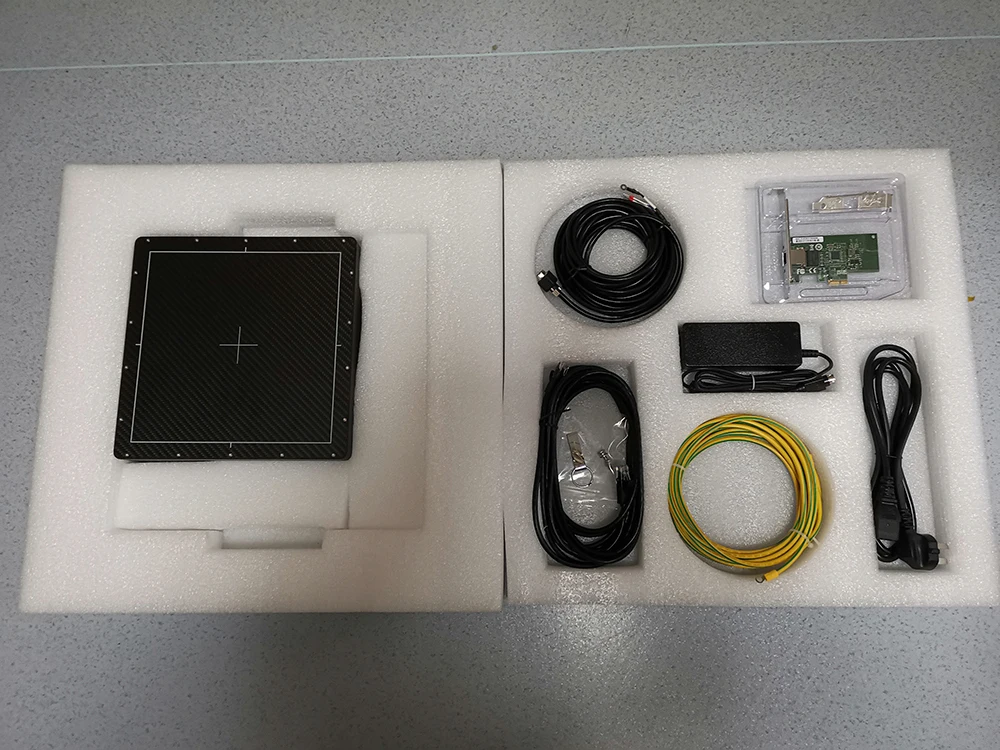

Packing & Delivery
