Price:$500.00-1,499.00

Quantity:


Product Overview

Description

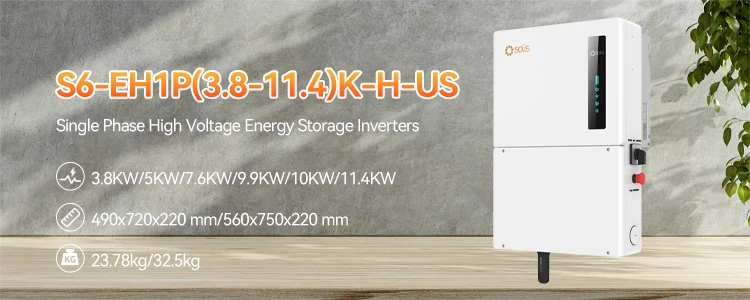

Products Description


Models
3.8K
5K
7.6K
9.9K
10K
11.4K
DC Input (PV)
Max. input voltage
600 V
Rated voltage
380 V
Start-up voltage
80 V
MPPT voltage range
80-520 V
Max. input current per string
16 A
Max. short circuit current per string
25.6 A
Number of MPPTs/Number of strings per MPPT
2/1
3/1
4/1
Energy Storage
Battery type
Lithium-ion
Battery voltage range
120-500 V
Maximum charge/discharge current
25 A
50 A
Battery communication
CAN/RS485
Number of batteries per inverter
See Battery Compatibility Sheet
AC Output (Grid)
Rated output power
3.8 kW
5 kW
7.6 kW
9990 W
10 kW
11.4 kW
Max. apparent output power
3.8 kVA
5 kVA
7.6 kVA
9990 VA
10 kVA
11.4 kVA
Rated output voltage
240 V
Rated frequency
60 Hz
Rated output current
15.8 A
20.8 A
31.7 A
41.7 A
41.7 A
47.5 A
Max. output current
15.8 A
20.8 A
31.7 A
41.7 A
41.7 A
47.5 A
THDi
<3%
AC Input (Grid)
Input voltage range
211-264 V
Max. input current
23.8 A
31.2 A
47.6 A
62.6 A
62.6 A
71.3 A
Frequency range
58.8-61.2 Hz
AC Output (Backup and Off-grid)
Rated output power
3.8 kW
5 kW
7.6 kW
9990 W
10 kW
11.4 kW
Max. apparent output power
6.1 kVA, 10 sec
8 kVA, 10 sec
12.2 kVA, 10 sec
16 kVA, 10 sec
16 kVA, 10 sec
18.2 kVA, 10 sec
Back-up switch time
<10 ms
Phase Power
240 V Split-Phase
Rated output voltage (L1-L2)
240 V
AC output voltage range
211-264 V
Rated grid frequency
60 Hz
Frequency range
55-65 Hz
Rated AC output current
15.8 A
20.8 A
31.7 A
41.7 A
41.7 A
47.5 A
Max. output overcurrent protection, 10 sec
25.4 A
33.3 A
50.7 A
66.7 A
66.7 A
76 A
Max. allowable phase imbalance
100%
Backup support configurations
Whole-home and dedicated loads
Power factor
>0.99 (0.8 leading - 0.8 lagging)
THDv (@linear load)
<3%
Efficiency
PV Max. efficiency
97.0%
97.6%
PV CEC efficiency
96.5%
97.0%
Battery charged by PV Max. efficiency
98.5%
Battery charged/discharged to AC Max. efficiency
97.0%
Protection
Ground fault detection
Yes
Residual (leakage) current detection
Yes
Integrated AFCI
Yes
DC reverse-polarity protection
Yes (PV only)
Manual inverter bypass switch
Yes
Rapid Shutdown NEC 2017
Integrated SunSpec-certified Transmitter
Compatible RSD Receivers
See MLRSD Compatibility Sheet
Protection class/Over voltage category
I/II
General Data
Dimensions (W*H*D)
19.21*28.35*8.66 in (490*720*220 mm)
22.05*29.53*8.66 in (560*750*220 mm)
Weight
52.43 lbs lbs (23.78 kgs)
71.74 lbs (32.54 kgs)
Topology
Transformerless
Self-consumption (night)
< 20 W
Operating ambient temperature range
-13 °F to 140 °F (-25°C to 60°C)
Ingress protection
TYPE 4X
Cooling method
Natural convection
Mounting type
Wall Bracket
Max. operation altitude
13,120 ft (4000 m)
Generator support
Yes; up to 25 kW (with a Solis Hub)
Features
DC connection
1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals
AC connection
1.5 in. knockouts for conduit (x3) on the side and bottom; Spring clamp terminals
Interface
LED indicator lights, Bluetooth/Mobile application
Monitoring platform
SolisCloud (modbus map and API sharing available upon request)
Revenue Grade Meter
Integrated ANSI C12.20 option
Communication
RS485, Cellular, Wi-Fi, Optional: LAN
Integrated RSD Transmitter Brands
See the MLRSD Compatibility Sheet

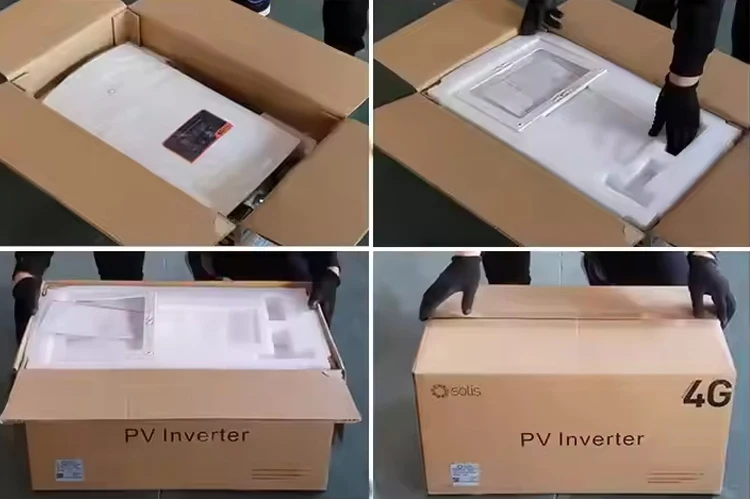

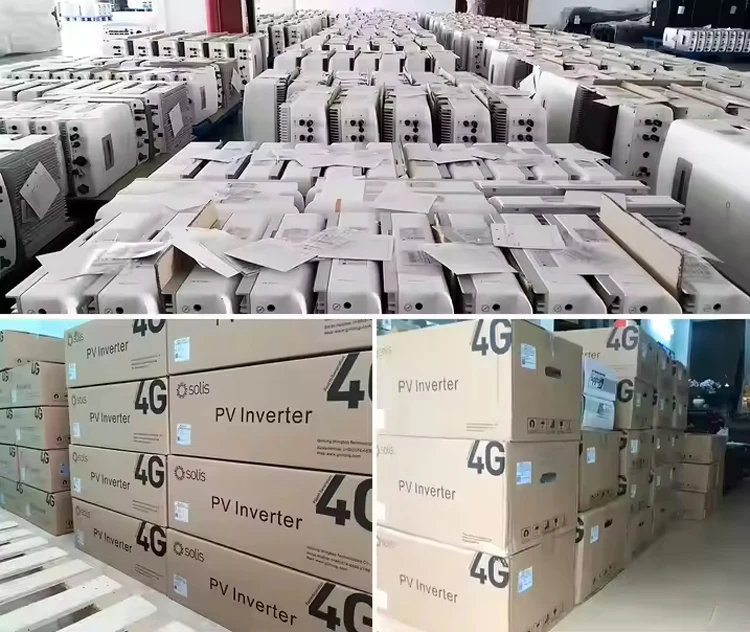

Packing & Delivery

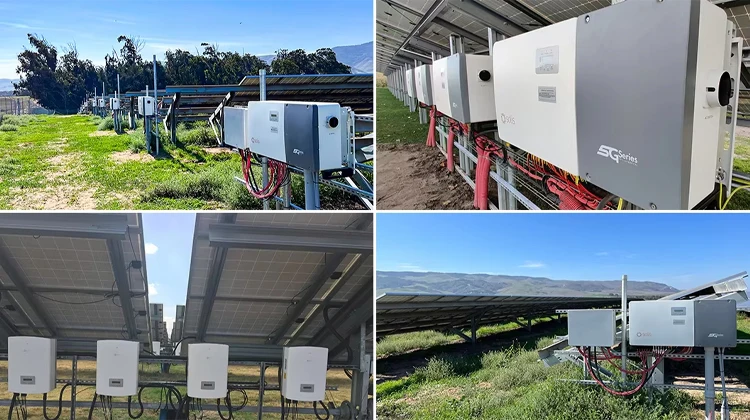

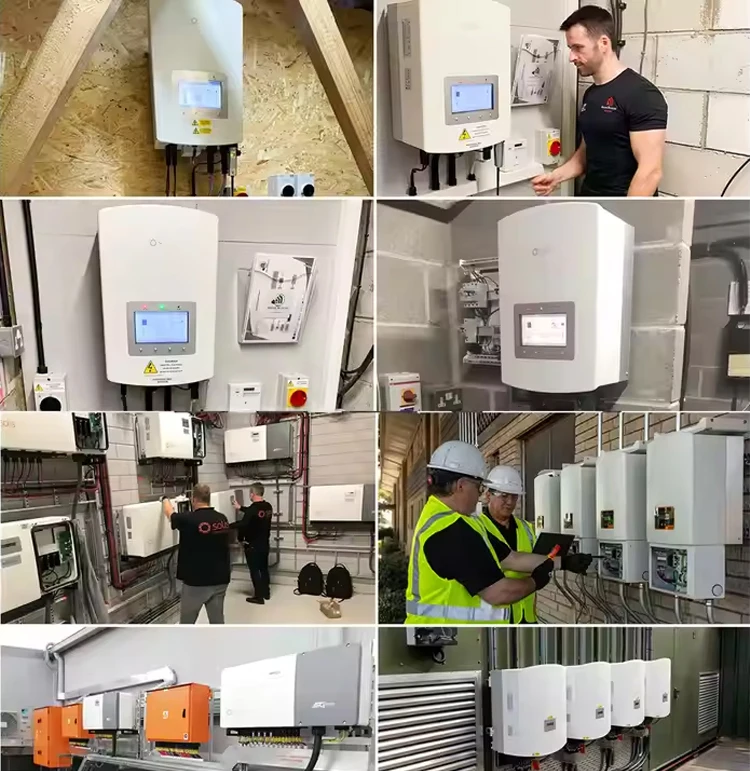

Project Case

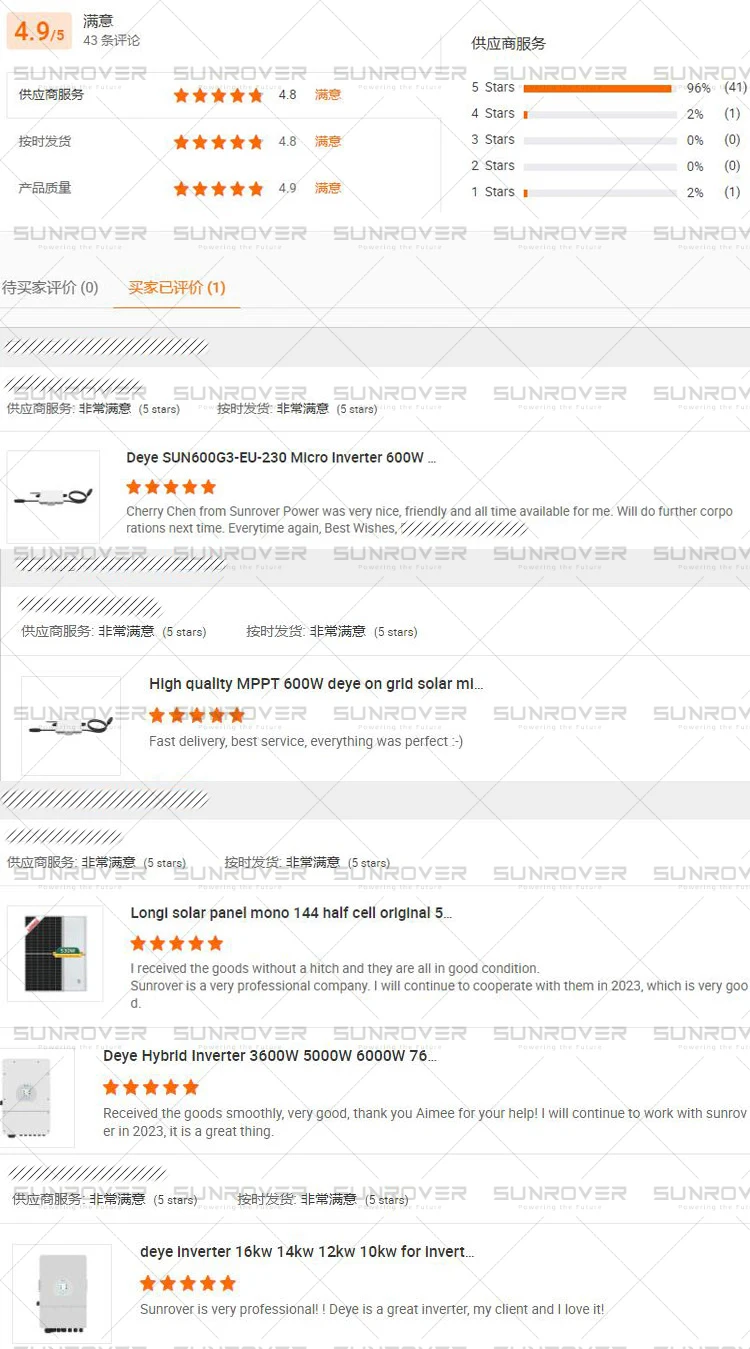

Customer Feedback
