High Quality 51.2V 100Ah 5.12kwh Lifepo4 Power Wall Energy 48V Lithium Solar Battery 200Ah Capacity 15K For Sale
- Category: >>>
- Supplier: Yichun Enten Science And Technology Co. Ltd.
Share on (1601261302020):
Product Overview
Description
Lithium LiFePO4 Battery 48V5KWH/48V10KWH/48V15KWH are most popular and widely used in solar storage system(Off Grid Solar System&Hybrid Solar System ). They can be connected in Parallel to store more energy.
PERFOMANCE SPECIFICATIONS | ||||||||
Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-16 | HZEB-LCT-20 | ||||
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | ||||
Cell model/configuration | 3.2V100Ah/16S1P | 3.2V205Ah/16S1P | 3.2V314Ah/16S1P | 3.2V205Ah/16S2P | ||||
Capacity(Ah) | 100Ah | 205Ah | 314Ah | 410Ah | ||||
Rated Energy(kwh) | 5.120kwh | 10.496kwh | 16.076kwh | 20.992kwh | ||||
Max.Charge/Discharge Current(A) | 100A | 100A | 150A | 200A | ||||
Voltage Range(Vdc) | 44.8~57.6v | |||||||
Scability | Up to 15 parallel | |||||||
Communication | CAN/RS485/RS232 | |||||||

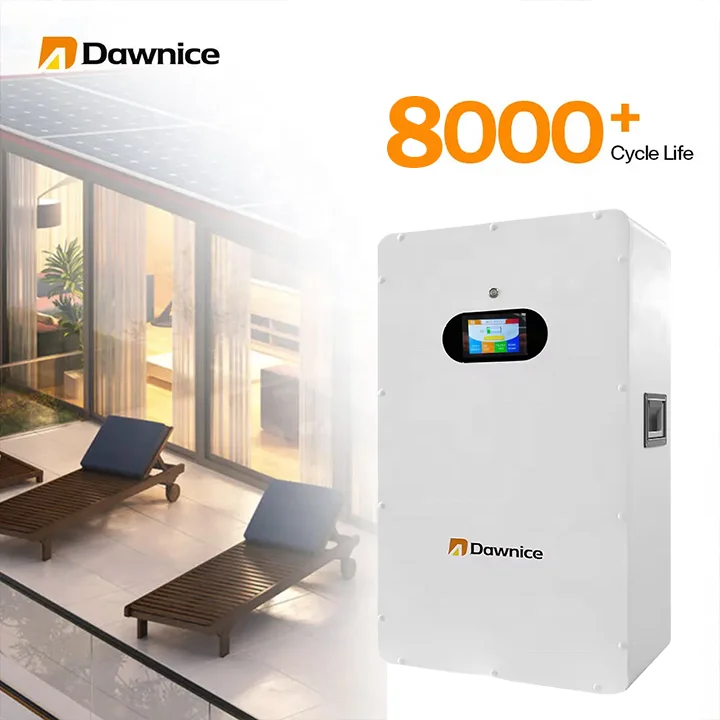

Cycle Life | ≥8000Cycles@25℃,80%DOD | |||||||
Design Life | ≥15Years(Cycle life≥15 Years(25℃)) | |||||||
MECHANICAL SPECIFICATIONS | ||||||||
Product Weight(KGS) | 55KGS | 98KGS | 128KGS | 180KGS | ||||

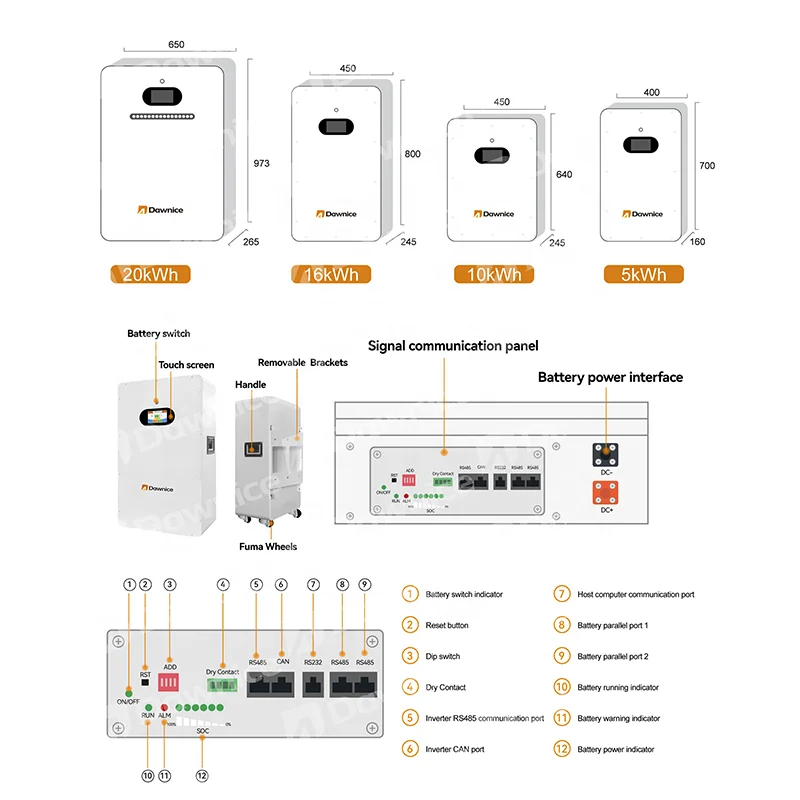

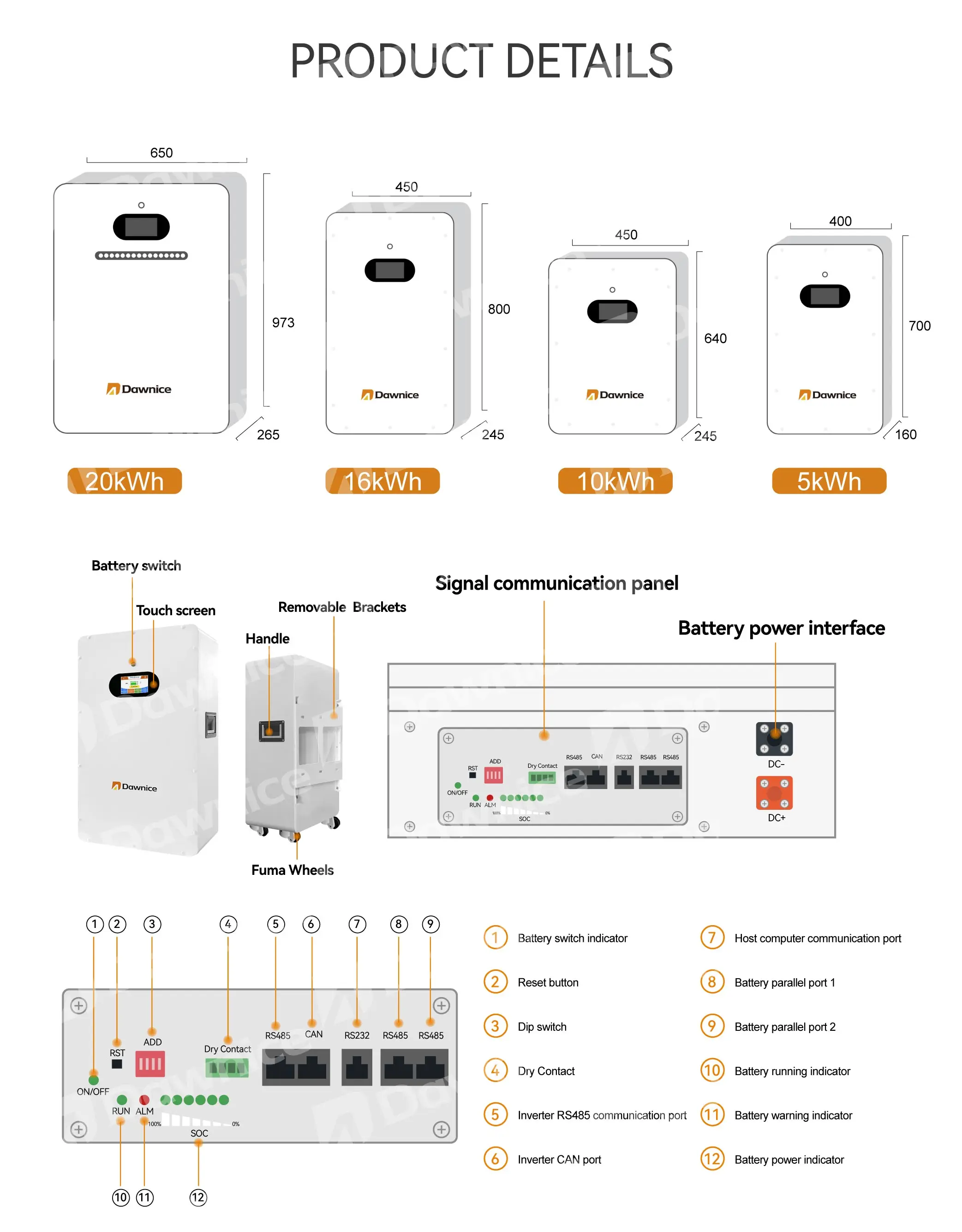

Dimension(W/D/H)(mm) | 160*400*700mm | 245*450*640mm | 245*450*800mm | 265*650*973mm | ||||

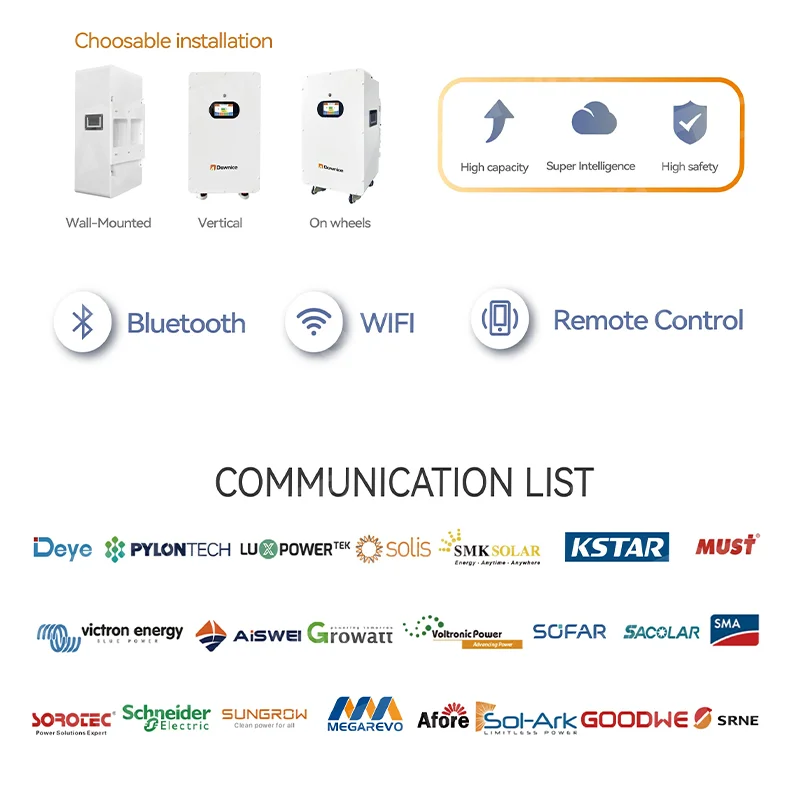

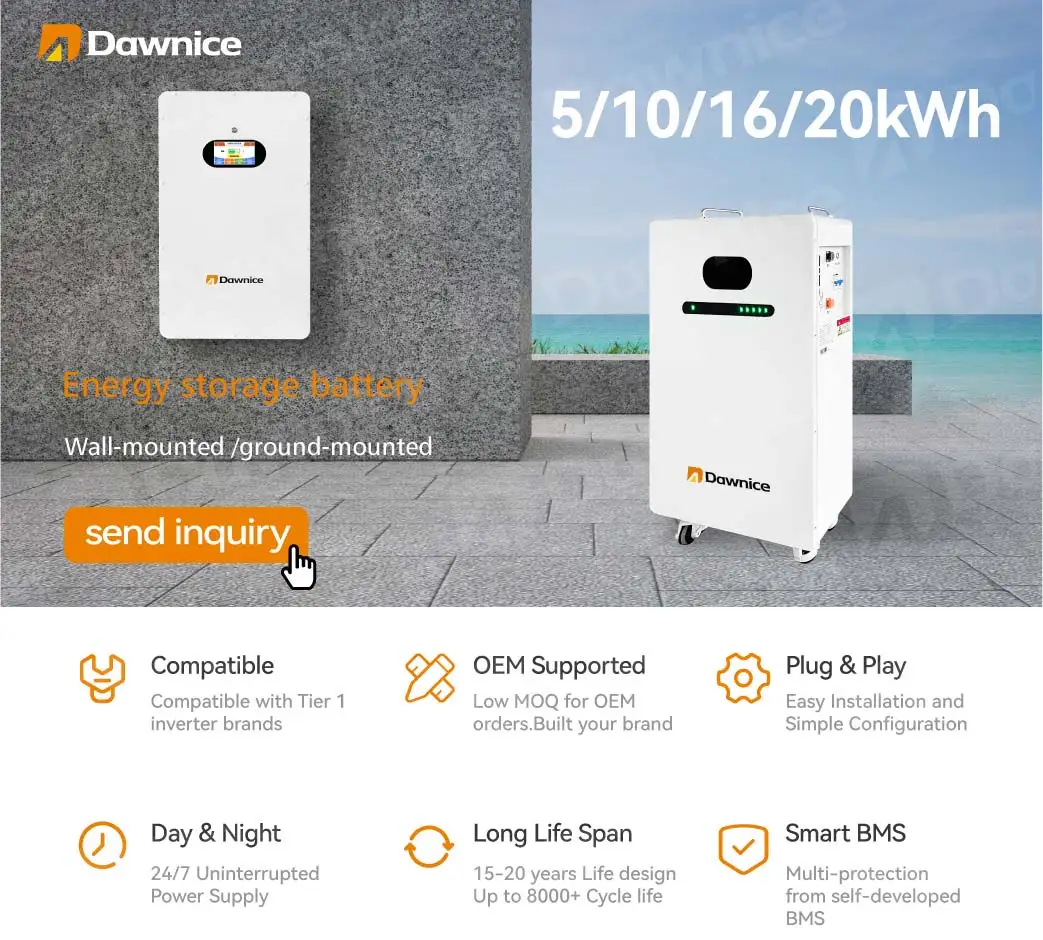

Installation Mode | Wall/Ground Mounted(20kWh battery ground-mounted only) | |||||||
IP Grade | IP54 | IP54 | IP54 | IP20 | ||||
SECURITY AND CERTIFICATIONS | ||||||||

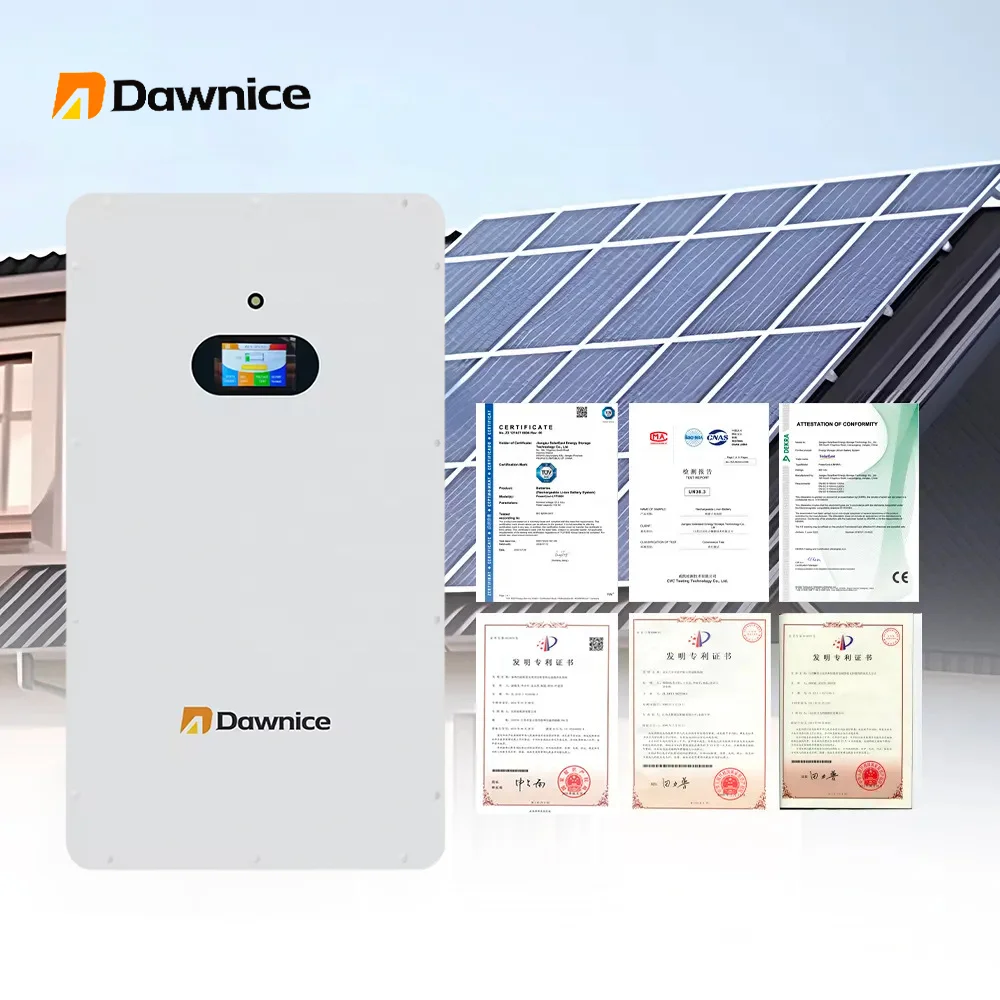

Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | |||||||
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||||||
Protection | Short-ciruit protection/overcurrent protection/over-temperature protection | |||||||
ENVIRONMENTAL SPECIFICATIONS | ||||||||
Operating Temperature(℃) | Charge 0℃~50℃; Discharge -10℃~50℃ | |||||||
Working Altitude(m) | ≤2000 | |||||||
Humidity | ≤95%(Non-condensing) | |||||||
Warranty | 10 years | |||||||
FAQ
Q1.What are the advantages of our company?
Strong R&D team, independent R&D and production of main parts, to control product quality from the source.
Q2.What kind of certificates our products have acquired?
Most of our products have acquired CE, FCC, UL and PSE certificates, which can meet the import requirement of most countries.
Q3.How do we ship the goods since they are high capacity battery?
We have long-term cooperation freight forwarders who are professional at battery shipment.
Q4.How to proceed an order for lithium ion battery?
First let us know your requirement or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Q5.How long is the warranty for our products?
Our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please feel free to contact us.
Strong R&D team, independent R&D and production of main parts, to control product quality from the source.
Q2.What kind of certificates our products have acquired?
Most of our products have acquired CE, FCC, UL and PSE certificates, which can meet the import requirement of most countries.
Q3.How do we ship the goods since they are high capacity battery?
We have long-term cooperation freight forwarders who are professional at battery shipment.
Q4.How to proceed an order for lithium ion battery?
First let us know your requirement or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Q5.How long is the warranty for our products?
Our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please feel free to contact us.
