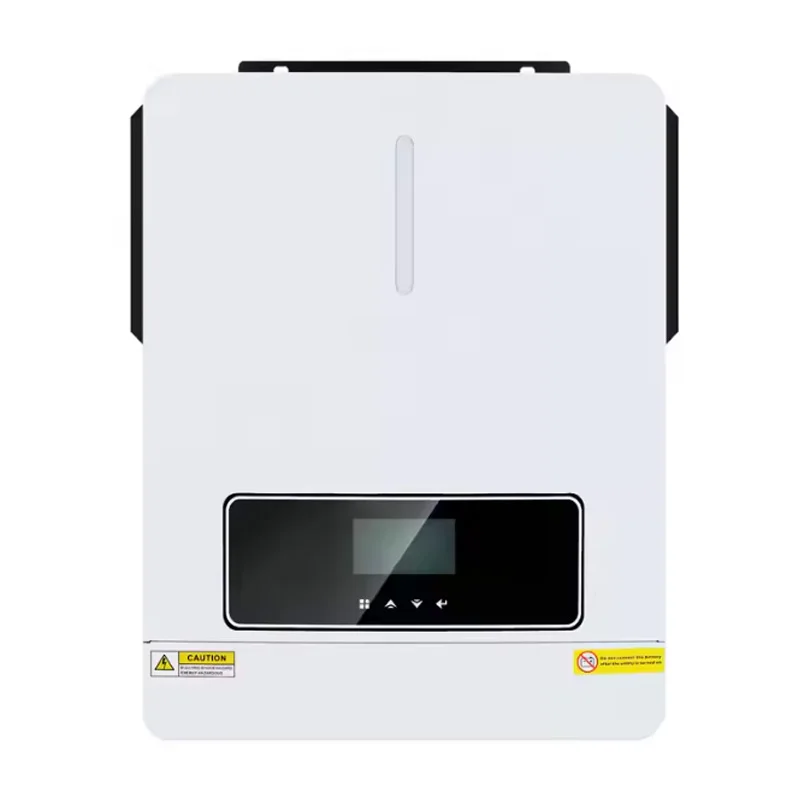

Off grid pure sine wave 1000w to 12 kw dc to ac hybrid solar inverter mppt

Share on (1601261313107):


Price:$106.99 - $109.99

Quantity:


Product Overview

Description



Products Description


Description:
【Pure sine Wave Inverter】1000W Pure sine Wave Inverter 12V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 40A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 12V Lead-Acid (Seal,AGM,Gel, Flooded) and Lithium battery
【TECHNICAL SPECIFICATIONS】1kw Hybrid Solar Inverter Max.PV Input Power: 600W, Voltage range: 20-150Vdc, Max. PV Input VOC: 150V DC, Starting voltage >30V;Recommended PV cable size: 12AWG, Max.charge current: 40A. Nominal Input Frequency: 50/60Hz; Output Power: 1000W, surge Capacity:2000W.
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 1000W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.(Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running.Avoid affecting your rest (expect 50-70 db))
【w/LCD & LED DISPLAY】LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting.
Descriptive:
This is a multi-function inverter charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.Bulit in 40amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
NOTE:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.If you need storage batteries or solar panels. Y&H one-stop service for you.
Features:
Pure sine wave inverter
Programmable supply priority for PV, battery or Grid
High PV input voltage range(20~150VDC)
Reduce the cost of solar panels
Built-in Max 40A MPPT solar charge
Compatibe with lithium-ion battery
Smart battery charge design to optimize battery life
Overload, high temperature,inverter output short circuit protection Intelligent fan speed adjustment
Built-in anti-dusk kit for harsh enviromen



Details Images


Product Data Sheet
Model
NMS-1000-12
NMS-1500-24
RATED POWER
1000W/1000VA
1500W/ 1500VA
AC Input
Voltage
230VAC

Selectable Voltage Range
170~280VAC (For Personal Computers)
90~280VAC (For Home Appliances)
Frequency Range
50 Hz/60Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation
230VAC士5%
Surge Power
2000VA
3000VA
Efficiency(Peak)PV to INV
98%
Efficiency(Peak)Battery to INV
94%
Transfer Time
10 ms
BATTERY
Battery Voltage
12VDC
24VDC
Floating Charge Voltage
13.5VDC
27VDC
Overcharge Protection
16VDC
32VDC
SOLAR CHARGER &AC CHARGER
Solar Charger Type
MPPT

Maximum PV Array Power
600W
1200W
MPPT Range @ Operating Voltage
20~150VDC
30~150VDC
Starting voltage
>30V
Maximum PV Array Open Circuit voltage
150VDC
Maximum Solar Charging Current
40A
Maximum AC Charging current
40A
Maximum Solar + AC Charging Current
80A
PHYSICAL
Dimension,D*W*H(mm)
290*240*91
Cartoon Dimension,D*W*H(mm)
340*30*16
Net Weight(kgs)
3.5
3.6
Gross wWelightM(kgs)
3.8
4.2
ENVIRONMENT
Humidity
5% to 95% Rellatiwe Humidility (Non-condensling)
Operating Temperature
-10℃-5℃
STANDARD
Compliance Safaty
CE


Product Show




Recommend Products






Company Profile


"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors

Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.









Product packaging and shipping






Certifications






FAQ


FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation
will be sent to our customers.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery

4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.

5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.

6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample

7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
