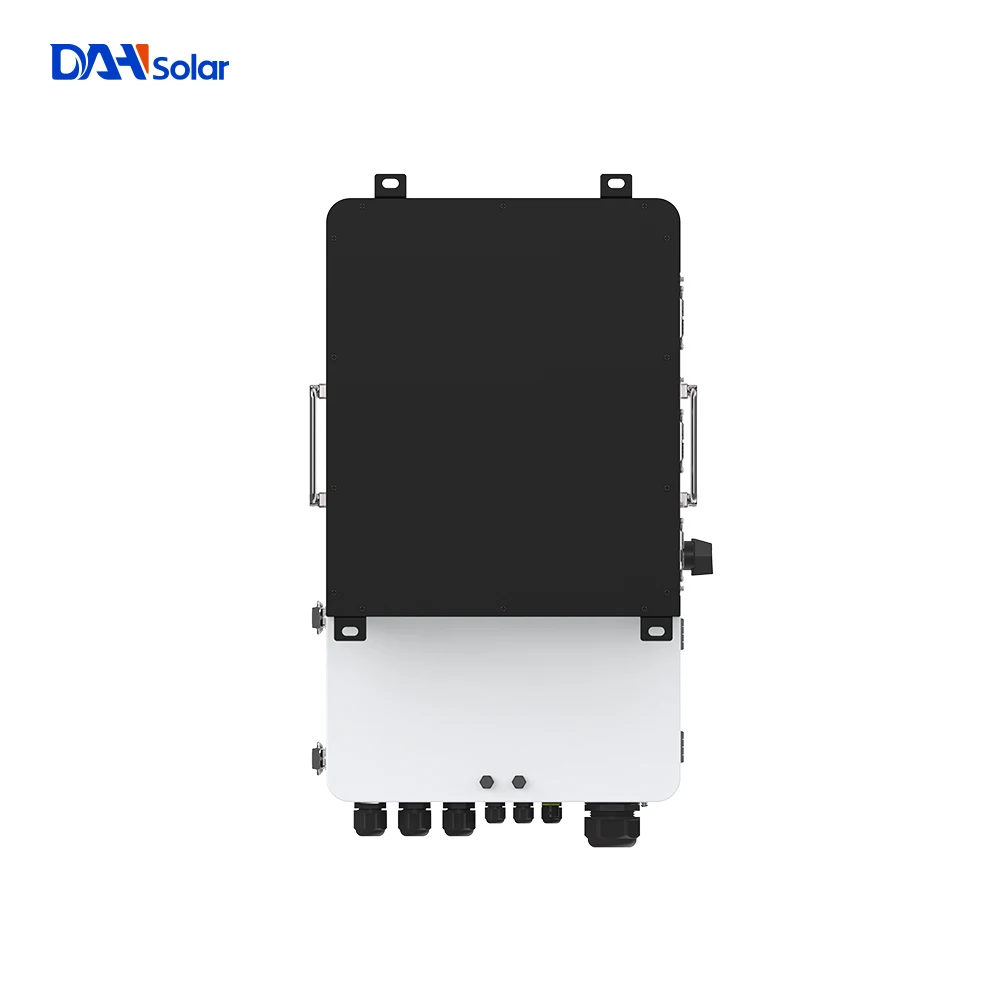

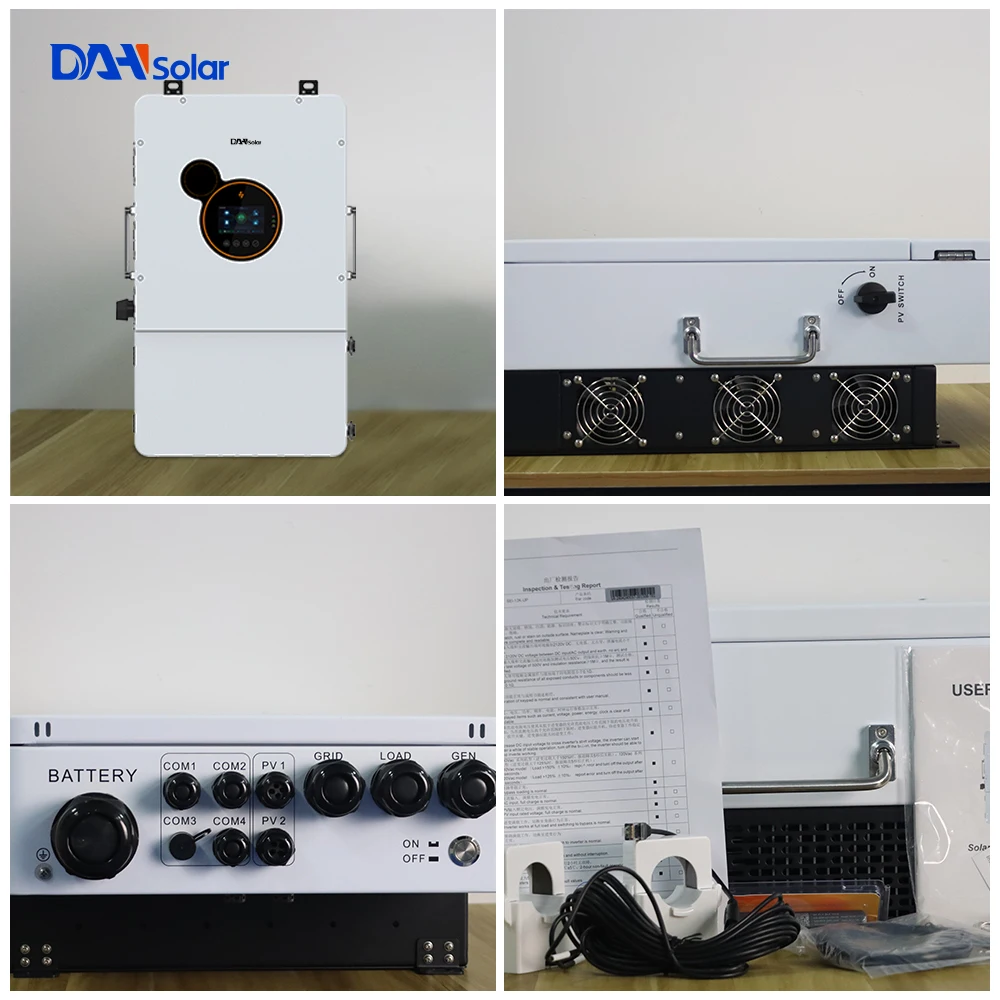

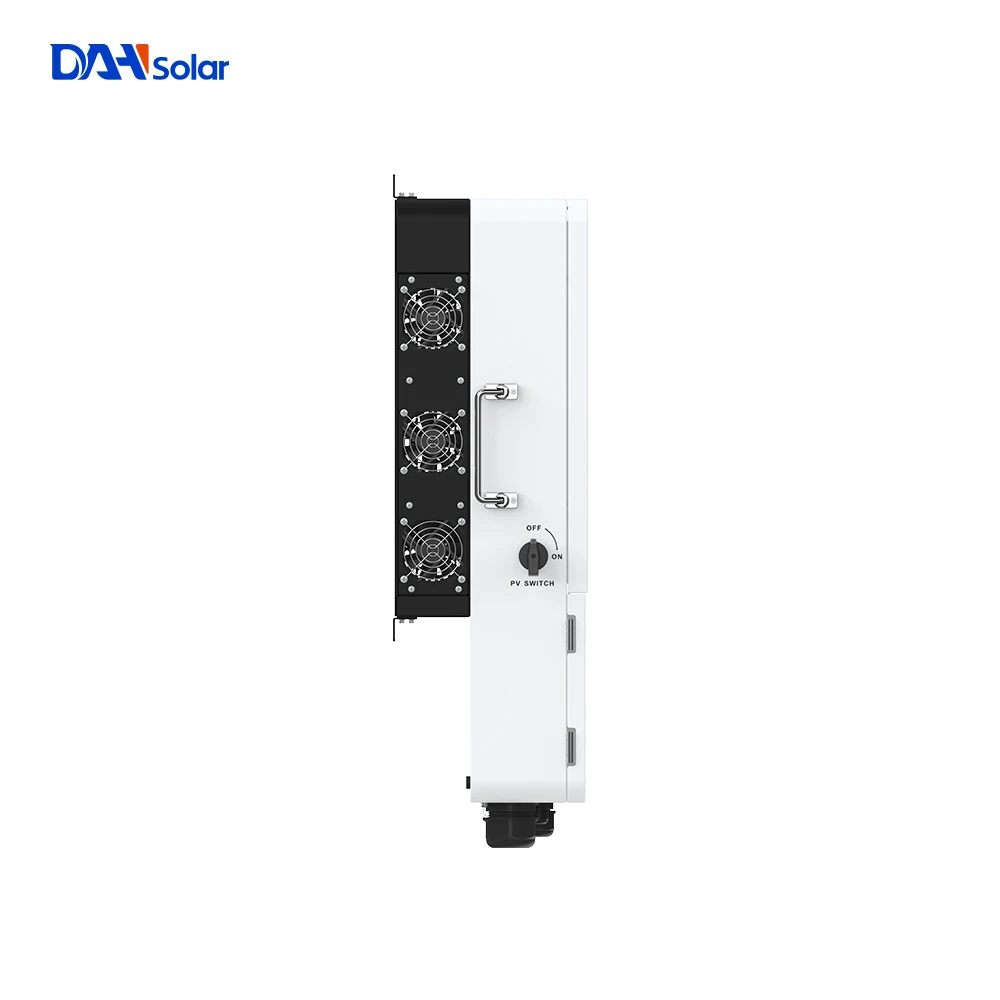

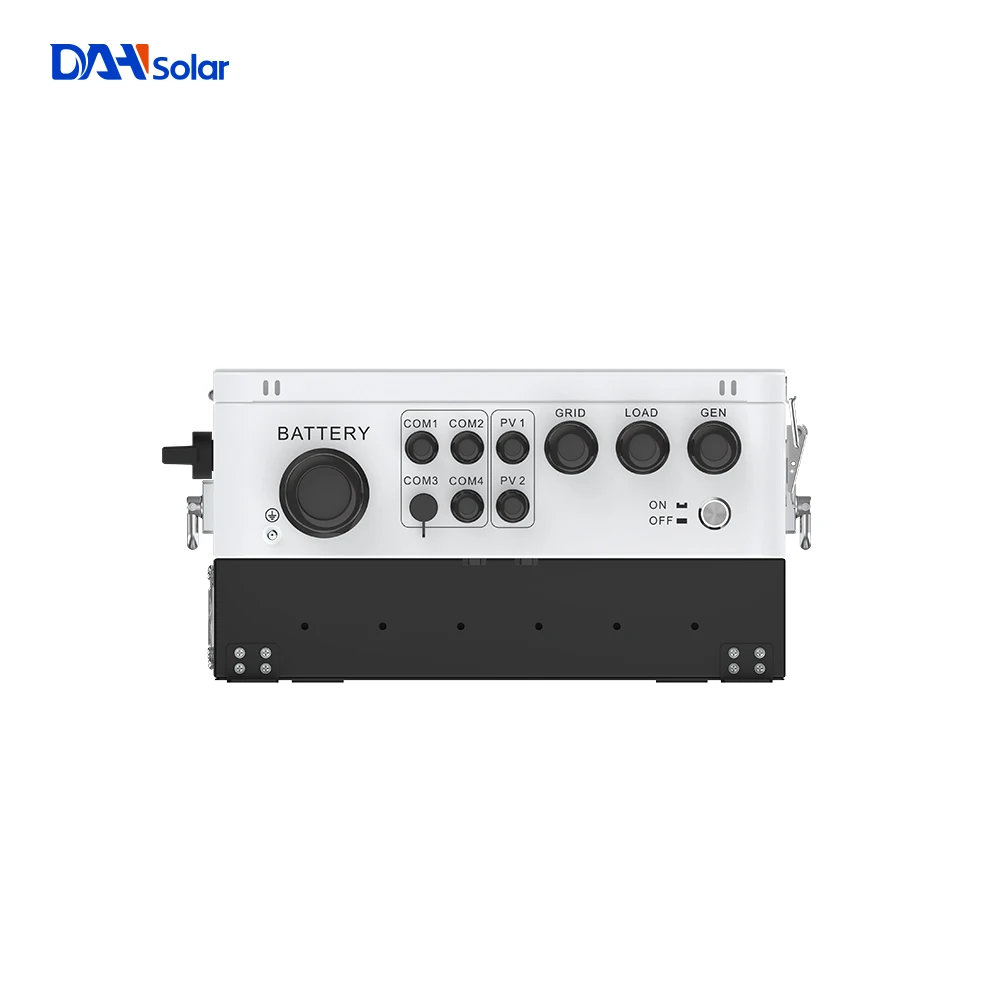

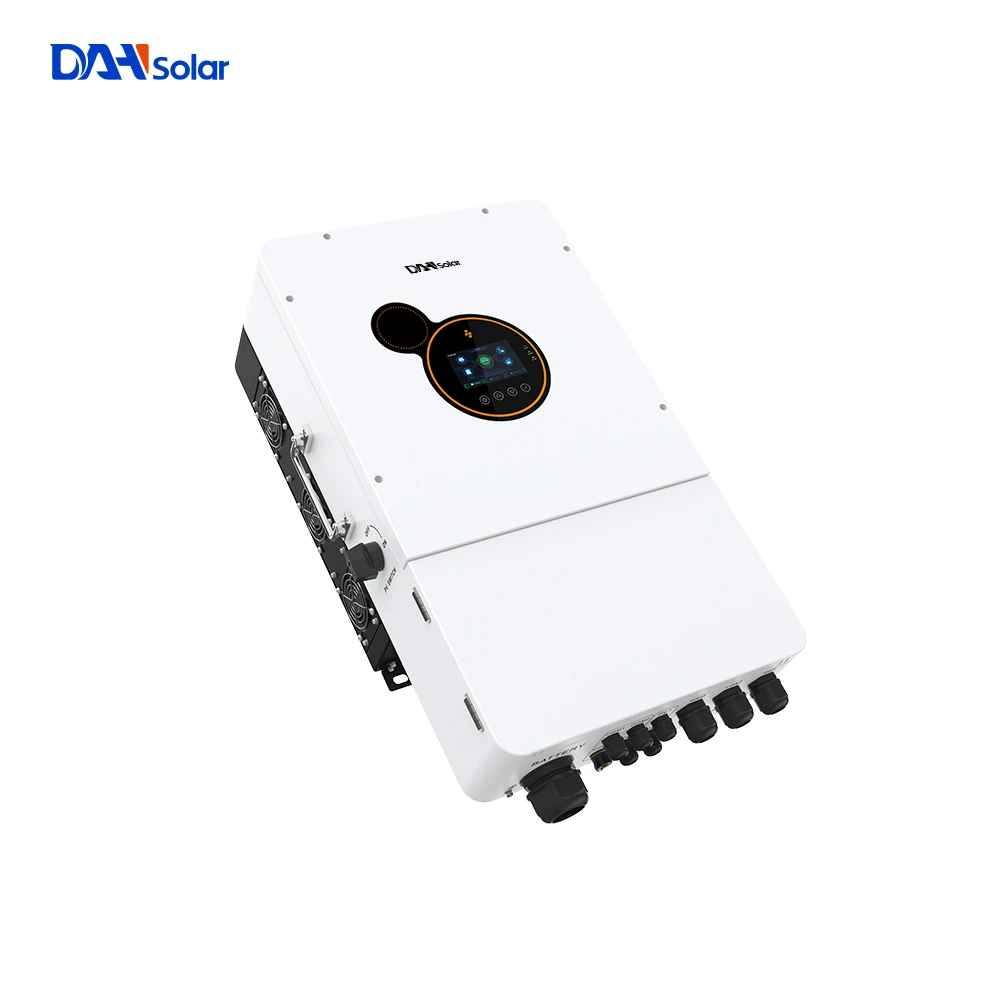

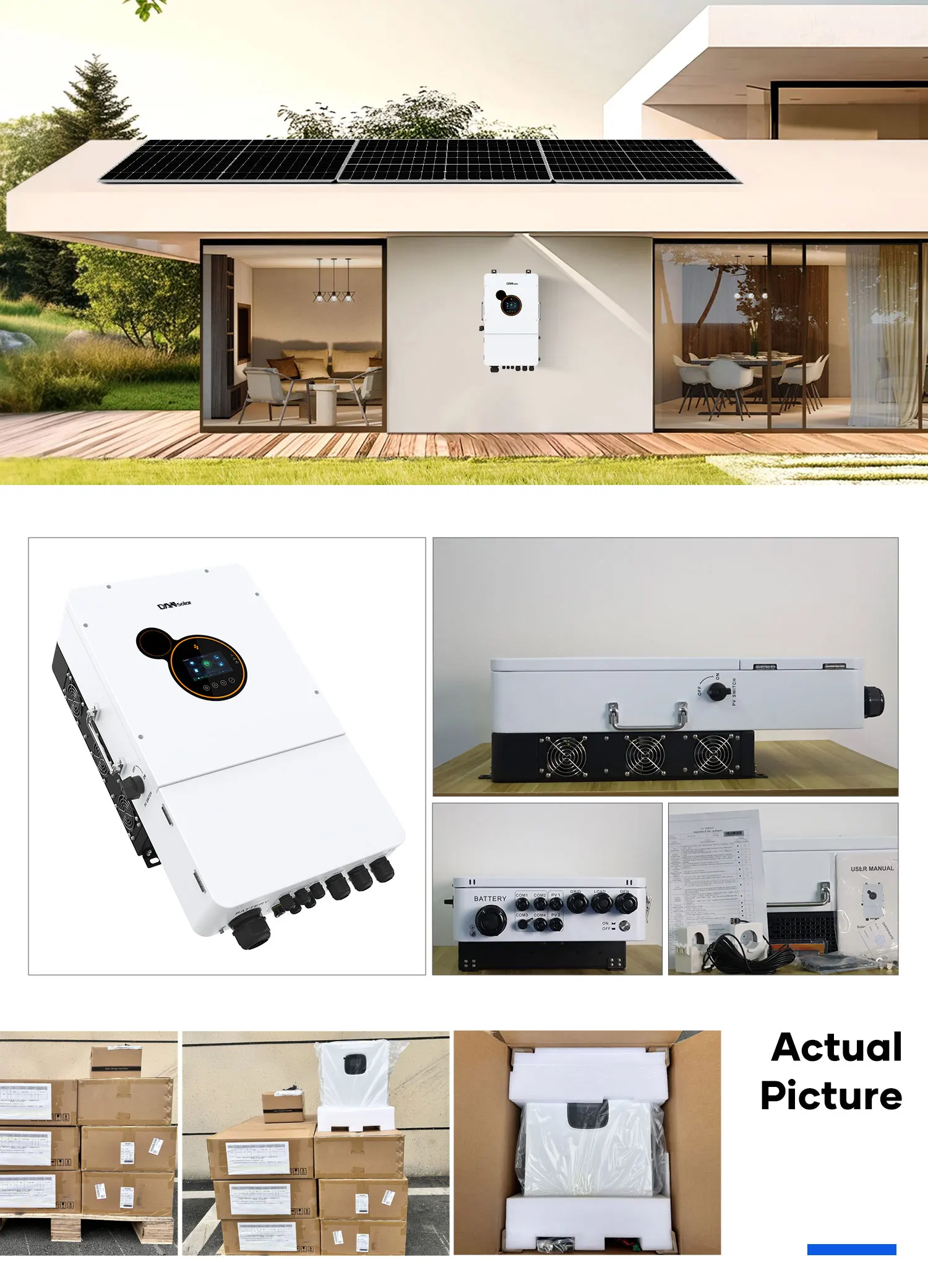

120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase
120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase
120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase
120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase
120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase
120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase
120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase

120/240V 8kw 10kw 12kw Hybrid Inverter with Parallel Function to three phase

Share on (1601261361701):


Price:$1,356.00 - $1,596.00

Quantity:


Product Overview

Description





MODEL
SEI-8K-UP
SEI-10K-UP
SEI-12K-UP
INVERTER OUTPUT



Rated Output Power
8,800W
10,000W
12,000W
Max. Peak Power
17,600VA
20,000VA
24,000VA
Rated Output Voltage
120/240Vac, single-phase / split-phase / three-phase(parallel)


Load Capacity of Motors
5HP
6HP

Rated AC Frequency
50/60Hz


BATTERY



Battery Type
Lead-acid / Li-ion / User-defined


Rated Battery Voltage
48V


Max. PV Charging Current
200A


Max. Mains Charging Current
120A


Max. Alternator Charging Current
60A


Max. Hybrid Charging Current
200A


PV INPUT



Num. of MPPT
2


Max. PV Array Power
5,500W+5,500W

6,600W+6,600W
Max. Input Current
25A+25A


Max. Open-circuit Voltage
550Vdc+550Vdc


MPPT Operating Voltage Range
125～450Vdc


MAINS / GENERATOR INPUT



Input Voltage Range
90～140Vac


Frequency Range
50/60Hz


GENERAL



Num. of Parallel
1～6 units


Dimensions
750*440*240mm (2.46*1.44*0.79ft)


Weight
42kg (92.59lb)


Protection Degree
IP65


Operating Temperature Range
-25~60℃,>45℃ derated


Cooling Method
Intelligent air-cooling


Warranty
5 years


COMMUNICATION



Embedded Interfaces
RS485 / CAN / USB / Dry contact


External Modules (optional)
Wi-Fi / GPRS


CERTIFICATION



UL1741&IEEE1547.1-2020,CEC,RULE21,HECO，FCC15classB，RoHs

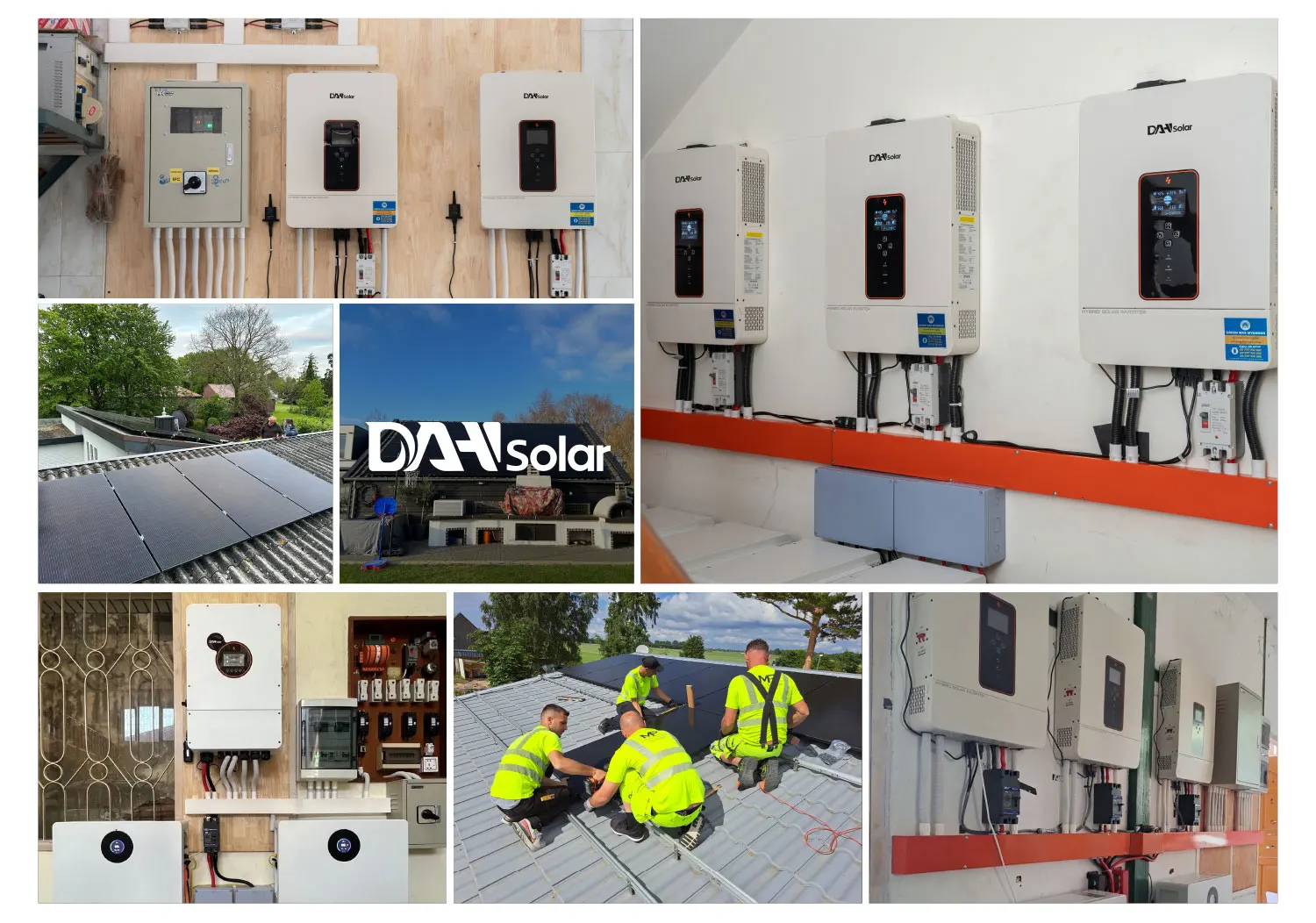

Projects & Exhibitions




DAH Solar has exported solar system to more than 100 countries, with rich experience in designing,exporting, installation. Our local engineers team can provide timely after-sales service. Also overseas local projects visiting is available to help you know more about our products quality before order.
