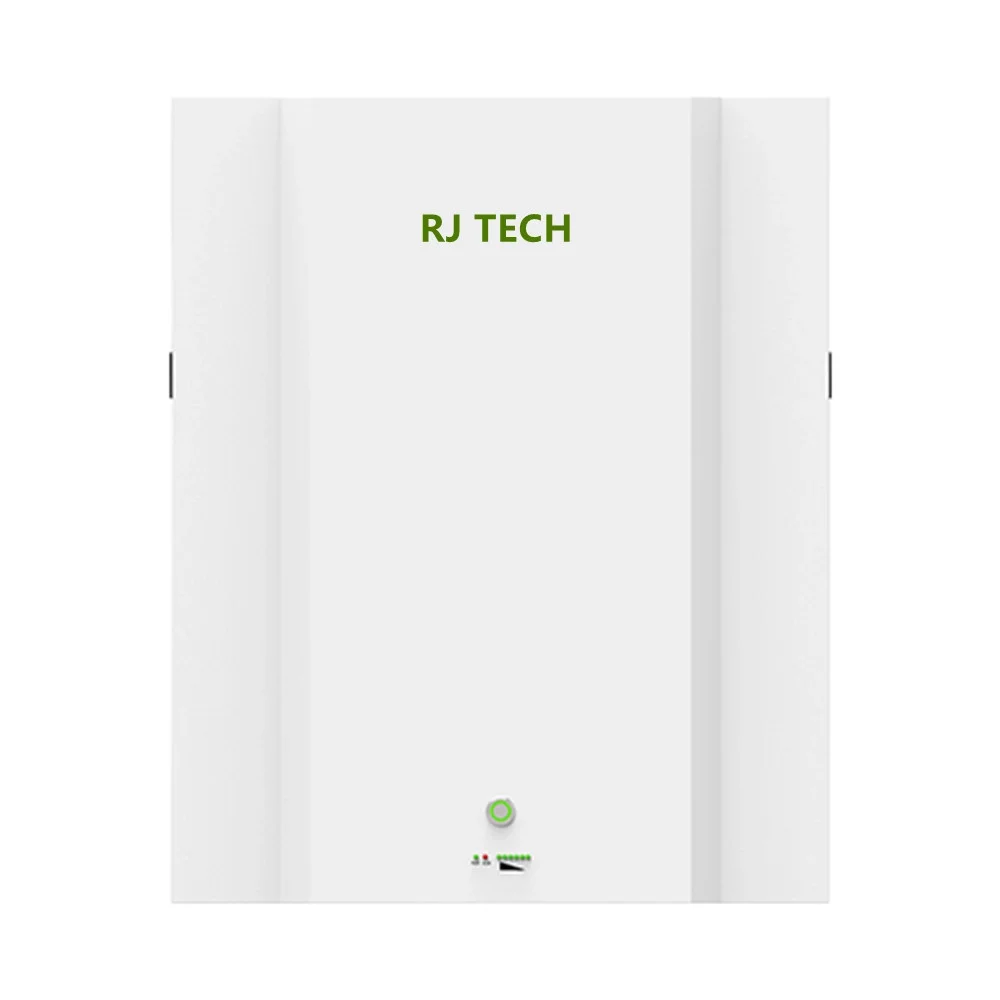

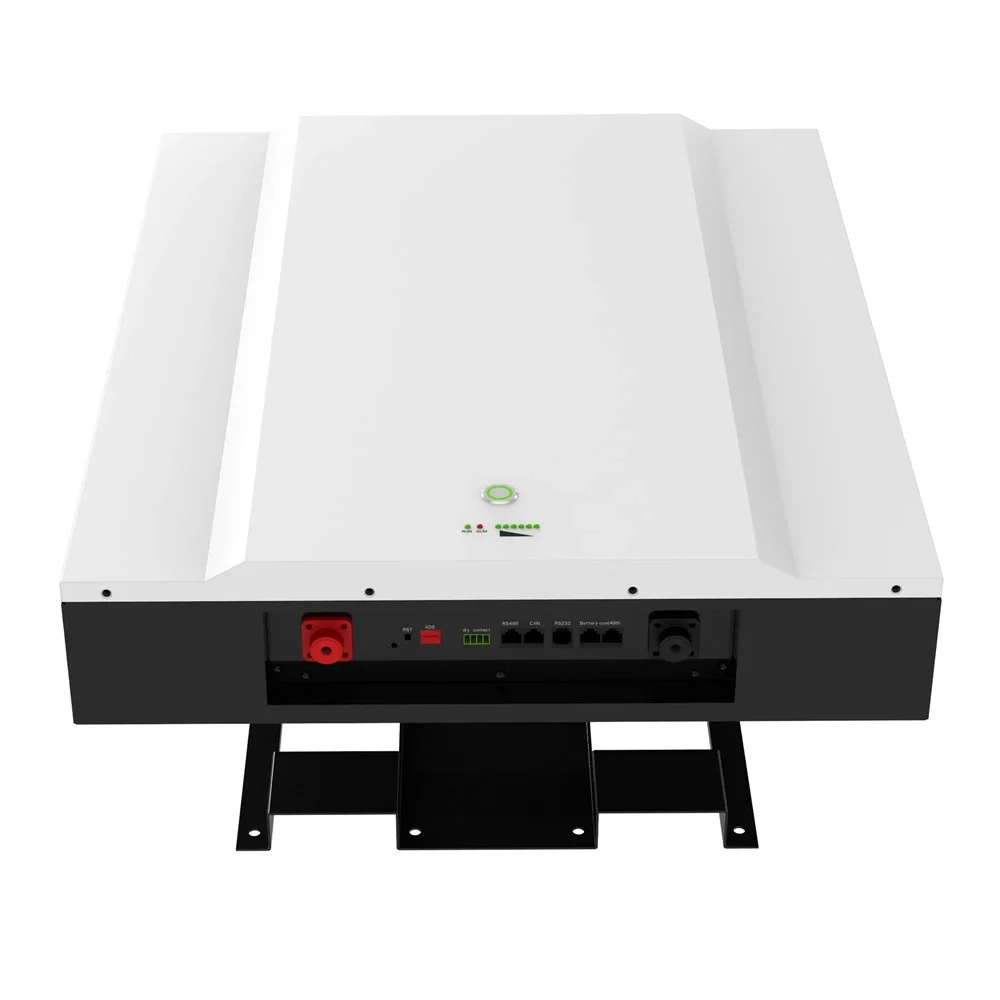

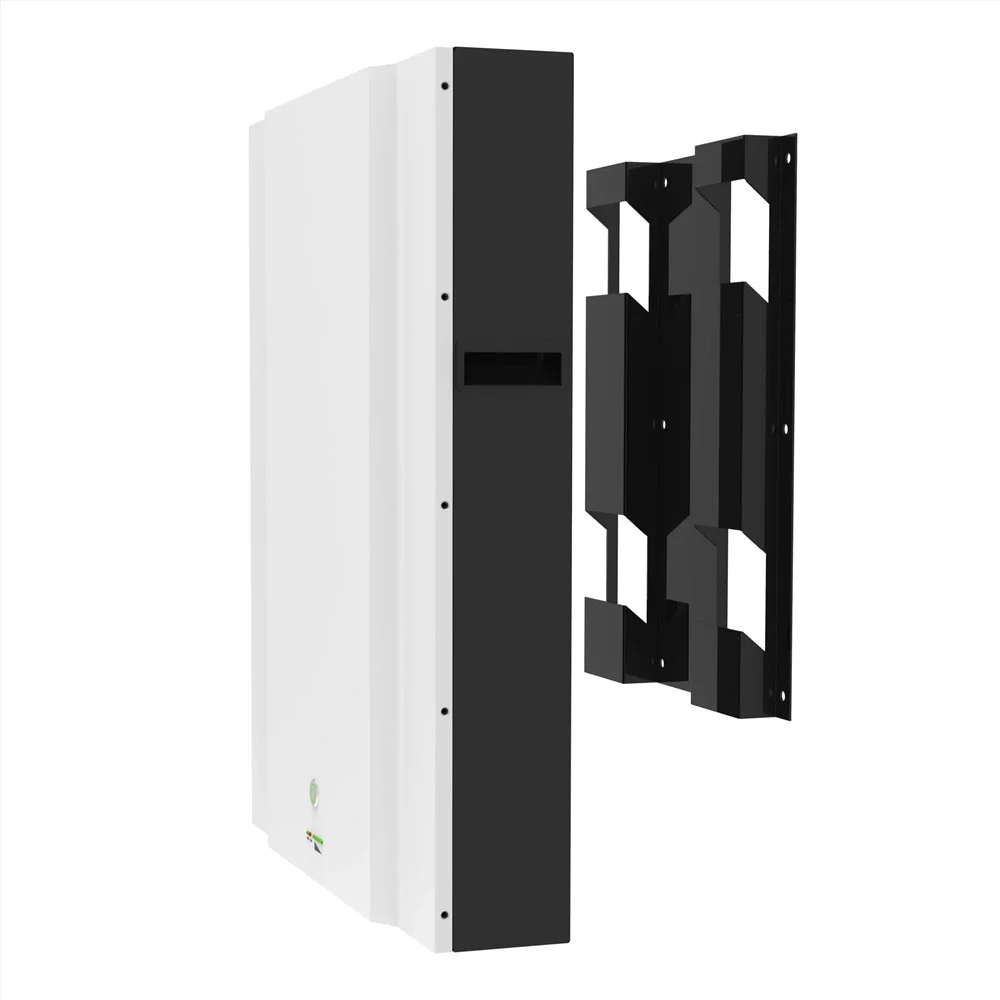

FOSHAN RJ TECH Fashion design 8.8kwh 51.2V 48V Solar Lithium Iron Phosphate Battery
- Category: >>>
- Supplier: Foshan Rj New Energy Technology Co. Ltd.
Share on (1601261365169):
Product Overview
Description
Products Description
Model | RJ-51D173-PW |
Norminal Power(KWh) | 8.8KWh |
Norninal Capacity(Ah) | 172Ah |
Norninal Voltage(V) | 51.2V |
Material Type | Lithium Battery (LiFePO4) |
Dimensions (mm) | 570*161*720mm |
Weight(Kg) | 75Kg |
Discharging Voltage(V) | 40~58.4 V |
Max Charging | 100A |
Continuous Discharging (A) | 100A |
Peak Discharging (A) | 200A |
Expansibility | max 16pcs |

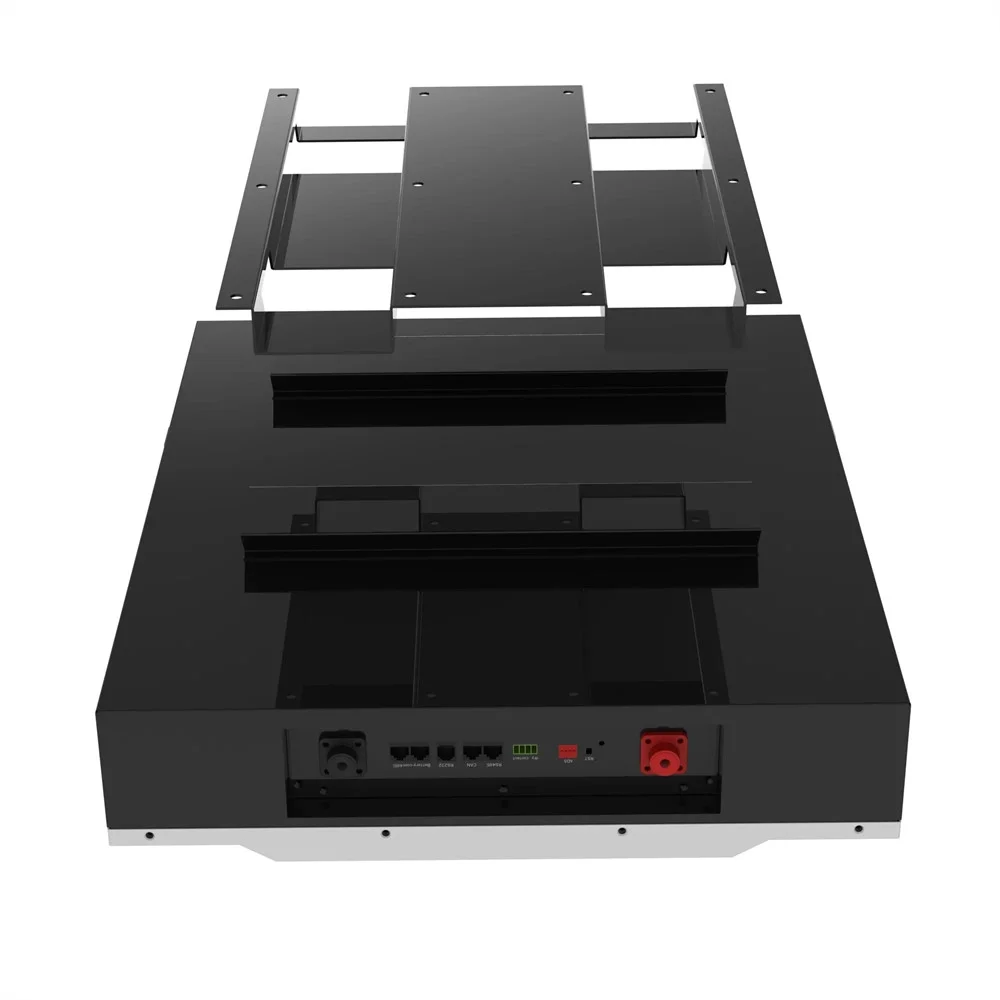

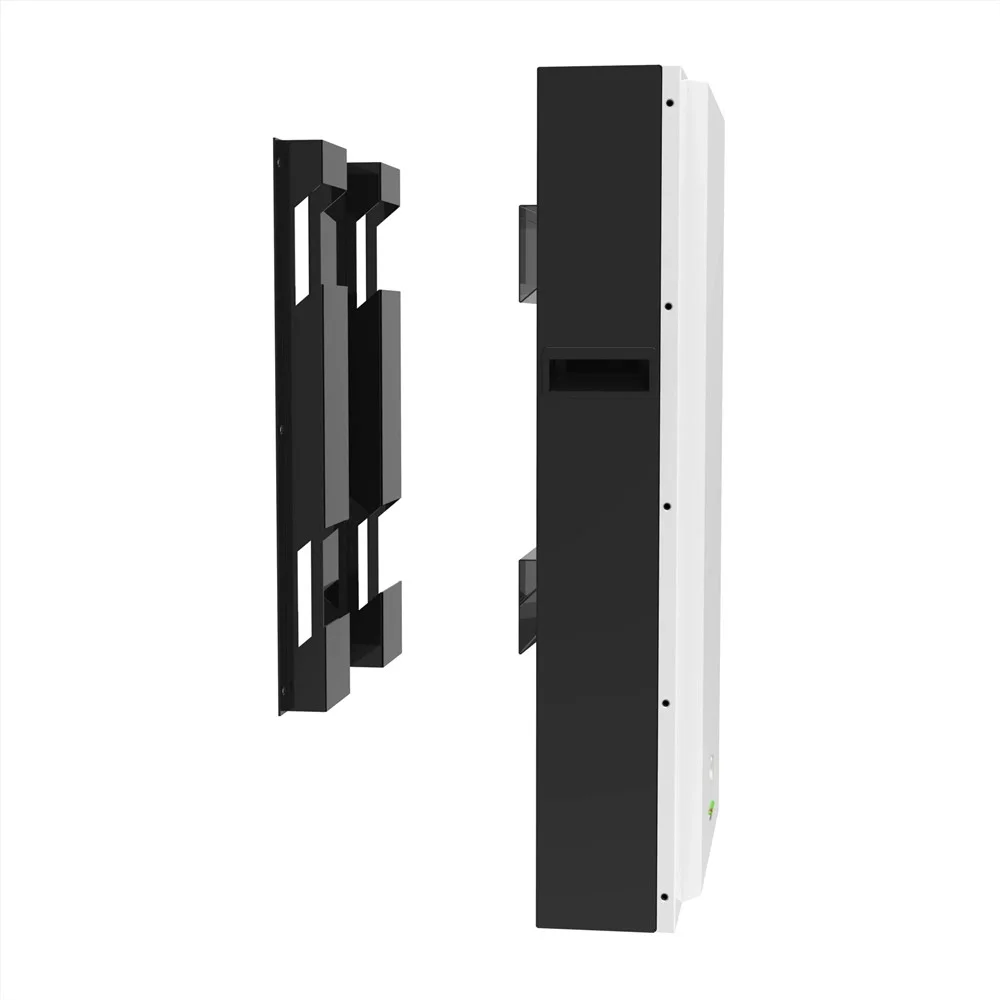

Installation Methode | Floor Mounted |
Communication Port | RS485/CAN |
Working Temperature(℃) | -20~65℃ |
Humidity | 0-95% RH |
IP Grade (IP) | 0-95% RH |
Altitude | ≤5000m |
Authentication Level | TUV/CE/UN38.3 |
Design Life(year) | 30+ years |
Cycle Life (cycle) | 8500Times |
Item | Content | Criterion |
Over charge | Over charge detection voltage | 3.6~4.25V |
Protection | Over charge detection delay time | 0.1 S ~ 6S |
Over charge release voltage | 3.5~4.25V | |
Over discharge protection | Over discharge detection voltage | 2.0~3.3V |
Over discharge detection delay time | 0.1 S ~ 6S | |
Over discharge release voltage | 2.1~3.4V | |
Charge | Charge Over current detection current | 1~100A |
Over current protection | Charge Over current detection delay time | 0.02S~ 6S |
Discharge | Discharge Over current detection current | 1~600A |
Over current | ||
protection | Discharge Over current detection delay time | 0.02S~ 6S |
Short | Short protection detection delay time | 100 u S |
protection | Detection condition | B+ P-0.2 Omh |
restore | Cut off load | |
Interior Resistance | Main loop electrify resistance | 2 OMh(50A) |
Currentconsumption | Current consume in normal operation | 1.5mA Type |
Currentconsumption | Current consume in sleep operation | 2 uA Type |
FOSHAN RJ TECH Batteries More Model Available
Home Battery Powerwall Battery | ||||||||||||||
Rated Energy | Capacity | Voltage | Installation | Communication | Weight | lifespan | Cylces | |||||||
5KWH | 100AH | 48V | Wall/Floor | RS485/Bluetooth | 50KG | 30years | 8000times | |||||||
10KWH | 200AH | 48V | Wall/Floor | RS485/Bluetooth | 100KG | 30years | 8000times | |||||||
15KWH | 300AH | 48V | Wall/Floor | RS485/Bluetooth | 150KG | 30years | 8000times | |||||||
20KWH | 400AH | 48V | Wall/Floor | RS485/Bluetooth | 200KG | 30years | 8000times | |||||||
25KWH | 500AH | 48V | Wall/Floor | RS485/Bluetooth | 250KG | 30years | 8000times | |||||||
30KWH | 600AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 300KG | 30years | 8000times | |||||||
35KWH | 700AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 350KG | 30years | 8000times | |||||||
40KWH | 800AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 400KG | 30years | 8000times | |||||||
45KWH | 900AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 450KG | 30years | 8000times | |||||||
50KWH | 1000AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 500KG | 30years | 8000times | |||||||
55KWH | 1100AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 550KG | 30years | 8000times | |||||||
60KWH | 1200AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 600KG | 30years | 8000times | |||||||
65KWH | 1300AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 650KG | 30years | 8000times | |||||||
70KWH | 1400AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 700KG | 30years | 8000times | |||||||
75KWH | 1500AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 750KG | 30years | 8000times | |||||||
80KWH | 1600AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 800KG | 30years | 8000times | |||||||
85KWH | 1700AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 850KG | 30years | 8000times | |||||||
90KWH | 1800AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 900KG | 30years | 8000times | |||||||
100KWH | 2000AH | 48V | Wall/Floor/Rack | RS485/Bluetooth | 1000KG | 30years | 8000times | |||||||
Factory Price- Customization available- MOQ1pcs-15Years warranty | ||||||||||||||
Compatible Inverters

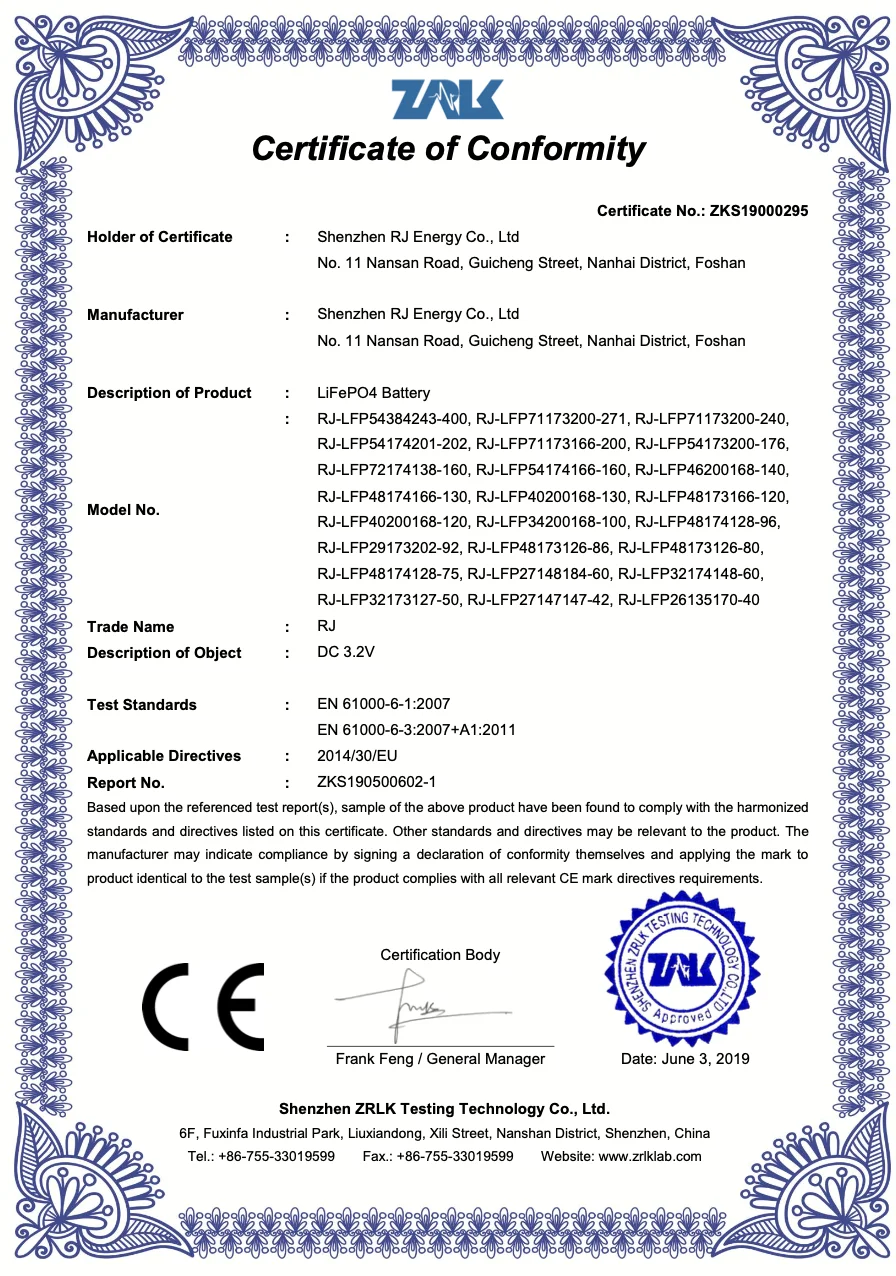

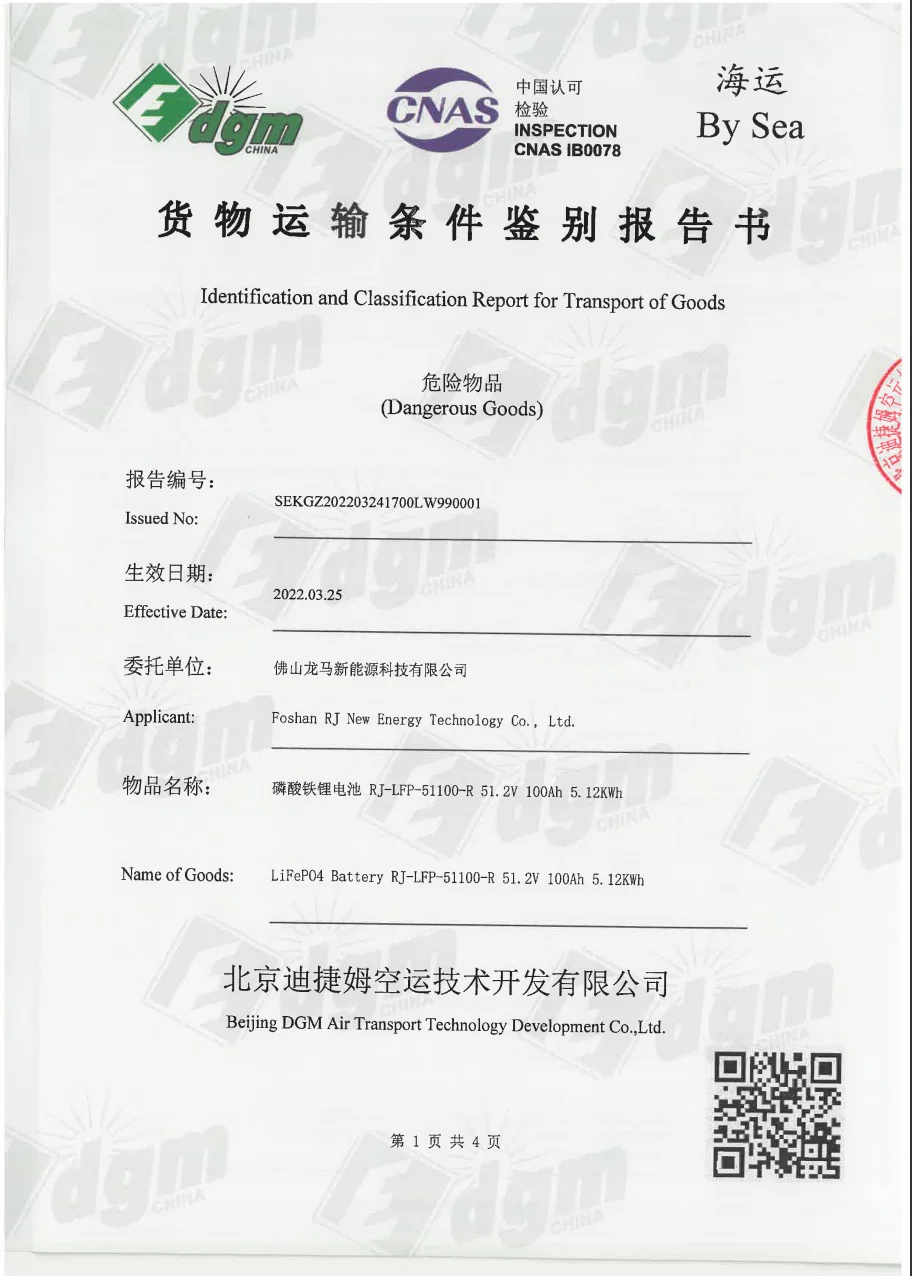

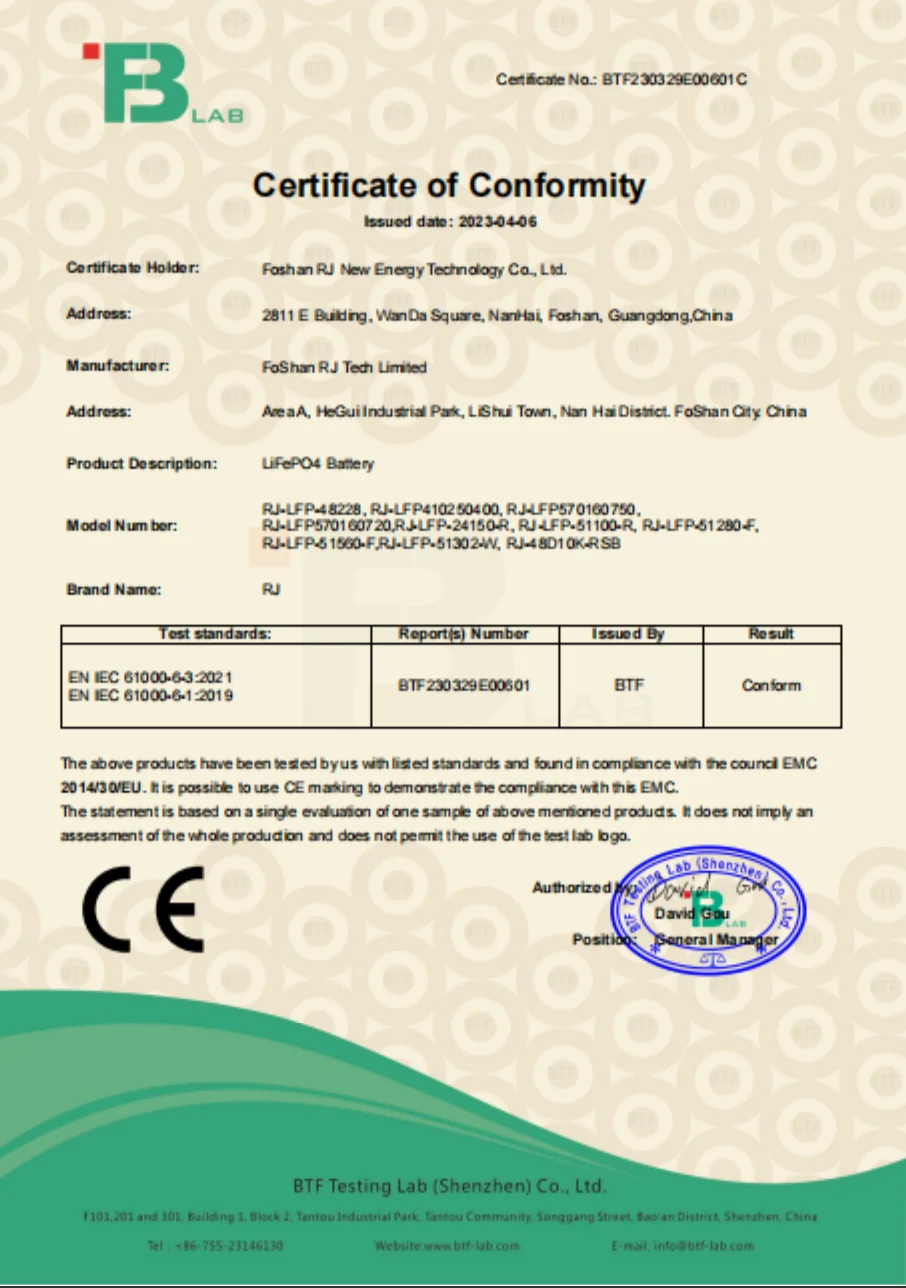

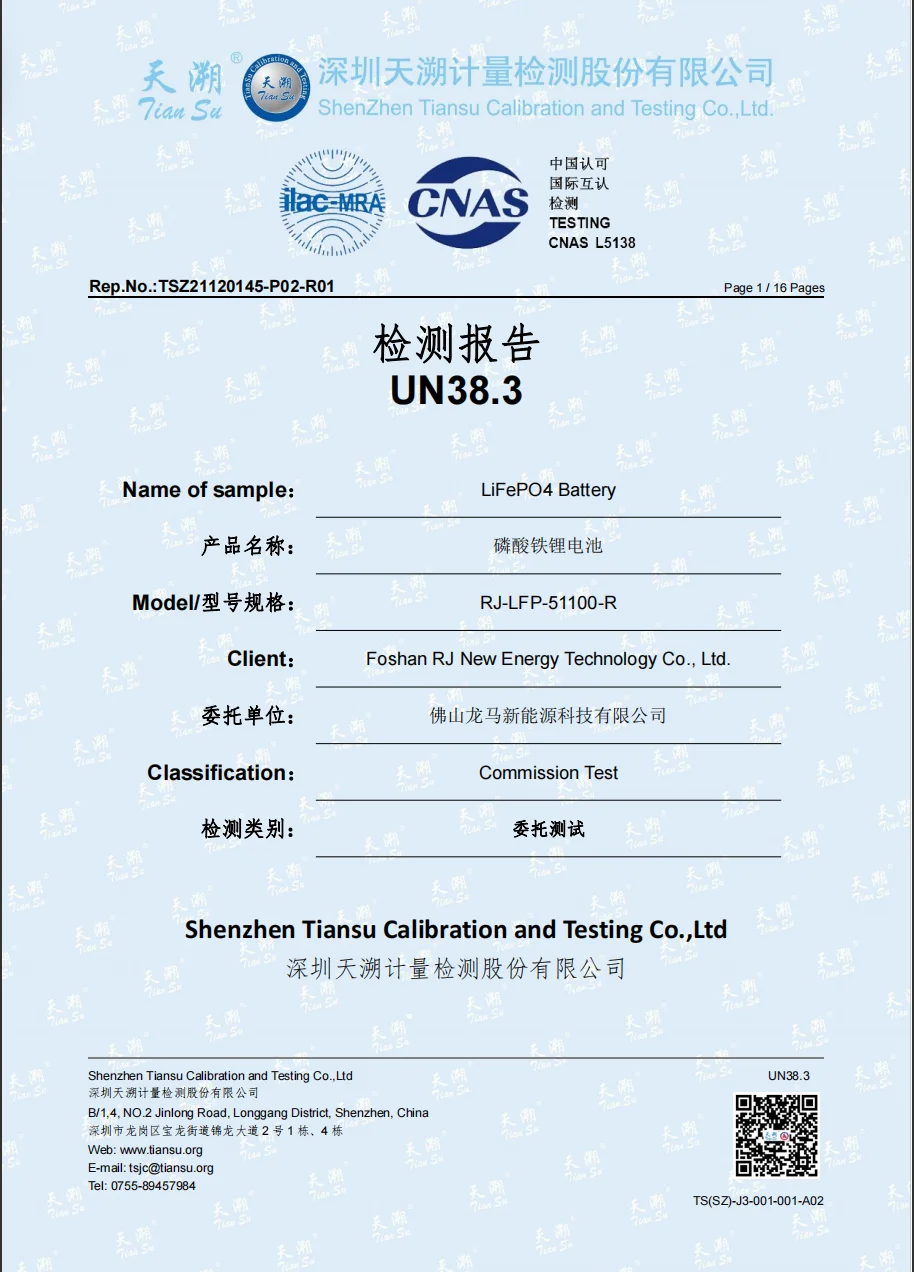

Certifications

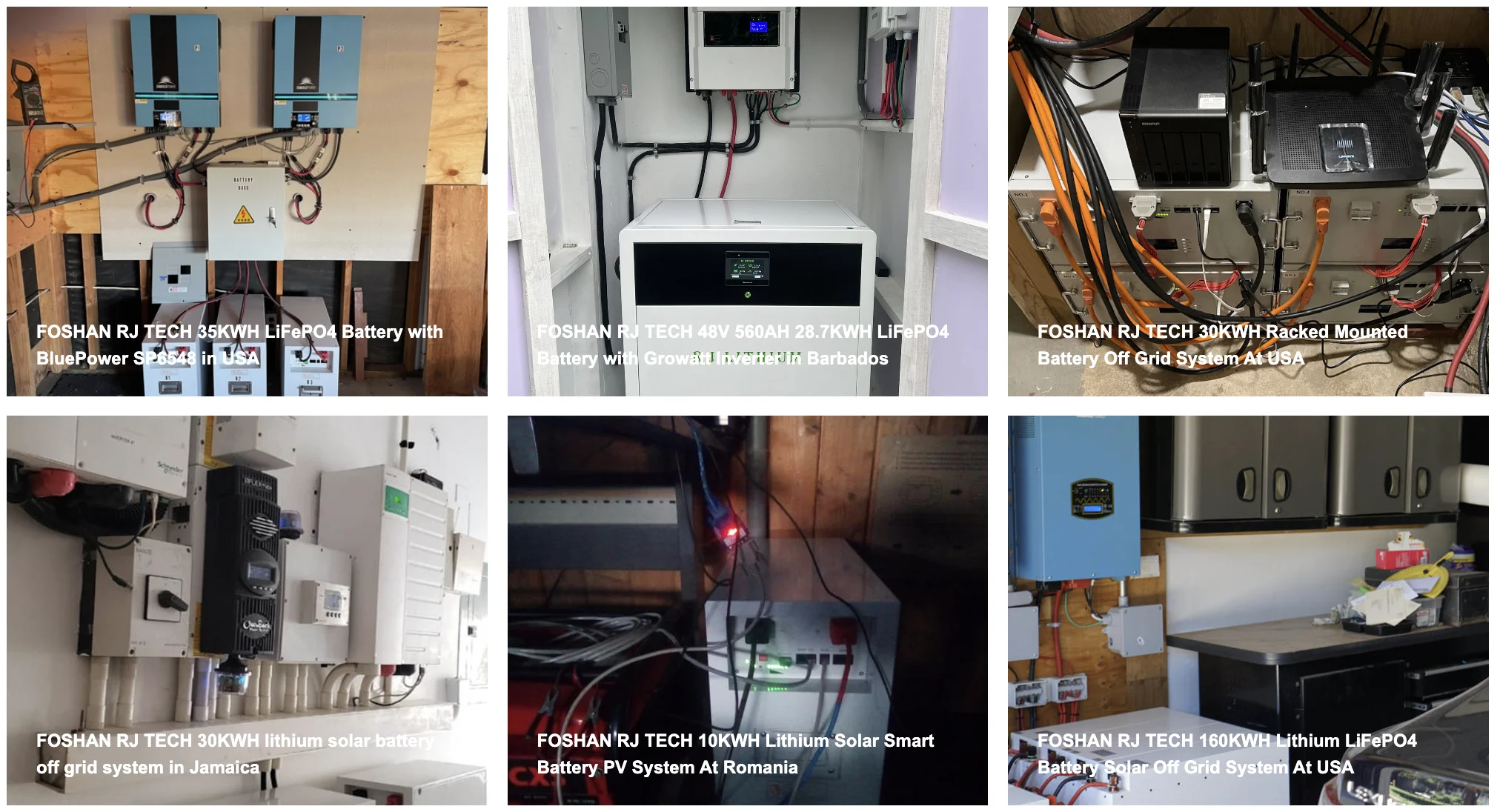

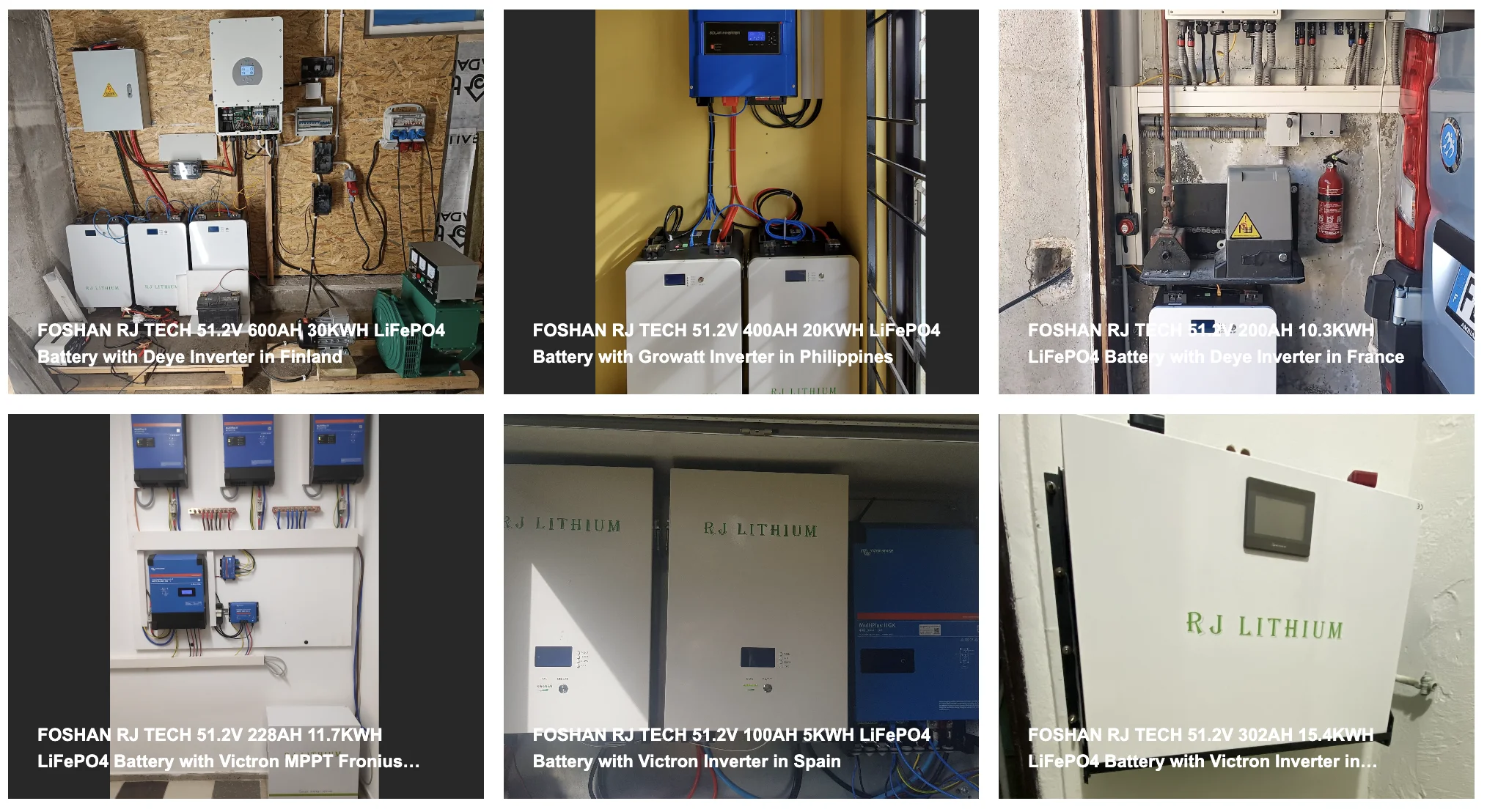

Installation Cases
Customer Reviews

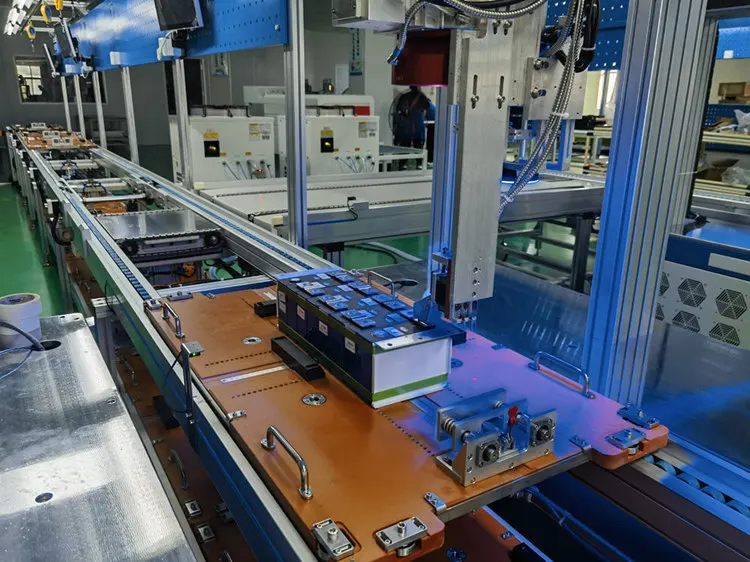

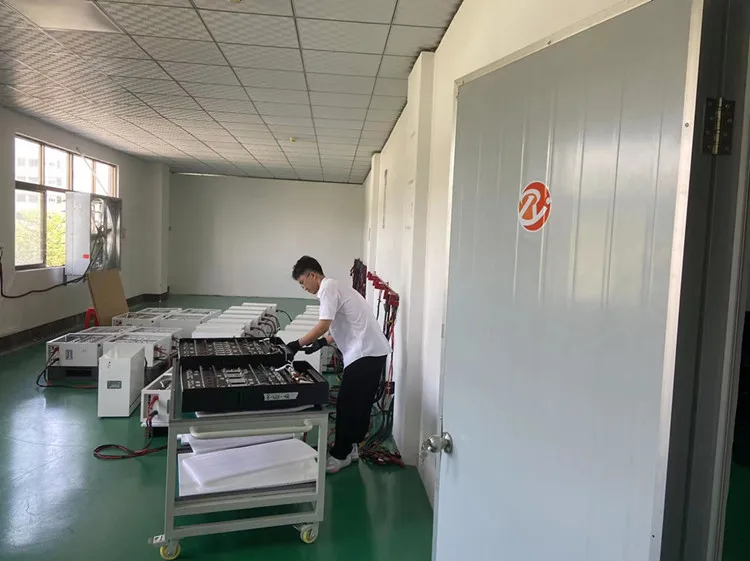

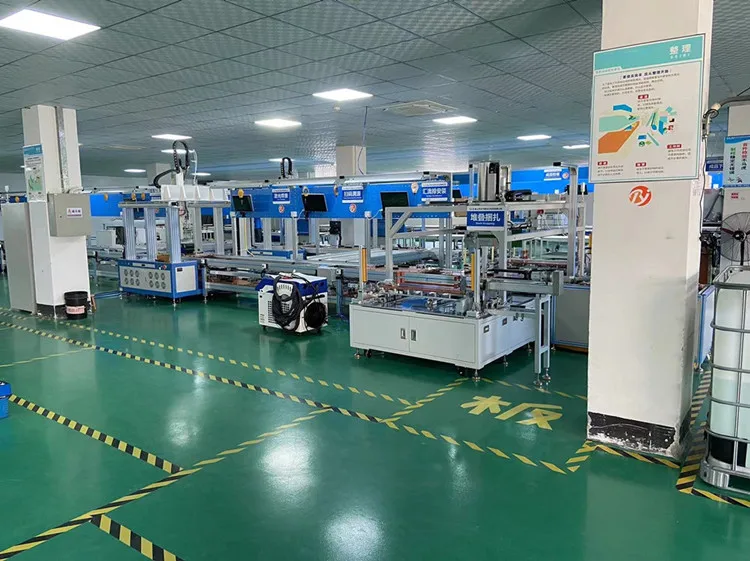

Manufacturing Technique
