SGB Wet Belt Strongly Magnetic Separator for Quartz sand
- Category: >>>
- Supplier: Shandong Huate Magnet Technology Co. Ltd.
Share on (1601261609406):
Product Overview
Description
Product Description
SGB Wet Belt Strongly Magnetic Separator
Application
Wet separate the iron impurities and purify the non-metallic minerals, esp. quartz, natrium or potassium feldspar. In addition with high magnetic intensity it effects very well in separating the weakly magnetic minerals, like hematite, specularite, limonite siderite manganese ore. etc.
New Design Concept
It's characteristics of high magnetic intensity, obvious iron-removing efficiency, large processing capacity, energy-saving,water-saving, simple operation and many other advantages.

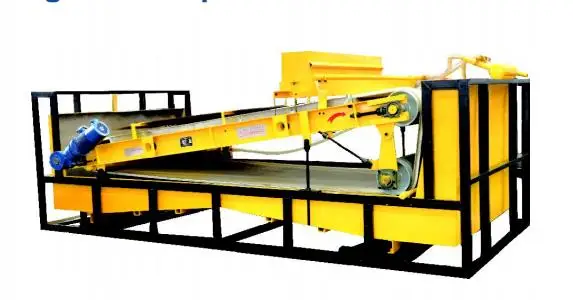

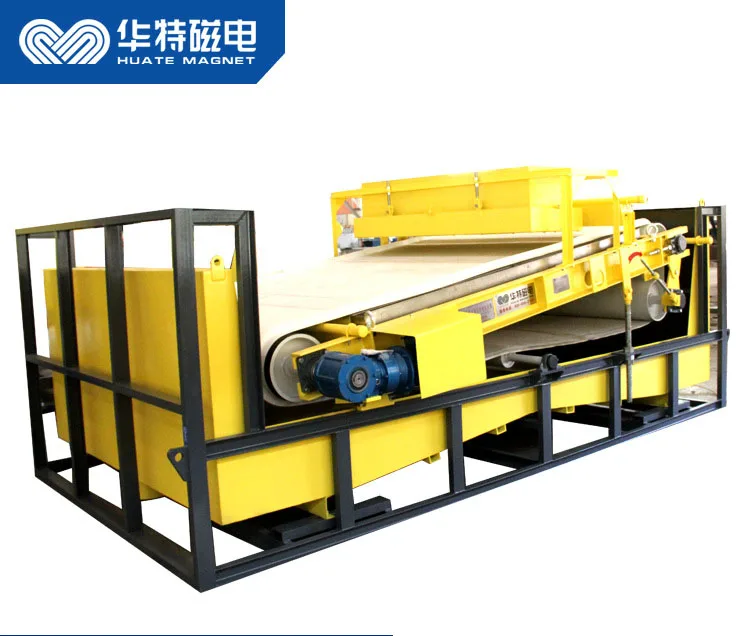

Detailed Images
Outstanding Advantages：
1. High magnetic intensity. The magnetic system is made up of the rare earth NdFeB magnets with high performance. It has a very wide poly pole face, lots of magnetic poles. It's with a very high magnetic induction
ability and a very high magnetic gradient. The magnetic intensity in some part can reach 17000Gs.
2. Large magnetic panel with a wide magnetic and gravity separation area. At present, the largest width for the panel is 2500mm, and its largest length is 3000mm.
3. Feed evenly. Feed uniformly and evenly with double stories orifice panel. And the mineral layer is thin.
4. A very good iron-removing efficiency. There re various belt specially designed to remove the iron for the customer's choice. Made by the compound materials with high quality the belt can serve for a long lifetime and remove the iron obviously.
5. Energy-saving and water-saving. Driven by one motor with small frequency, it's very energy-saving. With the special controllable design of water system, It's very water-saving.
6. The best partner with HUATE's forced oil cooling WHIMS ( WET HIGH INTENSITY MAGNETIC SEPARATOR, i. e. vertical ring high gradient magnetic separator ). Cooperate with the forced oil cooling WHIMs, it can get the best effect of iron-removing
Wet separate the iron impurities and purify the non-metallic minerals, esp. quartz, natrium or potassium feldspar. Please see the below minerals.

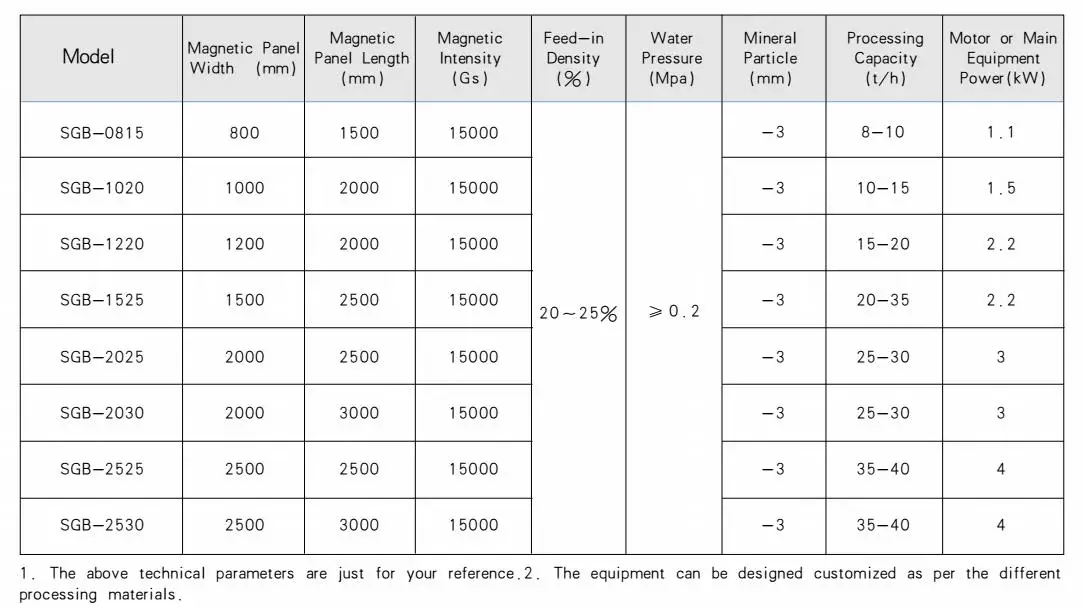

Major Technical Parameters:

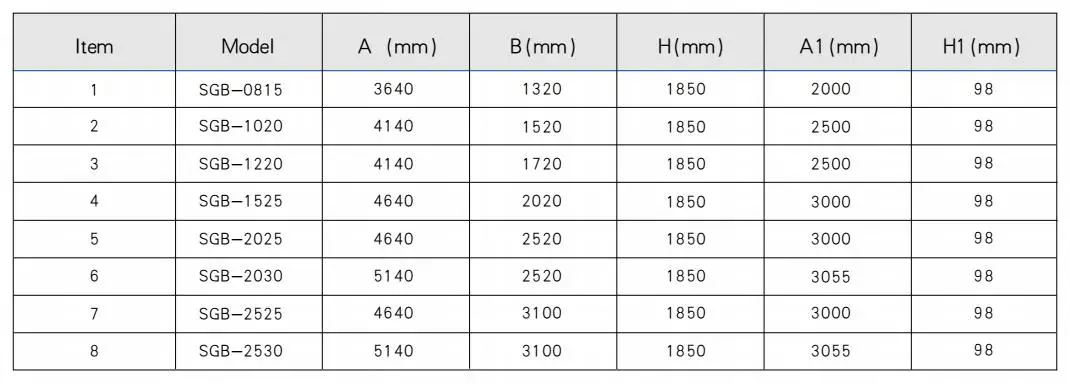

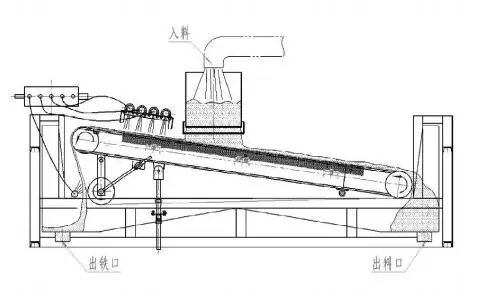

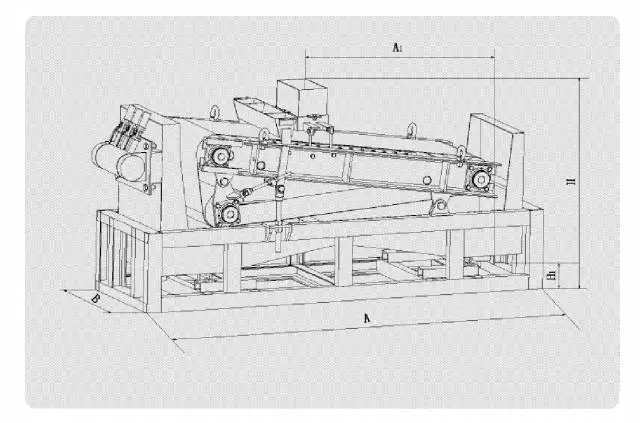

Simple Structure Drawing and Outline Dimensions
Recommend Products

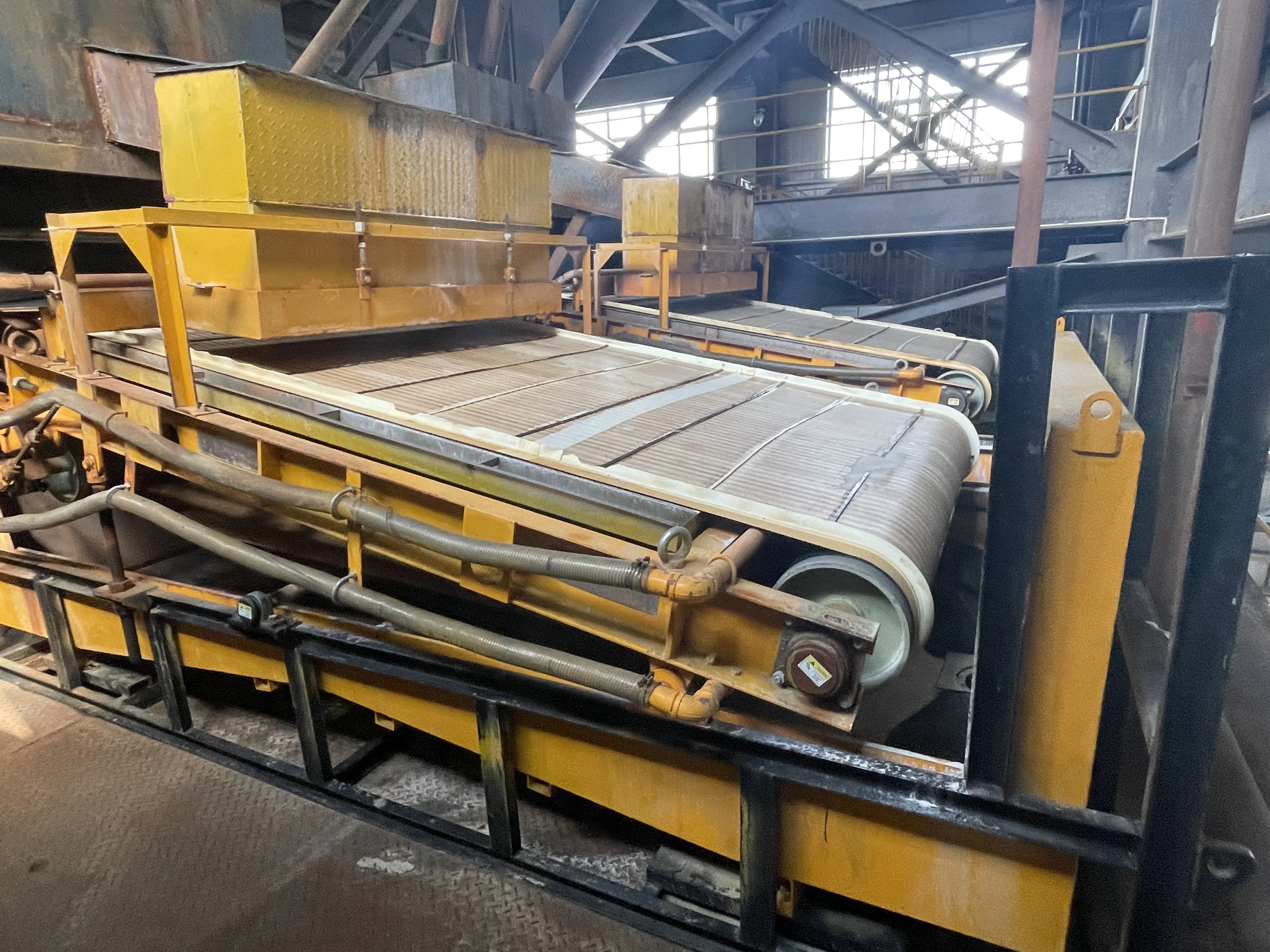

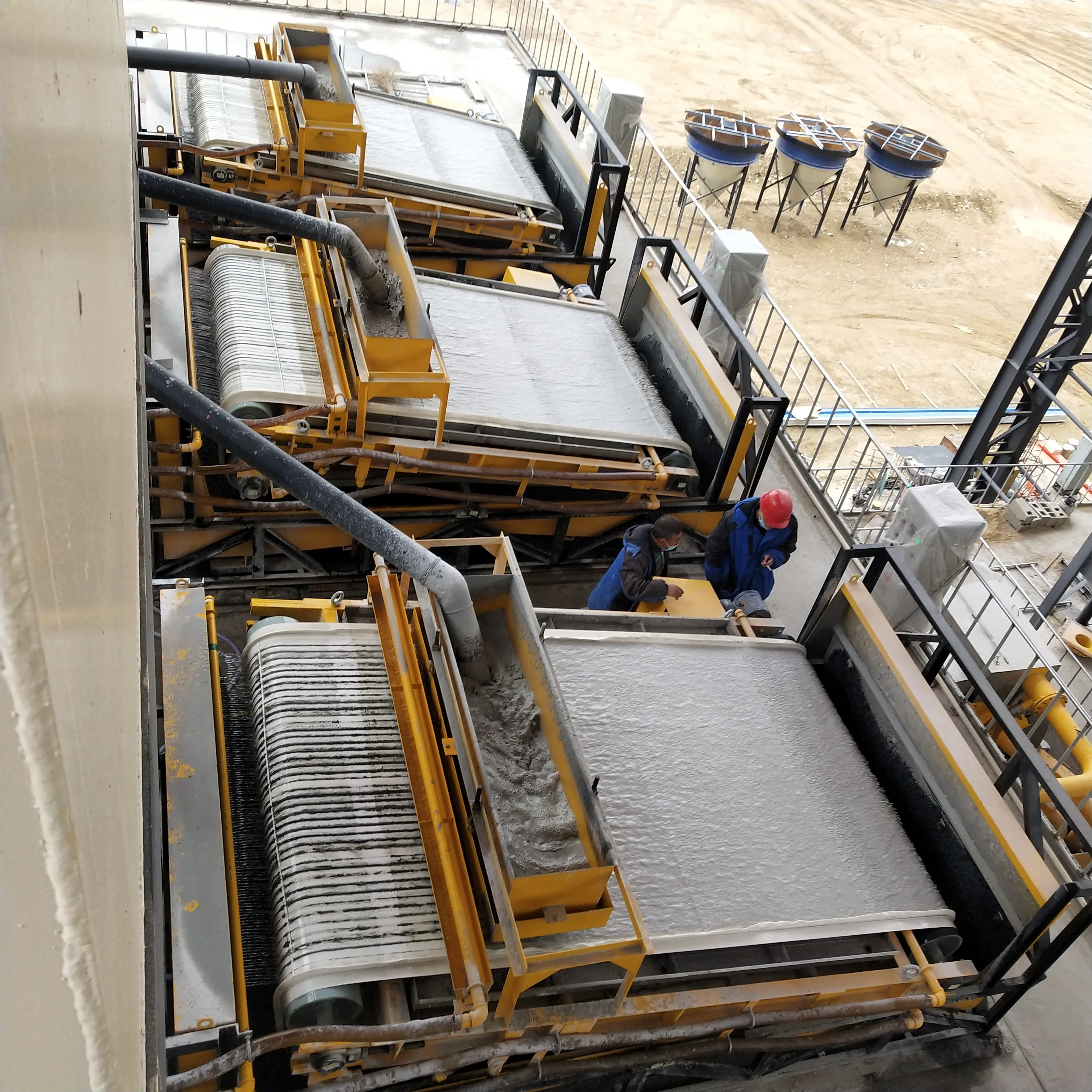

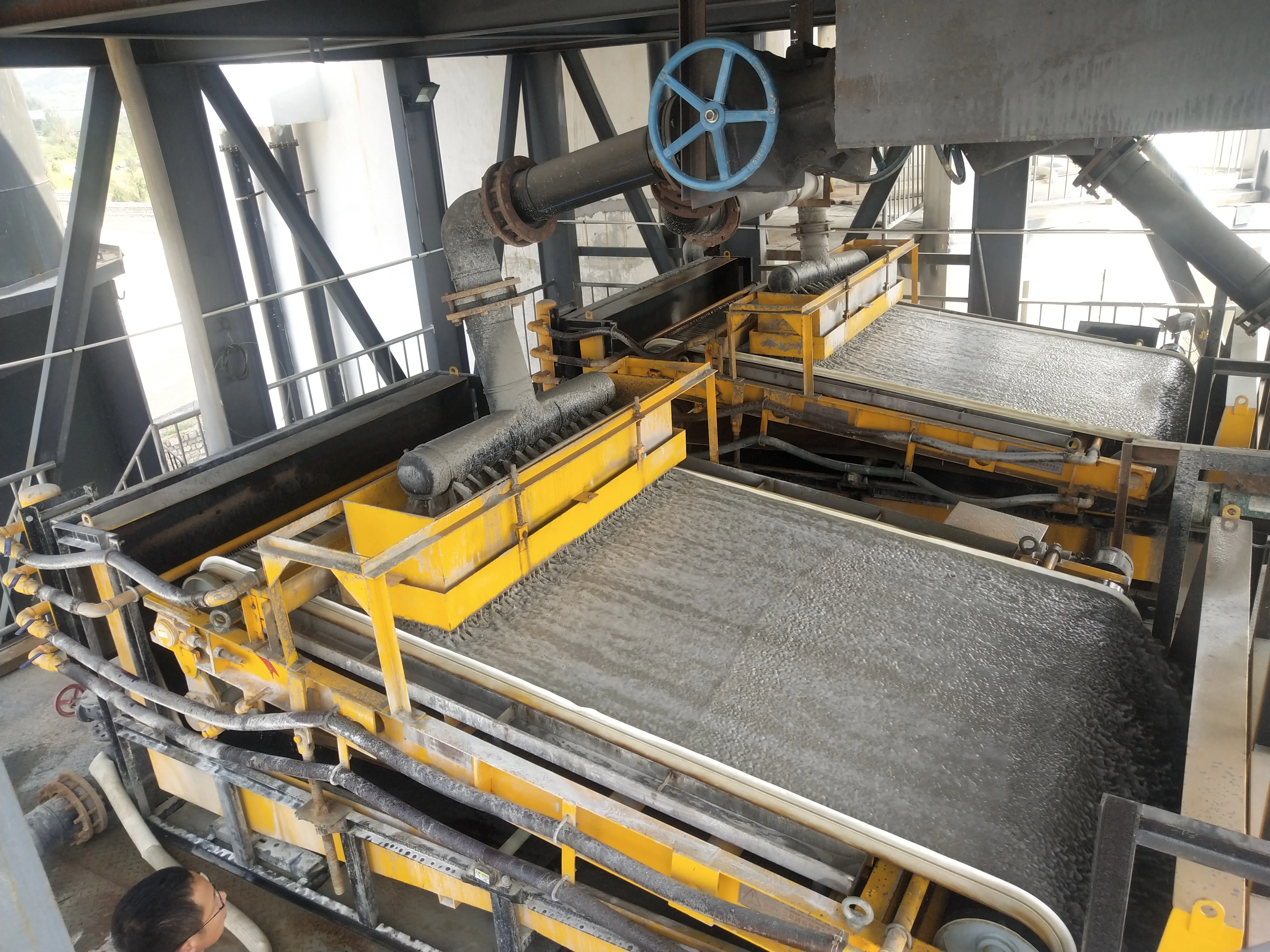

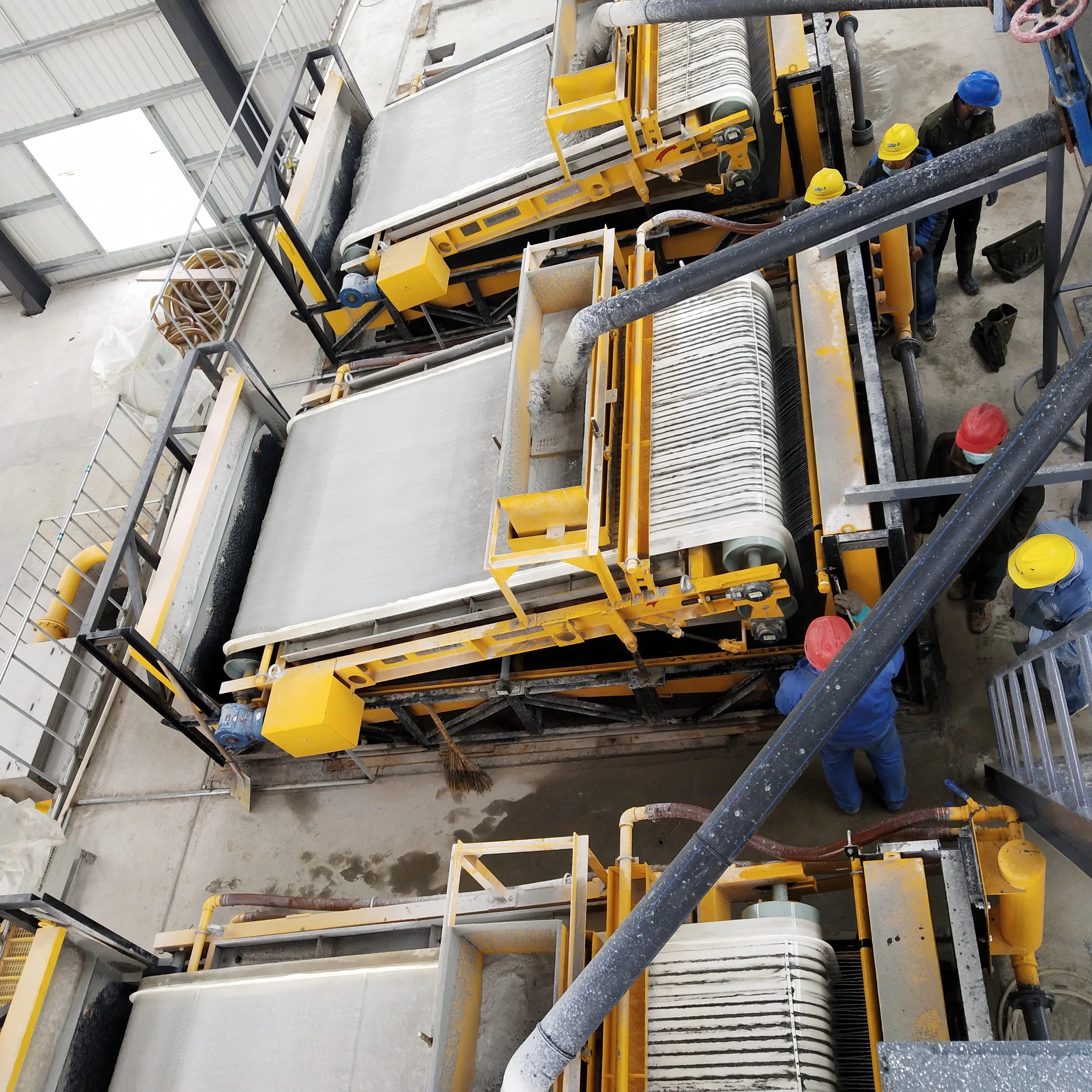

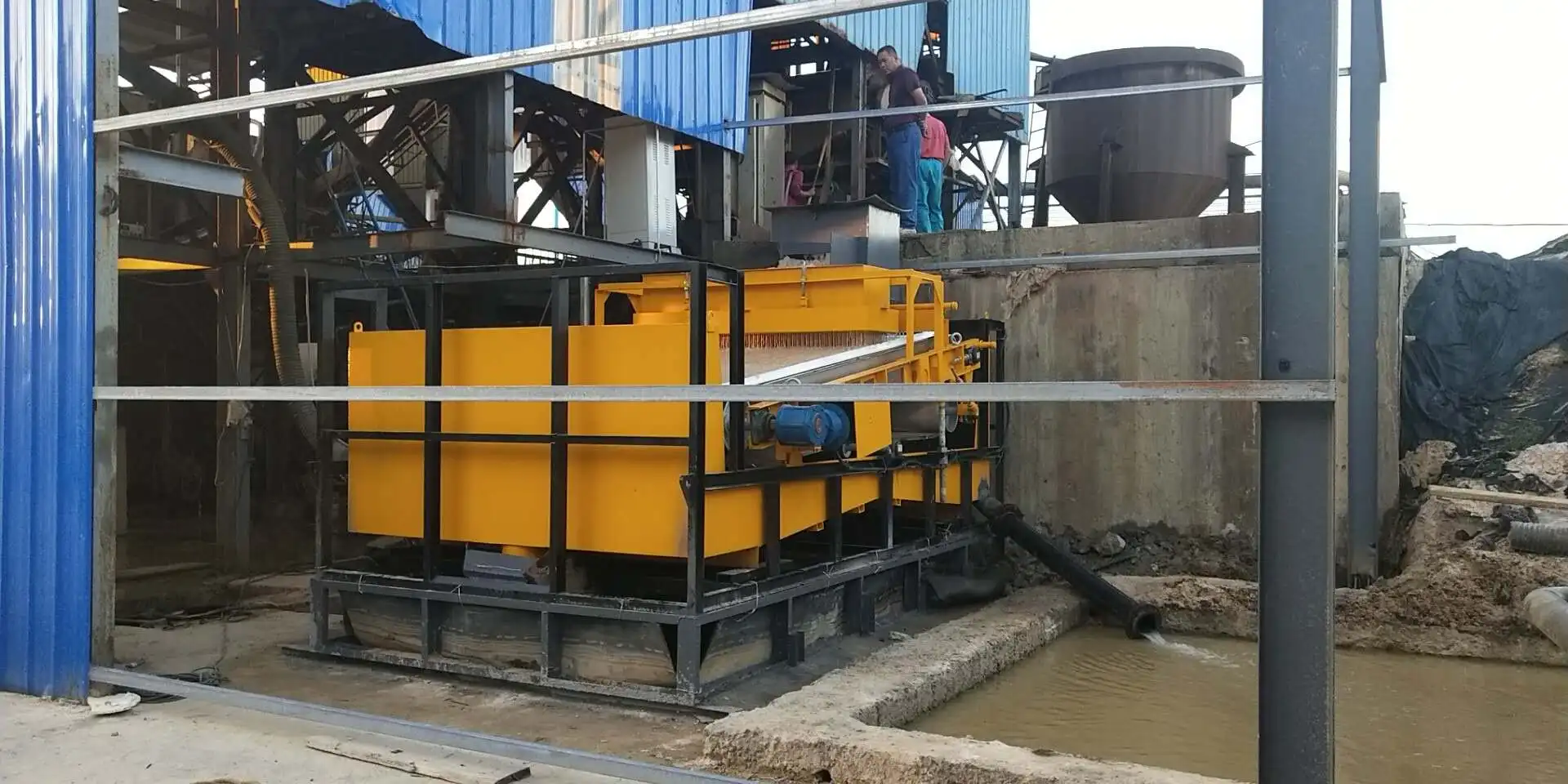

Pictures | At site |
Company Introduction

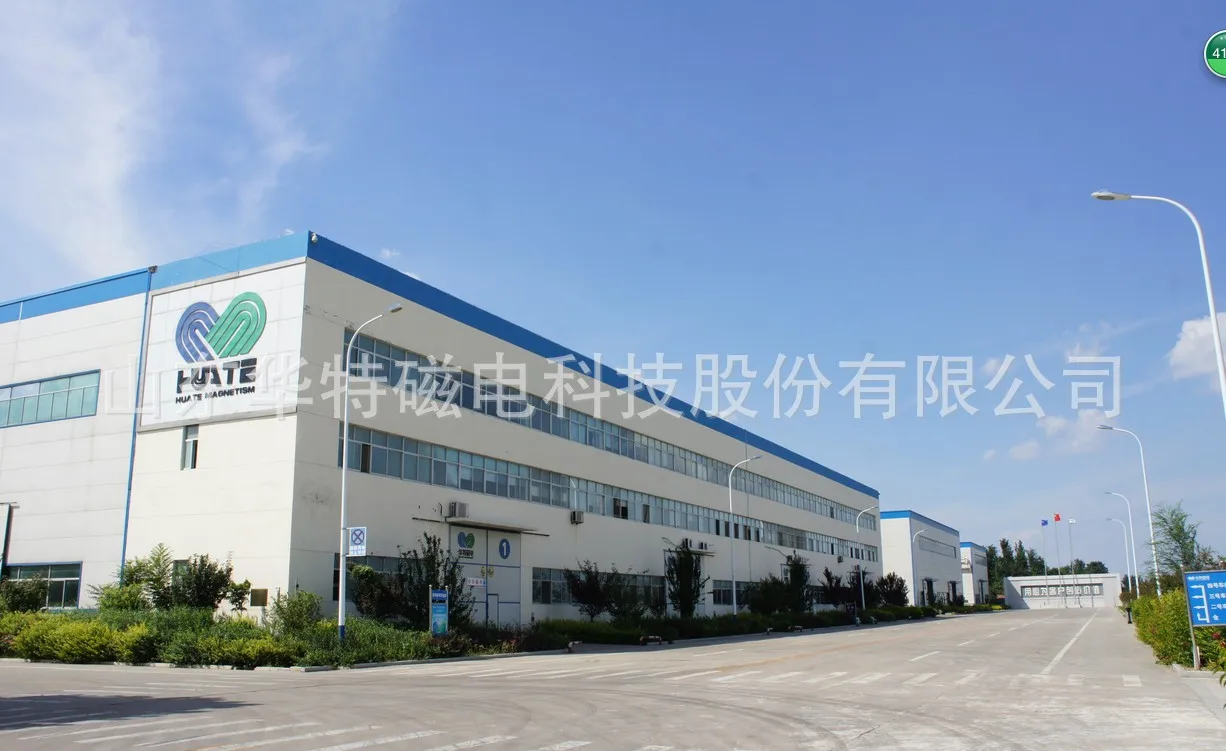

Company Profile
Huate Magnet Group was founded in 1993, has been engaged in R & D, manufacturing, and providing technical services of magnetic separation equipment for more than 30 years, providing customers with packaged solutions. The company specializes in the design, manufacture and supply of superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator, mineral processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic mineral processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, ltaly, Norway,South Africa, Brazil, India, Pakistan and many other countries.
FAQ
Q:Factory or Trading company?
A:Shandong Huate Magnet is a factory was established in 1993.
Q:Factory Address?
A: Our factory is located in Huate Road, Linqu County, Shandong Province, China. Welcome to visit us!
Q: About Quotation?
A: Before quotation, we need confirm the Belt width, Magnetic field intensity, Material size and Quantity, all of these factors will affect the price.
Q:Quality control?
A: Our factory have passed ISO 9001 and CE certifications.
If you have any question please promptly chat with me or leave me a message, I will contact you within one business day.
If you like to be contacted please leave your email address or cell phone number to me.
Looking forward to your inquiry.
