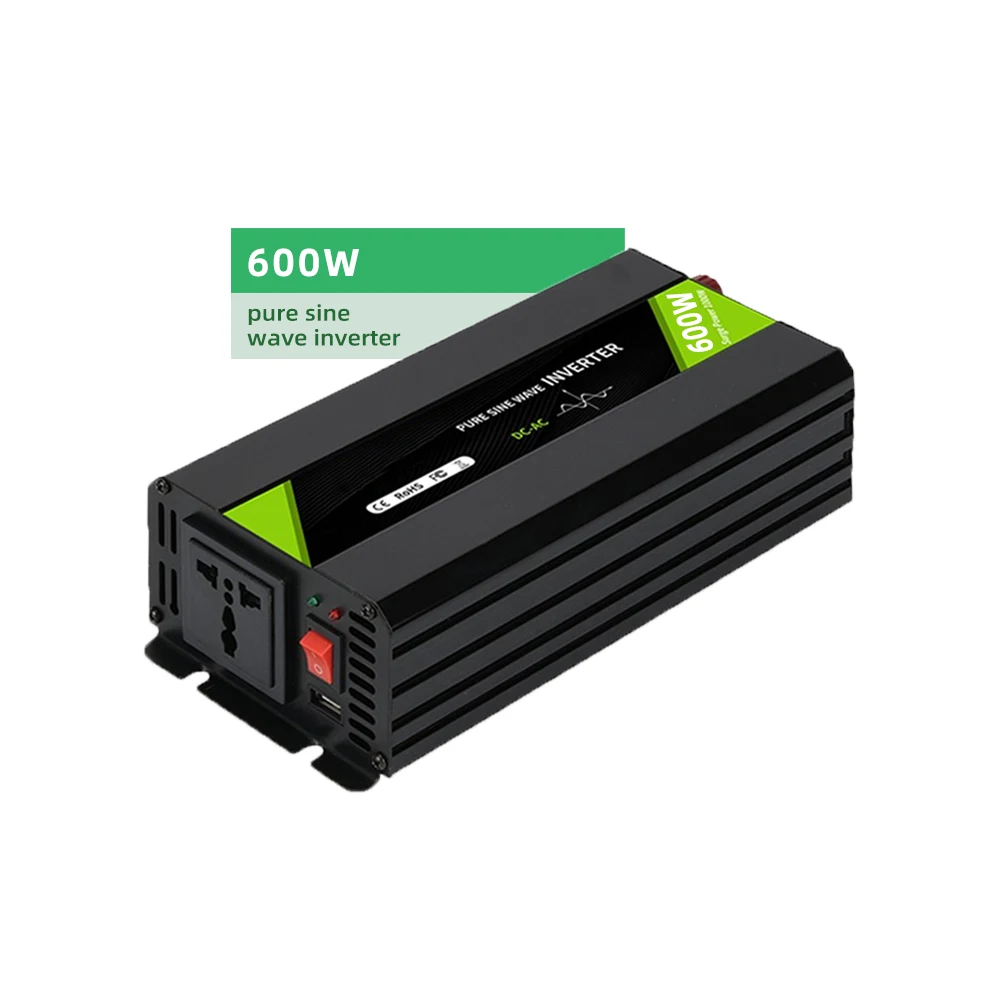

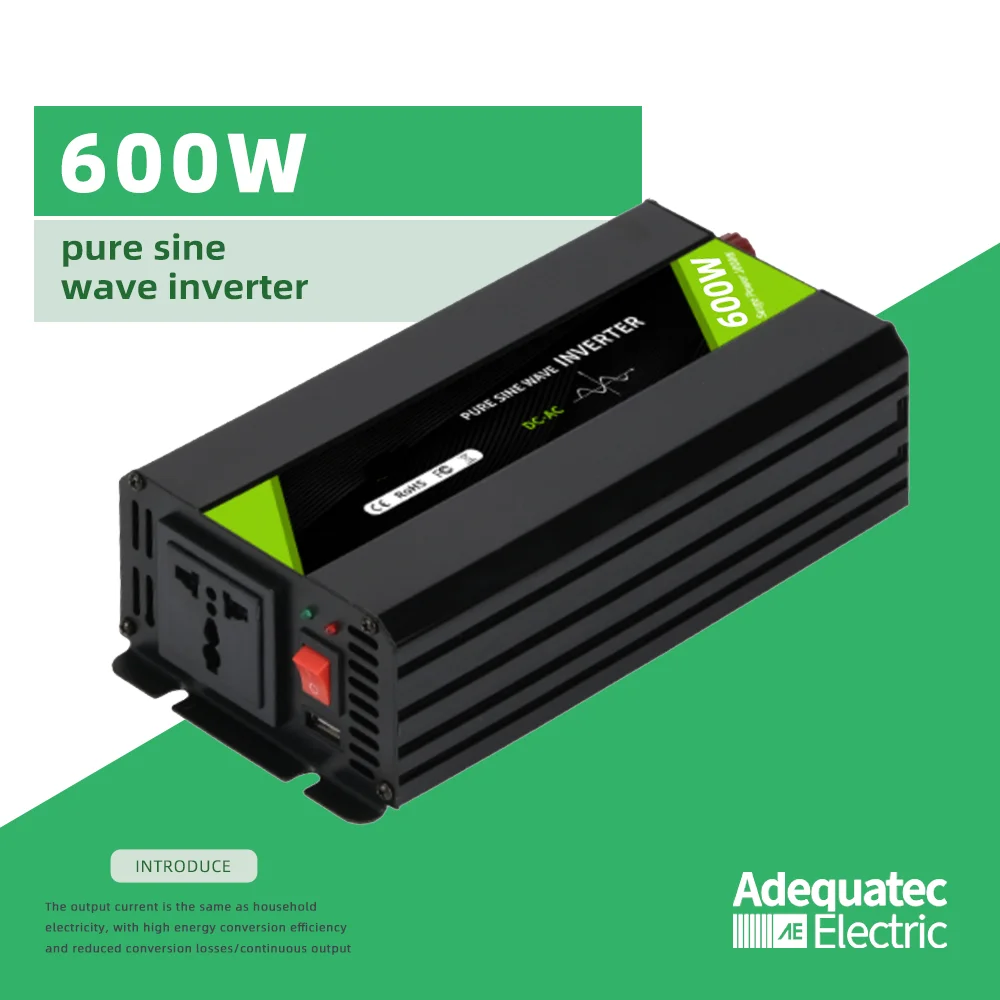

AE 600W Pure Sine Wave Inverters Converters 12V 24V 48V to 110V 220V Car DC to AC Smart Off Grid Hybrid Solar Power Inverter
- Category: >>>
- Supplier: Wenzhou Adequatec Electric Co. Ltd.
Share on (1601261639248):
Product Overview
Description
Product Description
Product Paramenters
Model | AEP-0.6K-12V | AEP-0.6K-24V | AEP-0.6K-48V | ||||||
Output Power | 600W | ||||||||
Peak Power | 1200W | ||||||||
Input Voltage(Range) | DC12V(9-15.5V) | DC24V(18-31V) | DC48V(38-61V) | ||||||
Output Voltage(Optional) | (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5% | ||||||||
No-load Current | ≤0.4A | ≤0.2A | ≤0.2A | ||||||
Output Frequency(Optional) | 50Hz/60Hz | ||||||||
Output Waveform | Pure Sine Wave | ||||||||
THD | ≤3% Resistive Load | ||||||||

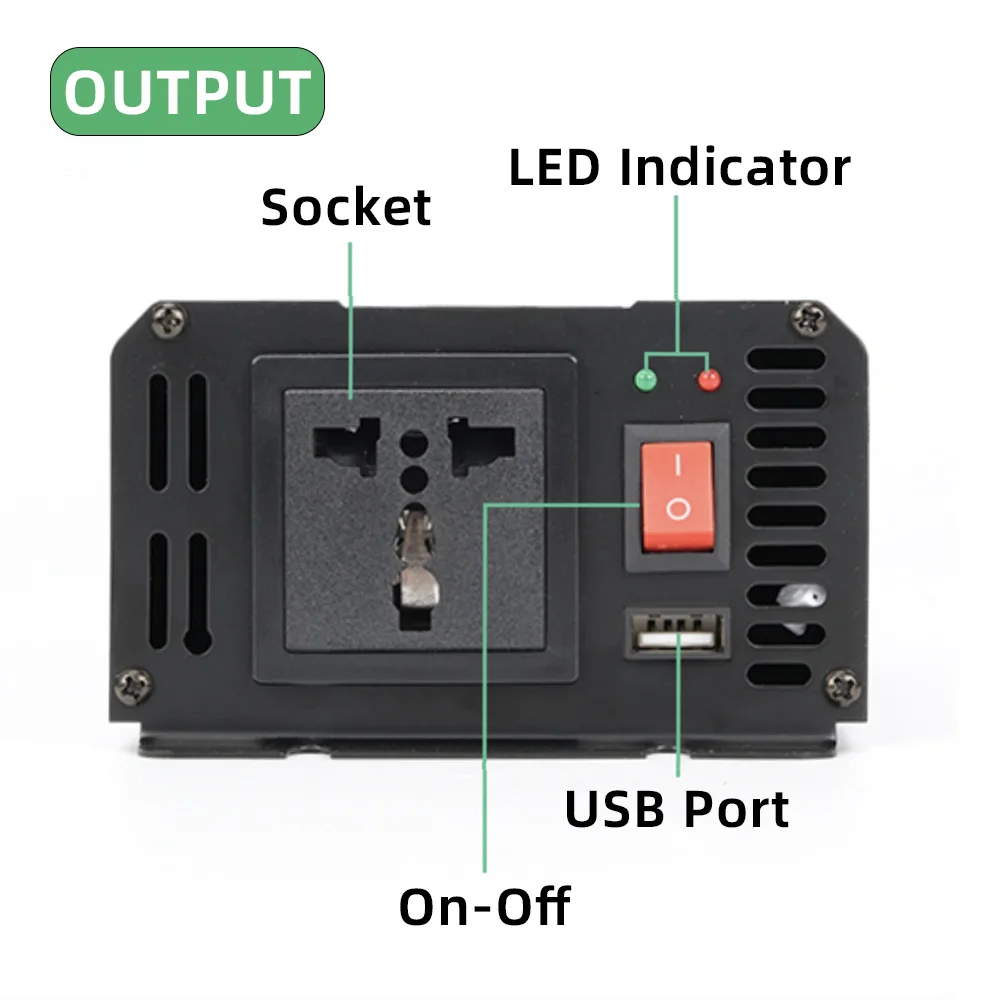

USB | 18W Fast Charging | / | |||||||
Max. Output Efficiency | 88% | 90% | 92% | ||||||
Undervoltage Protection | Alarm first (alarm sound once), LED red light flashes, voltage continues to decrease and shuts down | ||||||||
Overvoltage Protection | Alarm (alarm sounds twice) LED red light flashes and turns off | ||||||||
Overload Protection | Continuous alarm, LED flashes red, and turns off | ||||||||
Over Temperature Protection | First alarm (three alarm sounds), the temperature continues to rise and the LED red light flashes and turns off | ||||||||
Short Circuit Protection | There is short circuit protection to protect the circuit | ||||||||
Reverse Connection Protection | Fuse | ||||||||
Undervoltage Alarm Range | 10.5±0.5V | 21±0.5V | 42±1V | ||||||
Undervoltage Protection Range | 9.5±0.5V | 19±0.5V | 38±1V | ||||||
Overvoltage Protection Range | 15.5±0.5V | 31±0.5V | 61±1V | ||||||
Undervoltage Recovery Range | 13±0.5V | 24±0.5V | 48±1V | ||||||
Overvoltage Recovery Range | 14.5V±0.5V | 29V±0.5V | 58V±1V | ||||||
Working Temperature | -20℃ - +50℃ | ||||||||

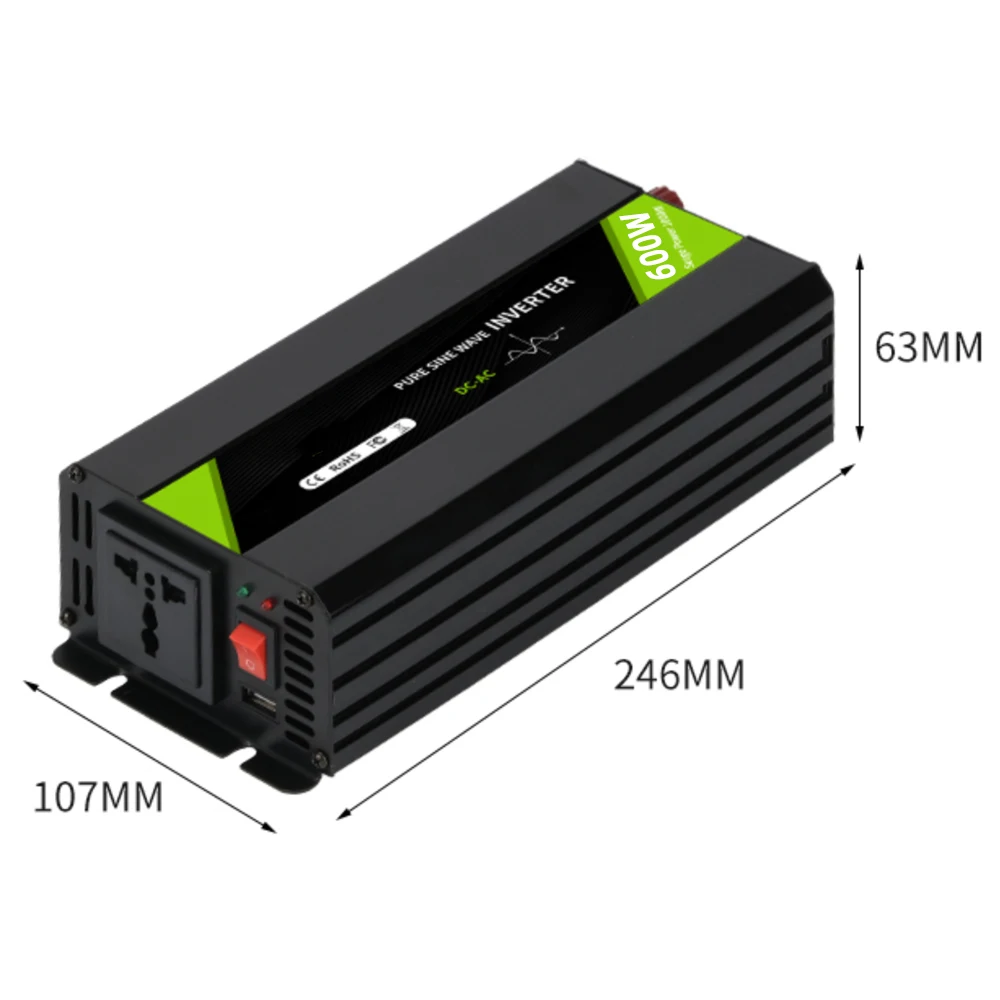

Product Dimensions(MM) | 246*107*63 | ||||||||
Installation Dimensions(MM) | 221*50 | ||||||||
NW/GW(KGS) | 0.96/1.15 | ||||||||
Carton Weight(KGS) | 18.25 | ||||||||
Warranty | 2 Years | ||||||||
Cabling Configuration(MM²) | 6 | 4 | 2.5 | ||||||

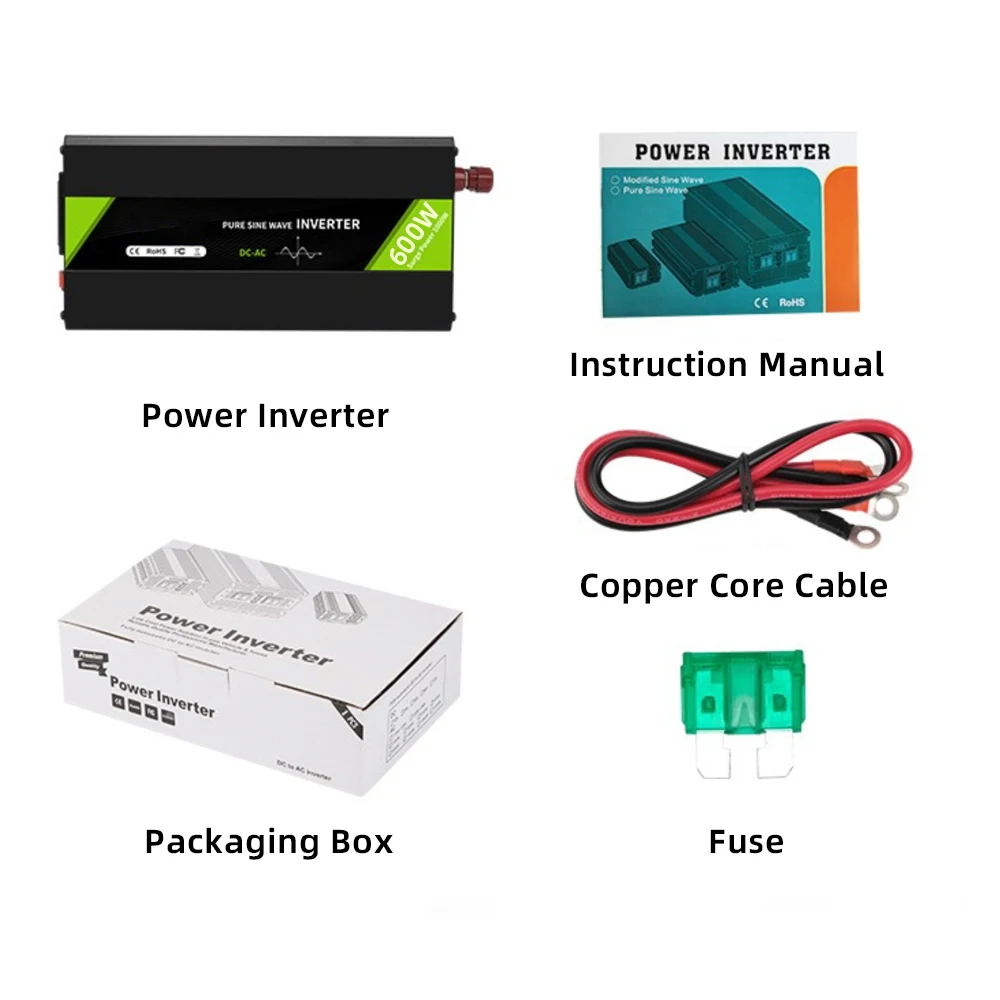

Packing & Delivery
