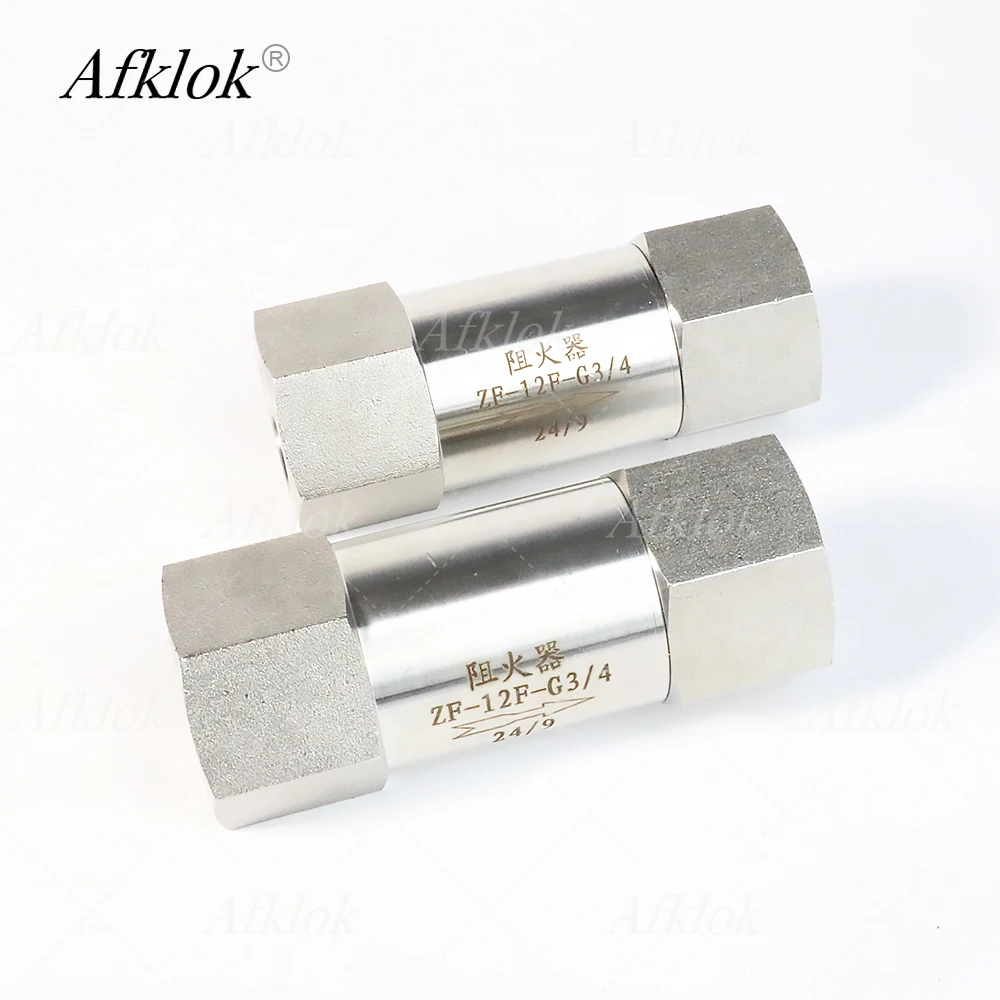

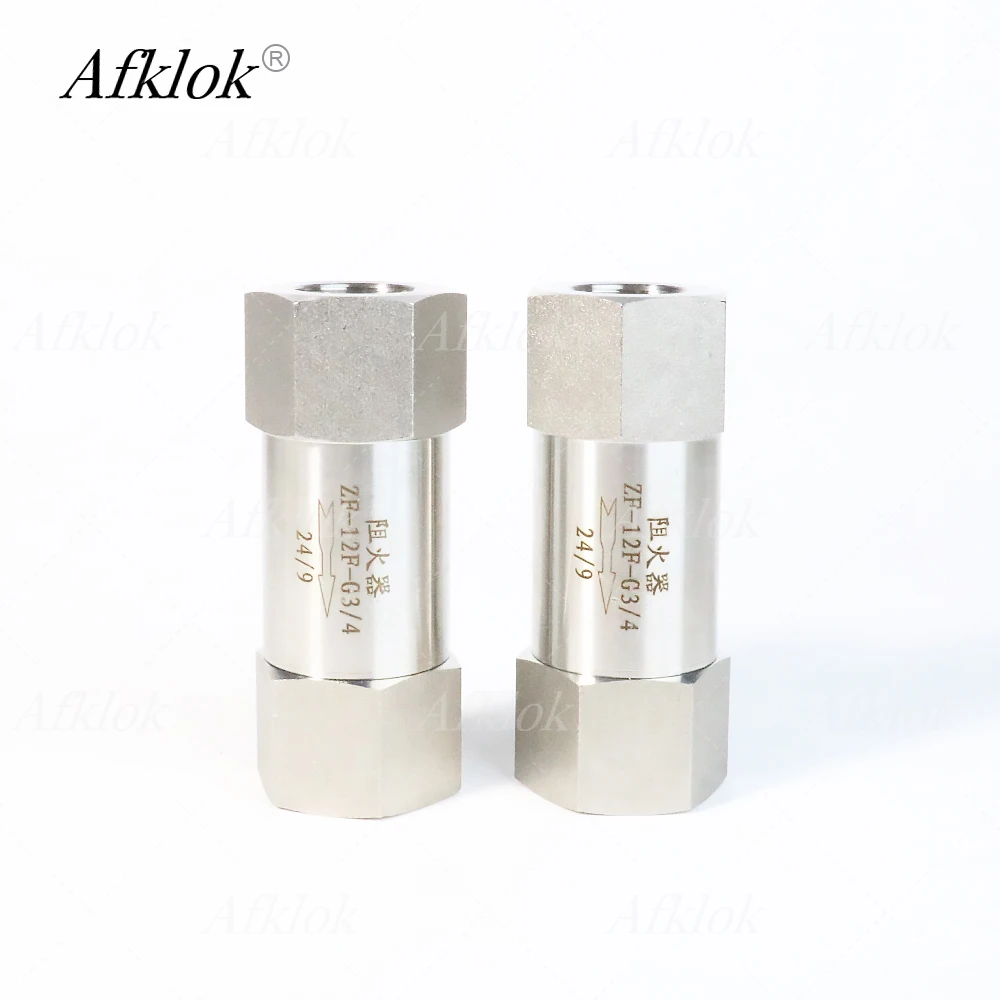

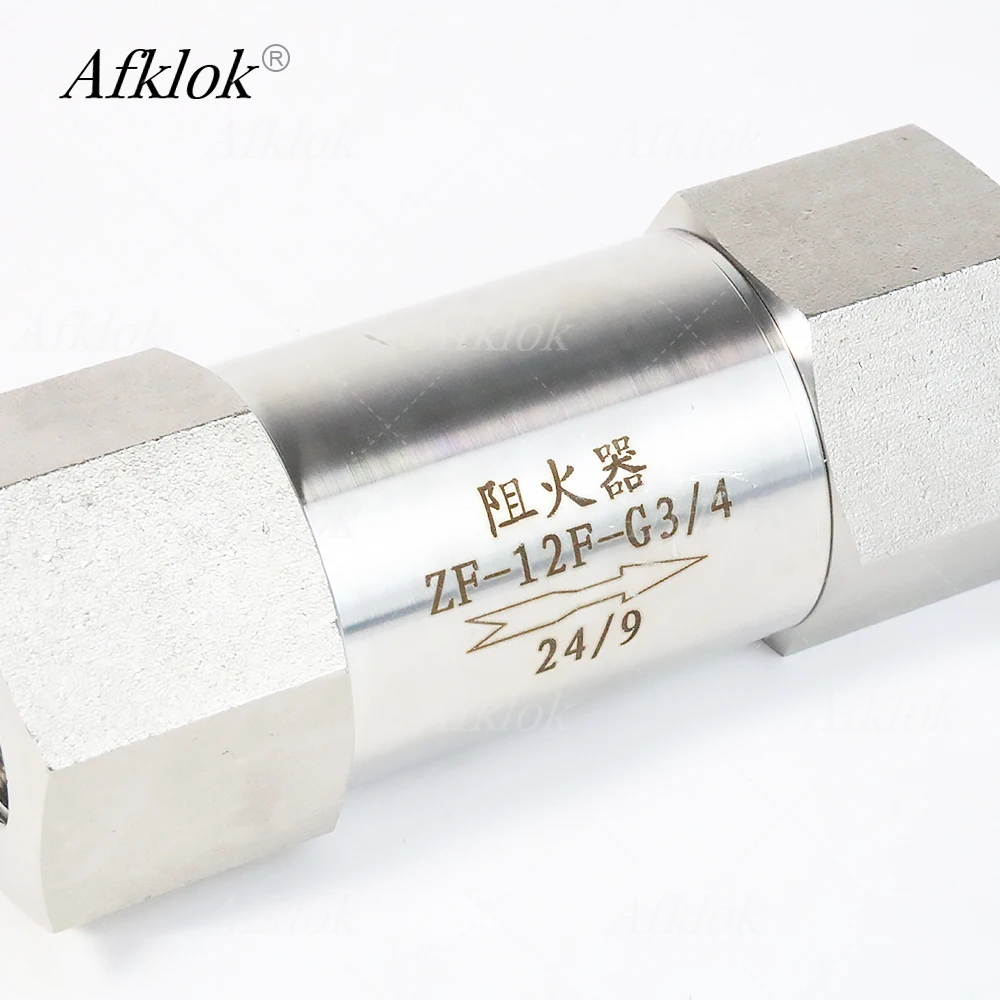

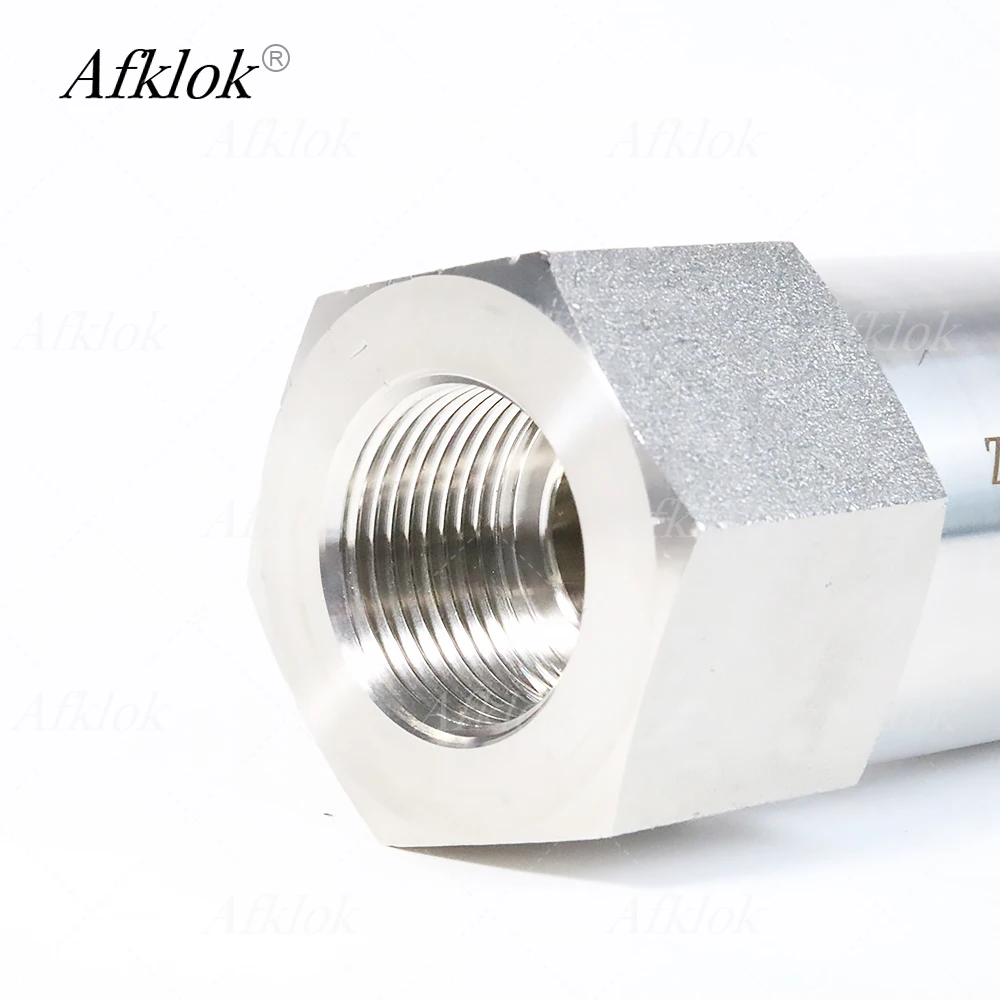

General Application G Female Flashback Arrestor for Gas & Hydraulic 1/8 1/4 3/8 1/2 3/4 Sizes for Structures
- Category: >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.
Share on (1601261743136):
Product Overview
Description
Product Description
A female flame arrestor is a safety device used to prevent the propagation of flame through pipework. It is usually installed in piping systems for flammable and explosive gases or liquids to stop the flame from spreading through the piping, thus protecting equipment and personnel.
Type：ZF-G
Size：1/8"1/4"3/8"1/2"3/4"G Female
material：SS316
Working Principle of Flame Arrestor

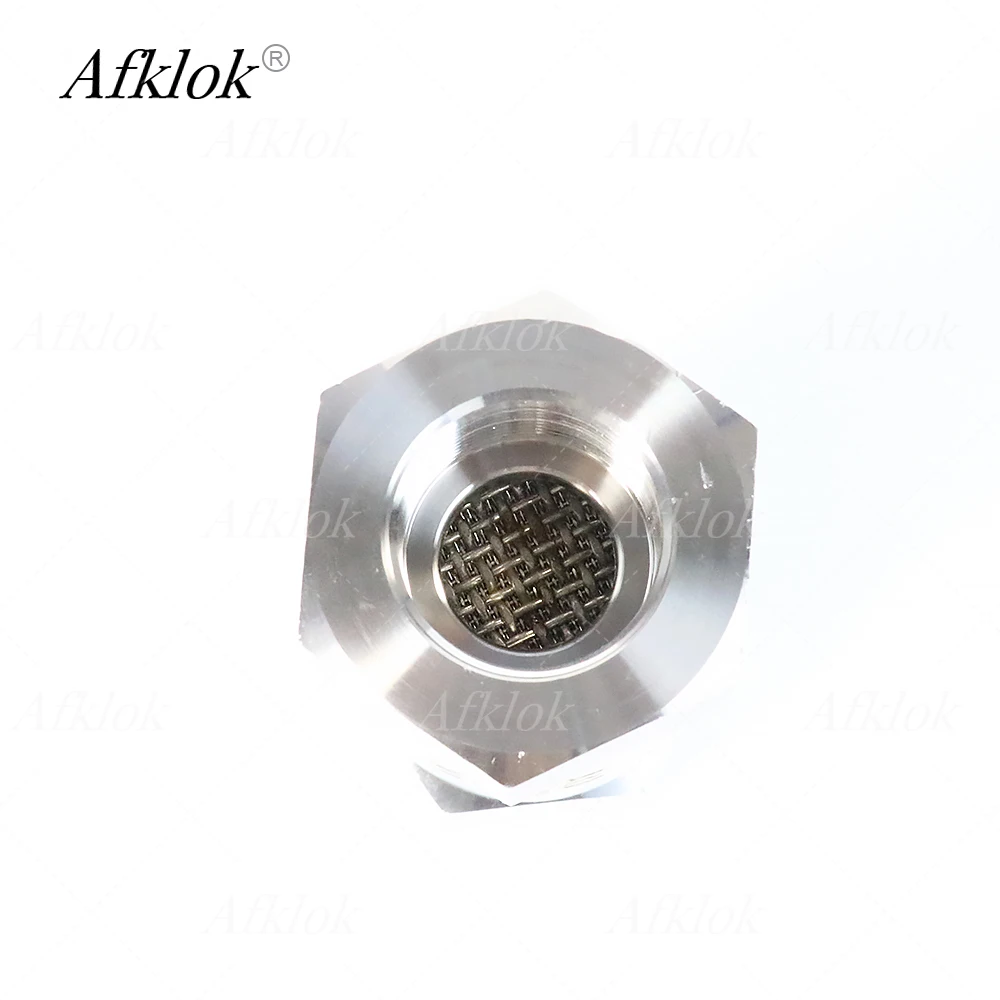

The working principle of female flame arrestor is to make the flame be extinguished or prevented from spreading when it passes through the flame arrestor through a special structural design. It usually consists of shell, flame arrestor core and other components. The flame arrestor core is usually made of metal mesh, corrugated board and other materials, which has good flame arresting performance.
The working principle of female flame arrestor is to make the flame be extinguished or prevented from spreading when it passes through the flame arrestor through a special structural design. It usually consists of shell, flame arrestor core and other components. The flame arrestor core is usually made of metal mesh, corrugated board and other materials, which has good flame arresting performance.
Flame arrestor function
1. To stop the spread of flame:
The main function of female threaded flame arrestor is to stop flame propagation in piping system. It can effectively extinguish or prevent the flame from passing through the flame arrestor through special structural design.
This is essential to protect the piping system and the surrounding equipment as well as the safety of personnel. In the process of conveying flammable and explosive gases or liquids, the flame arrestor can play a key protective role in case of fire.
2. Pressure stabilisation:
Flame arrestors can also stabilise the pressure in the piping system to a certain extent. When pressure fluctuations occur in the pipeline, the flame arrestor can act as a buffer to reduce the impact of pressure on the piping system.
This helps to protect the integrity of the piping system and reduces the risk of rupture or leakage due to excessive pressure.
1. To stop the spread of flame:
The main function of female threaded flame arrestor is to stop flame propagation in piping system. It can effectively extinguish or prevent the flame from passing through the flame arrestor through special structural design.
This is essential to protect the piping system and the surrounding equipment as well as the safety of personnel. In the process of conveying flammable and explosive gases or liquids, the flame arrestor can play a key protective role in case of fire.
2. Pressure stabilisation:
Flame arrestors can also stabilise the pressure in the piping system to a certain extent. When pressure fluctuations occur in the pipeline, the flame arrestor can act as a buffer to reduce the impact of pressure on the piping system.
This helps to protect the integrity of the piping system and reduces the risk of rupture or leakage due to excessive pressure.

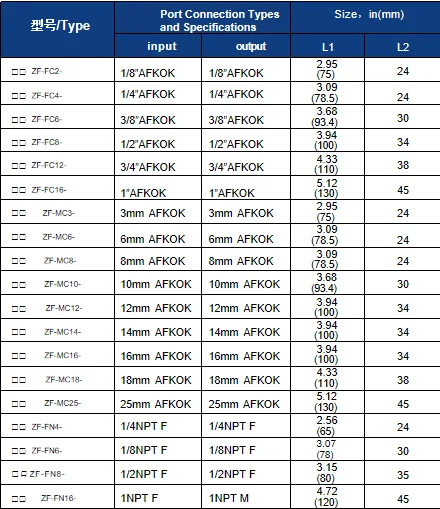

Specification
item | value |
Type | flame arrester |
Structure | Check |
Application | General |
Place of Origin | China |
Guangdong | |
Power | Hydraulic |
Customized support | OEM, ODM |
Port Size | G3/4" |
Warranty | 1 years |
Model Number | ZF |
Temperature of Media | Normal Temperature |
Brand Name | AFKLOK |
Media | Gas |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipements, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
FAQ
Q1：What are the advantages of stainless steel 316 material?
A1: Stainless steel 316 material has excellent corrosion resistance, especially to chloride, acid, alkali and other corrosive media. It also has high strength and good resistance to high temperature, which is suitable for a variety of harsh working environments.
Q2：What are the characteristics of G3/4 female thread?
A2: G3/4 female thread connection is easy and quick to install, without complicated welding or flange connection operation. It provides good sealing and effectively prevents gas or liquid leakage. Meanwhile, it is easy to maintain and replace, and can be quickly disassembled and installed.
Q3：What is the firestopping principle of female thread flame arrestor?
A3: Through special structural design, such as metal mesh, corrugated plate and other flame arresting cores, the female thread flame arrestor can absorb heat and lower the temperature when the flame passes through, so that the flame is extinguished or its propagation is prevented.
Q4：How to install G3/4 female flame arrestor correctly?
A4：When installing, make sure the pipe interface is clean and free of impurities and damage. Align the inner thread of the flame arrestor with the outer thread of the pipe and tighten it by gently rotating it, taking care not to exert excessive force to avoid damaging the thread. After installation, check whether the connection is firm and the sealing is good.
Q5：What is the appropriate location for installation?
A5：Usually installed in the piping system of flammable and explosive gases or liquids, such as the outlet of storage tanks, piping branches and other positions to prevent the flame spread to other areas.
Q6：What do I need to pay attention to during use?
A6: Regularly check the appearance of the flame arrestor for damage, corrosion and other conditions. If problems are found, replace them promptly. Avoid open-flame operations or operations that generate high temperatures near the flame arrestor.
Q7: How to carry out maintenance?
A7: Clean the flame arrestor regularly to remove dust and impurities on the surface. Check whether the flame arrestor core is clogged or damaged, and replace the core in time if necessary. For threaded connection parts, you can apply appropriate amount of anti-rust oil to prevent rusting.
Q8: What is the service life of the flame arrestor?
A8: The service life depends on a variety of factors, such as the use of the environment, the nature of the medium, the maintenance situation. Generally speaking, under normal use and maintenance, stainless steel 316 material G3/4 female flame arresters can be used for several years or even longer.
Q9：How is the firestopping performance of the flame arrestor tested?
A9：The firestopping performance of the flame arrestor is usually tested by professional testing organisations, and the testing methods include flame propagation test, explosion resistance test and so on. Flame arresters that meet the relevant standards will obtain the corresponding certification.
Q10：What are the certification standards?
A10：Common certification standards include national standards, industry standards and international standards, such as China's GB, the U.S. UL standards and so on. These standards specify the performance requirements, test methods and certification procedures for flame arresters.
A1: Stainless steel 316 material has excellent corrosion resistance, especially to chloride, acid, alkali and other corrosive media. It also has high strength and good resistance to high temperature, which is suitable for a variety of harsh working environments.
Q2：What are the characteristics of G3/4 female thread?
A2: G3/4 female thread connection is easy and quick to install, without complicated welding or flange connection operation. It provides good sealing and effectively prevents gas or liquid leakage. Meanwhile, it is easy to maintain and replace, and can be quickly disassembled and installed.
Q3：What is the firestopping principle of female thread flame arrestor?
A3: Through special structural design, such as metal mesh, corrugated plate and other flame arresting cores, the female thread flame arrestor can absorb heat and lower the temperature when the flame passes through, so that the flame is extinguished or its propagation is prevented.
Q4：How to install G3/4 female flame arrestor correctly?
A4：When installing, make sure the pipe interface is clean and free of impurities and damage. Align the inner thread of the flame arrestor with the outer thread of the pipe and tighten it by gently rotating it, taking care not to exert excessive force to avoid damaging the thread. After installation, check whether the connection is firm and the sealing is good.
Q5：What is the appropriate location for installation?
A5：Usually installed in the piping system of flammable and explosive gases or liquids, such as the outlet of storage tanks, piping branches and other positions to prevent the flame spread to other areas.
Q6：What do I need to pay attention to during use?
A6: Regularly check the appearance of the flame arrestor for damage, corrosion and other conditions. If problems are found, replace them promptly. Avoid open-flame operations or operations that generate high temperatures near the flame arrestor.
Q7: How to carry out maintenance?
A7: Clean the flame arrestor regularly to remove dust and impurities on the surface. Check whether the flame arrestor core is clogged or damaged, and replace the core in time if necessary. For threaded connection parts, you can apply appropriate amount of anti-rust oil to prevent rusting.
Q8: What is the service life of the flame arrestor?
A8: The service life depends on a variety of factors, such as the use of the environment, the nature of the medium, the maintenance situation. Generally speaking, under normal use and maintenance, stainless steel 316 material G3/4 female flame arresters can be used for several years or even longer.
Q9：How is the firestopping performance of the flame arrestor tested?
A9：The firestopping performance of the flame arrestor is usually tested by professional testing organisations, and the testing methods include flame propagation test, explosion resistance test and so on. Flame arresters that meet the relevant standards will obtain the corresponding certification.
Q10：What are the certification standards?
A10：Common certification standards include national standards, industry standards and international standards, such as China's GB, the U.S. UL standards and so on. These standards specify the performance requirements, test methods and certification procedures for flame arresters.
