Air Cooling System Laser Welding Machine 5 in 1 Metal Laser Welding Cleaning Cutting Machine
- Category: >>>
- Supplier: Tongxing Technology Development Co. Ltd.
Share on (1601261748852):
Product Overview
Description
Specification | SD-1200A | SD1500 | SD2000 | ||
Laser Power | 1200W | 1500W | 2000W | ||
Operating Mode | CW/Pulse | ||||
Output Laser Wavelength | 1070±10nm | ||||
Output Power Range | 1%~100% | ||||
Power Stability | 95% | ||||
Max.Modulation Frequency | 10kHz | ||||
Response Time | <30 us | ||||
Diode Wavelength | 650nm | ||||
Red Diode Power | <1 mw | ||||
Wobble Way | Single | ||||
Wobble Format | 0~5mm | ||||
Laser Incident Method | Coaxial | ||||
Protective Lens Specification | D20mm, T3mm | ||||
Cable Length | 5±0.5m(Customizable) | ||||
Ambient Temperature | -10~40℃ | ||||
Input Voltage | 220V AC 50Hz/60Hz | ||||
Power Consumption | ≤4.5kWh | ||||
Ambient Humidity Range | ≤95% | ||||
Protective Gas | Inert Gases(nitrogen, argon) | ||||
Protective Pressure Range | 0.1~1 Mpa | ||||
Interface Type | QSC | ||||
Reflector Specifications | 23.3×16mm2, T2mm | ||||
Focusing Lens Specifications | D20mm, F150mm | ||||
Collimator Specifications | D12.7mm, F50mm | ||||
SUDA economical laser series is oriented to the user group with the ultimate cost-performance requirement, taking economy as the core, taking into account high quality and low price, which can fully meet the daily production and use needs of cunstomers.

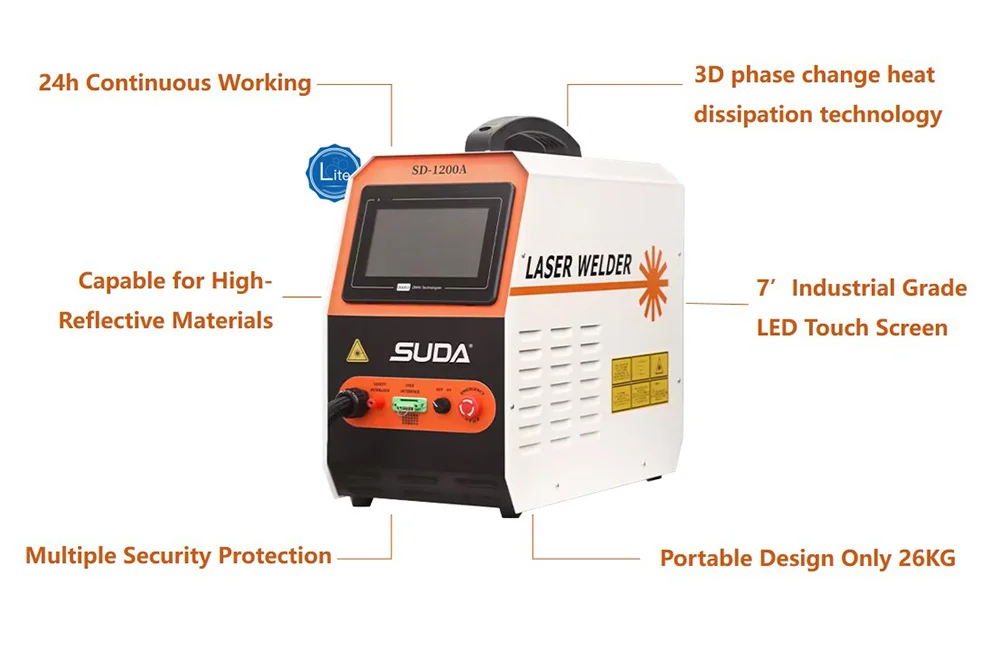

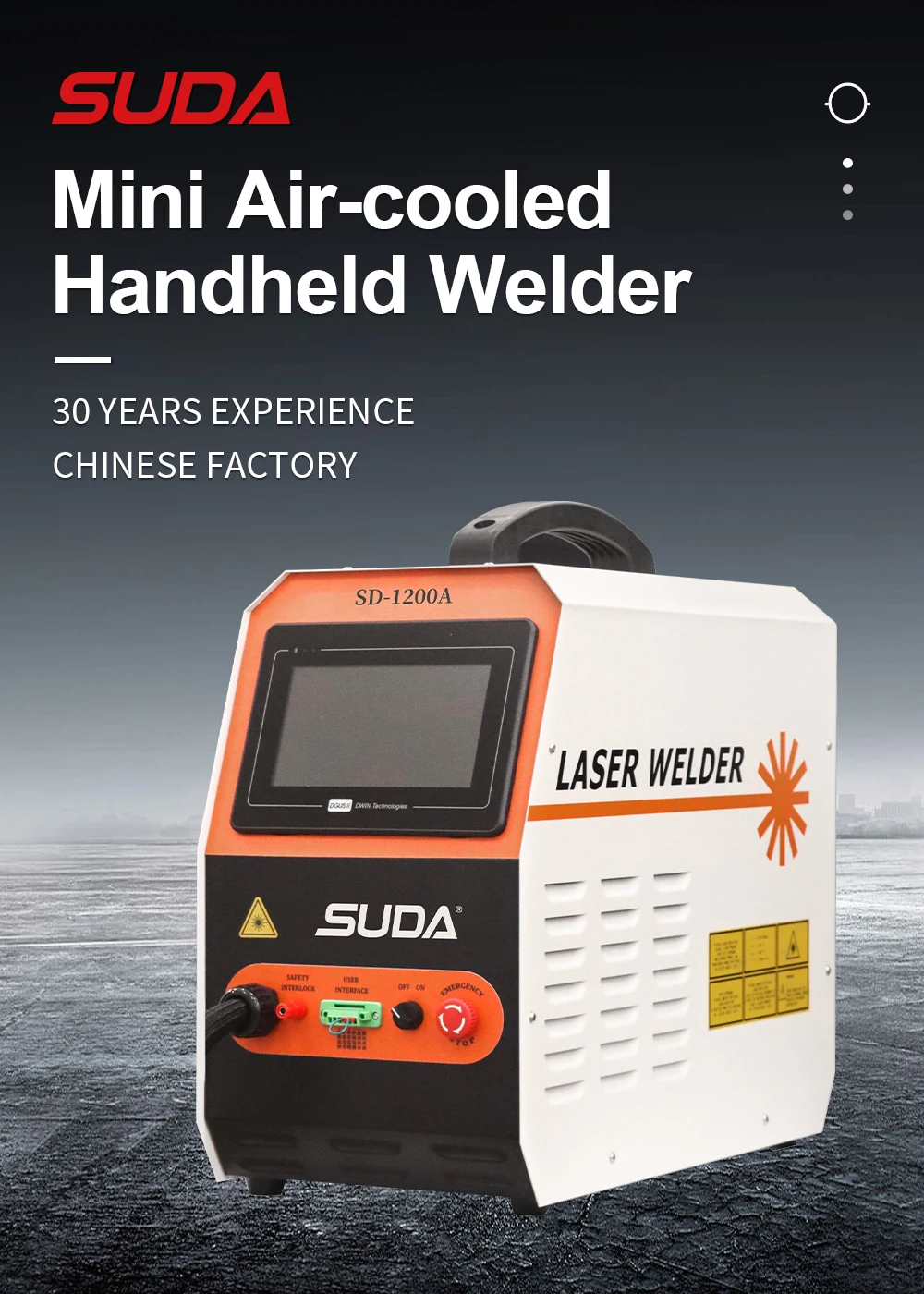

◆ New appearance design, small size, light weight◆ ABR super anti-high reaction technology, can easily weld high reaction materials

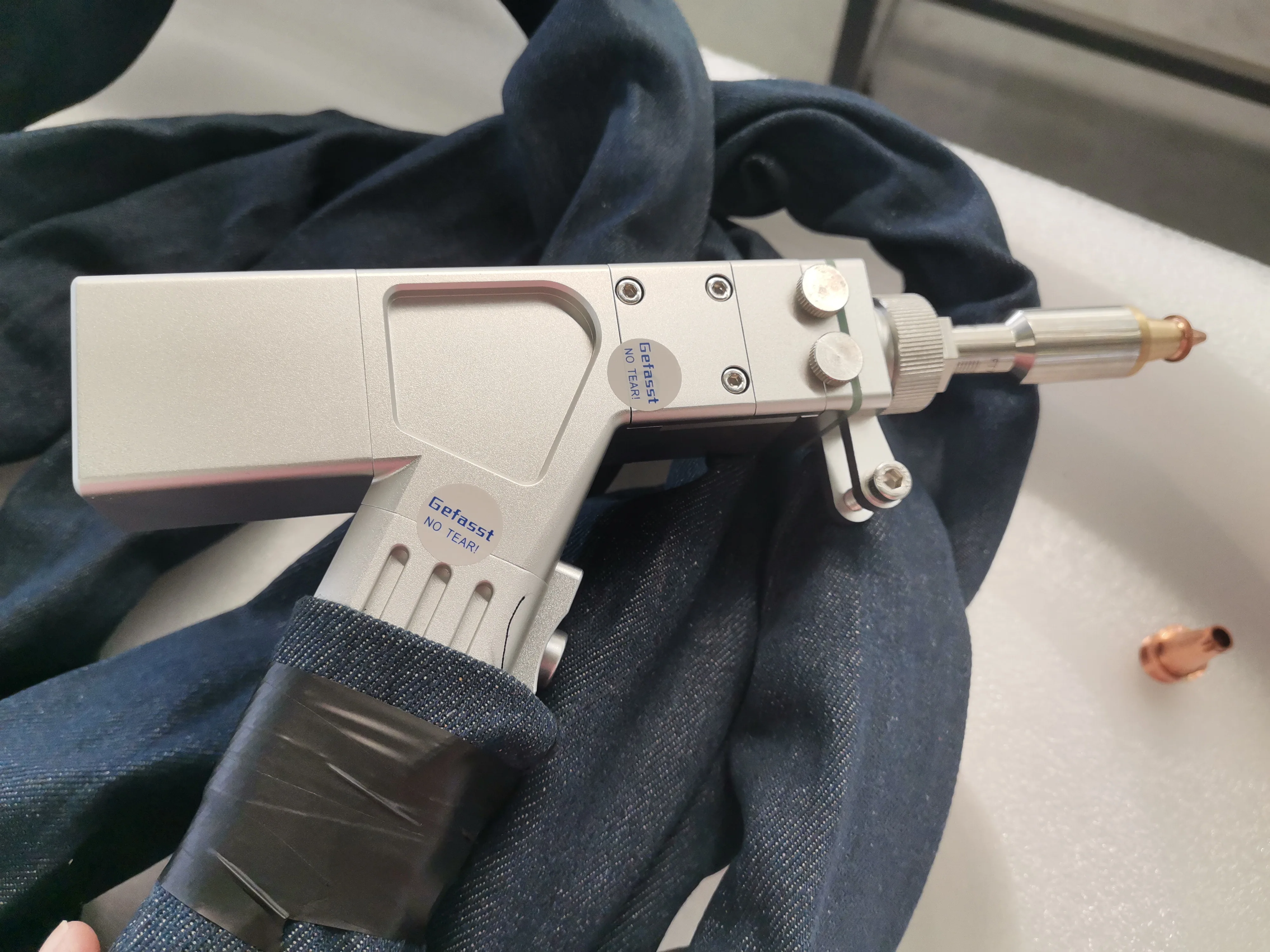

◆ Independently developed hand-held welding gun, weighs only 580g
◆ 7 inch industrial LED touch screen, easy to set power, mode selection, fault display, etc
◆ Remote service support available through WIFI/Internet
