2Hour Fire Resistant Glass Customized Building Fireproof panels Ceramic Fire Rated Glass Sheet
- Category: >>>
- Supplier: Sichuan Dagui Special Glass Technology Co. ltd.Sichuan ltd.
Share on (1601261850037):
Product Overview
Description
Product Description
Composite nano-silica fire-proof glass
is a new type of fire-proof glass made by superimposing two or more layers of original glass sheets, injecting inorganic expandable nano-silica fire-proof glue into the middle of two adjacent sheets, and optimizing the composite through polycondensation. Nano silicon fireproof glue is a kind of hard inorganic transparent fireproof crystal with stable physical and chemical functions. The nanosilica fireproof glass processed by its composite processing has strong weather resistance, stable fire resistance and high quality.
working principle

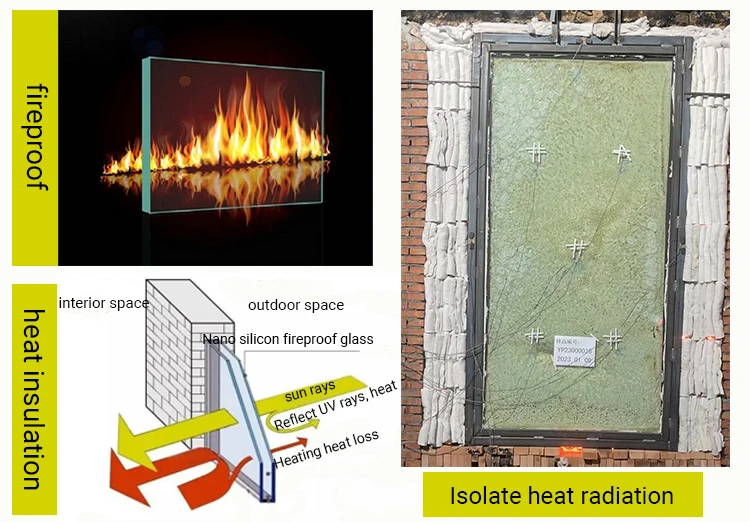

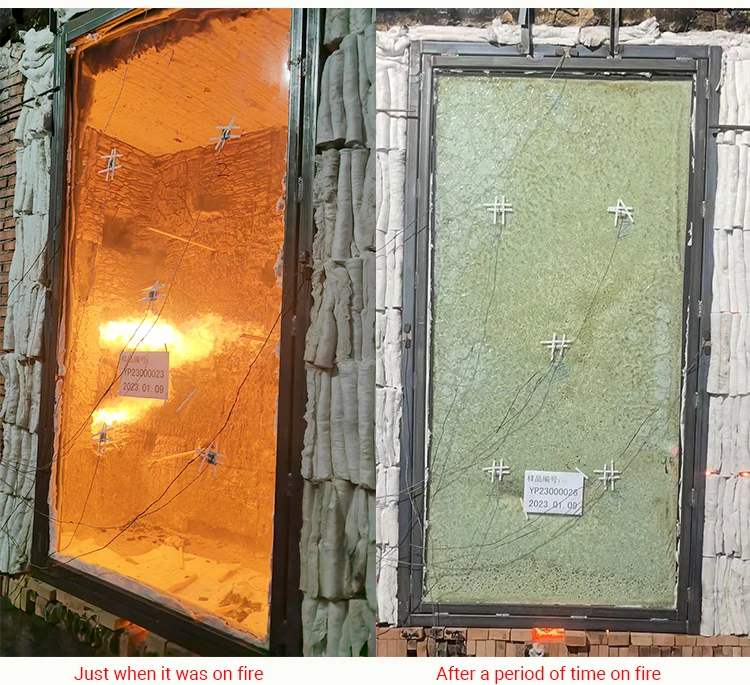

When a fire occurs, the glass on the fire surface explodes when exposed to flames, and the nano-silica fire-retardant adhesive layer rapidly expands and foams to 12 times or more the original adhesive layer when heated, forming an opaque fire-retardant adhesive wall. The unique characteristics of fire-retardant glue such as high strength, high viscosity, and high fire resistance can prevent flames, heat, smoke, gas, etc. from spreading to the back fire surface for a long time, thereby achieving good thermal insulation and integrity within a certain period of time.
Product Paramenters
Product | Nano silicon fireproof glass | |
Fire resistance | five fire resistance levels: 0.5h, 1.0h, 1.5h, 2.0h, 3.0. It can be made into insulated and non-insulated fireproof glass | |
Optical properties | light transmittance 65% | |
UV radiation resistance | After 1000 hours of UV aging test, there is no significant discoloration, bubbles or turbidity, and the relative change rate of visible light transmittance before and after the test is not greater than 10%. | |
Heat resistance | No change in product appearance within the temperature range of 25℃+70℃ | |
Cold resistance performance | No change in product appearance within the temperature range of 25℃+70℃ | |
PS：The transparent glass can be replaced with low-e glass and combined with fire-proof glue to achieve the functions of fire prevention, energy saving, heat preservation, sound insulation and heat insulation. | ||
Model | Thickness (mm) | Fire resistance time | Structural configuration | Recommended maximum size (mm) |
FFB-25-A1.00 | 25 | 60 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered (5-layer structure) | 1500*4200 |
FFB-35-A1.50 | 35 | 90 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered++ 5mm nano silicon fireproof glue + 5mm tempered (7-layer structure) | 1500*4200 |
FFB-45-A2.00 | 45 | 120 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered (9 layers Structure) | 1500*4200 |
FFB-75-A3.00 | 75 | 180 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered +5mm nano silicon fireproof glue +5mm tempered +5mm nano silicon fireproof glue +5mm tempered +5mm nano silicon fireproof glue+ +5mm tempered (15-layer structure) ） | 1500*4200 |
Product Feature
NO.1 Excellent fire prevention effect
It has the functions of fire prevention, heat insulation, radiation protection, etc.
to protect life and property safety.
NO.2
Good weather
resistance
resistance
no discoloration, no degumming, can be used indoors and outdoors, no blistering under long-term sunlight exposure.
NO.3

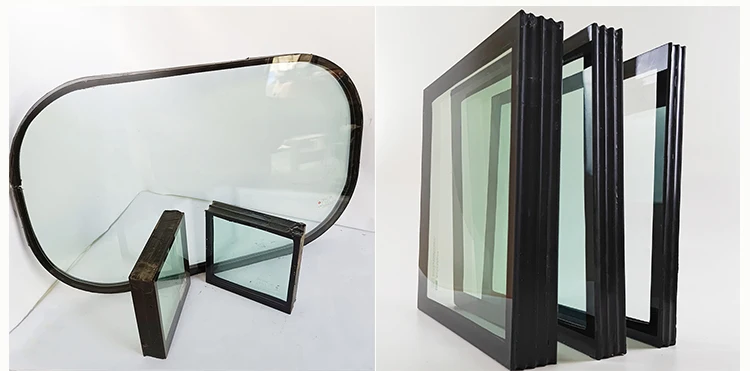

Special-shaped customization
Special-shaped customization
Customizable specifications have a wide range of sizes, and all sizes can be customized. There are also many shapes to choose from, including rectangles, squares, circles, etc.

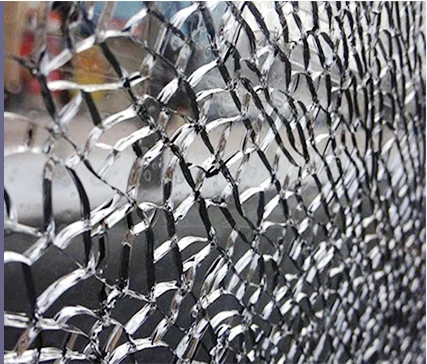

No self-explosion,
good safety

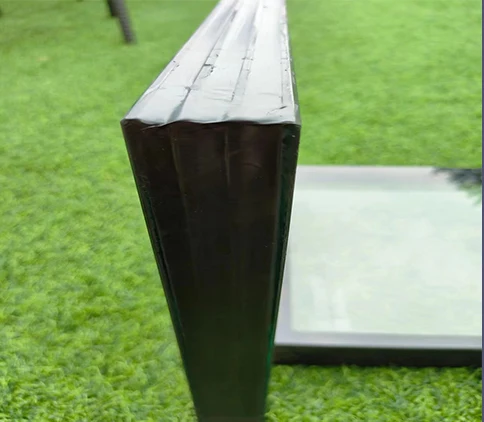

Composite sandwich structure, the glass and fireproof glue are tightly bonded, there will be no risk of self-explosion, and it can also effectively reduce the risk of broken glass harming the human body.
NO.5 Excellent sound insulation and noise reduction function.
Large thickness, good thermal insulation, sound insulation and transparency.
Application
Ⅰ. Fire-resistant glass partitions and curtain walls.
Nano silicon fire-resistant glass has excellent weather resistance, fire resistance, heat insulation and
other characteristics. It is a super weather-resistant fire-resistant glass for curtain walls.
other characteristics. It is a super weather-resistant fire-resistant glass for curtain walls.

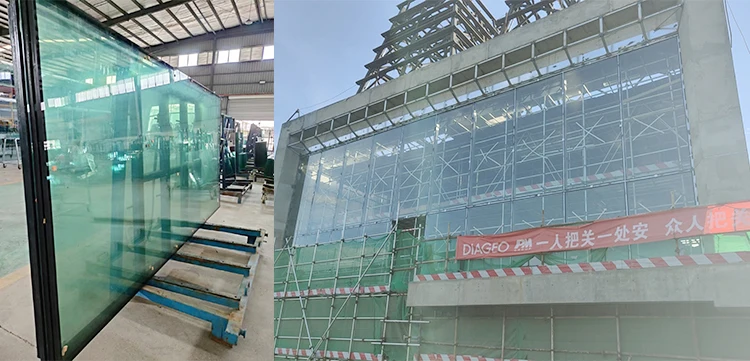

Thermal insulation type 1 hour nano silicon fireproof glass,Whiskey distillery exterior project.
Ⅱ. Fireproof windows on exterior walls.
It can be used for fire-resistant glass walls in single-story, multi-story and high-rise buildings to replace
the solid walls between the upper and lower openings; fire-resistant exterior windows in shelters with
residential building heights greater than 54 meters, etc.
the solid walls between the upper and lower openings; fire-resistant exterior windows in shelters with
residential building heights greater than 54 meters, etc.
Indoor and outdoor fire windows

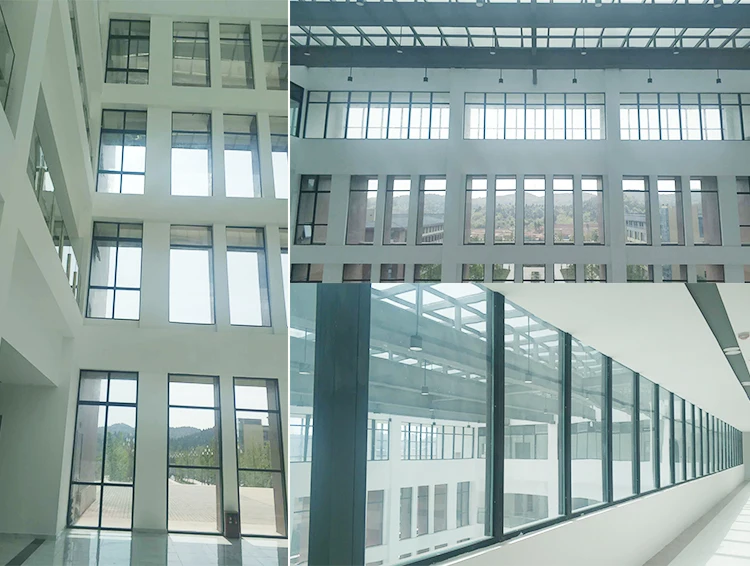

High school projects

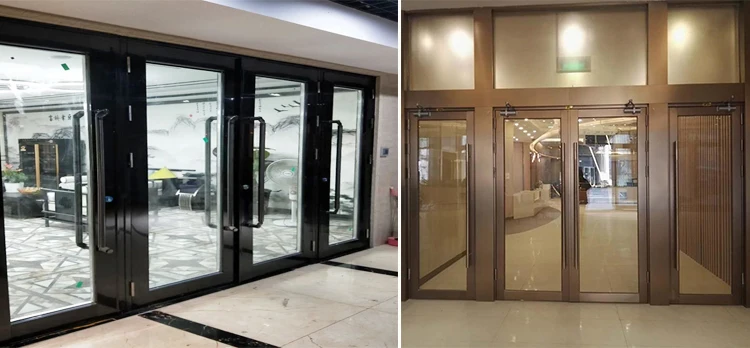

Ⅲ.Fireproof glass door.
Nano-silicon fireproof glass and metal profiles are combined into door leaves, which are installed in
building entrances, passages and other parts that require fire protection.
building entrances, passages and other parts that require fire protection.
IV. Can be substituted for other products.
Nano silicon fire-resistant glass can replace single-piece fire-resistant glass, traditional organic
grouting fire-resistant glass and other types of fire-resistant glass that are unstable and expensive.
grouting fire-resistant glass and other types of fire-resistant glass that are unstable and expensive.

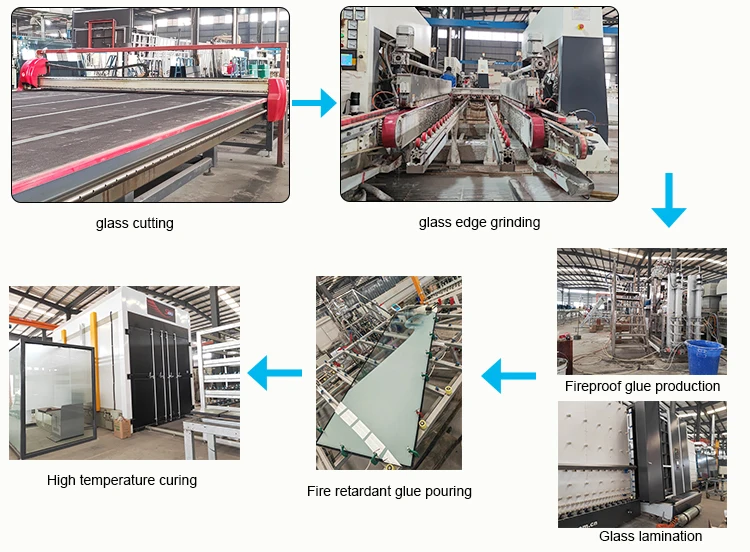

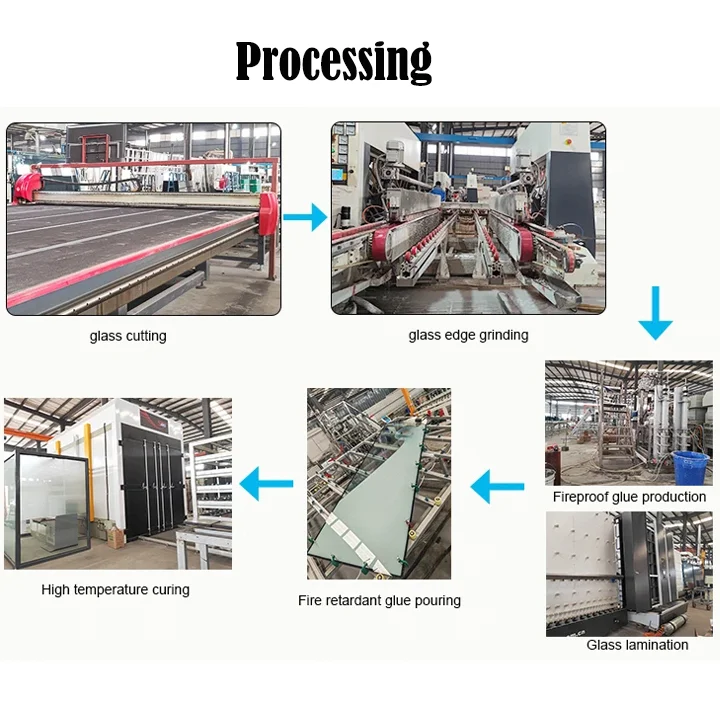

Manufacturing Technique
Certifications
Packaging&Shipping
Company Profile
Special Glass system solution supplier

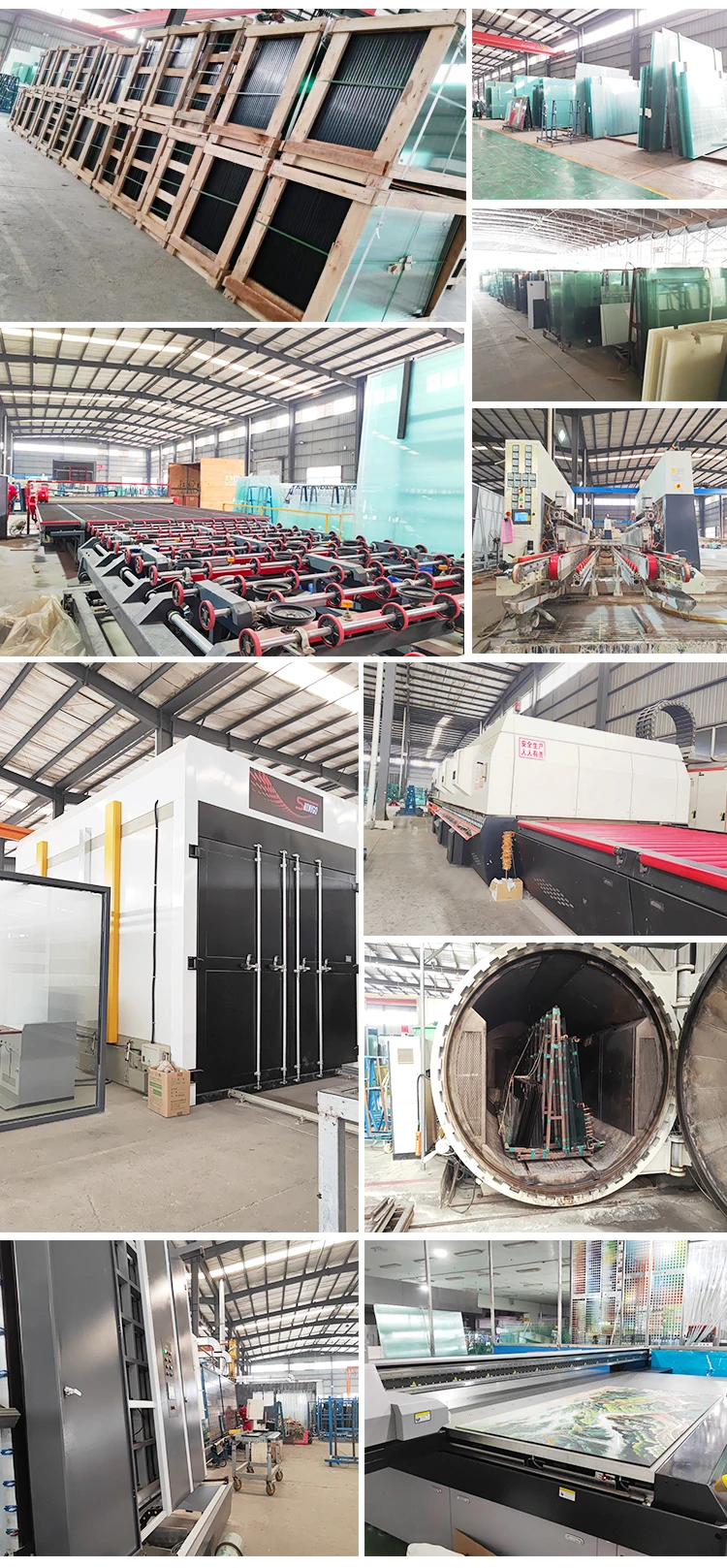

Sichuan Dagui Special Glass Technology Co., Ltd. was established in 2016, we focus on the design and manufacture of special glass,the provision of special glass system and doors and windows system solutions. We have well-equipped glass processing production lines, equipped with complete hollow production lines, laminated production lines, 3 edge grinding machines, tempering furnace,punching machine, cutting machine, roller press, curing furnace and other advanced production equipment, which can produce tempered glass, hollow glass, laminated glass, bulletproof glass, explosion-proof glass, fireproof glass, smart glass, curved glass, electrical heated glass, art glass and other special featured glass.We can provide you with diversified OEM/ODM services,and our experienced engineers can satisfy your customized needs to the greatest extent. We take “quality first,customer-oriented”as our business philosophy, emphasize on quality, strict quality inspection, to ensure that the products you receive are satisfactory. Our company is a national high-tech enterprise, with utility model invention patents, CE certificates,etc. Our special glass products have passed the certification of MA, ilar MRA, CNAS and other organizations, with strong technical strength.
The core advantages of Dagui special glass company:
1、Years of experience in product design and customization.
2、Annual production capacity of special glass is more than 500,000 square meters, with fast shipment.
3、26 utility model invention patents, CE certificate, etc., strong technical strength.
4、Specialized logistics, transport time is guaranteed.
The core advantages of Dagui special glass company:
1、Years of experience in product design and customization.
2、Annual production capacity of special glass is more than 500,000 square meters, with fast shipment.
3、26 utility model invention patents, CE certificate, etc., strong technical strength.
4、Specialized logistics, transport time is guaranteed.
FAQ
Q1: What types of nano silicon fireproof glass can be made?
Q4: Is it configured with frames or profiles?
A: We can configure profiles of different materials such as stainless steel, aluminum alloy, galvanized steel, etc. according to customer needs, which meet the size of fire-resistant glass.
Q5. What are your payment terms?
A: T/T 30% as deposit, 70% beforedelivery. We will show you photos of the products and packaging before you pay the balance.
Q6. How about your delivery time?
A:Generally, it will take 7 to 10 days after receiving the advance payment. The specific delivery time depends on the items and quantity of your order.
A: In terms of fire resistance time, it can be made into 0.5h,1.0h,1.5h, 2.0h, 3.0h; in terms of heat insulation, it can be made into insulated and non-insulated types.
Q2: Are you a factory?
A:Yes, we are a professional fireproof glass manufacturer with professional production equipment, production lines and quality inspection processes.
Q3: What are the advantages of nano silicon fireproof glass?
A: Nano silicon fireproof glass is a high-performance product independently developed and designed by us. It has the advantages of fire resistance, isolation of flame heat radiation, resistance to ultraviolet radiation, and long service life.
Q2: Are you a factory?
A:Yes, we are a professional fireproof glass manufacturer with professional production equipment, production lines and quality inspection processes.
Q3: What are the advantages of nano silicon fireproof glass?
A: Nano silicon fireproof glass is a high-performance product independently developed and designed by us. It has the advantages of fire resistance, isolation of flame heat radiation, resistance to ultraviolet radiation, and long service life.
Q4: Is it configured with frames or profiles?
A: We can configure profiles of different materials such as stainless steel, aluminum alloy, galvanized steel, etc. according to customer needs, which meet the size of fire-resistant glass.
Q5. What are your payment terms?
A: T/T 30% as deposit, 70% beforedelivery. We will show you photos of the products and packaging before you pay the balance.
Q6. How about your delivery time?
A:Generally, it will take 7 to 10 days after receiving the advance payment. The specific delivery time depends on the items and quantity of your order.
