45m3/h Concrete Batching Plant Manufactures Mobile Concrete Mixing Plant HZS45 Small Concrete Plant
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.Ningdu Ltd.
Share on (1601261991275):
Product Overview
Description
Product Description
45m3/h Concrete Batching Plant Manufactures Mobile Concrete Mixing Plant HZS45 Small Concrete Plant
Aggregate conveying in concrete mixing plants often uses belt conveyors or bucket elevators
Lifting Bucket
1. Working principle
The bucket elevator uses a brake winch and is pulled through a pulley block and wire rope to achieve the purpose of lifting the bucket. In large and medium-sized mixing plants, double wire rope transmission is often used; in small mixing plants, most of them directly use a suspended single rope transmission or a single rope transmission guided by a movable pulley installed on the bucket.
2. Features
The advantages of bucket lifting are small footprint, simple structure, and suitable for narrow construction sites.
Lifting Bucket
1. Working principle
The bucket elevator uses a brake winch and is pulled through a pulley block and wire rope to achieve the purpose of lifting the bucket. In large and medium-sized mixing plants, double wire rope transmission is often used; in small mixing plants, most of them directly use a suspended single rope transmission or a single rope transmission guided by a movable pulley installed on the bucket.
2. Features
The advantages of bucket lifting are small footprint, simple structure, and suitable for narrow construction sites.
Specification
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 65 | 85 | 100 | 145 | 165 | 210 | 230 | 260 |
Product Paramenters

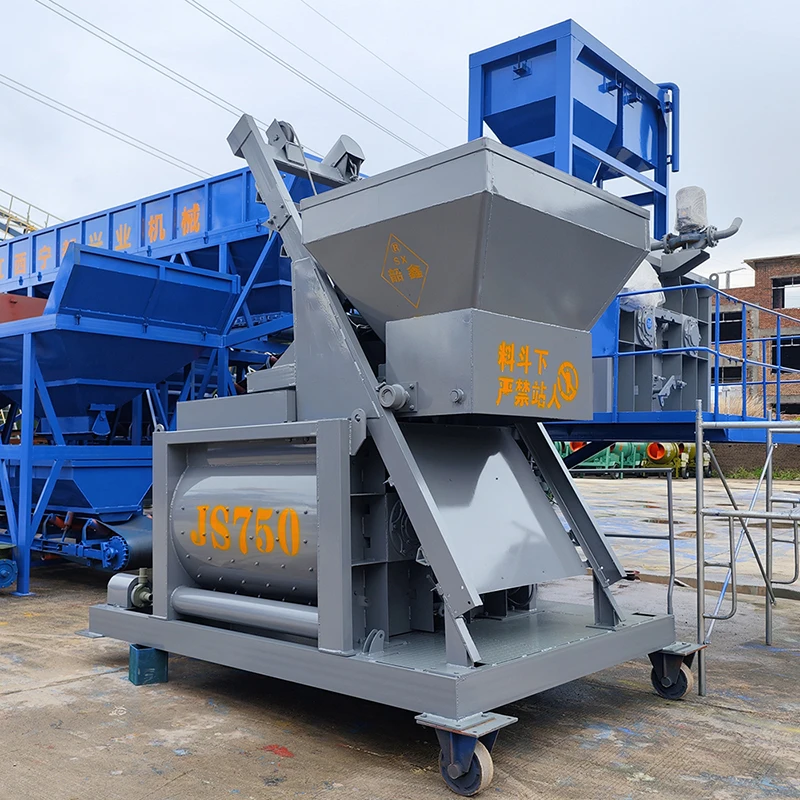

Model No. | JS500 | JS750 | JS1000 | JS1500 | JS2000 | ||||||
Output capacity | 500L | 750L | 1000L | 1500L | 2000L | ||||||
Input capacity | 800L | 1200L | 1600L | 2400L | 3200L | ||||||
Productivity | ≥25m3/h | ≥37.5m3/h | ≥50m3/h | ≥75m3/h | ≥100m3/h | ||||||
Aggregate Maximum Particle Size (Pebble/Gravel) mm | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | ||||||

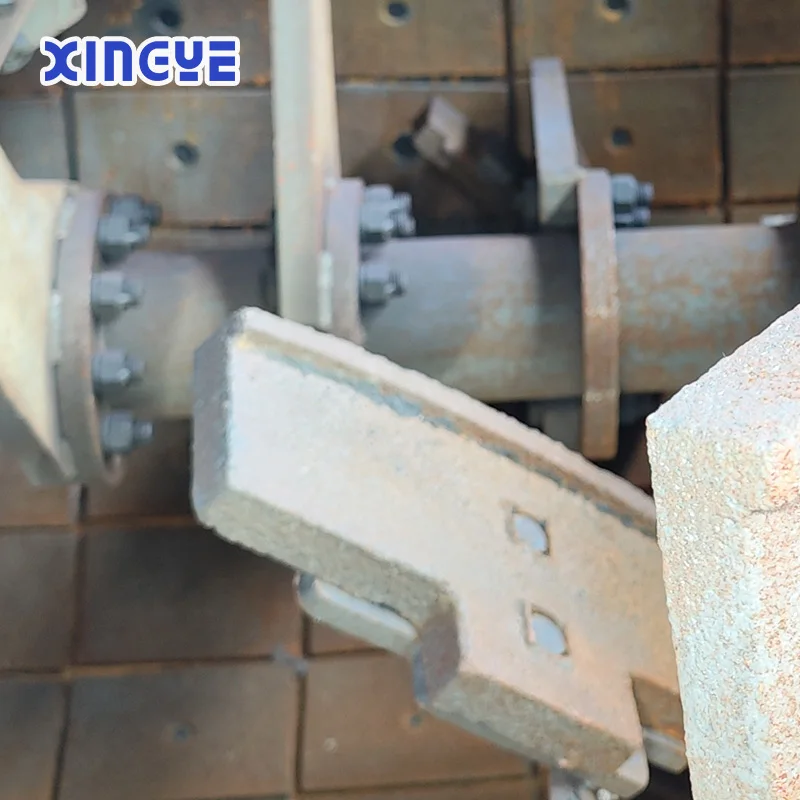

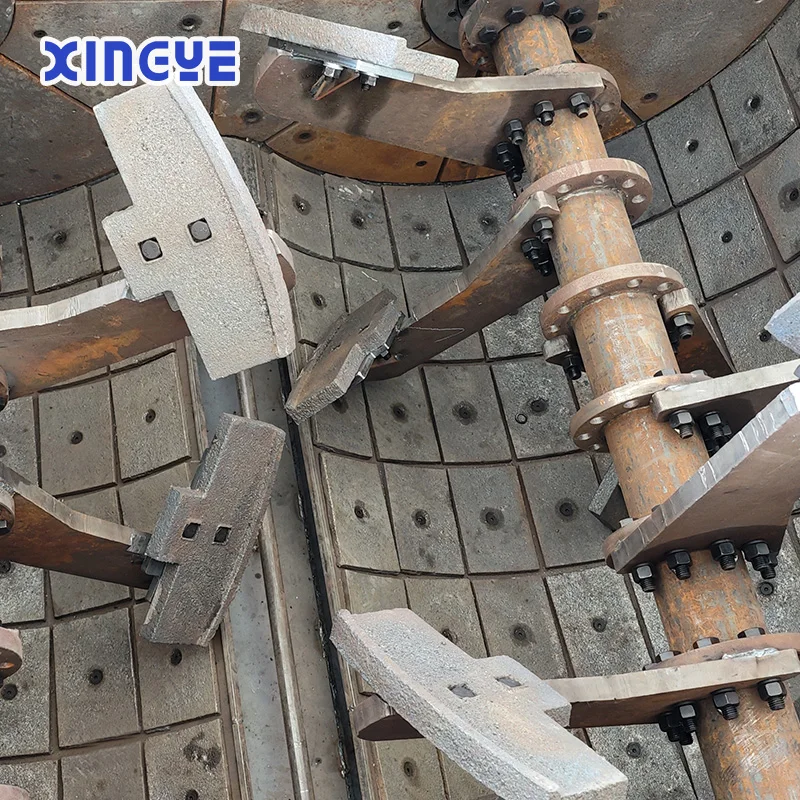

Stirring blade | Rotating speed | 35r/m | 31r/m | 25.5r/m | 25.5r/m | 23r/m | |||||
Quantity | 2×7 | 2×7 | 2×7 | 2×8 | 2×8 | ||||||
Stirring motor | Model No. | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 | Y280S-4 | |||||
Productivity | 18.5KW | 30KW | 18.5KW*2 | 30KW*2 | 37KW*2 | ||||||
Hoist motor | Model No. | YEZ132S-4-B5 | YEZ132M-4-B5 | YEZ160S-4 | YEZ180L-4 | YEJ180L-4 | |||||
Productivity | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | ||||||
Water pump motor | Model No. | 50DWB20-8A | 65DWB35-5 | KQW6 | KQW65 | CK65/20L | |||||
Productivity | 750W | 1.1KW | 3KW | 3KW | 4KW | ||||||
Hopper lifting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | ||||||
Dimensions (length x width x height) | shipping status | 3050×2300×2680mm | 3650×2600×2890mm | 4640×2250×2250mm | 5058×2250×2440mm | 5860×2250×2735mm | |||||
working status | 4461×3050×5225mm | 4951×3650×6225mm | 8765×3436×9540mm | 9645×3436×9700mm | 10720×3870×10726mm | ||||||
Total Weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | ||||||
Discharge height | Customized | ||||||||||
Certifications
Our products concrete batching plant and concrete mixer both own CE QMS certifications.
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.

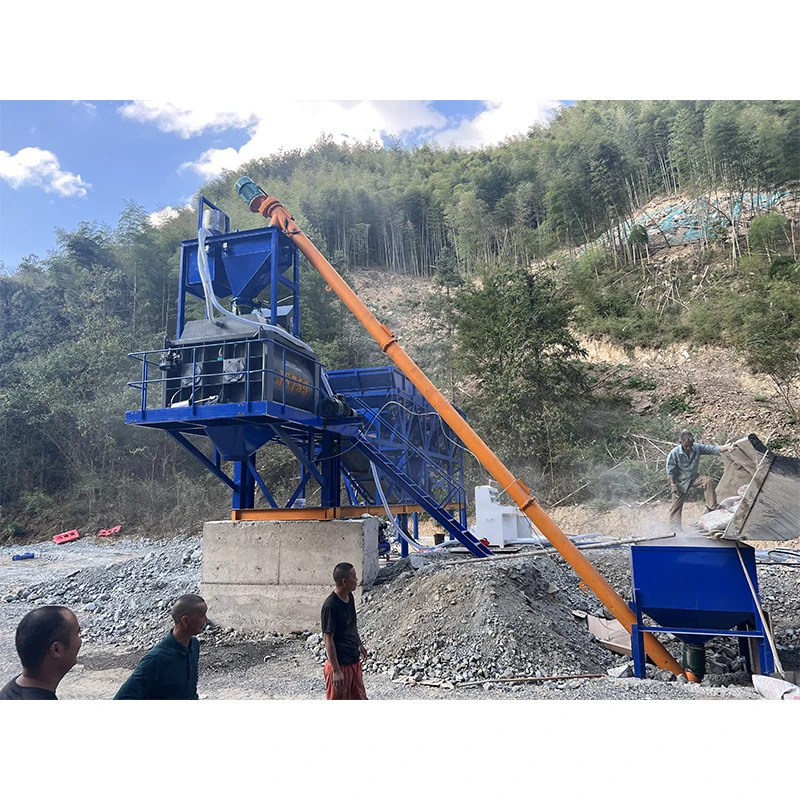

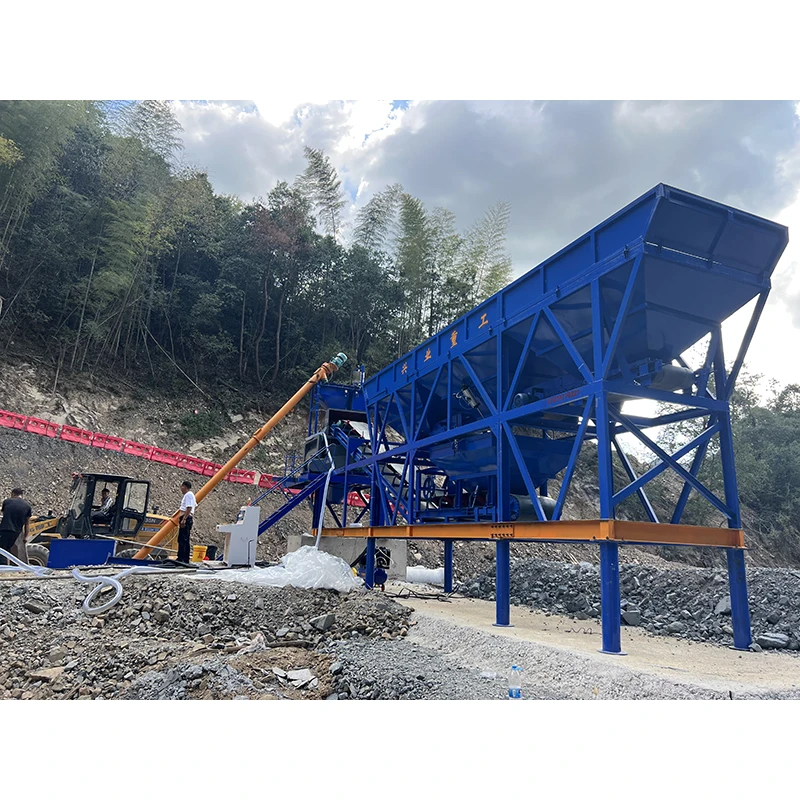

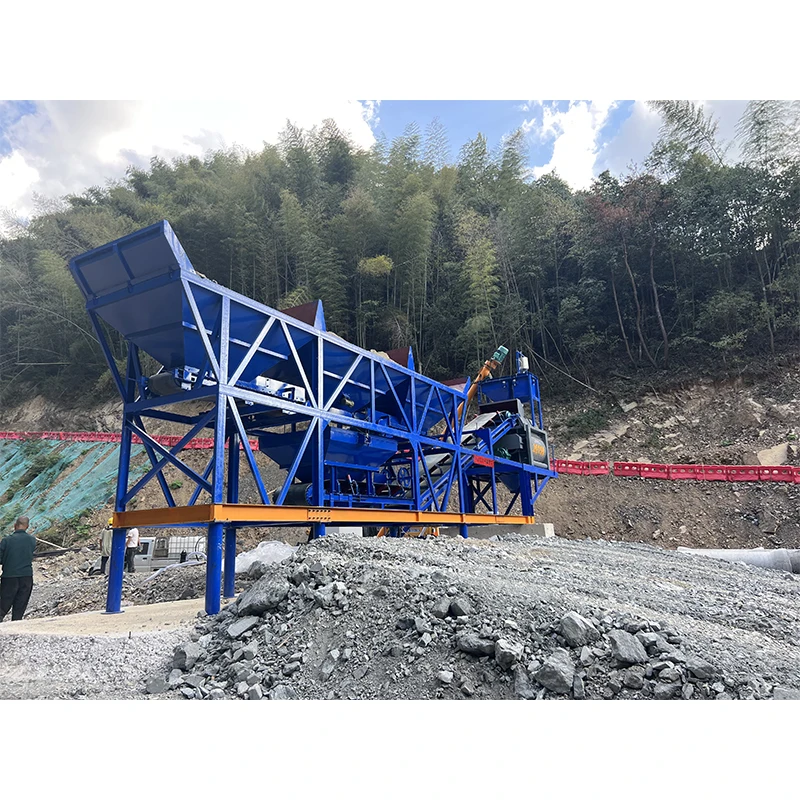

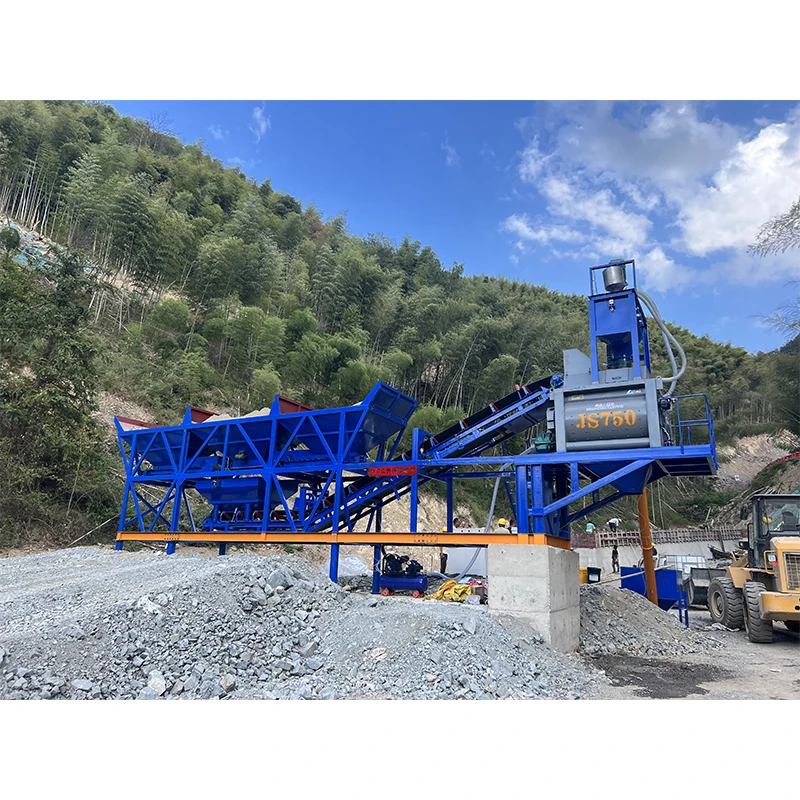

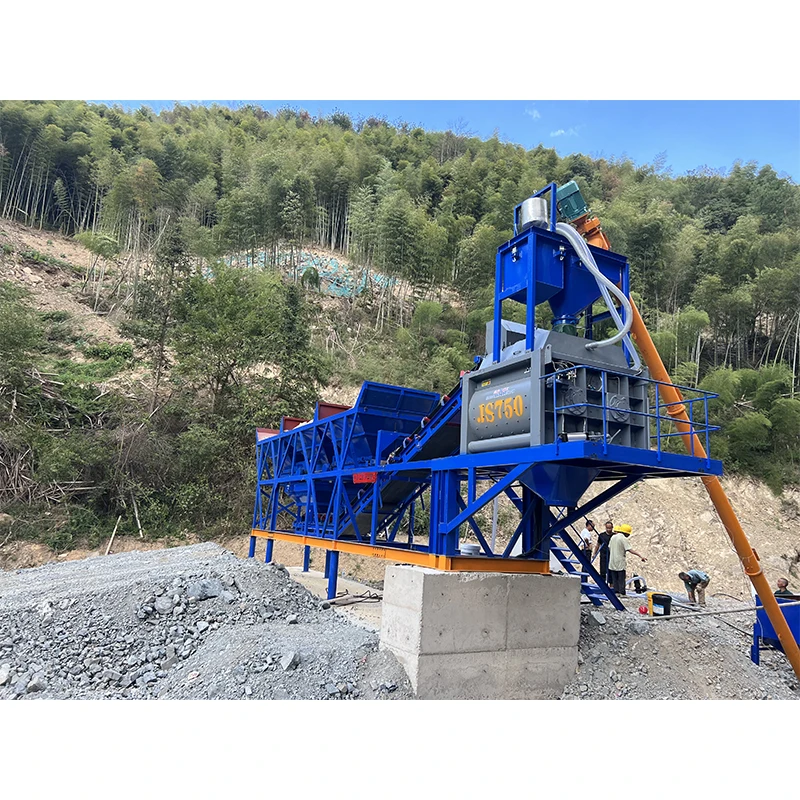

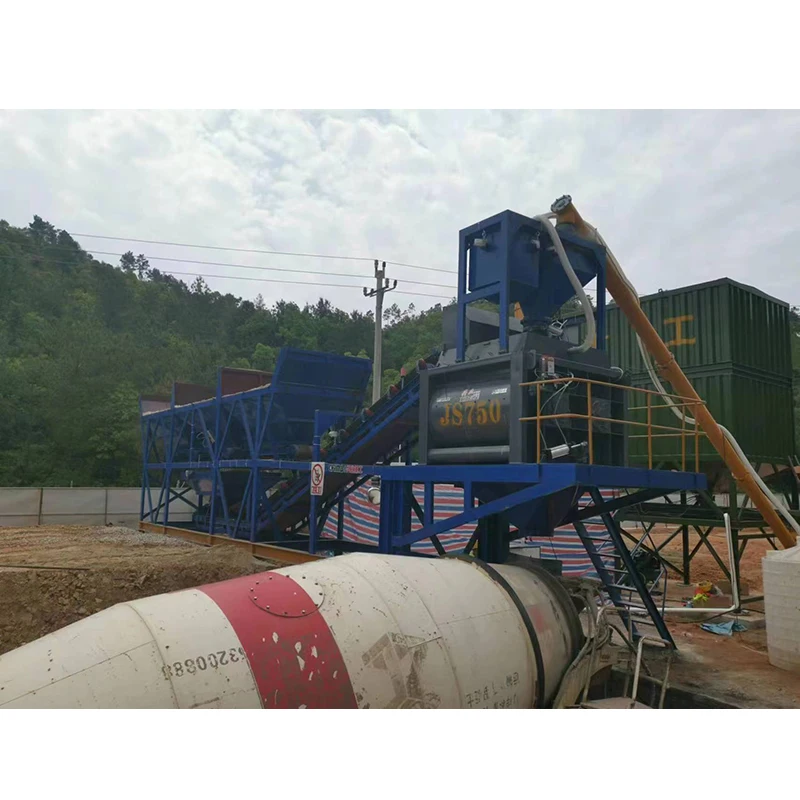

Installation Cases
YOU MAY LIKE
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
