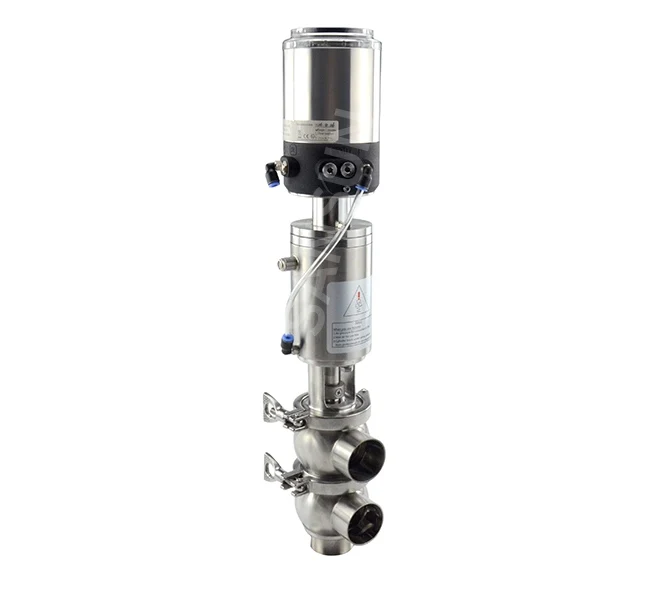

Sanitary pneumatic divert seat valve with control feedback positioner IL TOP ASI BUS 24V 4 20mA
- Category: >>>
- Supplier: Wenzhou Sansun Stainless Co. Ltd.
Share on (1601262007281):
Product Overview
Description
Product Overview
Product Name: | Sanitary pneumatic divert seat valve with control feedback positioner IL-TOP ASI-BUS 24V 4-20mA | |||||||||||||||||
Valve Body Material: | 1.4435/1.4301, SS304/SS316L(Forged) | |||||||||||||||||
Seal Material: | EPDM (standard) | |||||||||||||||||
Surface Finishing | Mechanically polishing , Sand blasted | |||||||||||||||||
Operating Principles: | Single Seat Valve is operated by single acting or double acting pneumatic actuator, the air push valve shaft move to on and off position.This valve is hygienic design,applied to all kinds of,food processing,drink,and pharmaceutical industry. | |||||||||||||||||
Max Working Pressure: | 10Bar/145 PSI | |||||||||||||||||
Max. Working Tem.: | 140 degree C | |||||||||||||||||
Air Pressure: | 5-7 bar G1/8"(BSP) | |||||||||||||||||
Availably Size: | DN25-DN100,1"-4" | |||||||||||||||||
Features | ||||||||||||||||||
EN10204-3.1 B Mill cert is offered | ||||||||||||||||||
PED 2014/68/EU | ||||||||||||||||||
The valve body can be changeable with any kind of connection | ||||||||||||||||||
Availably standard: | DIN/SMS/RJT/ISO/IDF | |||||||||||||||||
Operated: | Pneumatic | |||||||||||||||||
Options | Gasket: EPDM, silicone or Viton | |||||||||||||||||
Connection:weld,clamp,thread, | ||||||||||||||||||
Control: | IL-TOP ASI-BUS DC24V 4-20mA, Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP | |||||||||||||||||
Certificate: | PED 2014/68/EU | |||||||||||||||||
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc | |||||||||||||||||
Our Company
Our Certifications
EXHIBITIONS

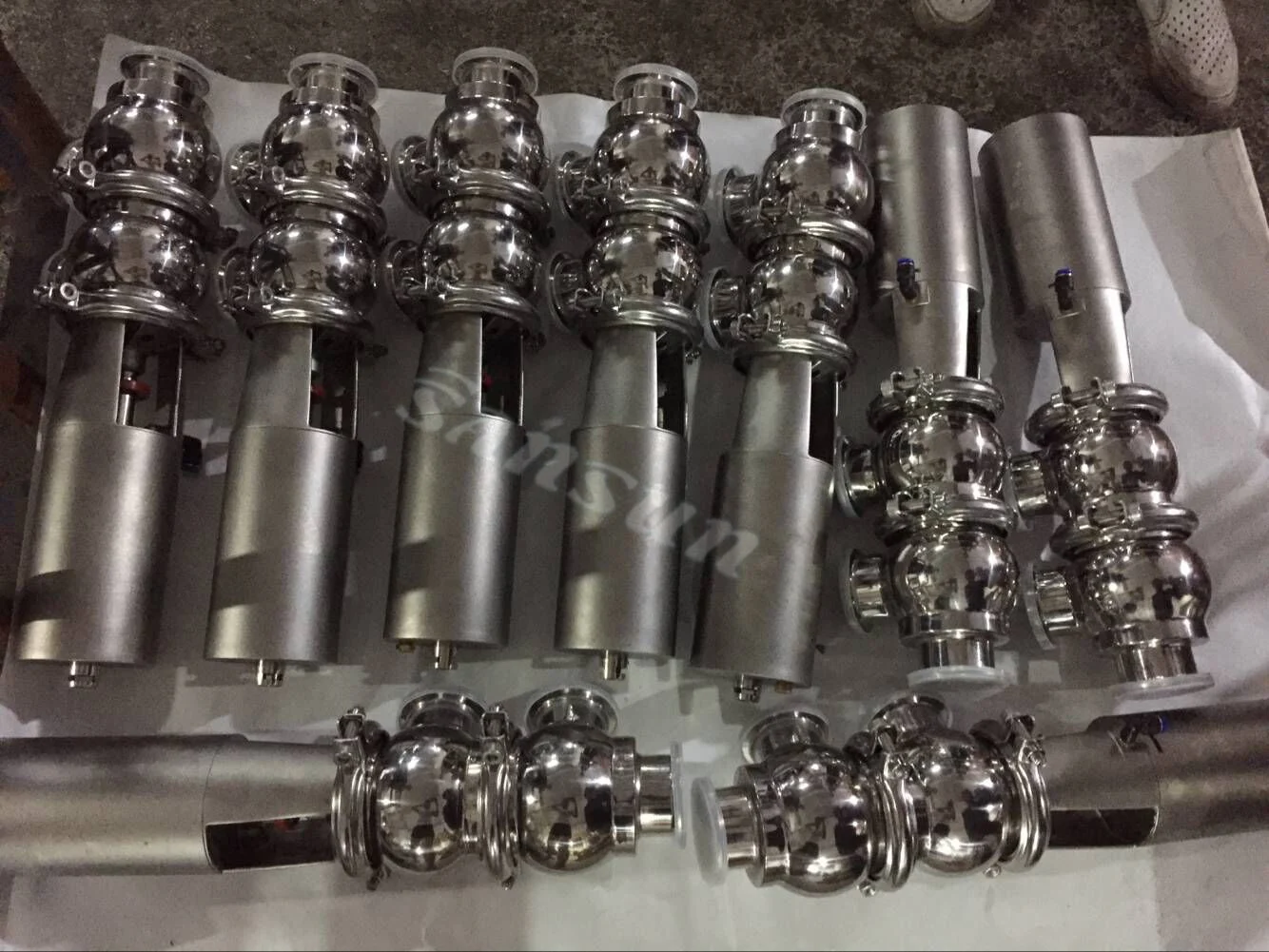

Factory Workshop
Product packaging
FAQ
Q: DO YOU HAVE MILL TEST CERTIFICATE? | ||||||||||||
Yes, Each order is traceable by Material certificate EN10204 3.1, and we can also offer pressure testing report, roughness test report if Client need. | ||||||||||||
Q: DO YOU HAVE PRODUCT WARRANTY | ||||||||||||
Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced.Repair parts is supplied for replacement. | ||||||||||||
Q: WHAT'S THE MOQ? | ||||||||||||
No MOQ for standard products. Customized products can be discussed. | ||||||||||||
Q: MAY I HAVE FREE SAMPLES? | ||||||||||||
Free samples can be provided for starting cooperation, Freight is collected by Client. | ||||||||||||
Q: HOW LONG IS THE DELIVERY TIME? | ||||||||||||
Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days. | ||||||||||||
Q: WHY WOULD I CHOOSE YOU? | ||||||||||||
1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time. | ||||||||||||
2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products to help our client's enlarge market. | ||||||||||||
3. 100% inspection on finished products before dispatch, give our clients good quality products. | ||||||||||||
4. High effective sales team quick response to any quote and complaint. | ||||||||||||
