AI Driver Fatigue Detection Monitor Assistant Guard Tour ADAS 4g GPS Tracker Driver State Fleet tracking systems For Vehicle
- Category: >>>
- Supplier: Shenzhen A-Smart Technology Inc.
Share on (1601262232636):
Product Overview
Description
Product introduct
brief introduct
high-precision intelligent vehicle terminal is a AI terminal, using 8-core processor, integrating high-precision positioning, 4G communication, Bluetooth, Wi-Fi, fingerprint, RFID, etc., which can realize multi-channel video recording, real-time video, intercom, monitoring, alarm, card swiping, fingerprint recognition and other functions;
The system integrates AI algorithms, which can realize face recognition, fatigue driving status detection, blind spot detection, 360-degree surround view and other functions to provide protection for safe travel;
At the same time, the device has a built-in dual-frequency positioning module, supports RTK centimeter-level positioning, and has been connected to the mainstream domestic high-precision service providers.
The system integrates AI algorithms, which can realize face recognition, fatigue driving status detection, blind spot detection, 360-degree surround view and other functions to provide protection for safe travel;
At the same time, the device has a built-in dual-frequency positioning module, supports RTK centimeter-level positioning, and has been connected to the mainstream domestic high-precision service providers.
Product outlook
Product dimension
Product Features
High-performance 8-core CPU with strong processing and computing capabilities;
Highly integrated with 4G, GPS&BD， WIFI, BT, RFID, fingerprint and other hardware modules;
Integrated face recognition, DSM, ADAS algorithms, integrated structure, easy to install and maintain;
Integrated with the display terminal for easy operation;
Communicate with ECU to control vehicle operation and startup, facilitating industry supervision;
HD video recording, real-time video transmission, using H.265 code;
Support blind spot detection function;
Support high-positioning module；
Support panoramic 360 degree alarming；
Exquisite appearance, good heat dissipation effect
Highly integrated with 4G, GPS&BD， WIFI, BT, RFID, fingerprint and other hardware modules;
Integrated face recognition, DSM, ADAS algorithms, integrated structure, easy to install and maintain;
Integrated with the display terminal for easy operation;
Communicate with ECU to control vehicle operation and startup, facilitating industry supervision;
HD video recording, real-time video transmission, using H.265 code;
Support blind spot detection function;
Support high-positioning module；
Support panoramic 360 degree alarming；
Exquisite appearance, good heat dissipation effect
Integrates 3 major AI algorithms, 3 personnel authentication methods, and 360-degree panoramic algorithm
High precision;
Support high-precision centimeter-level positioning;
High performance:
Automotive-grade chips that meet the requirements of the automotive industry;
High Reliability:
Meet the requirements of the ministry standard and pass the ministry standard certification test;
High Extension:
Rich in functions and multiple external expansion interfaces;
High Definition:
Support 1080P, H.265 encoding, double-mark noise reduction, clear intercom and monitoring;
Exquisite Appearance:
Designed by the top design team, fully considering the human-computer interaction performance;
High cost-effective:
One machine can do everything, replacing the original departmental machine + navigation screen + AI box; Easy to install, reducing installation and maintenance costs;
Technical Parameters
NO. | Hardware | Parameters | Optional | Remark |
1 | CPU | MSM8953，Octa-core A53 (64bit) 8*2.0GHz | ||
2 | GPU | Adreno506;650MHz | ||
3 | ROM | 16GB eMMC | ||
4 | RAM | LPDDR3 2GB | ||
5 | Band | TDD-LTE: B38/39/40/41， FDD-LTE: B1/3/5/8 TD-SCDMA: B34/39， WCDMA: B1/5/8 EVDO: BC0，CDMA: BC0， GSM: B5/3/8 | ||
6 | WIFI | IEEE 802.11 a/b/g/n 2.4G | ||
7 | BT | BT4.1 | ||
8 | GNSS | GPS/Beidou/Glonass/Galileo | ||
9 | LCD | 7 Inches，1024*600 | ||
10 | TP | COF G+G，Multi-touch | ||
11 | G-Sensor | BMA253，3-axis sensor | ||
12 | microphone | 1 main MIC, 1 noise reduction MIC | ||
13 | Speaker | 8Ω 2W | ||
14 | Memory | Dual TF Card，Maxi 256G | ||
15 | USB | Micro USB 2.0 Device | Pull | OTG support |
16 | Video Input | AHD 720P*4,12V | Support 4-8 channels | |
17 | Power | Wide voltage 9-32V, ACC control switch | ||
18 | Sleep | ACC OFF enters sleep state, sleep power consumption is about 10mA | ||
19 | Video Decoding | DVR recording H.264/H.265, 4K 30FPS, supports 4-channel 720P simultaneous recording | ||
20 | V-formats | AVI,3GP,MP4,MKV,WEBM,FLV,MOV | ||
21 | Recording | MP3,AMR，3gpp | ||
22 | Audio | WAV, MP3,AAC, AMR, AWB, MIDI, OGG Vorbis, APE | ||
23 | Image | JPG、PNG、BMP、GIF |
Standards compliant
1 | JT/T 794-2011 | Technical Requirements for Vehicle-mounted Terminals of Satellite Positioning Systems for Road Transport Vehicles |
2 | JT/T 808-2011 | Terminal Communication Protocol and Data Format of Satellite Positioning System for Road Transport Vehicles |
3 | JT/T 1076 | Technical requirements for on-board video terminals of satellite positioning systems for road transport vehicles |
4 | JT/T 1078 | Video Communication Protocol for Satellite Positioning System of Road Transport Vehicles |
Function Introduction
High-precision positioning:
Locating specific lanes on the road
Lane Information:
Lane Information:
Straight ahead, turn, merge signs, speed limit and U-turn signs, pedestrian crossings, stop lines, prohibited areas, traffic lights, etc.;
Smart applications:
Smart applications:
Combine the lane and its navigation and command information to support innovative applications;
360 degree panoramic views
Four ultra-wide-angle high-definition night vision panoramic cameras are installed on the front, rear, left and right of the vehicle respectively. They collect video images around the vehicle in real time and generate a 360-degree panoramic image around the vehicle after distortion correction, perspective transformation, and panoramic stitching and fusion.
Product splicing diagram
High-precision splicing; Supporting 3D perspective；
No color difference fusion; Support transparent chassis;
3-6-way surround
view free configuration;
view free configuration;
MOD moving object detection technology；
It uses an ultra-wide-angle high-definition camera and supports IDR intelligent dynamic range technology and image quality control technology. It can intelligently judge the current scene, dynamically adjust the dynamic range and image quality of the image in real time, and improve detection accuracy.
Support strong light suppression technology; Dynamic range enhancement; Scene-based image quality enhancement technology;
Scene brightness equalization technology; Excellent color constancy technology, such as license plate and gray metallic color
recognition technology;
Scene brightness equalization technology; Excellent color constancy technology, such as license plate and gray metallic color
recognition technology;
Sort | Description |
Resolution | 1280x720 |
Frame rate | 15fps |
HDR | >120db |
Video parameters | AHD 720P |
Lenses | D230°.H:220°.V:130° |
AVM lens low illumination | 0.01LUXx Night Vision |
Working moisture | Relative humidity below 90 % |
Working temperature | -40'C to 85*C |

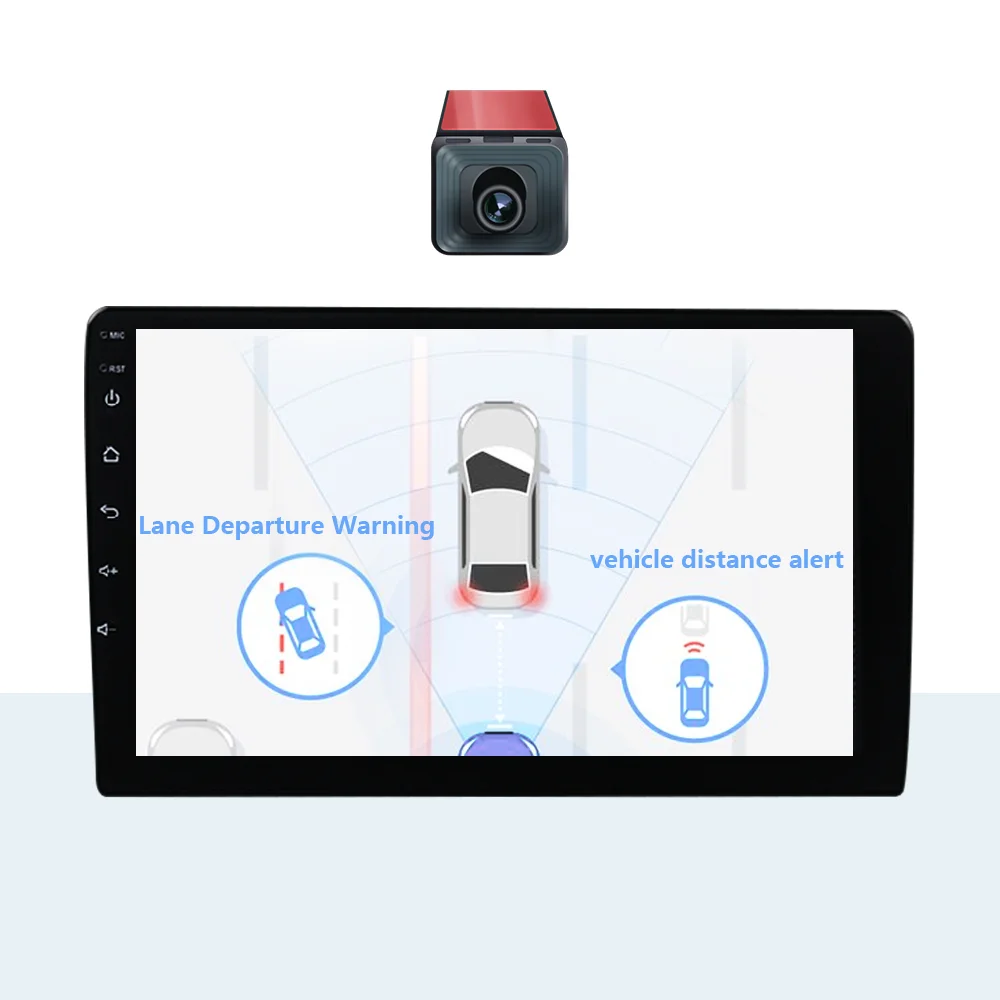

Advanced driver assistance system（ADAS）
Functions | Alarm intern (s) | Default Threshold | Sensitivity |
Front vehicle collision | 5S | 30KM/H | 1 |
The car is too close | 5S | 30KM/H | 1 |
Pedestrian Collision Warning | 5S | 30KM/H | 1 |
Lane Departure | 5S | 30KM/H | 0 |
Frequent lane changes | 30S | 30KM/H | 0 |
Driver Monitor System（DMS）
Functions | Alarm intern (s) | Default Threshold | Sensitivity |
Fatigue (closing eyes, yawning) | 60S | 30KM/H | 2S |
Distractions | 60S | 30KM/H | 2S |
Smoking | 180S | 30KM/H | 2S |
Phone call | 120S | 30KM/H | 2S |
Camera occlusion | 60S | 30KM/H | 2S |
Infrared blocking | 60S | 30KM/H | 2S |
Driver abnormality | 120S | 30KM/H | 2S |

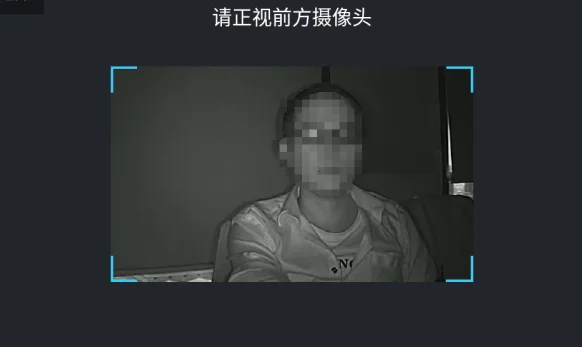

Face Identity
Face recognition before starting
Facial recognition for drivers when they start work and during driving. If the recognition fails, the equipment cannot enter the operating state or the vehicle cannot be started (according to local standards). At the same time, relevant pictures and video information are collected and uploaded to the cloud;
Face recognition in driving
During driving, if the driver is not the same as when he was on duty, an early warning will be issued and the early warning information will be sent to the platform;
Blind spot detection（BSD）
The device has a built-in BSD algorithm, which uses a high-definition camera to collect images around the vehicle body, issues danger warnings through the algorithm, displays dangerous areas and signs on the terminal, and uses an external sound and light alarm to warn pedestrians and vehicles to prevent danger.
Support 3-level alarm display; support alarm picture or video capture; support alarm information upload platform;
Support 3-level alarm display; support alarm picture or video capture; support alarm information upload platform;
multi-camera recording simultaneously
The device supports 6 external cameras, including DMS camera, ADAS camera, panoramic camera and video camera. It also supports local preview, recording, remote viewing and other functions.
Other functions
No. | Function | Function Description | Remark |
1 | Live Video | Support remote real-time video viewing, historical video, video retrieval and other functions | Support single or multiple channels viewing at the same time |
2 | Fingerprint | The device hardware integrates a fingerprint module, which can identify whether the driver is logged in by fingerprint. | |
3 | NFC | Support IC card, ID card recognition, confirm driver information | |
4 | Intercom, monitoring | Support the platform to remotely monitor the sound inside the car, and support the platform to specify the vehicle for voice calls | |
5 | SOS | Supports hidden one-button alarm function, directly reporting to the platform, and the platform can take timely danger warning measures |

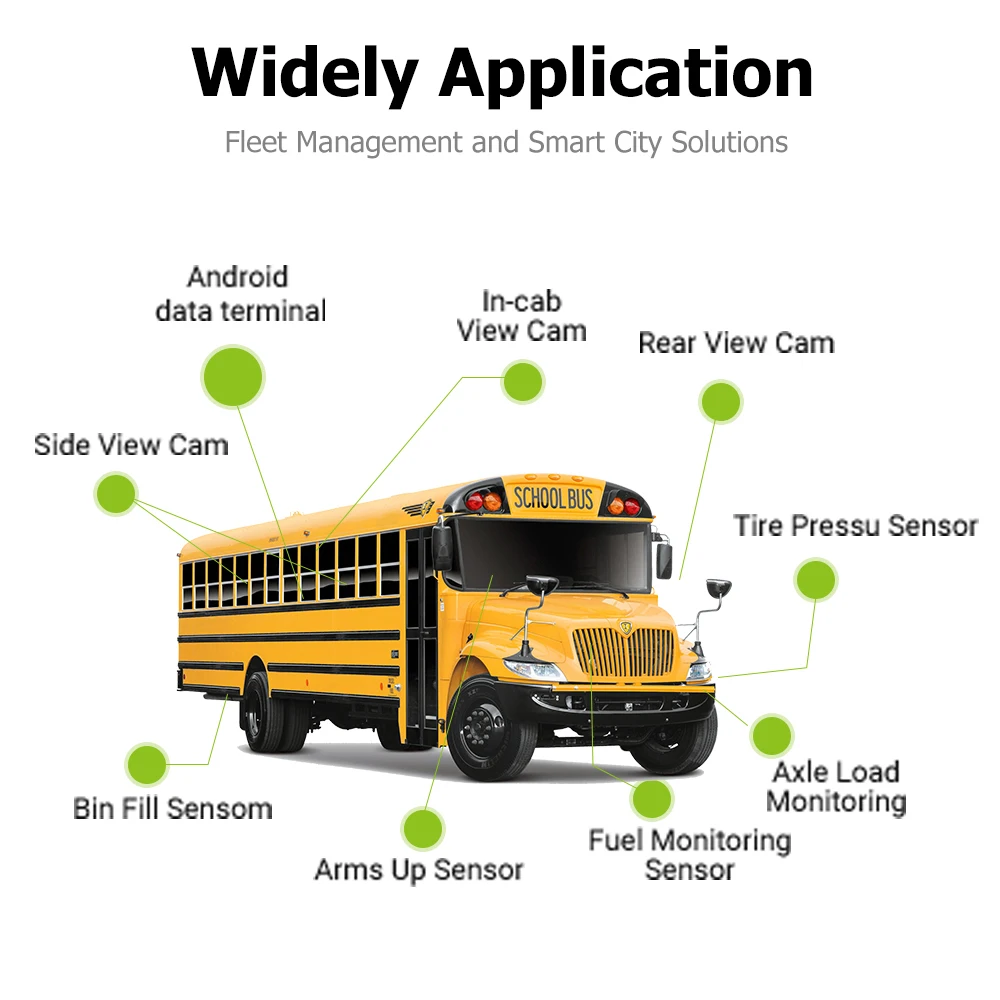

Application Solution
high-precision intelligent vehicle-mounted terminal has complete functions and rich external interfaces, and is widely used in industries such as slag, sanitation, public transportation, taxi, online booking, school bus, driving training and hazardous chemicals；
