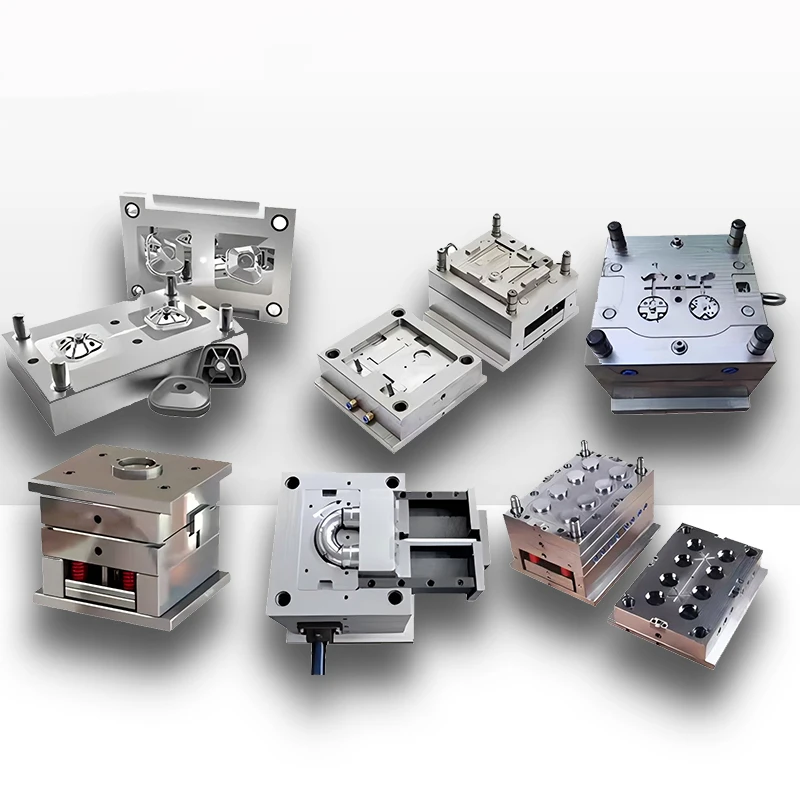

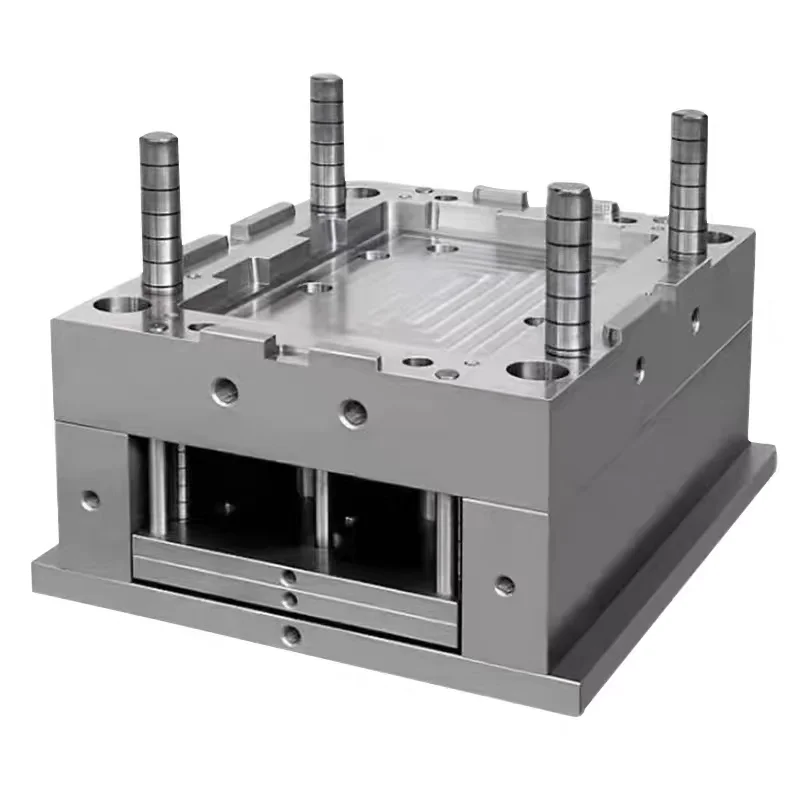

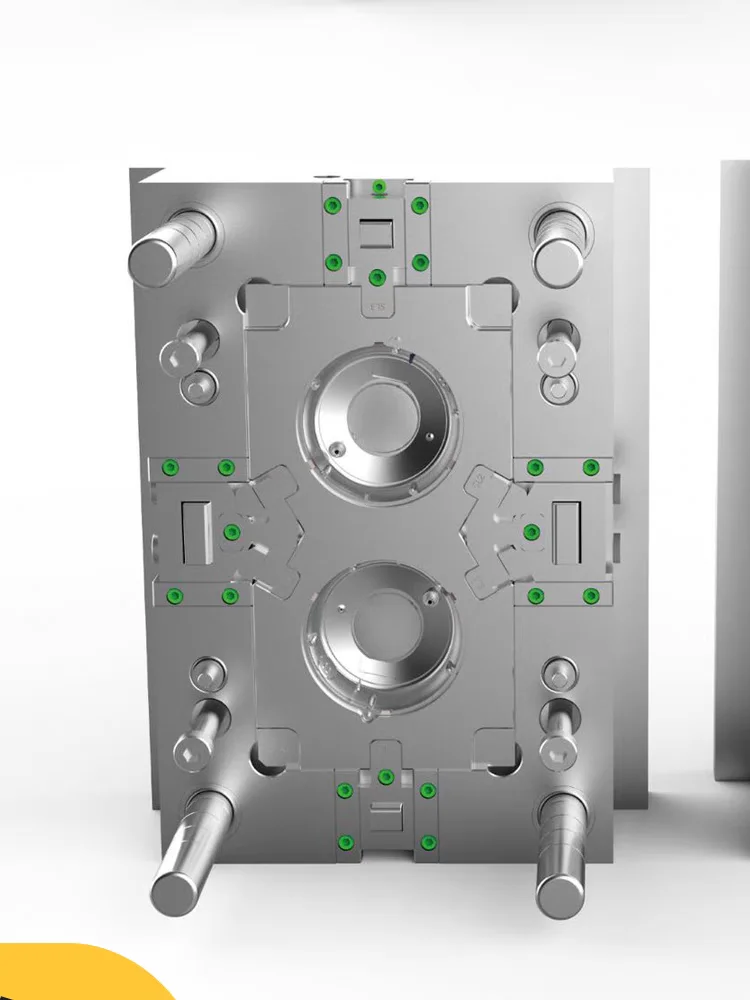

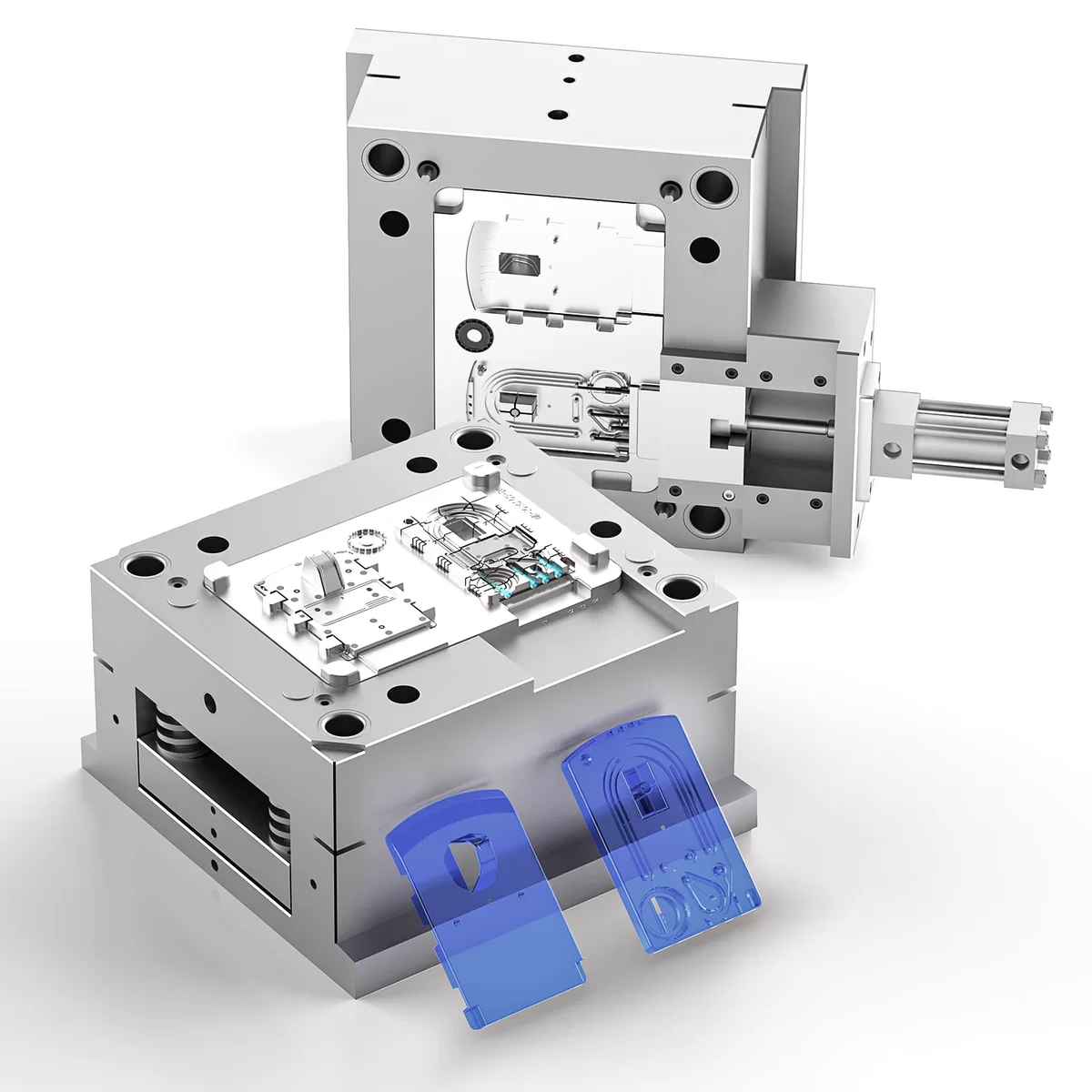

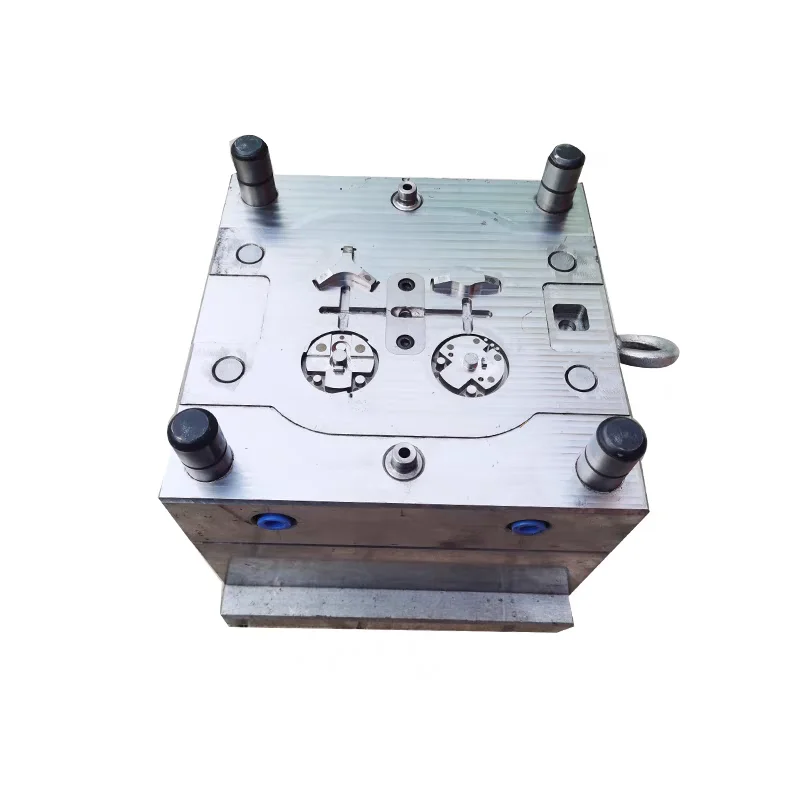

Automation Equipment Hydraulic Mechanical Stamping Die Strength Auto Part Forming Tool
- Category: >>>
- Supplier: Absolute Cnc Machine Co. Ltd.
Share on (1601262393783):
Product Overview
Description
Products Description
ABSOLUTE teaches you the basics of stamping die terminology
Curling is a stamping process that rolls the edge of the process part into a nearly closed circle. The axis of the curling circle is straight.
2. Flanging
Flanging is a stamping process that rolls the upper edge of the hollow part into a nearly closed circle.
3. Drawing
Drawing is a stamping process that changes the straight raw material or process part into a curved surface. The curved surface is mainly formed by the extension of the material at the bottom of the punch.
4. Stretch-bending
Stretch-bending is a stamping process that realizes bending deformation under the combined action of tension and bending moment, so that the entire curved cross-section is subjected to tensile stress.
5. Bulging
Bulging is a stamping process that expands hollow parts or tubular parts radially outward. Sectioning Sectioning is a stamping process that divides the forming process part into several parts.
6. Leveling
Leveling is a stamping process that improves the flatness of local or overall flat parts.
7. Undulating forming
It is a stamping process that relies on the extension of the material to form a local depression or convexity in the process part. The change in material thickness during undulation forming is unintentional, that is, a small change in thickness is naturally formed during the deformation process, not a design requirement.
8. Bending
Bending is a stamping process that uses pressure to cause plastic deformation of the material, so that it is bent into a shape with a certain curvature and a certain angle.
9. Chiseling
Chiseling is a blanking or punching process using a sharp-edged chiseling die. There is no lower die in chiseling, and the material under the material is just a flat plate. Most of the punched materials are non-metallic.
10. Deep hole punching
Deep hole punching is a punching process when the hole diameter is equal to or less than the thickness of the punched material.
11. Blanking
Blanking is a stamping process that separates the material along a closed contour. The separated material becomes a workpiece or process part, most of which are flat.
12. Shrinking
Shrinking is a stamping process that pressurizes the open part of a hollow part or a tubular part to shrink it.
13. Shaping
Shaping is a stamping process that relies on material flow to slightly change the shape and size of the process part to ensure the accuracy of the workpiece.
14. Trimming
Trimming is a stamping process that cuts off a small amount of material along the outer or inner contour to improve the edge finish and verticality. The trimming process generally also improves dimensional accuracy.
15. Hole turning
Hole turning is a stamping process that turns the material into a side flange around the inner hole.
16. Flanging
Flanging is a stamping process that turns the material into a side short edge around the outer curve.
17. Drawing
Drawing is a stamping process that turns a straight raw material or process part into a hollow part, or further changes the shape and size of a hollow part. During drawing, the hollow part is mainly formed by the material outside the bottom of the punch flowing into the die.
18. Continuous drawing
Continuous drawing is a stamping method that uses the same die (continuous drawing die) to gradually form the required shape and size on a strip (coil) through multiple drawing.
19. Thinning and drawing
Thinning and drawing is a drawing process that further changes the shape and size of the hollow process parts and intentionally thins the side walls.
20. Reverse drawing
Reverse drawing is a drawing process that turns the inner wall of the hollow process parts outward.
21. Differential temperature drawing
Differential temperature drawing is a drawing process that uses heating and cooling methods to make the temperature of the part to be deformed much higher than the temperature of the deformed part of the material, thereby increasing the degree of deformation.
22. Hydraulic drawing
Hydraulic drawing is a drawing process that uses liquid in a rigid or flexible container to replace the punch or die to form a hollow part.
23. Beading
Beading is a type of undulation forming. When the local undulation appears in the form of ribs, the corresponding undulation forming process is called beading.

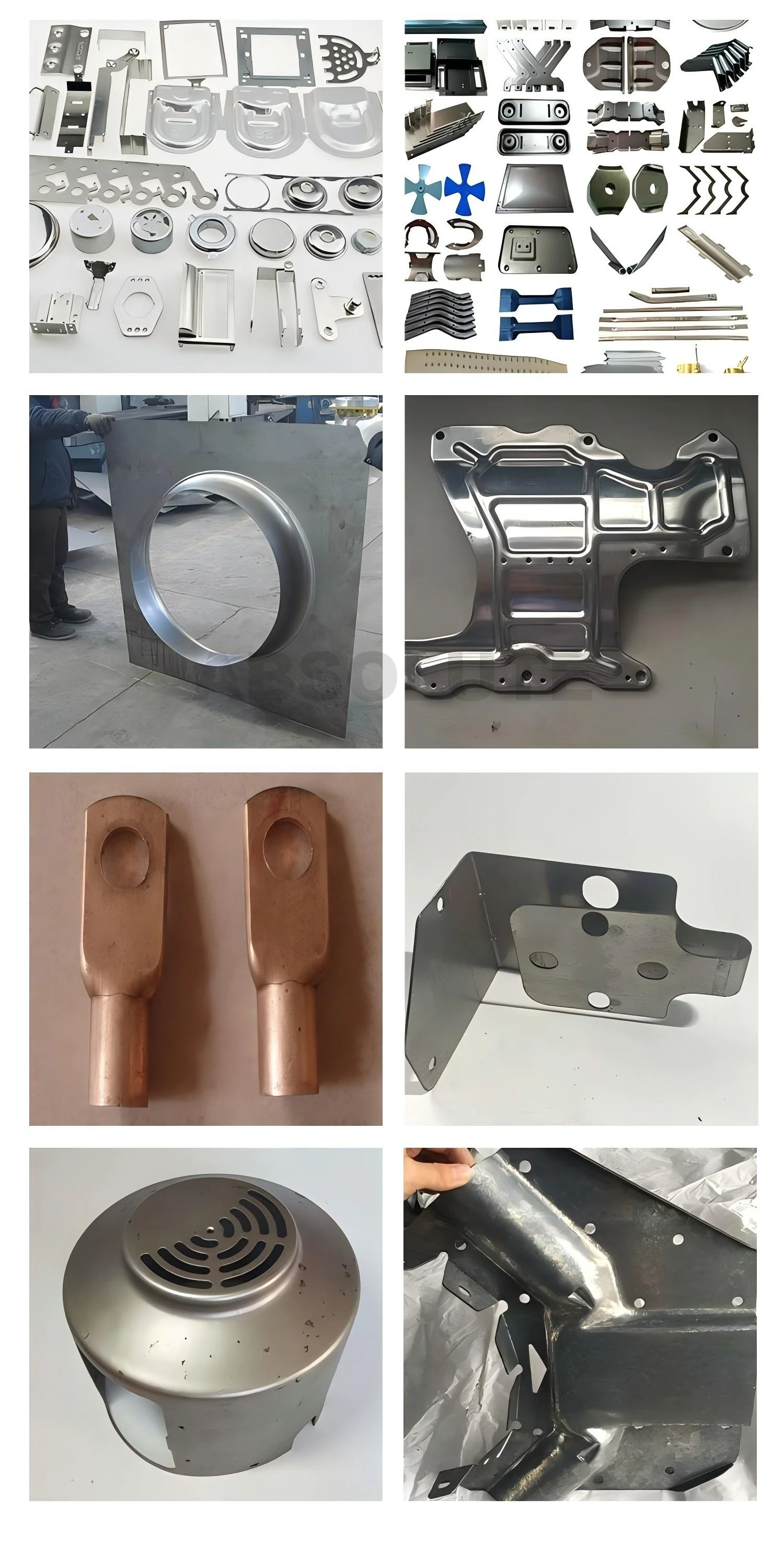

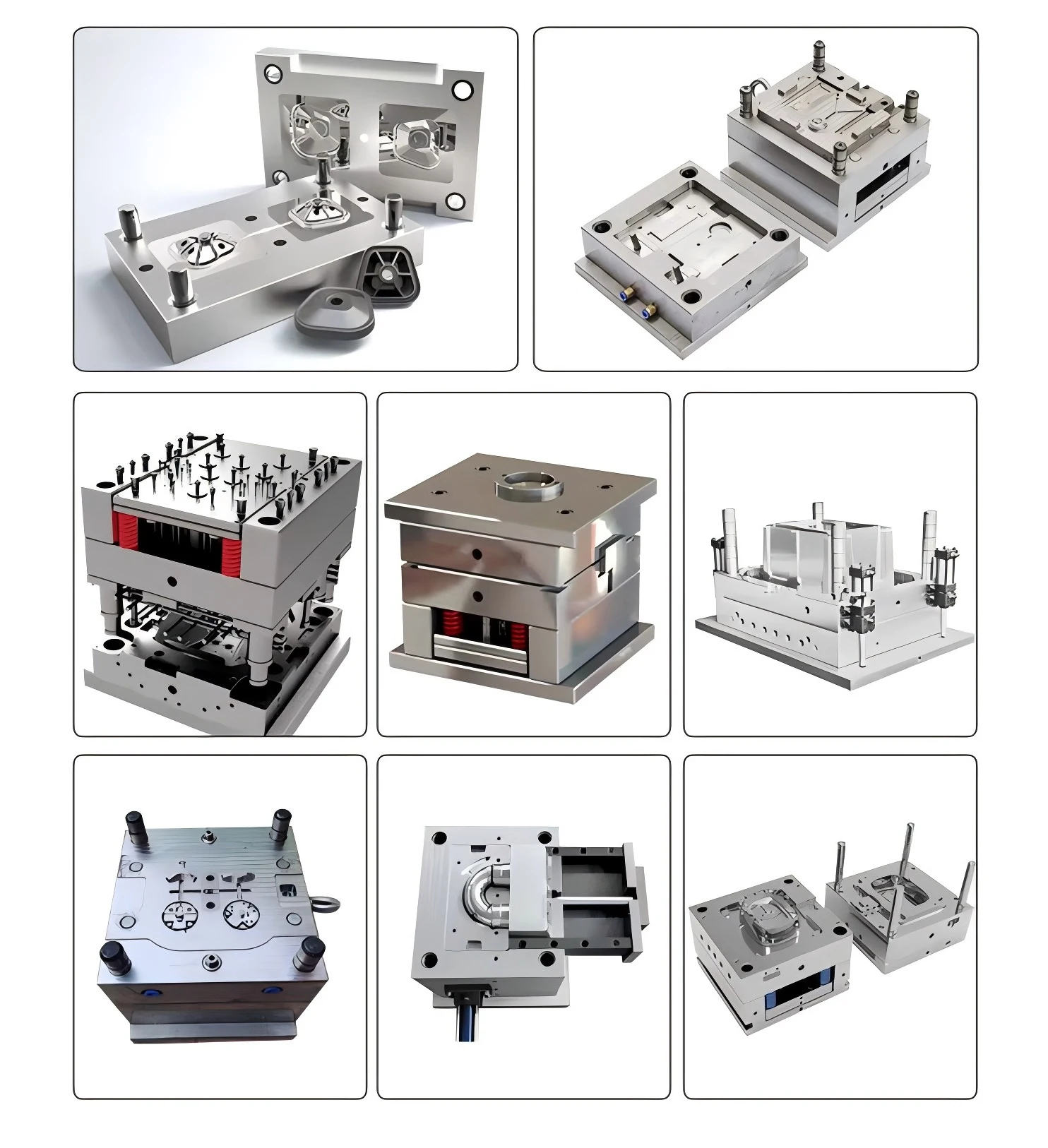

Some workpiece pictures
Technical Specifications
Brand | ABSOLUTE |
Materials | Aluminum, copper, brass, stainless steel, steel, iron, alloy, zinc etc. |
Surface Treatment | Anodizing, Brushing, Galvanized, laser engraving, Silk printing, polishing, Powder coating, etc |
Tolerance | +/-0.005mm or as your reques. |
Lead Time | 20-40 days after order confirmed or as your request. |
After-sales Service | We will follow up every customer and solve all your problems satisfied after sale. |
Processing | Broaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping |
Service Project | To provide production design, production and technical service, mould development and processing, etc |
