• 10.1-inch high-resolution color TFT
• Highest control of 4 axes (Y1, Y2 + 2 auxiliary axes)
• Tool/Material/Product Library
• Servo and frequency converter control
• Advanced Y-axis control algorithm for closed loop and open loop valves。

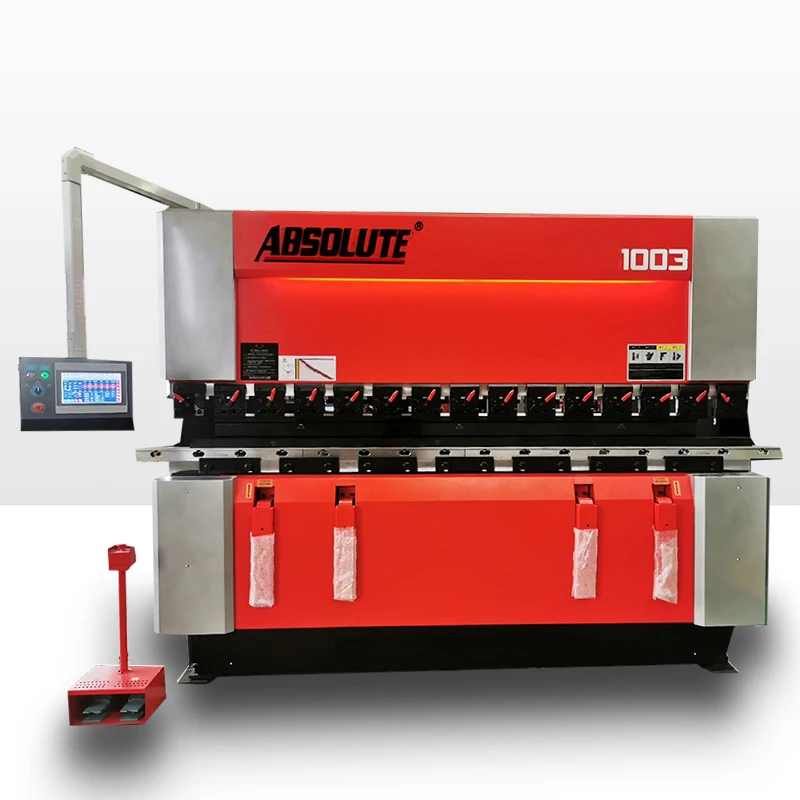

CNC mini press brake: lower gear bending machine, direct production, 3200mm hydraulic press brake
- Category: >>>
- Supplier: Absolute Cnc Machine Co. Ltd.
Share on (1601262571538):
Product Overview
Description
Products Description
◆The fuselage adopts a split steel plate welded structure and is tempered by large tempering furnace equipment to eliminate deformation caused by welding stress and processing stress and ensure the accuracy of the machine tool。
◆The main oil cylinders on both sides use imported electro-hydraulic single servo valves and Spanish FAGOR company's grating ruler to form a closed-loop control. The feedback is precise and the slider runs accurately, resulting in high bending accuracy and slider repeated positioning accuracy。
◆V-axis mechanical compensation solves the impact of the deformation of the slider on the quality of the workpiece during the bending process. The compensation amount is automatically adjusted by the CNC system, which is convenient and accurate。

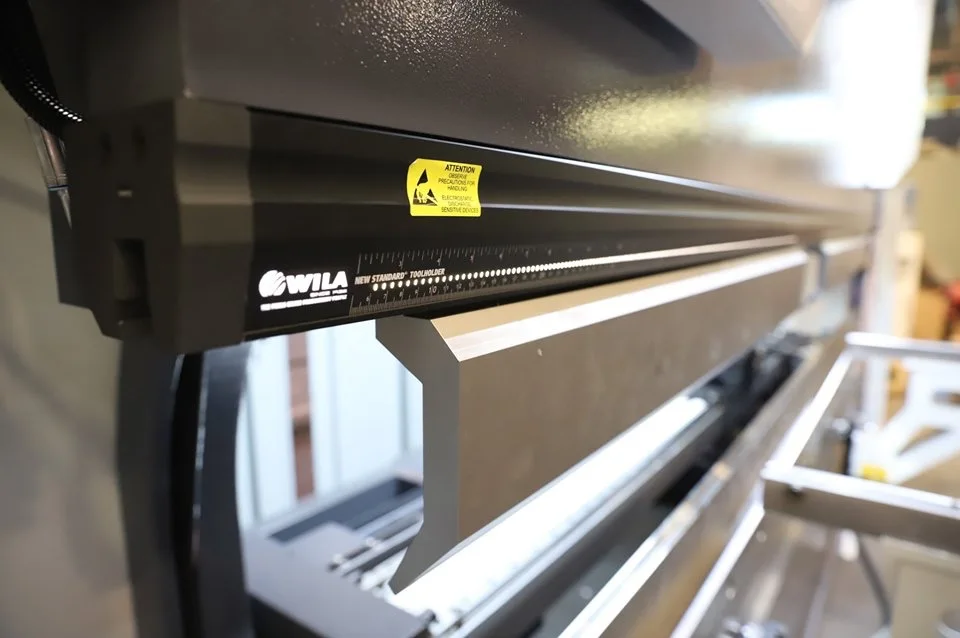

◆Using a fully functional backgauge mechanism, multiple backgauge axes can be optionally controlled. The functional components in the back gauge, such as guide rails, screws, bearings, etc., are all imported parts to ensure the accuracy of the back gauge.。
◆The machine body adopts a split assembly structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine tool and the processing of the whole machine。
◆Important components such as the fuselage and slider are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool。
◆The hydraulic system adopts an imported integrated control system, which reduces pipeline installation, improves the working stability of the machine tool, and has a beautiful and simple appearance. It is equipped with a segmentable upper mold that can be assembled into a certain length according to the requirements of the workpiece to meet the processing needs of special workpieces. The upper mold adopts a safety groove structure (European standard), and the lower mold adopts a combined structure to adapt to the needs of different workpieces。
◆C-shaped plates are installed on both sides of the fuselage, and high-precision grating rulers are installed on the C-shaped plates, thus avoiding the impact of the fuselage deformation on the bending accuracy during bending。
◆The main oil cylinders on both sides use imported electro-hydraulic single servo valves and Spanish FAGOR company's grating ruler to form a closed-loop control. The feedback is precise and the slider runs accurately, resulting in high bending accuracy and slider repeated positioning accuracy。
◆V-axis mechanical compensation solves the impact of the deformation of the slider on the quality of the workpiece during the bending process. The compensation amount is automatically adjusted by the CNC system, which is convenient and accurate。
◆Using a fully functional backgauge mechanism, multiple backgauge axes can be optionally controlled. The functional components in the back gauge, such as guide rails, screws, bearings, etc., are all imported parts to ensure the accuracy of the back gauge.。
◆The machine body adopts a split assembly structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine tool and the processing of the whole machine。
◆Important components such as the fuselage and slider are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool。
◆The hydraulic system adopts an imported integrated control system, which reduces pipeline installation, improves the working stability of the machine tool, and has a beautiful and simple appearance. It is equipped with a segmentable upper mold that can be assembled into a certain length according to the requirements of the workpiece to meet the processing needs of special workpieces. The upper mold adopts a safety groove structure (European standard), and the lower mold adopts a combined structure to adapt to the needs of different workpieces。
◆C-shaped plates are installed on both sides of the fuselage, and high-precision grating rulers are installed on the C-shaped plates, thus avoiding the impact of the fuselage deformation on the bending accuracy during bending。
product name | Remark |
Control System | DELEM DA53T/Other systems available |
Servo motors and drives | Huichuan |
main hydraulic valve | BOSCH-REXROTH |
Hydraulic pump | United States SUNNY |
ball screw | Taiwan |
Linear Guides | Taiwan |
Connector | German EMB |
Cylinder sealing ring | Swedish SKF |
scale | ItalyGIVI |
Main electrical components | Schneider or imported joint venture brand |
Main motor | Siemens |

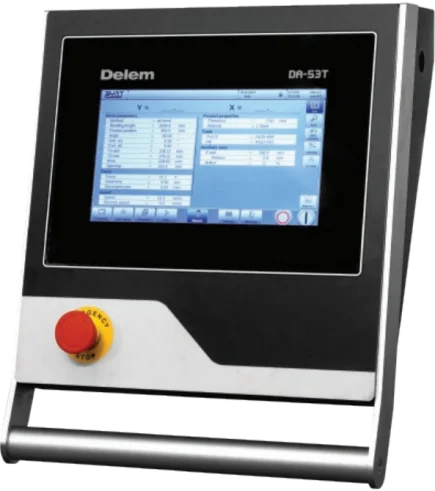

Standard system DA-53T
• "Hotkeys" Touch Navigation
• 10.1-inch high-resolution color TFT
• Highest control of 4 axes (Y1, Y2 + 2 auxiliary axes)
• Tool/Material/Product Library
• Servo and frequency converter control
• Advanced Y-axis control algorithm for closed loop and open loop valves。
• 10.1-inch high-resolution color TFT
• Highest control of 4 axes (Y1, Y2 + 2 auxiliary axes)
• Tool/Material/Product Library
• Servo and frequency converter control
• Advanced Y-axis control algorithm for closed loop and open loop valves。
optional systems
DELEM DA58T

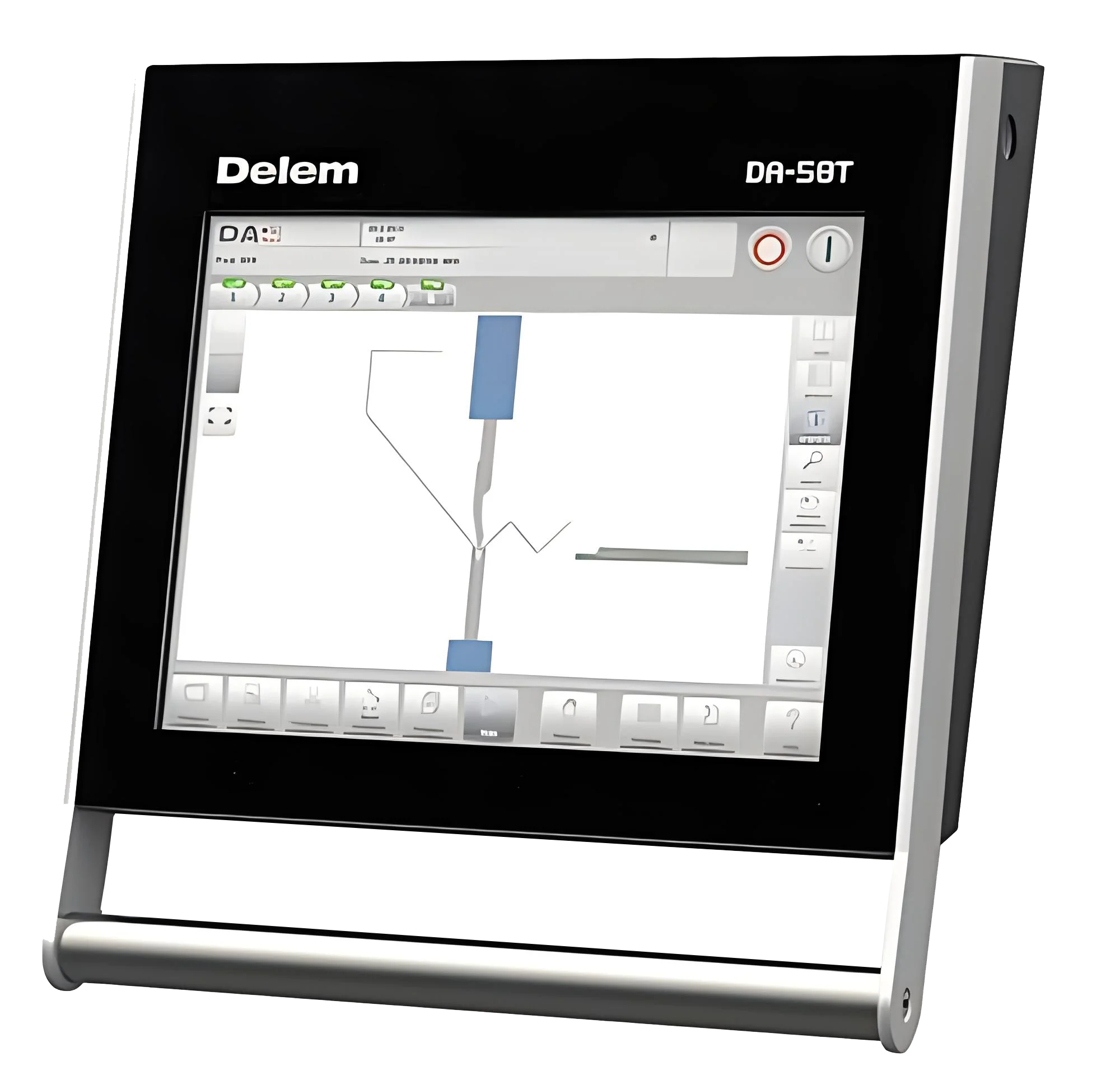

DELEM DA58T color 2D graphics CNC system
The DA-58T CNC touch control unit is a modern, compact and versatile solution for powerful and cost-effective press brakes.
15" high resolution color TFT
2D graphics touch screen programming
Up to 4 axes (Y1, Y2 + 2 additional axes)
Bending sequence calculation
Advanced Y-axis control algorithms for closed-loop and open-loop valves.
CNC crown control
USB storage interface
Standalone software Profile-58TL
The DA-58T CNC touch control unit is a modern, compact and versatile solution for powerful and cost-effective press brakes.
15" high resolution color TFT
2D graphics touch screen programming
Up to 4 axes (Y1, Y2 + 2 additional axes)
Bending sequence calculation
Advanced Y-axis control algorithms for closed-loop and open-loop valves.
CNC crown control
USB storage interface
Standalone software Profile-58TL

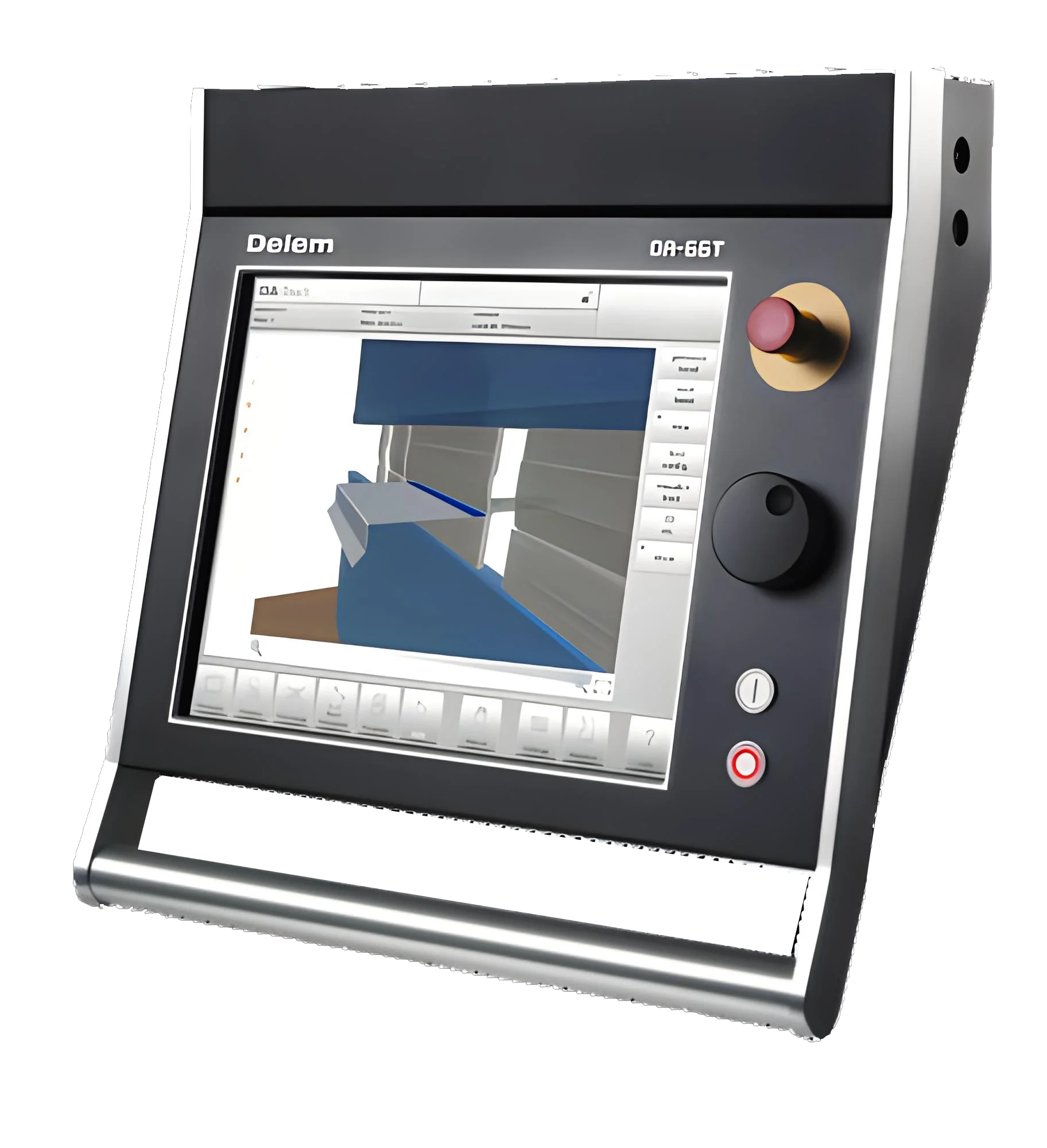

DELEM DA66T
Standalone software Profile-66TL
The DA-66T's touch control features a built-in real-time Windows operating system for maximum reliability. Ensures smooth start-up even after momentary shutdown.
17" high resolution color TFT
2D graphics touch screen programming mode
3D visualization in modeling and production
Complete application package for Windows
Compatible with Delem Modusys (modular scalability and adaptability)
USB, peripheral interface
Standalone Profile-T2D software
Bending sensor and correction interface
The DA-66T's touch control features a built-in real-time Windows operating system for maximum reliability. Ensures smooth start-up even after momentary shutdown.
17" high resolution color TFT
2D graphics touch screen programming mode
3D visualization in modeling and production
Complete application package for Windows
Compatible with Delem Modusys (modular scalability and adaptability)
USB, peripheral interface
Standalone Profile-T2D software
Bending sensor and correction interface
DELEM DA69T

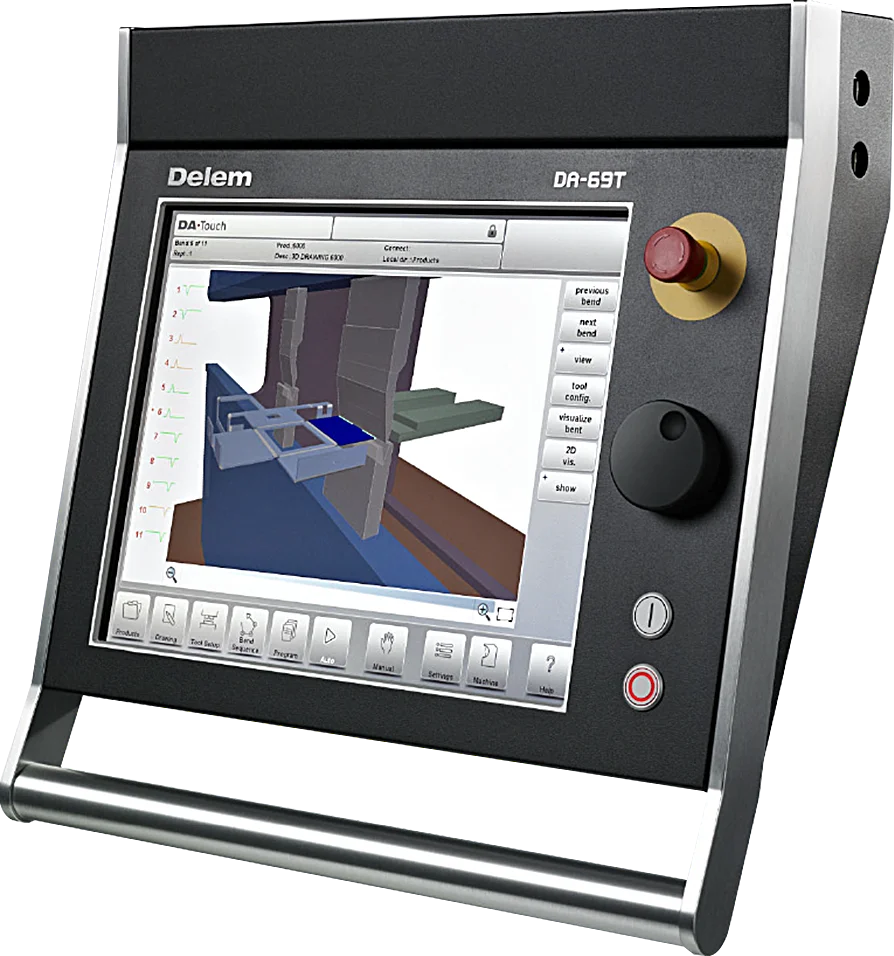

DELEM DA69T Touch 3D Graphics Control
DELEM DA-69T offers 2D and 3D programming, including automatic bend sequence calculation and collision detection. A complete 3D machine setup with multiple tool stations provides reliable information on product feasibility and operation.
17" high resolution color TFT
2D and 3D graphics touch screen programming modes
3D visualization in modeling and production
Complete application package for Windows
Compatible with Delem Modusys (modular scalability and adaptability)
USB, peripheral interface
Standalone Profile-T2D software
Bending sensor and correction interface
DELEM DA-69T offers 2D and 3D programming, including automatic bend sequence calculation and collision detection. A complete 3D machine setup with multiple tool stations provides reliable information on product feasibility and operation.
17" high resolution color TFT
2D and 3D graphics touch screen programming modes
3D visualization in modeling and production
Complete application package for Windows
Compatible with Delem Modusys (modular scalability and adaptability)
USB, peripheral interface
Standalone Profile-T2D software
Bending sensor and correction interface

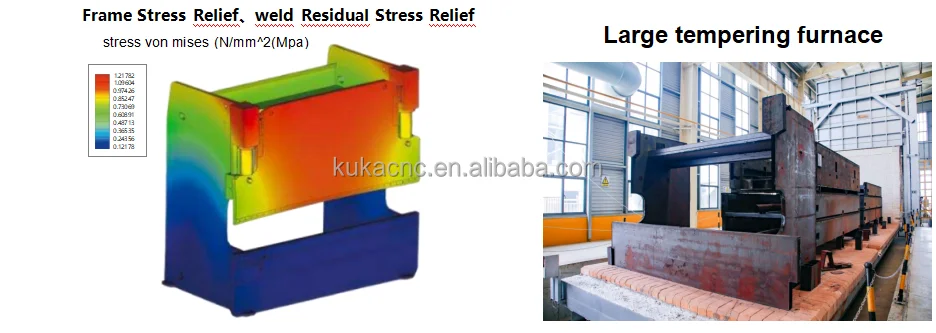

STRESS RELIEF
KUKA CNC press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding apparatus & welding robots. After the welding, we make a stress relief process by high-temperature tempering or vibration system to improve the mechanical properties of materials, reduce deformation and rebound, improve the stability and durability of the workpiece, and machine frame sensitivity is protected for a long lifetime.

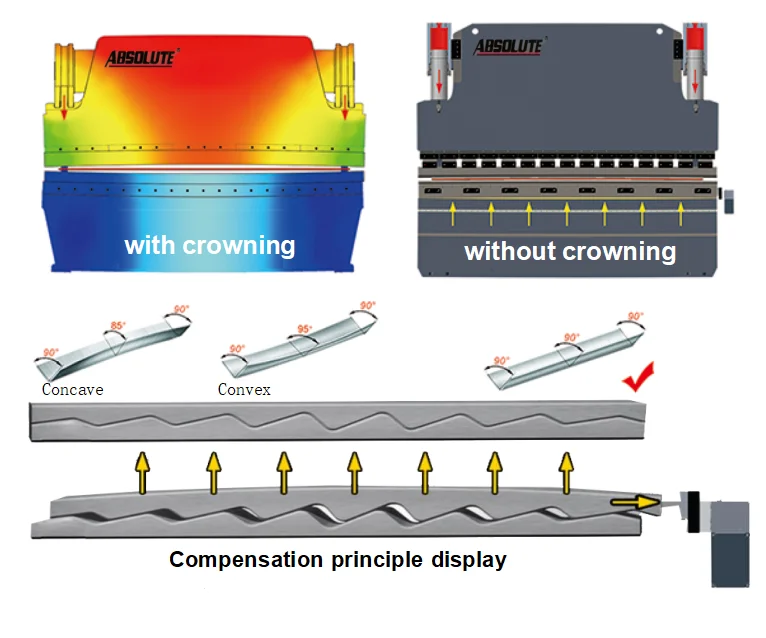

mechanical compensation
The CNC crowning system calculates compensation values based on the overall deformation of the slide and table surface.
This allows the deformation curve of the bed to be seamlessly aligned with the compensation curve, ensuring stability.

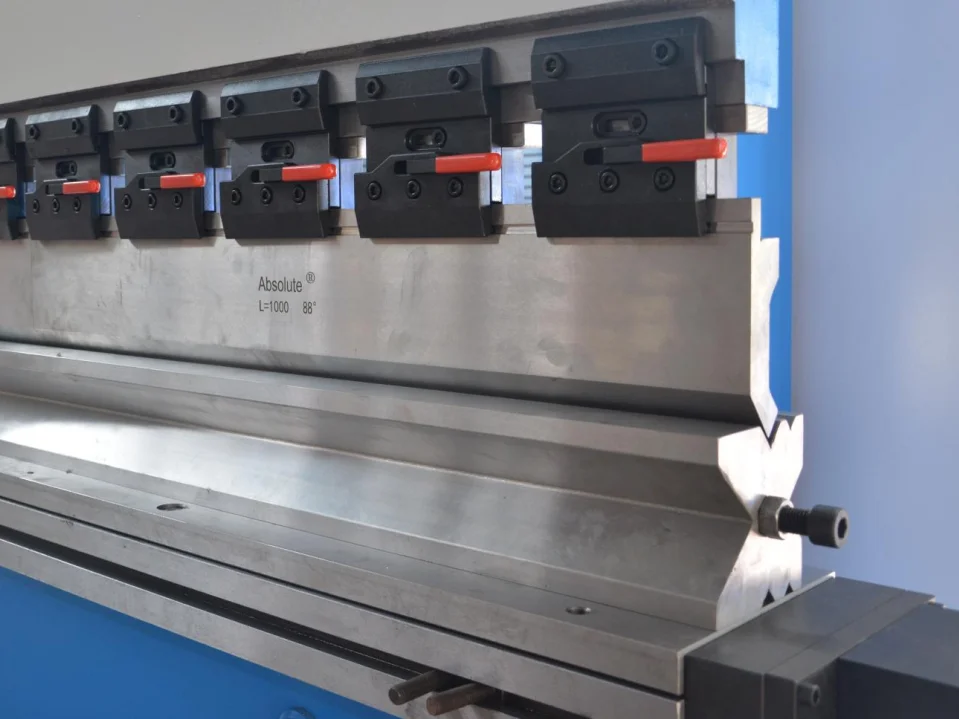

Optional molds
MULTI-V MOLD
Users can choose the specifications of the mold according to their own needs. The mold is forged, with high precision, high hardness, wear resistance and impact resistance.

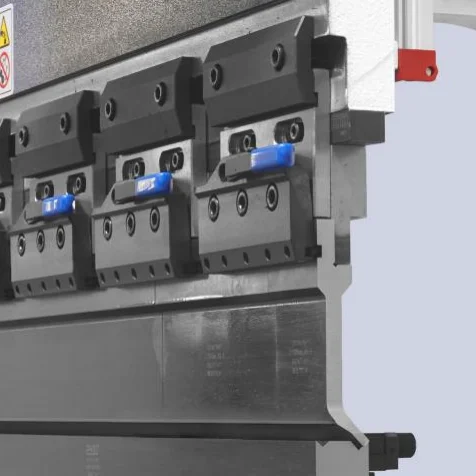

FAST CLAMP
The standard equipped fast clamp will help you replace
the top punch in very short time.Convenient and
time-saving.
Details Images

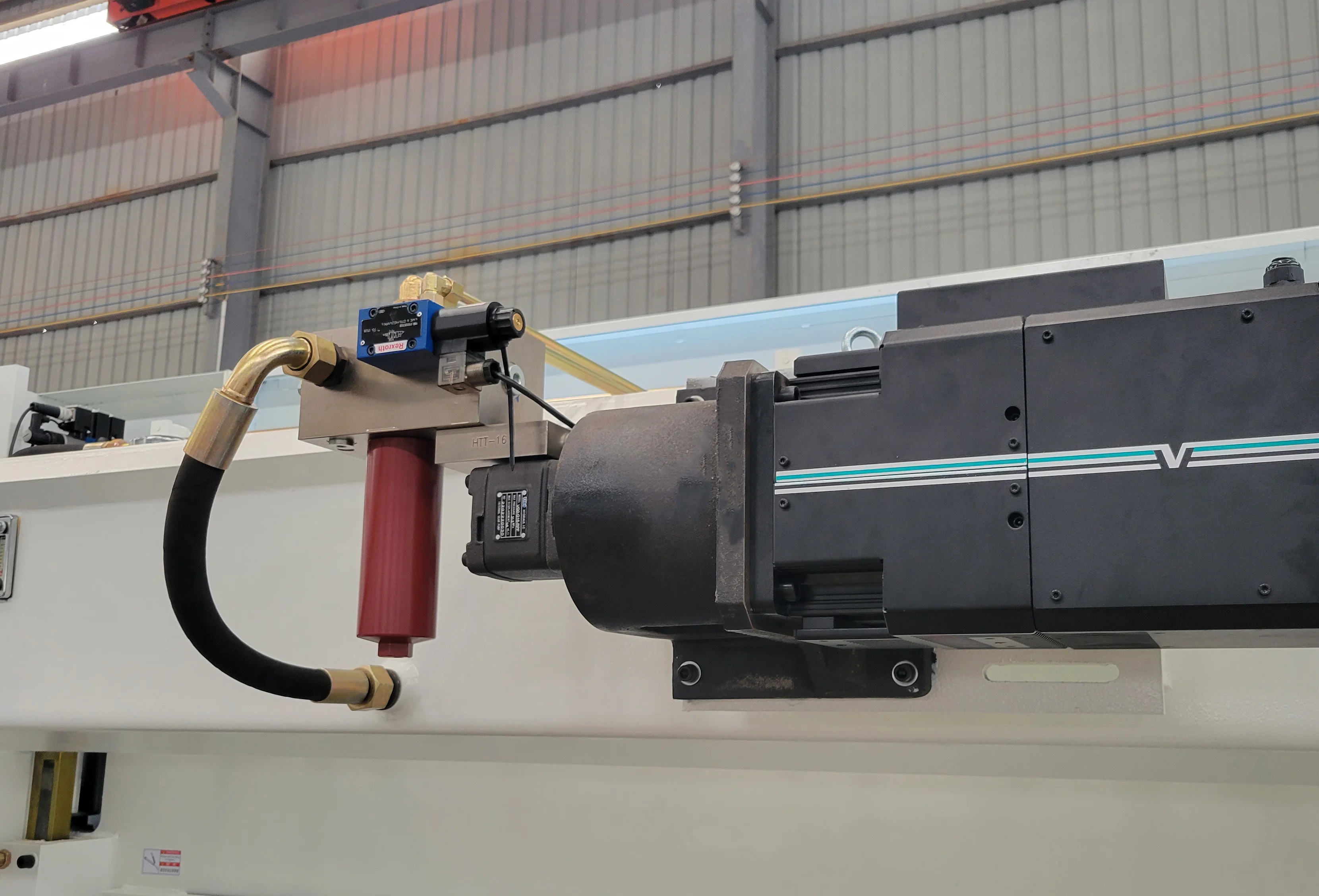

REXROTH VALVE GROUP, SERVO MAIN MOTOR
Save electric energy：The servo pump system supplies oil on demand, which greatly improves the energy saving effect。
Reduce noise：The servo pump system only rotates when needed, and the overall noise is reduced by 30%。
Lower oil temperature：The control method of torque limit and analog speed is adopted to eliminate valve cut-off and overflow, and significantly reduce the oil temperature。
Reduce noise：The servo pump system only rotates when needed, and the overall noise is reduced by 30%。
Lower oil temperature：The control method of torque limit and analog speed is adopted to eliminate valve cut-off and overflow, and significantly reduce the oil temperature。

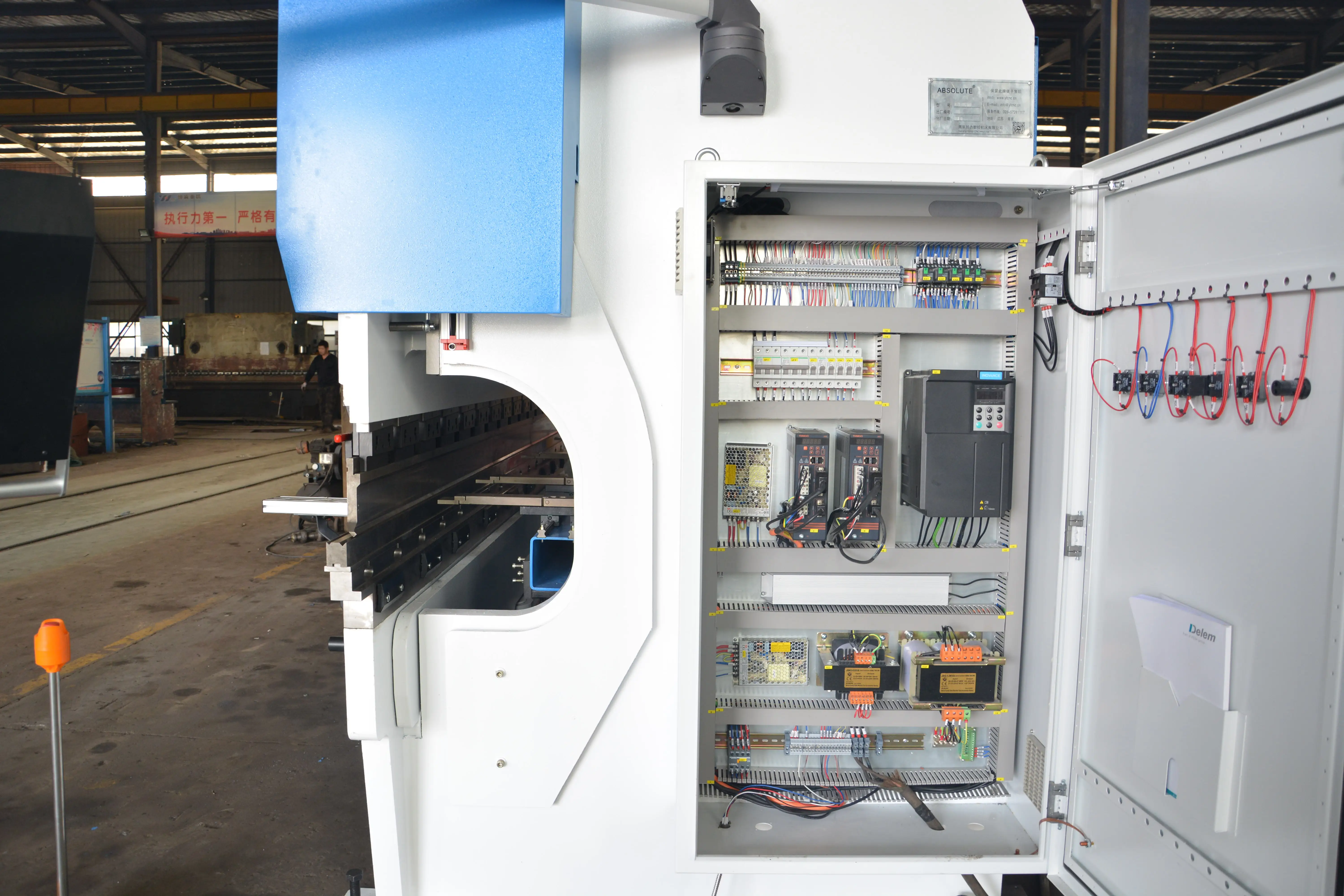

ELECTRICAL SYSTEM
Our press brake adopt Schneider electrical components. The high quality electric parts can make the machine performing well even
the electricity is not stable and customers can easily get the replacement anywhere in the world.
the electricity is not stable and customers can easily get the replacement anywhere in the world.

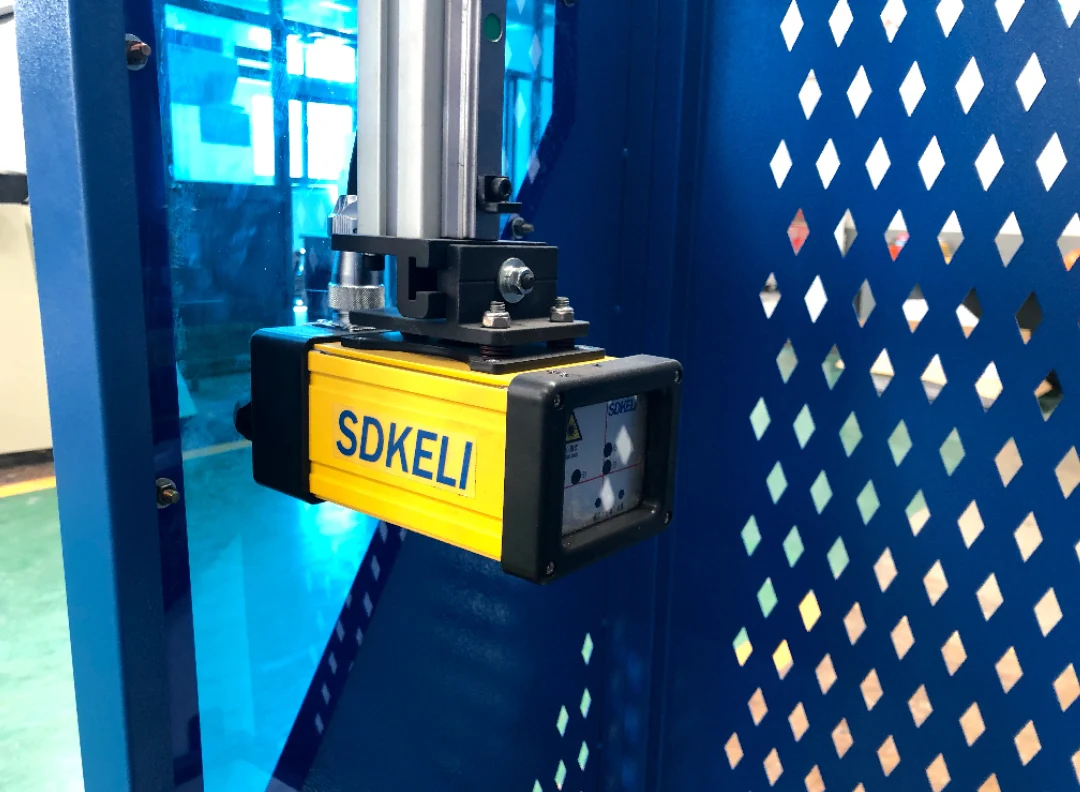

FRONT LIGHT CURTAIN
Output contacts are connected in series for mutual detection, with high safety performance. Good anti-light interference ability
protects the personal safety of workers during bending operations.
protects the personal safety of workers during bending operations.

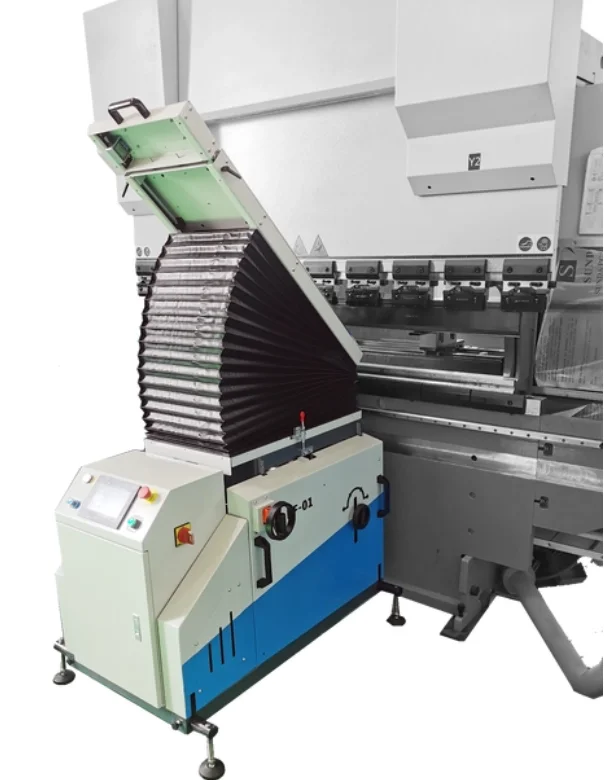

Follow-up front support material
Users can be equipped with a follow-up front support machine to prevent workpiece deformation and ensure processing accuracy when bending thin or wider plates.
Mold hydraulic clamping
It can clamp all upper and lower molds in 3 seconds. The molds are ready for use and can be clamped at any position of the fixture, improving the mold loading efficiency by 30%.
Some available colors

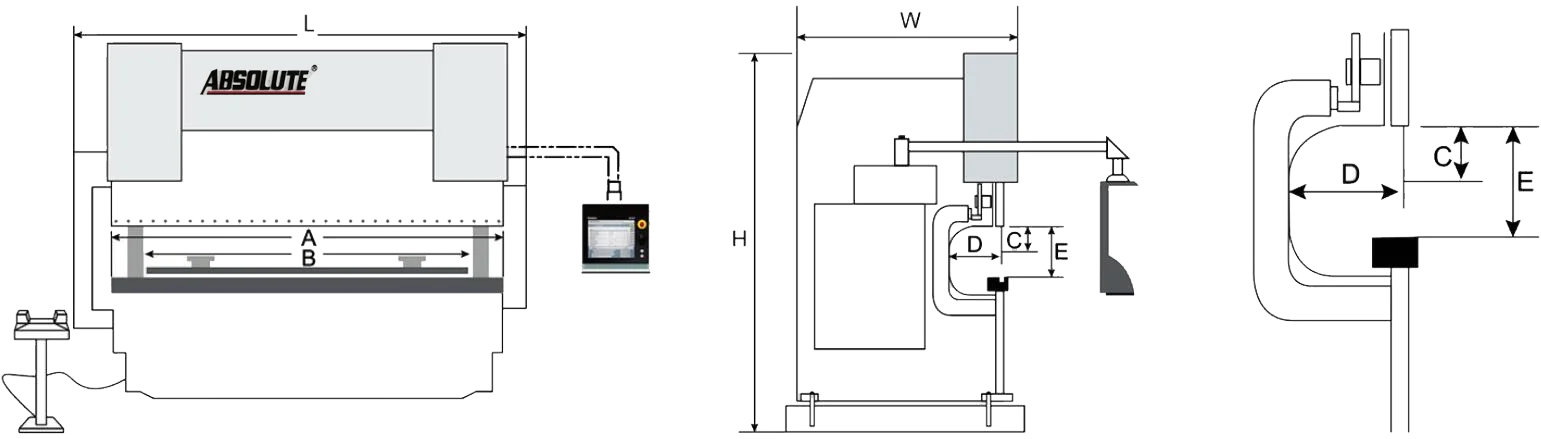

Technical Specifications
Name | unit | 125T/4000 | 160T/3200 | 160T/4000 | 200T/3200 | 200T/4000 | 200T/5000 |
Maximum nominal force | KN | 1250 | 1600 | 1600 | 2000 | 2000 | 2000 |
Bending length （A） | mm | 4000 | 3200 | 4000 | 3200 | 4000 | 5000 |
Column spacing （B） | mm | 3355 | 2655 | 3355 | 2655 | 3355 | 4000 |
throat depth （D） | mm | 350 | 350 | 350 | 350 | 350 | 350 |
Slider stroke （C） | mm | 200 | 200 | 200 | 200 | 200 | 200 |
Workbench height | mm | 900 | 900 | 900 | 900 | 900 | 950 |
maximum opening height （E） | mm | 455 | 475 | 475 | 475 | 475 | 475 |
Slider down speed | mm/s | 180 | 160 | 160 | 140 | 140 | 140 |
Slider working speed | mm/s | 13 | 10 | 10 | 10 | 10 | 10 |
Slider return speed | mm/s | 160 | 140 | 140 | 110 | 110 | 110 |
main motor power | kW | 11 | 11 | 11 | 15 | 15 | 15 |
Oil pump displacement | ml/r | 25 | 25 | 25 | 32 | 32 | 32 |
Fuel tank capacity | L | 400 | 300 | 400 | 300 | 400 | 500 |
