Станок для штамповки металла
- Category: >>>
- Supplier: Absolute Cnc Machine Co. Ltd.
Share on (1601262658331):
Product Overview
Description
Products Description

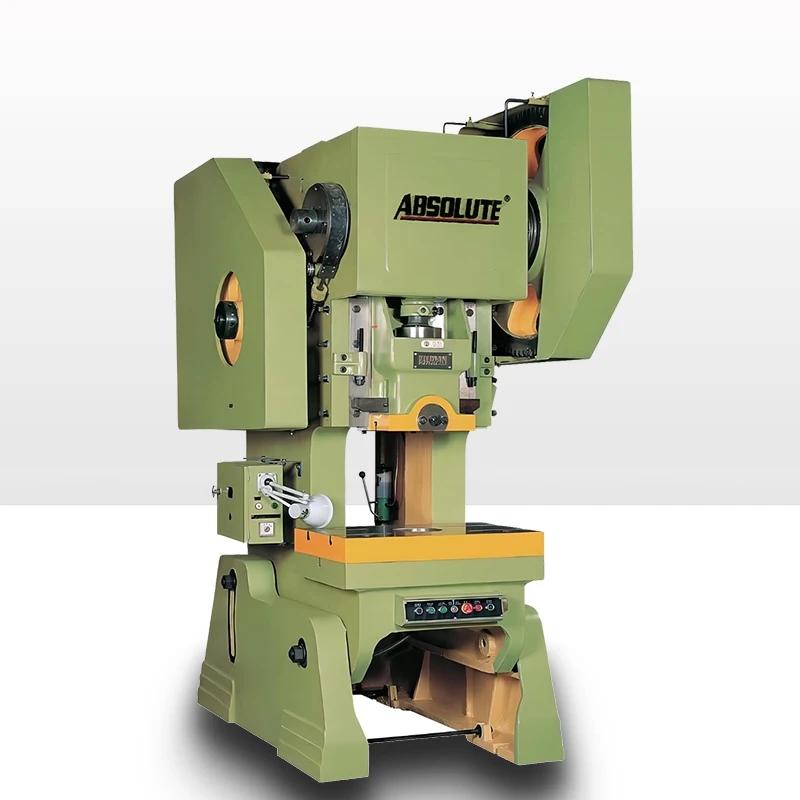

Whole structure of punching machine
1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
Steel-welded frame, high rigidity and less deformation Compact. Thick plates and large columns provide
you with the stable platform you need for your demanding application.
2. Wide body frame eliminating vibration for improved IDE life and machine, which means economical
and practical. Operation space is wide, and the movable bolster could be moved out of frame to set
the die. The structure is simple and the appliance is also beautiful.
3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Transmission control and brake systems
1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of
friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque,rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization
detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.
RAM adjustment and structure
1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body
steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission
part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
2. Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload
protection device, simple structure, if the slider overload,the fuse collapse is damaged, then protect the machine tool and die from damage.

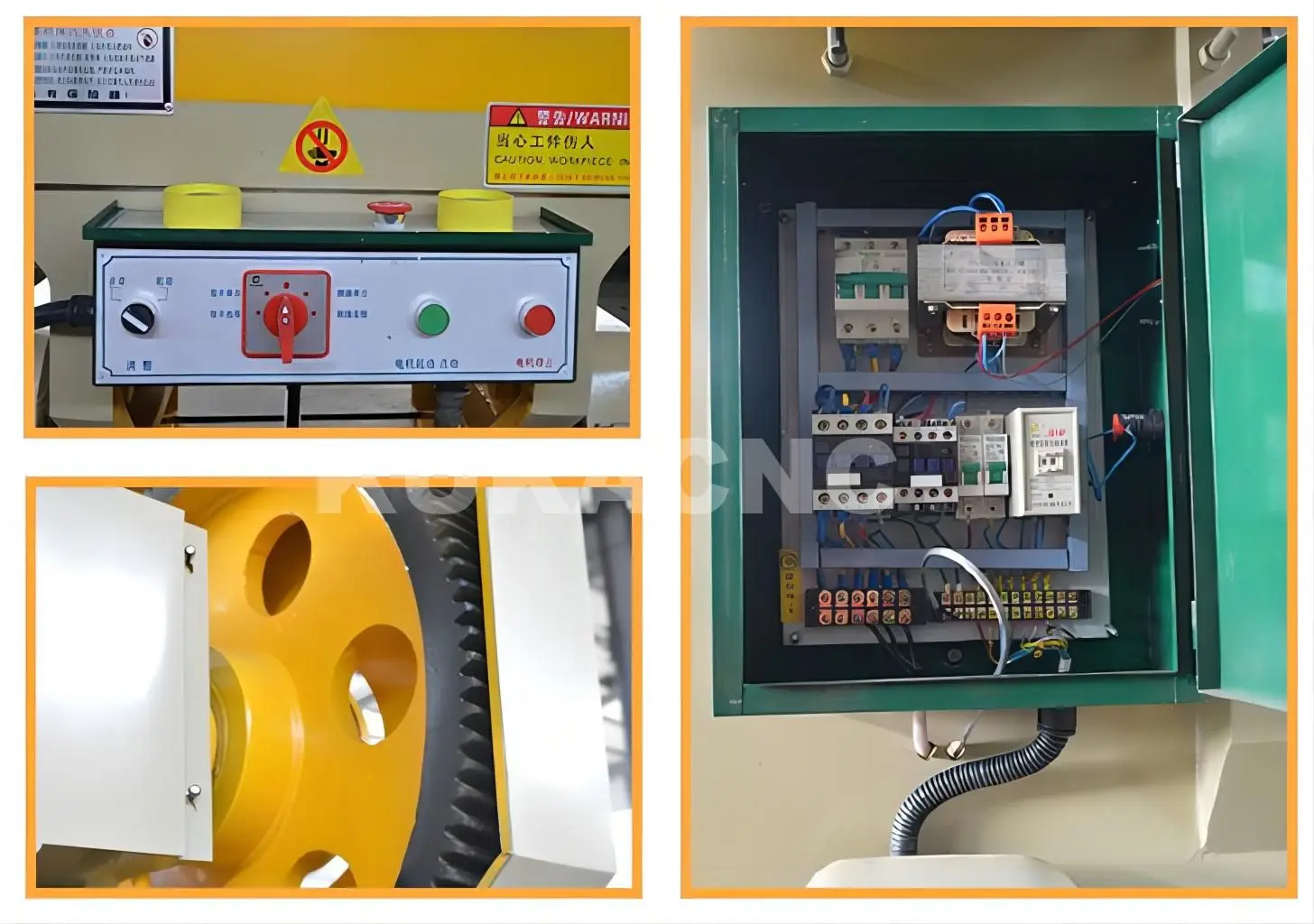

Electrical system and the safety interlock
1. Electrical components are imported or fromSinoforeign joint Venture, in accordance with international
standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
Steel-welded frame, high rigidity and less deformation Compact. Thick plates and large columns provide
you with the stable platform you need for your demanding application.
2. Wide body frame eliminating vibration for improved IDE life and machine, which means economical
and practical. Operation space is wide, and the movable bolster could be moved out of frame to set
the die. The structure is simple and the appliance is also beautiful.
3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Transmission control and brake systems
1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of
friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque,rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization
detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.
RAM adjustment and structure
1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body
steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission
part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
2. Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload
protection device, simple structure, if the slider overload,the fuse collapse is damaged, then protect the machine tool and die from damage.
Electrical system and the safety interlock
1. Electrical components are imported or fromSinoforeign joint Venture, in accordance with international
standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

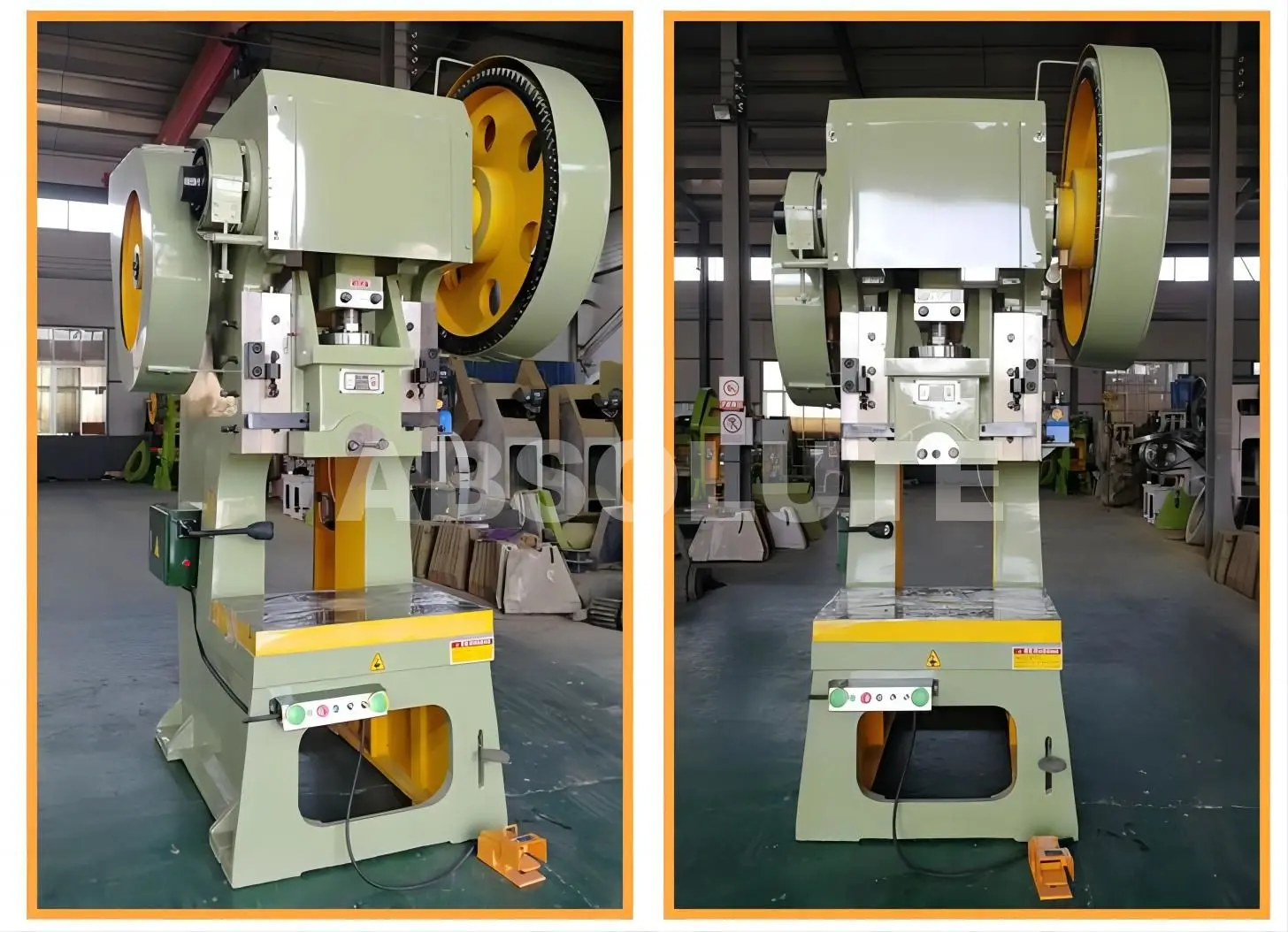

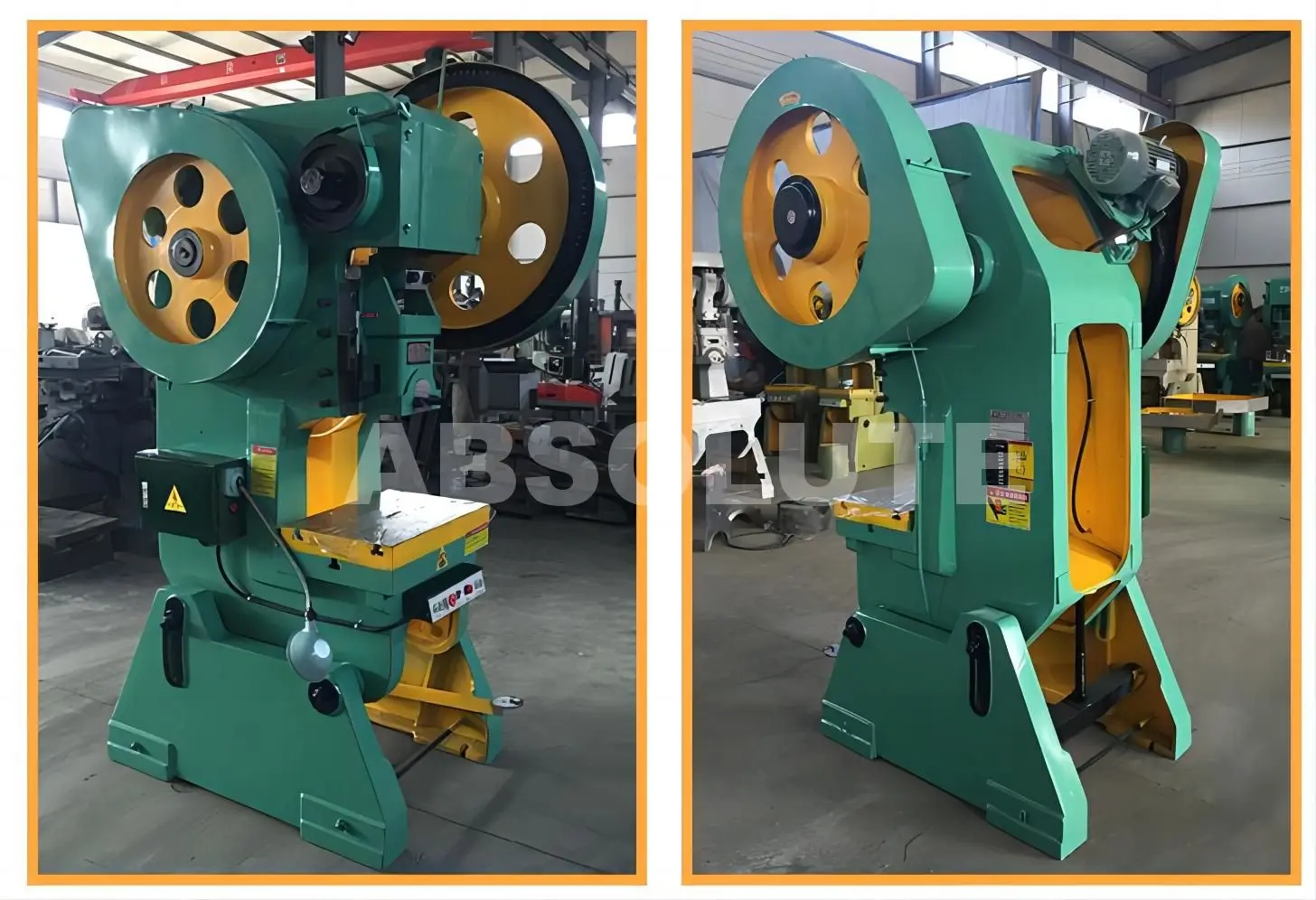

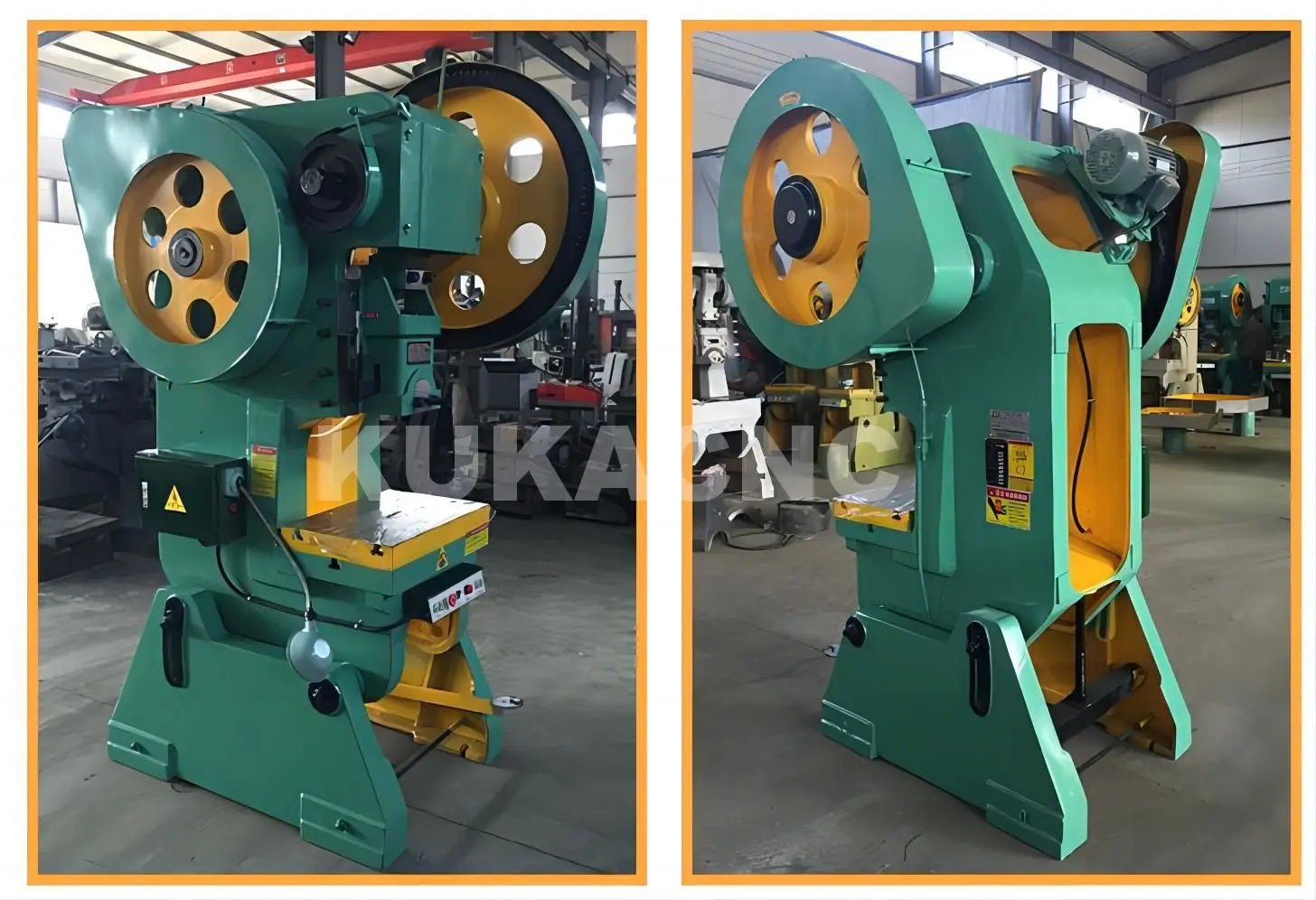

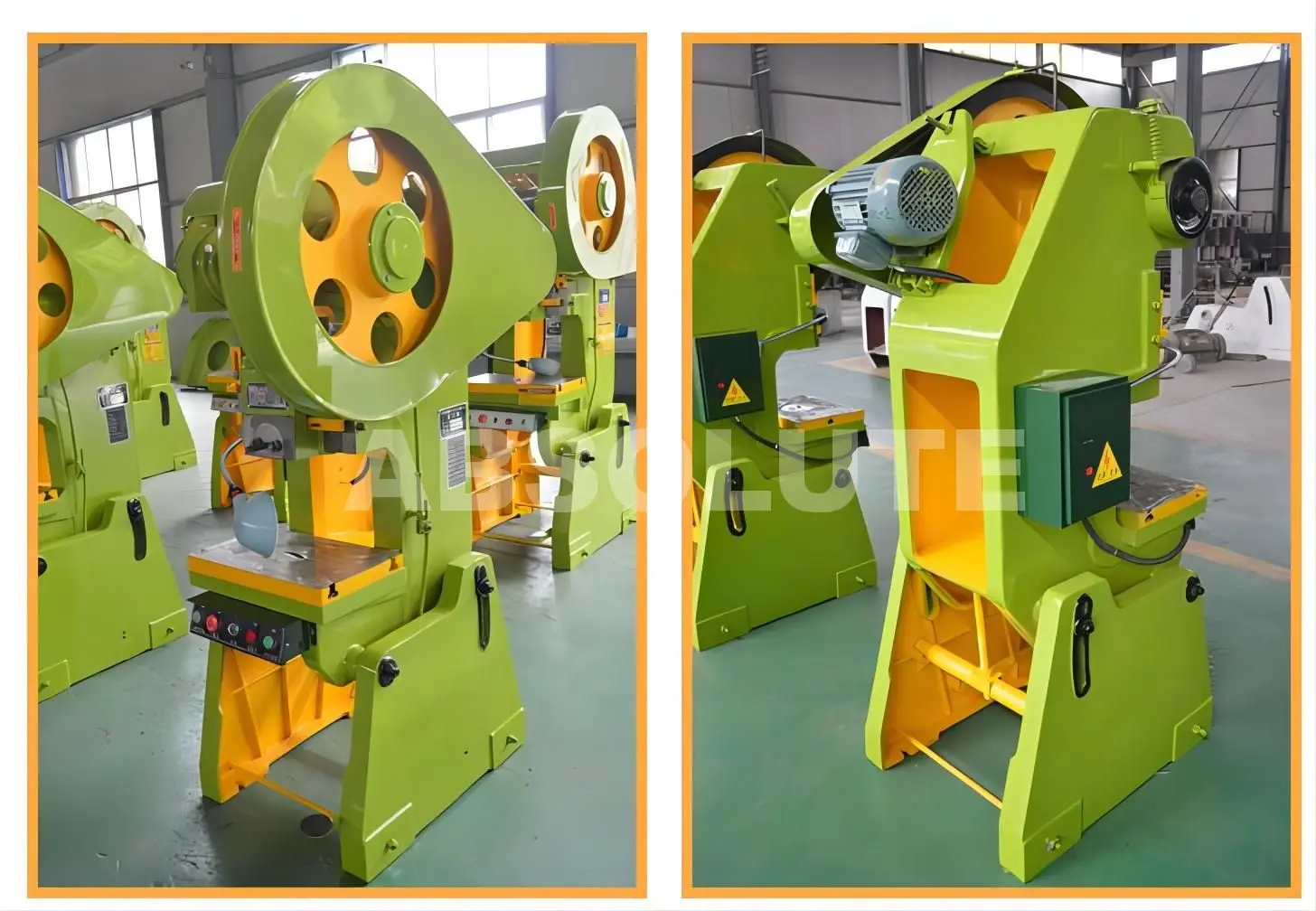

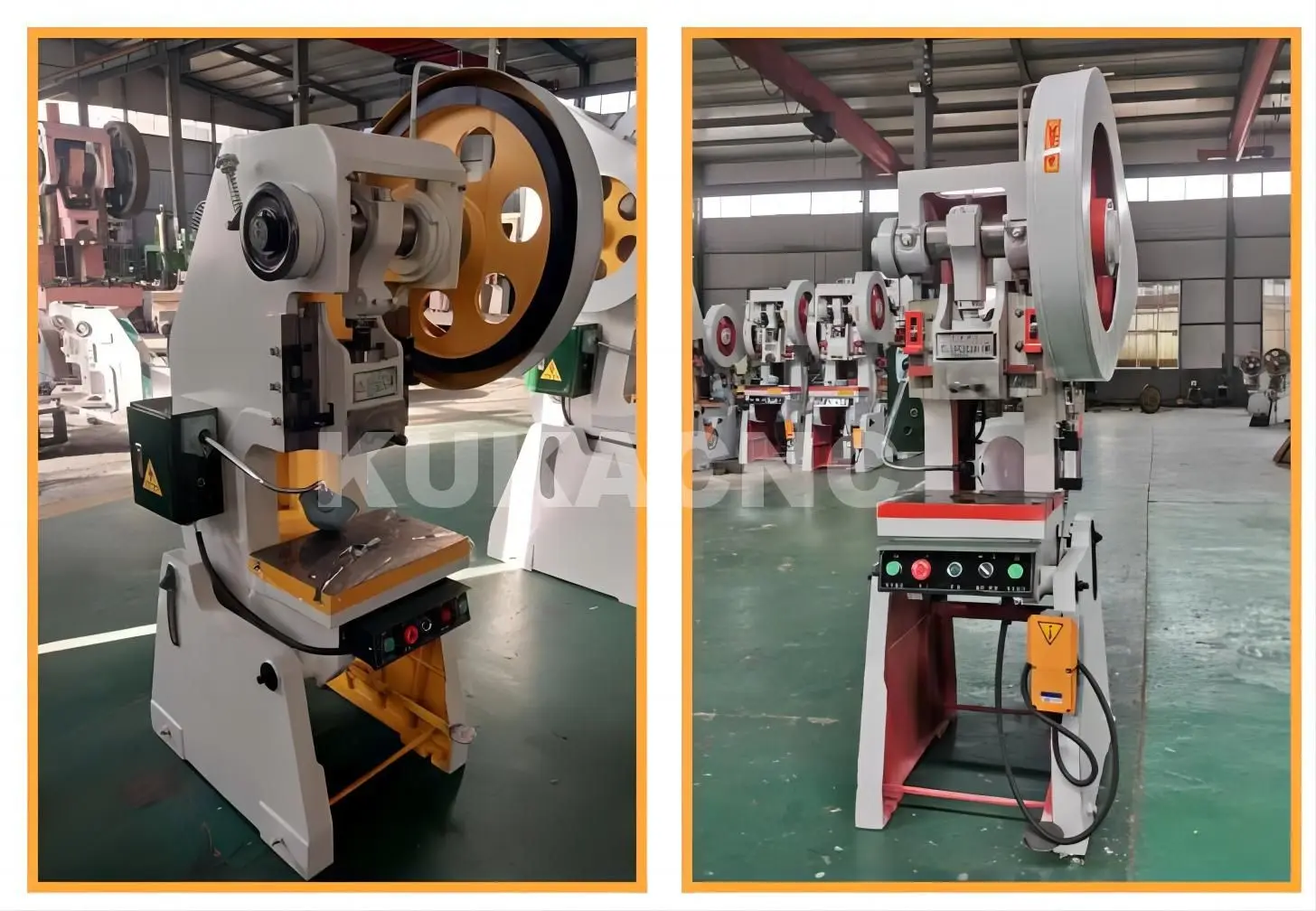

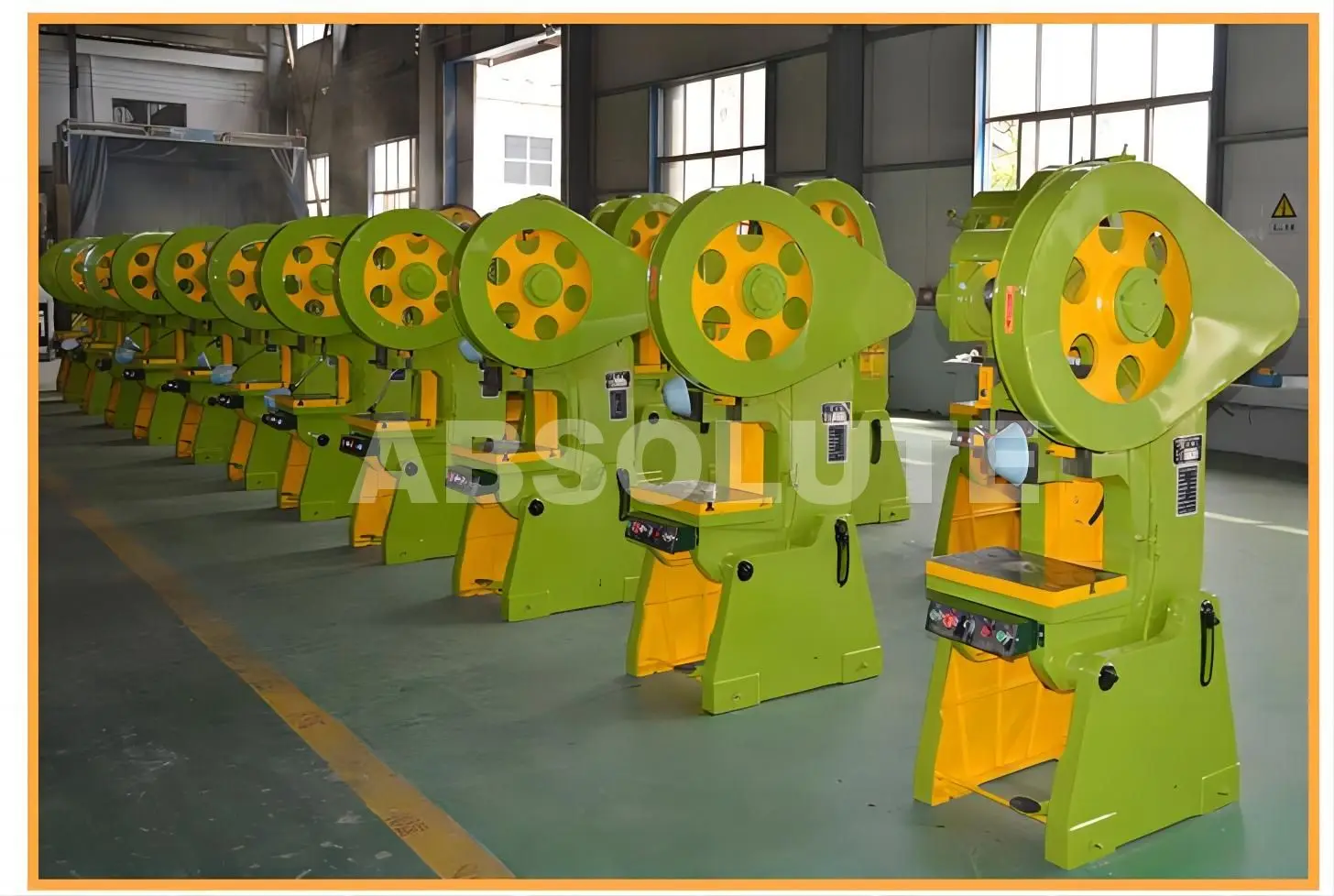

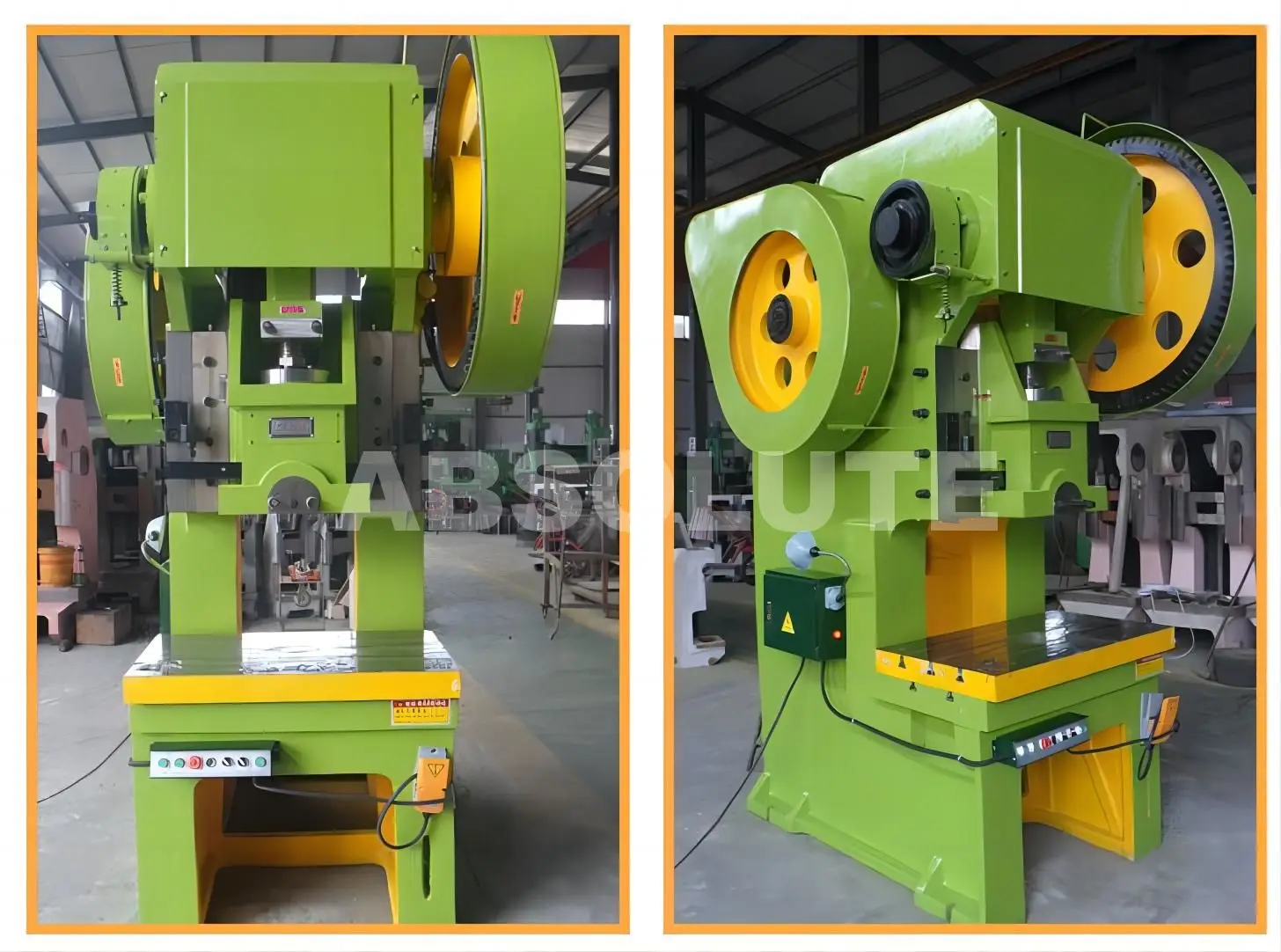

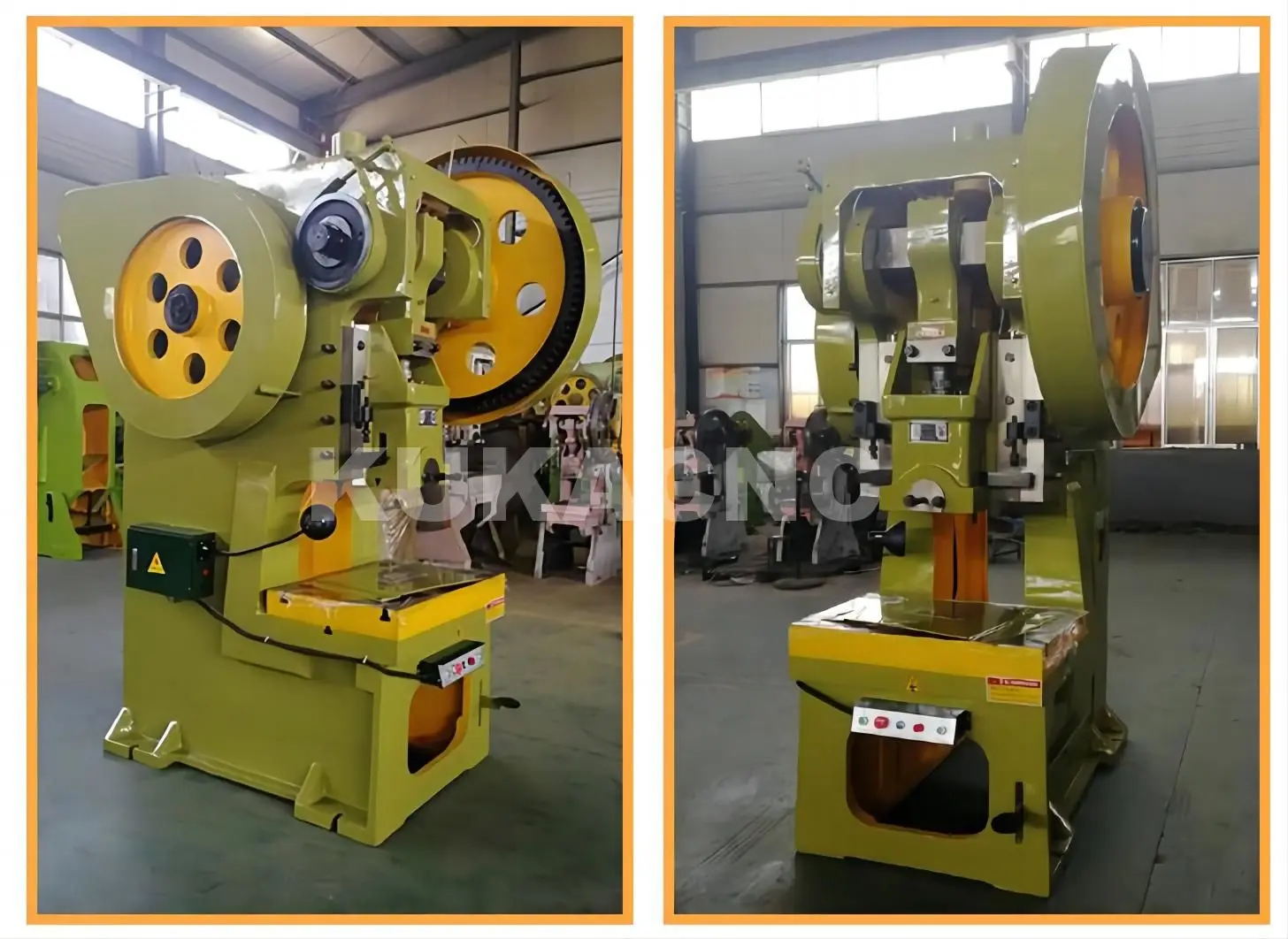

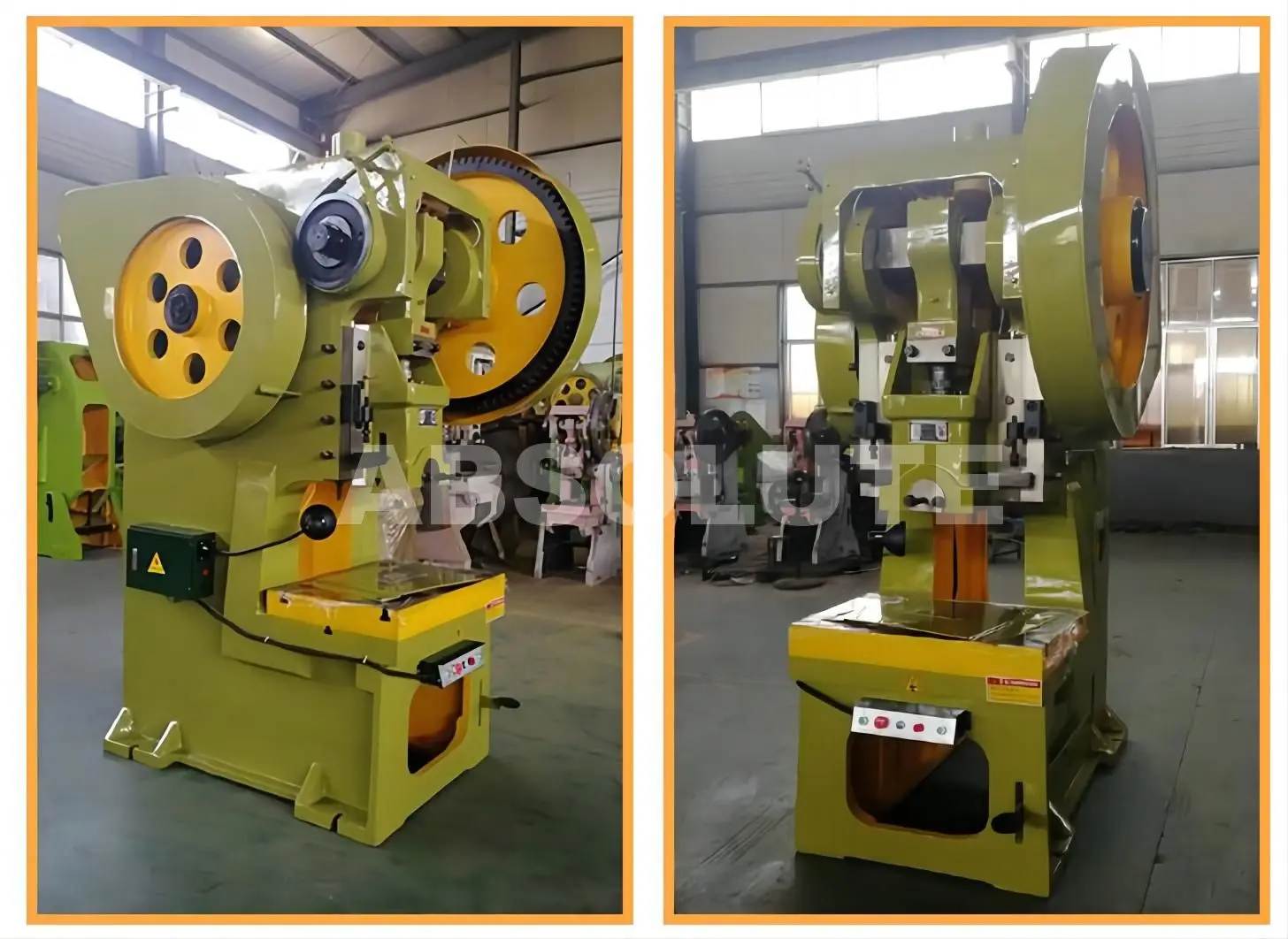

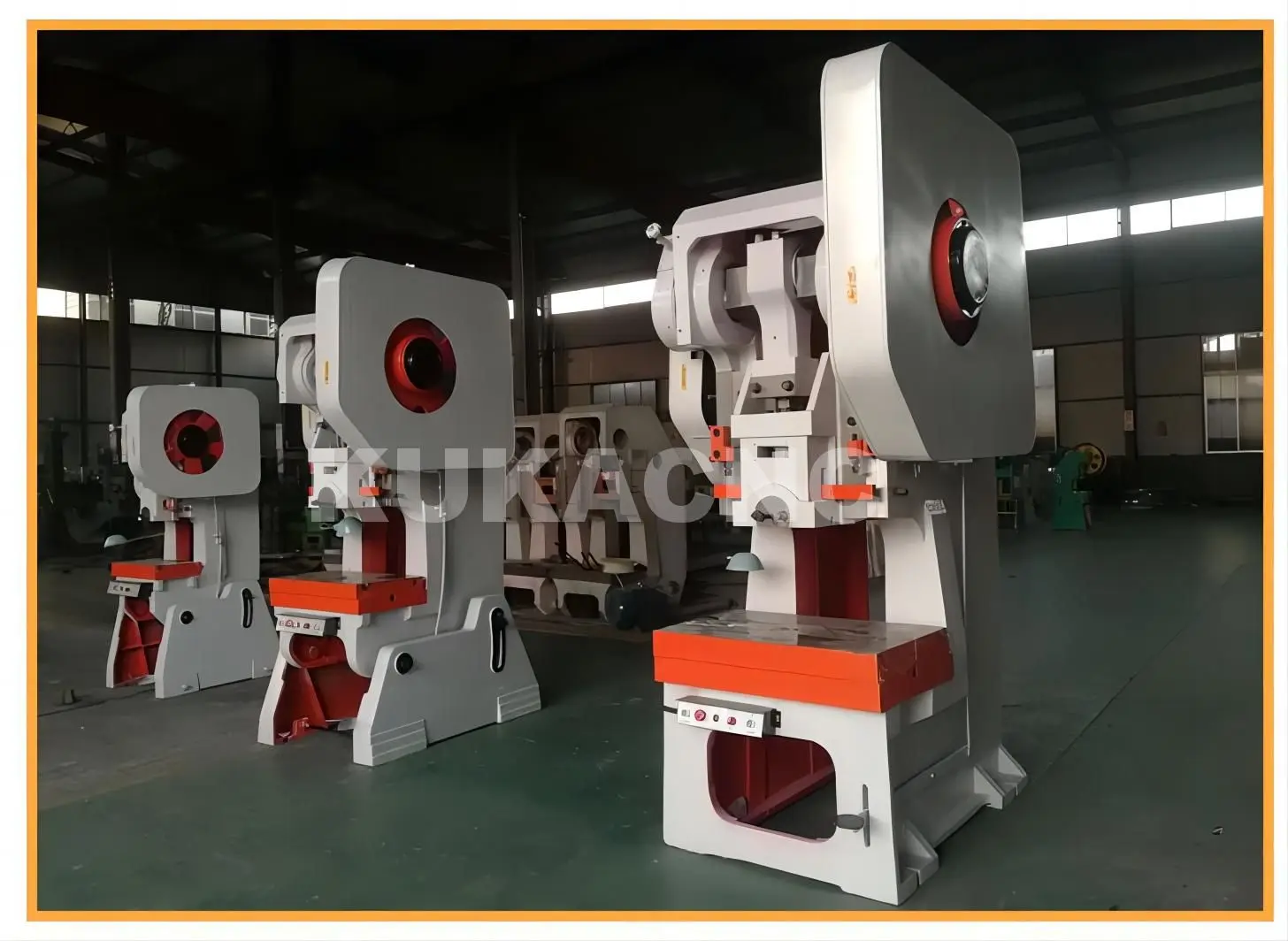

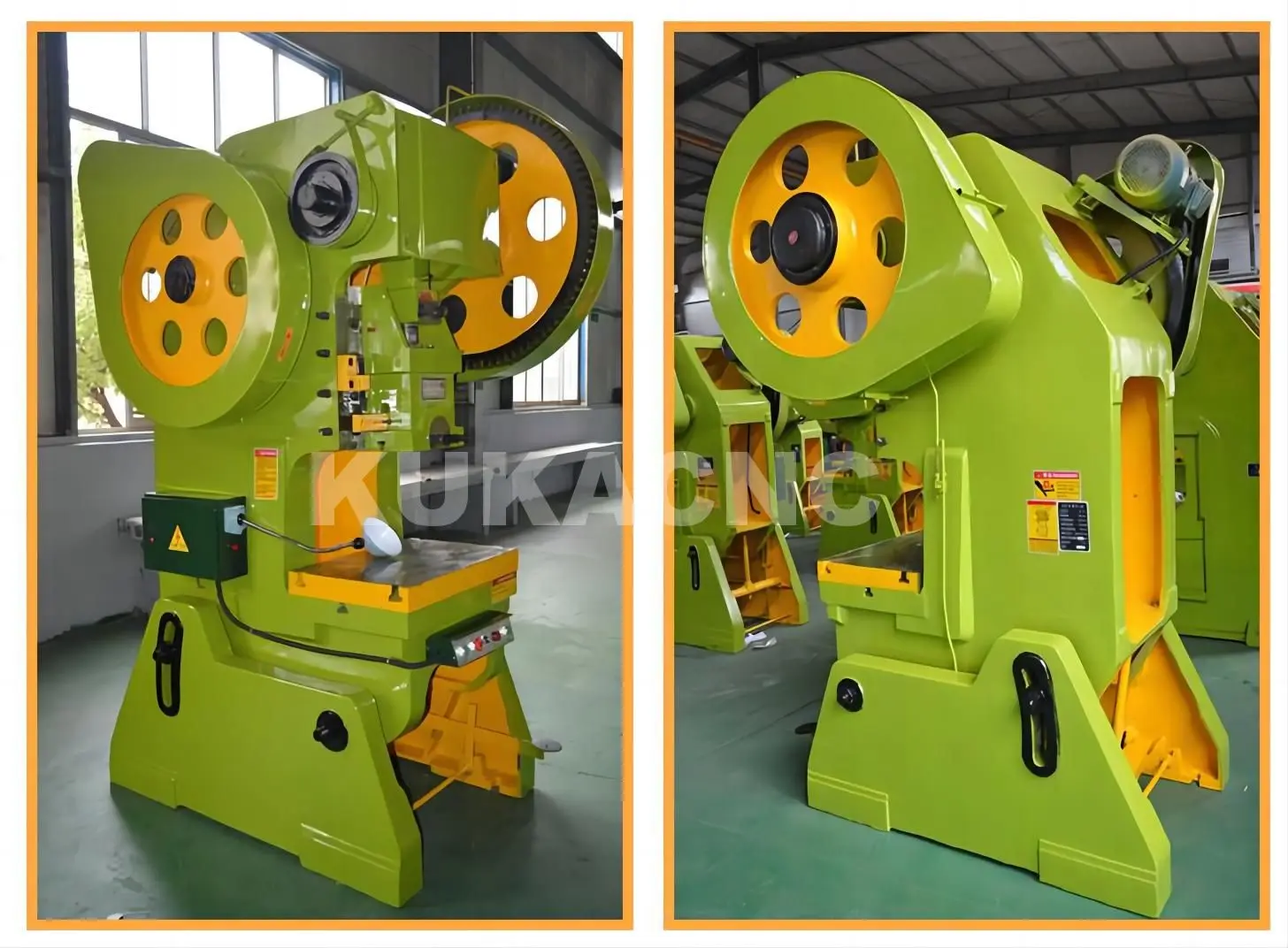

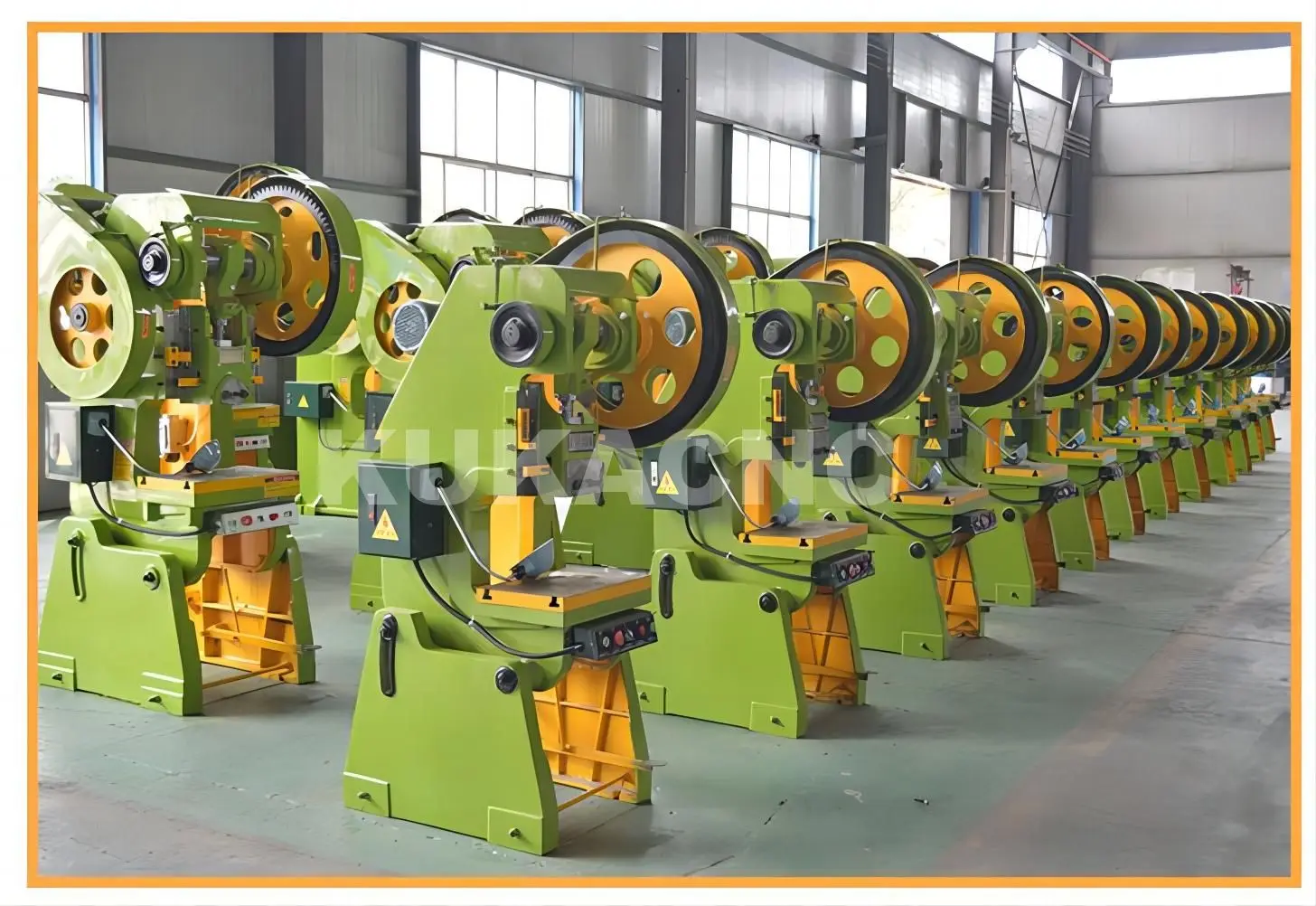

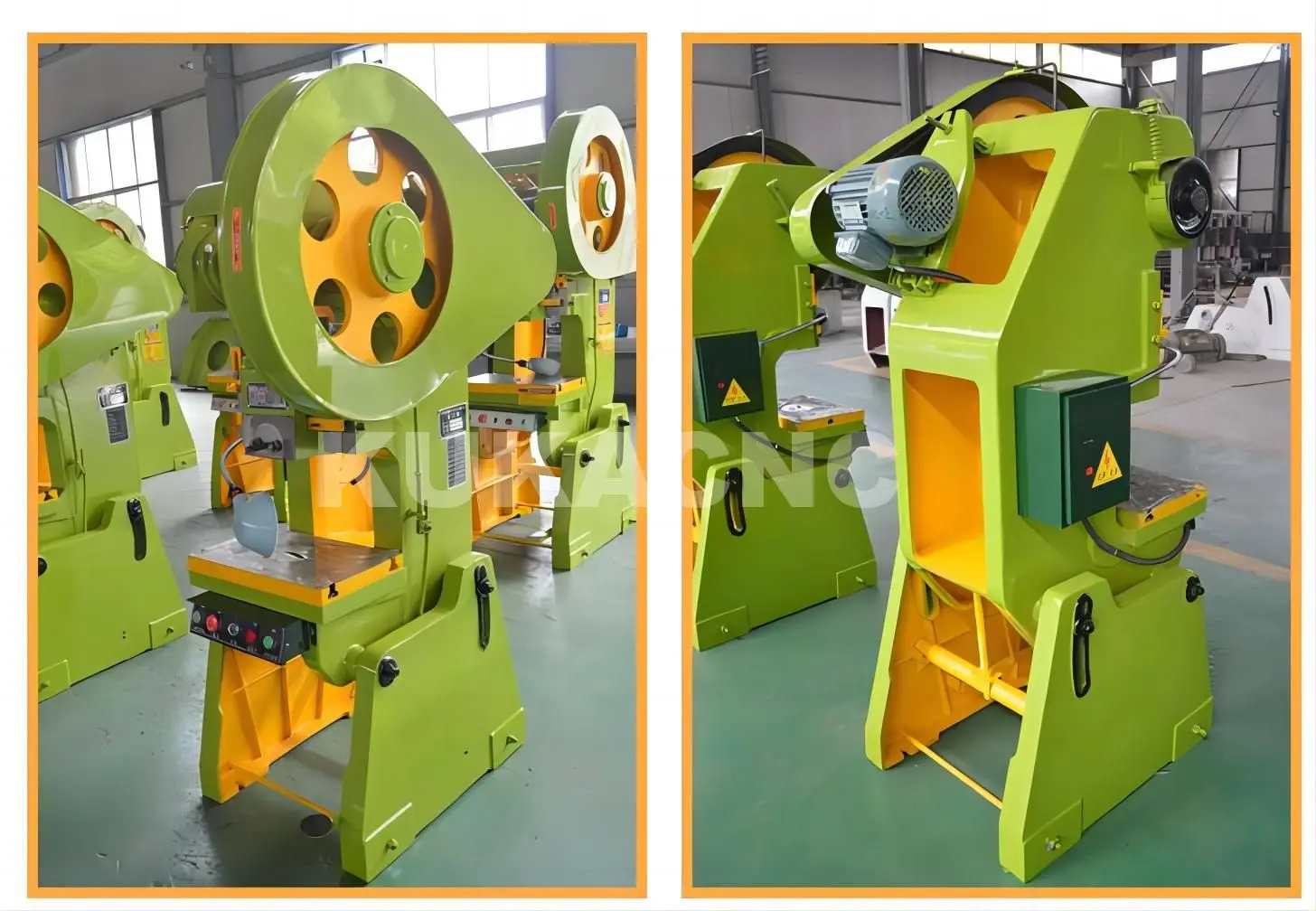

Physical picture
J23-10T punching press
J23-16T punching press
J23-25T punching press
J23-40T punching press
J21-63T punching press
J21-80T punching press
J21-100T punching press

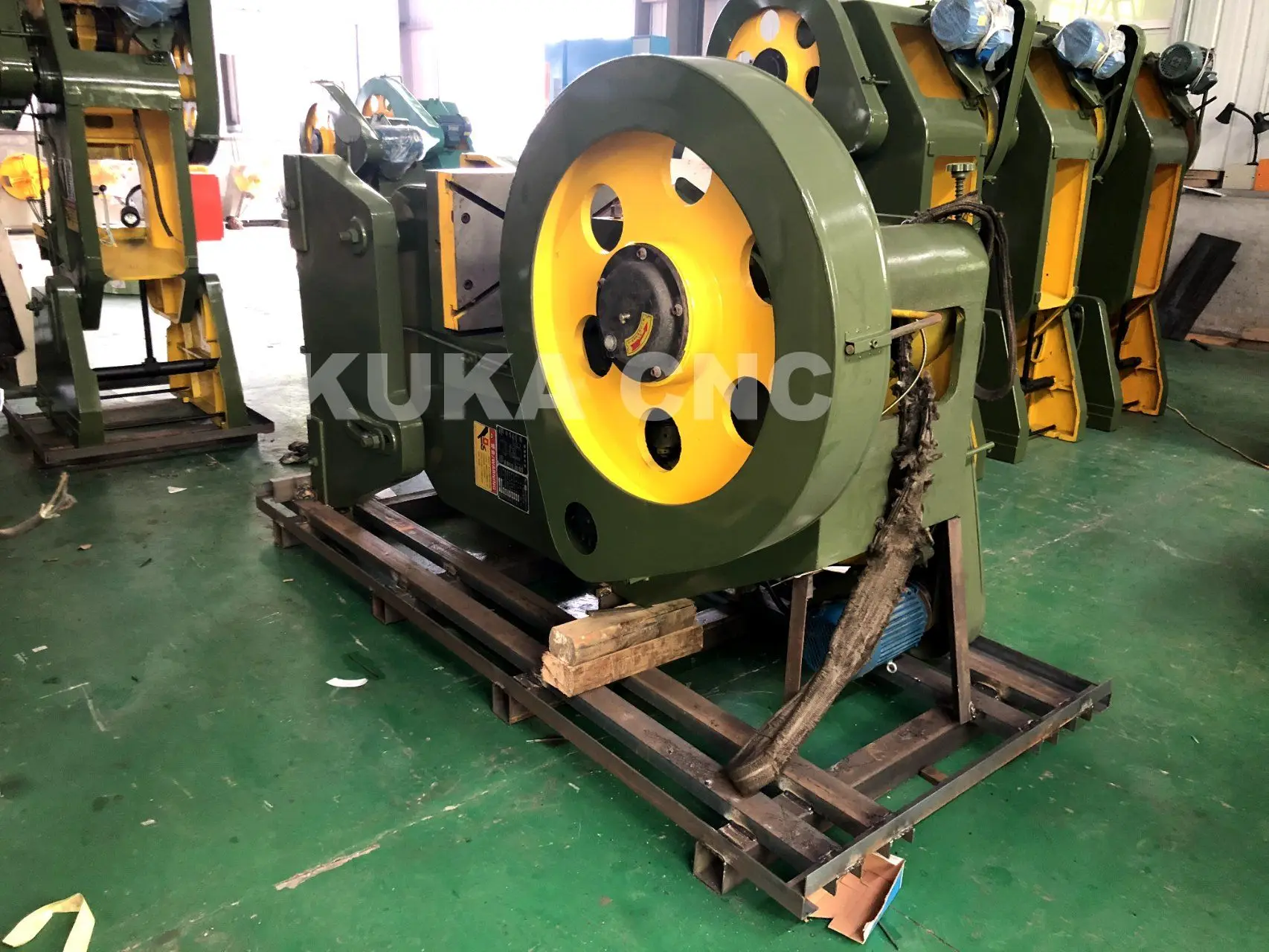

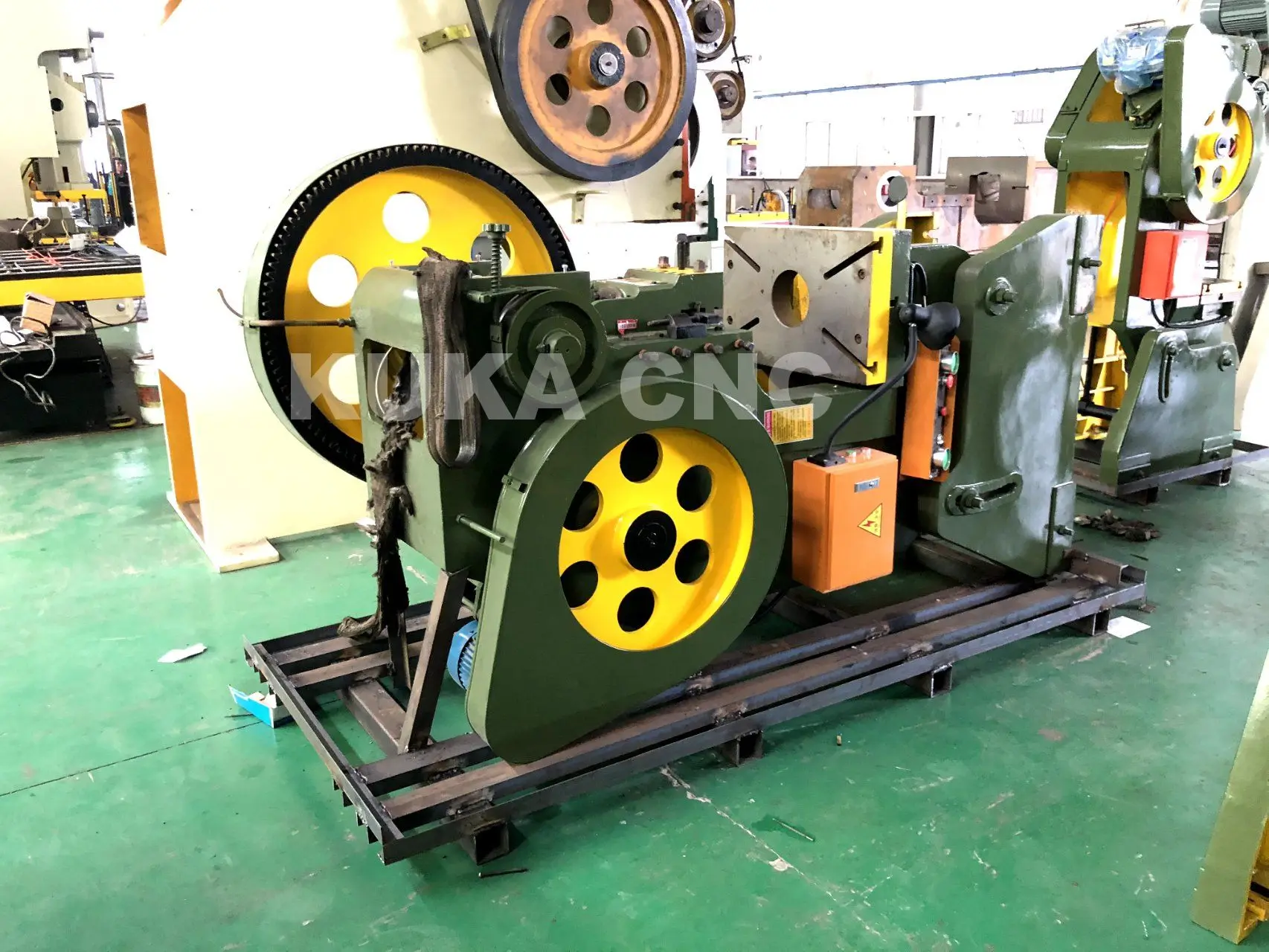

The correct transportation method.
Technical Specifications
Parameter | J23-10 | J23-16 | J23/21-25 | J23/J21-40 | J23/J21-63 | J23/J21-80 | J21-100 | J21-125 | ||
Nominal pressure (kn) | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | ||
Nominal pressure stroke(mm) | 2 | 2 | 2.5 | 6 | 6 | 7 | 7 | 8 | ||
Slideing stroke(mm) | 45 | 55 | 65 | 90 | 110 | 120 | 140 | 150 | ||
Die height(mm) | 180 | 220 | 270 | 320 | 360 | 440 | 480 | 500 | ||
Die height adjustment(mm) | 35 | 45 | 55 | 65 | 80 | 90 | 100 | 100 | ||
Distance between slider center and machine(mm) | 130 | 160 | 200 | 250 | 260 | 350 | 380 | 390 | ||
Size of die handle bore (mm) | Diameter | 30 | 40 | 40 | 50 | 50 | 61 | 60 | 60 | |
Depth | 55 | 60 | 60 | 70 | 70 | 75 | 75 | 75 | ||
Worktable thickness(mm) | 35 | 40 | 50 | 65 | 80 | 100 | 120 | 130 | ||
Worktable height (mm) | 730 | 750 | 800 | 850 | 810 | 850 | 850 | 860 | ||
Motor(kw) | 1.1 | 1.5 | 2.2 | 5.5 | 5.5 | 7.5 | 11 | 11 | ||
