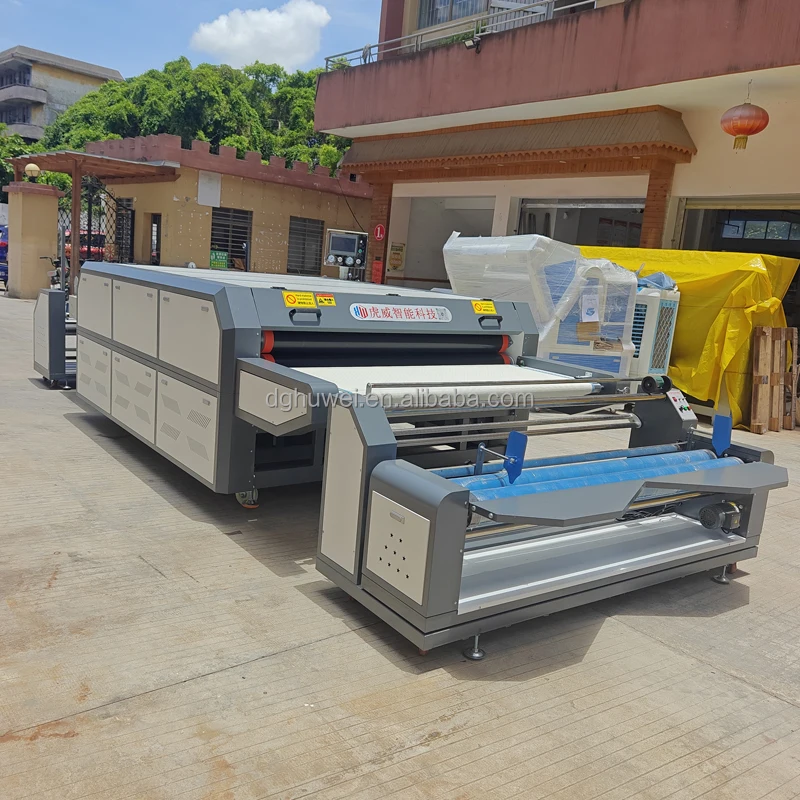

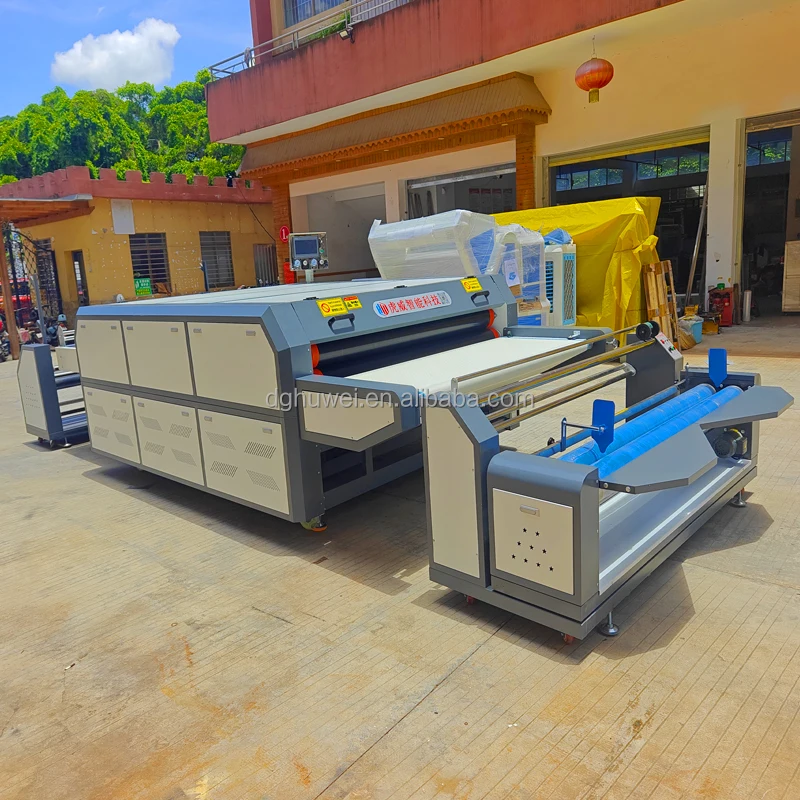

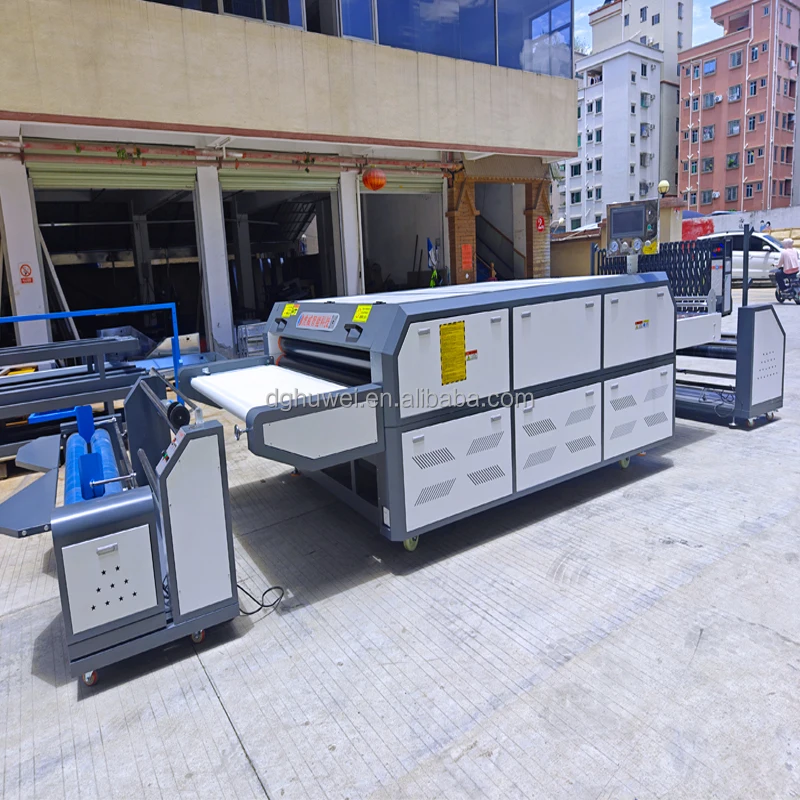

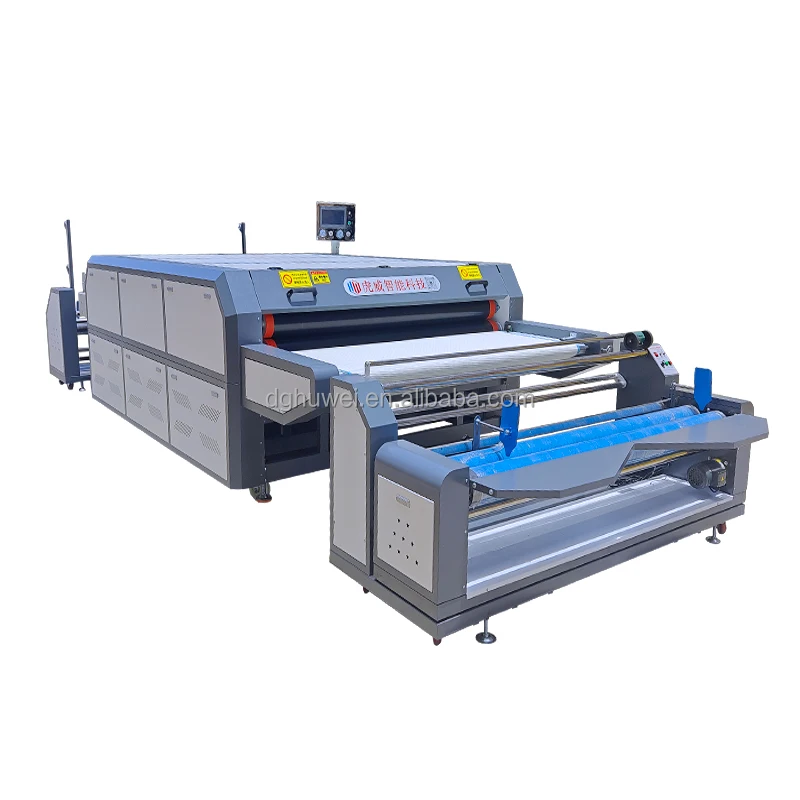

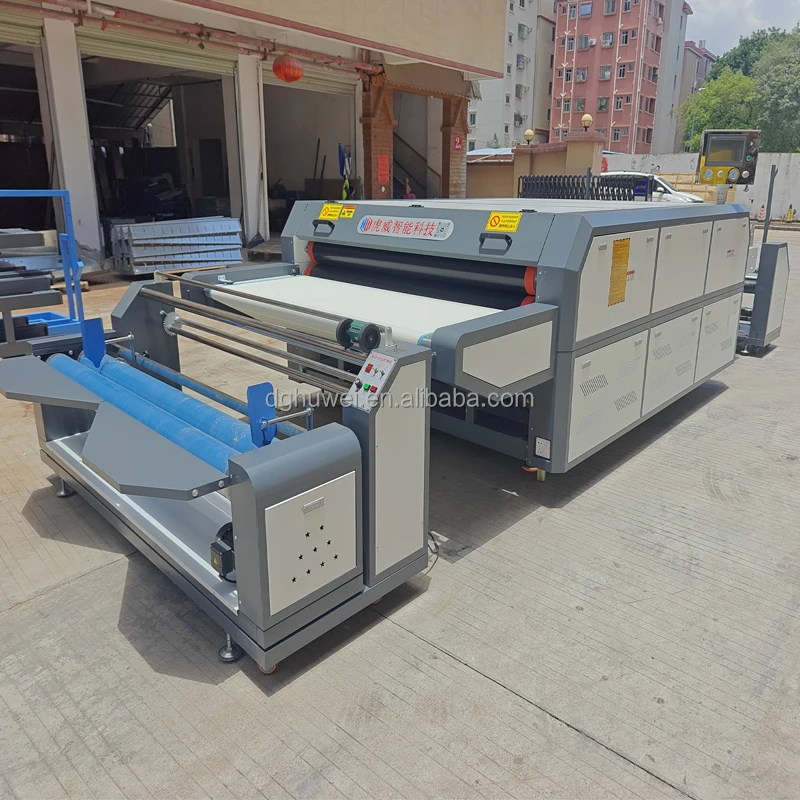

textile bonding machine garment factory equipment garment continous fusing machine roller fusing machine

Product Overview

Description

Scope of application:

HW-GTS1600-2000L:Used for lining bonding, shrinkage setting, leather/shoe polishing, hot stamping, and whole roll fabric bonding. Suitable for composite processing factories, clothing factories, shoe factories, automotive interior and other industries.

Product characteristics:

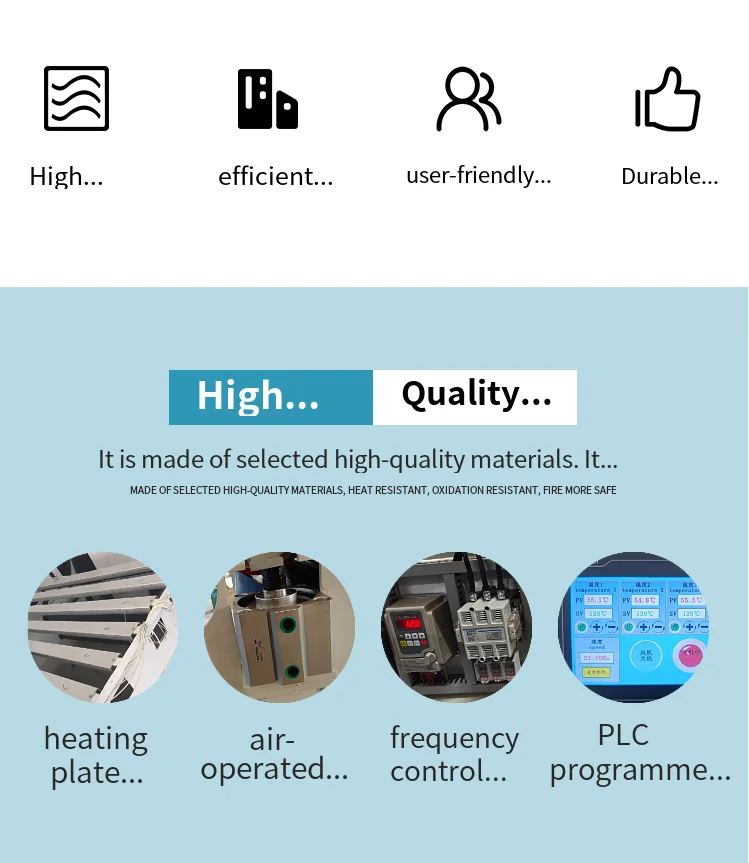

1.PLC programming software, LCD touch control panel, speed display, temperature display, fault warning, a glance, simple operation.

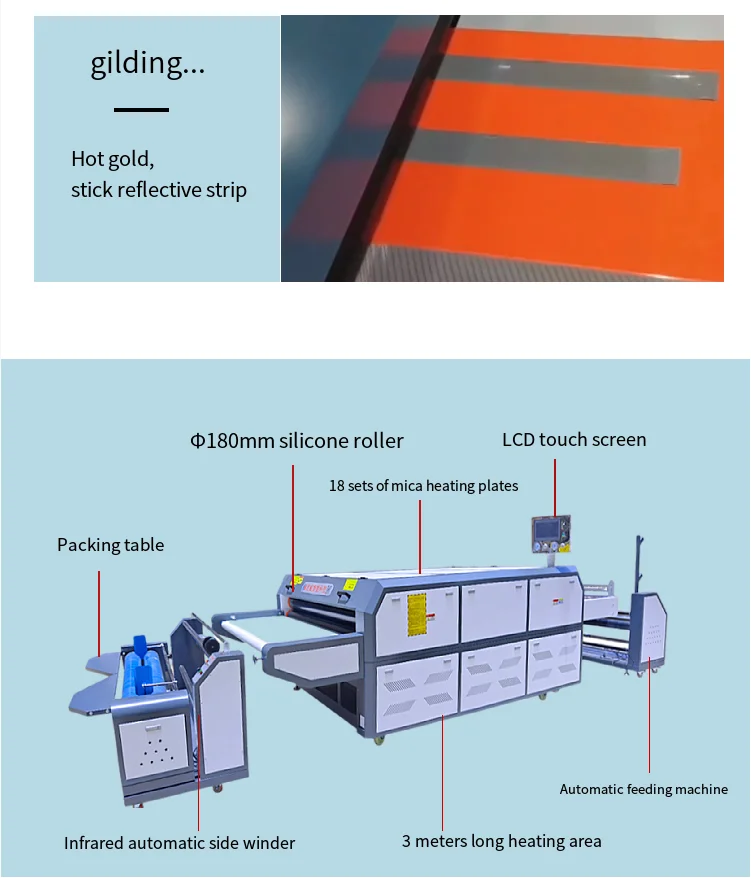

2.3 meters long heating area, using 18 groups of mica heating plate heating, independent 5-stage heating system, accurate constant temperature control.

3.Diameter Φ180mm high temperature resistant silicone roller, large cylinder pressure, wide pressure surface, up to 6kg pressure per square centimeter to improve bonding effect. · Microswitch automatically adjusts belt deviation and prolongs belt service life.

4.The pressure roller is made of imported high temperature resistant silicone to ensure stable and uniform pressure. · Electronic constant temperature control system, accurate temperature, small error, no damage to the fabric.

5.Upper and lower belt independent temperature control, can adapt to different materials, industry use.

6.Equipped with strong wind vacuum cooling system, high wind, low noise, good cooling effect.

7.With timed automatic cooling shutdown function.

8.Equipped with rubber rod to clean the belt, easy to change.

9.Frequency conversion speed adjustment, smooth operation, more energy saving.

10.Optional: automatic feeding machine, infrared eye edge winder. (Infrared start and stop are set, which can synchronize with the speed of the bonding machine and save labor)

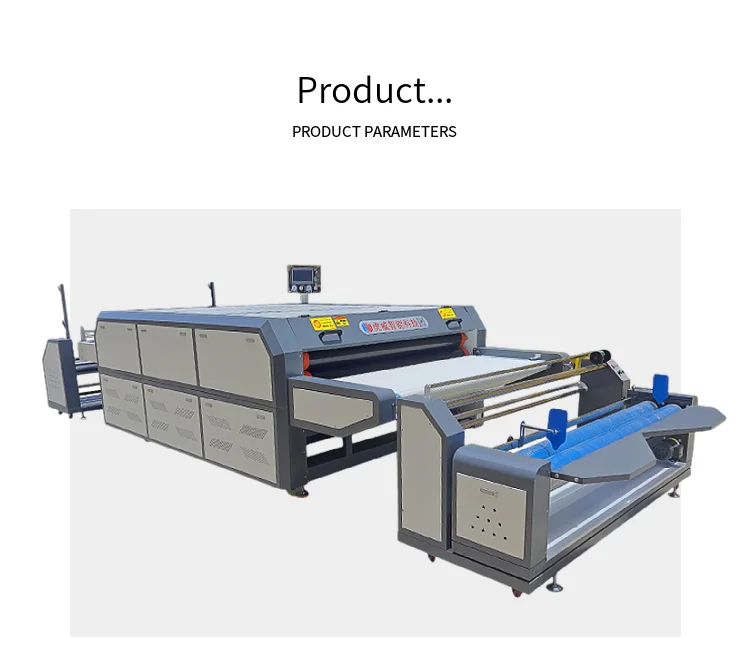

 Technical parameter:

Product model	HW-GTS1600/2000L	Heating length	3000mm
Voltage	AC 380v / 50HZ	work pacing	0-20m/min
maximum pressure	0.4-0.7Mpa	Number of heating plates	18 groups
Steam pressure	pneumatic	Total Power	52KW/60KW/72kw
Cots diameter	Φ180mm	temperature	0-230℃
conveyor	Seamless tape	Usable width	1600mm/1800mm/2000mm
Heating material	mica plate	machine weight	1580kg/1750kg/1930kg
Machine size	630*230*165mm/630*250*165cm/630*270*165cm





1. Are you a trading company or a factory?
Factory + trade (integration), 20 years of research and development and production, professional to undertake non-standard customization. OEM is also acceptable to us.
2. How to choose the most suitable product?
Our professional team will give you the best advice, as long as you tell us what kind of tests you need to do and what specifications you need.
3. Do you accept custom service?
Yes, of course, we can provide not only standard machines, but also custom machines according to your requirements. Please feel free to tell us your requirements and we will do our best to meet your needs.
4. What about your warranty?
Generally speaking, our warranty is one year. During the warranty period, we can provide technical support and parts replacement, and our engineers may visit your place for better service.
5. How about the packaging of the machine? Is it safe during transportation?
Our machines are packed in standard export cases, which are not damaged. We have delivered many test machines to foreign countries by sea or air without damage.
6. What is the order process?
Inquiry - quotation - Communication - Order confirmation - deposit payment - production - test commissioning - balance payment - packaging - delivery - customer receipt - after-sales service.
