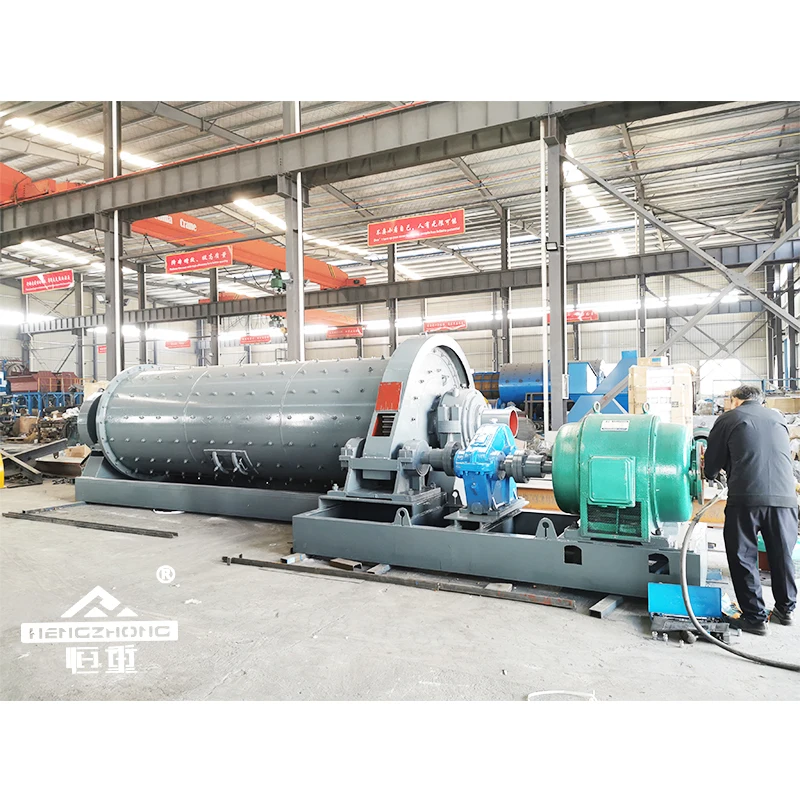

Lumpy chrome wash plant small gold mining ball mill for limestone
- Category: >>>
- Supplier: Jiangxi Hengcheng Mining Equipment Co. Ltd.
Share on (1601263143919):
Product Overview
Description
Product Overview

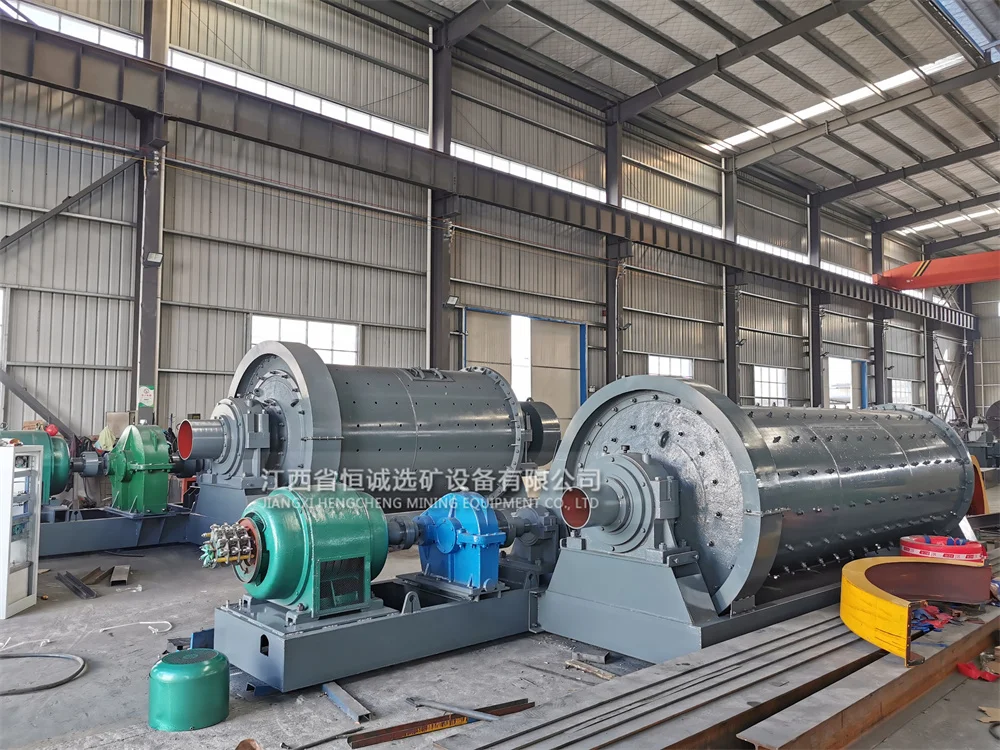

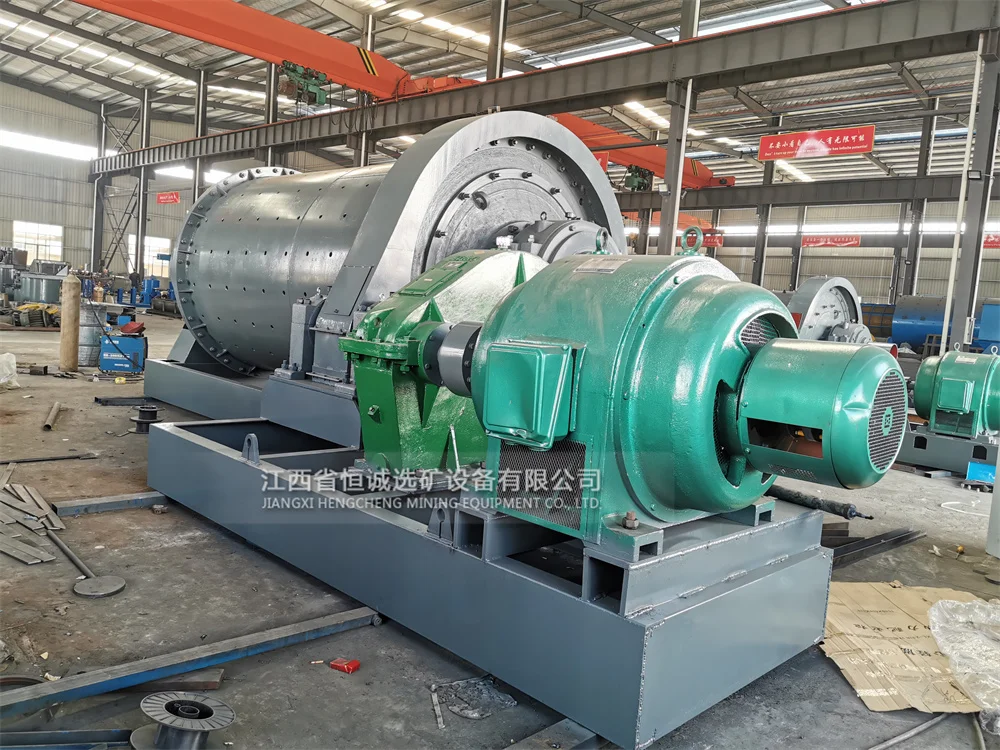

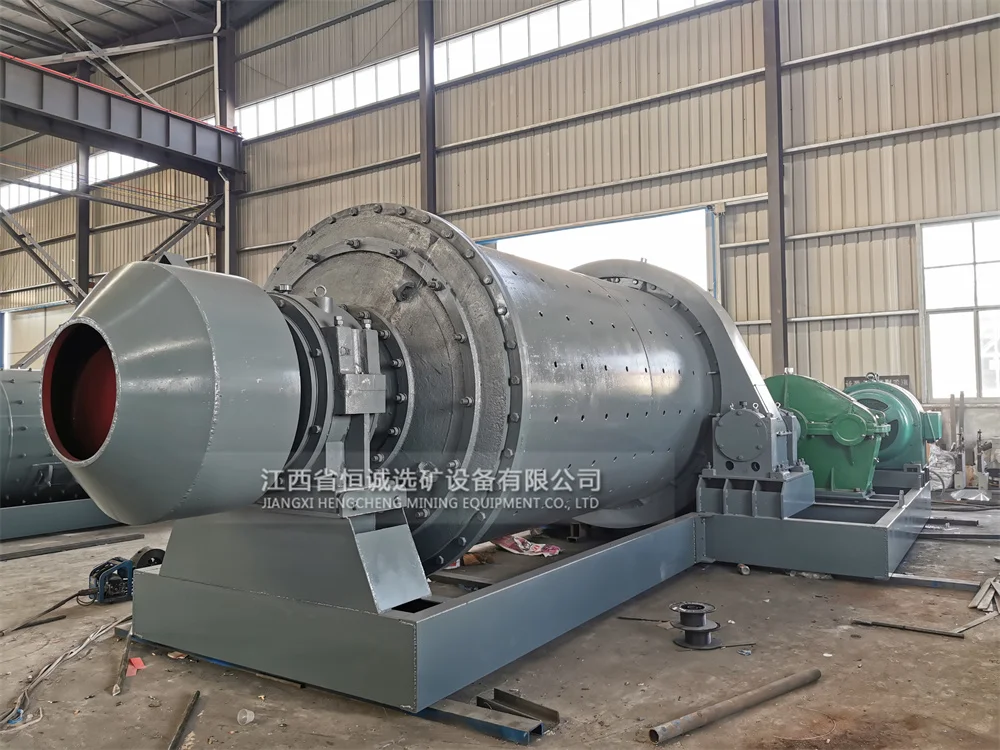

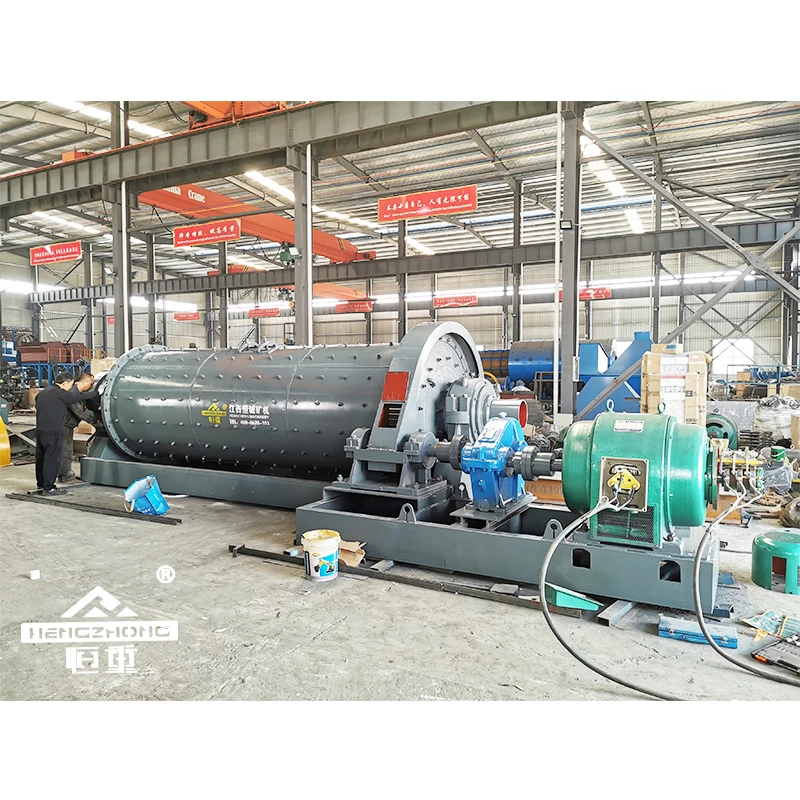

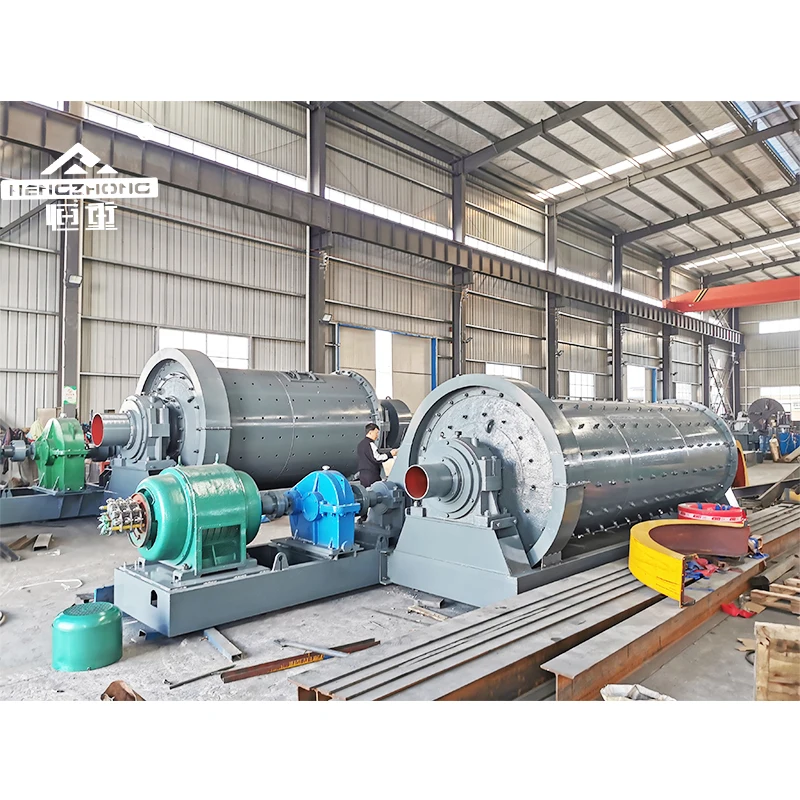

WET BALL MILL
Ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and
non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.
non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.
FEATURES AT A GLANCE
Main Features

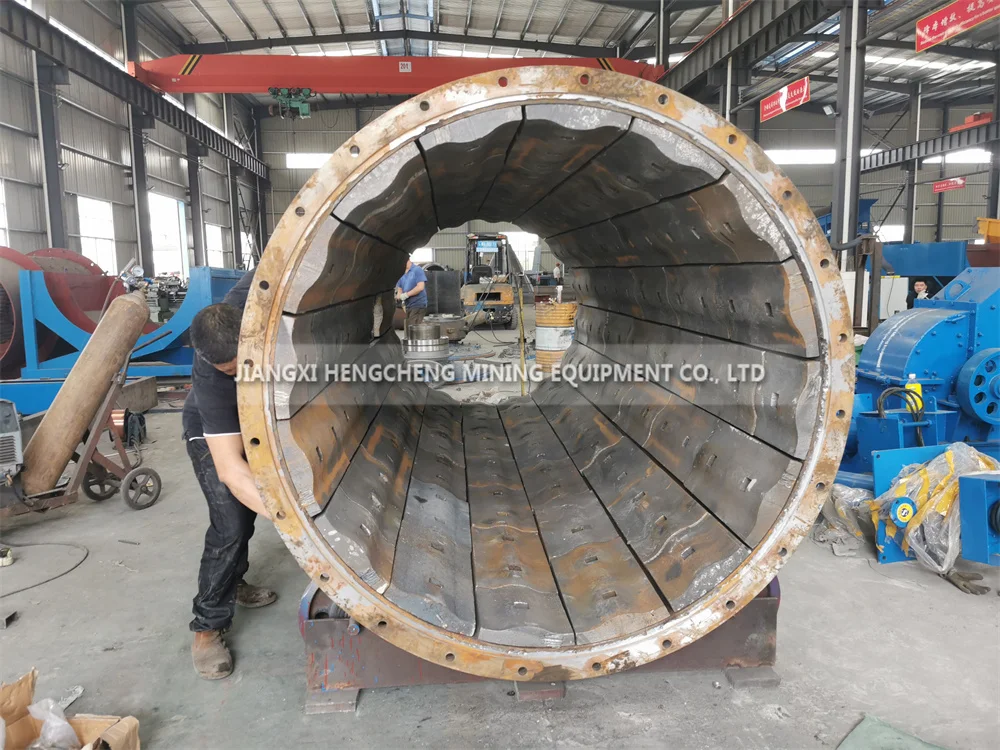

1. The lining can be replaced.
2. Mineral ball mill is an efficient tool for grinding many materials into fine powder.
3. Two ways of grinding: the dry way and the wet way.
4. Ultimate particle size depends entirely on how hard the material you are grinding is.
Working Principle
Ball mill is a horizontal rotating device transmitted by the outer gear. The materials are fed into the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different size of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board, then the grinding process is finished.
SIMILAR PRODUCTS
PRODUCT SPECIFICATIONS
Rotary speed (r/min） | Ball loading（t） | Feed size mm | （t/h） | Power | Dimension（mm）(L×W×H) | |||
(kw) | ||||||||
GM0715 | Φ750x1500 | 44.09 | 0.9 | 0-25 | 0.2-0.6 | 7.5 | 3250x1200x882 | 2.3 |
GM0909 | Φ900x900 | 41.6 | 0.83 | 0-25 | 0.2-0.7 | 11 | 3337x1850x1400 | 3.85 |
GM0912 | Φ900x1200 | 41.6 | 1.1 | 0-25 | 0.3-0.9 | 11 | 3843x1850x1400 | 4.21 |
GM0918 | Φ900x1800 | 41.6 | 1.6 | 0-25 | 0.4-1.1 | 15 | 4443x1850x1400 | 5.65 |
GM0921 | Φ900x2100 | 41.6 | 1.8 | 0-25 | 0.6-1.5 | 22 | 4743x1850x1400 | 6.66 |
GM0933 | Φ900x3300 | 41.6 | 2.8 | 0-25 | 0.9-2.3 | 30 | 5943x1850x1400 | 7.77 |
GM1224 | Φ1200x2400 | 35.2 | 4 | 0-25 | 1.6-4.1 | 30 | 5540x2300x1850 | 10.02 |
GM1228 | Φ1200x2800 | 35.2 | 4.6 | 0-25 | 1.9-4.8 | 37 | 5940x2300x1850 | 10.935 |
GM1232 | Φ1200x3200 | 35.2 | 5.3 | 0-25 | 2.2-5.5 | 45 | 6340x2300x1850 | 11.23 |
GM1244 | Φ1200x4400 | 35.2 | 7.3 | 0-25 | 3.0-7.5 | 75 | 7540x2300x1850 | 13.21 |
GM1324 | Φ1300x2400 | 30.2 | 4.5 | 0-25 | 1.5-3.5 | 37 | 5035x2370x1880 | 10.21 |
GM1328 | Φ1300x2800 | 30.2 | 5.2 | 0-25 | 2.0-4.5 | 45 | 5435x2370x1880 | 11.29 |
GM1334 | Φ1300x3400 | 30.2 | 6.5 | 0-25 | 2.2-5.0 | 55 | 6035x2370x1880 | 13.117 |
GM1524 | Φ150x2400 | 30.7 | 6.5 | 0-25 | 2.8-6.5 | 55 | 6830x2930x2060 | 15.43 |
GM1530 | Φ1500x3000 | 30.7 | 8.1 | 0-25 | 3.5-8.0 | 80 | 7430x2930x2060 | 16.843 |
GM1533 | Φ1500x3300 | 30.7 | 9 | 0-25 | 4.0-9.0 | 80 | 7730x2930x2060 | 17.849 |
GM1536 | Φ1500x3600 | 30.7 | 9.8 | 0-25 | 4.5-10.0 | 95 | 8030x2930x2060 | 18.649 |
SALES AND SERVICE NETWORK

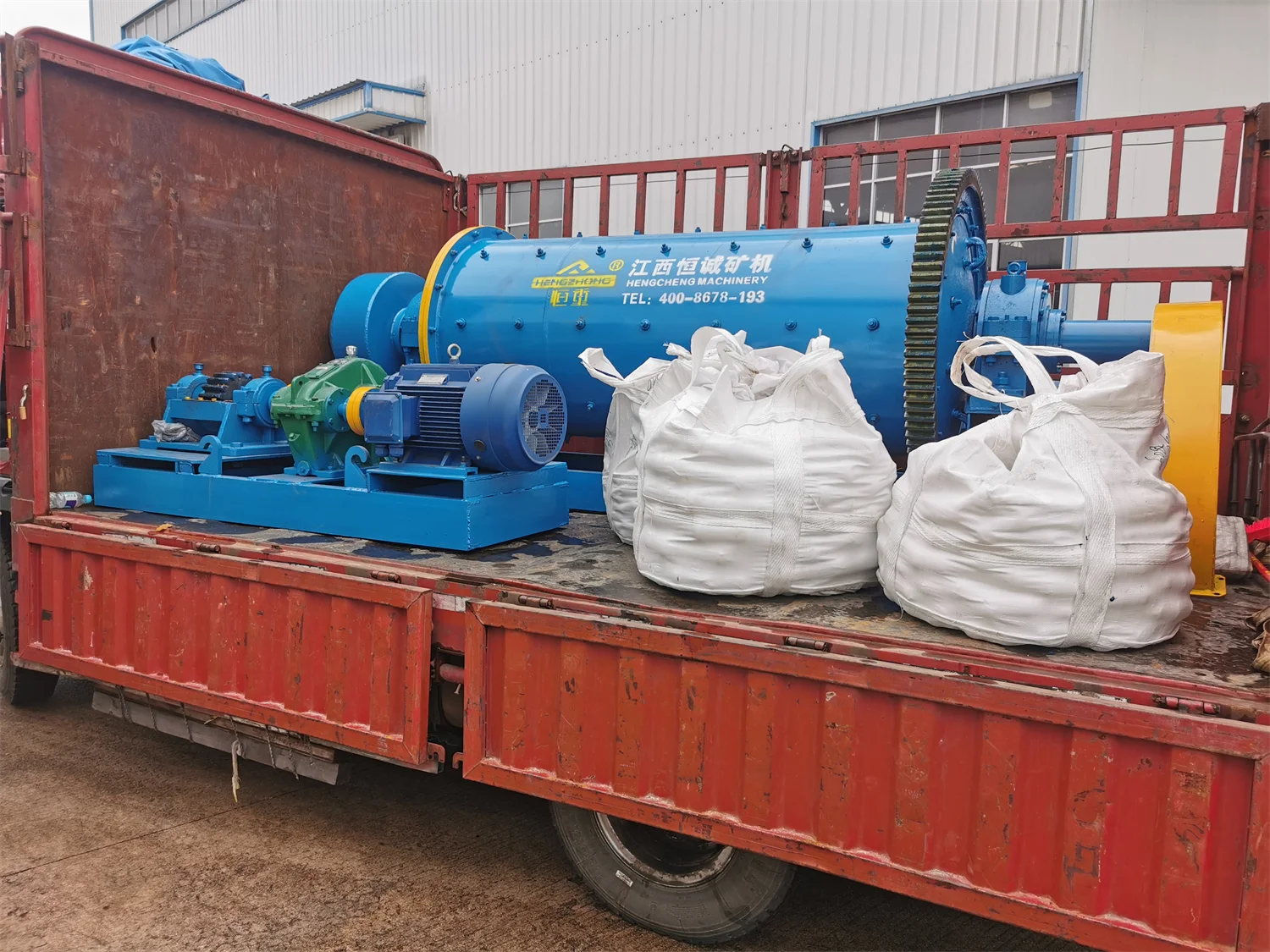

Product packaging
1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
Company Profile
Jiangxi Hengcheng Mining Equipment Co., Ltd
Jiangxi Hengcheng Mining Equipment Co., Ltd is a well-known manufacturer and supplier of mineral ore mining equipment in Jiangxi Province, China. We have more than 20 years of equipment producing experiences.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment have already exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippine, Bolivia, USA, Singapore, Mongolia, etc.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment have already exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippine, Bolivia, USA, Singapore, Mongolia, etc.
Currently we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing , etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
tantalum-niobium(coltan) ore processing , etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Our Advantage
1. We are Manufacturer (Not Dealer):
All machineries from Jiangxi Hengcheng Mining Equipment Company are made by ourselves, with lower price, good quality and assured full after service. The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
2. Training & Service:
* We provide you with the pro phase plan, process flow design and manufacture equipment according to your special demand.
* Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
* We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
All machineries from Jiangxi Hengcheng Mining Equipment Company are made by ourselves, with lower price, good quality and assured full after service. The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
2. Training & Service:
* We provide you with the pro phase plan, process flow design and manufacture equipment according to your special demand.
* Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
* We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
What is the type and size of raw material?
What is required size of final product(mm)?
What is the capacity do you need per hour?
What is required size of final product(mm)?
What is the capacity do you need per hour?
