Residential container house fast LCL convenience store rural mobile villa container house rental shop
- Category: >>>
- Supplier: Anhui Anteng Color Steel Structure Co. Ltd.
Share on (1601263173230):
Product Overview
Description
Living container mobile housing site mobile board housing fast Lashing simple
Products Description

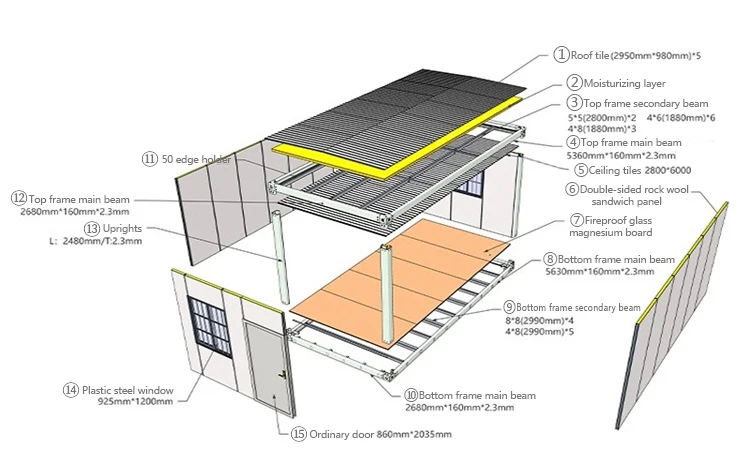

①Roof tile②Moisturizing layer③Top frame secondary beam④Top frame main beam⑤Ceiling tiles
⑥Double-sided rock wool sandwich panel⑦Fireproof glass magnesium board⑧Bottom frame main beam
⑨Bottom frame secondary beam⑩Bottom frame main beam⑪50 edge holder⑫Top frame main beam⑬Uprights⑭Plastic steel window⑮Ordinary door
Bottom | Frame structure | 2.2/2.5/3mm cold rolled steel profiles, | |
2.2/2.5/3mm cold formed cross members welded together | |||
Floor | 18mm fiber cement board | ||
Floor finishes | 1.6mm PVC flooring | ||
Roof | Frame structure | 2.2/2.5/3mm cold formed cross members, | |
corner fitting and steel purlin welded together | |||
Outside | 0.4mm galvanized and painted steel plate | ||
Insulation | 50mm glass wool/Rock wool sandwich panel | ||
Ceiling | 0.5mm steel sheet bottom tile | ||
Corner posts | 4.5mm cold rolled steel profile | ||
Wall panel | Sandwich panel with 75mm rockwool | ||
Window | UPVC sliding widow with screened and burglar bars (800mm/925mm*1100mm, Double glazed) | ||
Door | Steel door(950mm*2000mm) | ||
meet CE standard | |||
Electrical system | Include 2 external electric supply sockets,1 electricity box,2 wall-sockets,1 Air-conditioning socket,1 switch,2 fluorescent lamps | ||
Painting | Automatic galvanizing and baking paint spray molding | ||
Specification | Details | ||
External dimensions | 6058mm(L)*2438mm(W)*2800mm(H) | ||
Internal dimensions | 5858mm(L)*2238mm(W)*2505mm(H) | ||
Technical performance | Bottom loads | 2.00kn/m2 | |
Roof loads | 0.75kn/m2 | ||
Wind loads | 0.50kn/m2 | ||
Seismic rating | 8 | ||
Fire rating | Class A Non-combustible | ||
Thermal Insulation | 0.6w/(sqm/k) | ||
Staked layers | 3 | ||
Re-assemble times | 20+ | ||
Life time | 15 years | ||

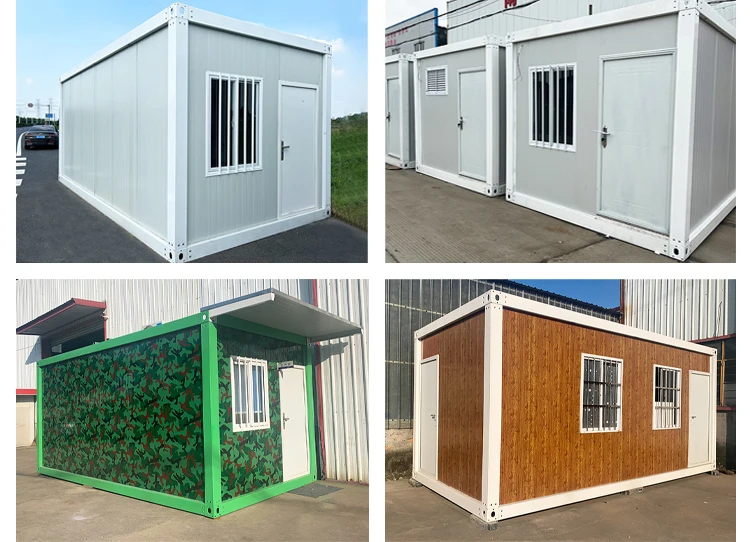

Details Images
Six Standards Quality Assurance
①Thickened Frame
2.3mm thickened frame
Good material, good quality
②Paint Process
High-temperature baking paint, the first high-temperature baking paint process, to ensure no peculiar smell and no formaldehyde when leaving the factory
③Fire-resistant Rock Wool
The wall panels are made of five-minute rock wool, A-class fireproof, sound insulation and heat preservation
④Security Window
Using plastic steel security windows, taking into account both aesthetics and durability
⑤Stainless Steel Door Lock
Durable
no fear of wind and rain
⑥Hard Floor
Thickened glass magnesium board
first-class moisture-proof effect
Fast Design
Four-hour fast drawing
Peers take a month
Provide free design solutions

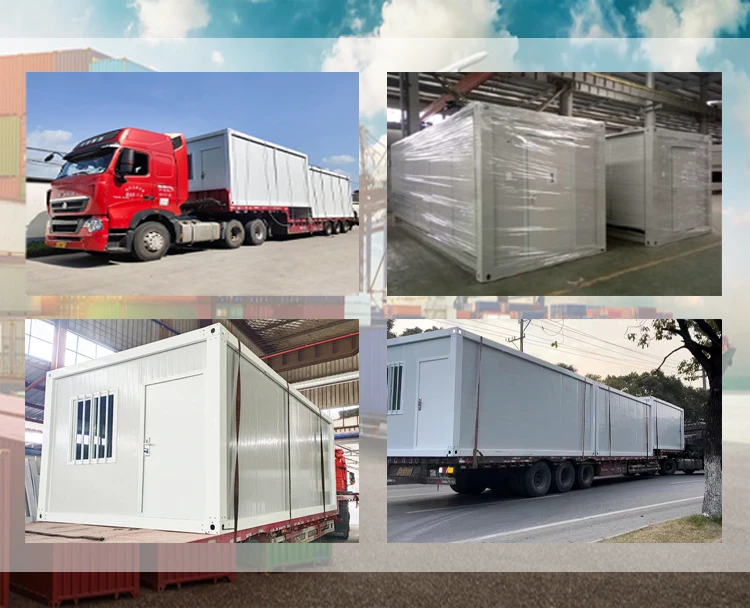

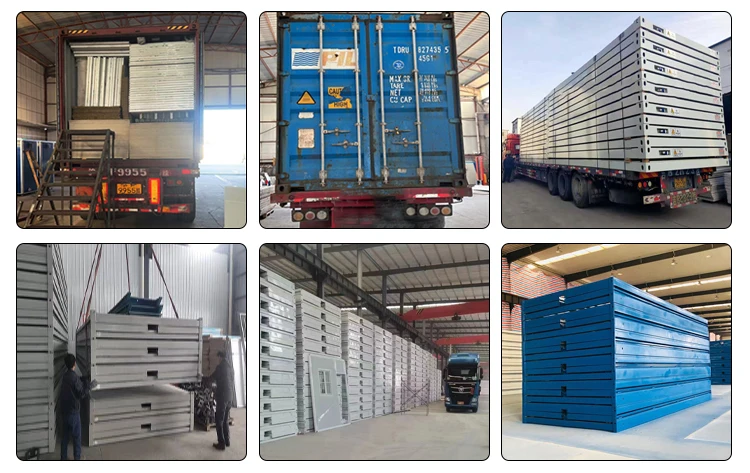

Real Picture&Shipping
A new mode of transport
Greater savings in transportation costs and space
Door-to-Door installation
Free installation video available

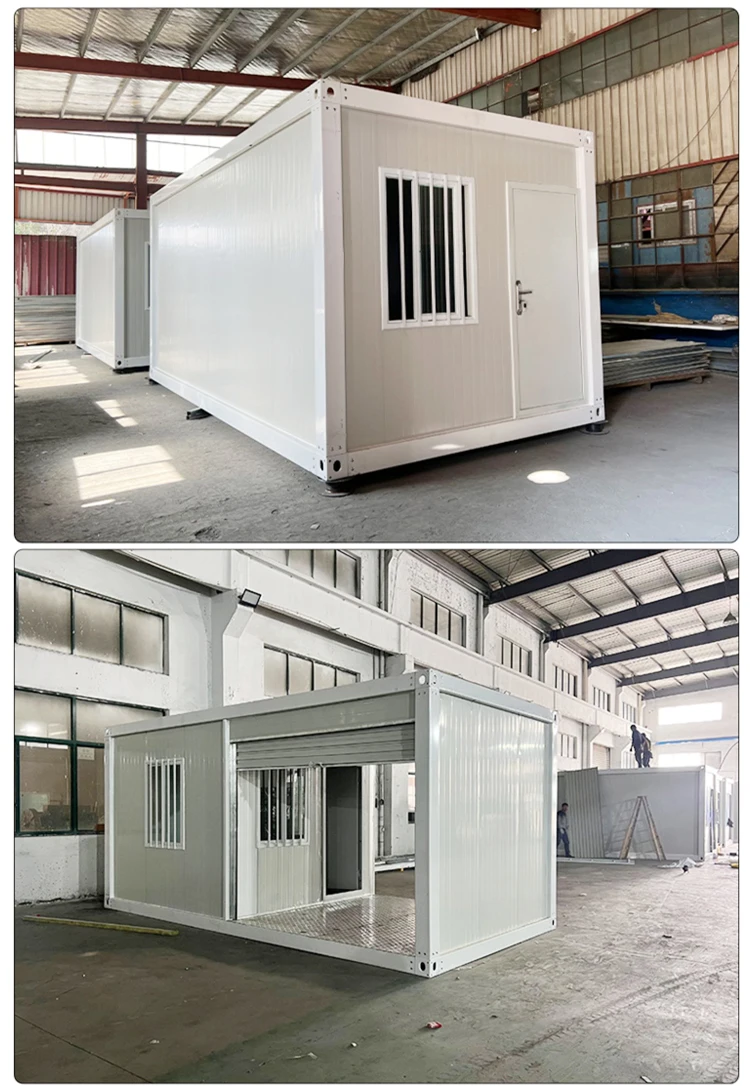

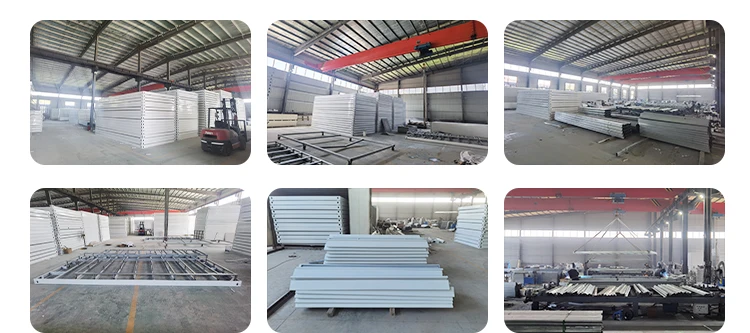

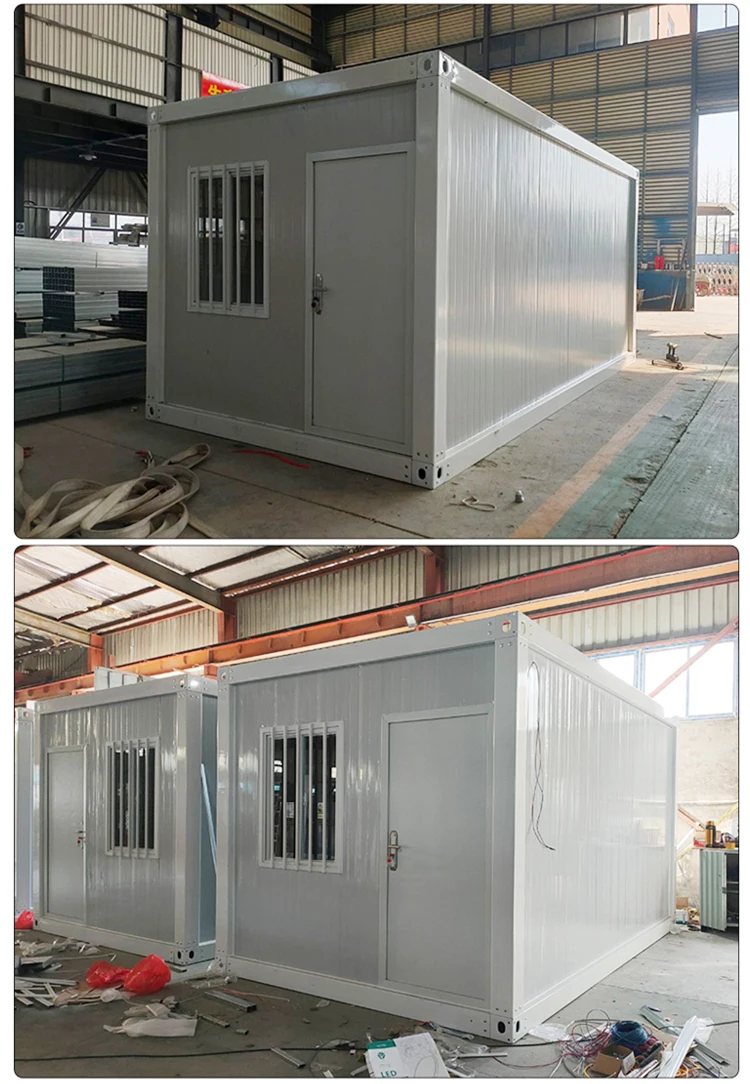

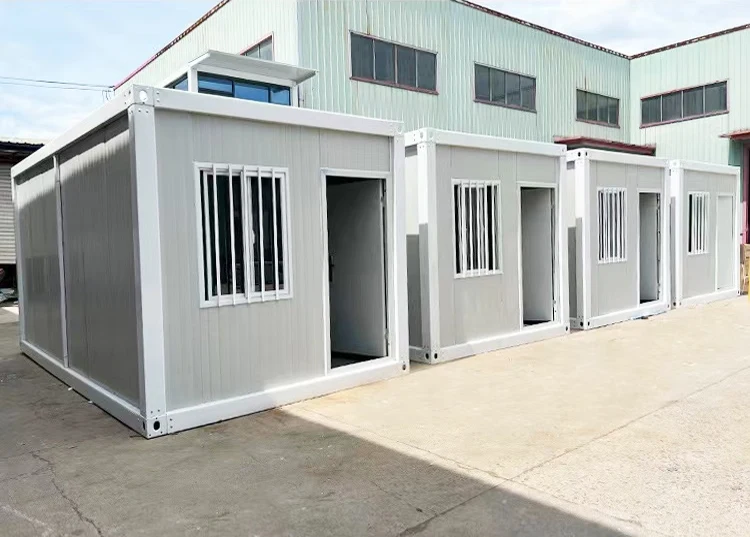

Product Factory Real Shot

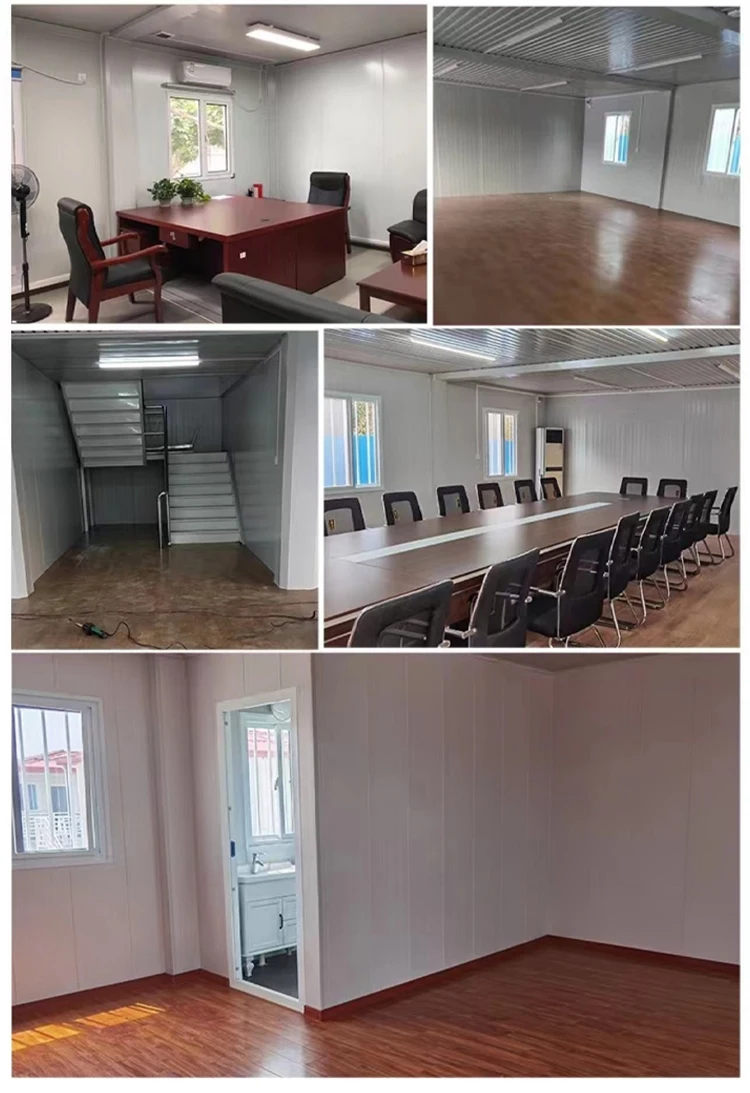

Internal Real Shot Of The Product
Factory&Company&Certification
