CJSE automatic biomass fired chain grate steam boiler for food processing
- Category: >>>
- Supplier: Shandong Zhongjie Pressure Equipment Co. Ltd.
Share on (1601263247451):
Product Overview
Description
DZL series biomass fired steam boiler
DZL series quick-installed boiler is a horizontal three-pass water-fire tube chain grate boiler designed for bituminous coal
combustion,and their performance characteristics are as follows:
1.The use of high-strength large grate pieces is suitable for the transportation and combustion of biomass fuel. The installation of roller device for large grate can improve the safety of grate and facilitate combustion adjustment;
2.The unique feeding device has strong fuel adaptability to prevent front combustion and upper combustion of furnace fire;
3.The unique secondary air supply device blows the flame back to prevent the flame from channeling into the hopper. And strengthen flue gas disturbance, promote combustion and prevent the generation of black smoke;
4.The heating surface and combustion device are reasonably arranged, and the thermal efficiency of the boiler is increased by 2%~5%;
5.Compact structure, small installation dimension, shorten installation period and reduce the cost of boiler room.
combustion,and their performance characteristics are as follows:
1.The use of high-strength large grate pieces is suitable for the transportation and combustion of biomass fuel. The installation of roller device for large grate can improve the safety of grate and facilitate combustion adjustment;
2.The unique feeding device has strong fuel adaptability to prevent front combustion and upper combustion of furnace fire;
3.The unique secondary air supply device blows the flame back to prevent the flame from channeling into the hopper. And strengthen flue gas disturbance, promote combustion and prevent the generation of black smoke;
4.The heating surface and combustion device are reasonably arranged, and the thermal efficiency of the boiler is increased by 2%~5%;
5.Compact structure, small installation dimension, shorten installation period and reduce the cost of boiler room.
Pressure grade:≤10MPa
Specifications:1-65 t/h
Available fuel：Paper sludge, wood pellet, wood chip, rice husk, sawdust, palm fibre, coconut shell, palm shell, coconut fiber,etc.
Applicated Industry：widely used in various industrial industry, such as textile, chemical, paper, food, agricultural products
processing industry, etc.
Available fuel：Paper sludge, wood pellet, wood chip, rice husk, sawdust, palm fibre, coconut shell, palm shell, coconut fiber,etc.
Applicated Industry：widely used in various industrial industry, such as textile, chemical, paper, food, agricultural products
processing industry, etc.
Product Advantages

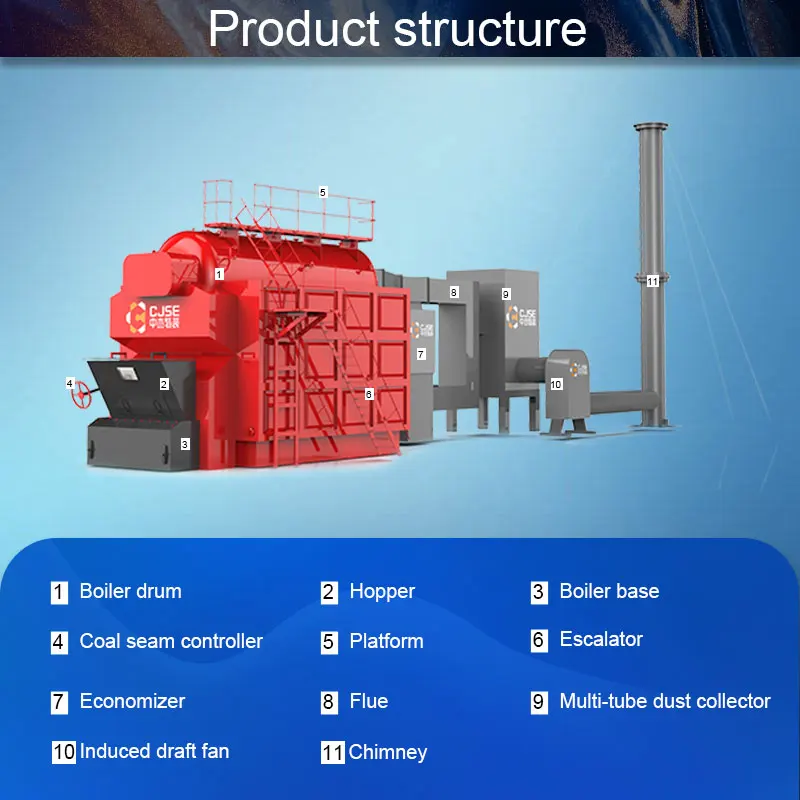

① Boiler drum | ② Hopper | ③ Boiler base |
④ Coal seam controller | ⑤ Platform | ⑤ Platform |
⑦ Economizer | ⑧ Flue | ⑨ Multi-tube dust collector |
⑩ Induced-draft fan | ⑪ Chimney |
Model/Item | Rated Steam capacity(T/H) | Rated Working Pressure（Mpa） | Design Thermal Efficiency (%) | Feed Water Temperature(℃) | Boiler Transport Weight (T) |
DZL2-1.0/1.25-SCI | 2 | 1.0/1.25 | 84.6/84.52 | 20 | 16.5 |
DZL4-1.0/1.25/1.6-SCI | 4 | 1.0/1.25/1.6 | 83.8/83.61 | 20 | 31 |
DZL6-1.25/1.6-SCI | 6 | 1.25/1.6 | 83.52/83.2 | 20 | 38.6 |
DZL8-1.25/1.6-SCI | 8 | 1.25/1.6 | 82.7/82.36 | 20 | 21/15 |
DZL10-1.25/1.6-SCI | 10 | 1.25/1.6 | 84.23/84.1 | 105 | 23/17 |
DZL15-1.25/1.6-SCI | 15 | 1.25/1.6 | 84.7/84.4 | 105 | 24/21 |
DZL20-1.25/1.6-SCI | 20 | 1.25/1.6 | 84.9/84.5 | 105 | 30 |
DZL30-1.25/1.6-SCI | 30 | 1.25/1.6 | 87.9/87.4 | 105 | 30.1 |
DZL35-1.25/1.6-SCI | 35 | 1.25/1.6 | 87.8/87.3 | 105 | 35.2 |
DZL40-1.25/1.6-SCI | 40 | 1.25/1.6 | 87.8/87.3 | 105 | 38.6 |
Factory filming
We have over 600 advanced production machines, providing a solid foundation for product manufacturing. The manufacturing process involves more than ten steps, including cutting, head pressing, rolling, longitudinal and circumferential seam welding, assembly welding, machining, heat treatment, hydrostatic testing, sandblasting, painting, and more. Each step is staffed with skilled professionals, and further subdivided to enhance efficiency and product quality.
Products Description
Shipment photos
We offer a diverse range of transportation options, including bulk cargo shipping and container shipping. For bulk cargo
shipping, we use tarpaulins and cargo nets to package the tanks, ensuring moisture and corrosion resistance, providing worry-free safety. You can choose from ocean shipping, land transportation, or railway transportation based on your needs.
Our Service
Why Choose Us
Company Factory
Certifications
Exhibition
Customer group photos
Our personnel have participated in exhibitions in more than 20 countries, and our customers are spread across over 60 countries and regions.
Successful Project
Cooperative partners
30+ Global Top 500 enterprises cooperation experience such as Air Liquide, Coca Cola, Sinopec and so on.
