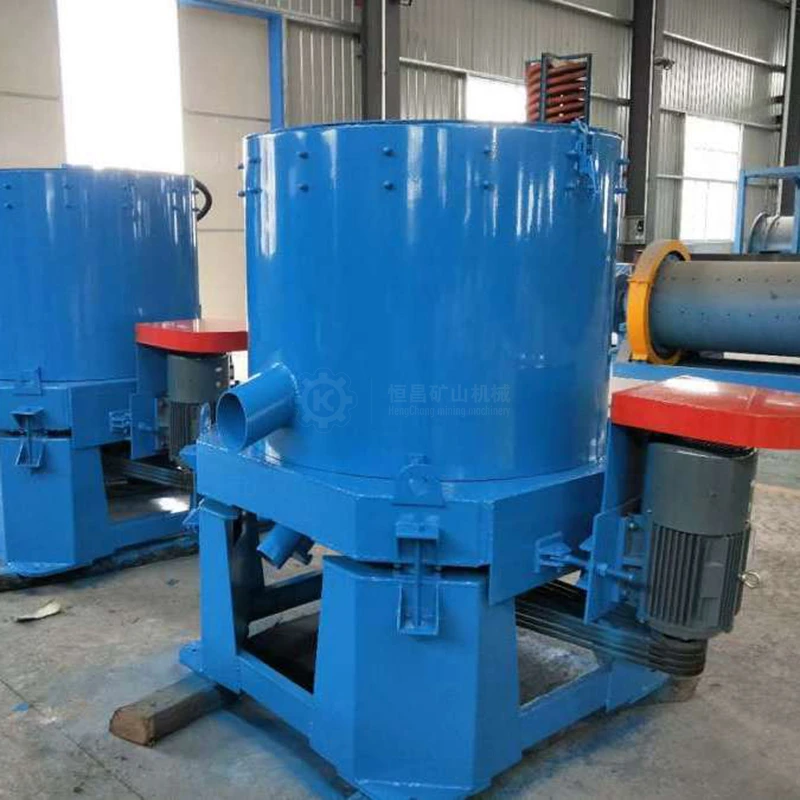

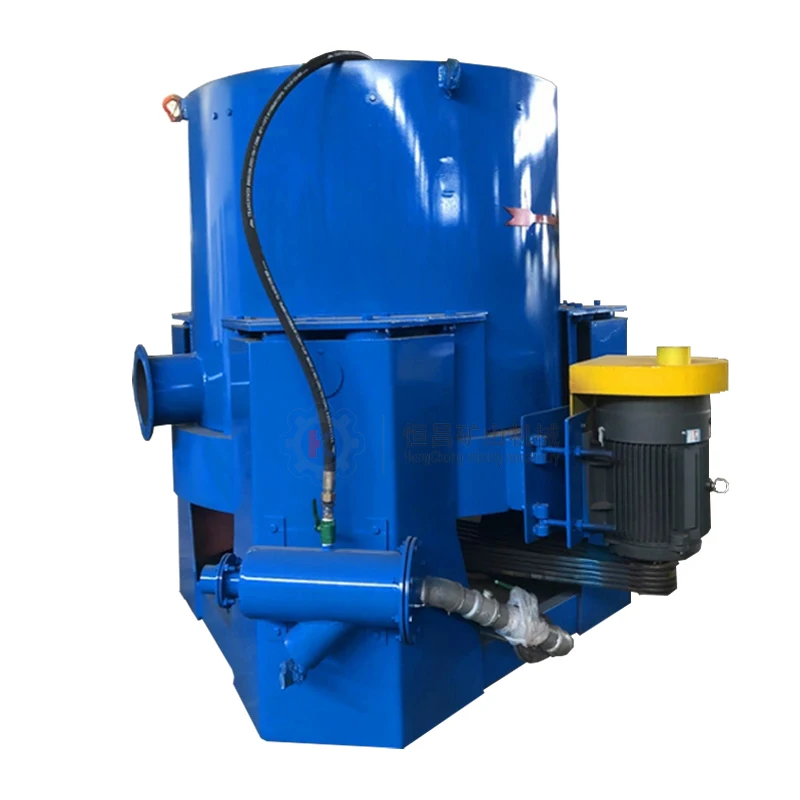

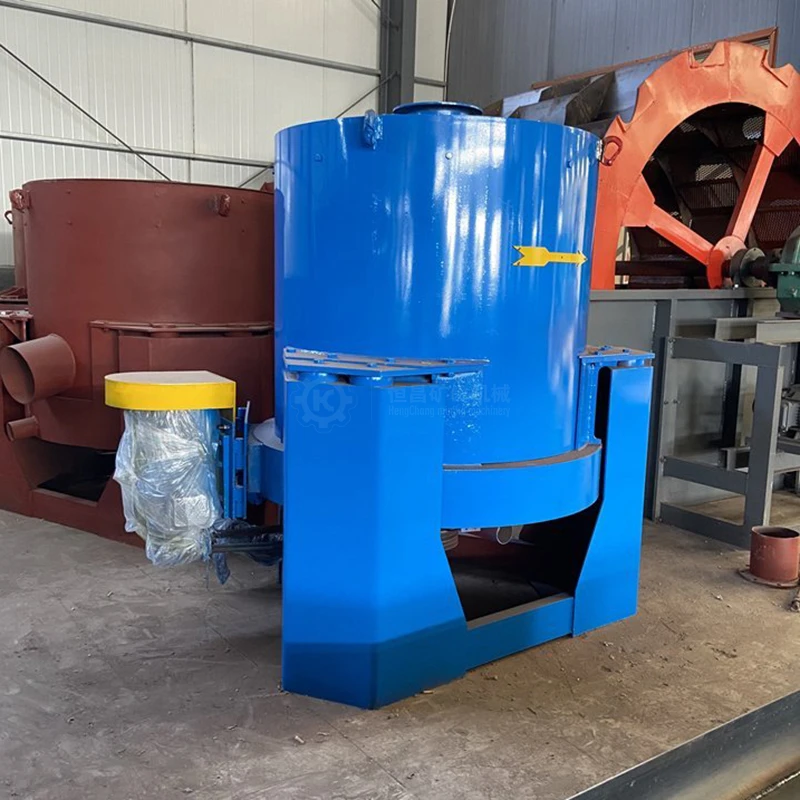

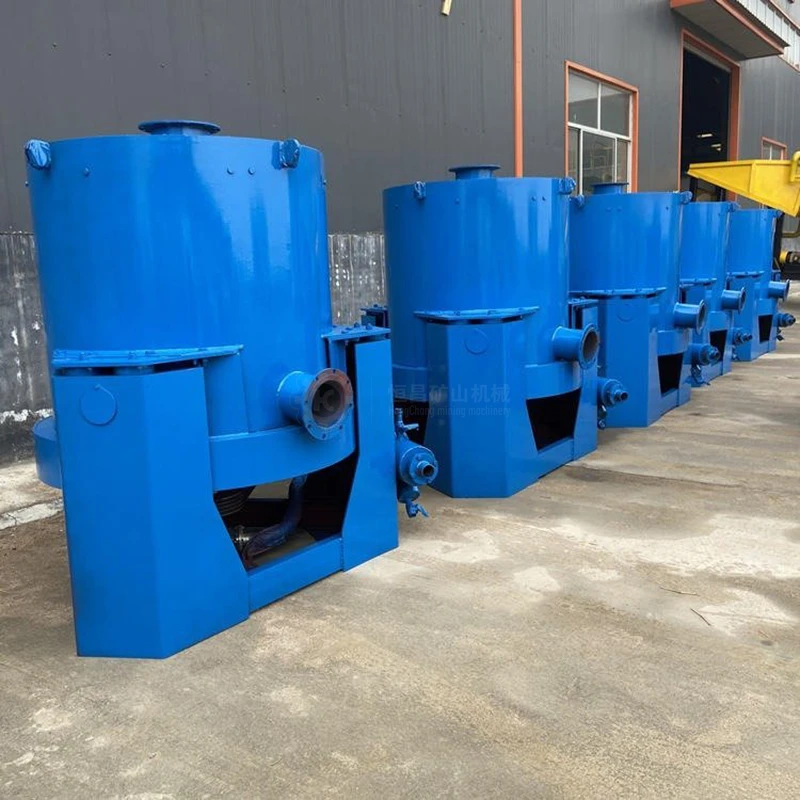

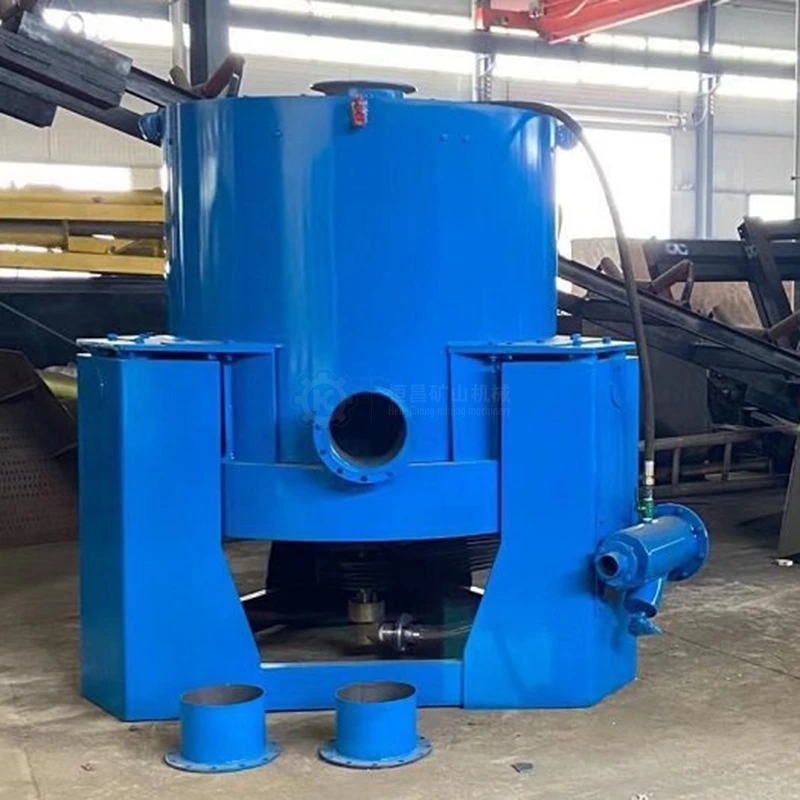

High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation
- Category: >>>
- Supplier: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.Jiangxi Ltd.
Share on (1601263251926):
Product Overview
Description
High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation
Hengchang machinery gold centrifugal concentrator can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Introduction of High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation
Gold extraction machines centrifugal concentrator stlb 60 is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Working Principle of High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation

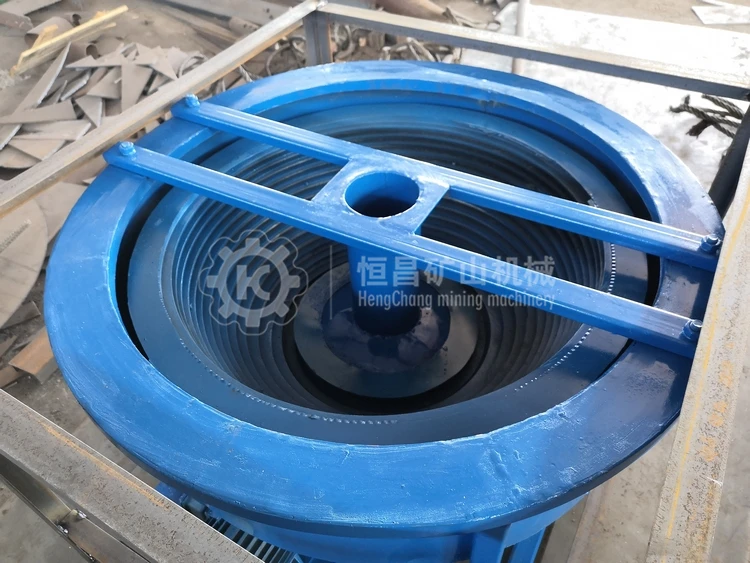

The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Application of High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation
Gold extraction machines centrifugal concentrator stlb 60 is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Working Principle of High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation
The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Application of High Recovery Gold Centrifugal Concentrator for Gold Alluvial Mineral Separation

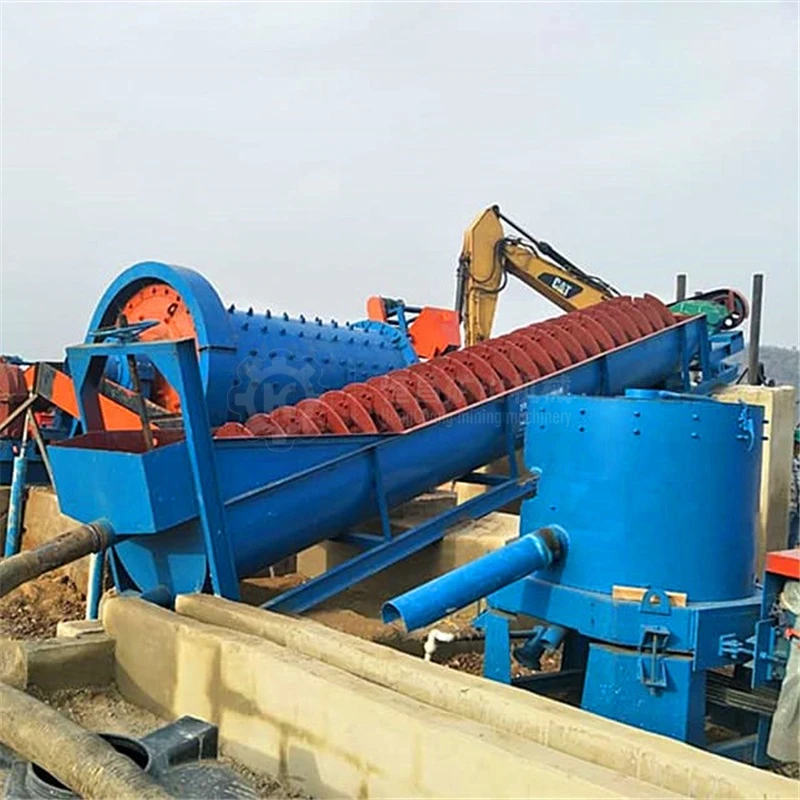

It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Model | STL-30 | STL-60 | STL-80 | STL-100 |
Capacity (t/h) | 2-3 | 10-20 | 35-45 | 60-120 |
Feeding size (mm) | 0-4 | 0-6 | 0-6 | 0-6 |
Feeding density (%) | 0-50% | 0-50% | 0-50% | 0-50% |
Backwash water (t/h) | 4-6 | 10-15 | 17-25 | 40-60 |
Output(kg/time) | 10-20 | 30-40 | 60-70 | 70-80 |
Motor power(kw) | 1.5 | 5.5 | 11 | 18.5 |
Revolution ® | 600 | 460 | 400 | 360 |
Pressure water(Mpa) | 0.12 | 0.25 | 0.35 | 0.4 |
Dimension(mm) | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2500x2000x2400 |
Weight (kg) | 400 | 1300 | 2000 | 2500 |
FAQ
Q1: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2: What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3: Is it factory?
Yes,we have our own factory.and welcome to visit our factory.
Q4. Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2: What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3: Is it factory?
Yes,we have our own factory.and welcome to visit our factory.
Q4. Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
