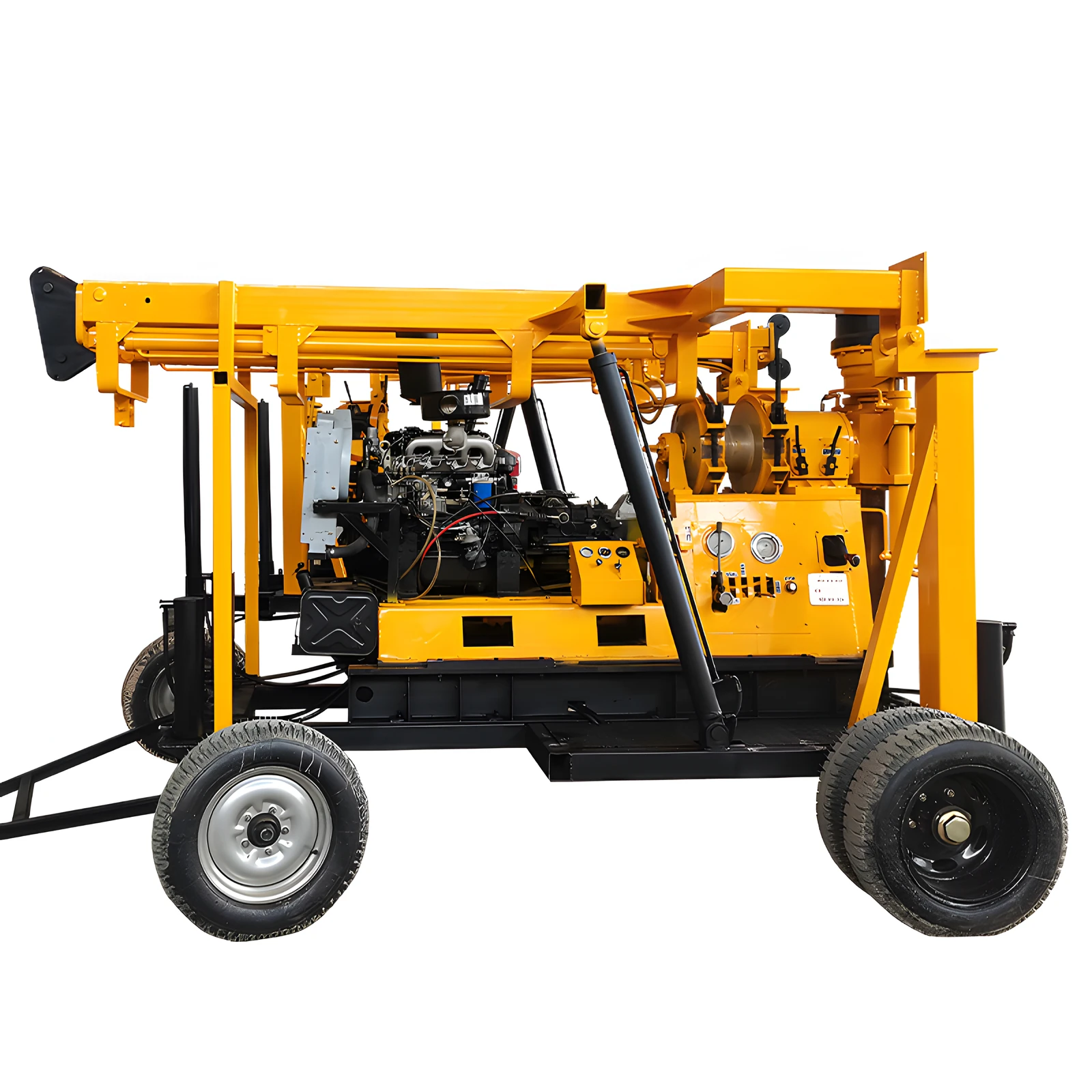

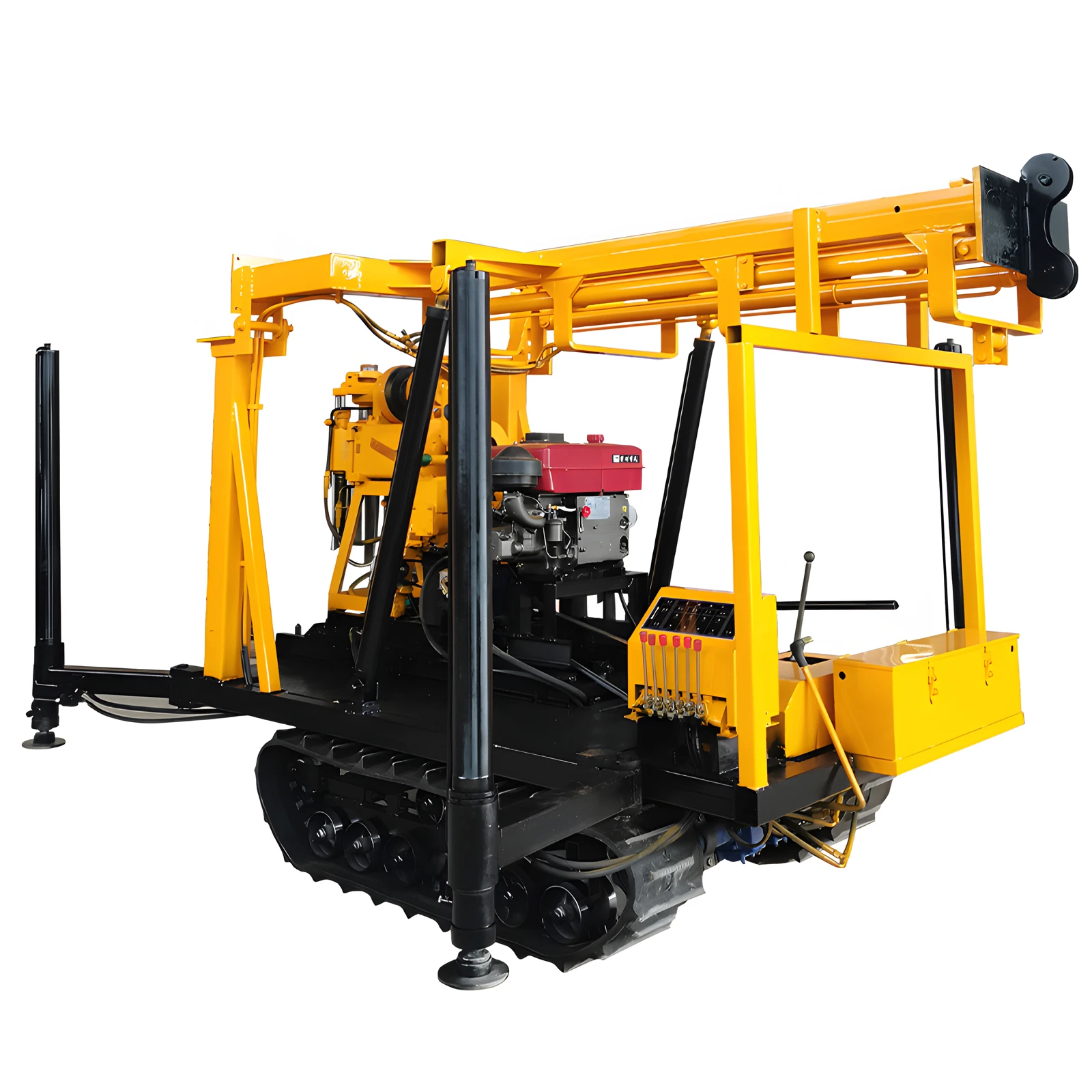

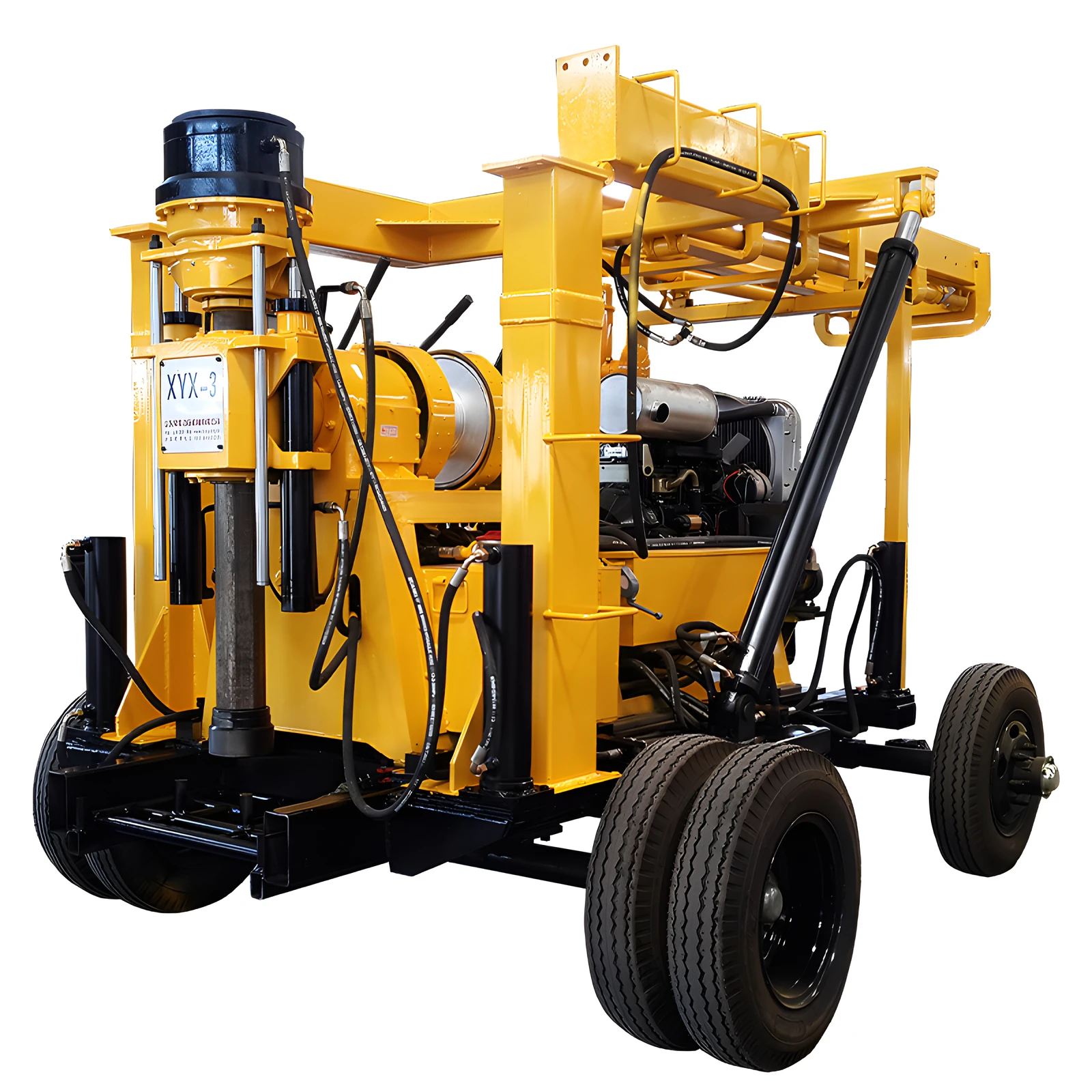

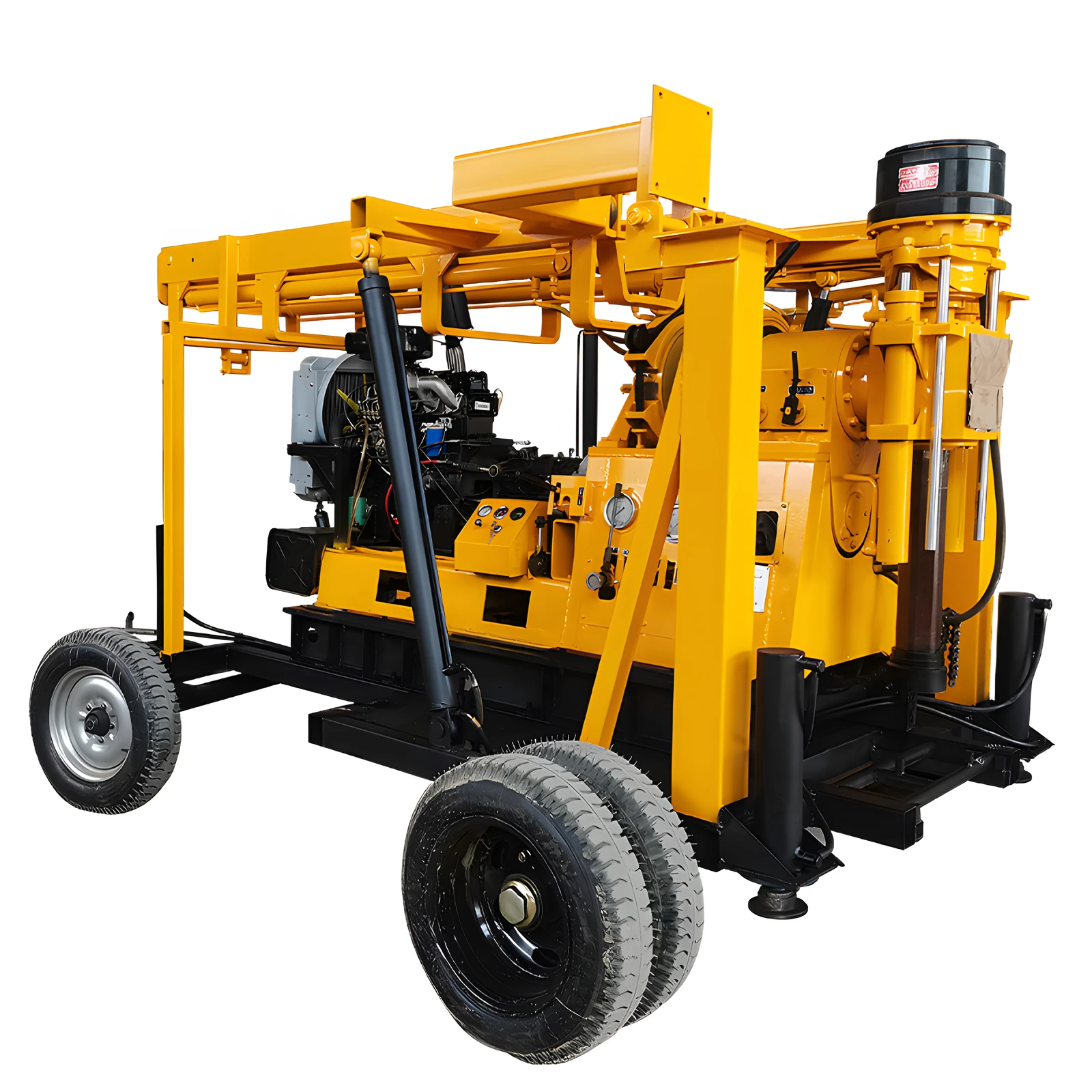

Hot Style Full Hydraulic Portable Diamond Core Drilling Rig for Mining Drilling
- Category: >>>
- Supplier: Henan Yulu Machinery Co. Ltd.
Share on (1601263276332):
Product Overview
Description
Core Drilling Rig Machines
Core Drilling Rig Technical Parameters:
Model | YG130Y/130YY | YG180Y/180YY | YG200Y/200YY |
Drilling depth | 130m | 180m | 200m |
Drilling diameter | 75-220mm | 75-220mm | 75-325mm |
Hole angle | 90-75° | 90-75° | 90-75° |
Drill pipe diameter | 42-60mm | 42-60mm | 42-60mm |
Vertical stroke | 450mm | 450mm | 450mm |
Electric power | 13.2KW | 13.2kw | 14.7kw |
Dimension | 2400*950*1400mm | 2400*800*1300mm | 2700*950*1770mm |
weight | 920KG | 955kg | 1150kg |
Core Drilling Rig Product Description:
Hydraulic core drilling rig is mainly used for geological general investigation and exploration, kinds of hole in concrete structure,road and tall building foundation exploration, river levees, sub-grade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc.

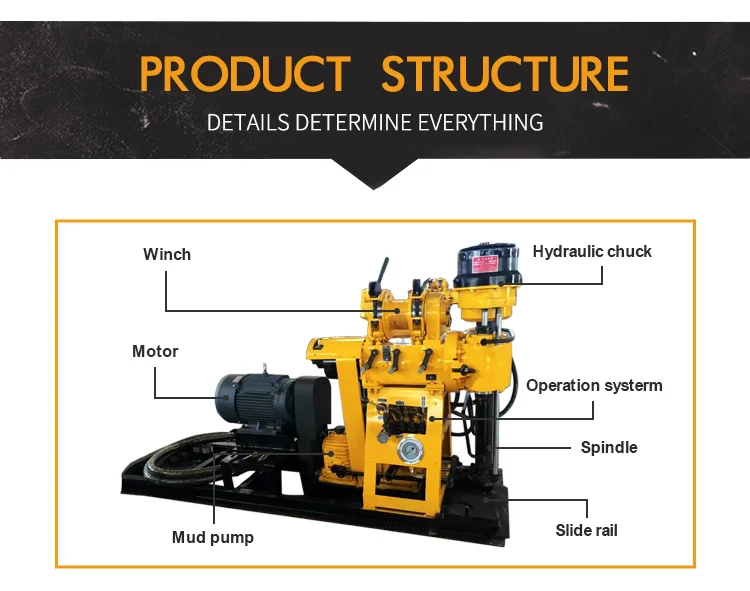

Core Drilling Rig Product Structure:

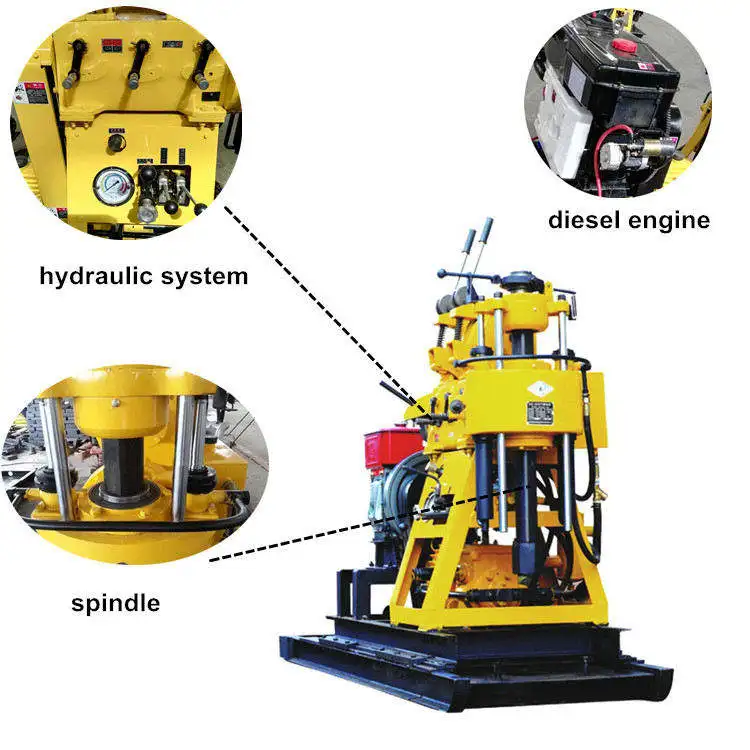

Core Drilling Rig Details:

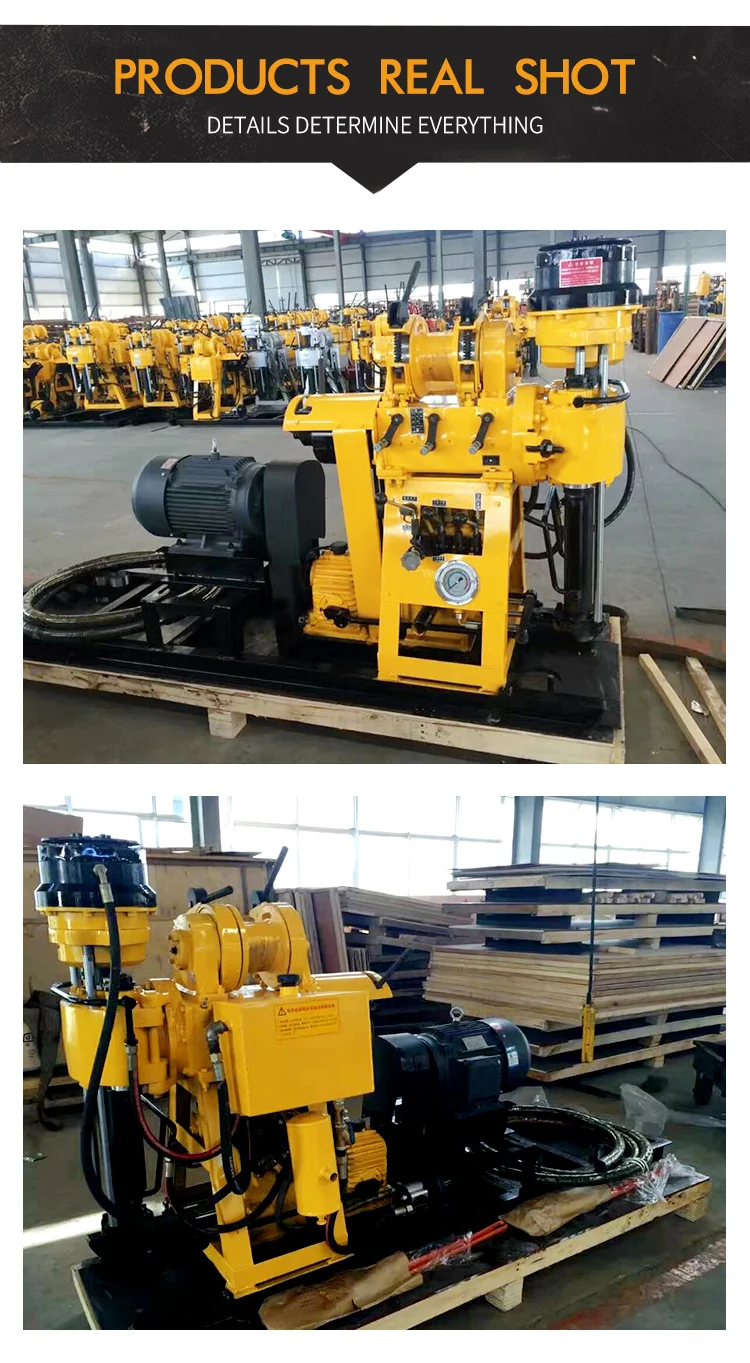

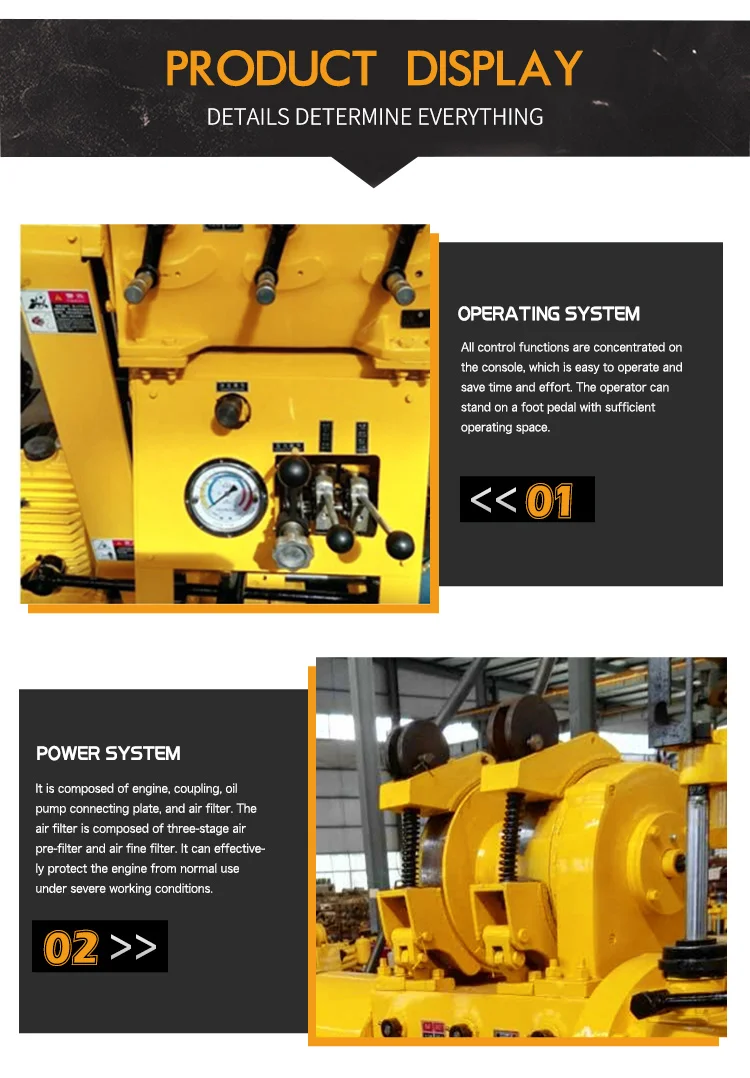

Core Drilling Rig Product Display:
Packing & Delivery
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
