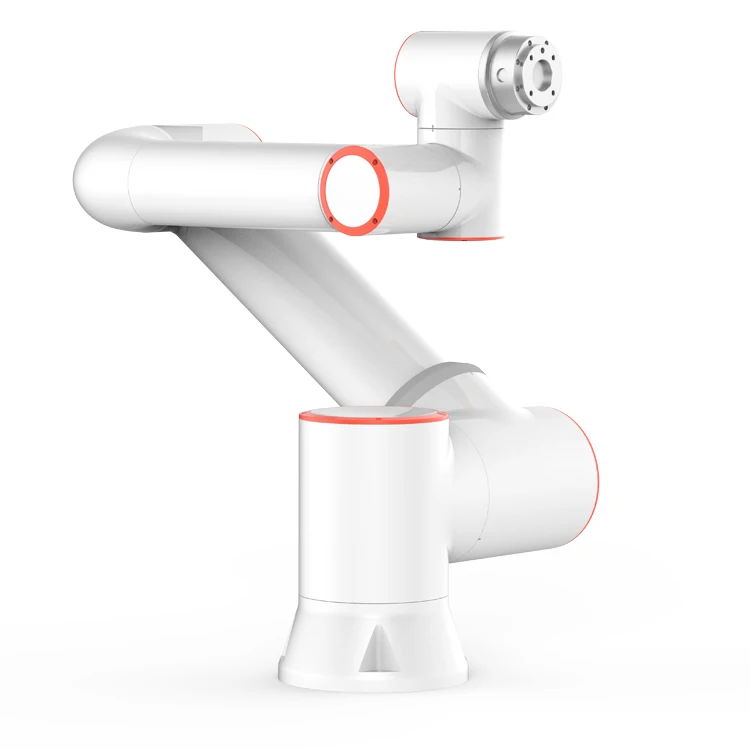

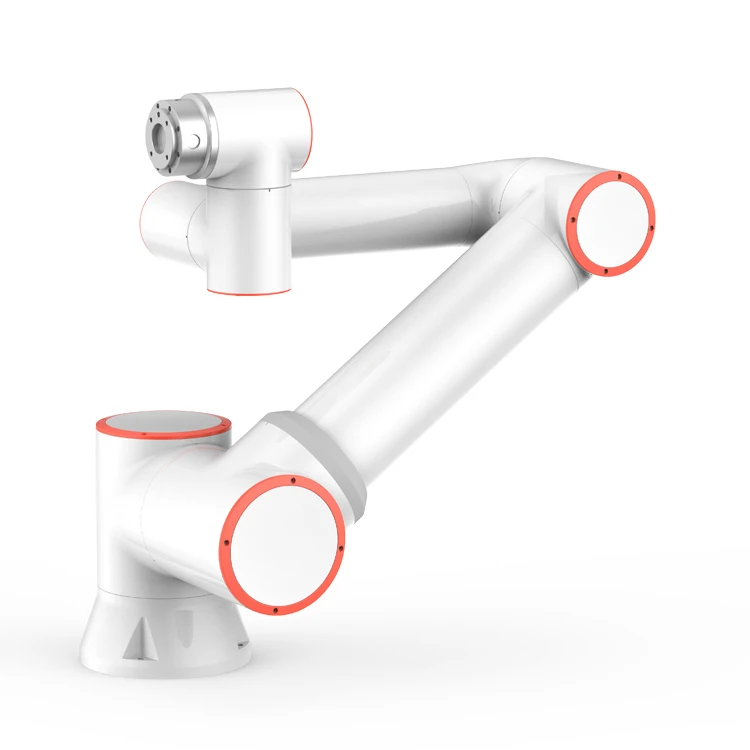

High Cost effective Collaborative Cobot 6 Axis Arm FR16 Hot Selling Industrial Robotic Arm for Welding
- Category: >>>
- Supplier: Hangzhou Golden Persimmon Intelligent Technology Co. Ltd.
Share on (1601264402961):
Product Overview
Description
Model number | FR16 | ||
Payload | 16kg | ||
Reach | 1034mm | ||
Degrees of freedom | 6 rotating joints | ||
HMI | 10.1 inch teach pendant or mobile terminal Web App | ||

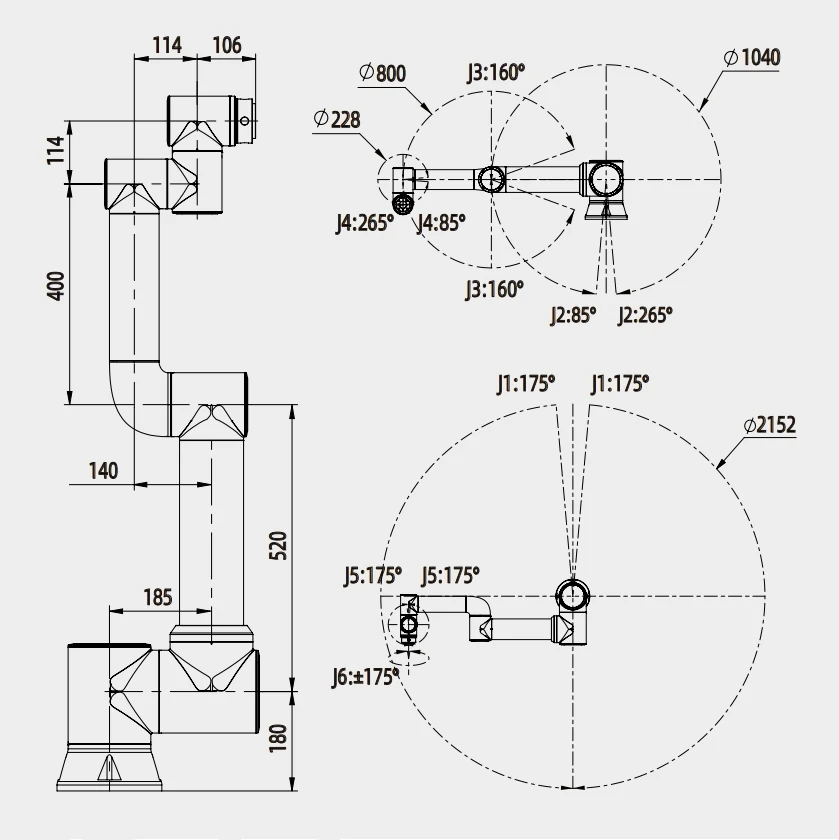

Axis movement | Working range | Maximum speed | |
1 Axle | ±175° | ±120°/s | |
2 Axle | ﹢85°/ ﹣265° | ±120°/s | |
3 Axle | ±160° | ±180°/s | |
4 Axle | ﹢85°/ ﹣265° | ±180°/s | |
5 Axle | ±175° | ±180°/s | |
6 Axle | ±175° | ±180°/s | |
Typical TCP speed | 1m/s | ||
IP classification | IP54 | ||
Noise | <65dB | ||
Robot mounting | Any orientation | ||
I/O | (DI) 2 | (DO) 2 | |
(AI) 1 | (AO) 1 | ||
Power supply | 24V/1.5A | ||

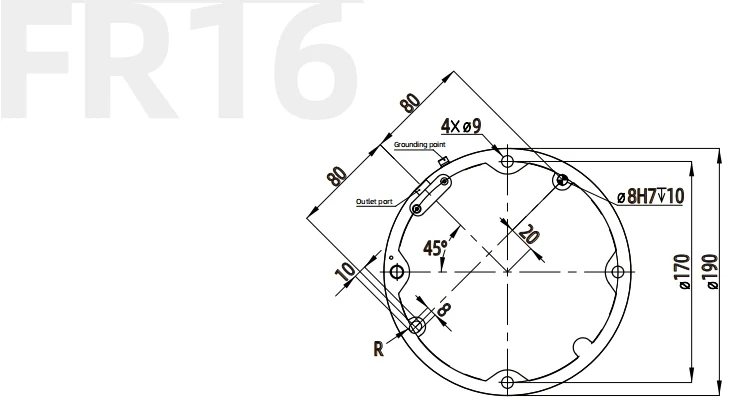

Footprint | 190mm | ||
Weight | ≈40kg | ||
Operating temperature | 0-45℃ | ||
Operating humidity | 90%RH (non-condensing) | ||
Materials | Aluminium、Steel | ||
Materials | Aluminium、Steel | ||
Q1.Who we are?
Hangzhou Jinpersimmon Intelligent Technology Co., Ltd. is a collaborative robot company that prioritizes independent research and development of all core components in the domestic market. The company's headquarters and R&D center are located in Hangzhou, Zhejiang, with three large production bases in Hangzhou, Suzhou, and Zibo.
Q2.What is warranty?
12 months
Q3.Why choose us?
We have excellent quality products, very competitive product prices and the most professional team.
Q4. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
LanguageSpoken:English,Chinese
