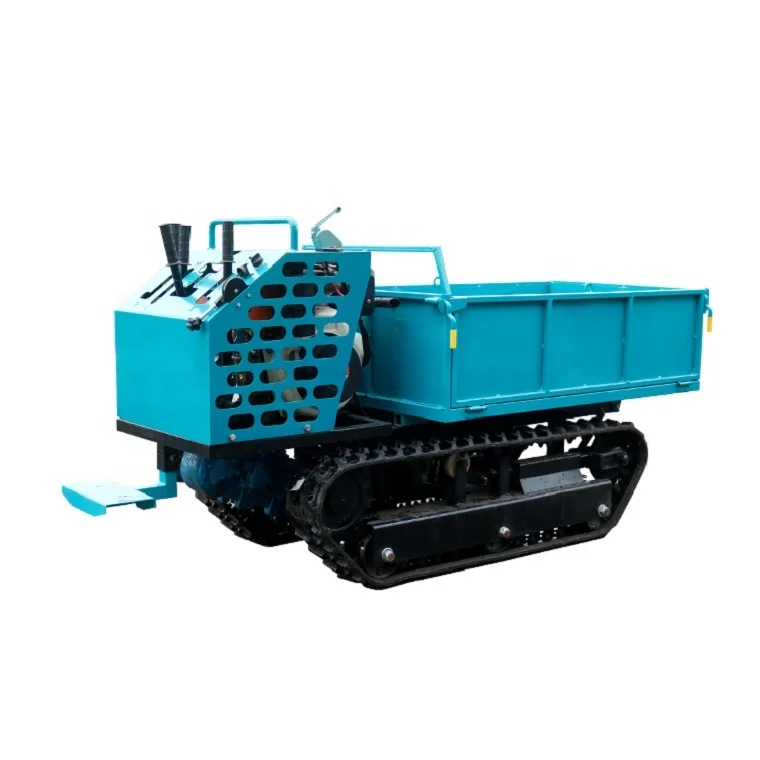

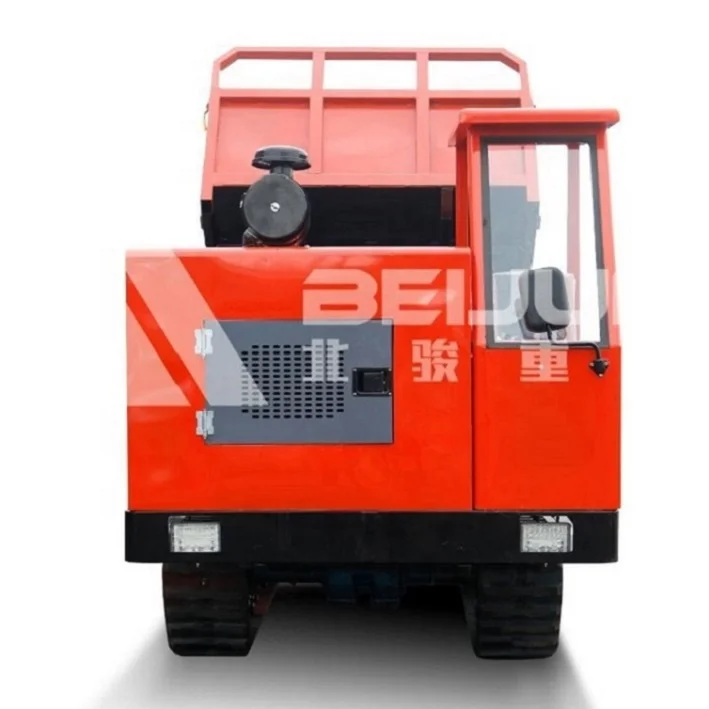

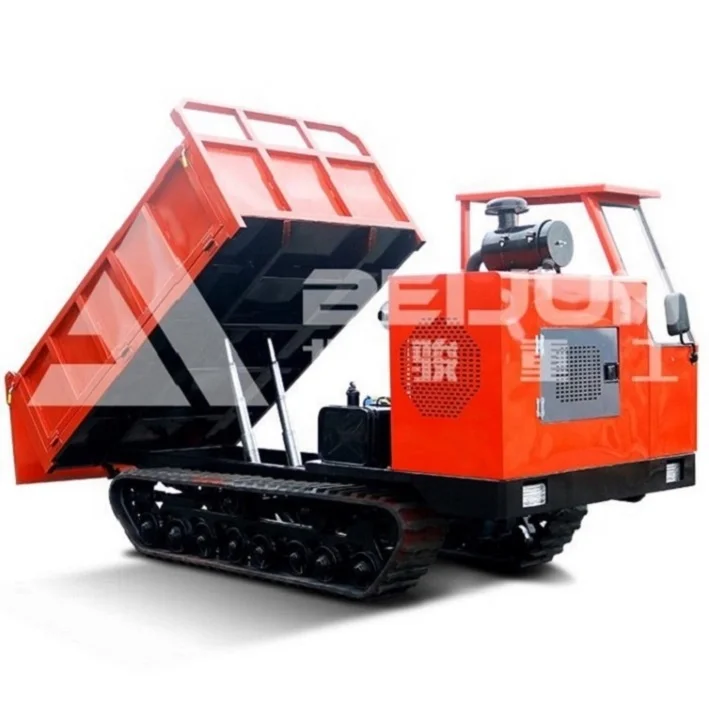

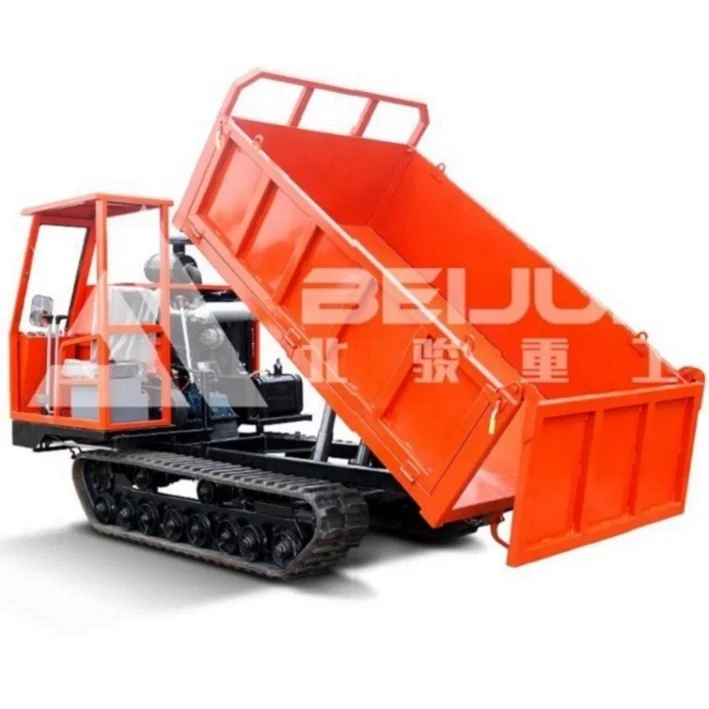

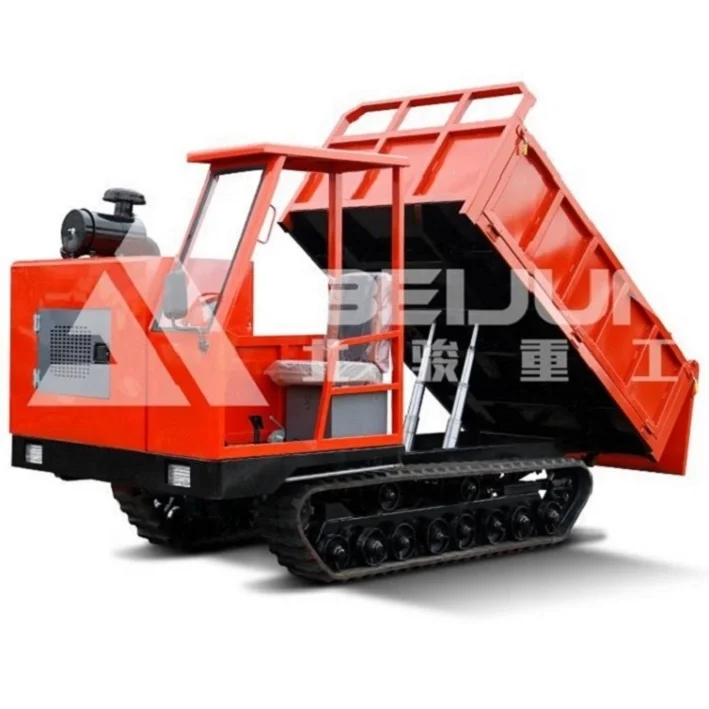

Fully Hydraulic 6t 8t 10t 12t Tracked Portable Crawler Dumper For Swamp
- Category: >>>
- Supplier: Shandong Beijun Heavy Industry Co. Ltd.
Share on (1601264498730):
Product Overview
Description
Product Overviews

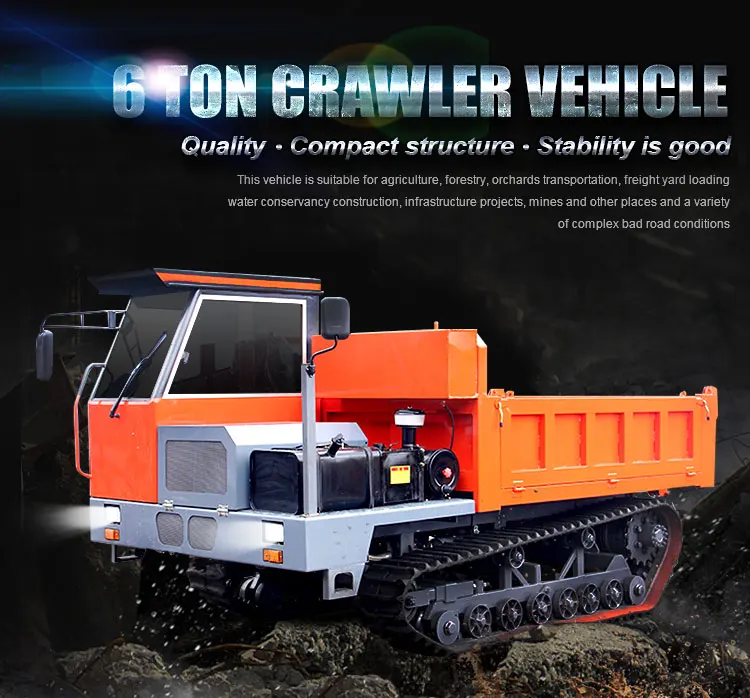

Performance characteristics of BJC-60 tracked transport vehicle
Using domestic engine, gearbox, low speed and high torque, the climbing performance is greatly improved.
With superior waterproof performance, high-level waterproof sealing treatment is adopted for vehicle lines and electrical
appliances, which effectively avoids the phenomenon of electric leakage due to excessive water in the roadway.
Large angle steering, smaller turning radius, more suitable for complex road conditions with narrow and curved roadways.
Domestically used regular steel frames for automobiles are more tough than traditional riveted and welded frames, and they remain
intact after heavy pressing.
With superior waterproof performance, high-level waterproof sealing treatment is adopted for vehicle lines and electrical
appliances, which effectively avoids the phenomenon of electric leakage due to excessive water in the roadway.
Large angle steering, smaller turning radius, more suitable for complex road conditions with narrow and curved roadways.
Domestically used regular steel frames for automobiles are more tough than traditional riveted and welded frames, and they remain
intact after heavy pressing.
Product Paramenters
Type number | BJC-6tons Vehicle |
Length*width*height mm | 4300*1800*1800 |
Cabin size mm | 2700*1800*550 |
Carriage plate thickness | Bottom 4 sides 3 |
Chassis width m | 1.85 |
Engine model/power | Weichai4102 Supercharged engine/95HP |
Drive method | Air brake rear axle brake |
Gearbox model | Dongfeng 145 |
Drive axle model | Dongfeng 1098 Rear axle |
Crawler specifications | 400*90*70 |
Crawler system | Engineering rubber track |
Number of unilateral tugs | 8 groups |
Tug diameter | 200 Riding a straddle tug 206Bearing The front and rear sets of wheels are solid wheels 207 Bearing |
Hydraulic cylinder model | 115*900 Double top dumper |
Start method | Electric Kai |
Rated load T | 6 |
Vehicle weight( kg) | 3800 |
Gear | Forward 5 gears,Reverse 1 gear |
Lifting height mm | 1700mm |
Driving speed km/h | 0-25 |
Details Images
Apply to the environment
Certifications
Company Information

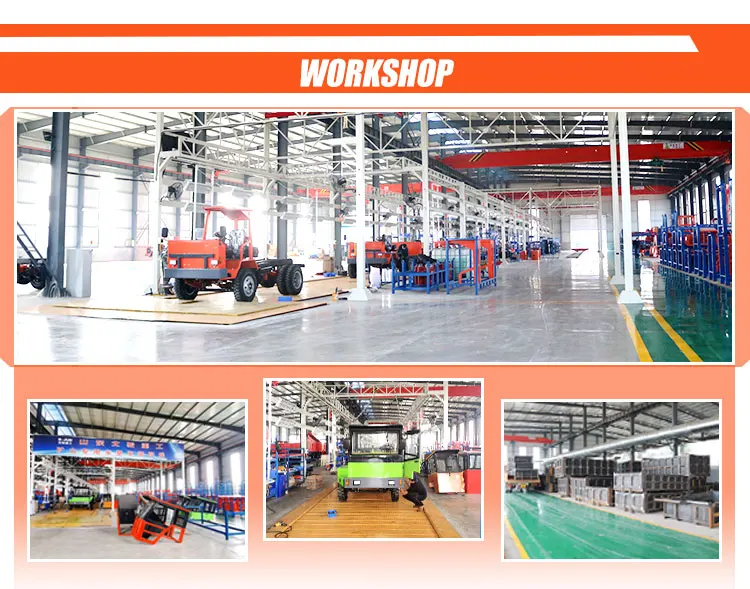

Factory workshop
