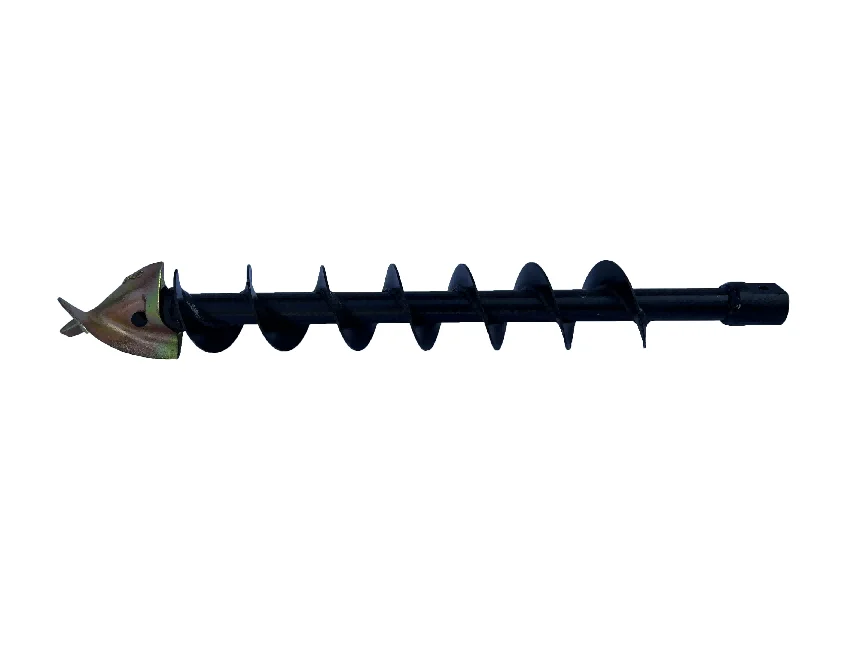

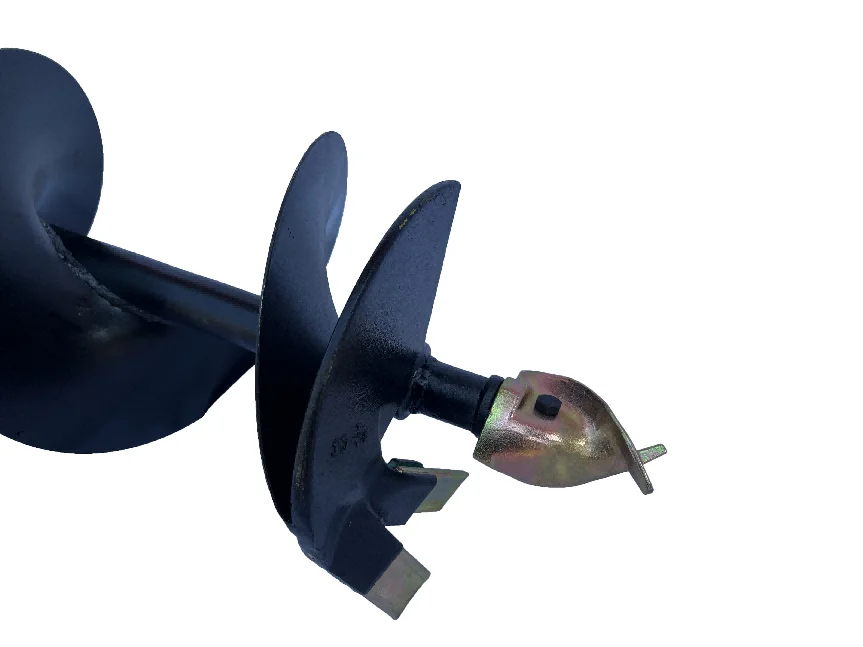

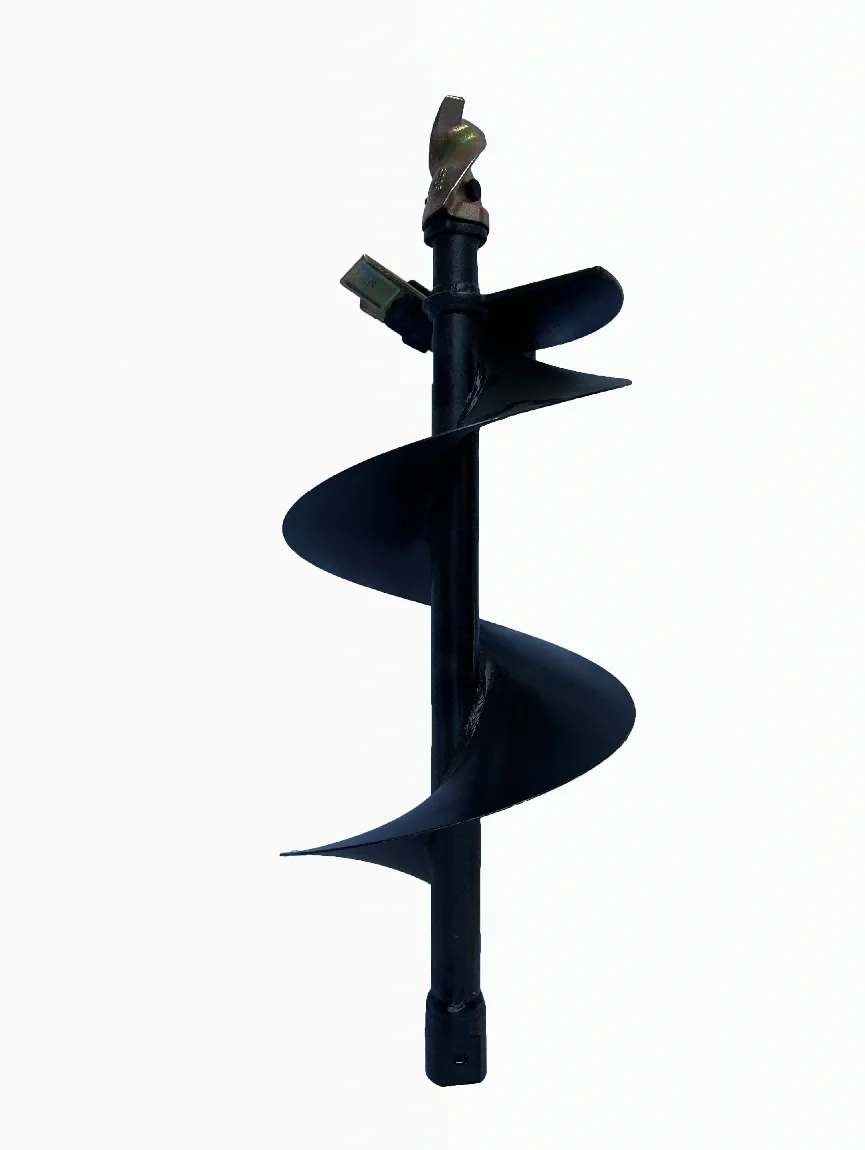

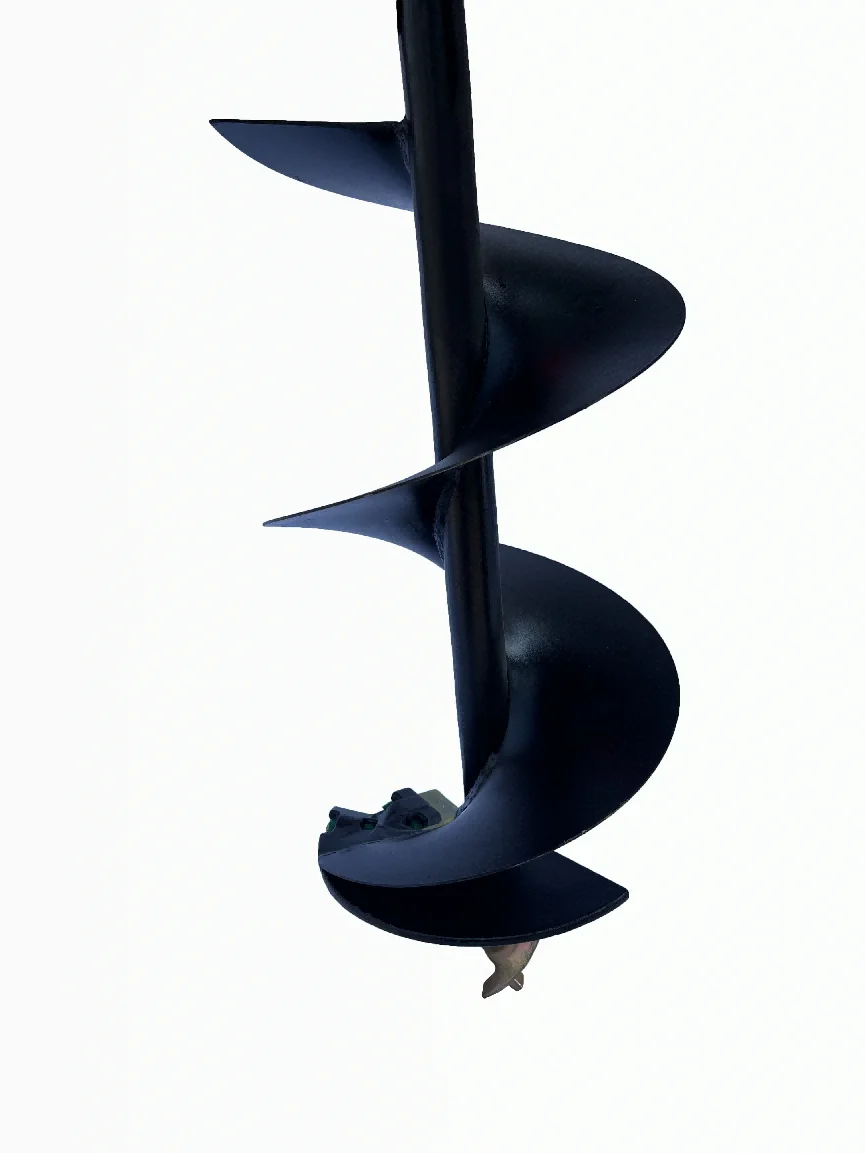

Digging Holes Screw Drill Hydraulic Earth Auger For Excavator
$1,800.00-2,000.00

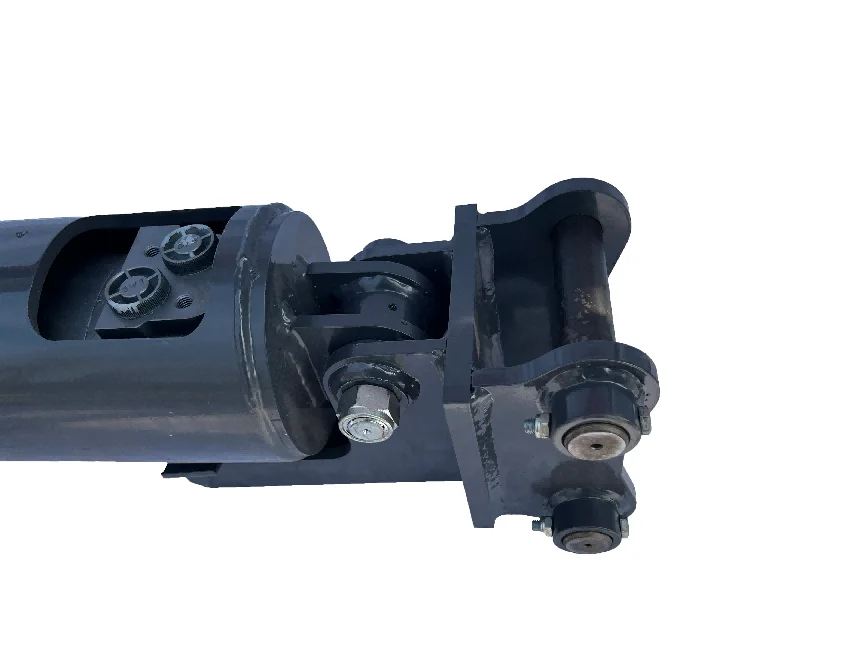

ChuangXin 2024 Mini Hydraulic Crawler Excavator Auger drill to dig hole attachment for 1 5 ton mini excavator wholesale price
- Category: >>>
- Supplier: Ningbo Yinzhou Chuangxin Construction Machinery Co. Ltd.
Share on (1601264536739):
Product Overview
Description
Products Description

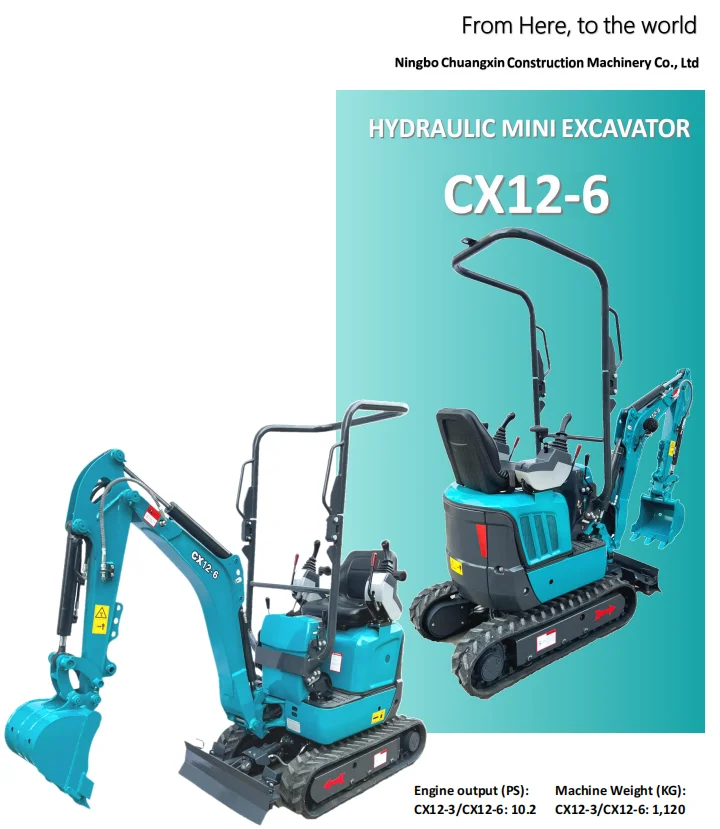

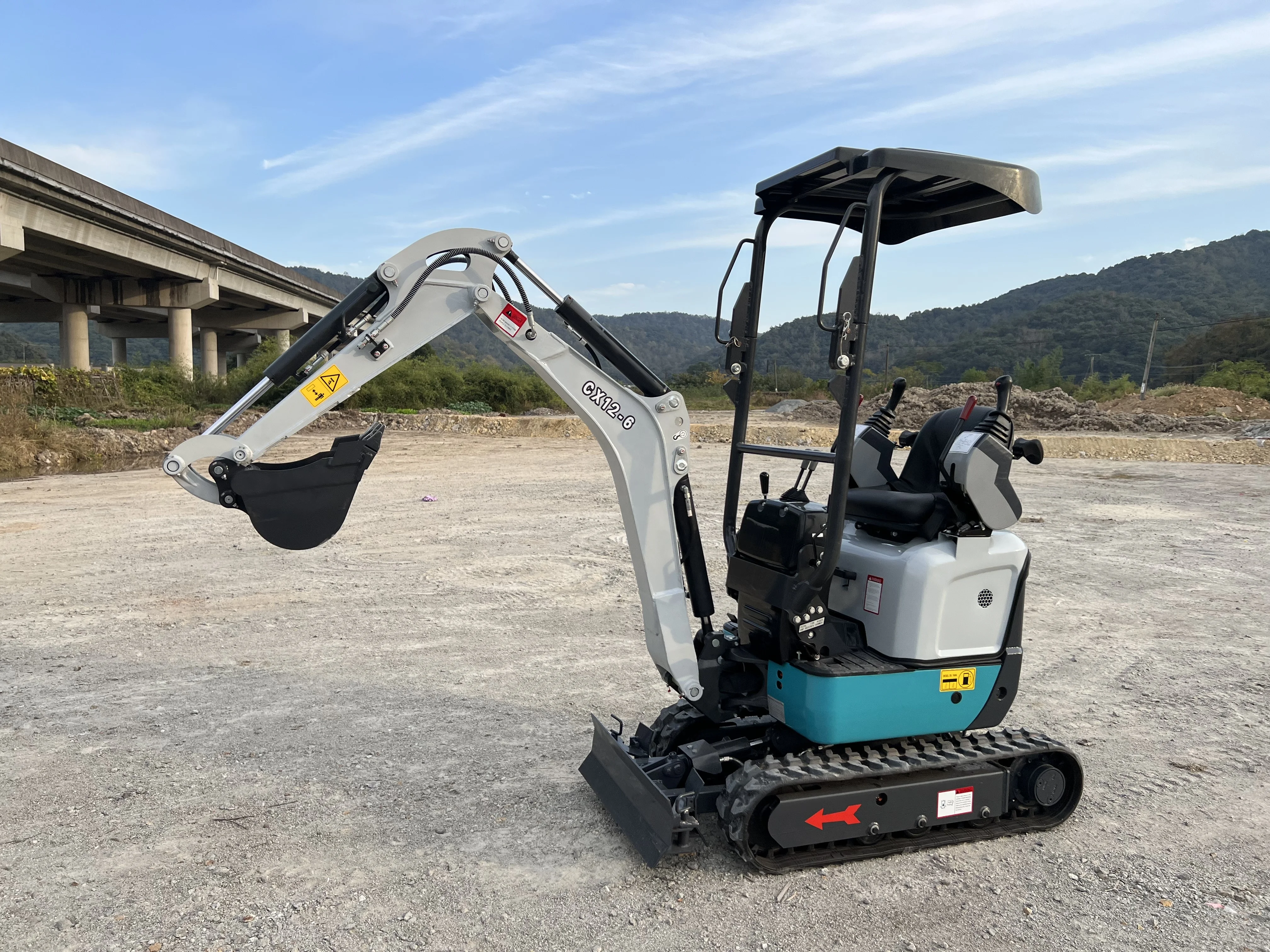

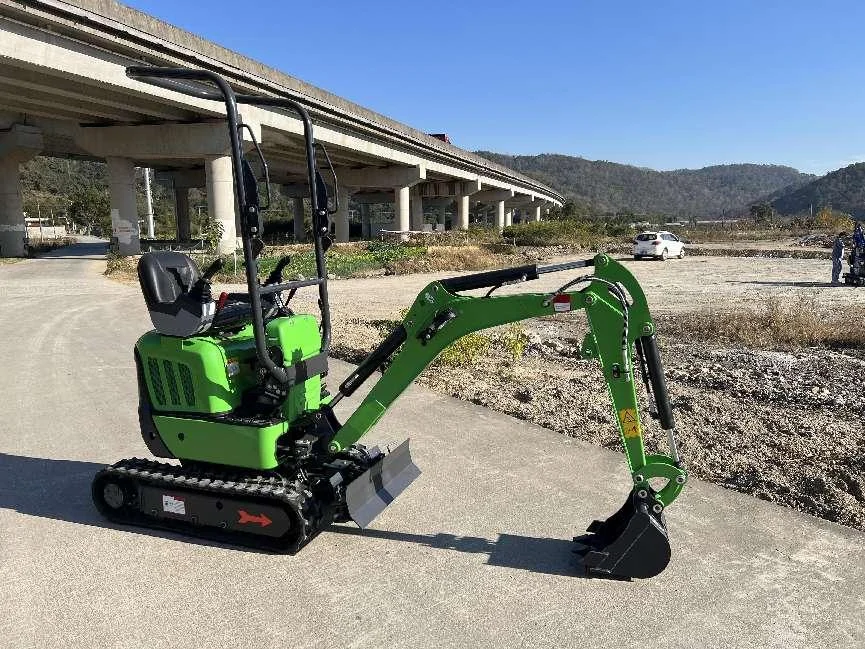

Model | CX12-6 |
Operating weight kg | 1200 |
Bucket capacity std. SAE/CECE m³ | 0.024/0.020 |
Bucket width (with/without side teeth) | 398/380 |
Engine | |
Model | D722-EF11 |
Type | Water-cooled diesel engine E-TVCS |
Output ISO 14396 NET PS/rpm | 10.2/2500 |
kW/rpm | 7.6/2050 |
Number of cylinder | 3 |
Bore X Stroke mm | 67 X 68 |
Displacement cc | 719 |
Dimensions | |
Overall length mm | 2980 |
Overall height mm | 2260 |
Swivelling speed rpm | 8.3 |
Rubber shoe width mm | 180 |
Tumbler distance mm | 1010 |
Dozer size( width X height) mm | 750/990 X 200 |
Hydraulic pumps | |
P1, P2 | Gear pump |
Flow rate l/min | 10.5+10.5 |
Hydraulic pressure Mpa(kgf/cm2) | 17.2(175) |
P3 | Gear pump |
Flow rate l/min | 3.1 |
Hydraulic pressure Mpa(kgf/cm2) | 3.9 (40) |
Max. Digging force (arm/bucket) kN(kgf) | 5.4(550)/ 10.4(1060) |
Boom swing angle (left/ right) deg. | 55/55 |
Auxiliary circuit | |
Flow rate l/min | 21 |
Hydraulic pressure Mpa(kgf/cm2) | 17.2(175) |
Hydraulic reservoir l | 12.6 |
Fuel tank capacity l | 12 |

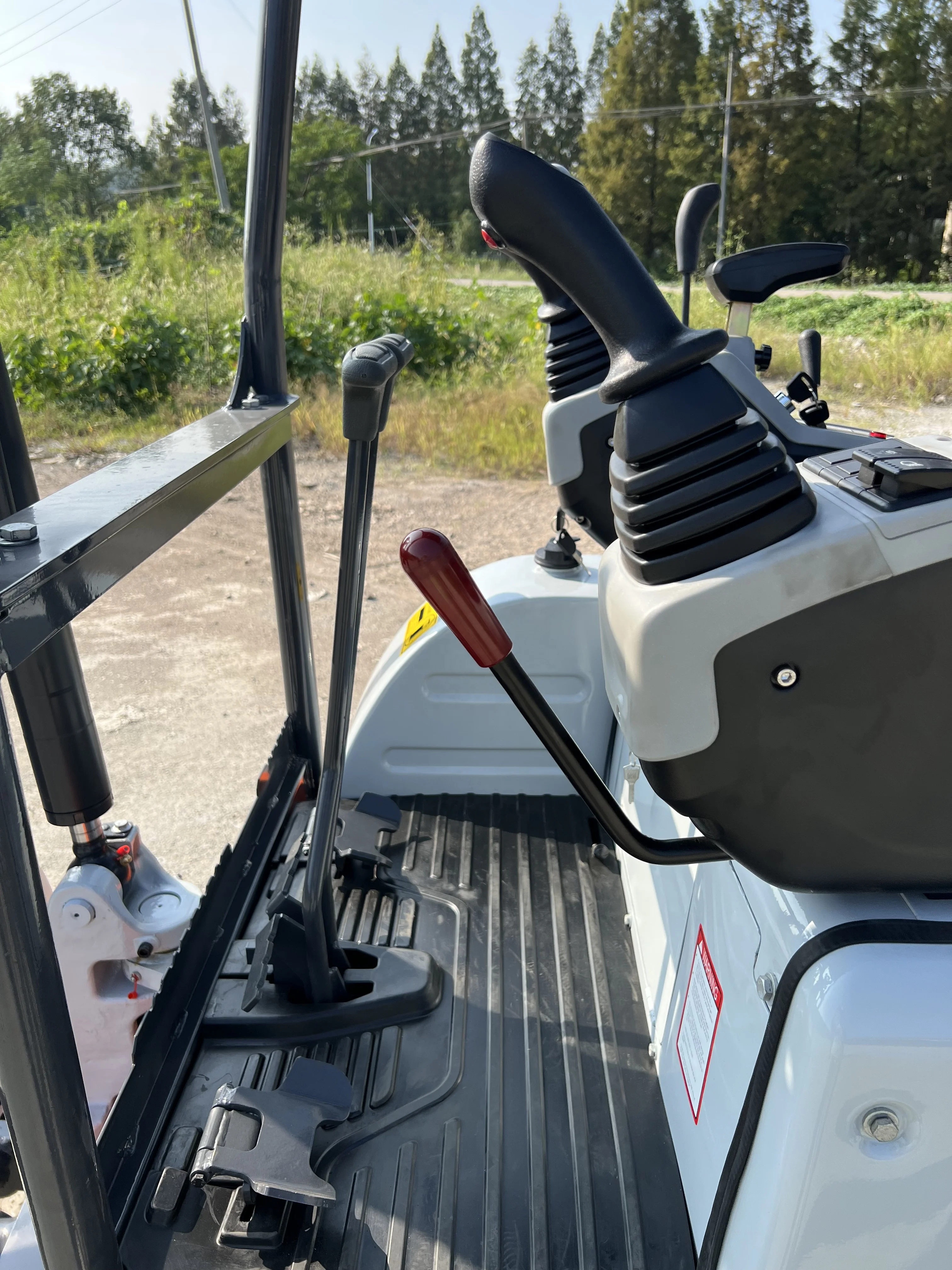

Operation Way | Pilot operation |
Travel Motor | LKG Plunger motor |
Max. travelling speed (low / high) km/h | 2-speed , 2/4km/h |
Ground contact pressur Mpa(kgf/cm2) | 29.0(0.30) |
Ground clearance mm | 140 |
Noise level | |
LpA / LwA (2000/14/EC) dB(A) | 77/90 |
Vibration | |
Hand arm system (ISO 5349-1:2001) | |
Digging / Levelling m/s2 RMS | <2.5/<2.5 |
Driving / Idling m/s2 RMS | 5.93/<2.5 |
Whole body(ISO 2631-1:1997) | |
Digging / Levelling m/s2 RMS | <0.5/<0.5 |
Driving / Idling m/s2 RMS | 2.32/<0.5 |
