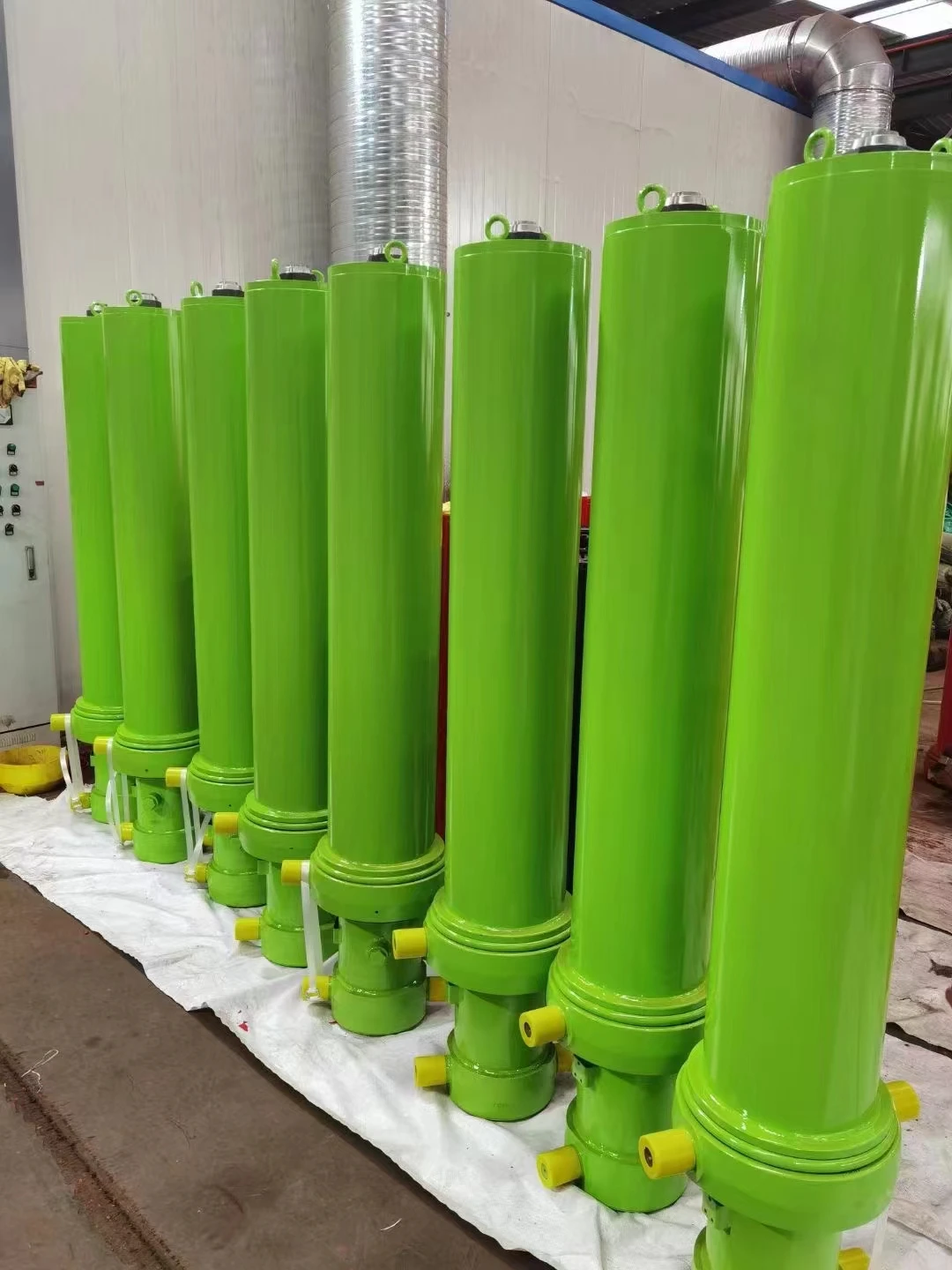

Customized heavy duty oil cylinder upper lifting ear lower winch hydraulic cylinder
- Category: >>>
- Supplier: Linqing Hongding Hydraulic Machinery Co. Ltd.
Share on (1601264544468):
Product Overview
Description
Product Description
Type | cylinder dia | rated pressure | installation distance | stroke | total length (mm) | weight |
(mm) | (MPA) | (mm) | (mm) | (kg) | ||
FC130-3-3220 | 129 | 22 | 343 | 3220 | 1387 | 191 |
FC130-4-3480 | 129 | 22 | 343 | 3480 | 1218 | 178 |
FC152-4-3830 | 157 | 22 | 343 | 3830 | 1350 | 260 |
FC152-4-4650 | 157 | 22 | 343 | 4650 | 1555 | 280 |
FC152-4-5000 | 157 | 22 | 343 | 5000 | 1650 | 300 |
FC152-5-3830 | 157 | 22 | 343 | 3830 | 1170 | 230 |
FC152-5-4650 | 157 | 22 | 343 | 4650 | 1275 | 245 |
FC175-4-4280 | 179 | 22 | 343 | 4280 | 1480 | 235 |
FC175-4-5390 | 179 | 22 | 343 | 5390 | 1755 | 360 |
FC175-4-6100 | 179 | 22 | 343 | 6100 | 1940 | 390 |
FC175-5-3830 | 179 | 22 | 343 | 3830 | 1170 | 265 |
FC175-5-4650 | 179 | 22 | 343 | 4650 | 1282 | 283 |
FC175-5-5000 | 179 | 22 | 343 | 5000 | 1405 | 305 |
FC175-5-5800 | 179 | 22 | 343 | 5800 | 1570 | 350 |
FC175-5-6300 | 179 | 22 | 343 | 6300 | 1655 | 360 |
FC175-5-7300 | 179 | 22 | 343 | 7300 | 1850 | 400 |
FC191-5-5780 | 191 | 22 | 343 | 5780 | 1530 | 273 |
FC191-5-6500 | 191 | 22 | 343 | 6500 | 1670 | 410 |
FC191-5-6800 | 191 | 22 | 343 | 6800 | 1735 | 738 |
FC191-5-7300 | 191 | 22 | 343 | 7300 | 1835 | 458 |
FC191-54-6100 | 191 | 22 | 343 | 6100 | 1955 | 273 |
FC200-4-6100 | 202 | 22 | 343 | 6100 | 1935 | 479 |
FC200-5-6800 | 202 | 22 | 343 | 6800 | 1765 | 465 |
FC200-6-7000 | 202 | 22 | 343 | 7000 | 1570 | 440 |
FC214-5-7300 | 214 | 22 | 343 | 7300 | 1900 | 530 |
FC214-7-7600 | 214 | 22 | 343 | 7600 | 1455 | 450 |
FC240-5-9030 | 240 | 22 | 343 | 9030 | 2270 | 820 |
Company Profile

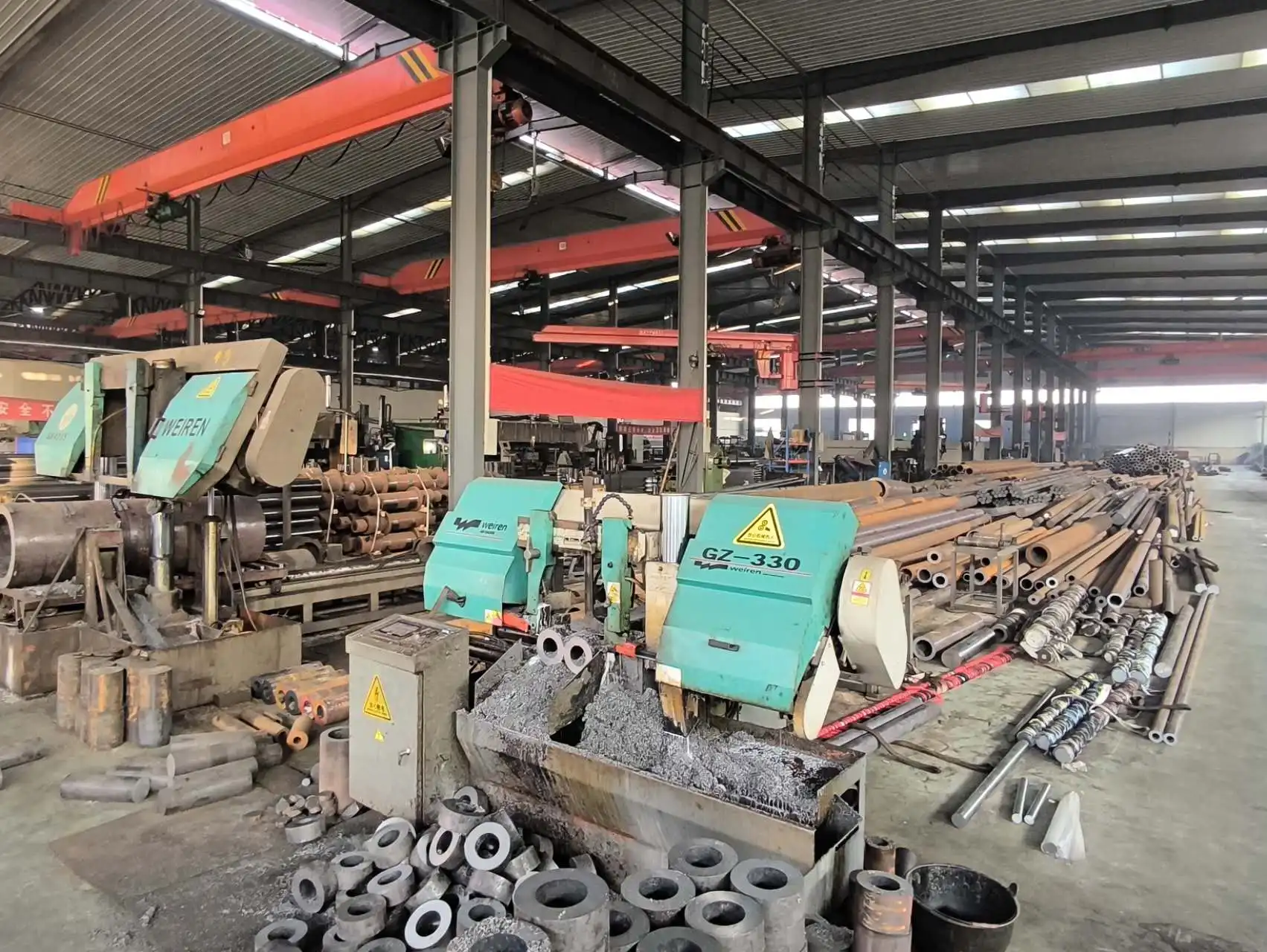

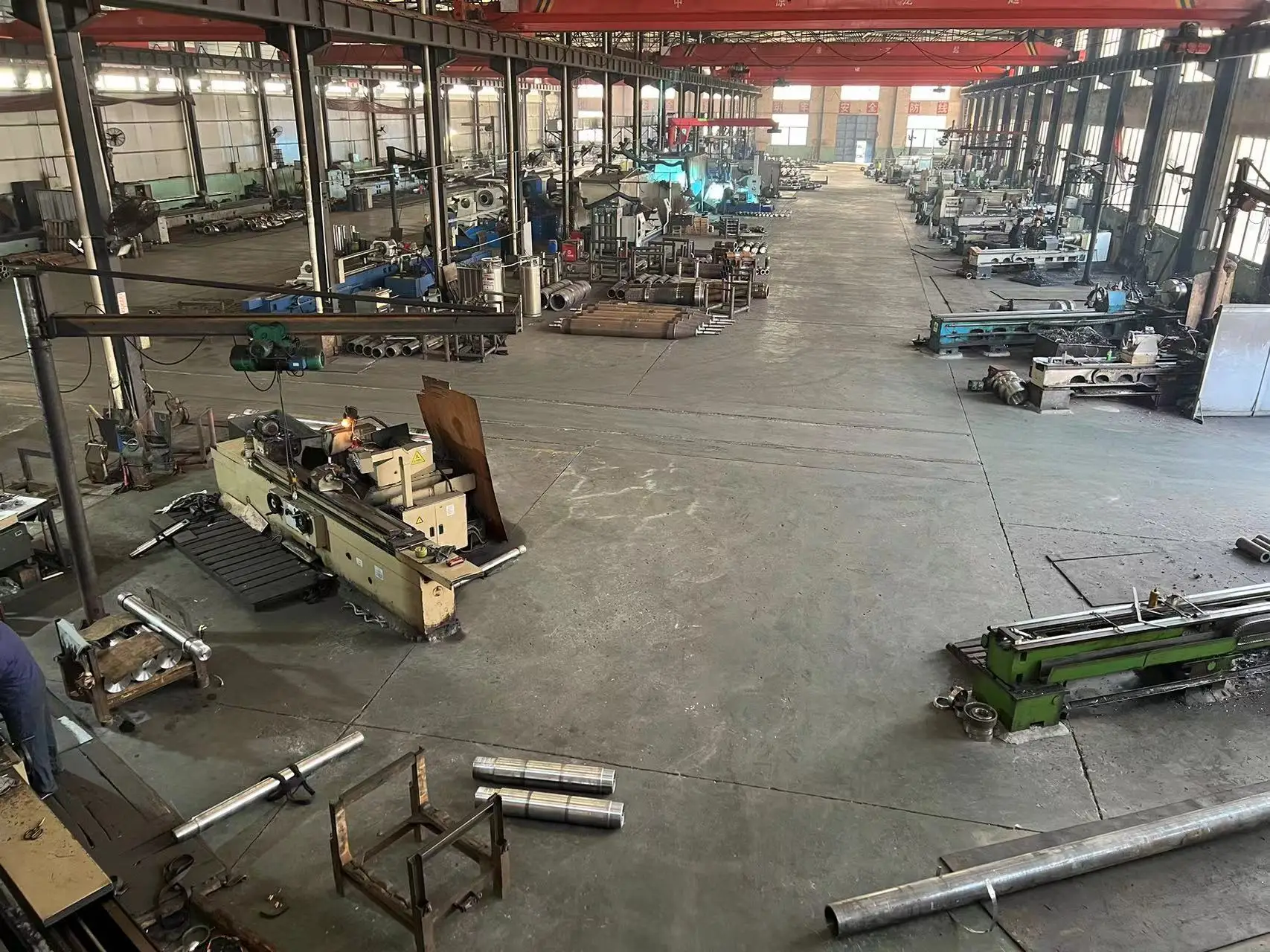

The company has high-performance deep hole boring machine, automatic machining center, automatic welding machine and other high-end equipment, has established a good cooperative relationship with China National Heavy truck, FAW, Second automobile, Shaanxi Automobile and other well-known domestic automobile industry.
The company has passed ISO9001 system quality certificate, ISO/TS16949 international system certificate.
The company has passed ISO9001 system quality certificate, ISO/TS16949 international system certificate.
Our Advantages
1. Safer
Hongding hydraulic cylinder adopts excellent structural design and new material application, which can withstand
theharshest working conditions and continue to work stably without disconnection, ensuring the safety of drivers and vehicles, and creating the most valuable safety for users.
2. faster unloading
Hongding series oil cylinder adopts excellent structural design to improve the unloading speed of the oil cylinder!
3.higher lift frequency
hongding series oil cylinders are suitable for all-weather short barge and high-frequency operations, with stable
performance,extremely low failure rate, increasing the number of transfers and reducing downtime!
4. Greater adaptability to the environment
hongding series oil cylinder adopts innovative sealing technology and new material application, which can adapt to the
temperaturerange of -40~110ºC, and can achieve excellent performance in high temperature and low temperature environment operation!
5. lighter
Compared with other products of the same series, hongding series cylinders reduce the dead weight by 15%~20%, and increase the lifting force by 10%~15%!
6. Greater lifting force
Compared with other products of the same series, the lifting force of junfu series cylinders is increased by 10%~15%. More lift,more load, more profit! Lighter dead weight, greater lifting force, more lightness!
theharshest working conditions and continue to work stably without disconnection, ensuring the safety of drivers and vehicles, and creating the most valuable safety for users.
2. faster unloading
Hongding series oil cylinder adopts excellent structural design to improve the unloading speed of the oil cylinder!
3.higher lift frequency
hongding series oil cylinders are suitable for all-weather short barge and high-frequency operations, with stable
performance,extremely low failure rate, increasing the number of transfers and reducing downtime!
4. Greater adaptability to the environment
hongding series oil cylinder adopts innovative sealing technology and new material application, which can adapt to the
temperaturerange of -40~110ºC, and can achieve excellent performance in high temperature and low temperature environment operation!
5. lighter
Compared with other products of the same series, hongding series cylinders reduce the dead weight by 15%~20%, and increase the lifting force by 10%~15%!
6. Greater lifting force
Compared with other products of the same series, the lifting force of junfu series cylinders is increased by 10%~15%. More lift,more load, more profit! Lighter dead weight, greater lifting force, more lightness!
FAQ
Q1: How about the quality?
Our cylinders can replace HYVA cylinder well, with same technical details and mounting sizes
Q2: What's your cylinder's advantages ?
The cylinders are manufactured by advanced equipments and made under strictly quality control processing.
The steel is tempered and all raw materials are good quality from world famous companies.
Competitive price!
Q3:The size of the company?
The company has high-performance deep hole boring machine, automatic machining center, automatic welding machine and other
high-end equipment, is a professional engaged in hydraulic cylinder production R & D manufacturing sales as one of the industry's
well-known enterprises. It has established good cooperative relations with China National Heavy Duty Truck, FAW, Second
Automobile, Shaanxi Automobile and other well-known domestic automobile industries.
The company has passed ISO9001 system quality certificate, ISO/TS16949 international system certificate.
Q4: How about the delivery time ?
30 days approximately.
Q5: How about the cylinder's quality gurantee ?
One year.
Our cylinders can replace HYVA cylinder well, with same technical details and mounting sizes
Q2: What's your cylinder's advantages ?
The cylinders are manufactured by advanced equipments and made under strictly quality control processing.
The steel is tempered and all raw materials are good quality from world famous companies.
Competitive price!
Q3:The size of the company?
The company has high-performance deep hole boring machine, automatic machining center, automatic welding machine and other
high-end equipment, is a professional engaged in hydraulic cylinder production R & D manufacturing sales as one of the industry's
well-known enterprises. It has established good cooperative relations with China National Heavy Duty Truck, FAW, Second
Automobile, Shaanxi Automobile and other well-known domestic automobile industries.
The company has passed ISO9001 system quality certificate, ISO/TS16949 international system certificate.
Q4: How about the delivery time ?
30 days approximately.
Q5: How about the cylinder's quality gurantee ?
One year.
