Hot Selling New Style Small Stainless Steel centrifugal separator Coconut Milk Separating Machine
- Category: >>>
- Supplier: Qingdao Cookimech Trading Co. Ltd.
Share on (1601264568034):
Product Overview
Description
Products Description

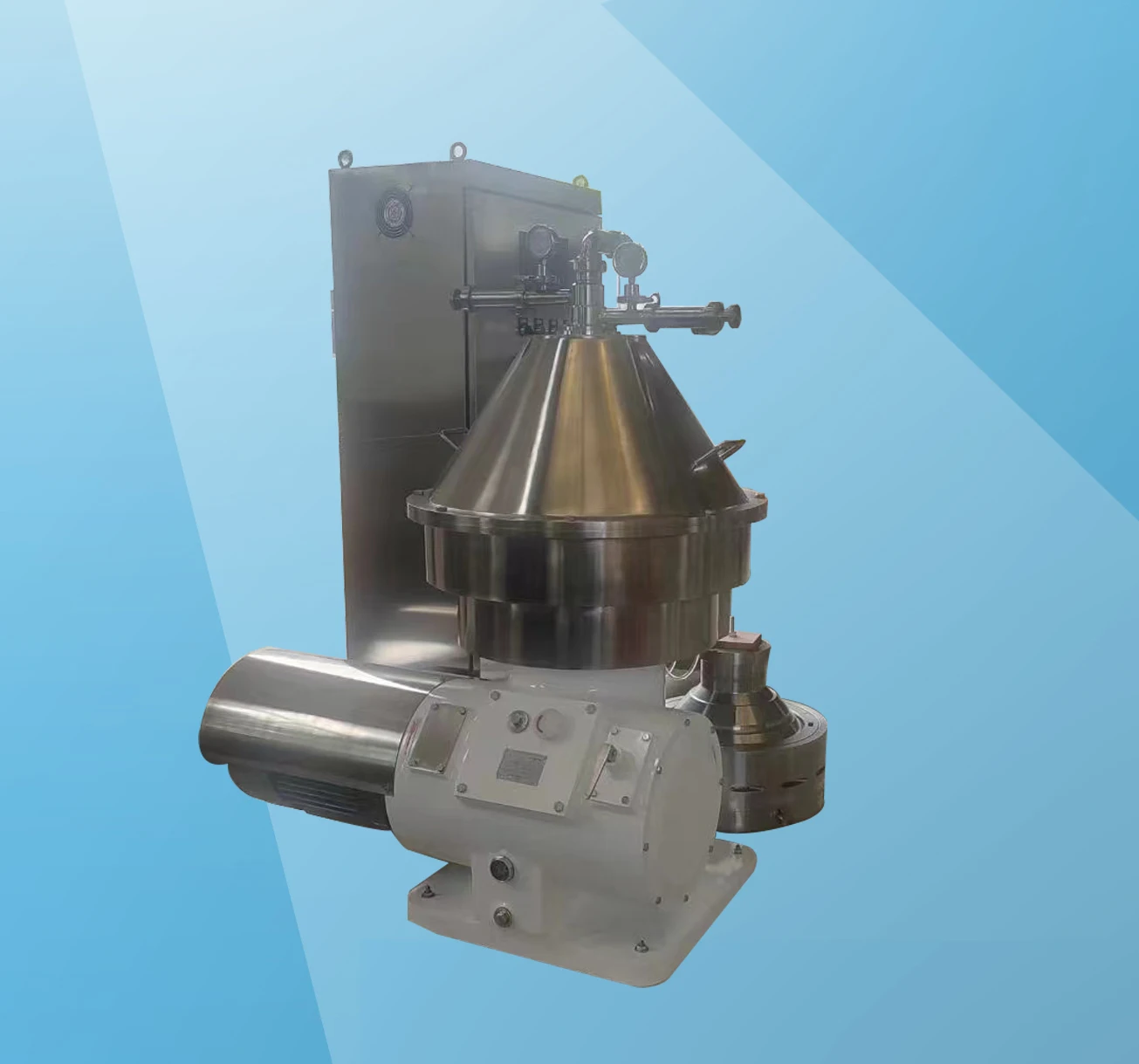

The cream separator is a crucial piece of equipment in the dairy industry. It is mainly used in the production of skim milk,

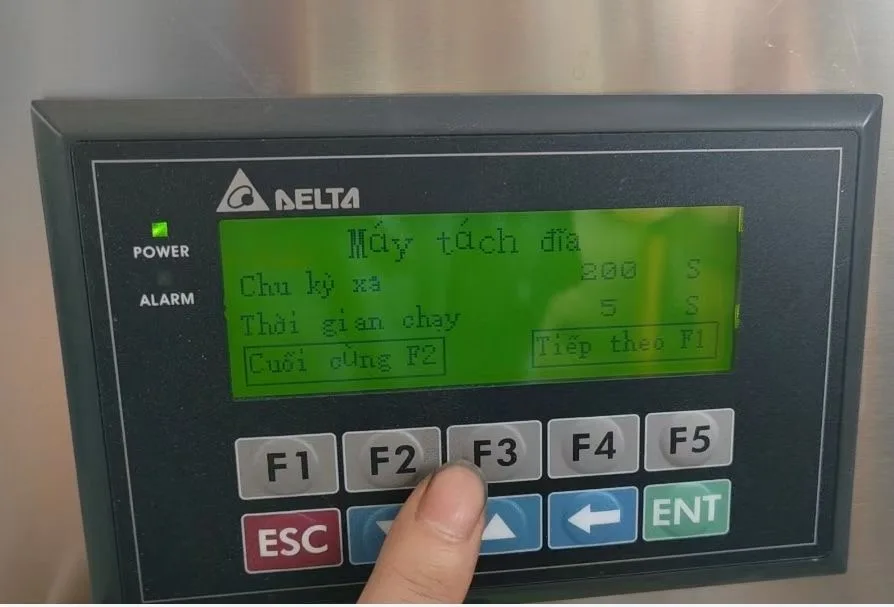

butter, casein, cheese, and anhydrous butter, as well as for centrifuge concentration and the removal of foreign impurities from milk. Similar materials can also be clarified and purified using this machine. This product incorporates the advantages of similar foreign products from Germany and Russia. All parts that come into contact with the feedstock are made of stainless steel,effectively reducing the chemical reaction between the feedstock and machine components. The power drive adopts an inverter,ensuring reliable startup and preventing overload. The machine's bearings are SKF grade from Sweden, which guarantees precision during operation. The separator uses a PLC automatic control system, enabling automatic de-sludging with strong adaptability and a high degree of automation. It's easy to adjust, reducing worker labor intensity, and it can handle a wide range of solids content in the mixture.
butter, casein, cheese, and anhydrous butter, as well as for centrifuge concentration and the removal of foreign impurities from milk. Similar materials can also be clarified and purified using this machine. This product incorporates the advantages of similar foreign products from Germany and Russia. All parts that come into contact with the feedstock are made of stainless steel,effectively reducing the chemical reaction between the feedstock and machine components. The power drive adopts an inverter,ensuring reliable startup and preventing overload. The machine's bearings are SKF grade from Sweden, which guarantees precision during operation. The separator uses a PLC automatic control system, enabling automatic de-sludging with strong adaptability and a high degree of automation. It's easy to adjust, reducing worker labor intensity, and it can handle a wide range of solids content in the mixture.

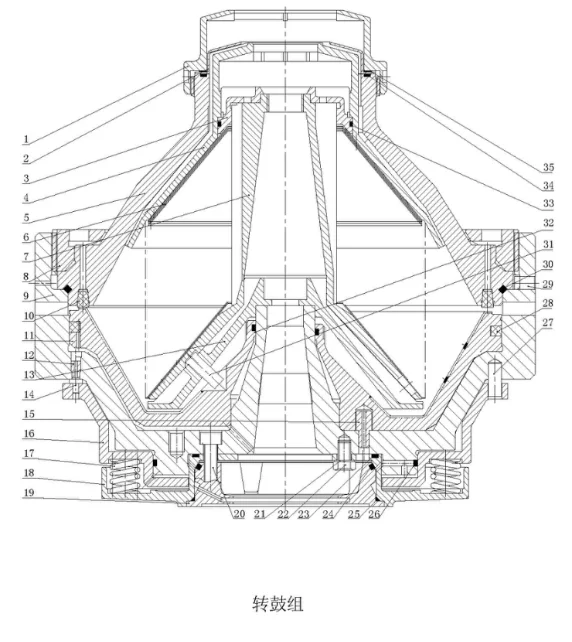

Diagram of the product working principle
When working, sealing water is pumped into the sealing chamber, raising the sliding piston and closing the sediment ejection hole.
Milk is then fed into the bowl through the feed pipe. Under the influence of centrifugal force, the denser solids are collected on
the bowl wall. After some time, opening water is pumped into the opening chamber, causing the sliding piston to lower and open the
sediment ejection hole, ejecting the impurities from the bowl. The lighter liquid (fat) flows along the inner side of the discs
into the passage in the upper distributor, and the lighter product is discharged from the machine by the lower centripetal pump.
The heavier liquid (skim milk) flows along another passage and is discharged by the upper centripetal pump, ensuring effective
milk separation.
Milk is then fed into the bowl through the feed pipe. Under the influence of centrifugal force, the denser solids are collected on
the bowl wall. After some time, opening water is pumped into the opening chamber, causing the sliding piston to lower and open the
sediment ejection hole, ejecting the impurities from the bowl. The lighter liquid (fat) flows along the inner side of the discs
into the passage in the upper distributor, and the lighter product is discharged from the machine by the lower centripetal pump.
The heavier liquid (skim milk) flows along another passage and is discharged by the upper centripetal pump, ensuring effective
milk separation.
Capacity(L) | Dimensions(mm) | Motor power(KW) | Turntable diameter | turntable speed(rpm) | output pressure | separation temperature | Weight(kg) |
500L/H | 700*550*880 | 1.5 | 230mm | 7546-8300 | 0.2mpa | 30-40℃ | 120 |
1500L/H | 800*600*1250 | 4 | 300mm | 7320-8052 | 0.25mpa | 30-40℃ | 450 |
3000L/H | 1100*650*1550 | 7.5 | 400mm | 6500-7188 | 0.3mpa | 30-40℃ | 680 |
5000L/H | 1100*700*1600 | 11 | 475mm | 6022-6626 | 0.3mpa | 30-40℃ | 1100 |
10000L/H | 1300*1100*1700 | 15 | 540mm | 6034-6637 | 0.35mpa | 30-40℃ | 1500 |

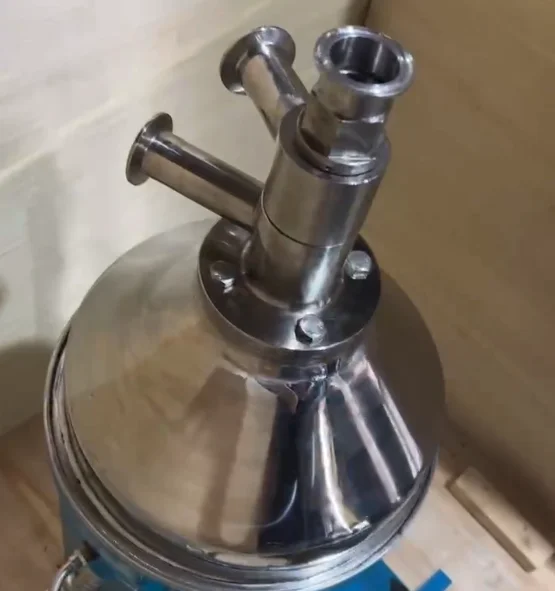

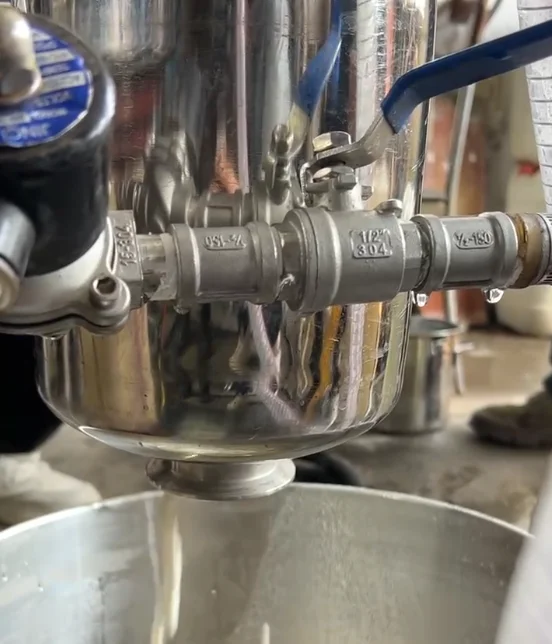

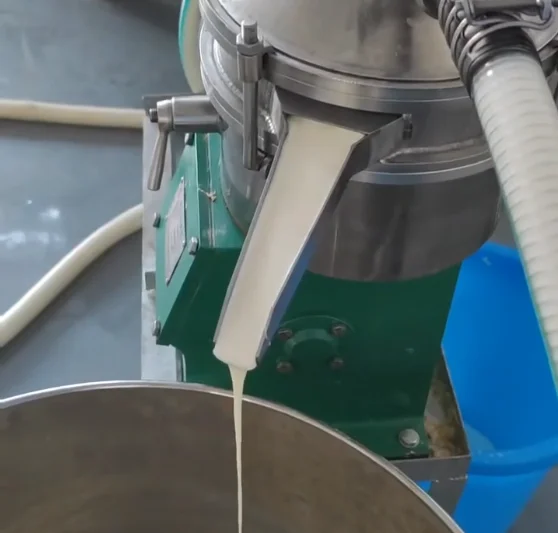

Details Images
Mineral Oil Industry | Purification of fuel oil and lubricating oil for marine main engines, land dieseengines, power stations, etc. | ||||||
Dairy Industry | Clarification, purification, and degreasing of fresh milk. | ||||||
Vegetable oil Industry | Purification and clarification of palm oil, degumming, soaping, dehydration, anddewaxing of vegetable oil during refining. | ||||||
Beverage Industry | Clarification of beer, juice, and beverages; extraction of plant protein; wastewatertreatment; clarification of bioengineering fermentation broth. | ||||||
Starch industry | Concentration and classification of starch pulp. | ||||||
chemical Industry | Purification or clarification of chemical raw materials. | ||||||
Lanolin Industry | Extraction of lanolin from wastewater in the wool washing industry. | ||||||
Latex Industry | Purification and concentration of natural rubber emulsion. | ||||||
Other Industries | Applications such as laboratory work, petroleum, coking, kaolin processing, pulprecovery, electrolyte treatment, and wastewater management | ||||||
Company Profile

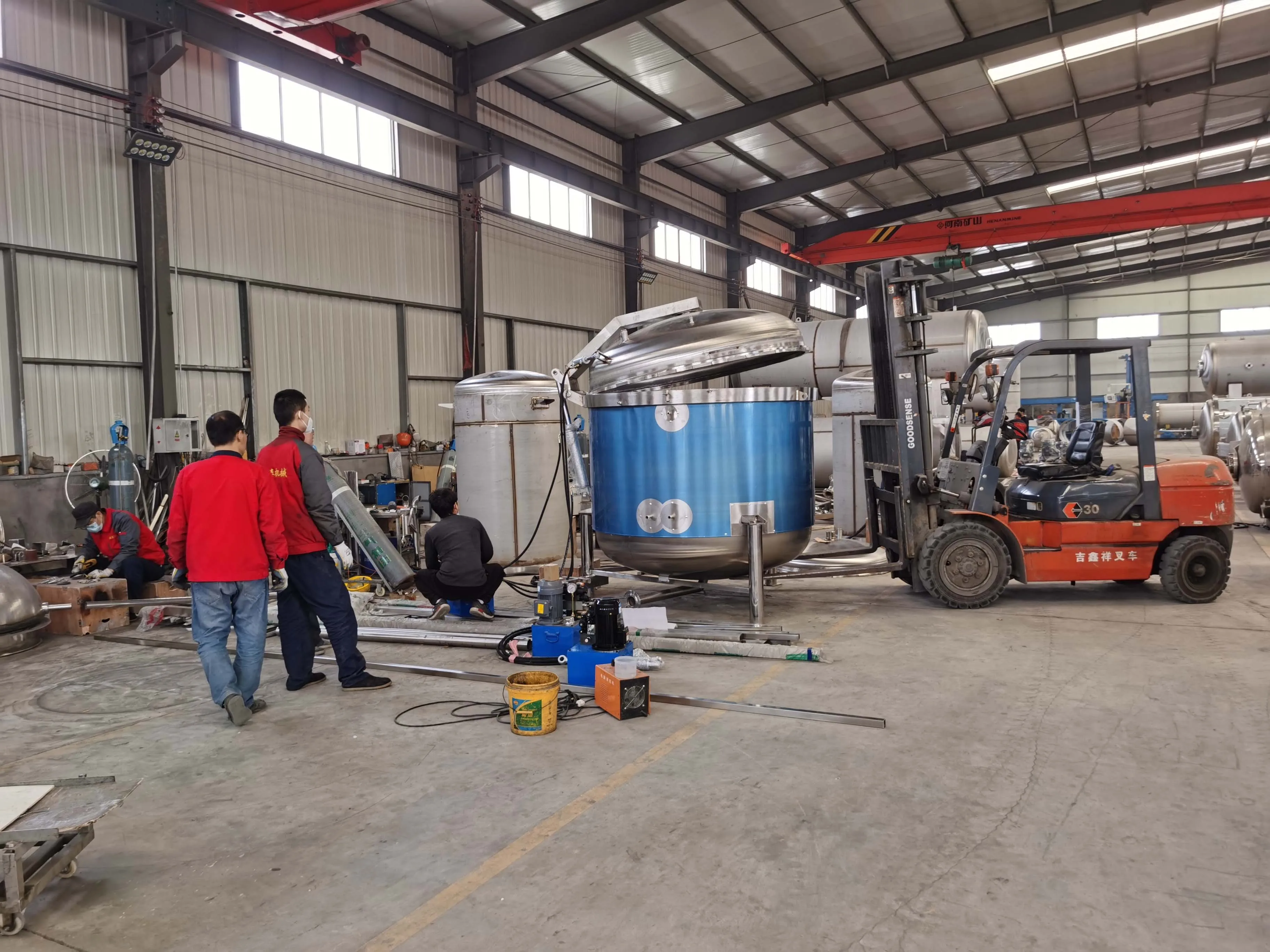

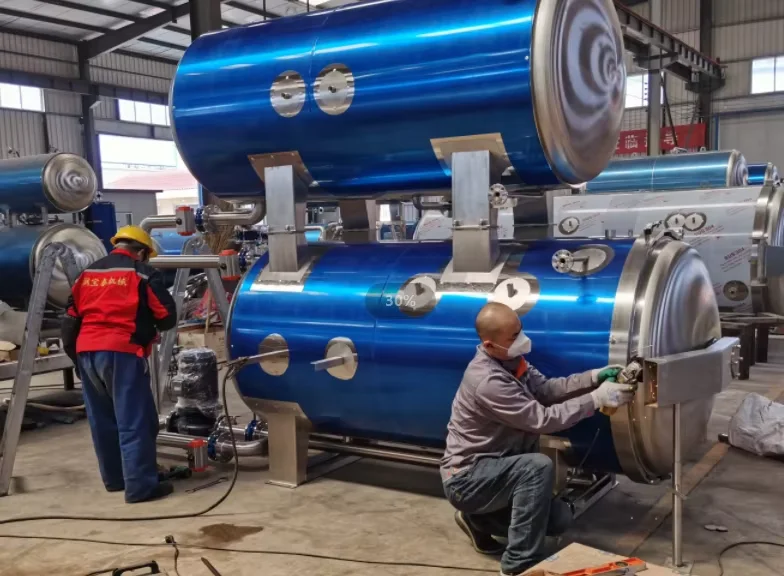

Please look for our brand, as all Cooki-related content on the platform is associated with us. Our company is located in Shandong Province, China, and was established in 2016 as an integrated industrial and trade group. Although our company is relatively young, our management team comes from large factories and has a technical background, ensuring the top quality of our products.This is why we have been able to develop rapidly in a short time. Our main products include jacketed kettles, sterilization pots,pasteurized milk tanks, and filling equipment. Notably, our sterilization pots and tanks hold a special equipment operation license granted by the Chinese government, a certification held by fewer than 100 companies in China. Previously, we primarily operated in the domestic market, but we are now ready to expand internationally. Therefore, we offer comprehensive procurement support, top-quality products, and competitive prices.
Recommend Products
Our Advantages
Expertise:
We believe in professionals handling professional tasks. Our team, composed of individuals with over 10 years of industry
experience, ensures that each step—from design to production, from marketing to after-sales service—is managed by experts.
experience, ensures that each step—from design to production, from marketing to after-sales service—is managed by experts.
Precision:
Details determine quality. We meticulously craft our products like works of art, ensuring every aspect, from component processing to final assembly, is rigorously controlled. This ensures our products are both functional and aesthetically pleasing, leaving a lasting impression on our customers.
Value:
Providing high-value products to our customers is our constant goal. We strive to balance quality and cost, offering optimal solutions that provide great value for money and addressing our customers' concerns effectively.
Service:
Centered on customer needs and grounded in product quality, we aim to provide practical, durable, and user-friendly products. We want our customers to genuinely experience the ease, efficiency, and cost savings our products offer, making us a reliable and trusted partner.

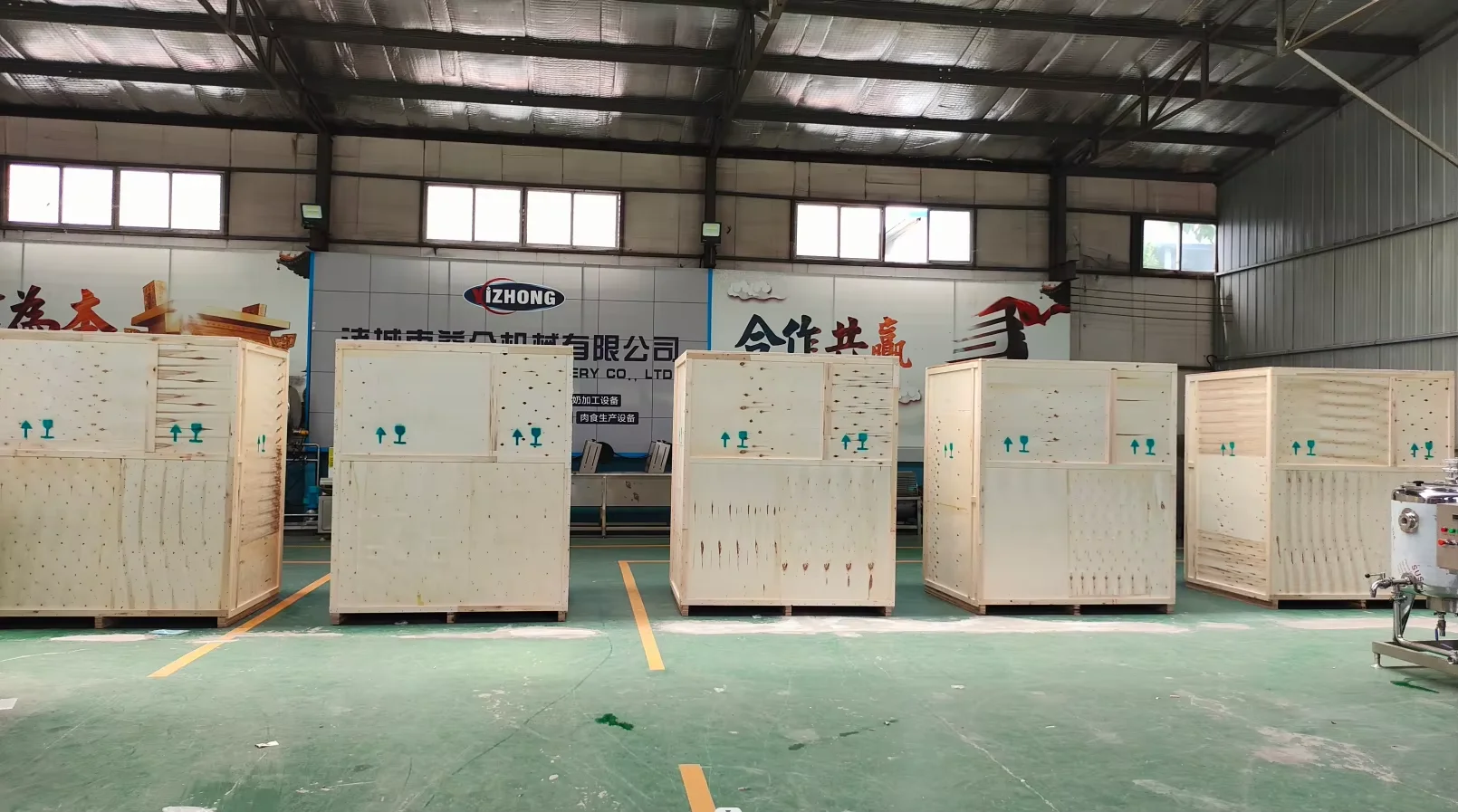

Product packaging

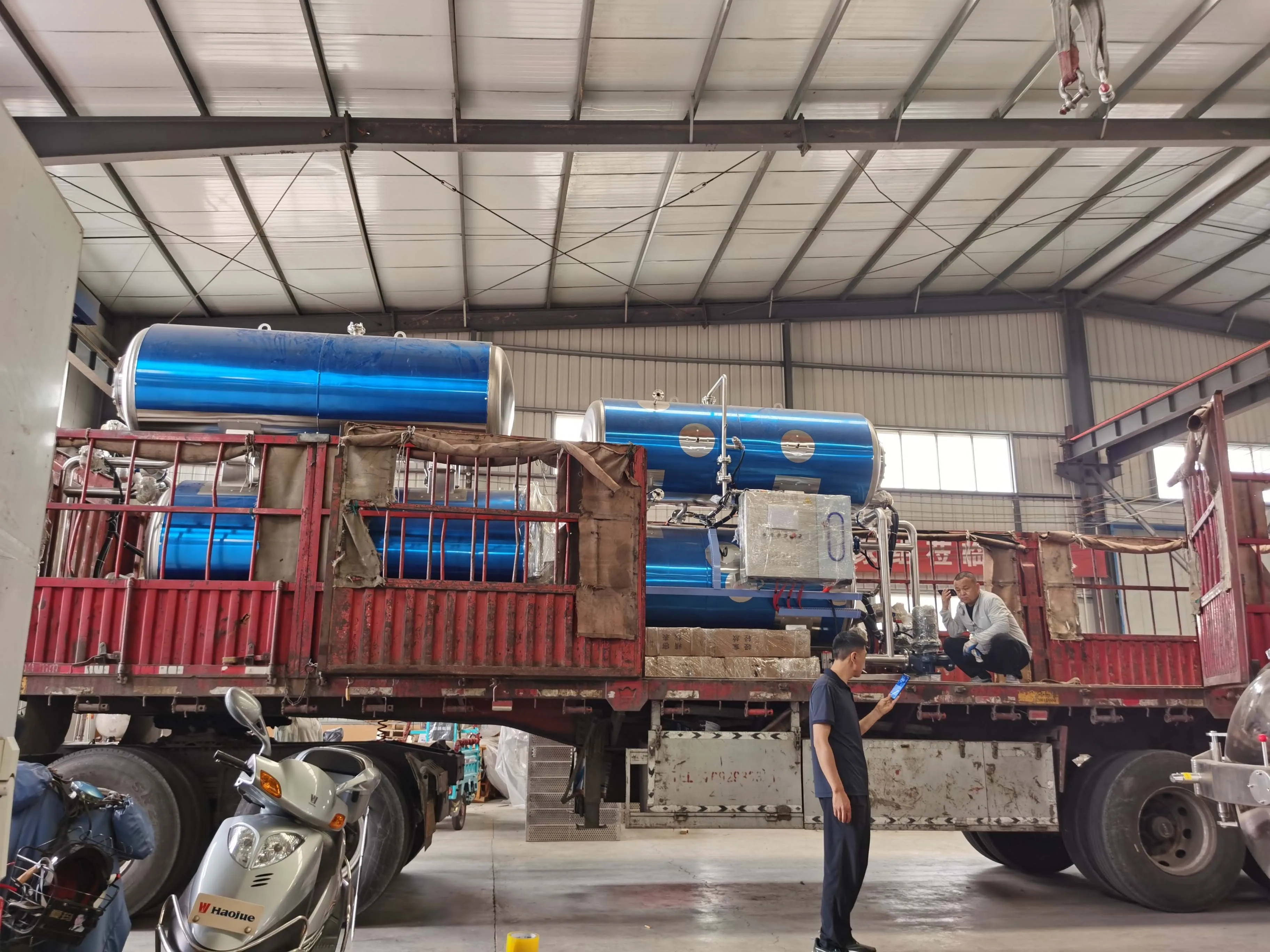

Our pasteurized milk tanks are shipped in wooden crates, while sterilization pots are typically shipped directly in containers due to their large size.
Exhibition
