Manufacturer Customization Steel Plate Pre processing Filter Cartridge Hepa Air Filter Element
- Category: >>>
- Supplier: Fetsn Filtration Technology (zhangjiagang) Co. Ltd.
Share on (1601264648431):
Product Overview
Description

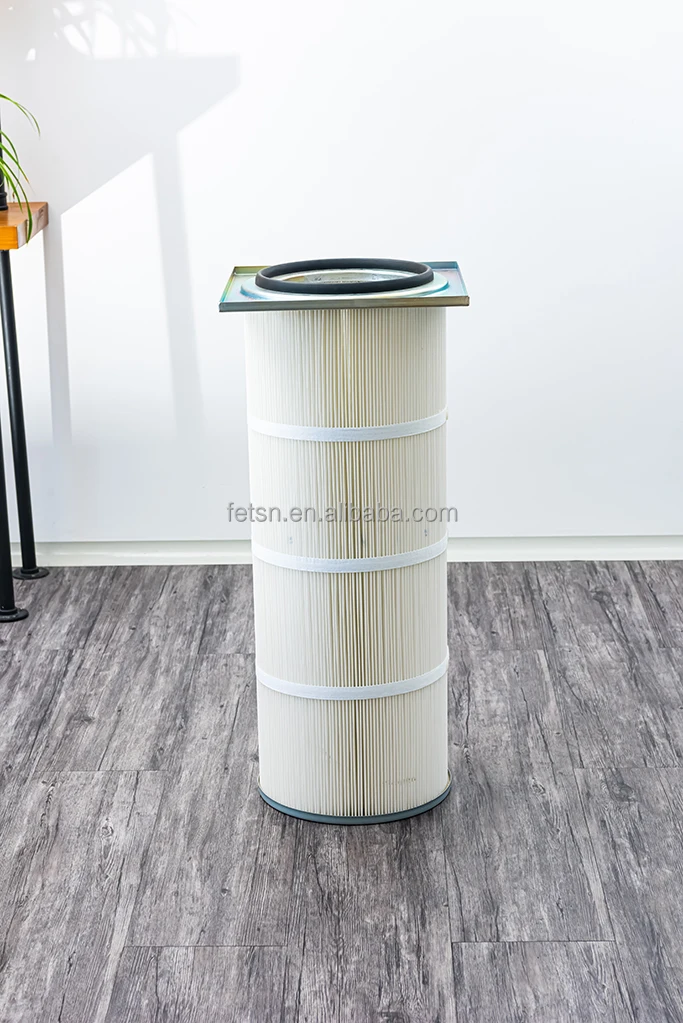

Product name: FS chuck cartridge
Specification Model: φ324*1000
Parameters:
Outer diameter: φ324mm
Inner diameter: φ213mm
Length: 1000mm, the length can also be customized
Filter material: polyester fiber coated filter material, post-treatment can also have flame retardant, anti-static
Filter area: 15m², can be customized
Specification Model: φ324*1000
Parameters:
Outer diameter: φ324mm
Inner diameter: φ213mm
Length: 1000mm, the length can also be customized
Filter material: polyester fiber coated filter material, post-treatment can also have flame retardant, anti-static
Filter area: 15m², can be customized
Model | OD(mm) | ID(mm) | Length(mm) | Filter area(m2) |
FMP-3266 | 324 | 213 | 660 | 9.4 |
FMP-3566 | 352 | 241 | 660 | 9.4 |
FMP-3275 | 324 | 213 | 750 | 10.7 |
FMP-3288 | 324 | 213 | 880 | 12.5 |
FMP-3290 | 324 | 213 | 1000 | 15 |
