Wooden Gate Hinge for wooden swing gate

Wooden Gate Hinge for wooden swing gate

Category: >>>
Supplier: Jiaxing Gates Hardware Products Co. Ltd.

Price:

Quantity:

Product Overview

Description

Company Information

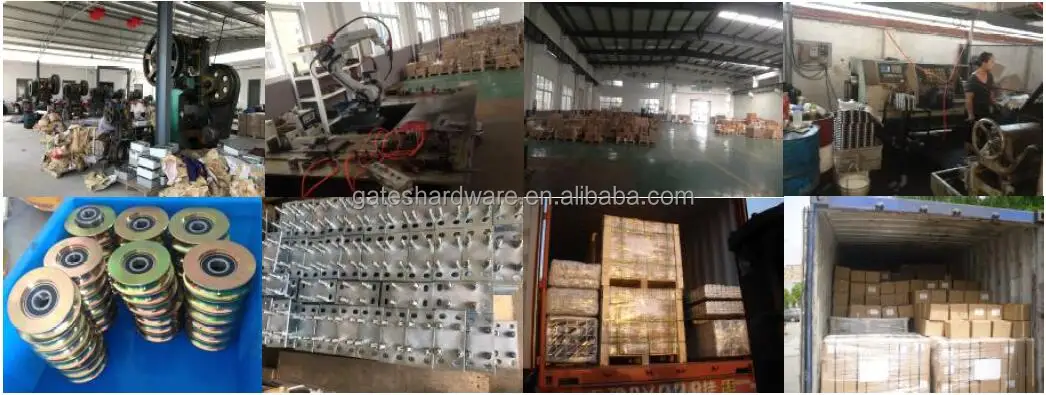

Jiaxing Gates Hardware Products Co., Ltd. is a professional manufacturer of Gates Hardware since 2010. Our products are mainly used for Sliding Gates, Swing gates, Cantilever Gates, Wooden Gates & Industrial Doors. Such as sliding gate wheels, nylon rollers, brackets, latches, guide wheels, ground tracks, hinges, door stoppers, etc. We have been working in this industry for more than 10 years. We have a splendid capital strength that enable us to equip with advanced technology and engage professional technicians. In order to meet customers’ demand, we continuously develop new products, so we could offer not only the existing items, but also as per clients’ drawings, samples or idea.

We are growing very fast based on the respect of quality standard, perfect service, fast delivery and continuous innovation. Our products have been covering over 40 countries & area , like Australia, New Zealand, Poland, Hungary, Slovakia, France, UK, Russia, USA, Argentina, India, etc. And always attain good reputation from our customers.

Product Description

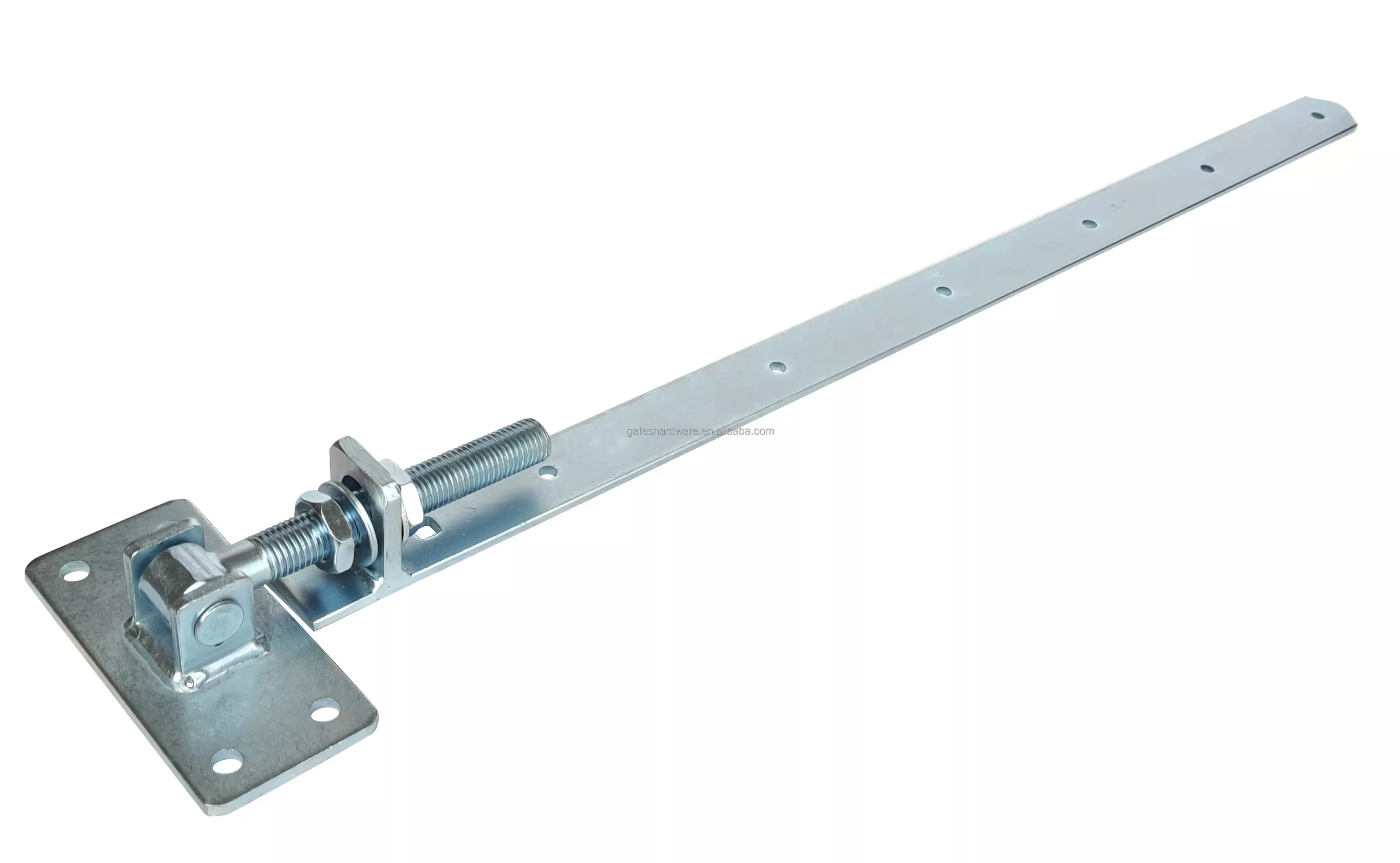

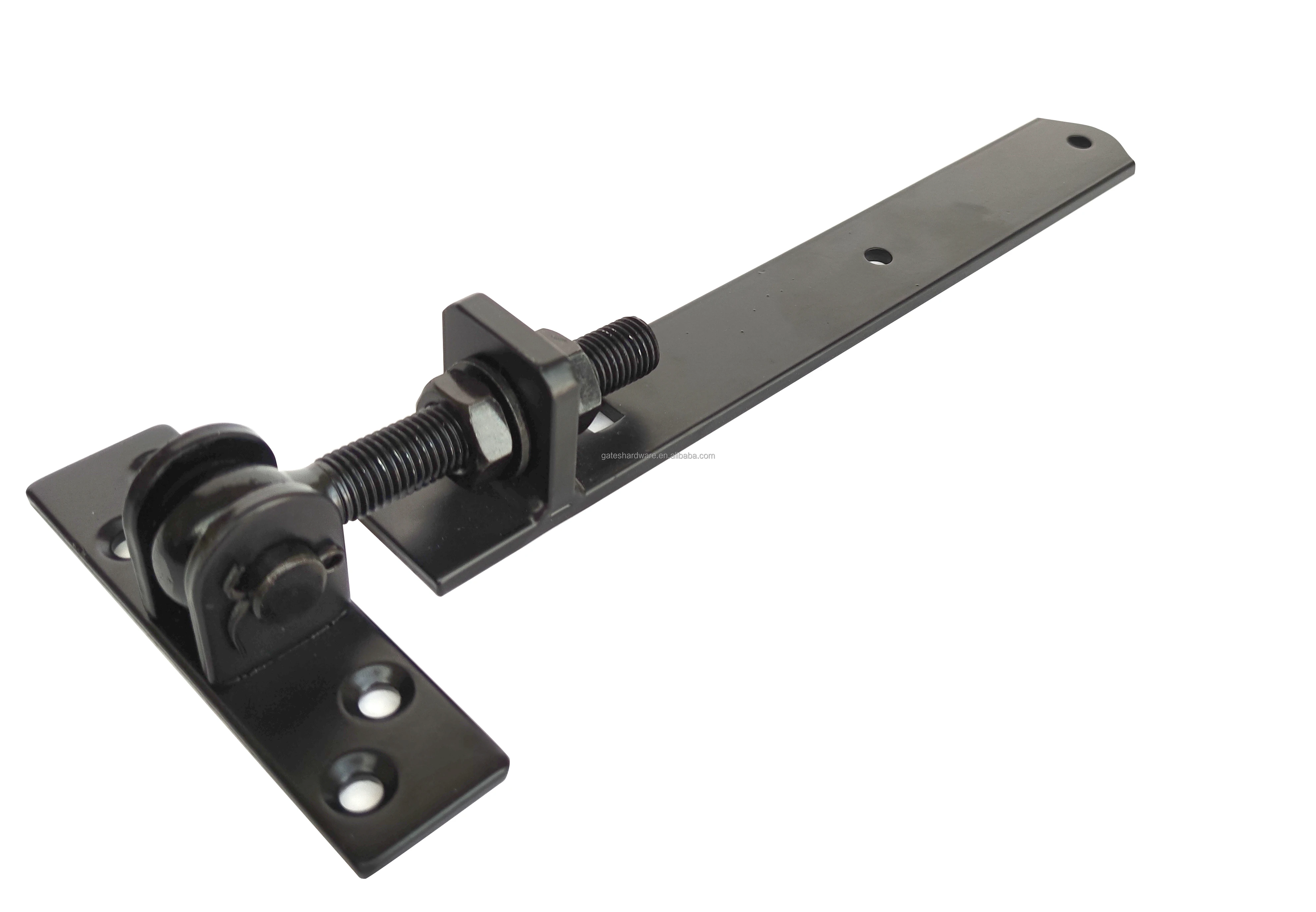

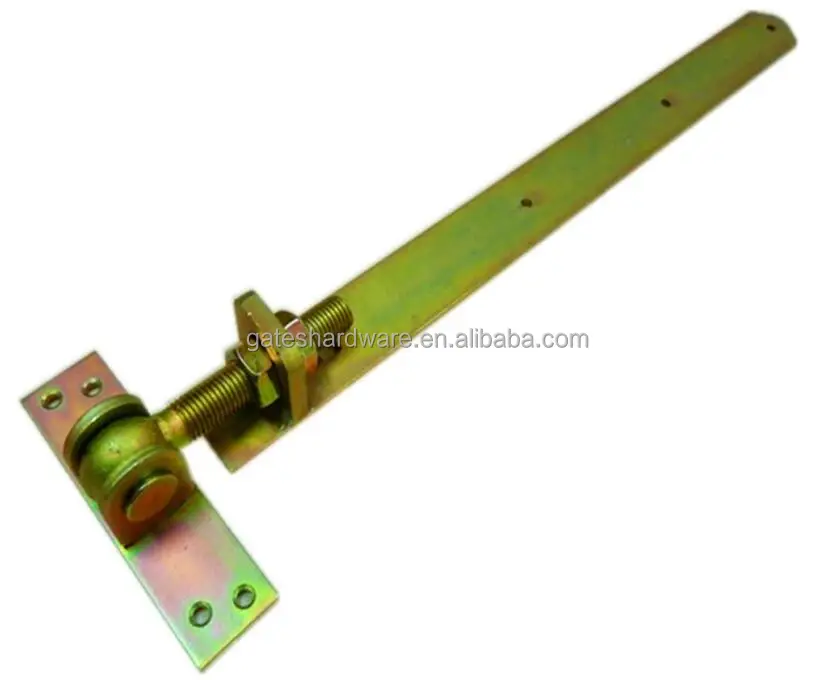

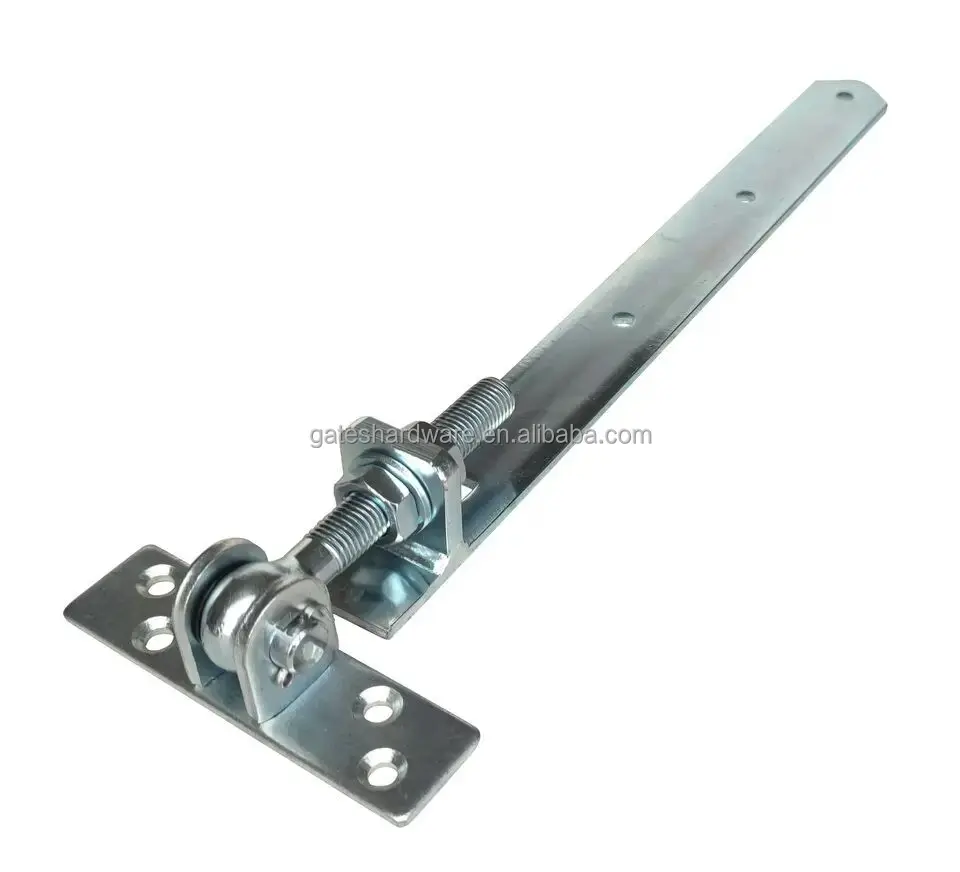

Wooden Gate Hinge

Made of steel or SS,

The surface is hot dip galvanized or zinc plated + powder coated in black.

The bolt are M16, M20, M24 or customized as per clients' request.

The plank length can be 300mm, 450mm, 600mm, 700mm, etc.

We have several types of this kind of hinge.

Warmly welcome you to visit our company and send us inquiry to ask for details.

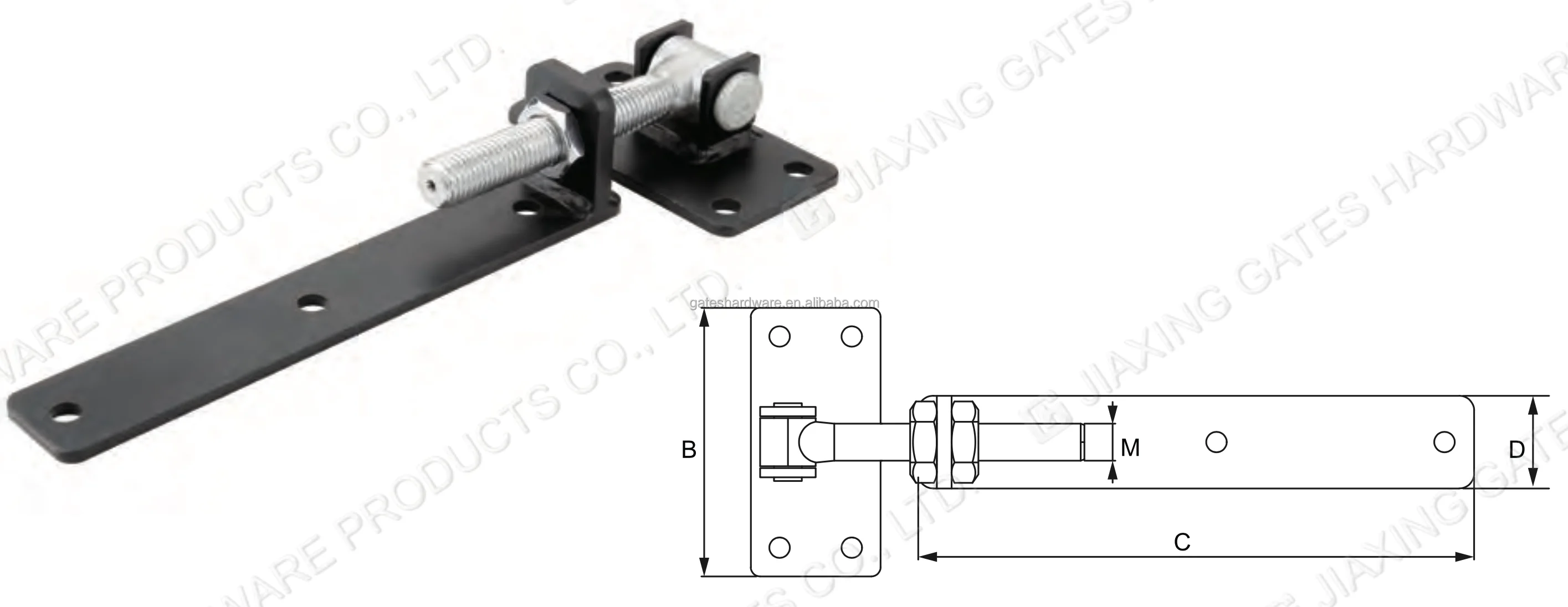

Code	M mm	A mm	B mm	C mm	D mm	Weight (kg)
WGH-1	M20	70	145	300	50	1.98
WGH-2	M20	70	145	600	50	2.50
WGH-3	M20	70	145	1200	50	3.42
WGH-4	M24	80	150	300	50	2.42
WGH-5	M24	80	150	600	50	2.90

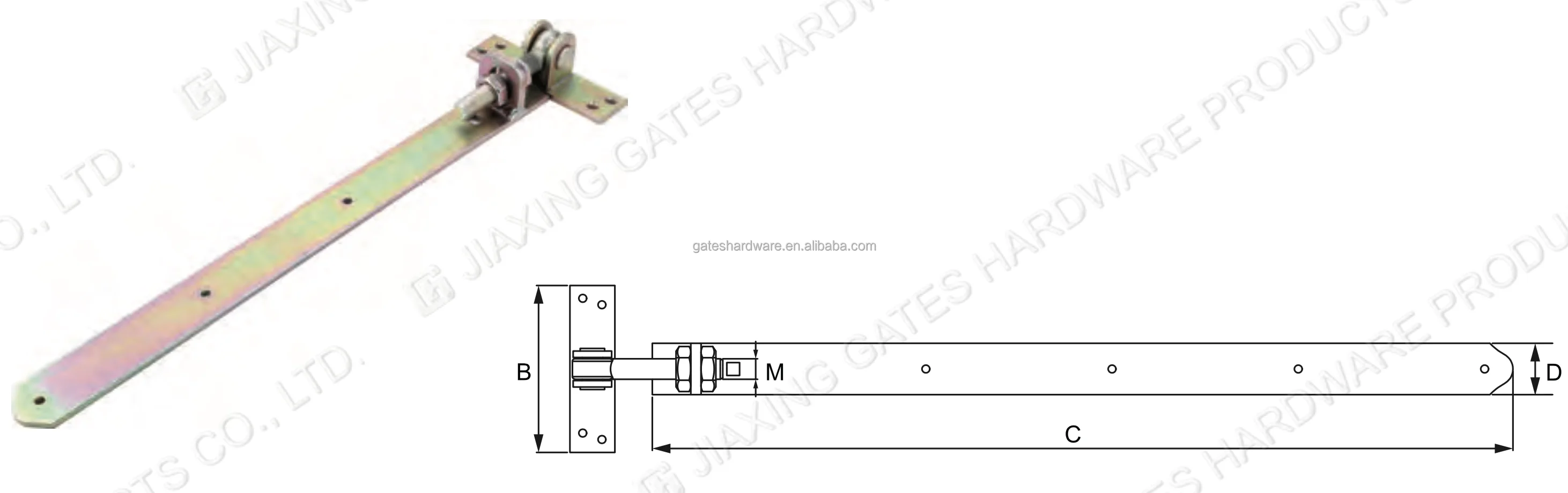

Code	M mm	A mm	B mm	C mm	D mm	Weight (kg)
WGH-6	M16	35	130	470	40	1.32
WGH-7	M16	35	130	670	40	1.67
