China manufacture BZB Auxiliary painting equipment Pneumatic type 3D man lift used in large spray booth for bus/truck painting
- Category: >>>
- Supplier: Guangdong Jingzhongjing Industrial Painting Equipment Co. Ltd.
Share on (1601264740766):
Product Overview
Description
Product Description
| Countertop size | L 1200mm * 900mm * 900mm |
| Vertical movement distance | 10,000 mm |
| Longitudinal movement speed | 0-12m / min |
| Horizontal extension distance | 1,000 mm |
| Vertical lifting distance | 500-7000mm |
| Vertical lifting speed | 1.5m / min- -5m / min |
| Maximum load weight | 500kg |
| Power supply requirements | 380V / 50 HZ |
| Total electricity power | 1.5Kw+0.75Kw+0.55Kw |
| Equipment noise | 70 db |

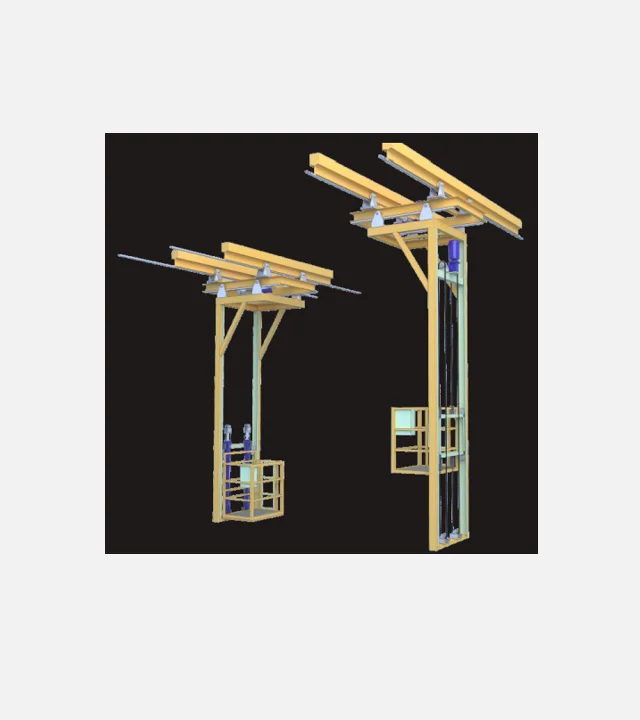

Working principle :

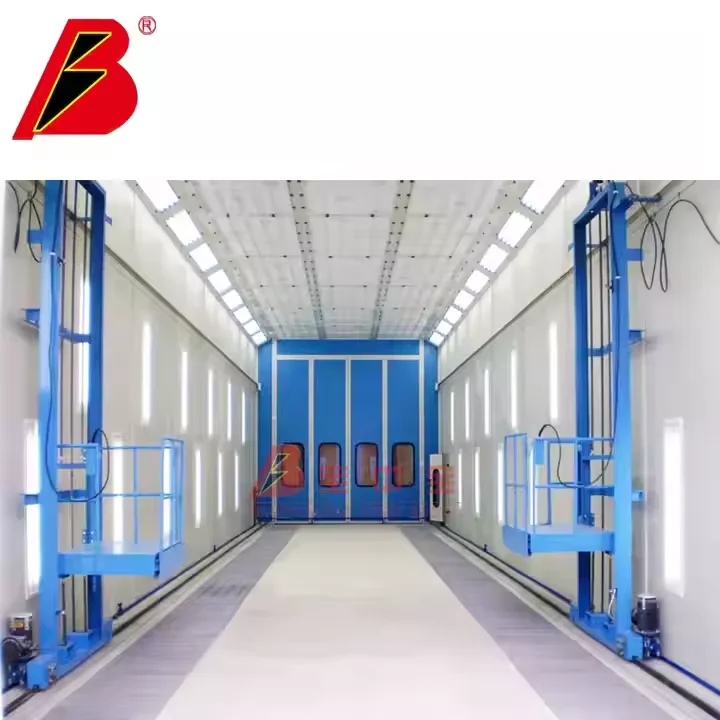

One side is one set (as the photo shows, normally left and right, two sides).
The principle of work: use to spray the top and above parts of the work pieces, usually one person, one side operation. It’s usually called 3D car, which means move from beginning to end, move from up to down, and move from left to right. It’s very convenient to spray the different parts of the big work pieces.
Project case:
Exhibition:
Company:
