High Performance New Condition Ball Mill for Gold Lead Oxide Ore with Engine Core Components Bearing Gearbox Motor

 Mineral processing ball mill is a professional mining equipment, it is used for lime, gypsum, sand, slag and other materials grinding. Mineral processing ball mill is a new type of mineral processing ball mill after summing up the experience of many years of production and upgrading the original products. the working efficiency of mineral processing ball mill is high, the grinding particles are uniform and the service life is long. The material enters the first silo of the mill evenly through the feeding device through the hollow shaft of the feed. There is a ladder liner or a wavy liner in the bin, and different specifications of steel balls are inside. The rotation of the cylinder produces centrifugal force to bring the steel ball to a certain height and falls down, which has a heavy impact and grinding effect on the material. After the material reaches rough grinding in the first warehouse, it enters the second warehouse through a single-layer partition board, which is inlaid with a flat liner and a steel ball inside, and the material is further ground. The powder is discharged through the discharge grate plate to complete the grinding operation.

Discover the cutting-edge performance of our new, state-of-the-art ball mill! Engineered for high efficiency in grinding gold, lead, and oxide ores, its core components are designed for optimal reliability and durability. Experience unprecedented power and performance in one sleek, innovative package!

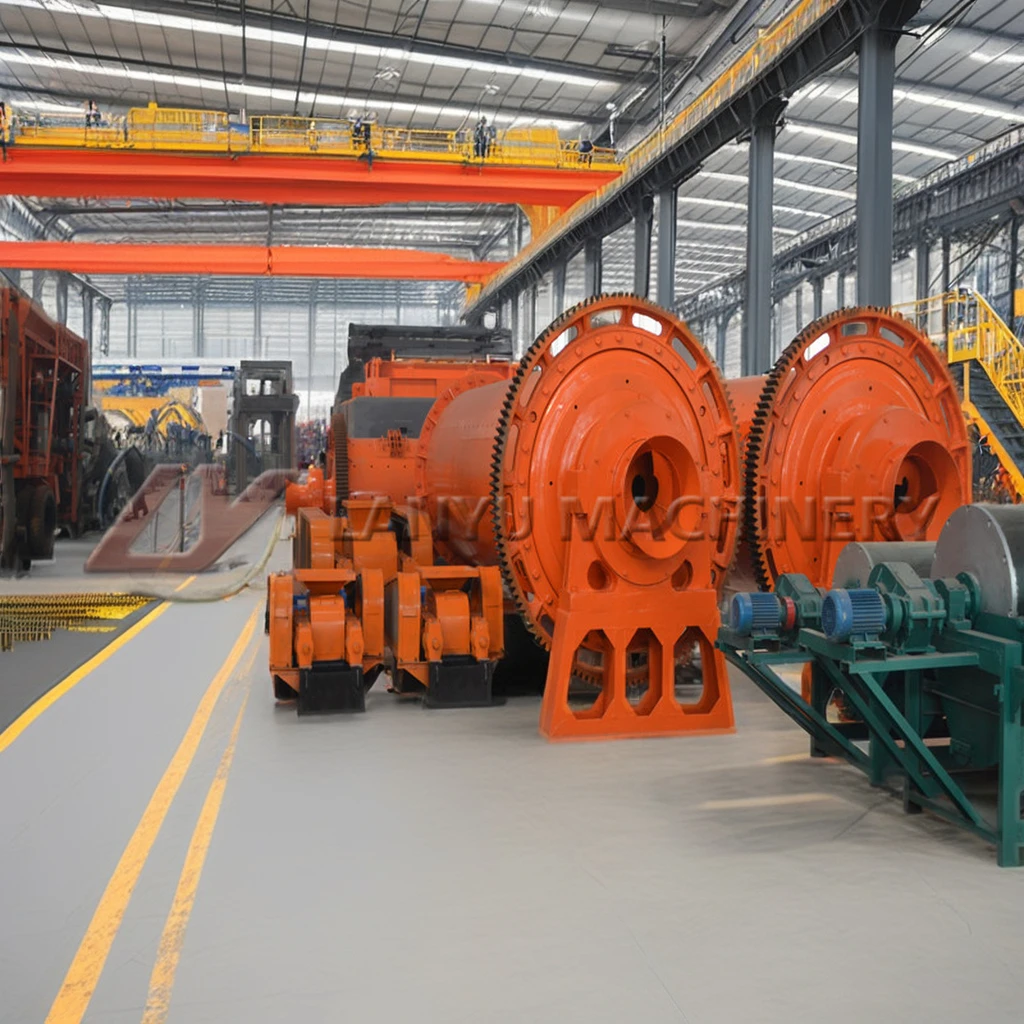

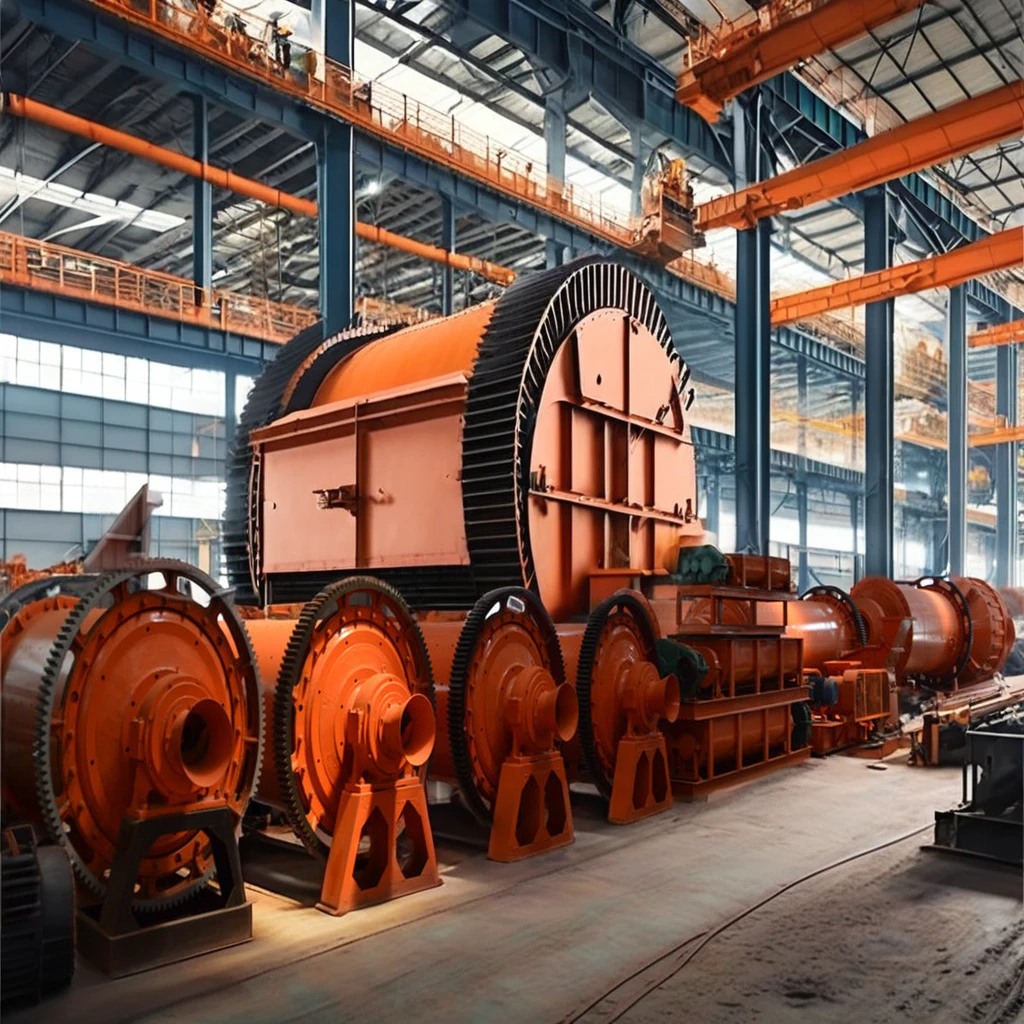

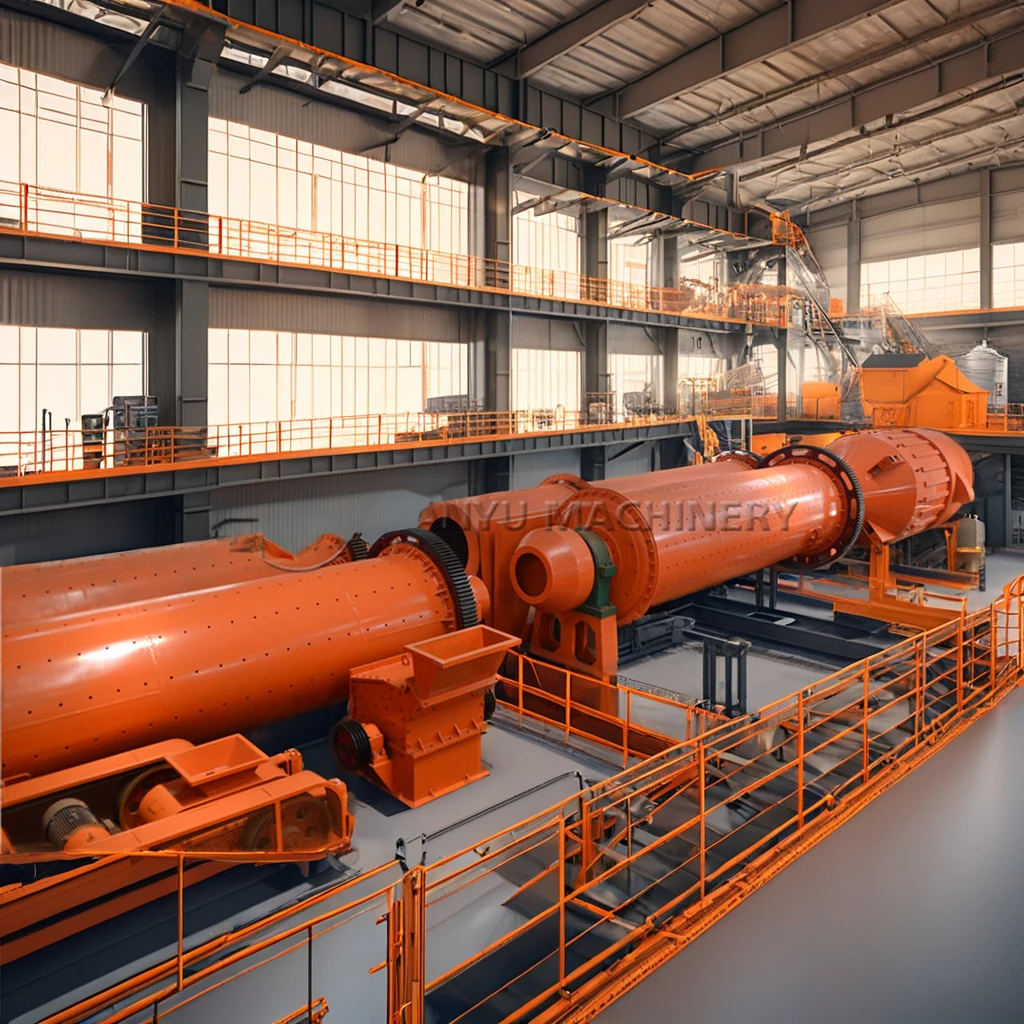

1.Our workshop

Advantages:

1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.

2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.

3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.

4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.

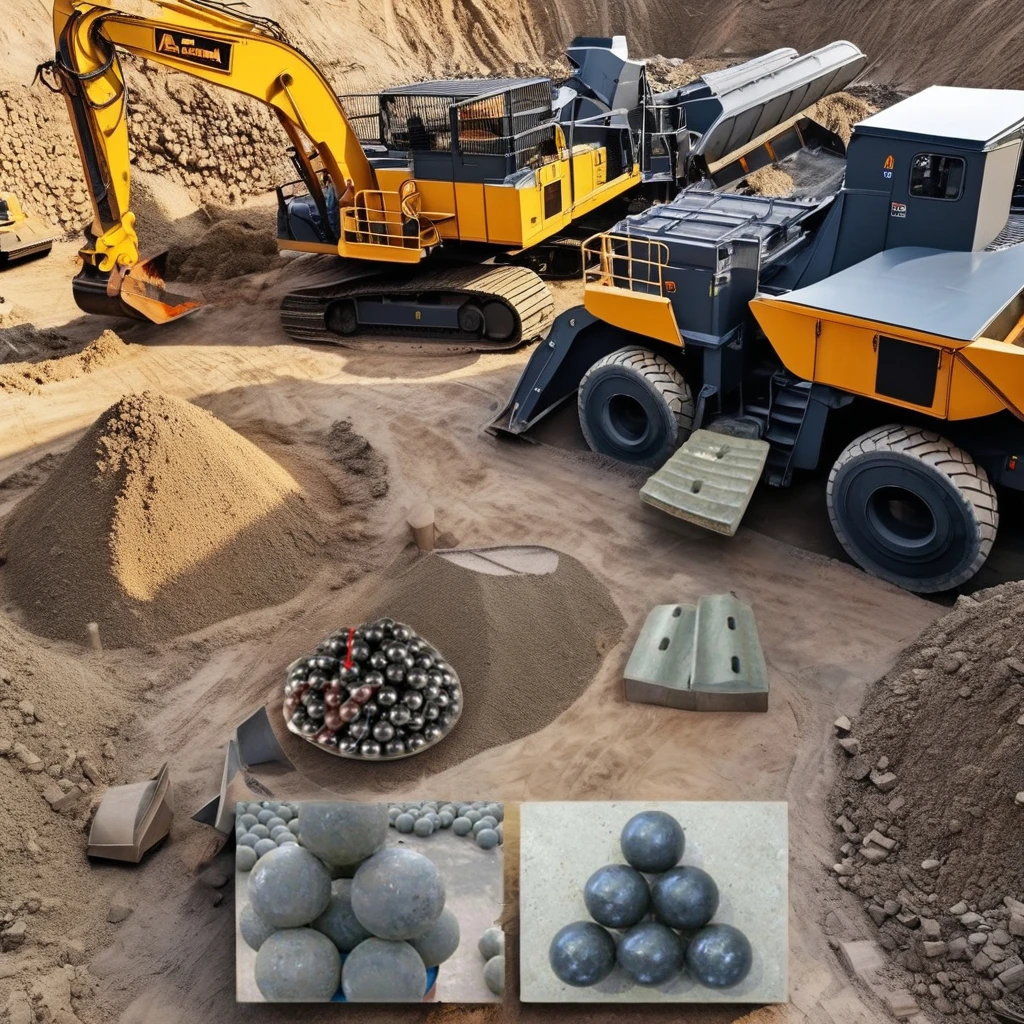

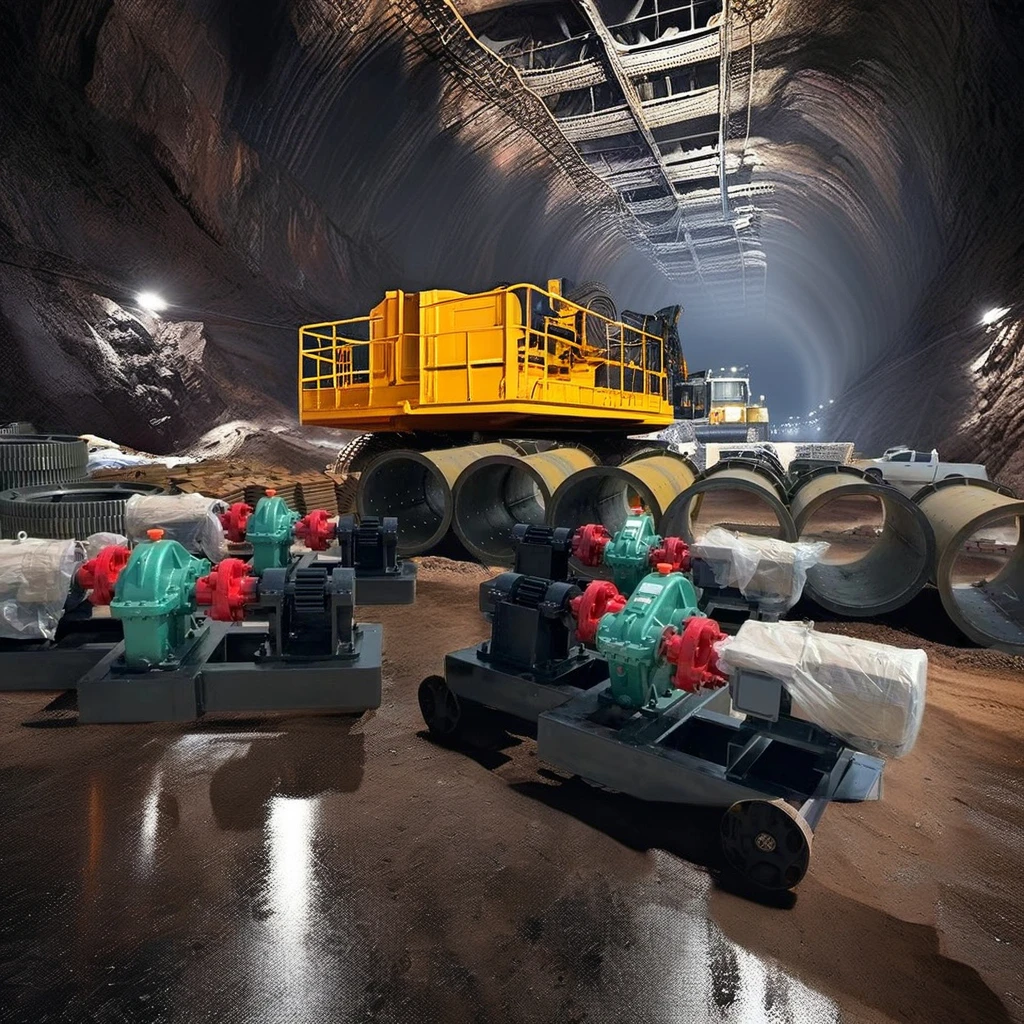

Ball mill spare parts:

Introducing the advanced mineral processing ball mill - a premier mining equipment for tasks such as grinding lime, gypsum, sand, slag, and additional materials. This groundbreaking machine is the result of a refined design and numerous improvements upon previous iterations, guaranteeing optimal efficiency in the grinding process. The working principle of our state-of-the-art ball mill is underscored by its unique features, including a high grinding efficiency, uniform grinding particles, and a long service life. The feeding device distributes material evenly throughout the first silo chamber, via the hollow shaft. Internally, the silo chamber consists of a ladder liner or a wavy liner, while both tiers are lined with steel balls of various specifications. The rotation of the cylinder generates centrifugal force, launching the steel balls upward. Upon returning, they carry out a relentless pounding and grinding action upon the material. After the initial rough grinding process, the material is elevated through a single-layer partition board into the second chamber. Here, it encounters a flat liner and a new batch of steel balls designed to further refine the particle size of the material. As the grinding procedure reaches completion, the resulting powder particles are discharged through the discharge grate plate. Experience the cutting-edge capabilities of our ball mill - engineered with gold, lead, and oxide ores in mind, its high efficiency is complemented by tough, reliable, and durable core components that embody an unmatched synthesis of power and performance. Enter the realm of innovation with one exceptional package

Notes: The ratio of cylinder length to diameter of rod mill is generally 1.5-2.0, and the inner surface of liner plate on end cover is vertical plane.The model is named as the length anddiameter of the barrel

Working principle of Ball mill
The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of casting steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height
and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

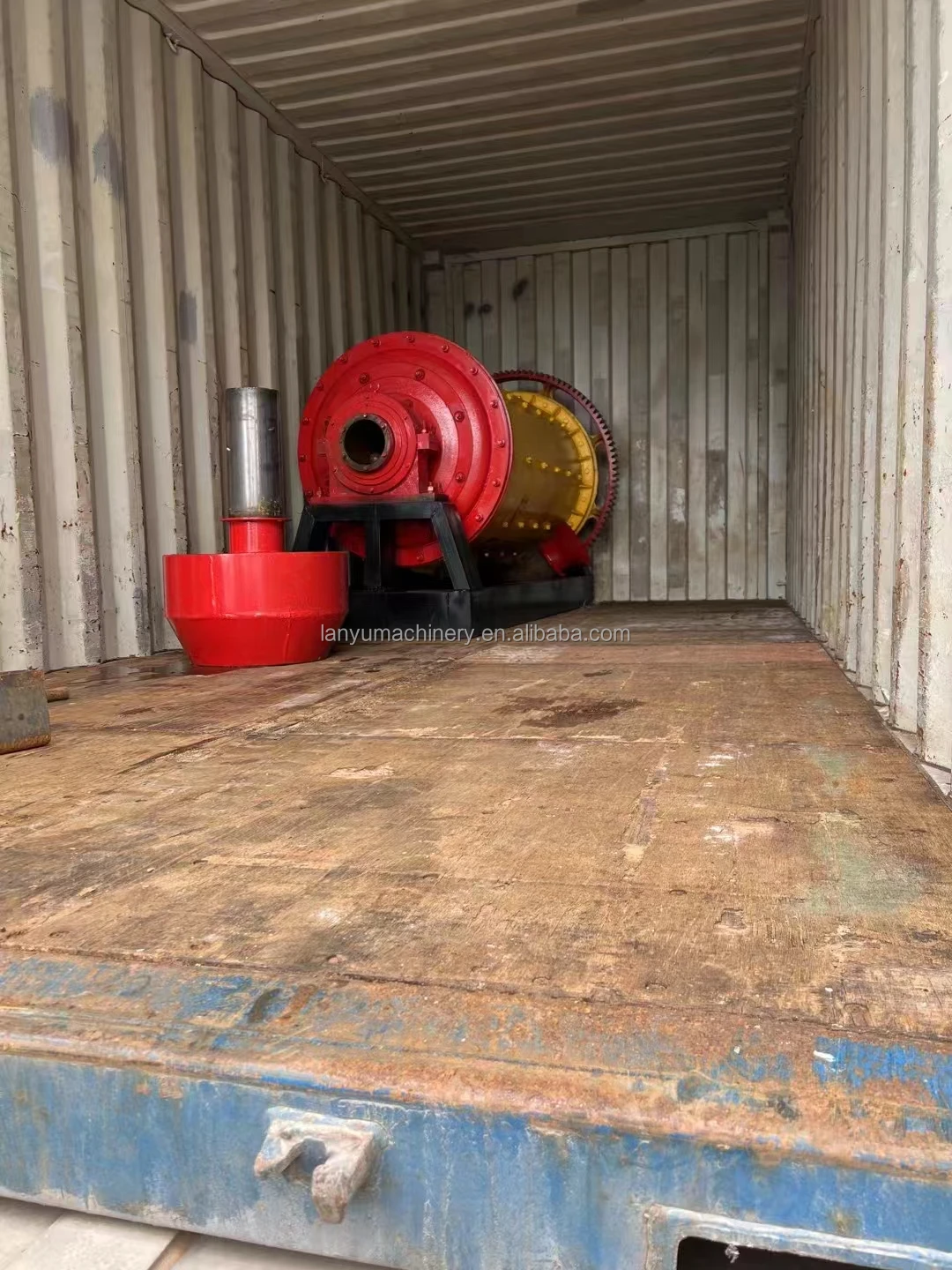

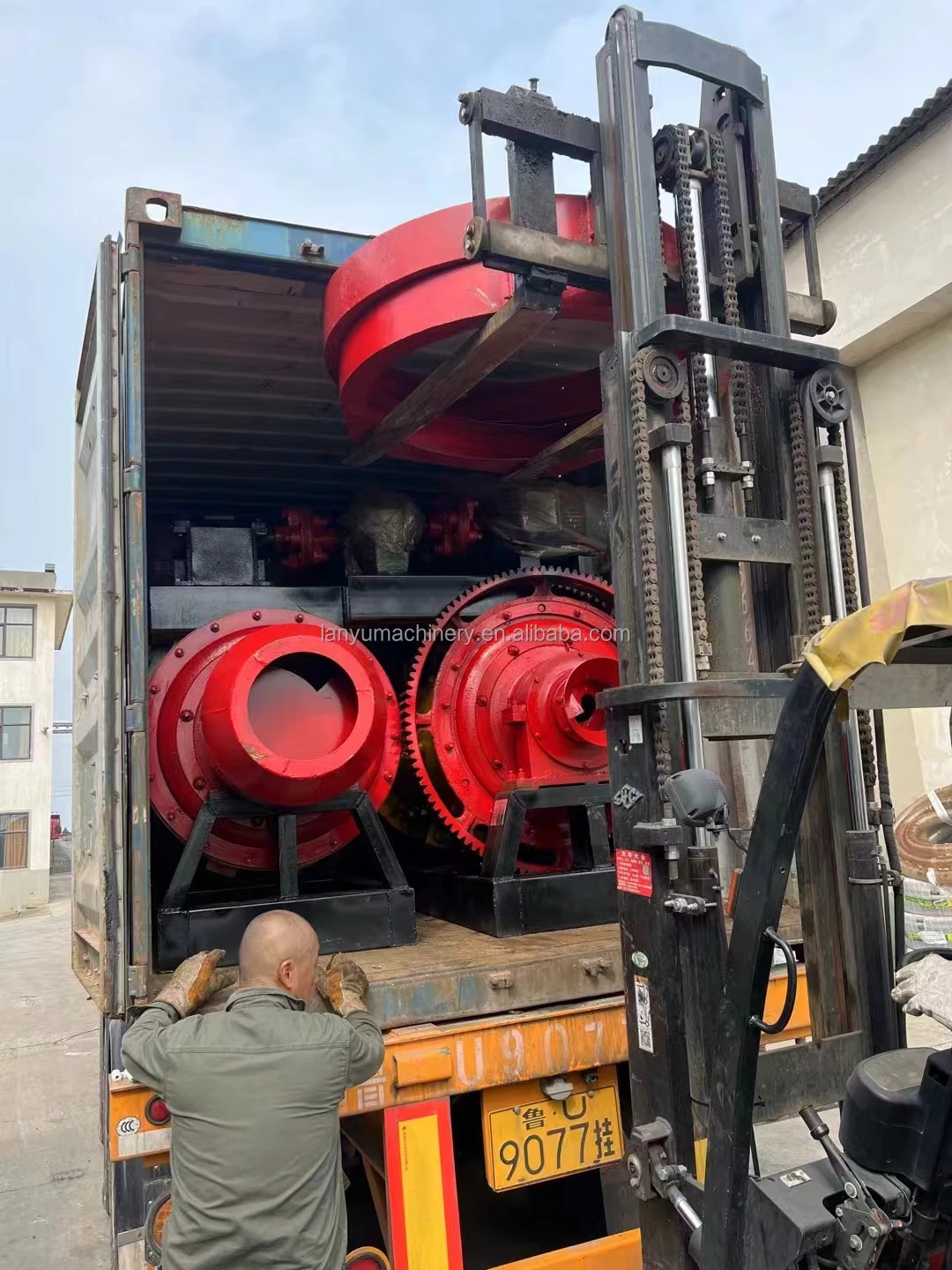

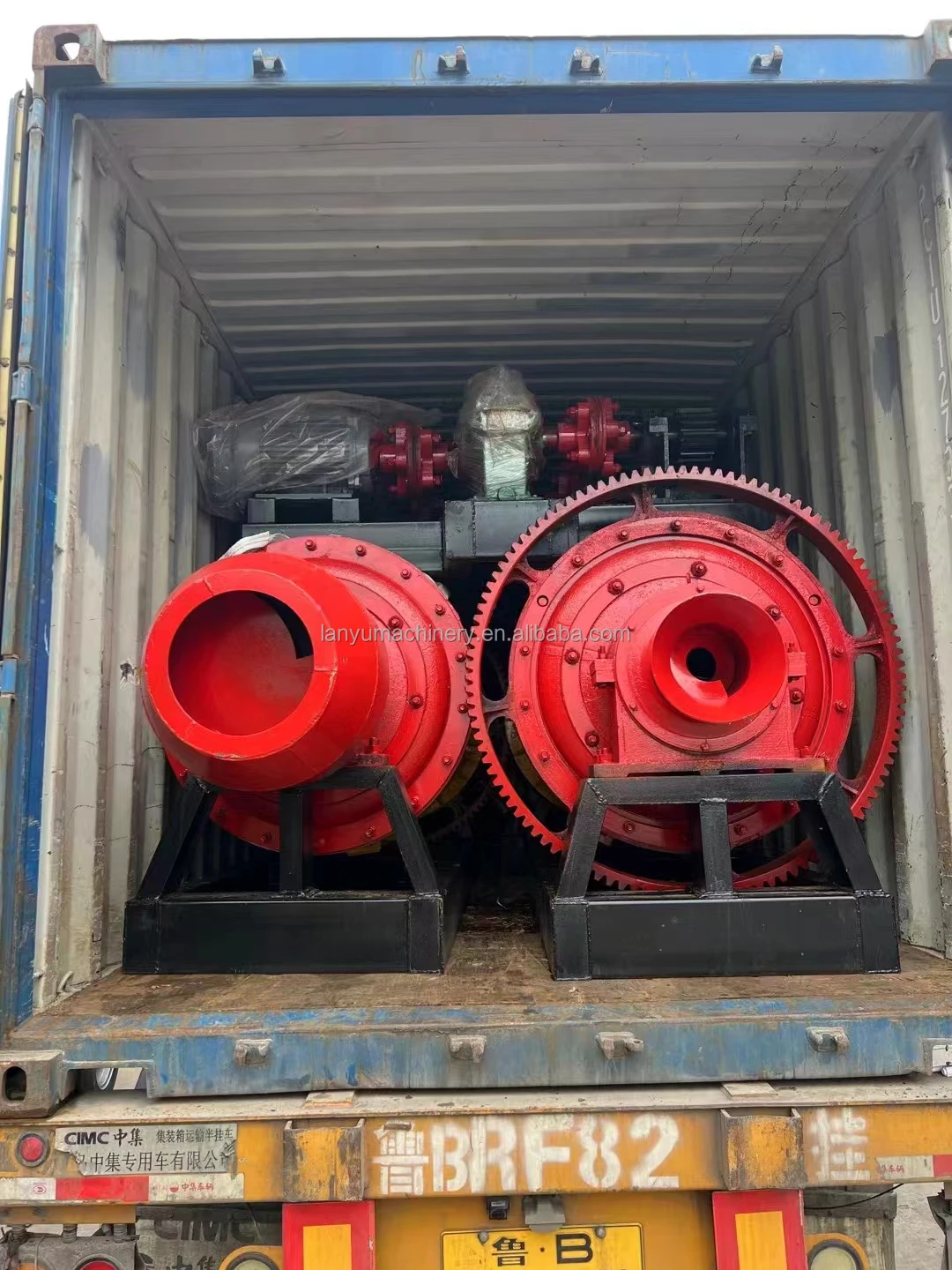

 Packaging: After thorough assessment, Lanyu offers a range of packaging options including standard container, nude packs, or in bulk. Ensuring the protection and safe transportation of the electrical motor or spare parts, Lanyu will utilize either wooden cases or steel frames to secure them during transport. We understand the importance of flexibility and customer satisfaction, and we are more than willing to accommodate individual customer's preferences. Our options for packaging include fumigation-free wooden cases, steel plate cases, or any other custom request the client may have. We have a stringent policy in place to ensure the quality of packaging and the safety of the equipment. Our employees, who are experienced in this domain, undertake this responsibility. The equipment is usually loaded into containers at the factory premises, under their supervision. Before the door of the container is closed, our personnel will double-check to confirm that all the equipment is secured and fixed properly. This added cautionary measure guarantees that no damage will occur during transportation and shipment. Shipping: Lanyu has the ability to deliver cargo to the various main sea ports within China, such as Qingdao, Tianjin, and Shanghai. Upon arrival at the port, the cargo container will then be shipped overseas to the specified destination. We have built long-term relationships with reliable shipping lines and carriers, guaranteeing the fastest and most efficient method of delivery. Our strong network of contacts allows us to offer competitive pricing and delivery options. Overall, Lanyu is dedicated to providing the highest quality products and services. We strive to exceed customer expectations and ensure seamless execution from start to finish

.

hot sell model
900*3000 Gold Ball Mill Introduction:

Small Ball Mill is a key equipment to grind the crushed materials, and the Gold Ball Mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grid type and overflow type due to different ways of discharging material.

Ball Mill Machine Working Principle:

900*2100 Gold Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Ball Mill Gold Applications:

900*1800 Ball Mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball mill has dry and wet ways. When wet ball mill works, certain water and other liquid will be added into materials to increase flow ability of materials, so the capacity is increased. When dry ball mill works, capacity is affected because material flow ability is reduced, so absorbing wind device is needed on the outlet of ball mill, and then negative pressure is formed in the ball mill to increase flow ability of material, so the capacity is increased etc.

Step into the dazzling world of the cutting-edge, state-of-the-art Mineral Processing Ball Mill! This incredible machine is the pinnacle of efficiency, boasting a remarkable ability to grind a variety of minerals such as lime, gypsum, and even sand. Its architectural design is a masterpiece that incorporates many years of innovative production experience, ensuring it outshines earlier versions of this powerful mineral processing tool. Undoubtedly, the Mineral Processing Ball Mill is a technological powerhouse that offers mind-blowing performance and an impressive service life. This breakthrough engineering marvel begins its journey with an evenly distributed flow of materials through the initial hopper and into the excitement of the mill. Crucially, the mill houses a series of rotating components that generate the centrifugal force necessary to propel the steel balls to incredible heights. Once these steel balls unleash their fury and plummet back down, they wreak havoc upon the material in question. This dynamic impact harnesses grinding forces that are both rapid and ferocious, gradually transforming the raw materials into their most refined state. As these finely ground particles leave the first chamber, they are funneled into a second overflow chamber. Here, the ball mill’s second chamber functions as an intensifying mechanism for the grinding process. It features intricate designs such as lattice plates and wavy liners, further enhancing the destructive power of the steel balls. The resulting powder is then channeled through the discharge grate, allowing this transformative stage to come to an end. The Mineral Processing Ball Mill doesn’t just excel in its efficiency and functionality; it takes its energy efficiency to new heights. Its streamlined design not only boast a high output, but its automatic feeding system and water-cooling function also keep energy consumption low. Its intelligent feeding system ensures that no materials are left behind or piled up, while the precision control of the feed water has a positive effect on the mill’s overall performance, ultimately leading to lower energy costs. The ball mill is designed with a focus on optimised production processes and is made for grinding gold, lead, and oxide ores in large quantities. Its exquisite design is truly impressive, integrating state-of-the-art components for maximum efficiency and durability. So, get ready to embark on a thrilling adventure with the Mineral Processing Ball Mill, where the extraordinary meets the ordinary, and every journey is made unique. Witness a revolution in milling, a world where efficient production meets ground-breaking technology, and experience the unparalleled power of the Mineral Processing Ball Mill. This machine is not only a game-changer in the world of mineral processing, but it's also a testament to the human ingenuity that continues to push the boundaries of what's possible. The future of mineral processing has never been more exciting, and the Mineral Processing Ball Mill is leading the charge!

The Lanyu Co., Ltd., a reputable firm in the industry, is dedicated to the design and manufacture of various equipment, including grinding mills, crushers, conveyors, feeding machines, drying and calcining systems, and beneficiation equipment. Our array of machinery also includes fine sand recycling equipment. These devices, designed with efficiency and reliability in mind, are widely applied in various sectors such as electricity, metallurgy, mining, quarrying, wharfs, granaries, and the chemical industry. Our products have gained widespread recognition across China, with several repeat orders from satisfied customers. Moreover, our successful experiences have led to a significant percentage of our exports reaching countries in Europe, America, Asia, and Africa. This widespread popularity has further established our reputation among customers. The company has an experienced team of sales and service personnel, who, with their expertise and dedication, form part of an efficient and smooth service network. They provide professional guidance and assistance in installation, commissioning, initial run, and equipment planning administration after purchase. The spread of our grinding and crushing machinery extends far beyond our borders and reaches regions such as South Asia, Africa, South America, the Middle East, and other areas. This international exposure has garnered significant acclaim for our machinery, establishing us as a key player in the foreign market. While commending the robust service network offered, it brings delight to inform that all aspects including guidance for the installation, commissioning, and initial run as well as planning administration of the equipment post-purchase are included in the scope of services. We are eager to extend an invitation to factory visits and express our anticipation to explore the opportunity for long-term cooperation. We welcome inquiries and are committed to ensuring a successful and engaging partnership. Let us, together, build a brighter future.

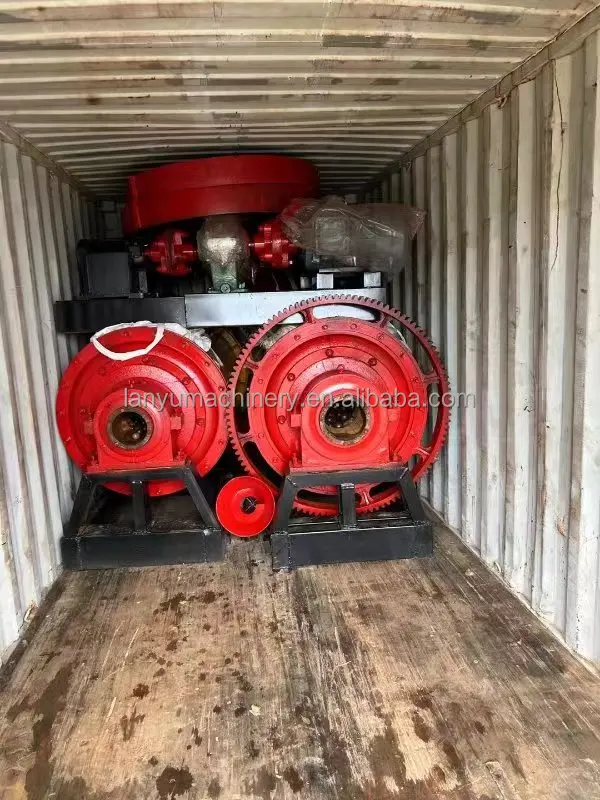

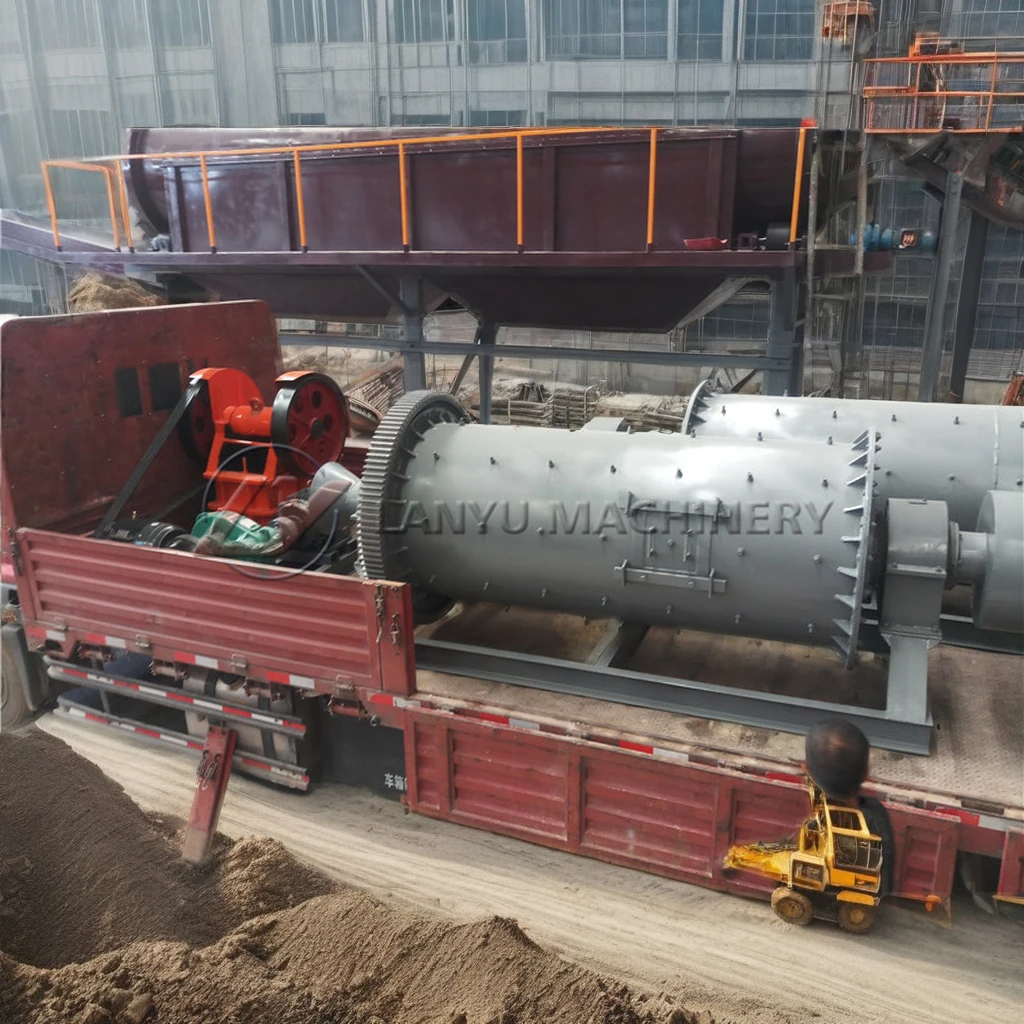

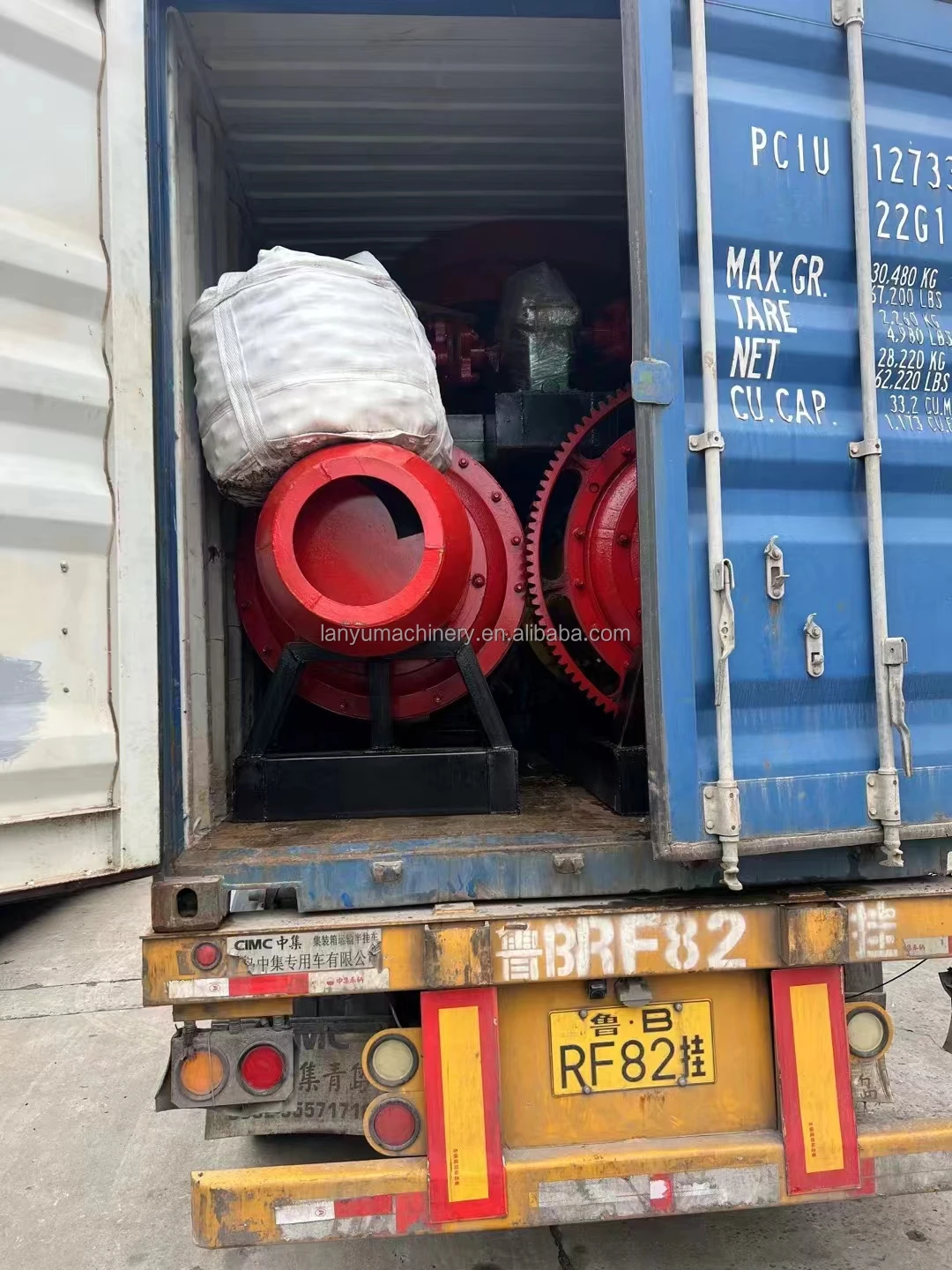

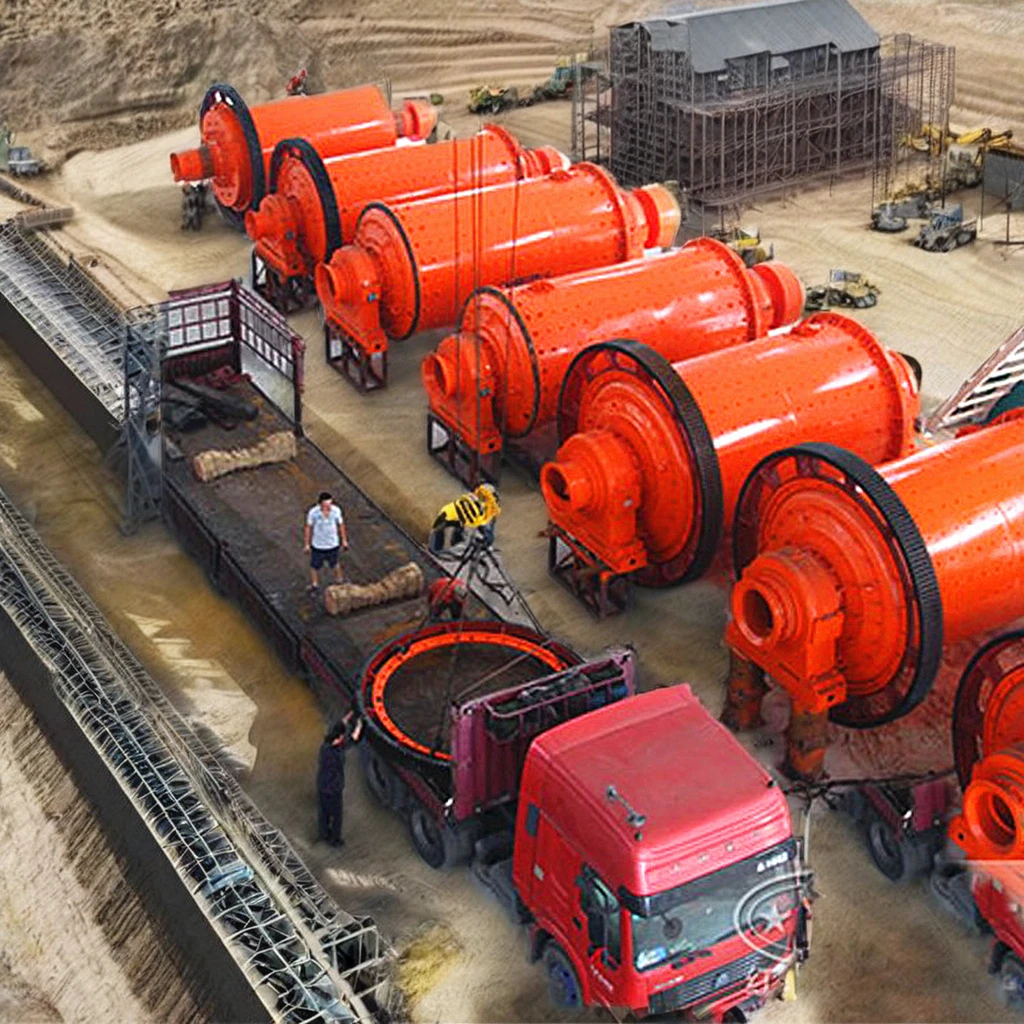

PACKING &SHIPING
