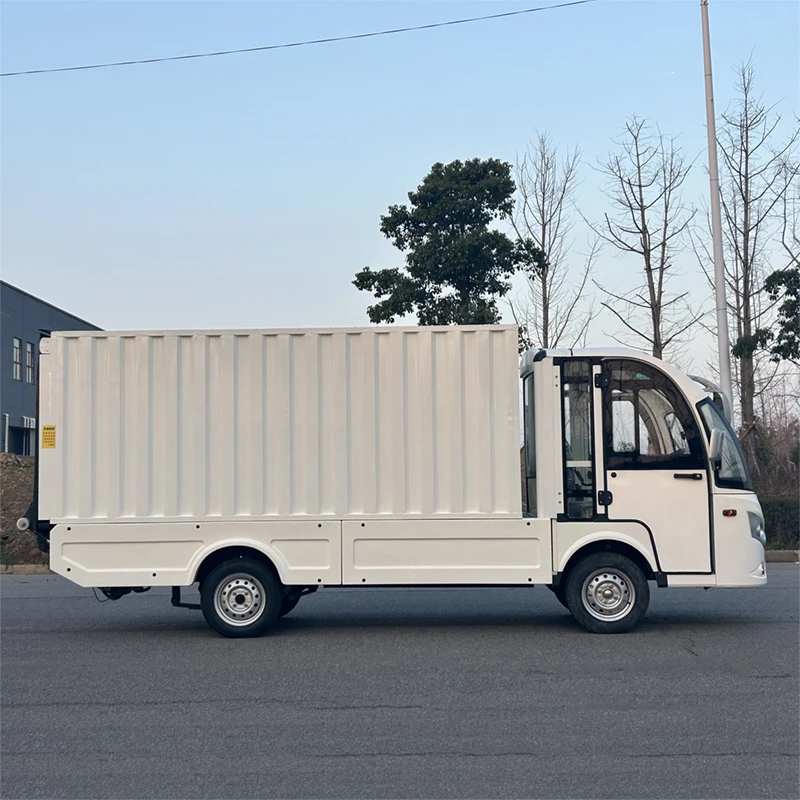

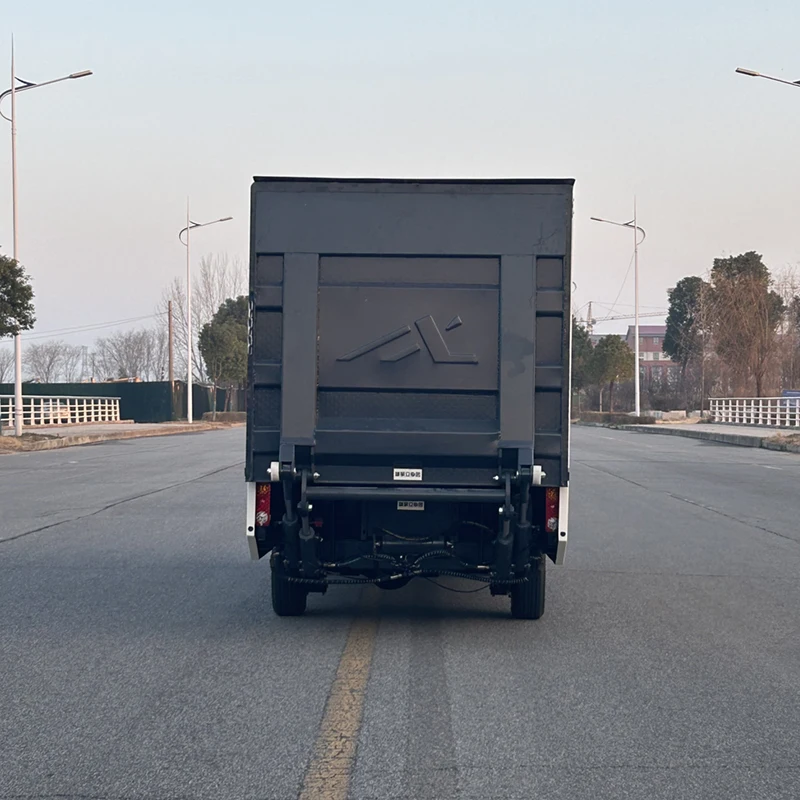

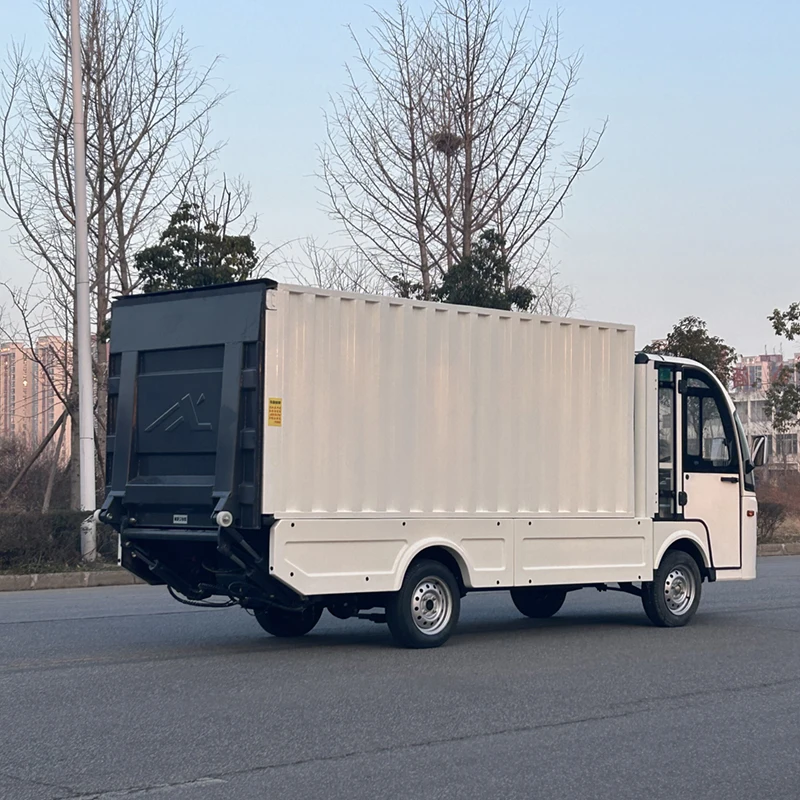

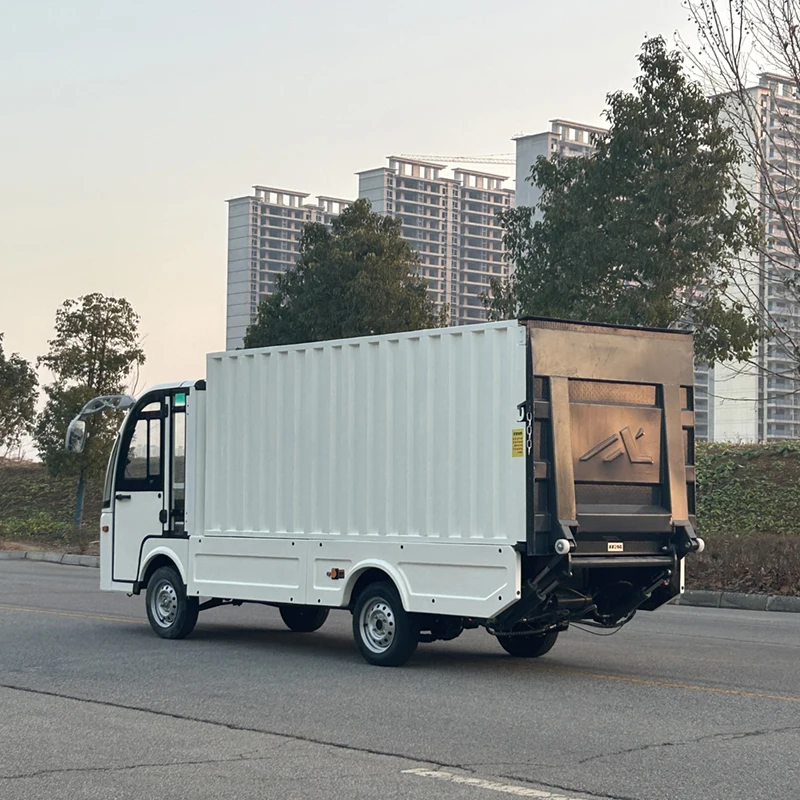

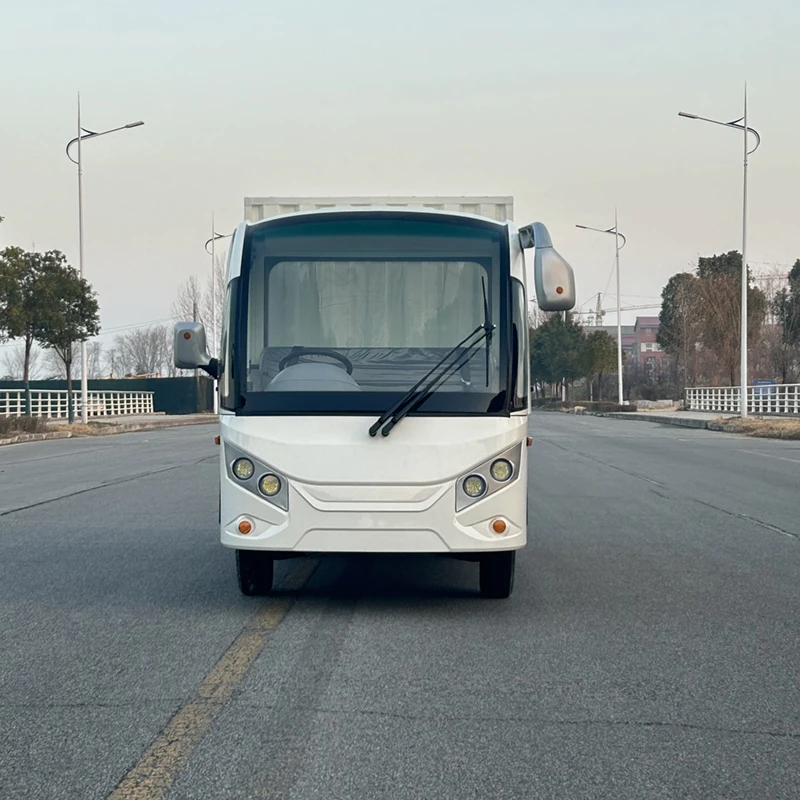

JL GD2F32 Electric Box Truck 1.5 T
- Category: >>>
- Supplier: Nantong LH Industry Co. Ltd.
Share on (1601264772002):
Product Overview
Description
Electrical system | controller | AC asynchronous controller | |||||||
Battery | Special maintenance-free battery for traction 72V (6V*12pieces 200AH) | ||||||||
Motor | Special AC asynchronous motor 72V/10KW | ||||||||
Charger | Computerized intelligent car charger 72V/25A, charging time <8 hours | ||||||||
DC Converter | High power isolated DC converter 72V/12V-500W | ||||||||
Body configuration | Front shield and wiper | Automotive laminated glass, wiper blades | |||||||
Roof | Aluminum profile frame plus GFRP fiberglass roof lightweight design | ||||||||
Cushion | Ergonomic design, luxurious PU fabric seats are made of cold hair sponge and not easily deformed. | ||||||||
Floor | Aluminum alloy anti-slip floor | ||||||||
Body | The body is lightweight designed with sheet metal, GFRP fiberglass and aluminum profiles, also beautiful and durable,lightweight and other unique advantages. | ||||||||
Chassis | Made of national standard steel, the main beam is made of patented technology for tailor welding and pickling, phosphating, cathodic electrophoresis and anti-rust treatment. | ||||||||
rearview mirror | Adjustable for each hand、foldable exterior rearview mirror. | ||||||||
Led light signal | Headlights, turn signals, reversing lights, brake lights | ||||||||
Dashboard | Molded dashboard, electric vehicle combination meter, electric lock switch, combination switch, single-position wiper switch, emergency double flash switch | ||||||||
steering system | Two-way rack and pinion steering system, automatic gap compensation function, EPS electric power assist. | ||||||||
Brake system | Front disc and rear drum + hydraulic dual-pipeline braking system, vacuum electronic assist + handbrake parking | ||||||||
suspension system | Front: MacPherson independent suspension Rear: Longitudinal leaf spring non-independent suspension + damper | ||||||||
audio speaker | USB playback host can be plugged in and dual speakers,Whistler, reversing reminder buzzer. | ||||||||
wheel | 165/70R13C+ wheel cover | ||||||||
Technical parameters | length*width*height | 5900*1500*2060(mm) | curb weight | 1680（kg） | |||||
Rated number of passengers (people) | 17 | Trunk size | --- | ||||||
Maximum driving speed | ≤30km/h | Trunk load | --- | ||||||
Driving range | ≥100（km） | minimum ground clearance | ≥150mm | ||||||
Maximum grade | ≤10% | Wheelbase | 3450±10(mm) | ||||||
Slope holding performance | 20% | Wheelbase (front/rear) | 1285/1325（mm） | ||||||
Minimum turning radius | ≤6.7m | braking distance | ≤5m | ||||||
Optional parts | Top air conditioner,Aluminum alloy，sunshade unit，Astern image，small fan，bus seat,Luxurious seats,high power system | ||||||||
Jiangsu Trail-blazer Vehicle Industry Co.Ltd
Jiangsu Trail-blazer Vehicle Industry Co.Ltd is a vehicle manufacturer specializing in personalized customization and refitting.The company has a strong background in automotive and all-terrain vehicle design technology, and broad ideas for new product development.
Trail-blazer has rich supply chain resources and is good at cross-border integration of supply chains Resources, to truly achieve the industry's most cost-effective products and the most professional services.
The price of our company's electric low-speed vehicles ranges from US$1,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products ,we are always at the forefront of the industry.The tourist sightseeubg cars, patrol cars, fire trucks, street view cars, and various customized vehicles developed and produced by our factory have been well received by customers around the world.
Trail-blazer has rich supply chain resources and is good at cross-border integration of supply chains Resources, to truly achieve the industry's most cost-effective products and the most professional services.
The price of our company's electric low-speed vehicles ranges from US$1,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products ,we are always at the forefront of the industry.The tourist sightseeubg cars, patrol cars, fire trucks, street view cars, and various customized vehicles developed and produced by our factory have been well received by customers around the world.
Our factory believes in the business philosophy of "independent research and development, leading technology, first-class service, and integrity-based". We have launched a series of electric special vehicles and obtained several patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.
we specialize in designing & producing golf buggy, the tourist sightseeing cars, patrol cars, fire trucks, Garbage removal truck, cleaning truck, street view cars, and various customized vehicles for 10 years.The company takes product innovation and development as the core competitiveness.including factory in-house advanced R&D and engineering teams. for producing quality vehicles at affordable prices.
Our team have been in the motorcycle industry for approximately 10 years and have gainedan extensive knowledge of golf cart and power sports industry.OEM and ODM orders welcomed！
Our team have been in the motorcycle industry for approximately 10 years and have gainedan extensive knowledge of golf cart and power sports industry.OEM and ODM orders welcomed！
FAQ
Q1. Do you accept special request to customize the vehicles ?
Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. for failed part under warranty, if it can be repaired at your side and the repair cost is
lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 8 years after we stop the production of the model. For your easier working to select the spare parts, we also supply parts list for you to choose the parts from .
Q4. Do you provide technical support?
Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD ?
Answer:we will supply the vehicle assemble guide manual , When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can give instructions via different ways when needed.
Q6. Do you accept OEM order?
Answer: Yes, we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell
reasonable volume of electric vehicles.
reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading'
Q9: Why should you buy from us not from other suppliers?
Answer: Our factory has strong manufacturing capacity, high quality control of products, cost control ability, who can offer high quality reasonable price products.
