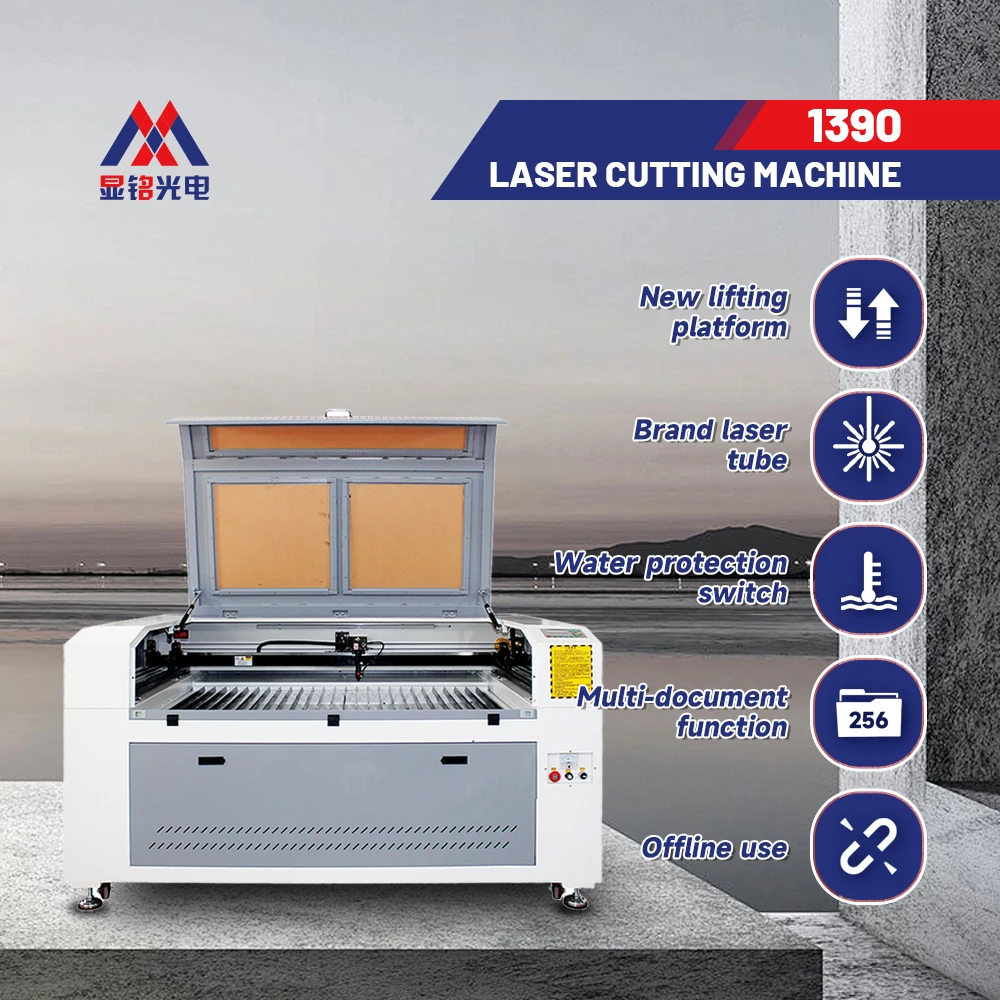

Precision Equipment 60w 80w 100w CO2 Laser Engraving Machine with Professional Factory for sale
- Category: >>>
- Supplier: Liaocheng Xianming Laser Co. Ltd.Liaocheng Ltd.
Share on (1601264811682):
Product Overview
Description
Product Paramenters
Model | 1390 |
Worktable | honeycomb or blade |
Eneraving area | 1300900mm |
Laser Power | 60w/80w/ 100w/ 150w / 300w |
Engraving Speed | 060000mm/min |
Engraving Depth | 5mm |
Cutting Speed | 0-5000mm/min |
Cutting Depth (Acrylic) | 0-30mm (acrylic) |
Up and down worktable | Ec Up and down 550mm adjustable |
Minimum Shaping Character | 1X Imm |
Resolution Ratio | 0.0254mm (1000dpi) |
Power Supply | 220V(or110V)+/-10%50Hz |
Resetting Positioning | Accuracyless than or equalto 0.01mm |

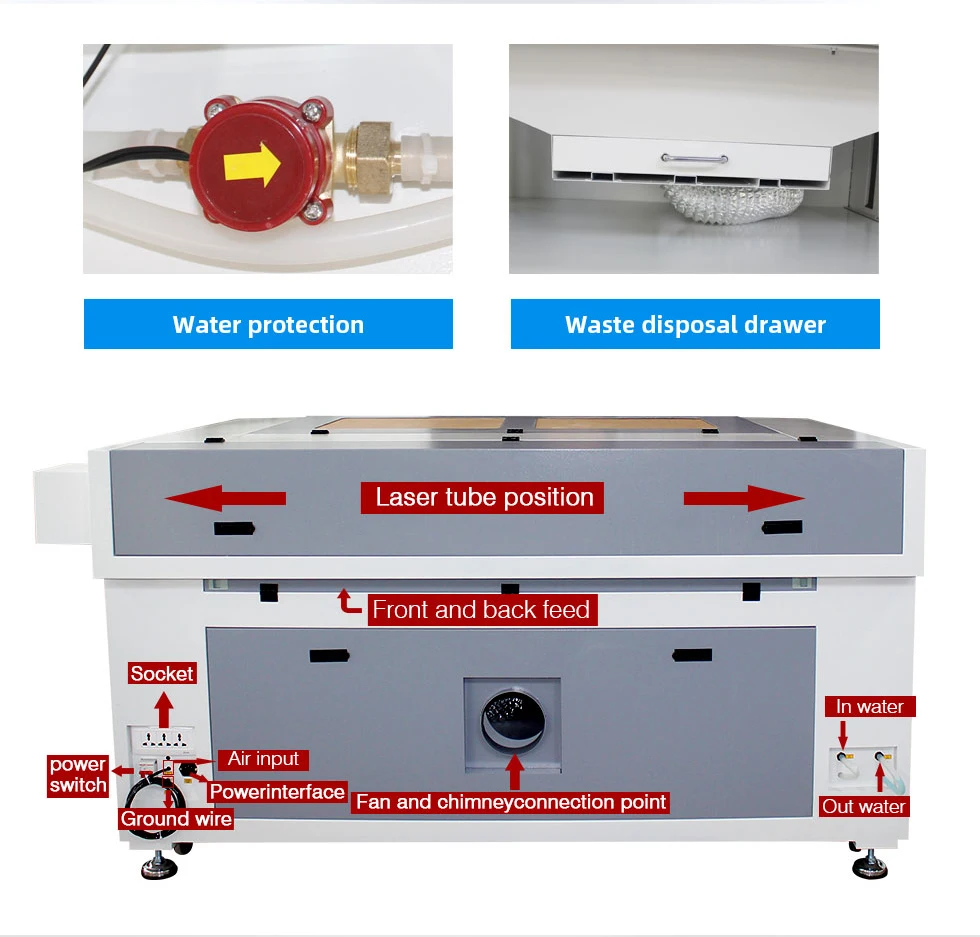

Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45℃ |
Operating Humidity | 35-70℃ |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software | RDWorks/LaserCAD |
Engraving on Curve Surfaces(Yes/No) | No |
Control Configuration | DSP |
Water Cooling(Yes/No) | Yes |
Maximum Height Of Materials To Engrave(mm) | 120mm |
Laser Tube | Sealed C02 glass lasertube |
Machine Dimension | 1840x1400x1030(mm) |
Packing Dimension | 2040x1600x1320mm |
Gross Weight | 410kg |

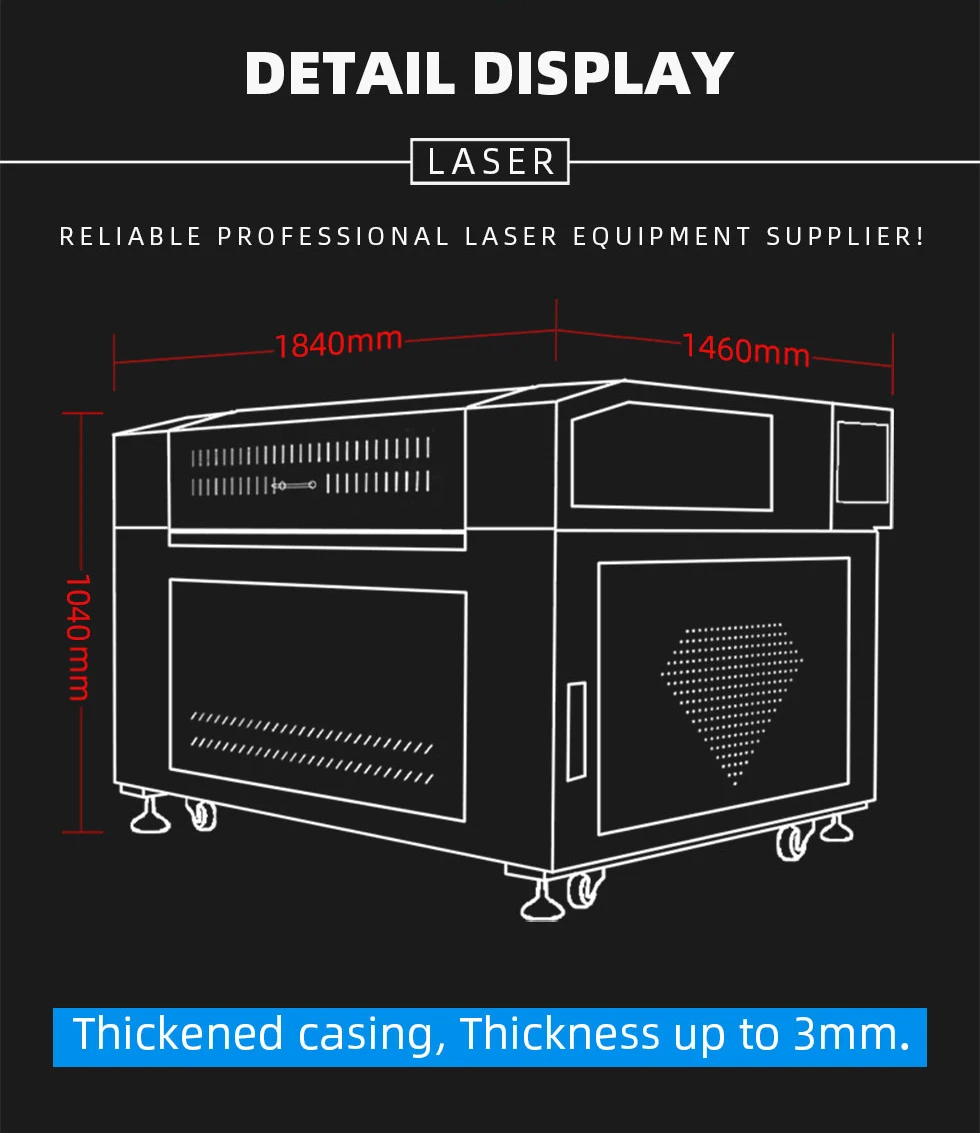

DETAIL DISPLAY
1300X900MM
WORK AREA
laser cutting machin
ALUMINUM KNIFE
To process hard materials like acrylicood and so on.
WORK AREA
laser cutting machin
ALUMINUM KNIFE
To process hard materials like acrylicood and so on.
1300X900MM WORK AREA
laser cutting machin

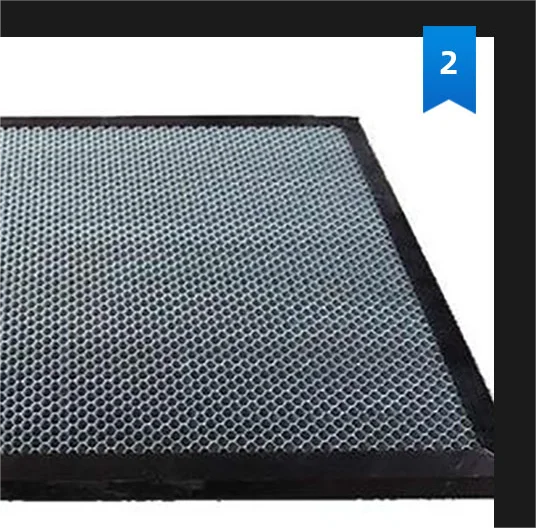

HONEYCOMB WORKTABLE
1）small holes make sure good support-ing per formance which is suitable for leather.cloth and other thin soft ma-terials.
2）The hole of honeycomb workable is small,so the small workpiece can be placed on the table surface to be pro- cesed.

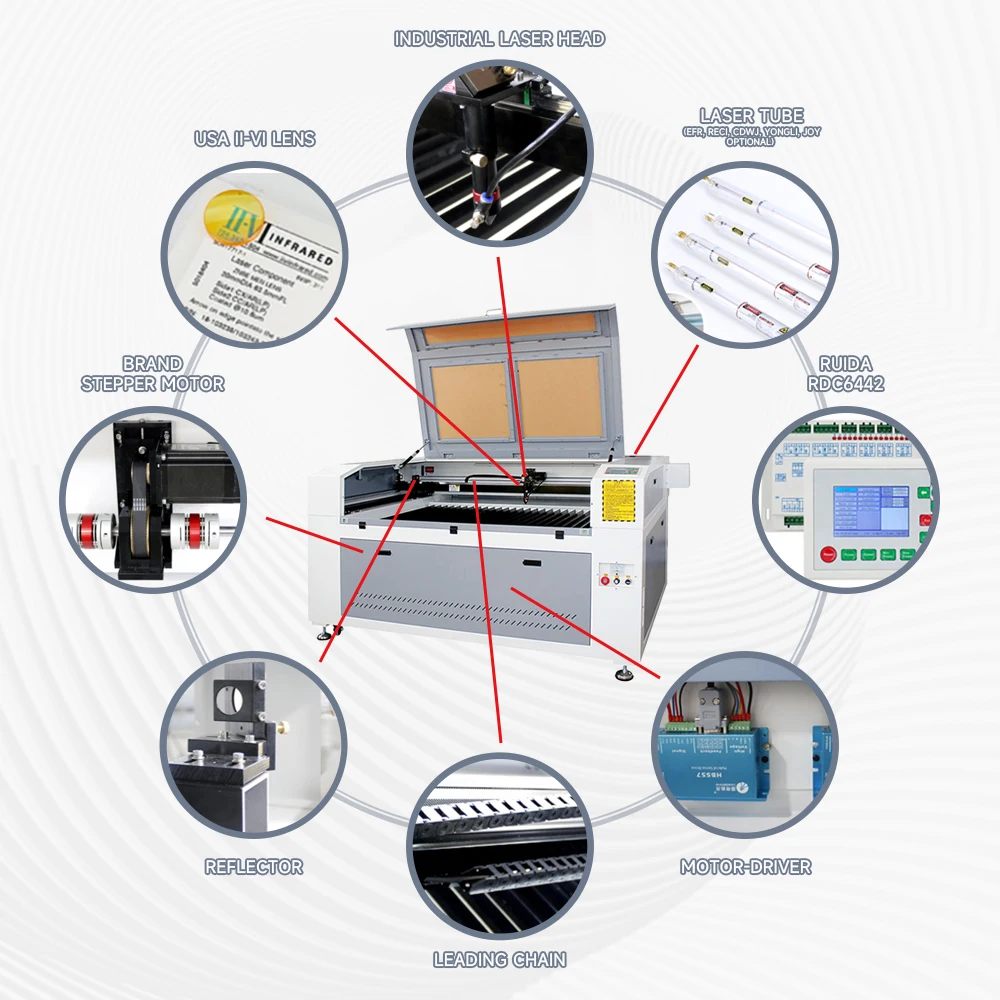

INDUSTRIAL

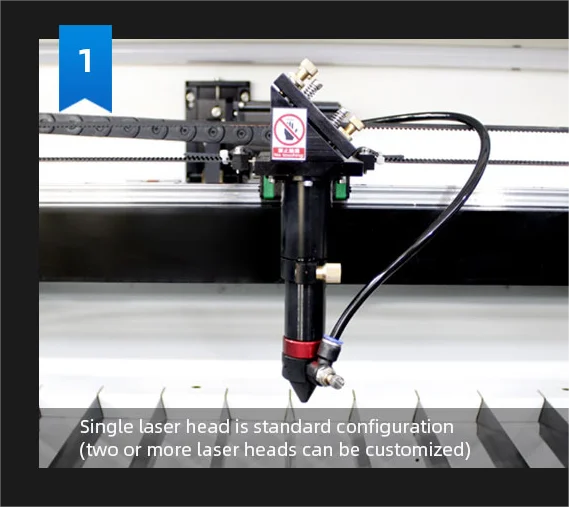

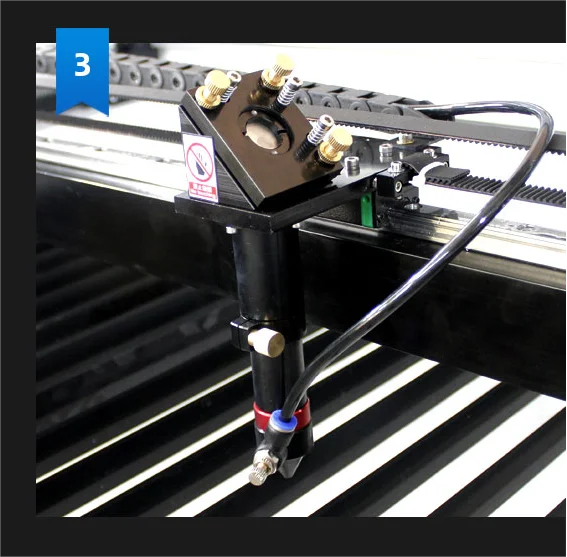

LASER HEAD
LASER HEAD
laser cutting machin

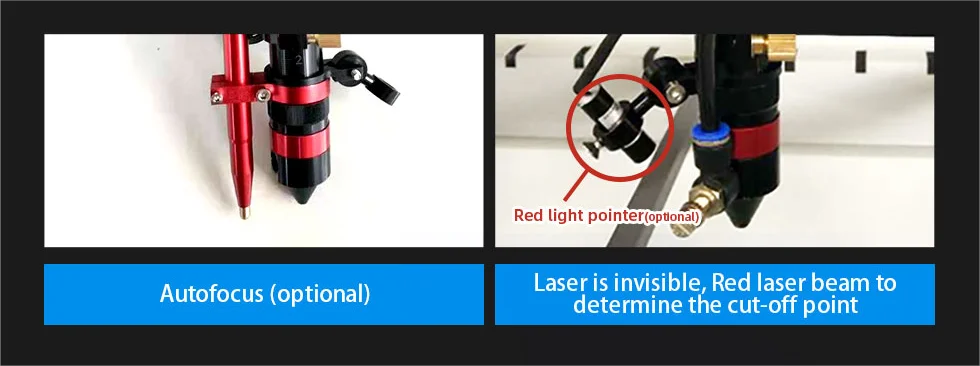

High precision retractalble laser head,easy to adjust focal length,equipped with red light positioning system,ac-curate positioning,reduce materiall-oss.
Auto-blowing to protect laser head a-nd prevent the laser burning

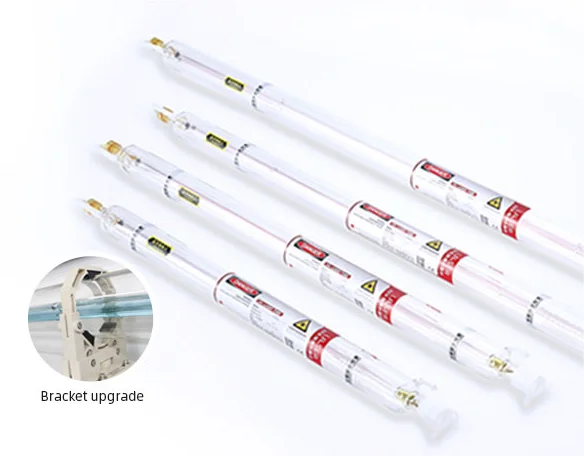

Laser Tube
laser cutting machine
Closed Co2 laser tube , long life ,stable power Installation of re -inforcement settings , the lasertube is not easy to collide andcause damage when movingthe machine ( EFR , RECI , CDWJYONGLI , JOY . Optional)
BRAND STEPPER MOTOR
High operating accuracy , high temperature resistance , can bear the high temperature gen-erated by high-speed operation , and low noise
1 ) self adaptive circuit
2 ) necessary accessories ofoff-line working
Imported USA I-VI Lens , suitable for vanous environments , and has high precision and high speed.

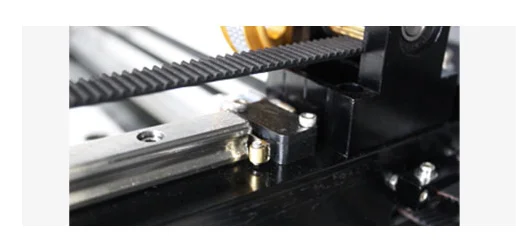

The ONK brand belt , wear resistancespeedgood stability , compact structure and low noise.
FAMOUS BRAND SWICHVe
laser cutting machine

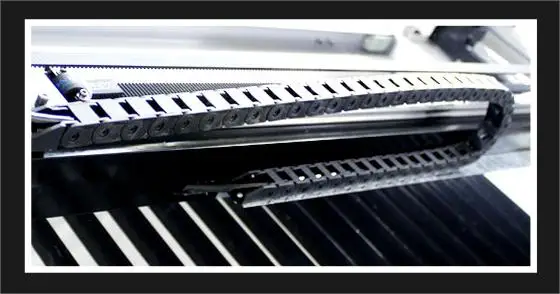

LEADING CHAIN
laser cutting machine
The current lead and breather pipeare included in it .Thicker , more stableKeep the laser head from shaking

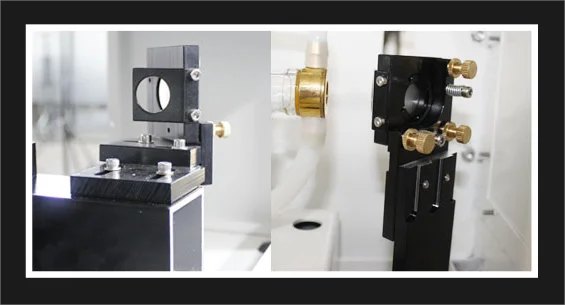

REFLECTOROE
laser cutting machine
45°mirror adjustment set . Easy toadiust laser path.

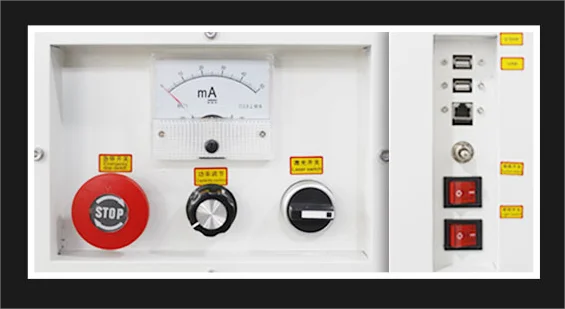

SWITCH
laser cutting machine
key switch , emergency stop , LED light
FEATURES
laser cutting machine
1.Adopt advanced laser engraving and cutting controlsvstem: Ruida RDC6442 control svstem, the control pannal support different lanquage include Chinese English, French,Pvccko, Portuquese, Turkish, German, Spanish, Vietnamese, Korean, Italian.
2.Standard RDWorksV8 software: lt support 15 different lanquages, include: Chinese, English, lapan.ese, French, German,Portuguese, Polish,Spanish, Russian, Korean, Vietnamese, Indonesian, ItalianTurkrishArabic.
t can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAIIMAetcYou can use these software to make desians, then import to Rdworks to cut or engrave.
3.RDworks software support files in different format: AI,DXF,PLT,DST,BMP,DSB,EPS,DAT,NC,RDB,GIF,JPG,IPEG,JPE,JFJF,PNG,MNG,ICO,CUR,TIF TIFF,TGA,PCX, WBMP,WM,EMFBG,2CPC,PGX,RAS,PNMPGMPPM.SKARAW
4.Storage: The main board has EMS Memory which enables the user to store more than 100 files.
5. Laser output control: Can regulate the laser power from 1-100% according to different material.
6. nterface: USB2.0 interface support connect to computer by USB cable, it also support offline work.
laser cutting machine
1.Adopt advanced laser engraving and cutting controlsvstem: Ruida RDC6442 control svstem, the control pannal support different lanquage include Chinese English, French,Pvccko, Portuquese, Turkish, German, Spanish, Vietnamese, Korean, Italian.
2.Standard RDWorksV8 software: lt support 15 different lanquages, include: Chinese, English, lapan.ese, French, German,Portuguese, Polish,Spanish, Russian, Korean, Vietnamese, Indonesian, ItalianTurkrishArabic.
t can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAIIMAetcYou can use these software to make desians, then import to Rdworks to cut or engrave.
3.RDworks software support files in different format: AI,DXF,PLT,DST,BMP,DSB,EPS,DAT,NC,RDB,GIF,JPG,IPEG,JPE,JFJF,PNG,MNG,ICO,CUR,TIF TIFF,TGA,PCX, WBMP,WM,EMFBG,2CPC,PGX,RAS,PNMPGMPPM.SKARAW
4.Storage: The main board has EMS Memory which enables the user to store more than 100 files.
5. Laser output control: Can regulate the laser power from 1-100% according to different material.
6. nterface: USB2.0 interface support connect to computer by USB cable, it also support offline work.

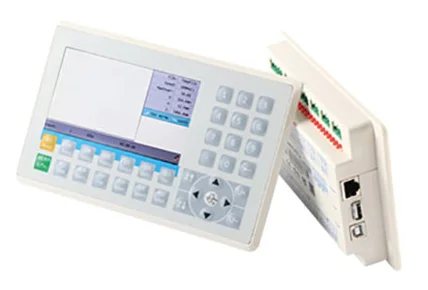

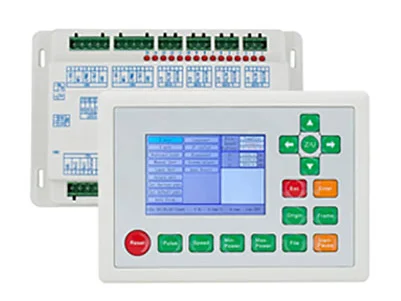

MAIN BOARD
laser cutting machine
Multi-language in LCD panel.Ruida. Theinterface of the controlpanelis simpleeasy to learneasy to pperate and the system isstable.
DUSB interface
laser cutting machineMachine detail . Take every detailseriously to ensure that the mac-hine is stable working during se -rvice to every customer .

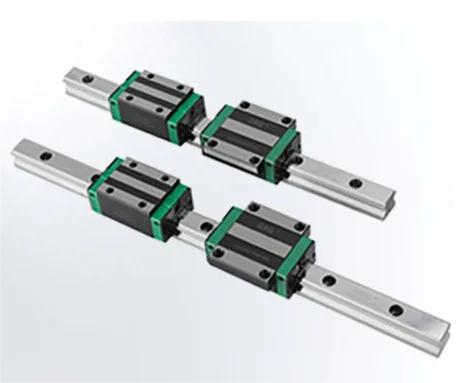

Imported linear guid
laser cutting machine
XY axis apply imported square rails .Ensures stable operation , high precisionand long life.

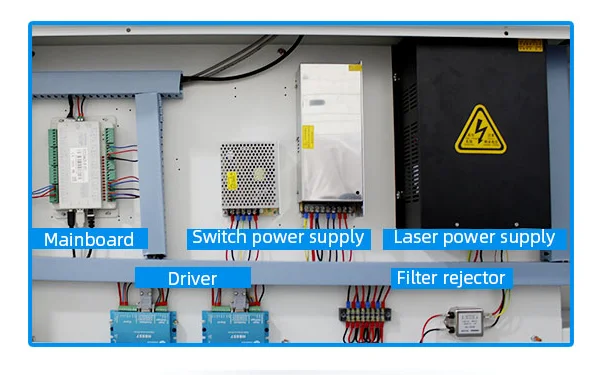

Distribution cabinet
laser cutting machine

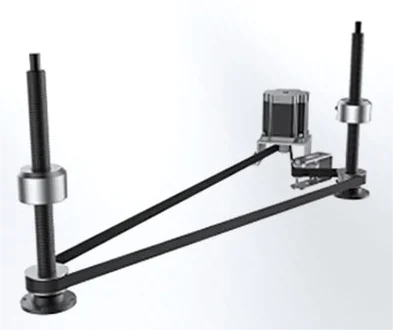

Platform lifting
laser cutting machine
It allows you to process materials of various sizescan be lifted in Z direction ( up-and-down ) to getmore working space .
Front and back Feeding Doors laser cutting machine
Front and back feeding material system , you can cut and engrave the material at the largest scale

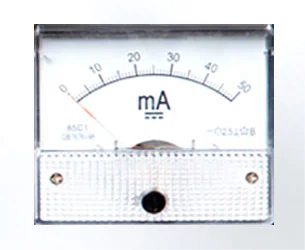

Amperemeter
laser cutting machine
Coreldraw and CAD control directly
Advanced working software Which canbe embedded into Coredraw and CAIUser can operate the machine buy Cor -edraw or CAD software directly.
Rotary fixture
Rotary fixture Can engrave degree , usually applied in adver -tisement and craft work , for colum or cone work piecsurface( need work together with motorized Up and Down System )Rotary fixture is for the circle engravingof cylindrical or column work pieces Need working together with Motorized Upand Down System

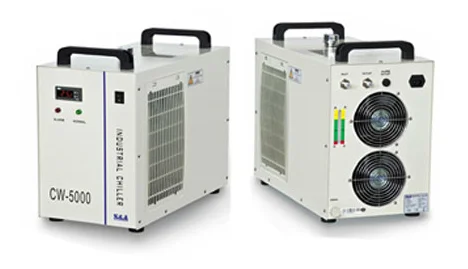

water chillerI
Best in china , it is for cooling the laser tubeafter Water fill in the pipe when machine isworking
Exhaust fan
Removes smoke and dust caused duringengraving and cutting
Our certificate
PRODUCT APPLICATION
RELIABLE PROFESSIONAL LASER EOUIPMENT SUPPLIER!
Fosterlaser CO2 Laser Engraving Machine with different workincarea,laser power or working table, which application is engravingand cutting on acrylic, wood, fabric, cloth, leather, rubber platePVC,paper and other kinds of non metalmaterials.
1390 laser cutting machine are widely used in clothing, shoesluggage, computer embroidery clipping, model, electronic appli.ances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances, laserprocessing and other industries.
Fosterlaser CO2 Laser Engraving Machine with different workincarea,laser power or working table, which application is engravingand cutting on acrylic, wood, fabric, cloth, leather, rubber platePVC,paper and other kinds of non metalmaterials.
1390 laser cutting machine are widely used in clothing, shoesluggage, computer embroidery clipping, model, electronic appli.ances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances, laserprocessing and other industries.
