BV Certified Refrigerated 20ft 20 foot high cube 20 hc freezer reefer container with Dakin cooling unit for sale in dubai
- Category: >>>
- Supplier: Tianjin Longteng International Trade Co. Limited
Share on (1601264880205):
Product Overview
Description
Hot Sale Products
Products Description

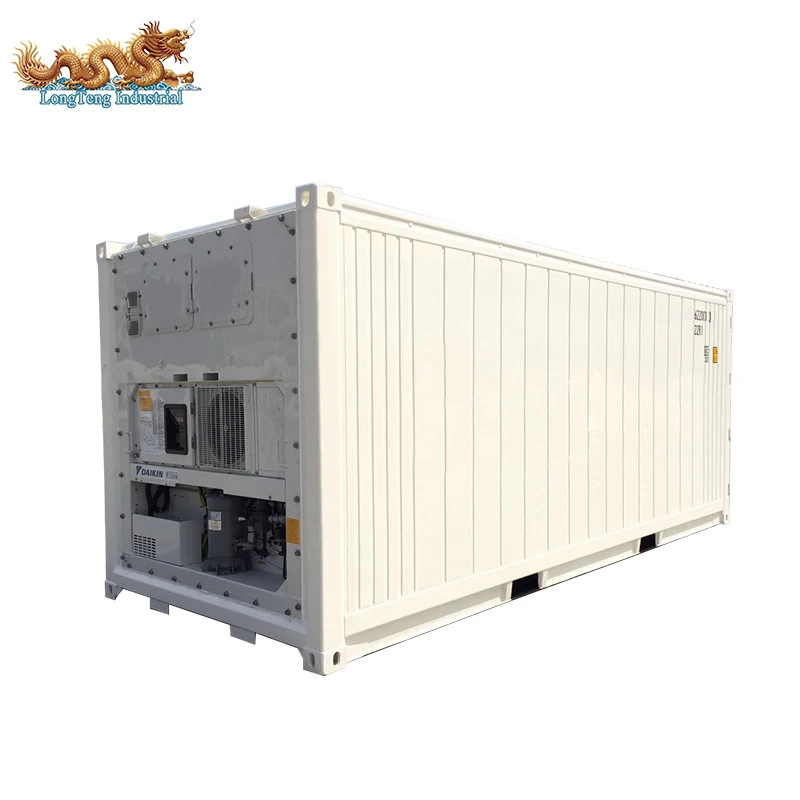

20ft Daikin Reefer Container

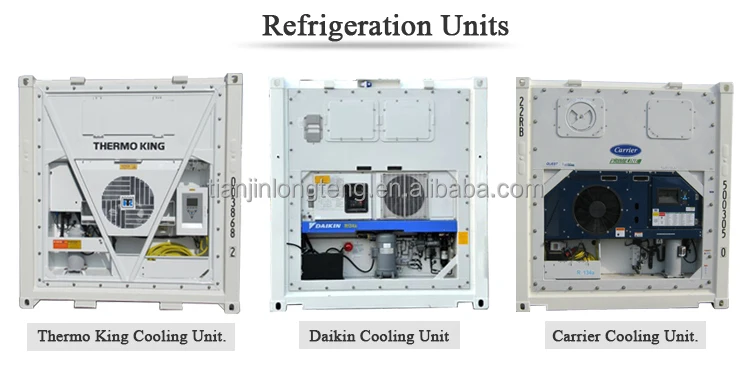

We have 3 brands of cooling machine: Thermoking, Carrier, Daikin for the dual temp. reefer container
U.S. Thermo King Reefer Units
-Power SupplyThree -Phase 380/460V, 50/60HZ
-Refrigeration System
404A Refrigerant, Compressor Scroll
-Control System
MP-3000 Microprocessor Controller
-Dimensions
WxHxD=2026x2235x420mm
-Weight
420 kgs
-Optional Features:
Dual Voltage Transformer (230/460V)
Remote Monitoring
Fresh Air Exchange Management
Temperature Recorder
-Refrigeration System
404A Refrigerant, Compressor Scroll
-Control System
MP-3000 Microprocessor Controller
-Dimensions
WxHxD=2026x2235x420mm
-Weight
420 kgs
-Optional Features:
Dual Voltage Transformer (230/460V)
Remote Monitoring
Fresh Air Exchange Management
Temperature Recorder

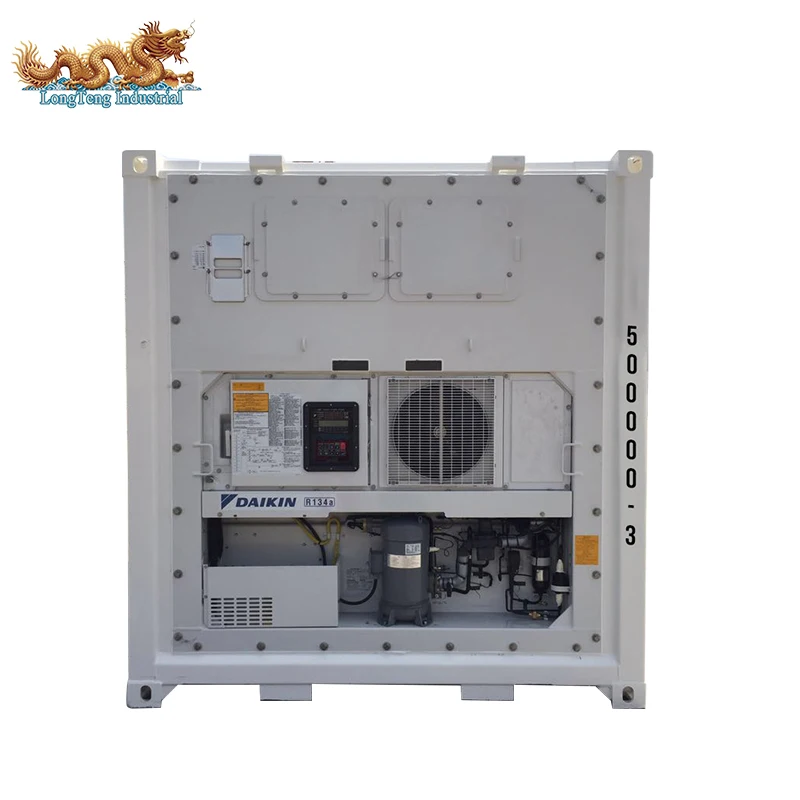

Japan Daikin Units
Power SupplyThree -Phase 380/460V, 50/60HZ
Refrigeration System
R134a Refrigerant,
Hermetic Scroll Compressor
Control System
DECOS III Controller
Dimensions
WxHxD=2025x2235x420mm
Weight
433 kgs
Optional Features:
Dual Voltage Transformer (230/460V)
Remote Monitoring
Fresh Air Exchange Management
Temperature Recorder
Refrigeration System
R134a Refrigerant,
Hermetic Scroll Compressor
Control System
DECOS III Controller
Dimensions
WxHxD=2025x2235x420mm
Weight
433 kgs
Optional Features:
Dual Voltage Transformer (230/460V)
Remote Monitoring
Fresh Air Exchange Management
Temperature Recorder
U.S. Carrier Reefer Units
-Power SupplyThree -Phase 380/460V, 50/60HZ
-Refrigeration System
HFC-134a, Semihermetic Compressor
-Control System
Micro Link 3 Modular Controller
-Dimensions
WxHxD=2026x2235x420mm
-Weight
420 kgs
Optional Features:
Dual Voltage Transformer (190/230V)
Remote Monitoring
Fresh Air Exchange Management
Temperature Recorder
-Refrigeration System
HFC-134a, Semihermetic Compressor
-Control System
Micro Link 3 Modular Controller
-Dimensions
WxHxD=2026x2235x420mm
-Weight
420 kgs
Optional Features:
Dual Voltage Transformer (190/230V)
Remote Monitoring
Fresh Air Exchange Management
Temperature Recorder

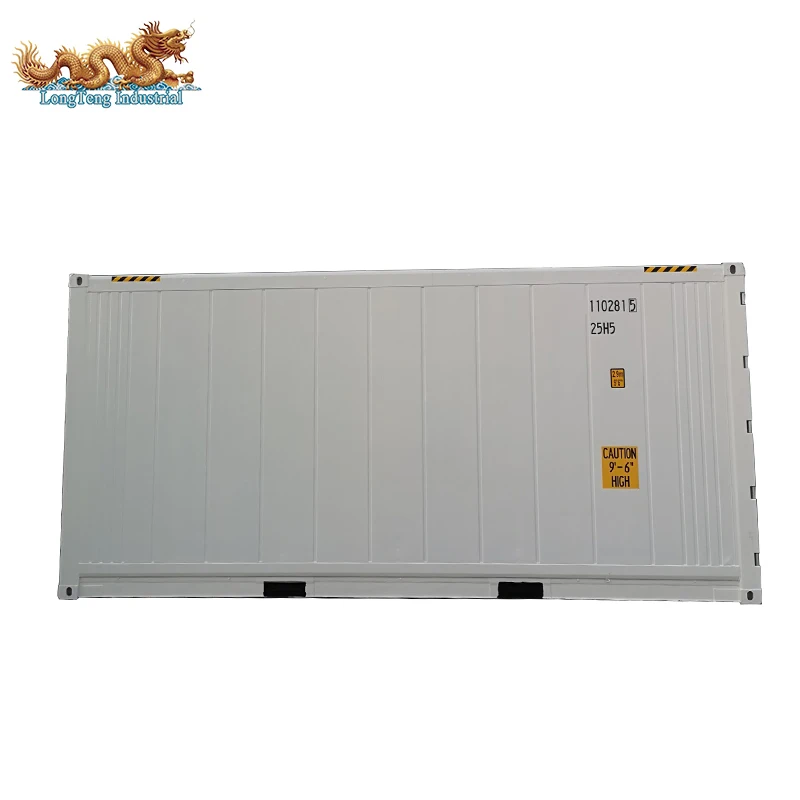

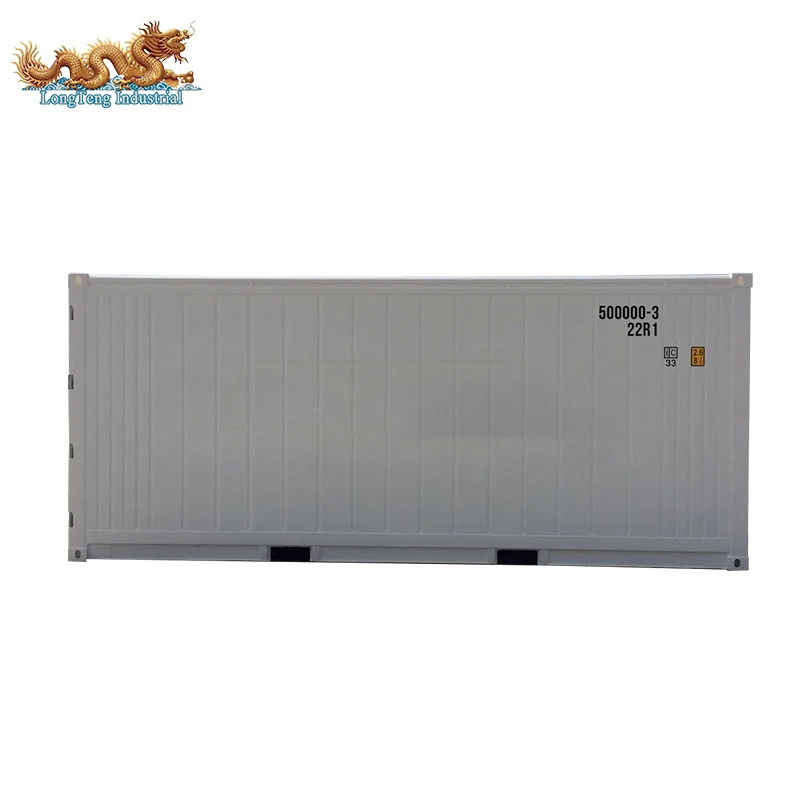

20ft GP Reefer Container
\t\t\t\t\t\t\t\t\tSpecification \t\t\t\t\t\t\t
20 ft Refrigerated Container | ||||||
Specification | 20ft reefer | Machine Available | Daikin, Carrier, Thermo King | |||
Max. Gross weight (KGS) | 30,480 | Cooling Capacity | 6300/5580/AT -18°C Inside / +38 °C Outside 60/50HZ | |||
Tare Weight (KGS) | 3,000 | Main Circuit | 3 PHASE AC 440, 460V/380, 400 415 60/50HZ | |||
Payload (KGS) | 27,480 | Consumption | MAX. 13.6 60/50HZ | |||
Cube Capacity | 28.4 | Temperature | -30 to +30 degree | |||
External | MM | Material list | ||||
Length | 6,058 | Frame | Corten steel | |||
Width: | 2,438 | Corrugated subfloor | MGSS | |||
Height: | 2,591 | Refrigerant: | R134A | |||
Internal | MM | Internal lining: | HGSS 0.7mm | |||
Length: | 5,456 | Roof: | AL. 0.8mm | |||
Width: | 2,294 | T floor | AL. h=63.5mm | |||
Height: | 2,273 | Genset mount: | Yes | |||

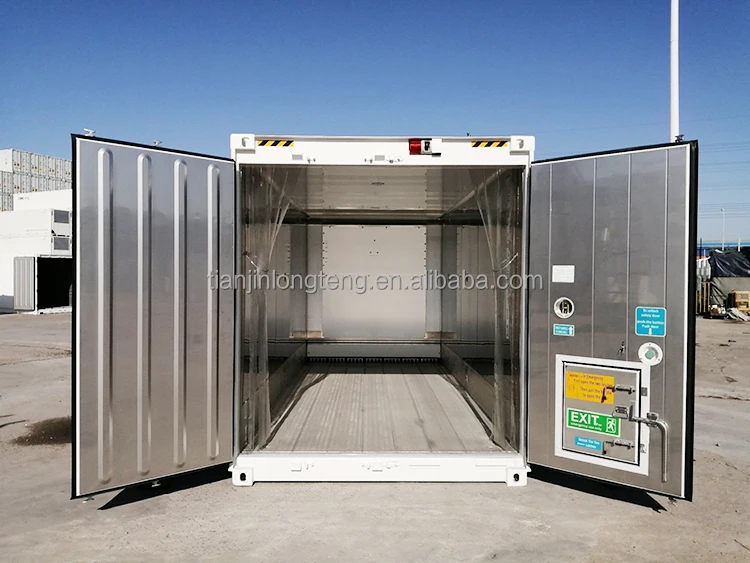

Door opening & other dimensions | Heat & air leakage | |||||
Width: | 2,290 | Heat Leakage Value (kcal/deg.c.hr) | ||||
Height: | 2,264 | Umax. | 21 | |||
Cargo access height | 2,221 | Max. Air Leakage Value (cu.m/hr) | ||||
Loading Line: | 2,198 | Qmax. | 4 | |||
Packing & Delivery
Packing
Non package requirement for gas bottle rack offshore container.
Delivery
We can deliver our offshore container to worldwide post.
Company Introduction

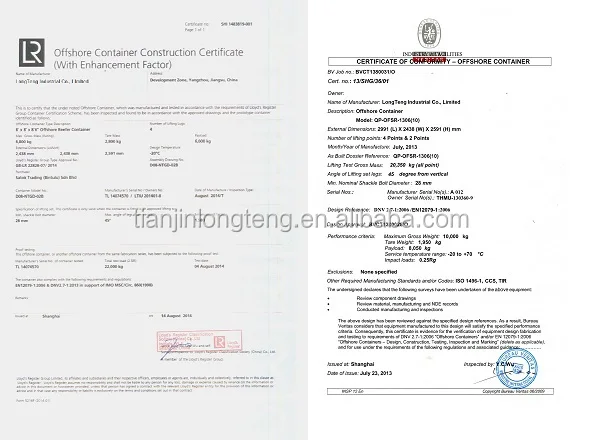

Our Certificate
FAQ
Q: How can you ensure your quality? Any approval?
A: Our dual temperture reefer container is designed and fabricated according to ISO standard & CSC certified.
Q: What about the payment terms?
A: Our payment term is based on your order amount. Usually we accept 50% TT in advance, the balance before shipment.
Q: How about cooling machine?
A: We have 3 brands for your reference, Thermoking , Carrier, Daikin, price will be different.
Q: How about flooring?
A: Usually T flooring, we can also do flat flooring.
