Car Chassis Detector with Head Movement Road Simulator Suspension Tester and Base Anomaly Detection Equipment for Car Workshop

Product Overview

Description

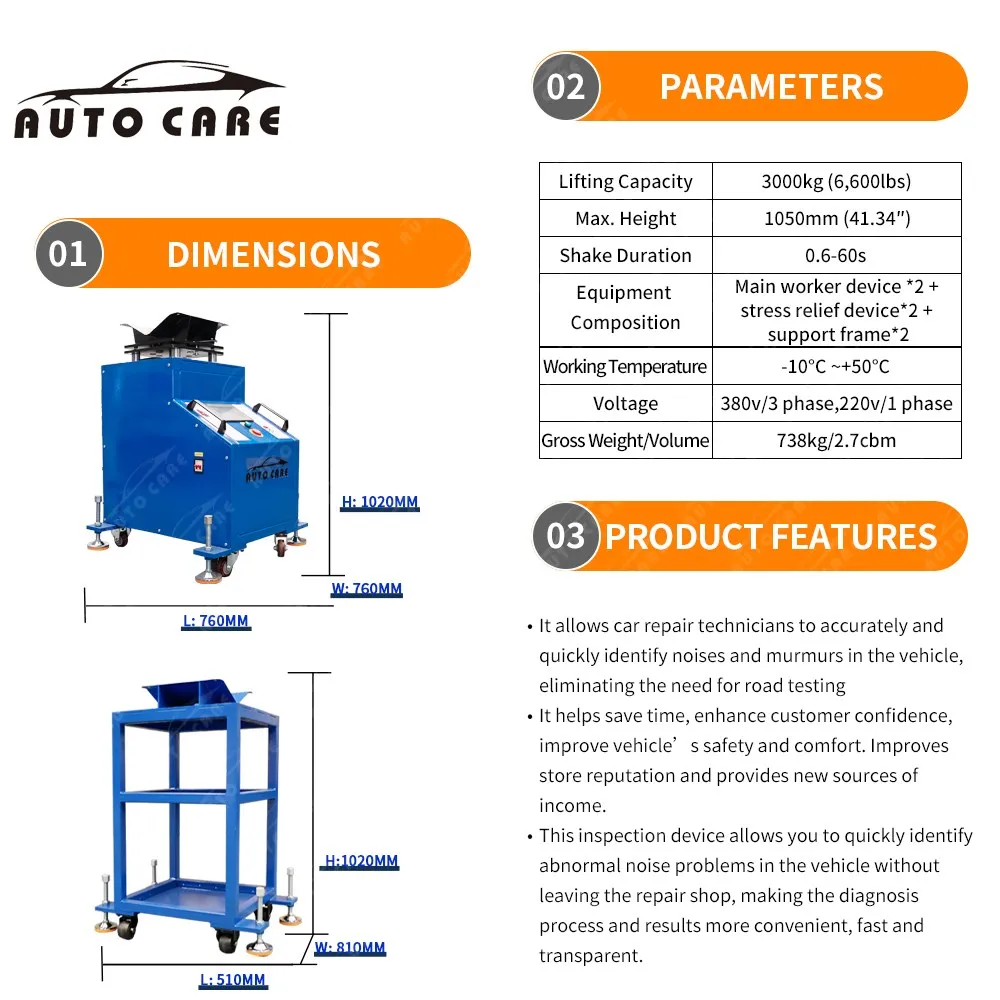

Machine Model	ACT-3000
Lifting Capacity	Mass 3000kg Vehicles
Working Voltage	220V/1Phase, or 380V/1Phase, 50/60hz

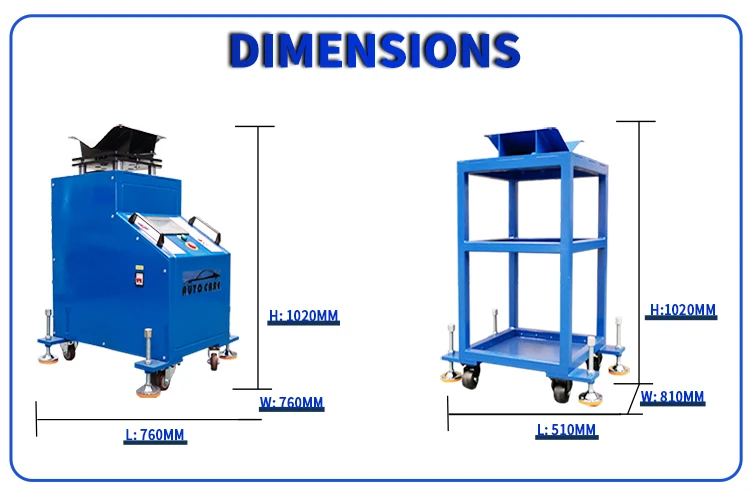

The Highest Height	1050mm
Test Mode	Automatic or Manual
Shake Duration	Customized

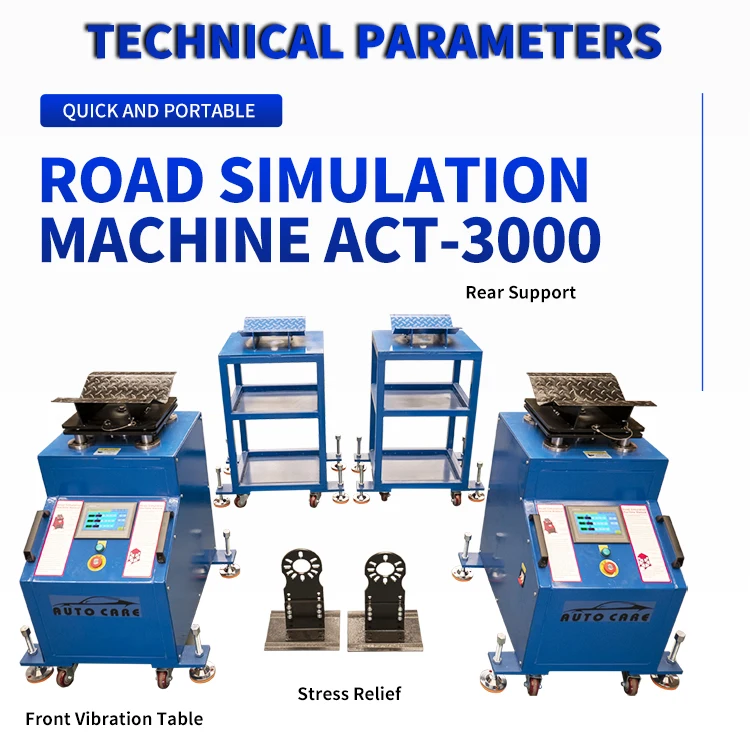

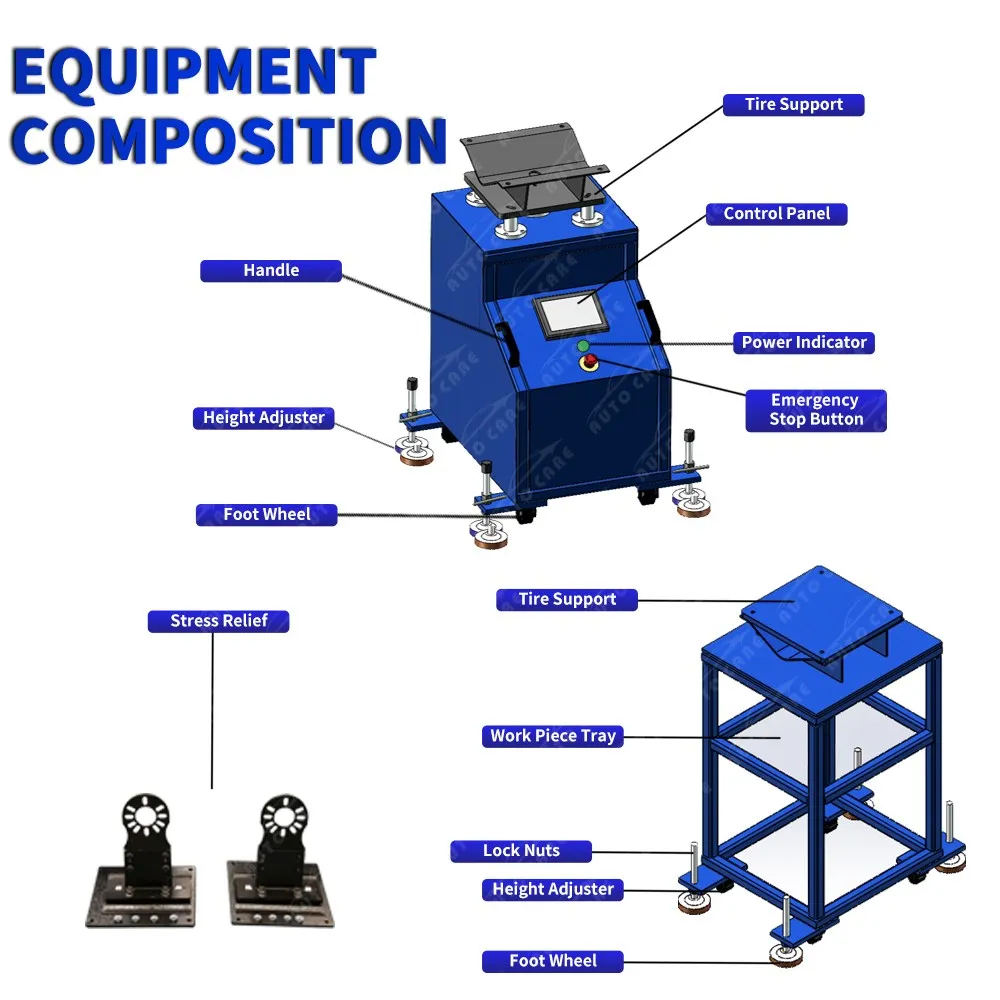

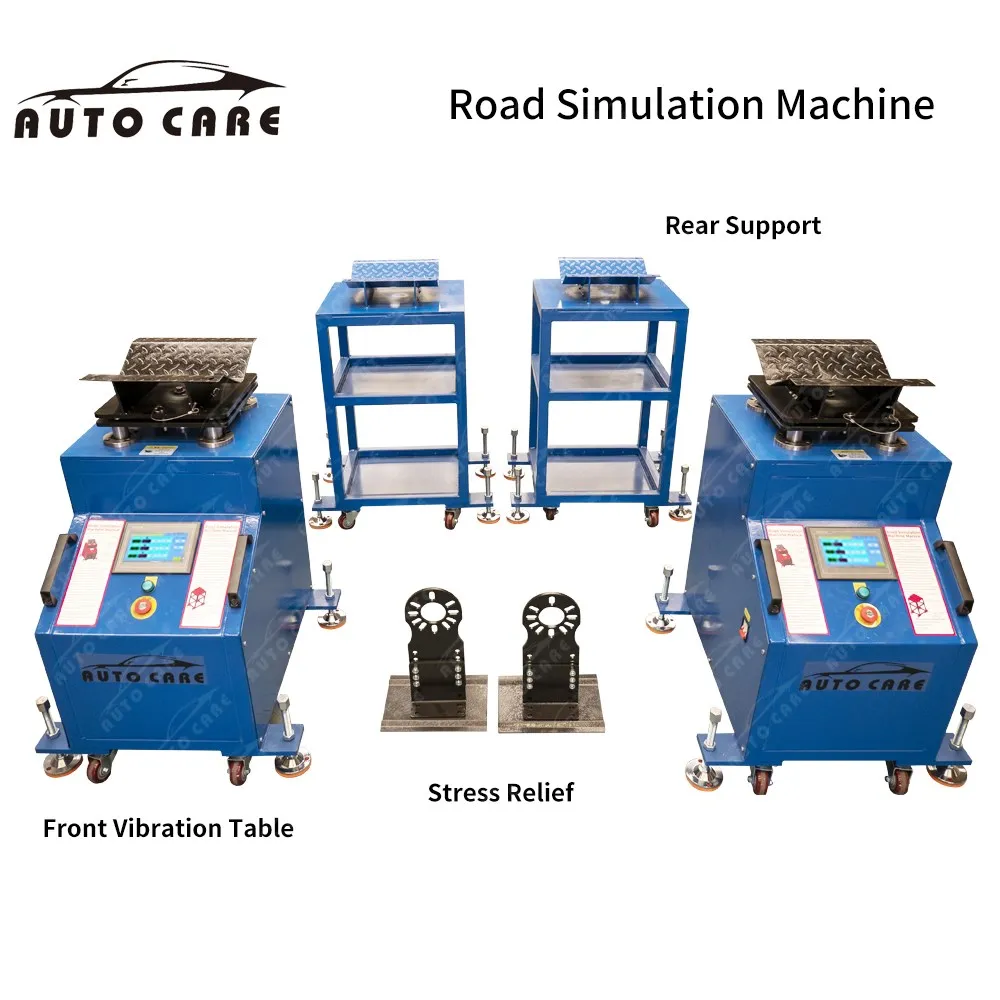

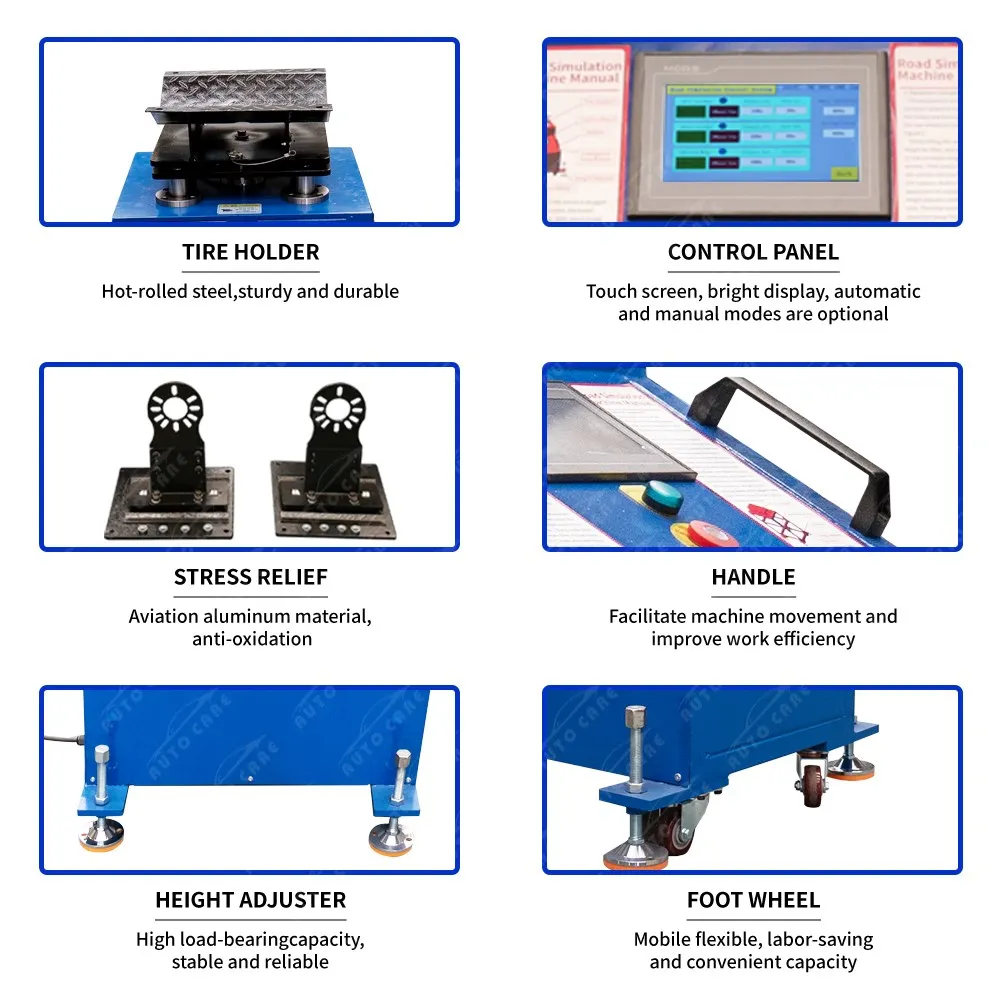

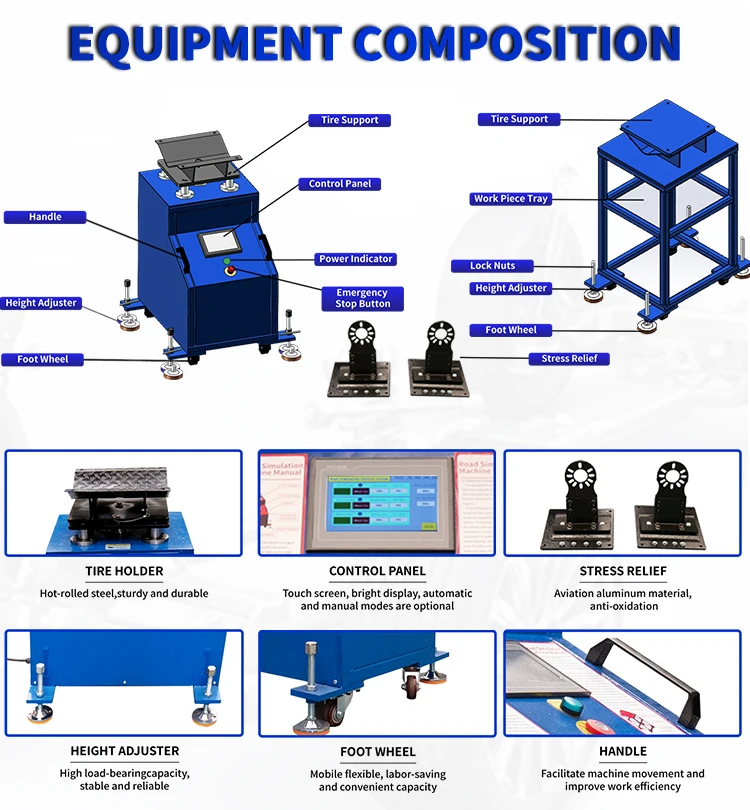

Equipment Composition	Main Vibration Table*2+Support Frame*2 +Stress Relief*2
Working Temperature	-20ºC~50ºC
Gross Weight	738kg(4 pieces/single max 240kg)





The equipment has large lifting weight, stable and safe work, solid materials and low noise.It can effectively and quickly detect the abnormal sound and vibration of vehicles on kinds of bumpy roads.Quickly help stores to improve the output value of chassis business, good visual effect.

· It allows car repair technicians to accurately and quickly identify noises and murmurs in the vehicle, eliminating the need for road testing.

· It helps save time, enhance customer confidence, improve vehicle's safety and comfort. Improves store reputation and provides new sources of income. · This inspection device allows you to quickly identify abnormal noise problems in the vehicle without leaving the repair shop, making the diagnosis process and results more convenient, fast and transparent.

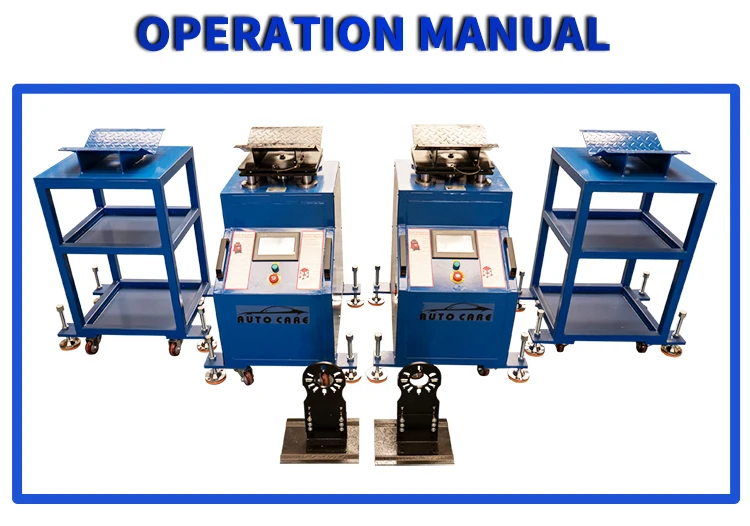

Firstly lifting the vehicle to a suitable height by lifter, and push the four devices to the corresponding positions of the four wheels. Then slowly lower the height of the vehicle until the four tires fall into the tire support. At this time, controlling the equipment to suitable position by the height adjuster, and tighten the locking nuts. The lifter continues to lower until it stops 5cm away from the chassis of the vehicle. Finally you can start the test.

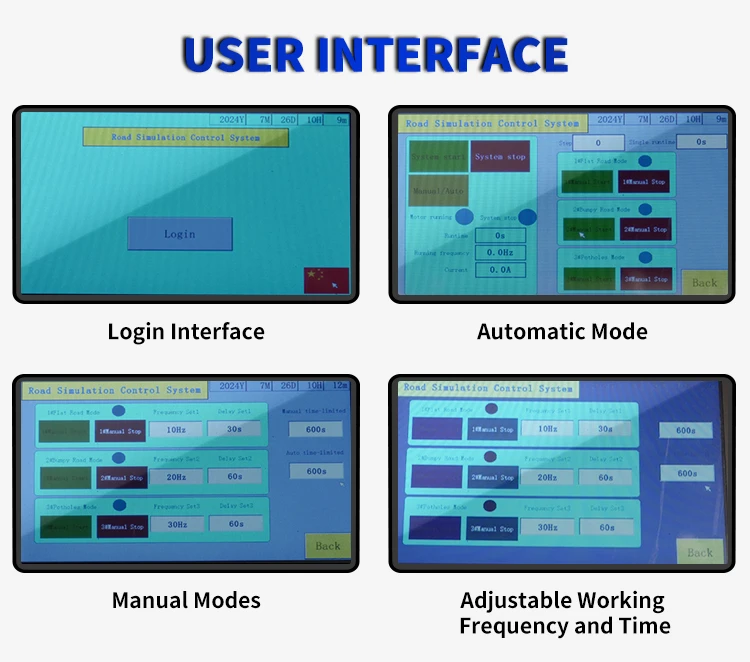

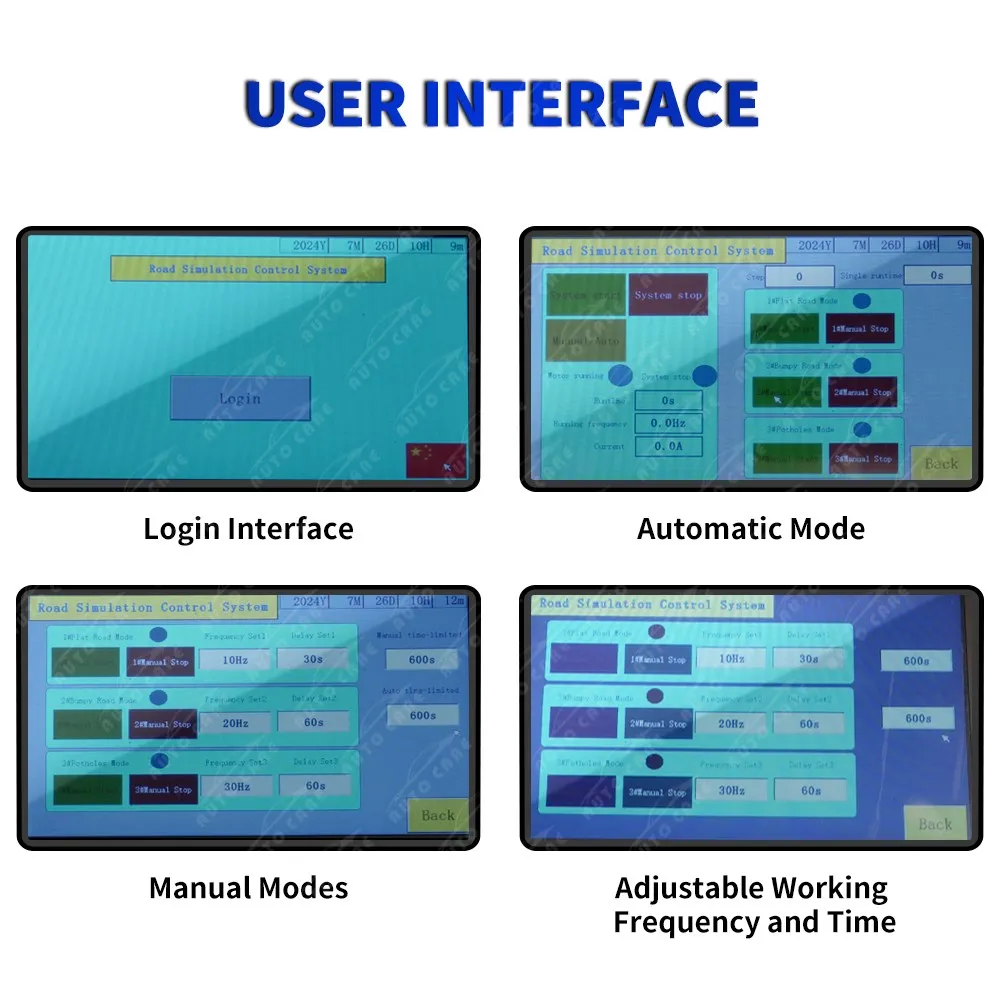

Firstly confirm if the device is plugged into a three-hole socket, the power supply is AC220V or 380V, and it is well grounded. The power line requires at least 2.5 square meters, then rotate the emergency stop button to turn on the power and enter the system. There are two programs in the interface: manual/automatic. Select the automatic mode and click the system to start. The device will automatically switch from 1 Flat mode (10Hz). 2 Bumpy mode (20Hz). 3 Pothole mode (30Hz). You can choose any 1, 2, or 3 modes when selecting the manual mode. Generally, the 2 Bumpy mode (20HZ) is sufficient to simulate a very bumpy road surface when testing the chassis of the car. It is not recommended to directly select the 3 Pothole mode (30Hz).







1.Q: Are you Manufacturer or Trading company?
A: We are a professional manufacturer with our own sales team, possess the experience of auto repair field for 12 years, More skillful to offer you a project plan according to clients' request.

2.Q: Where is your company located? How can I visit there?
A: Our company is located in Yantai.All clients, from home and abroad, are warmly welcomed to visit us. You can visit us by air to the YANTAI port. Then we will pick you up there.

3.Q: How about the quality of the products?

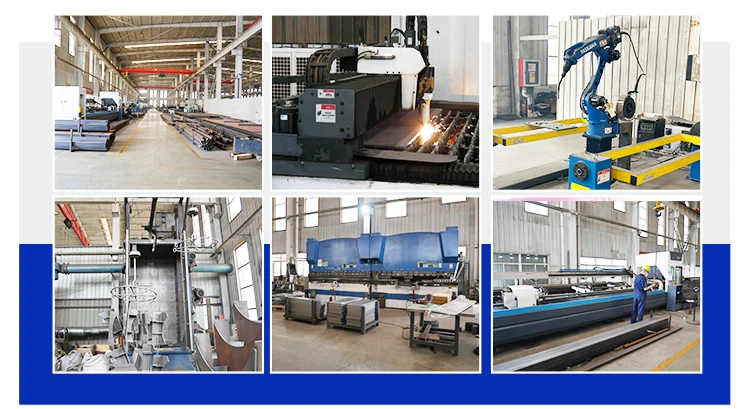

A: With the advanced machines, strong and professional R&D team and material sources,
our products are excellent in performance and craftsmanship, got a good feedbacks by customers from more than 96 countries.

4.Q: Can we customize our product?
A: Yes,you can. Customized material and standard are acceptable. We can provide different
standards according to your market and favor.

5.Q: What's the MOQ for each items?
A:We accept 1 set of each machine once time.

6.Q: What's the delivery time?
A: When order confirmed, the machine with our standard configurations, it's 7 working days.
