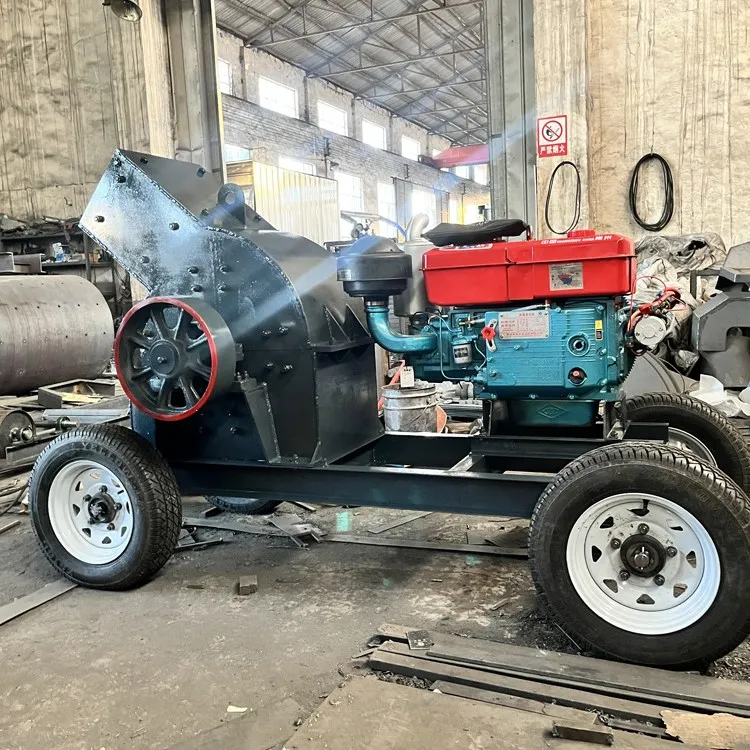

hammer crusher pc1000x800 hammer crusher diesel slag hammer crusher
- Category: >>>
- Supplier: Henan Blick Refractory Technology Co. Ltd.Henan Ltd.
Share on (1601264998347):
Product Overview
Description
Products Description

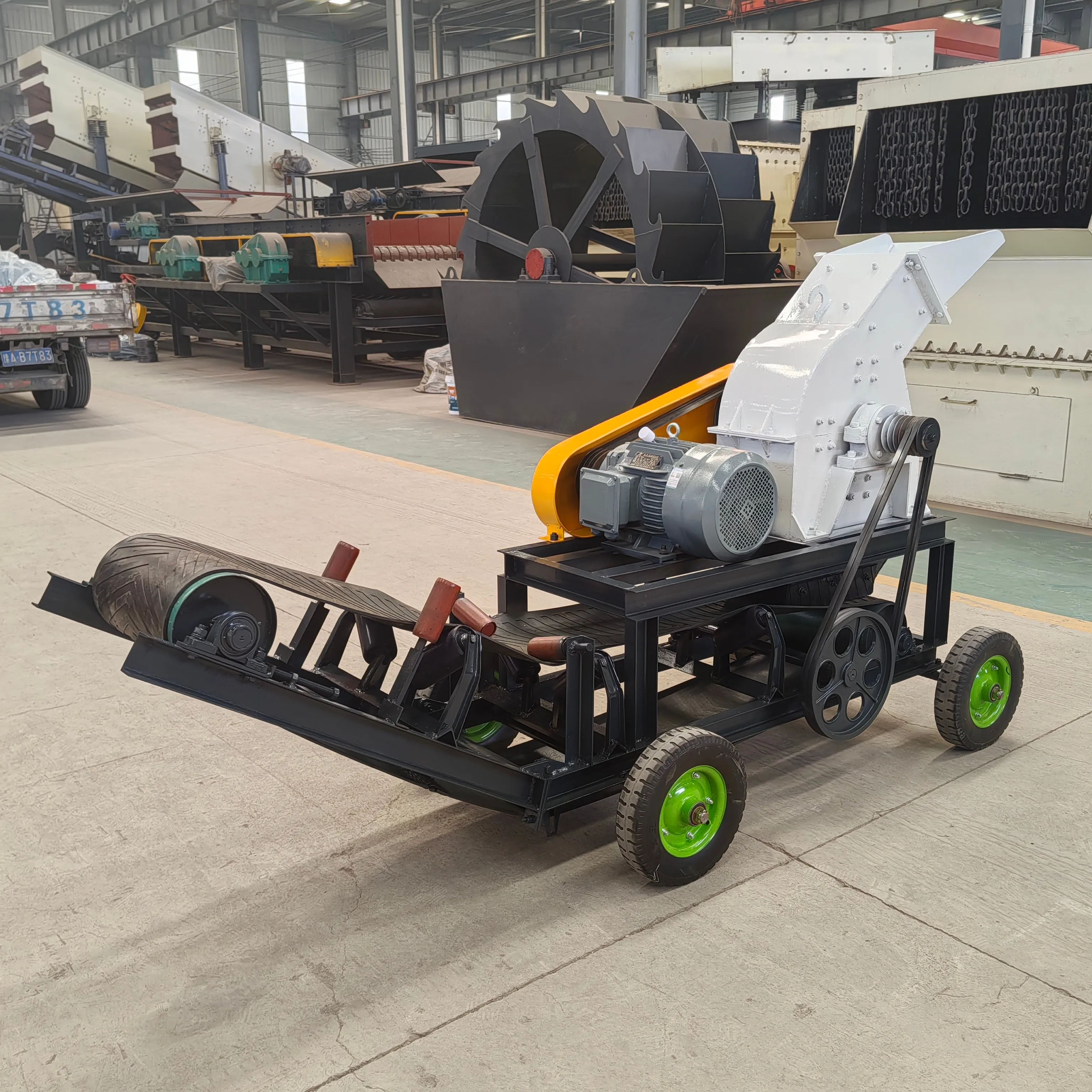

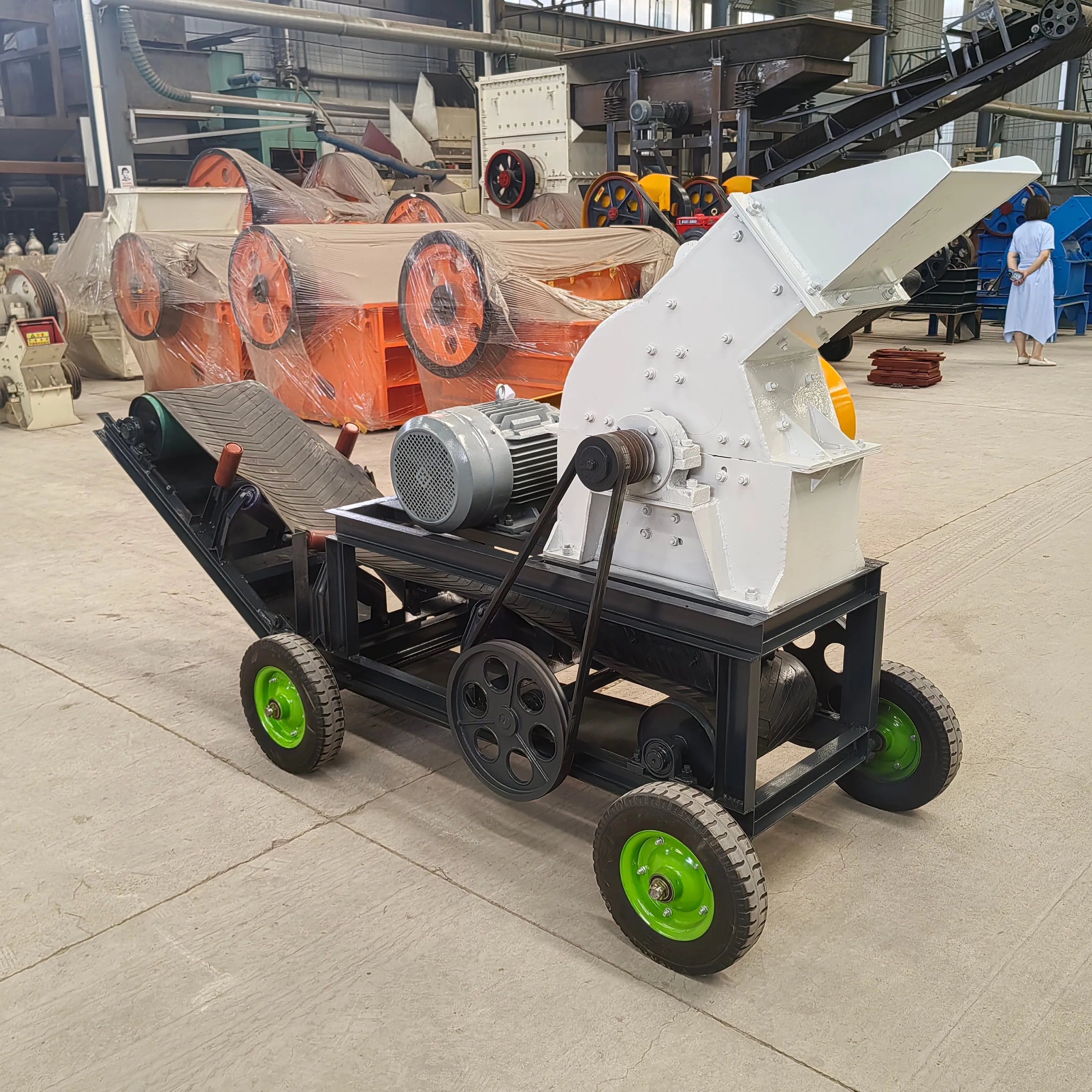

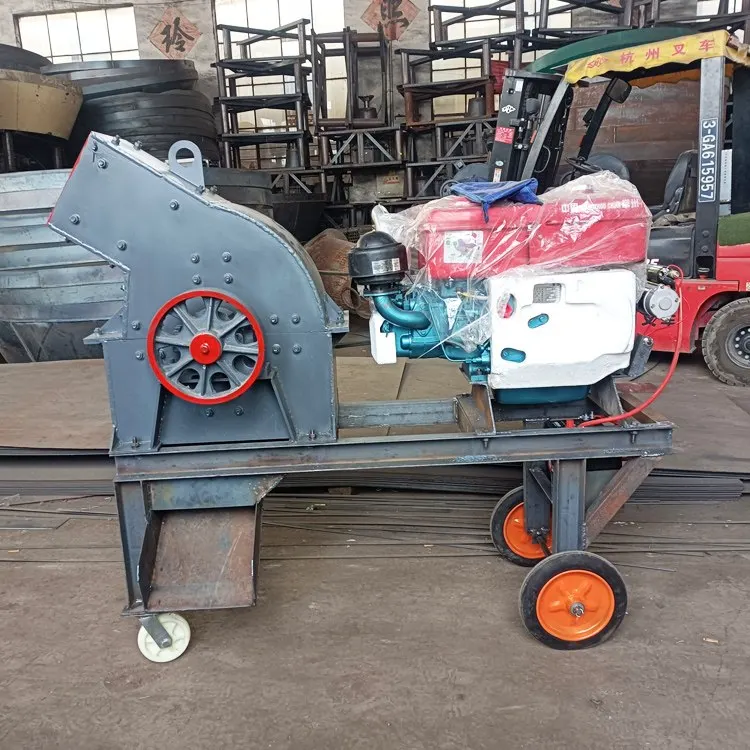

Hammer crusher for gold mining small rock crusher for sale

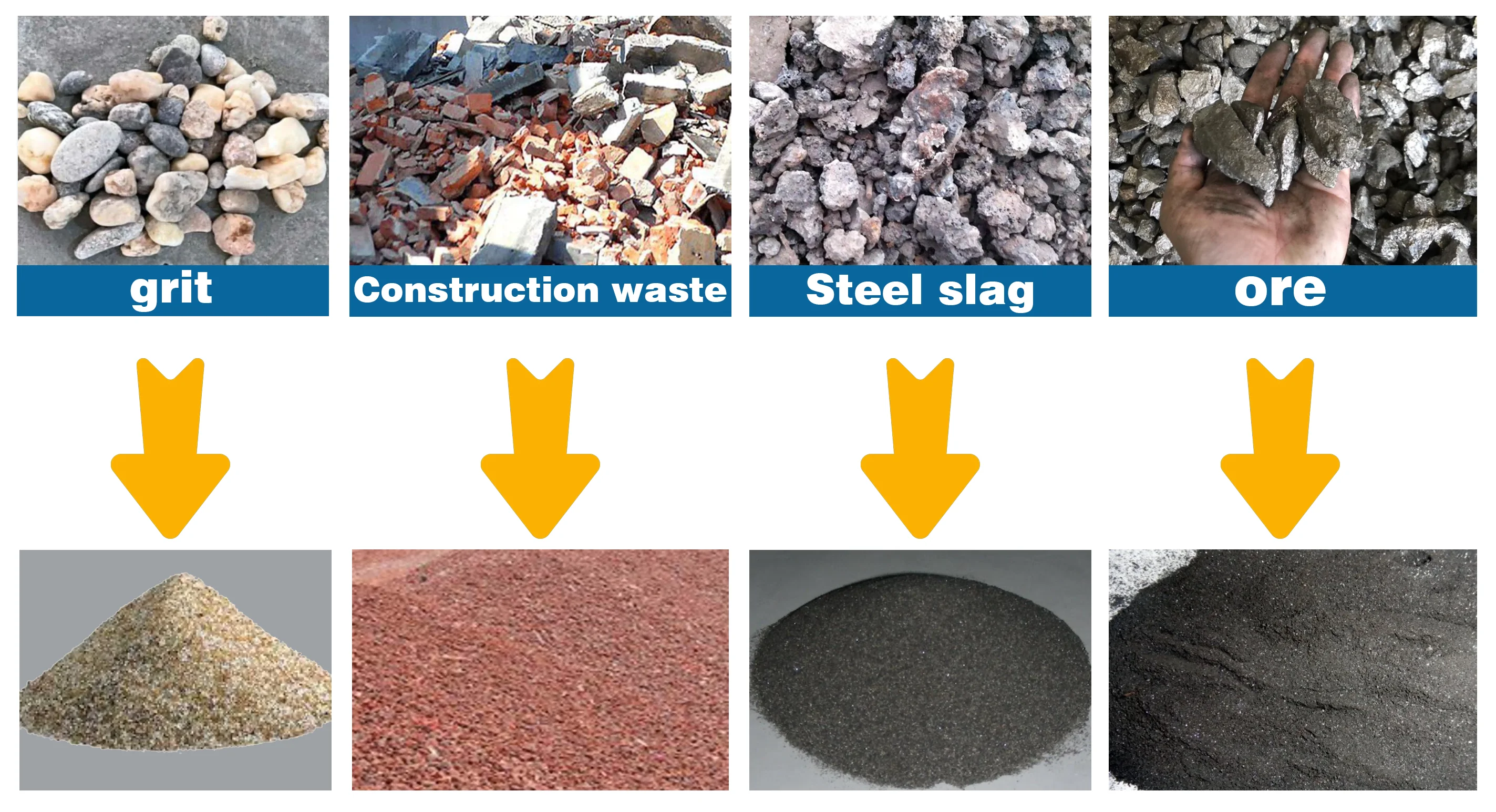

Hammer crusher is designed to crush medium-hard or brittle materials with a hardness of up to 300 MPa and a moisture content of no more than 15%. It is commonly used for materials such as coal, cement, gypsum, bricks, tiles, and limestone. This machine is known for its simple structure, large crushing ratio, high efficiency, and consistent particle size. Additionally, the equipment can be easily adjusted to meet the specific discharge size requirements of you.
Hammer crusher, also known as a hammer mill, is one of the most commonly used types of stone crushing equipment. It offers high production capacity, low energy consumption, a simple structure, reliable performance, and easy maintenance.
Hammer crusher advantages:
2. The output size can be adjusted according to customer needs.
3. The upgraded product has a stylish overall design and compact structure, with fewer parts that are not easy to damage, easy to maintain, etc.
Overseas services：
2. Provide inspection video before shipment, wooden box packing.
3. We have local after-sales service in Cameroon, Burkina Faso and Vietnam.
Technical Data
Name | Power | Size | The weight | Capacity |
BLK PCB240*450 | 7.5KW | 1200*900*1300mm | 0.35T | 4-7t/h |
BLK PCB310*520 | 15KW | 1400*1000*1500mm | 0.5T | 8-10t/h |
BLK PCB400*600 | 22KW | 1700*1050*1600mm | 0.65T | 15t/h |
BLK PCB600*600 | 30KW | 2000*1200*1700mm | 1T | 25t/h |
BLK PCB600*800 | 55KW | 1400*1100*1430mm | 1.2T | 30t/h |
BLK PCB800*800 | 75KW | 1400*1100*1430mm | 2.6T | 35t/h |
BLK PCB800*1000 | 90KW | 1600*1400*1650mm | 3T | 55t/h |
BLK PCB1000*1000 | 110KW | 1600*1400*1650mm | 3.5T | 70 t/h |
Product Details

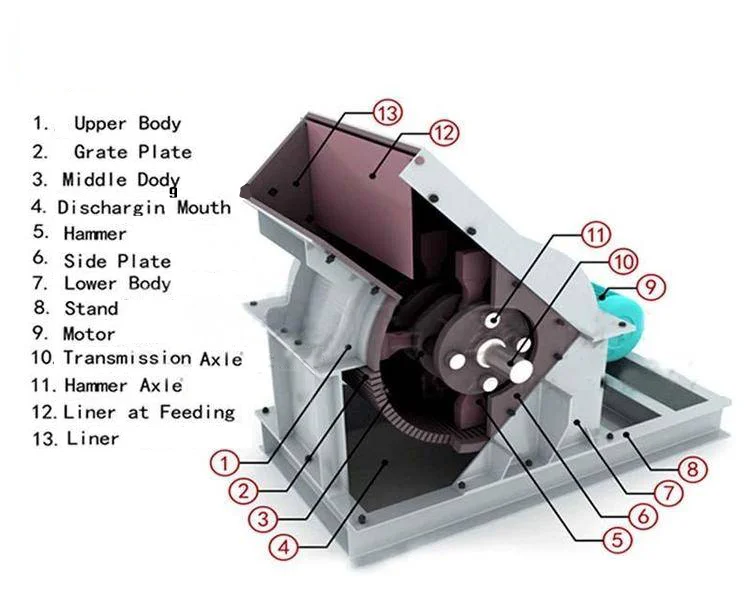

Working principle:
The motor drives the rotor at high speed within the crushing chamber. Raw materials enter the crusher through the feeding inlet and are impacted, cut, and ground by the high-speed rotating hammer heads. Below the rotor assembly is a grate, which allows materials smaller than the grate mesh size to pass through, while larger particles are further crushed until they reach the desired size. The final product size can be adjusted by replacing the grate or by modifying the gap between the rotor and the grate, based on different requirements.
The hammer heads always operate with sharp edges, and their high utilization is ensured by the reversible rotation, which allows for continuous operation. Additionally, the hammer's zigzag arrangement helps clean the grinding chamber automatically, eliminating the need for manual cleaning.

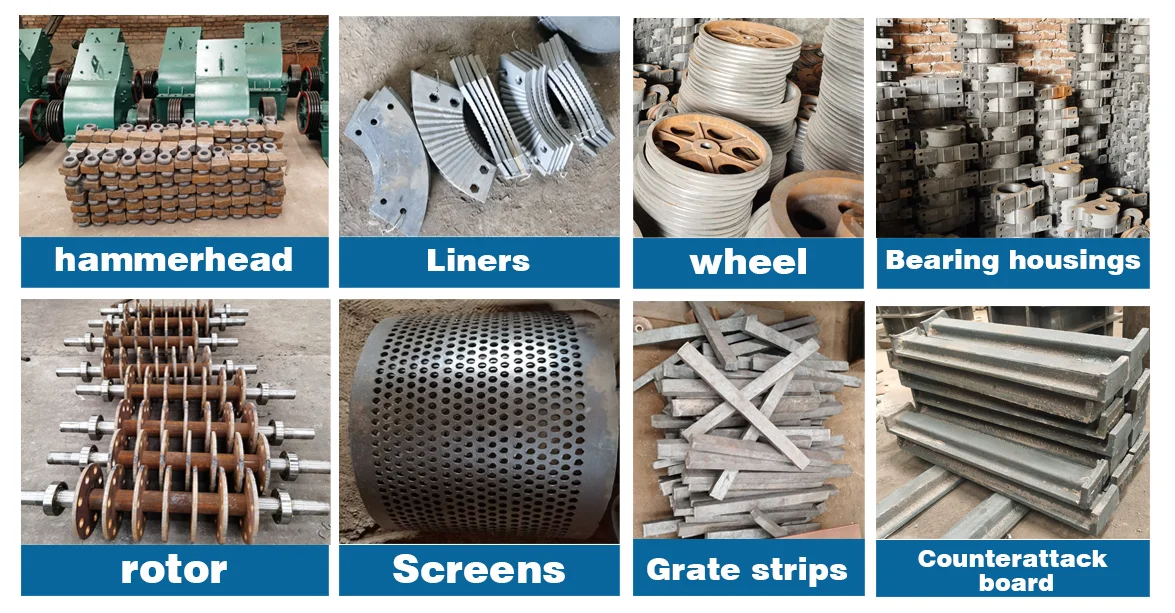

Wear Parts Supply:
We will supply wearing parts at factory price.
Our service
1. We have local after-sales service in Vietnam, Cameroon, Burkina Faso, and you can order directly locally. If there is a problem when using, you can contact the local after-sales service
2. 24 hours allday service, TEL:008613598076521/ Whats@pp:008613598076521 /
Wech@t:008618639575789/Email: lyondongliang@gmail.com.
2. 24 hours allday service, TEL:008613598076521/ Whats@pp:008613598076521 /
Wech@t:008618639575789/Email: lyondongliang@gmail.com.
3. Can be customized according to your needs.
4. Confirm with you on video or site before delivery, and ship after no problem with the test machine.
5. Send the goods on time.
6. One year warranty from the date of receiving.
7. The more you need, the cheaper the unit price is.
8. Help the client with the shipment.
4. Confirm with you on video or site before delivery, and ship after no problem with the test machine.
5. Send the goods on time.
6. One year warranty from the date of receiving.
7. The more you need, the cheaper the unit price is.
8. Help the client with the shipment.
Package&Delivery
Packing and Delivery：
1. The fuselage is painted with high-quality paint (can be customized);
2. Wrapping machine for plastic wrapping film;
3. Put the machine and accessories in a wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/WANHAI/KLINE;
3. We will remind you before boat arrival.
1. By sea Freight;
2. MSK/MSC/APL/WANHAI/KLINE;
3. We will remind you before boat arrival.
Company Profile
Henan Blick Refractory Material Technology Co., Ltd.
We have over 20 years of experience working with customers large and small, and we can specify, design, procure and install the perfect machine for just about any application. That means you can trust us to provide machinery that will work correctly, run consistently over the long term, and help your business increase productivity and efficiency. Our team is fast and responsive.Whether you’re looking for specs, data sheets, dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.

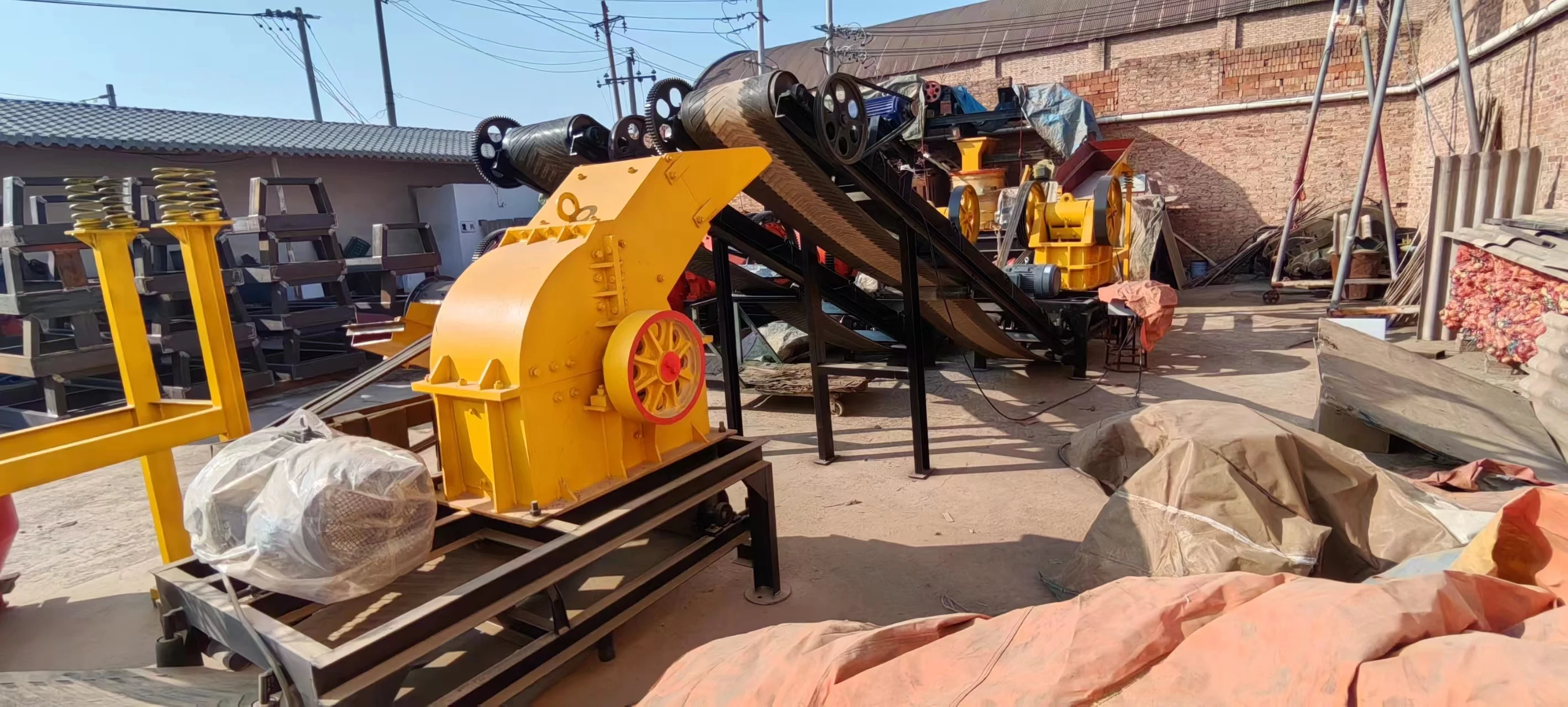

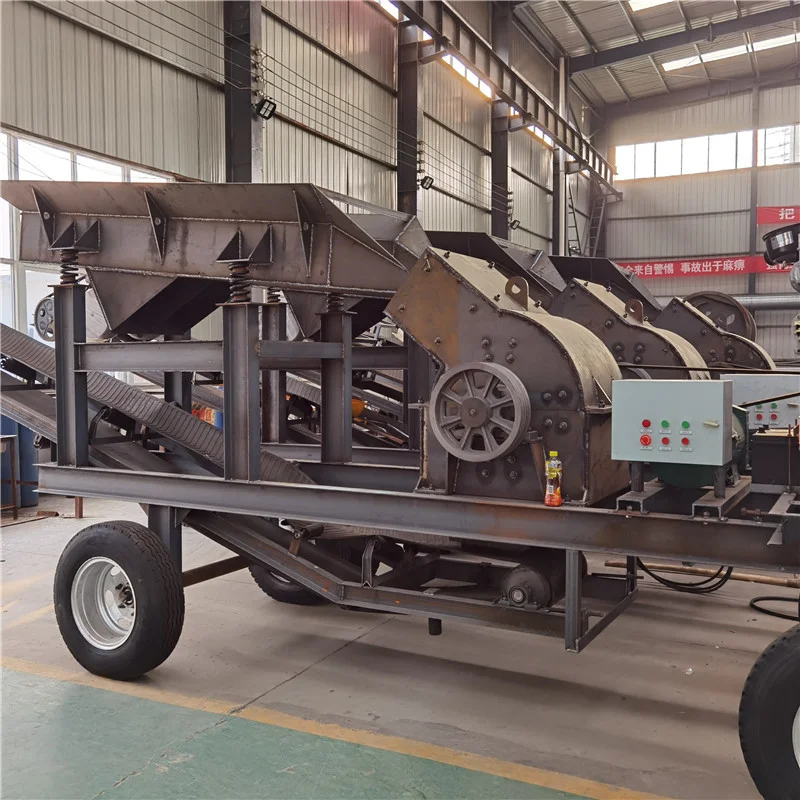

Factory real shot
FAQ
Q1: Are you a factory or trading company?
A1: We are factory.
Q2: Where have your products been exported?
A2: Our products have been sold to Africa, South America, the Middle East, etc.
Q3: How will you help customers install the equipment?
A3: Provide online video guidance service, and provide on-site installation if necessary.
Q4: How about the supply of wearing parts?
A4: We provide customers with wearing parts at the best price. If there is a problem that you can't handle, we will send our technician to your place, therefore, all the costs involved are your responsibility.
Q5: How about the payment method?
A5: Wire transfer, VISA, PayPal, ApplePay, GooglePay are available.
Q6: How about the after-sales service?
A6: 12 months warranty for various products.
A1: We are factory.
Q2: Where have your products been exported?
A2: Our products have been sold to Africa, South America, the Middle East, etc.
Q3: How will you help customers install the equipment?
A3: Provide online video guidance service, and provide on-site installation if necessary.
Q4: How about the supply of wearing parts?
A4: We provide customers with wearing parts at the best price. If there is a problem that you can't handle, we will send our technician to your place, therefore, all the costs involved are your responsibility.
Q5: How about the payment method?
A5: Wire transfer, VISA, PayPal, ApplePay, GooglePay are available.
Q6: How about the after-sales service?
A6: 12 months warranty for various products.

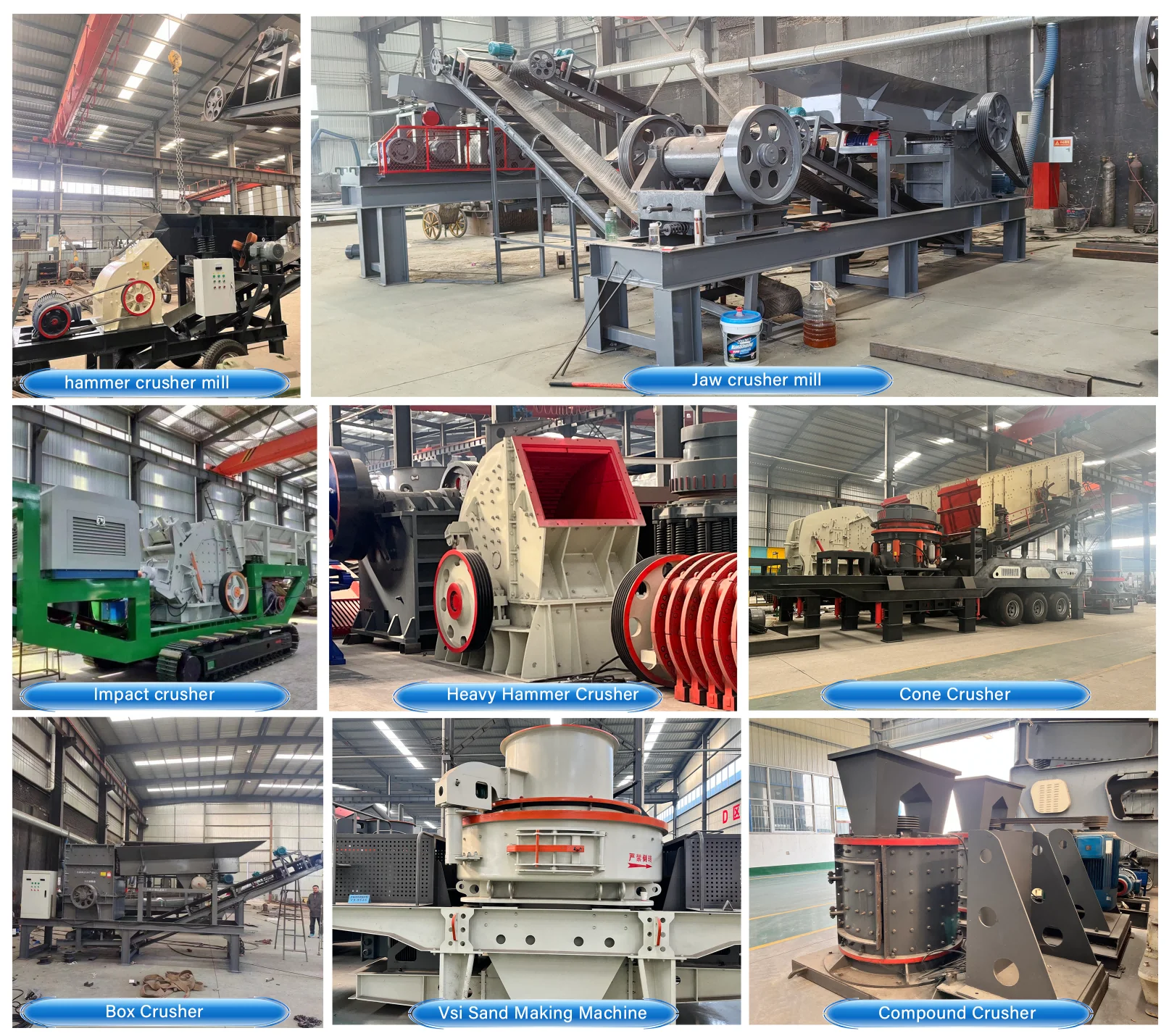

We Recommend
