off Grid Home Use Mini Hybrid Solar Energy Systems 2KW 3KW 4KW 5KW 6KW lifepo4 battery 100ah Solar Panel Portable Generator Kit
- Category: >>>
- Supplier: Guangdong Tunto Green Power Technology Co. LimitedGuangdong Limited
Share on (1601265021975):
Product Overview
Description

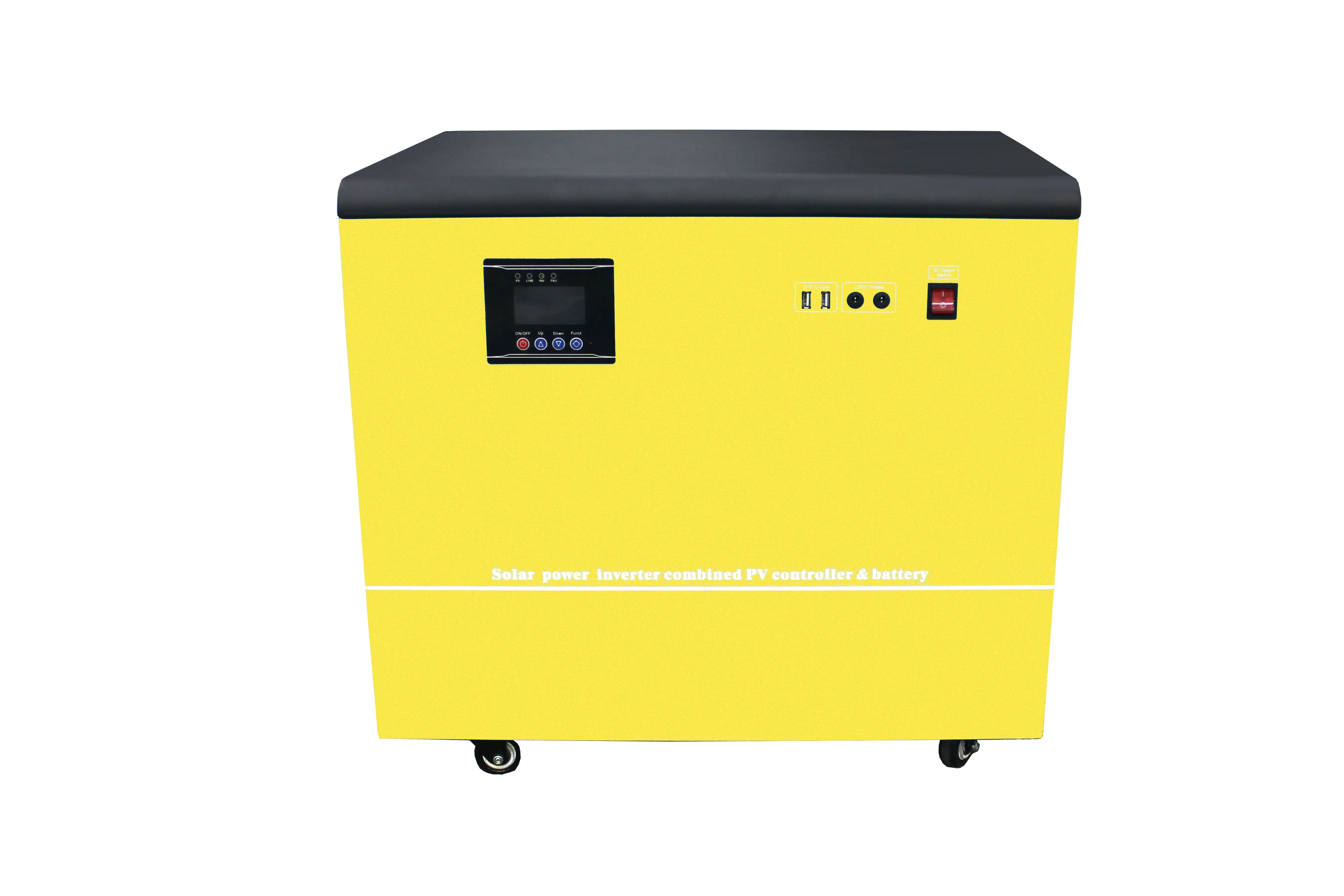

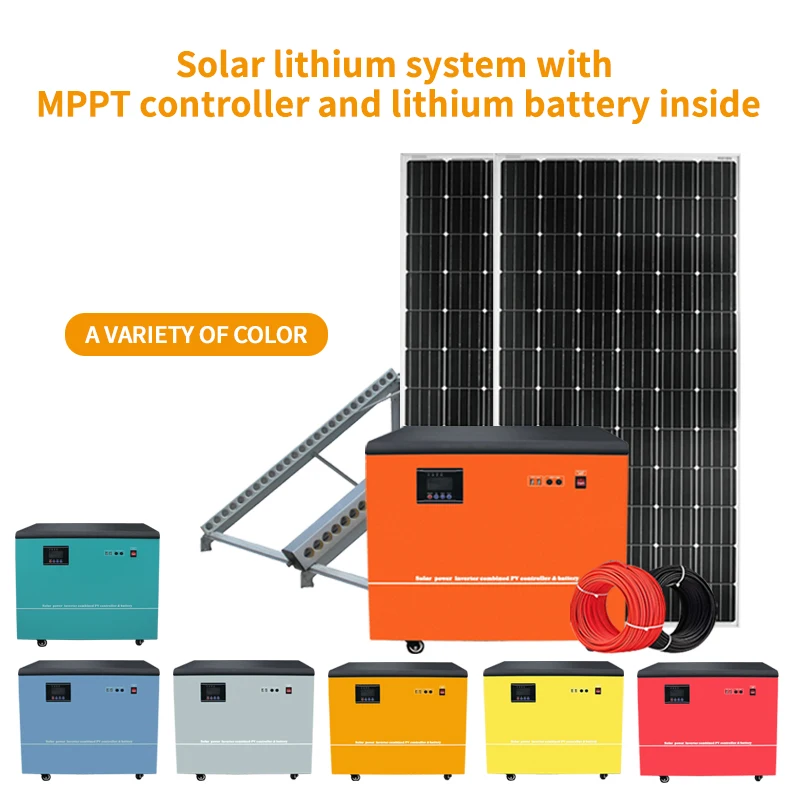

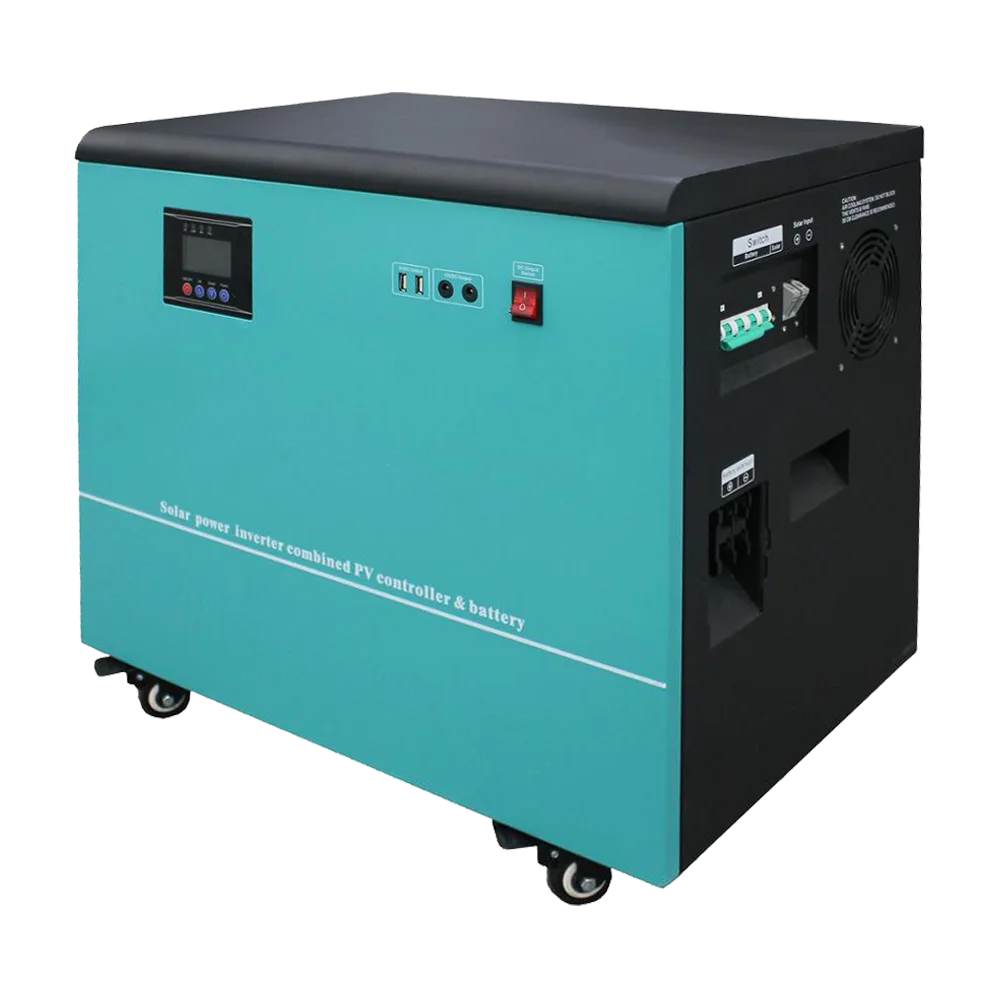

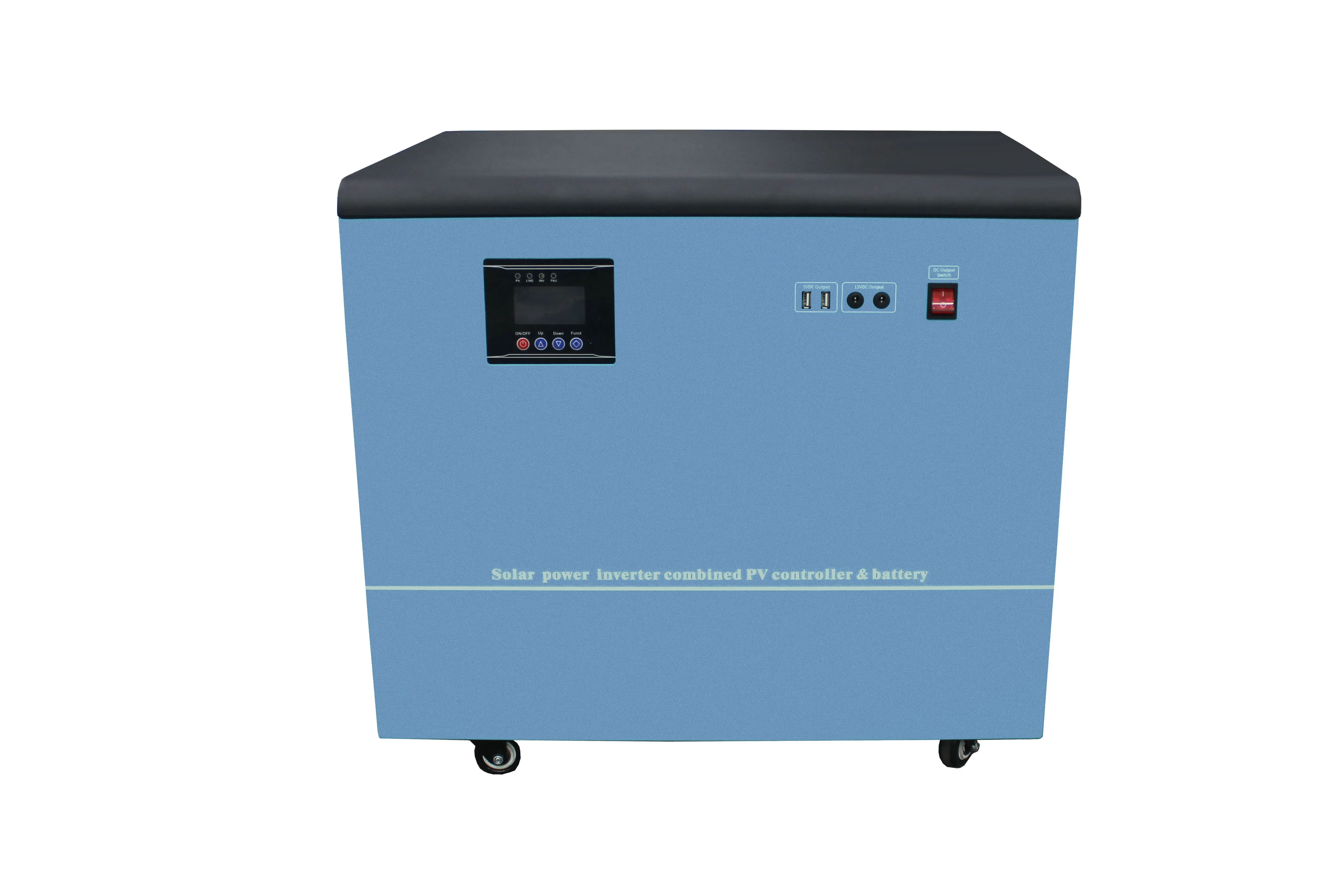

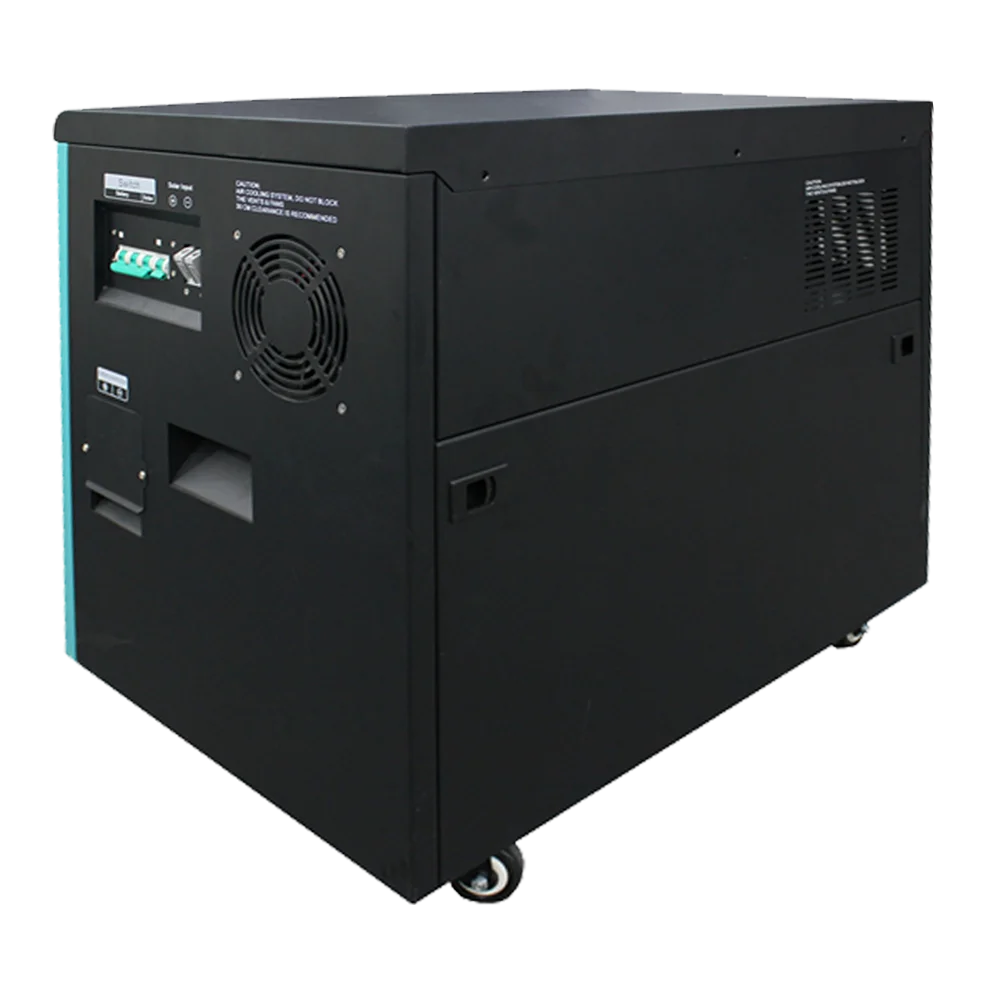

48V 2KW/3KW/4KW/5KW/6KW all in one Solar lithium generator System
* Combined power inverter, MPPT solar charge controller, Top Chinese Lithium Battery cell.
* Simple installation and free maintenance to user.
* Pure sine wave inverter power supply stable electricity to house application

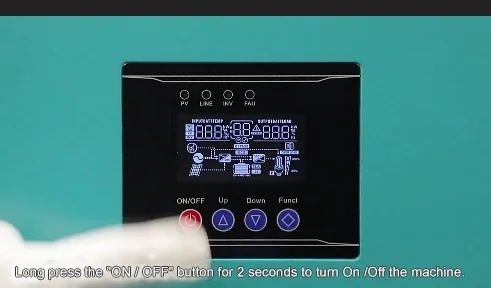

* LCD display all kinds of working status, smart fan control, safe and reliable.
* The pure sine wave output, can adapt to various types of load.
* The intelligent MPPT solar controller, overcharge, over-discharge protection, current limiting charging. multiple protection
Product Description
Specification
Product Specifications | ||||||||||||
Model: T2ALS | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||
Inverter | Battery/System Voltage | 51.2VDC/48VDC | ||||||||||
Built-in LiFePO4 Lithium | 100AH/150AH/200AH*51.2V | |||||||||||
Rated Power | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||
Input Voltage (VAC) | 85-138VAC/1 70-2 75VAC | |||||||||||
Input Frequency (Hz) | 45-65 | |||||||||||
Output Voltage (VAC) | 110/220 | |||||||||||
Output Frequency (Hz) | 50/60 | |||||||||||
Output Wave | Pure Sine Wave | |||||||||||
MPPT Solar Input | MPPT Voltage Range | 60VDC-150VDC | ||||||||||
PV Power | 1500W | 3200W | ||||||||||
Rated Charge Current | 30A (Max.) | 60A (Max.) | ||||||||||
MPPT Efficiency | >99% | |||||||||||
Floating Charge Voltage | 57.6VDC | |||||||||||
Maximum Power | 3200Wp | |||||||||||
DC Output | Low Voltage Recovery Voltage | 57.6VDC | ||||||||||
Low Voltage Protection Voltage | 53.6VDC | |||||||||||
5VDC USB Output | 2PCS/Max.2A | |||||||||||
12VDC Output Ports | 2PCS/Max.2A | |||||||||||
Other Parameters | Operating Ambien Temperature | -20°C-50°C | ||||||||||
Storage Ambient Temperature | -25°C-55°C | |||||||||||
Operating/Storage Ambient | 0-90% No Condensation | |||||||||||
Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | |||||||||||
Display | Digital LCD | |||||||||||
Packing Dimensions: DxWxH (mm) | 620*420*580 | |||||||||||
OEM/ODM avaiable for different colors/MOQ 100UNITS.
