LLY Industrial Small Lube Petrol Liquid Transfer Pneumatic Diagram Pump Machine Price
- Category: >>>
- Supplier: Lly Pack (foshan) Co. Ltd.
Share on (1601265064233):
Product Overview
Description
Products Description

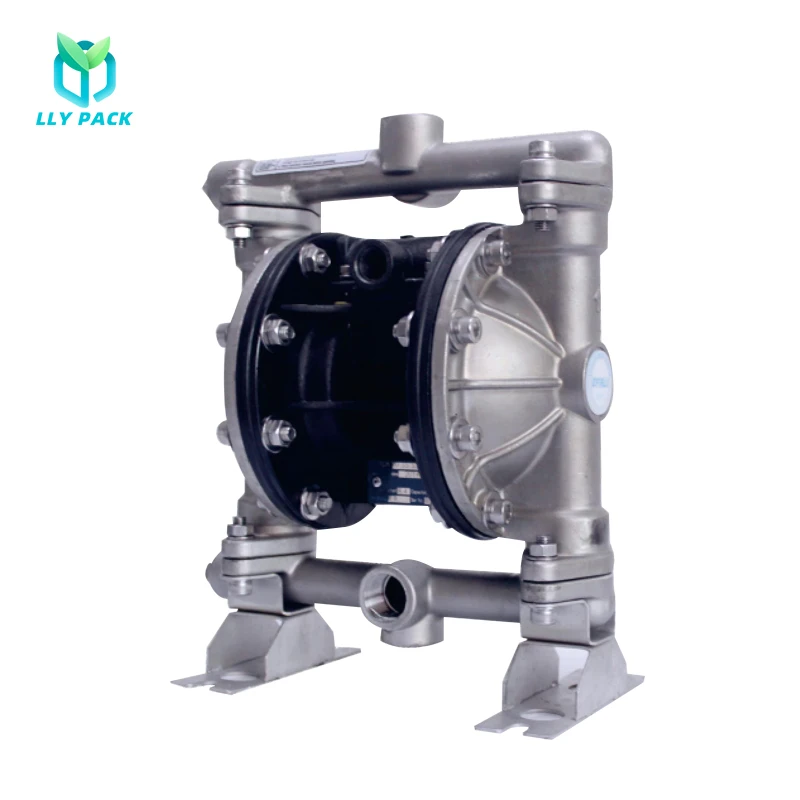

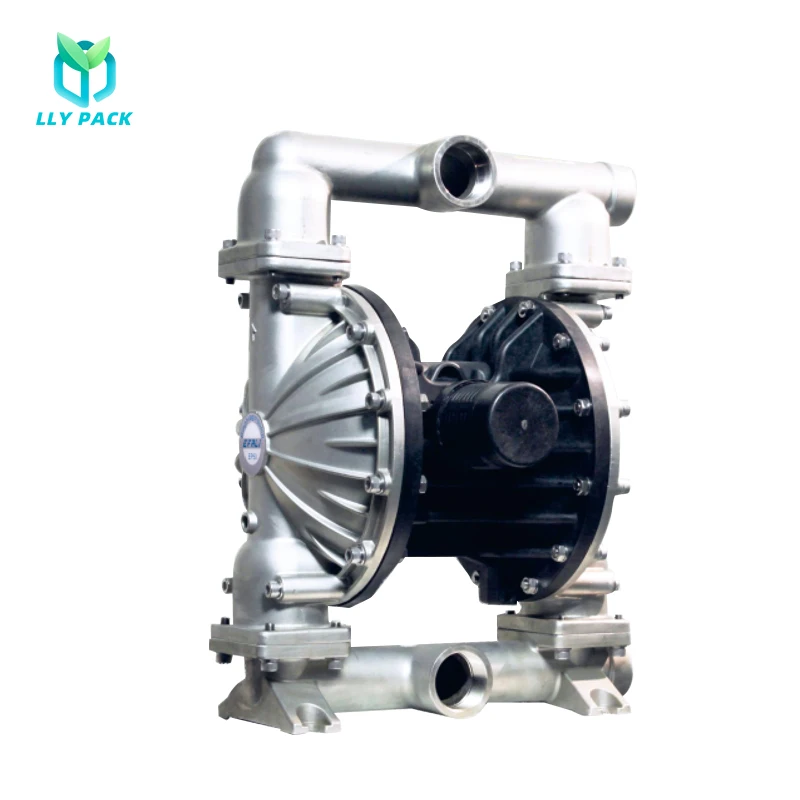

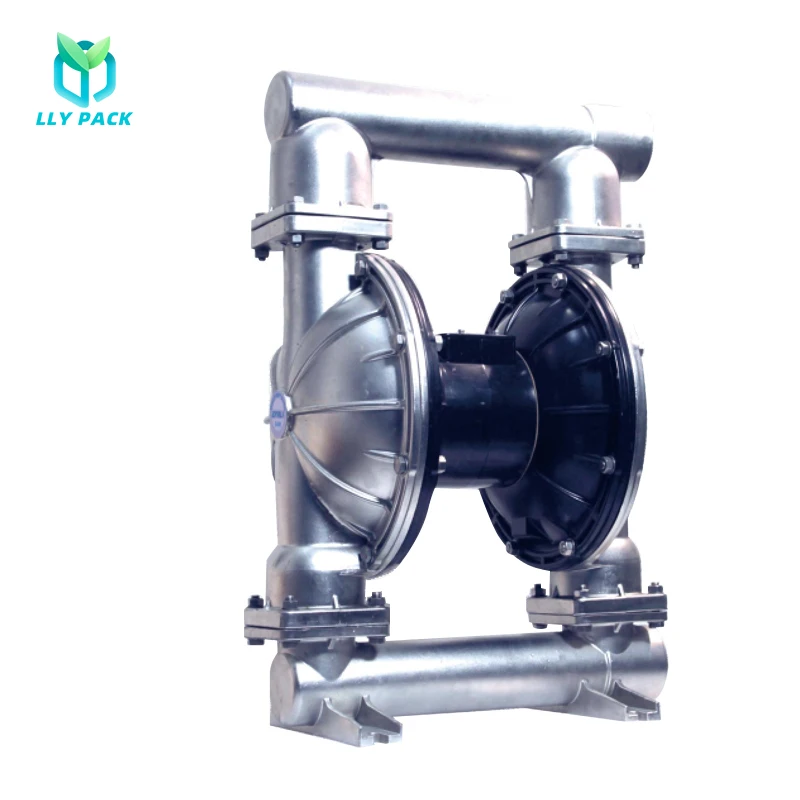

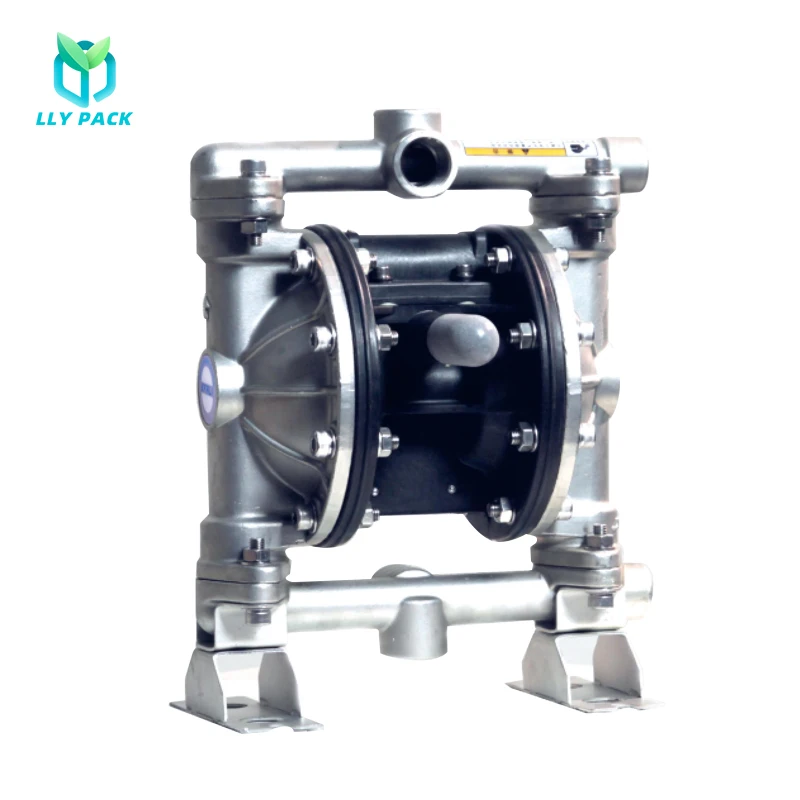

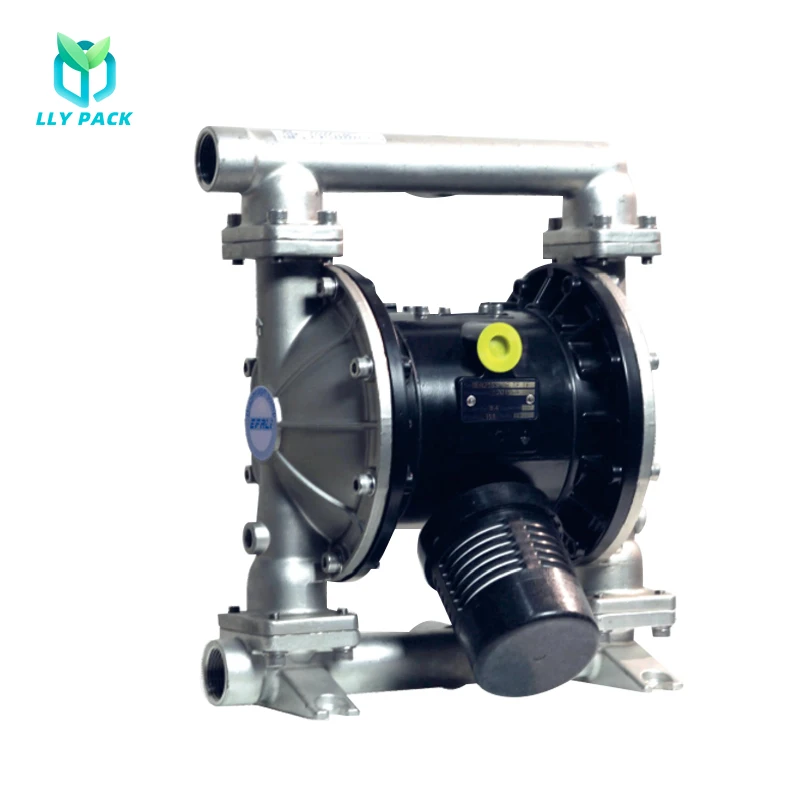

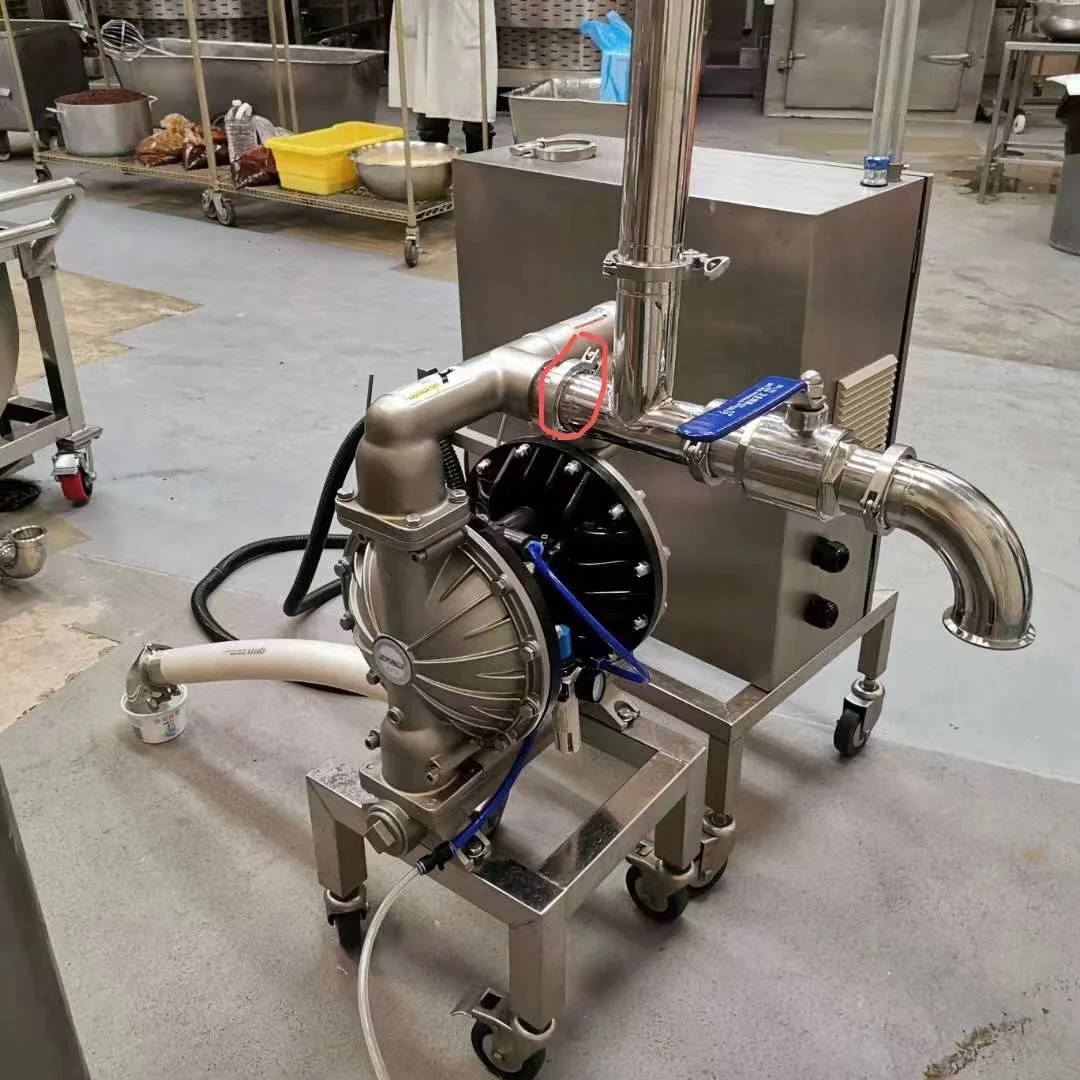

Provide Various Styles of Stainless Steel Pneumatic Diaphragm Pumps

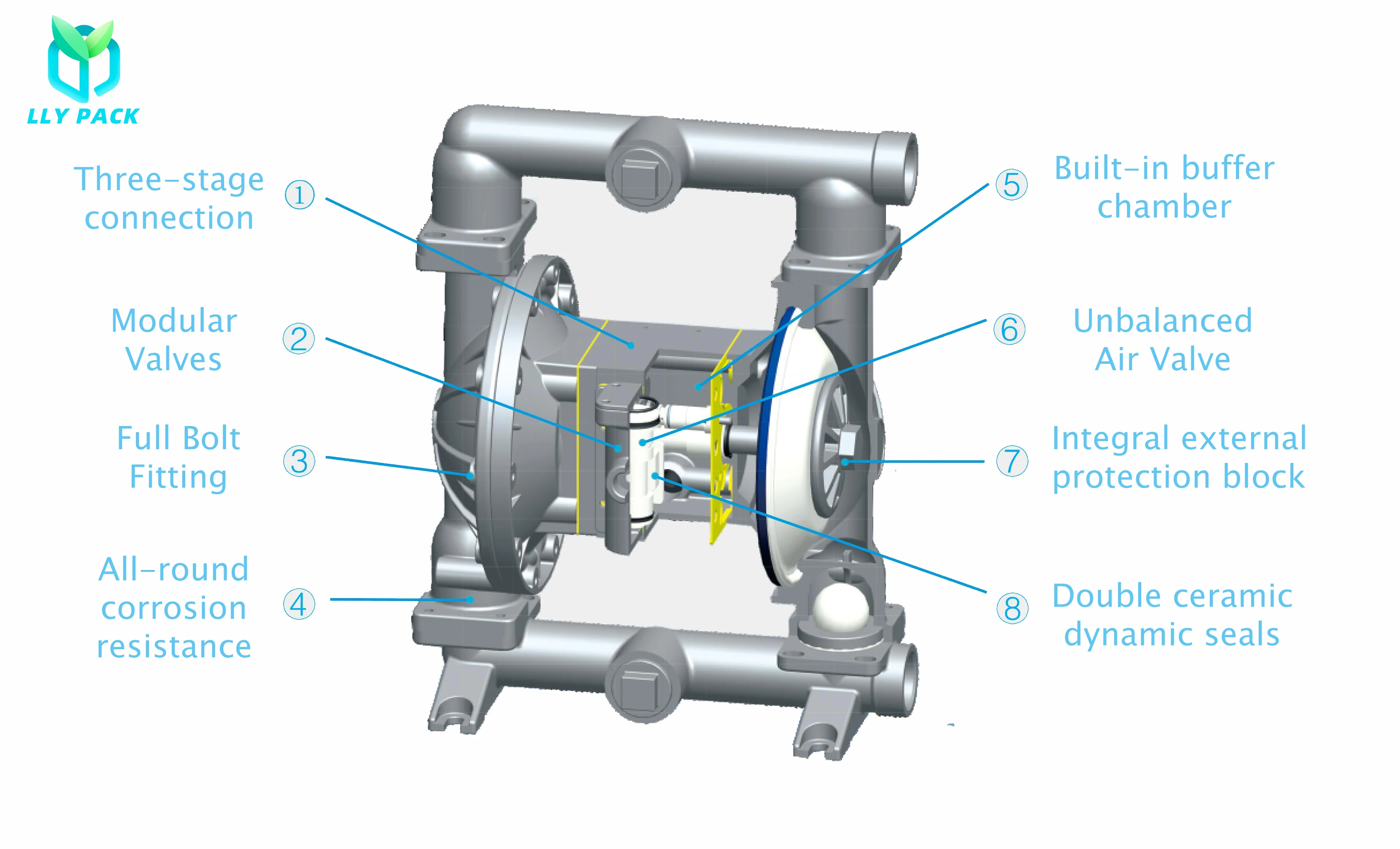

Product Advantages:
1.Can be used for liquids containing particles, high viscosity liquids.
2.Fully self-priming, can idle and will not stop working.
3.Simple adjustment of delivery pressure.
4.Simple maintenance, perfect after-sales service network.
5.Outlet shut-off function: Simple and safe control of start, stop,
and spit flow adjustment can be realized by just switching operation of this valve.
6.Diaphragm pumps are safe and explosion-proof fluid transfer equipment.
Product Paramenters

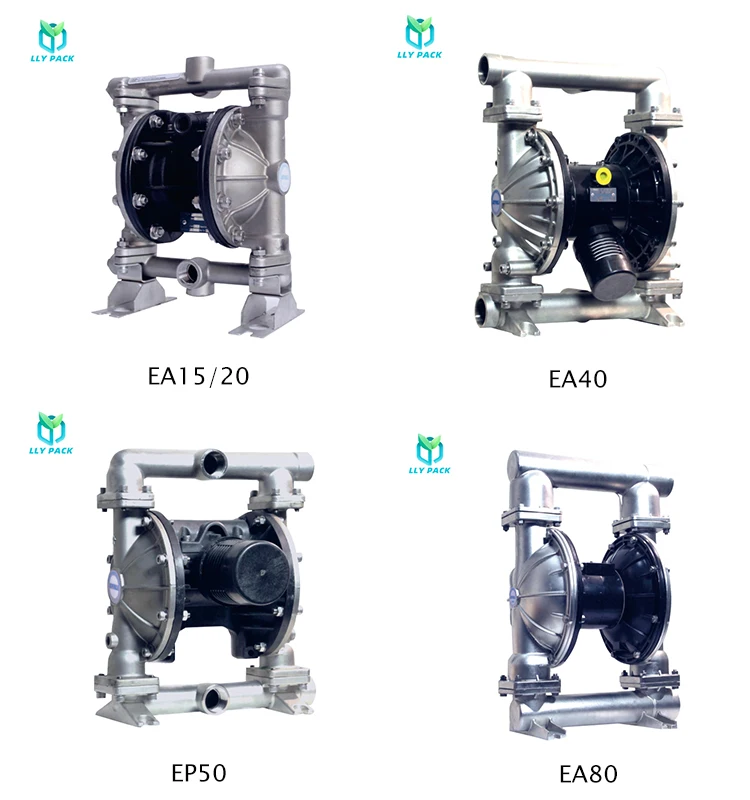

Model | EP/EA/06/10 | EP/EA/15/20 | EP/EA25 | EP/EA40 | EP/EA50 | EP/EA80 |
Maximum Head | 70m | 84m | 84m | 84m | 84m | 84m |
Maximum Suction Range:dry suction | 2.5m | 4m | 4m | 5m | 5m | 5m |
Maximum Suction Range:wet suction | 4.4m | 7.6m | 8m | 8m | 8m | 8m |
Maximum Passing Particle: Diameter | 1.5mm | 2.5mm | 4mm | 5mm | 6mm | 9.4mm |
Compressed Air Inlet | 1/4" | 3/8“ | 1/2" | 1/2" | 1/2" | 3/4" |
Maximum Flow to | 4.7GPM(18LPM) | 14.9GPM(57LPM) | 41.0GPM(157LPM) | 93.6GPM(358LPM) | 153.5GPM(587LPM) | 261.5GPM(1000LPM) |
Max. Working Pressure | 102PSI(7.0BAR) | 122PSI(8.4BAR) | 122PSI(8.4BAR) | 122PSI(8.4BAR) | 122PSI(8.4BAR) | 122PSI(8.4BAR) |
Versatile and used in many industries.
Chemical industry：
Acids, alkalis, solvents, suspensions, dispersions, etc.
Coating industry：
Resins, solvents, colorants, paints, etc.
Packaging industry：
Binder, sulfuric acid, plating solution, water-based glue, oil-based glue, UV glue, corrugated cardboard glue etc.
Food industry:
Liquid semi-solid, brine, syrup, vinegar, soybean oil, vegetable oil, honey, animal blood, etc.
Pharmaceutical industry:
Solvents, acids and bases, plant extracts, ointments, plasma, etc.
New energy industry:
Lithium battery materials, raw materials, positive electrode materials, negative electrode materials, waste water, waste liquid, etc.
Ceramics industry:
Mud slurry, porcelain slurry, lime slurry, clay slurry, etc.
Water treatment:
Lime slurry, sewage, soft sediments, chemicals, wastewater, etc.
Daily chemical industry:
Detergents, shampoos, lotions, emulsions, hand creams, surface activators, etc.
Company Profile
⭐A state-of-the art factory with a total area of 57,000 square meter.
⭐Having 4 sets of advanced CNC center, from OKUMA, Japan, Mitshibishi, Japan and Toshiba, Japan. ⭐ Over 24 years experience specialized in manufacturing corrugated machines and spare parts
Certifications
⭐More than 100 patent right and certificates from the industry.
Exhibition

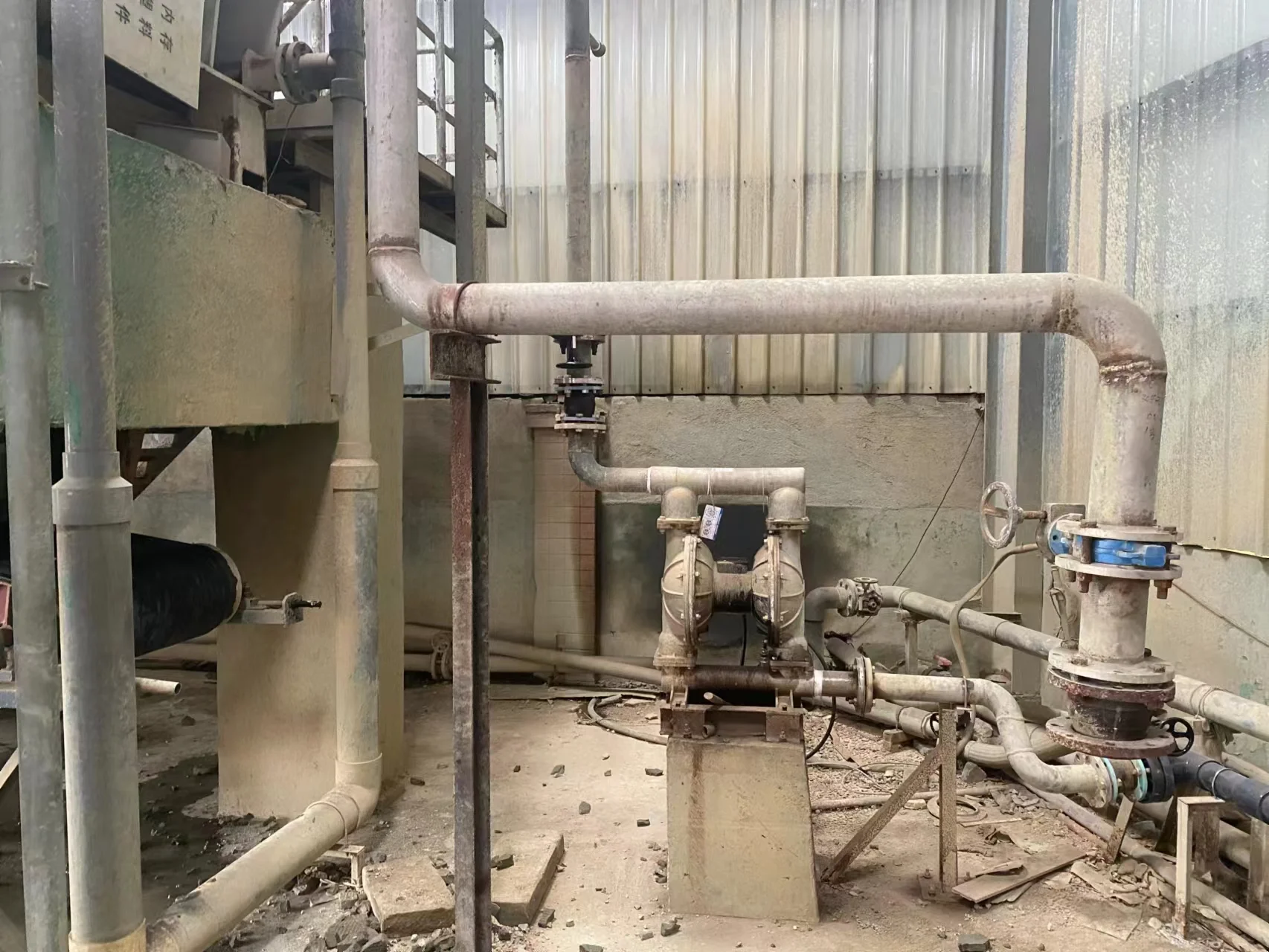

Customer Cases
⭐Our machines have been export to over 40 countries.
⭐So far, we are having more than 3500 sucessful installations of corrugated line all over the world.
⭐So far, we are having more than 3500 sucessful installations of corrugated line all over the world.
Customers Feedback
⭐Reliable Delivery and Quality ensured
⭐We pursuit“Win-Win cooperation
FAQ
Q1: Where is your company?
A: Our factory is located in Foshan City, Guangdong Province, China.
A: Our factory is located in Foshan City, Guangdong Province, China.
Q2: How can i get a quotation?
A: You can send us inquiry directly! We will reply you ASAP!
A: You can send us inquiry directly! We will reply you ASAP!
Q3: How about the after-sale service?
For most of machines, engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
One year warranty period under normal use for most of machines.
For most of machines, engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
One year warranty period under normal use for most of machines.
